Allgreen Solar-Powered LED Street Lighting Agss09 OEM/ODM Sample Freely Provided with Type II Light Pattern and Adjustable Operating Modes for Street

1 / 5

Allgreen Solar-Powered LED Street Lighting Agss09 OEM/ODM Sample Freely Provided with Type II Light Pattern and Adjustable Operating Modes for Street

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

⚙️ Basic Specifications

Model NO.

AGSS0903

Light Source

LED Lamp

Body Material

Aluminum Alloy

Light Type

Solar

Color Temp

2700-6500K

Power

50W

Cell Type

LiFePO4

Charging Time

6 Hours

IP Rating

IP66

Efficiency

up to 200lm/W

💡 Product Overview

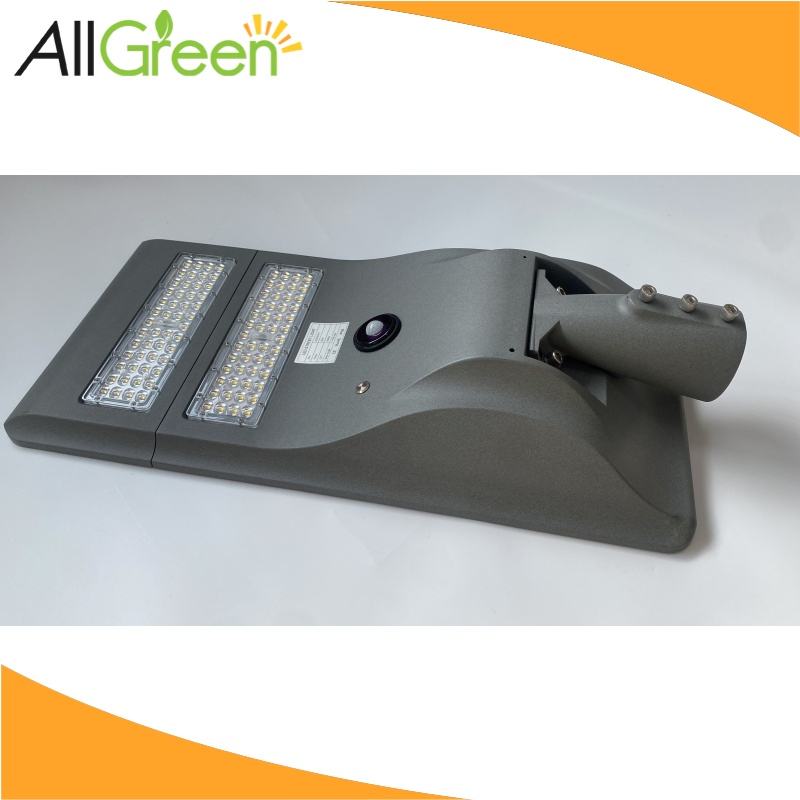

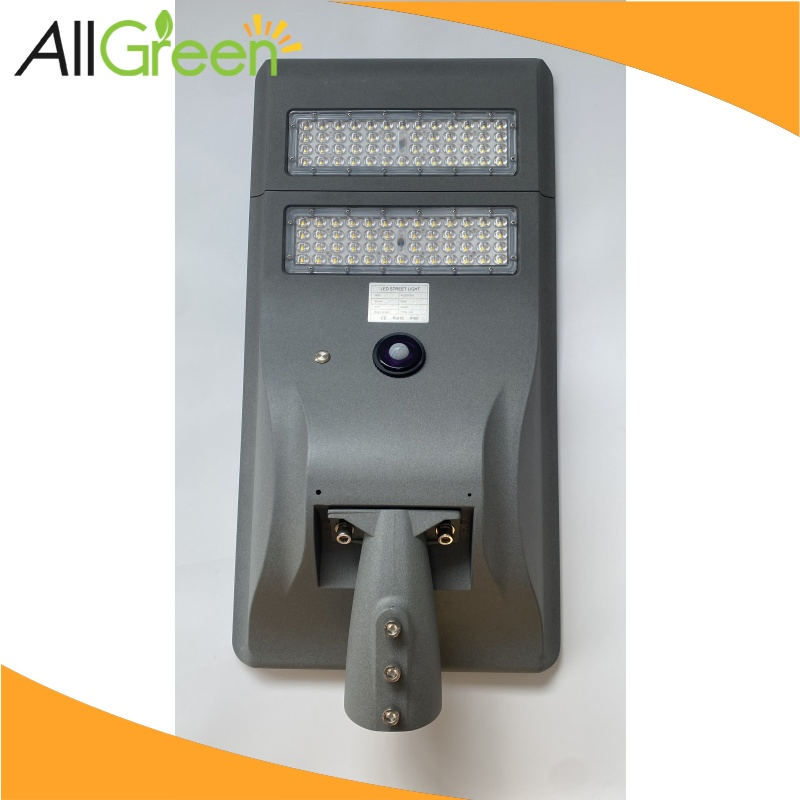

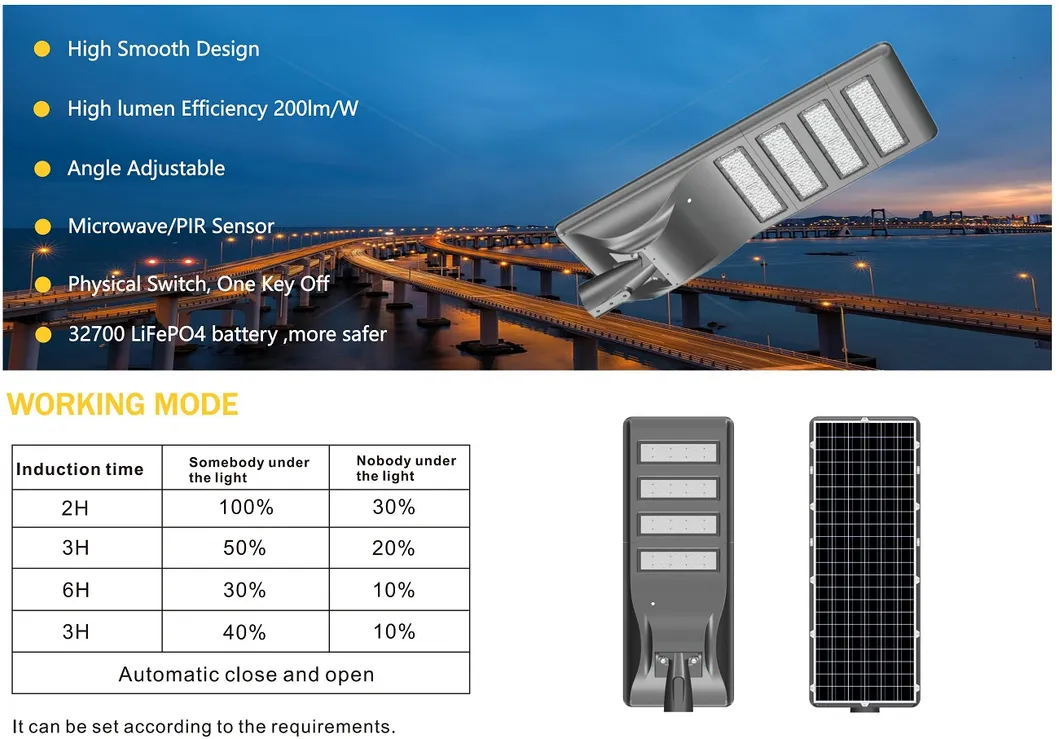

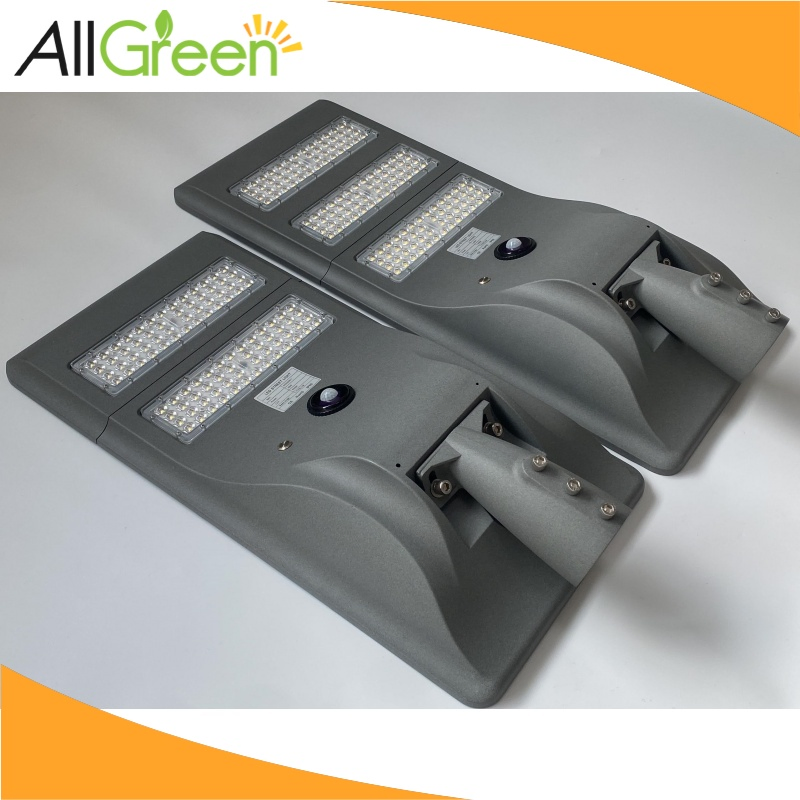

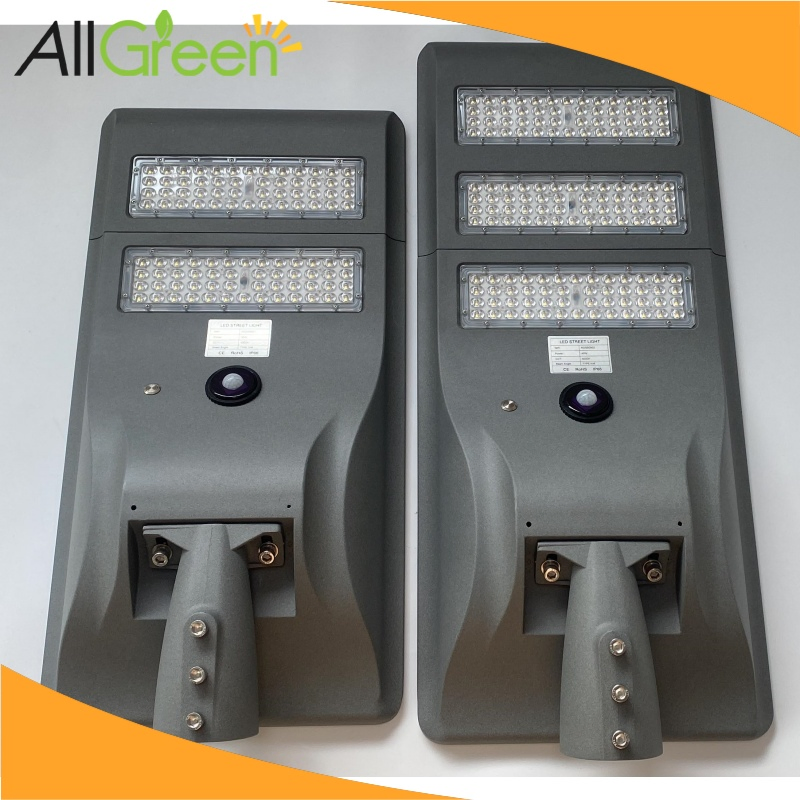

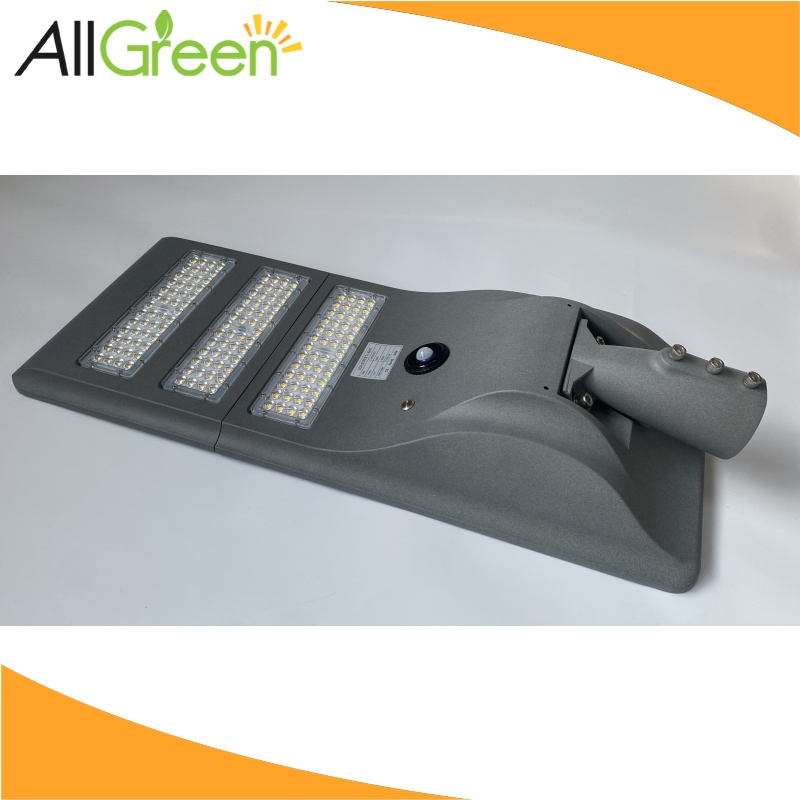

Solar-Powered LED Street Light with Type II Light Pattern

High capacity LiFePO4 lithium battery: long life, light weight, and environmentally friendly.
Imported LED chip with extreme efficiency up to 230LM/W (whole lamp up to 210LM/W).
Advanced MPPT/PWM controller increasing charging efficiency by 15%-30%.
High-efficiency monocrystalline solar cells (>22% conversion rate).
Modular design for easy installation and maintenance without cable wiring.

MODEL	AGSS0901	AGSS0902	AGSS0903	AGSS0904	AGSS0905
Power	30W	40W	50W	60W	80W
Flux (Max)	6000lm	8000lm	10000lm	12000lm	16000lm
Battery	12.8V 18AH	12.8V 24AH	12.8V 30AH	12.8V 36AH	12.8V 42AH
Solar Panel	18V 50W	18V 60W	18V 70W	18V 80W	18V 90W
Working Time	2~3 days (Auto control by sensor)

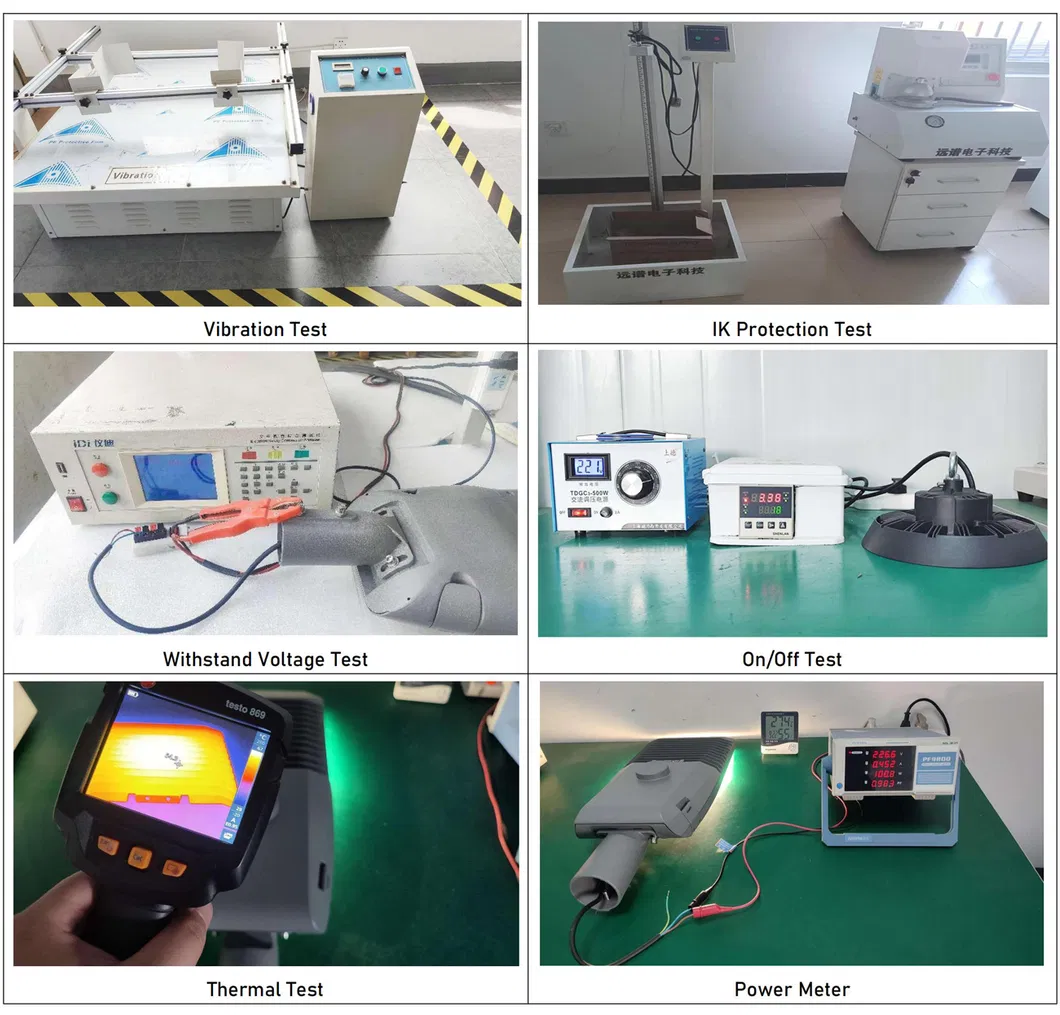

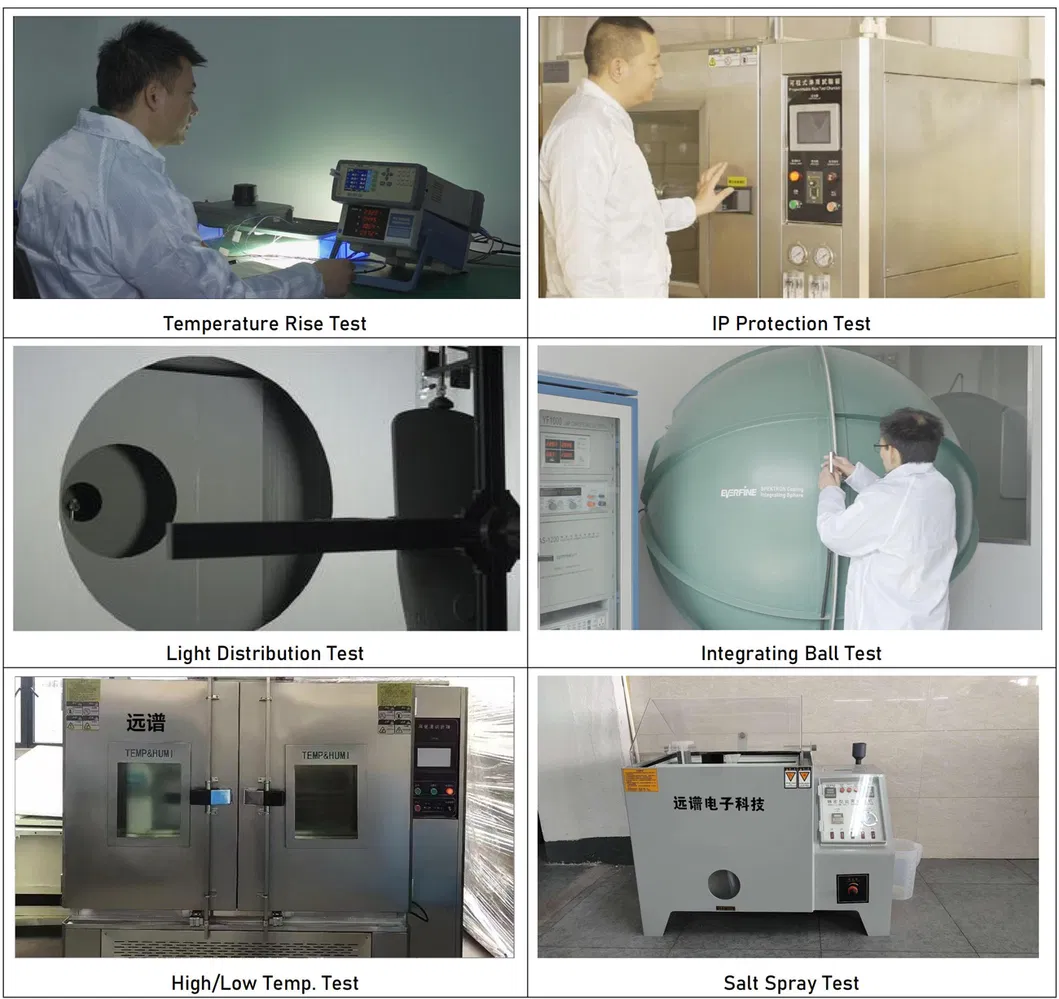

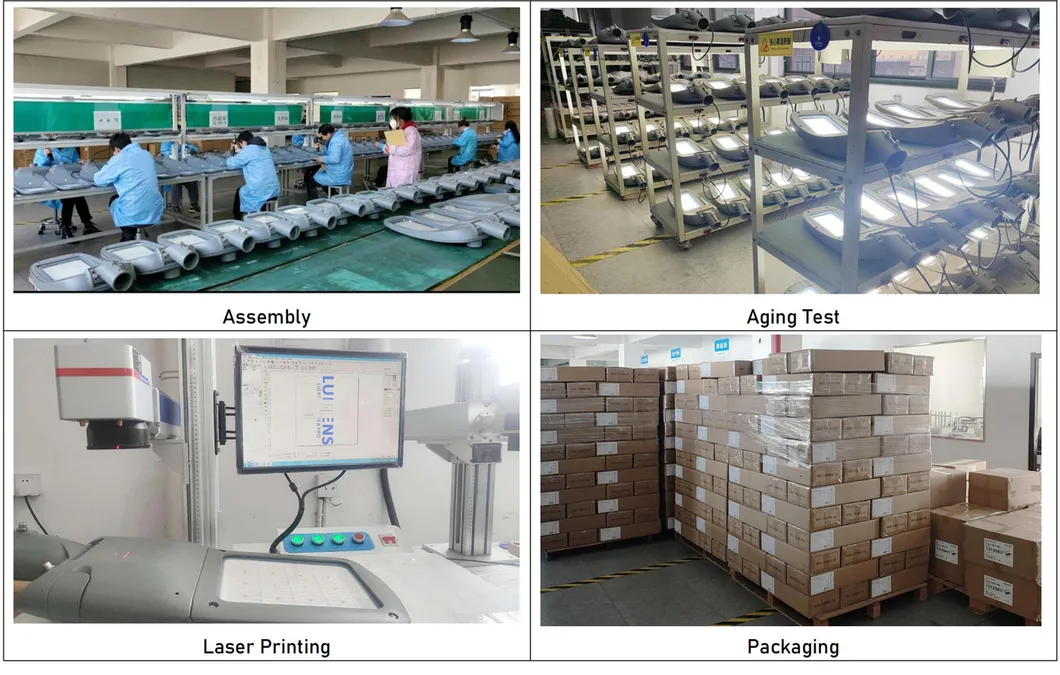

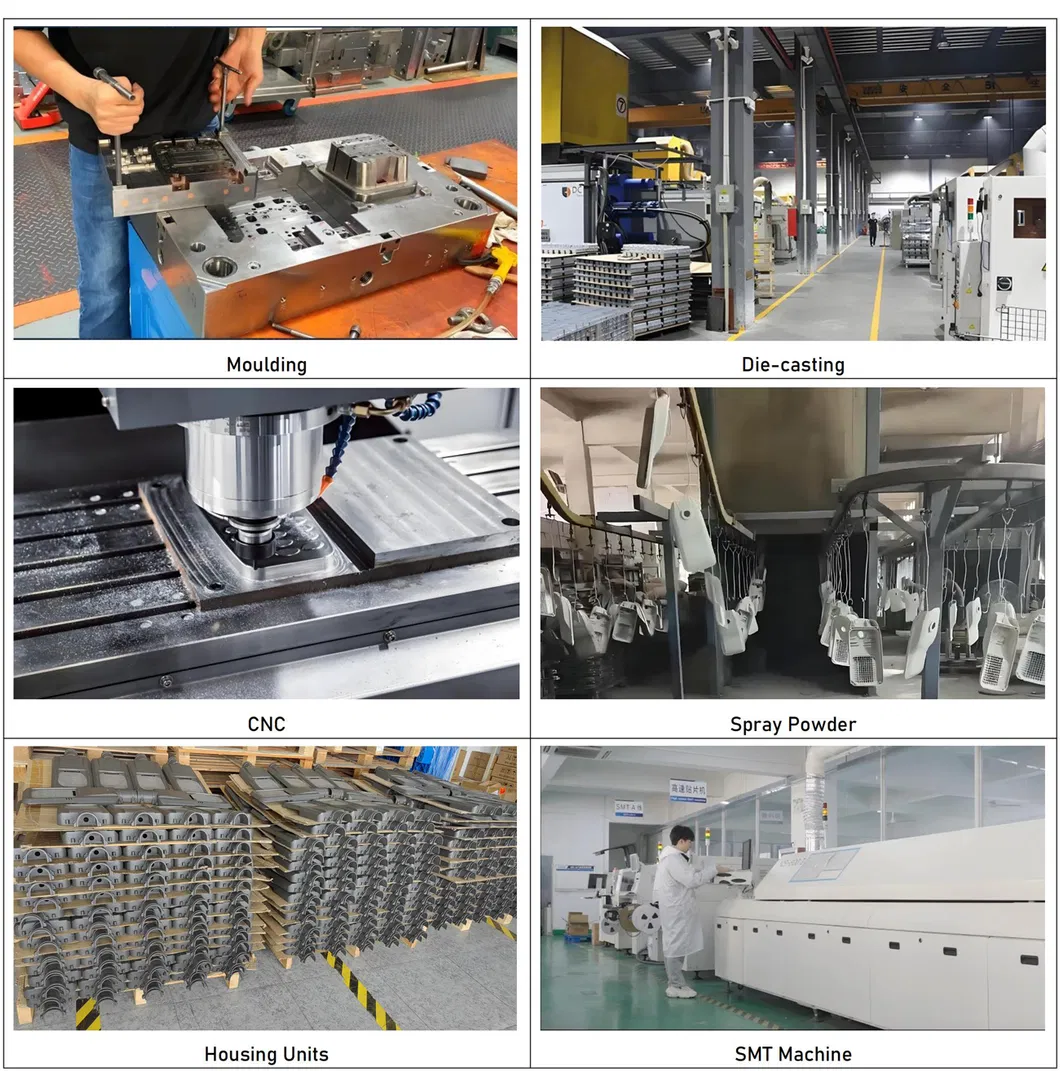

🏭 Workshop & Quality Control

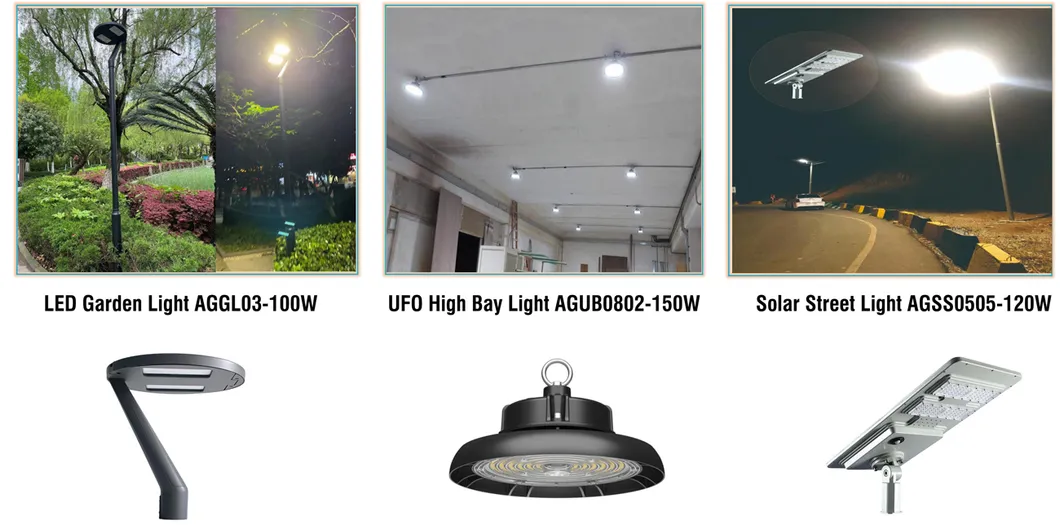

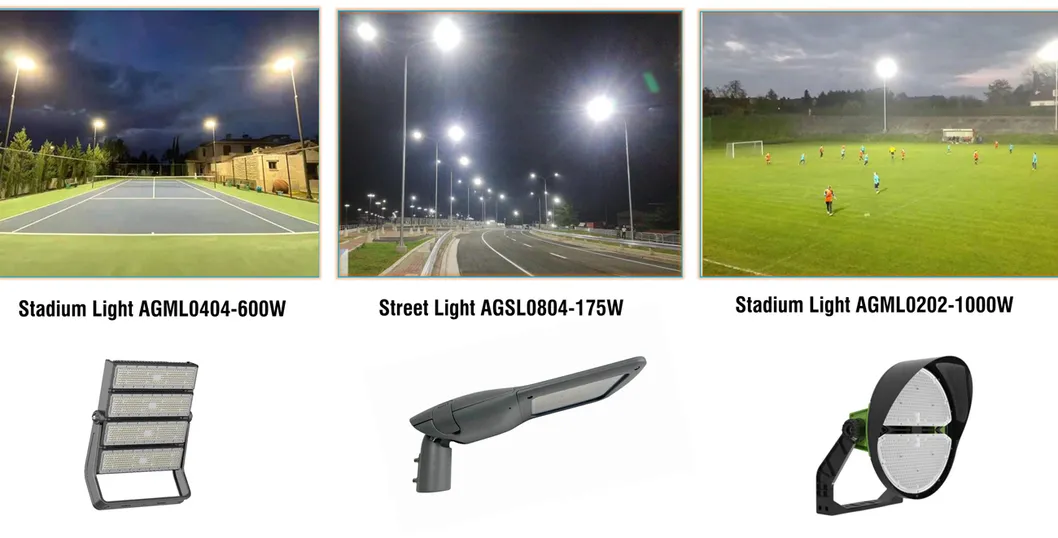

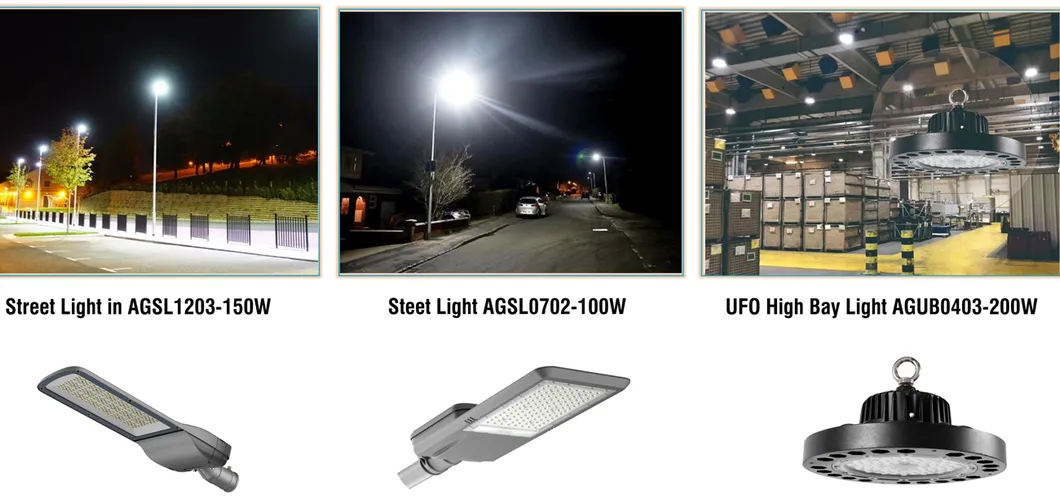

🌍 Project Showcases

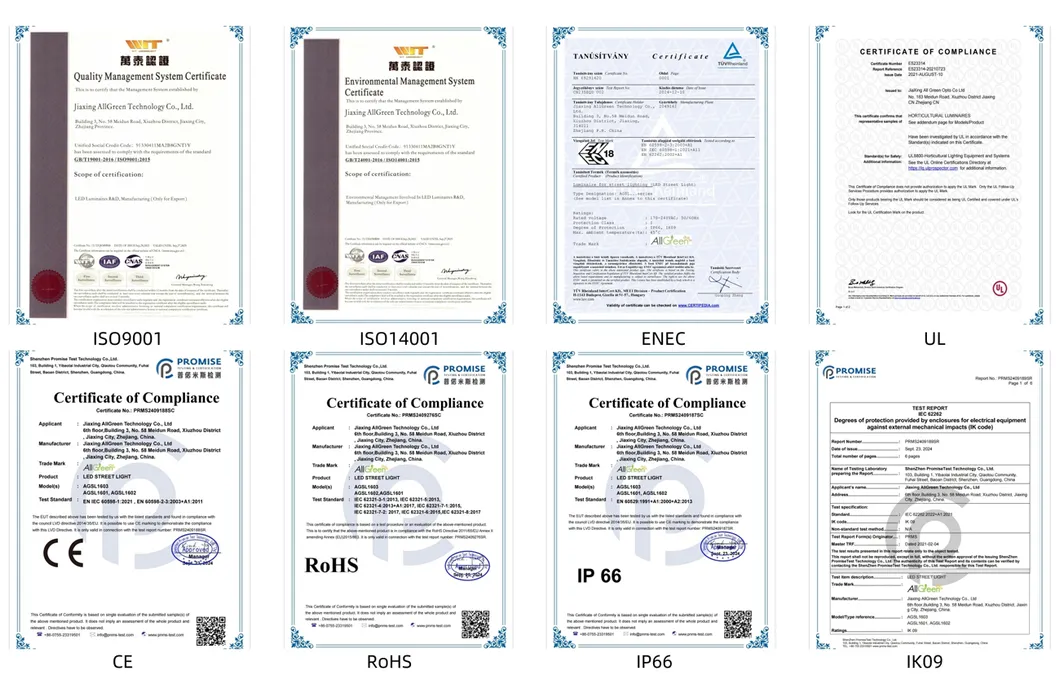

📦 Packaging & Certification

Frequently Asked Questions

Q1: What type of battery is used in these solar street lights? A: We use high-capacity LiFePO4 (Lithium Iron Phosphate) batteries, which offer high energy density, a long lifespan of over 5-8 years, and are environmentally safe.

Q2: How long does the light operate on a single charge? A: With a full charge (approx. 6 hours of effective sunlight), the light can operate for 2-3 consecutive rainy days thanks to the intelligent sensor control and high-capacity battery.

Q3: What is the benefit of the MPPT controller? A: The MPPT (Maximum Power Point Tracking) controller increases charging efficiency by 15%-30% compared to standard PWM controllers, ensuring the battery charges faster even in low-light conditions.

Q4: Is the installation complicated? A: No, the modular design allows for very simple installation. Since it is solar-powered, there is no need for underground cabling or complex wiring.

Q5: What is the luminous efficiency of the LEDs? A: The imported LED chips feature a high light efficiency of up to 230LM/W, with the entire luminaire system reaching an impressive 200-210LM/W.

Q6: Are these lights resistant to harsh weather? A: Yes, they are rated IP66 for water and dust resistance and IK08 for impact resistance, making them suitable for various outdoor environments.
