Atex Explosion Proof LED UFO High Bay Area Light Hanging Anti Explosion Lamp Industrial Platform Lighting LED Lighting for Zone 1 Zone 2

Still deciding? Get samples of $ !
Request Sample

Product Description

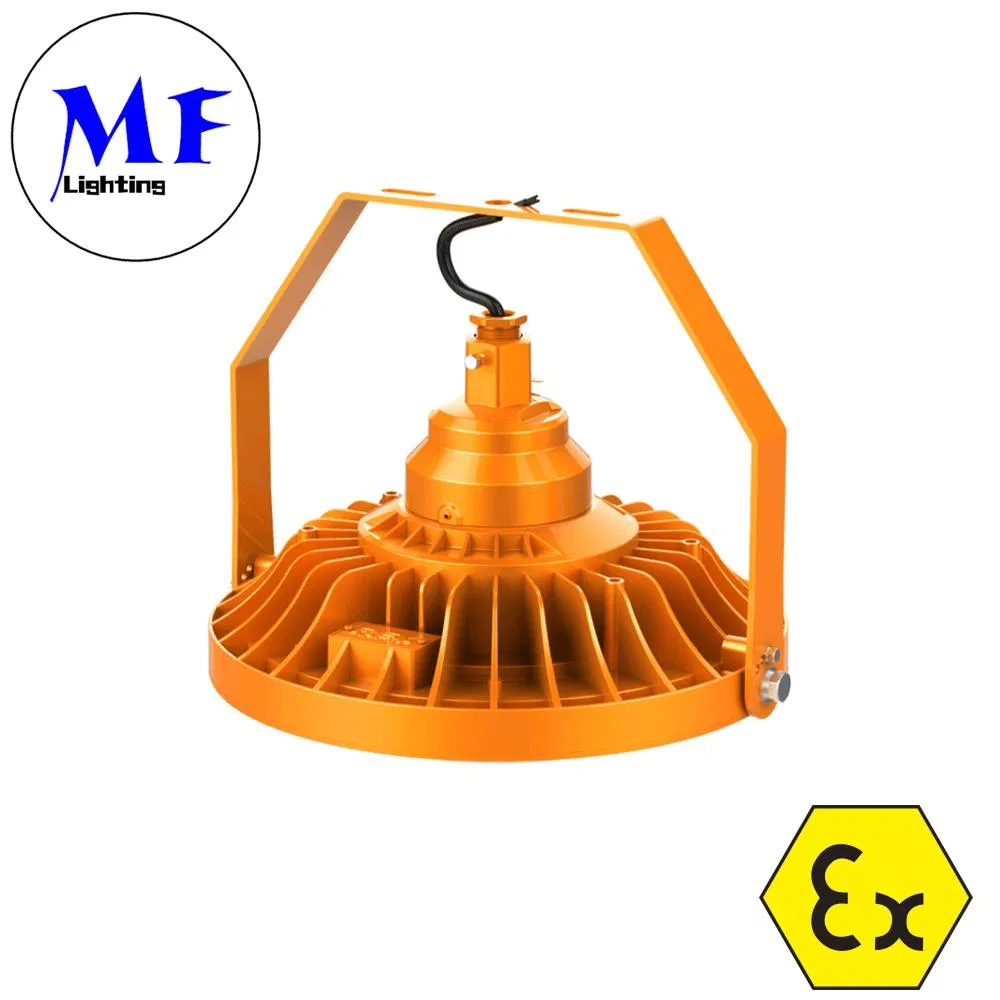

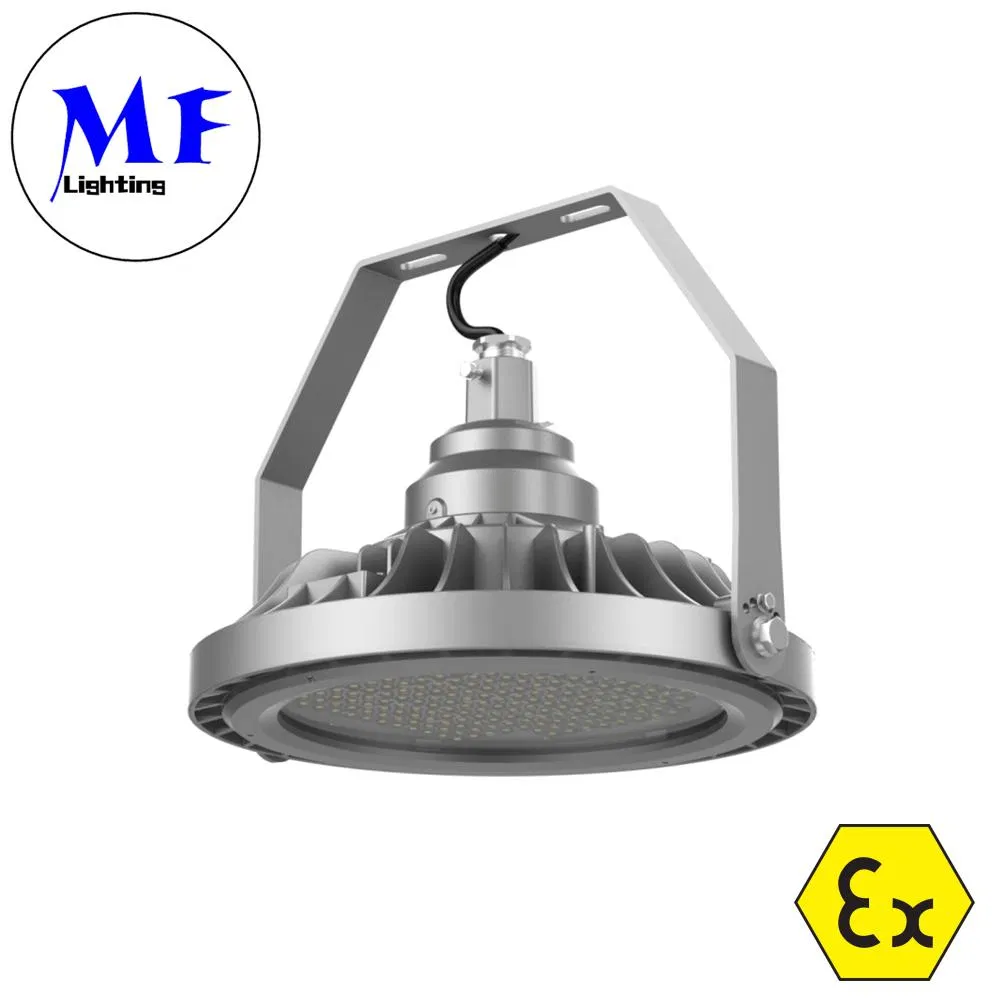

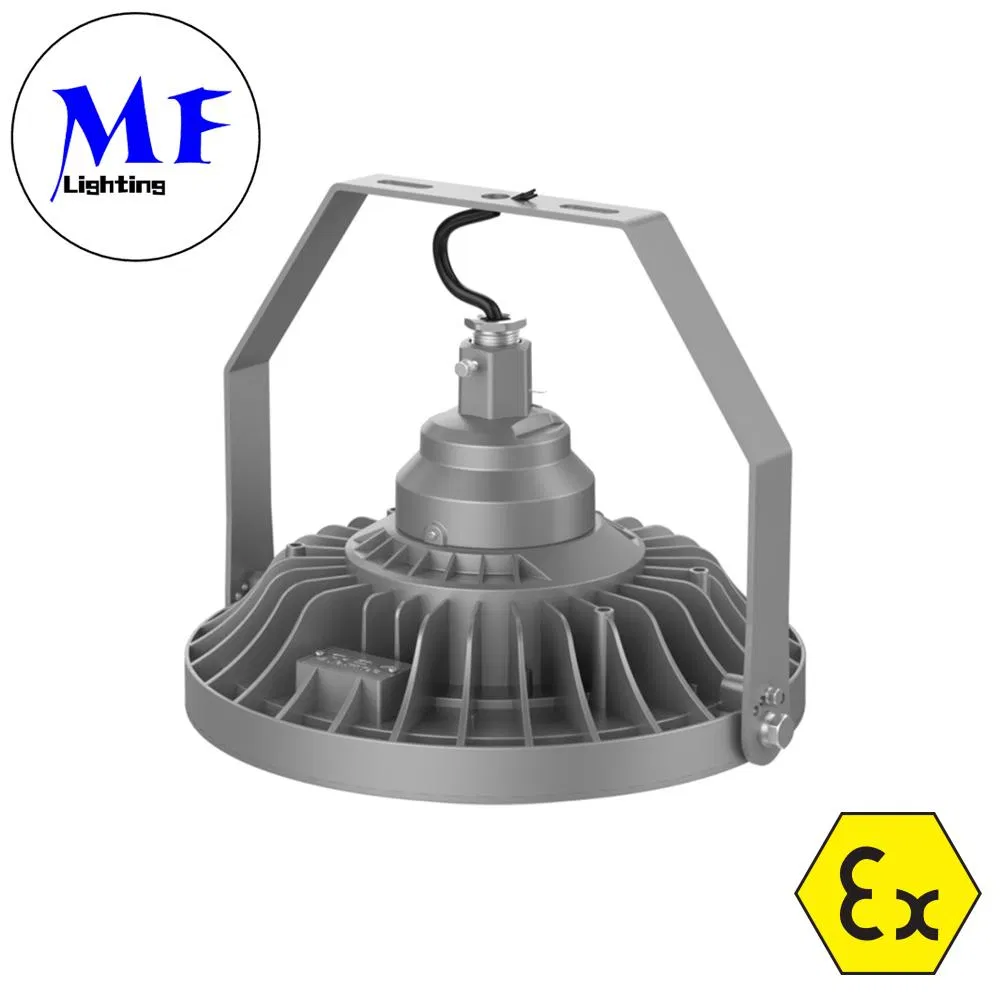

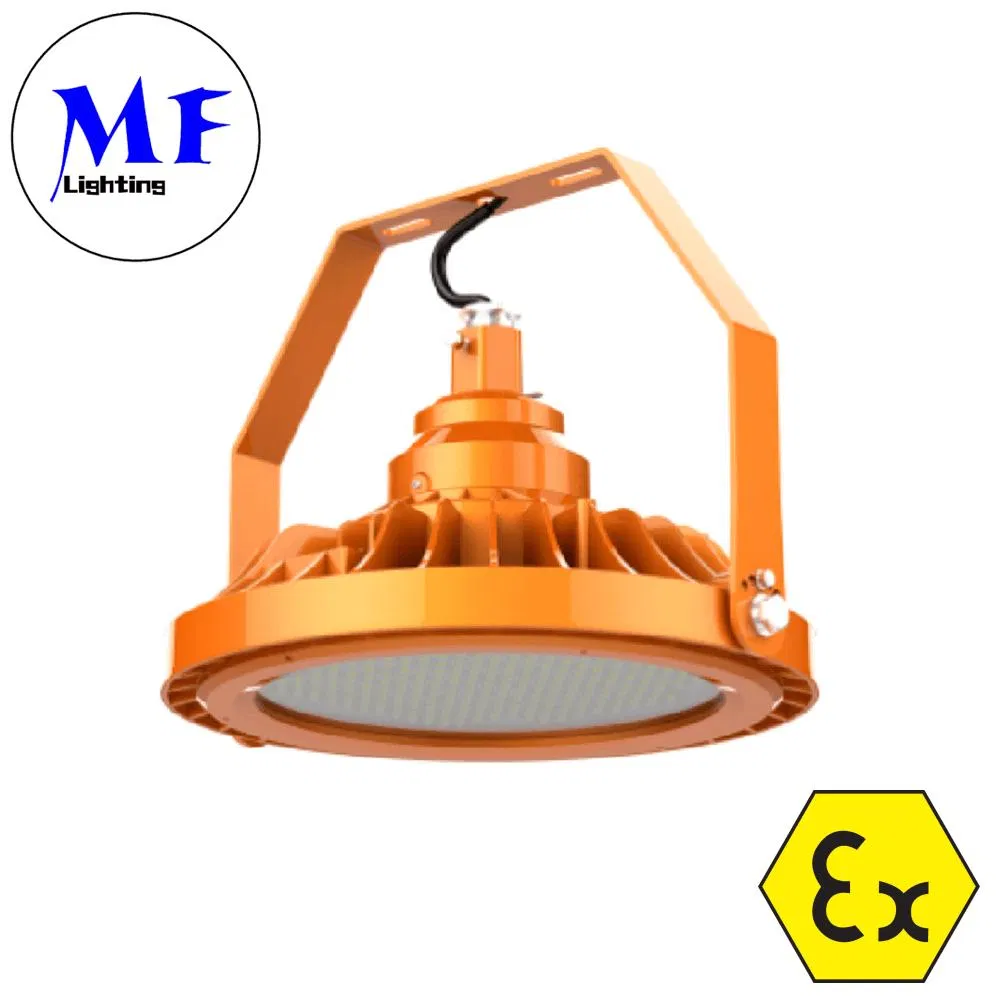

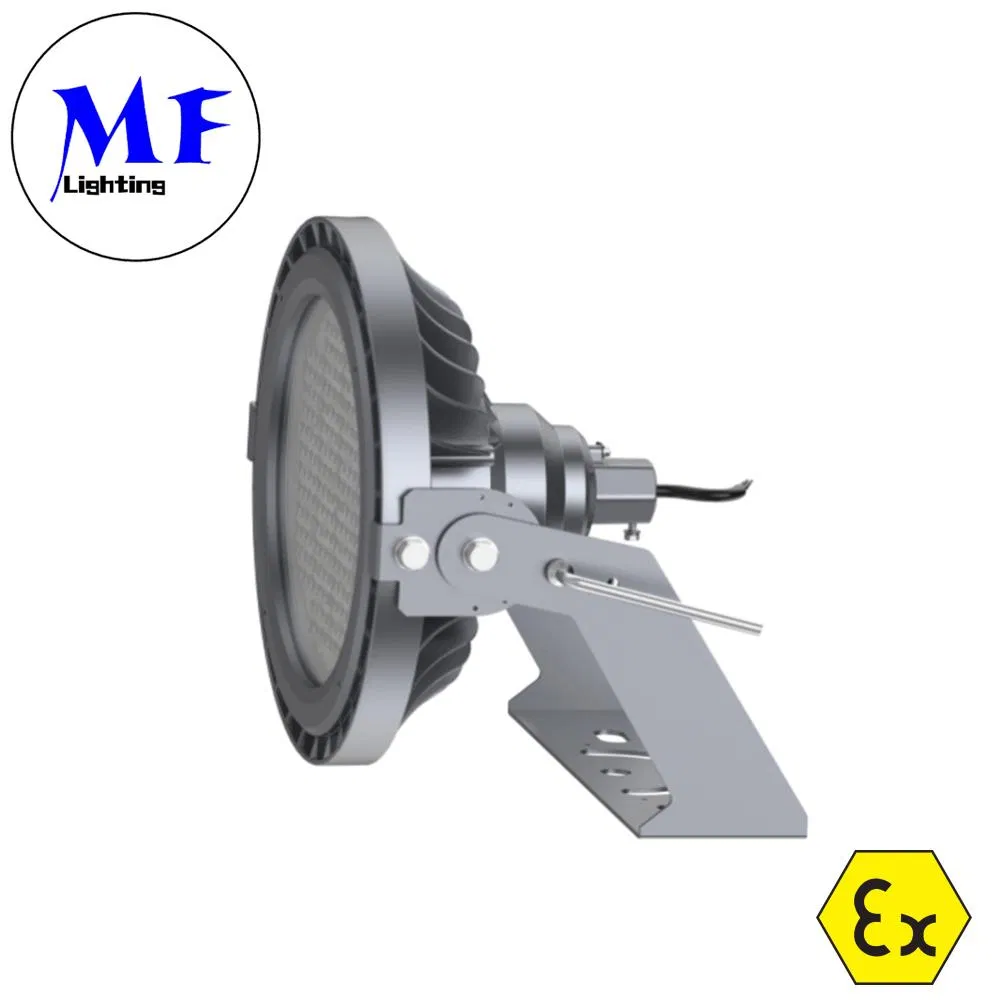

Atex Explosion Proof LED UFO High Bay

Atex Explosion Proof LED UFO High Bay Area Light Hanging Anti Explosion Lamp Industrial Platform Lighting LED Lighting for Zone 1 Zone 2

📋 Basic Specifications
Model NO.MF-EP01-XXW-G1 Input Voltage85-240V
Power Options60W - 200W Color Temp2700K-6000K
Luminous Flux140lm/W LED ChipsSosen
CertificationCCC, CE, EMC, ETL, LVD, RoHS, SAA, ATEX, Iecex IK RatingIk10
CRI80ra+ Beam Angle120°
MaterialDurable PC Body + Inner Aluminum Plate Warranty5 Years
Operating Temp-30~50℃ Housing ColorSilver/Orange
🛡️ Classifications & Ratings
Ratings
Hazardous Location Ratings:
  • • Class I, Division 1, Groups C, D
  • • Class I, Division 2, Groups A, B, C, D
  • • Class II, Division 2, Groups E, F, G
  • • Class III
  • • Zone 1, Zone 2, Zone 21, Zone 22, Zone 11
⚙️ Technical Data Sheet
Item Model Power Efficacy LED Source Weight Angle
MF-EP01-60W-G160W140Lm/WLumiled 30309.0kg120°
MF-EP01-80W-G180W140Lm/WLumiled 30309.0kg120°
MF-EP01-100W-G1100W140Lm/WLumiled 30309.0kg120°
MF-EP01-120W-G1120W140Lm/WLumiled 30309.0kg120°
MF-EP01-150W-G1150W140Lm/WLumiled 30309.0kg120°
MF-EP01-200W-G1200W140Lm/WLumiled 30309.0kg120°

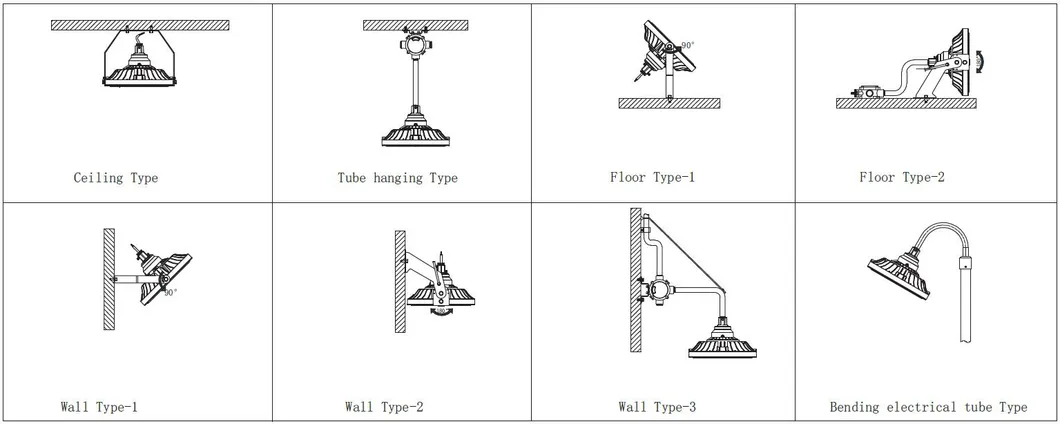

🔧 Installation Instructions
Installation

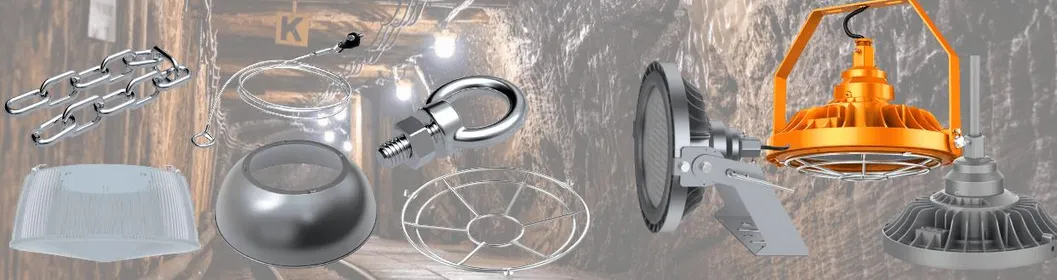

📸 Product Details & Accessories

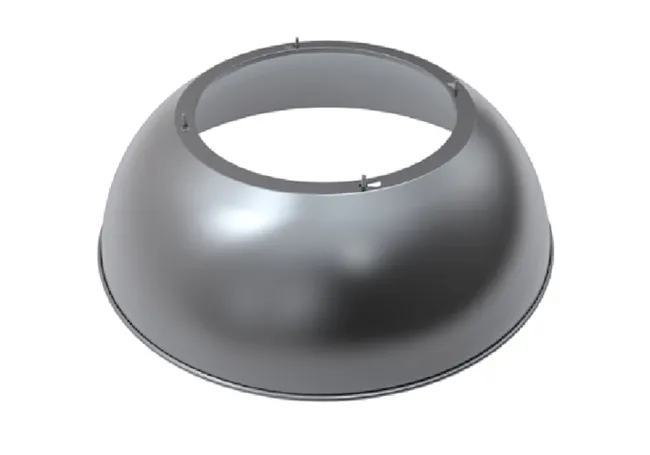

Alu Reflector

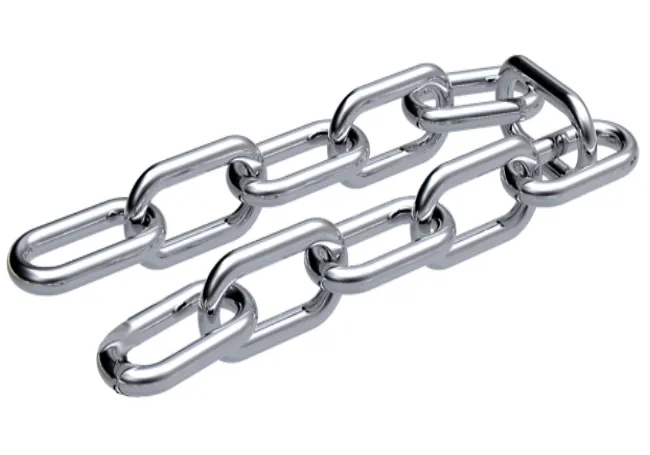

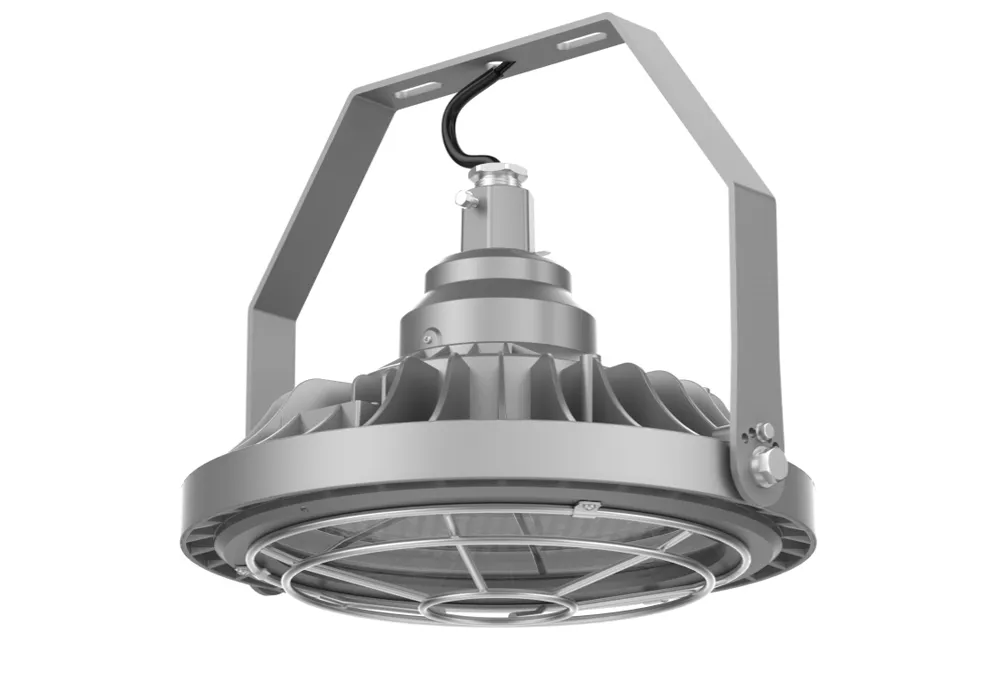

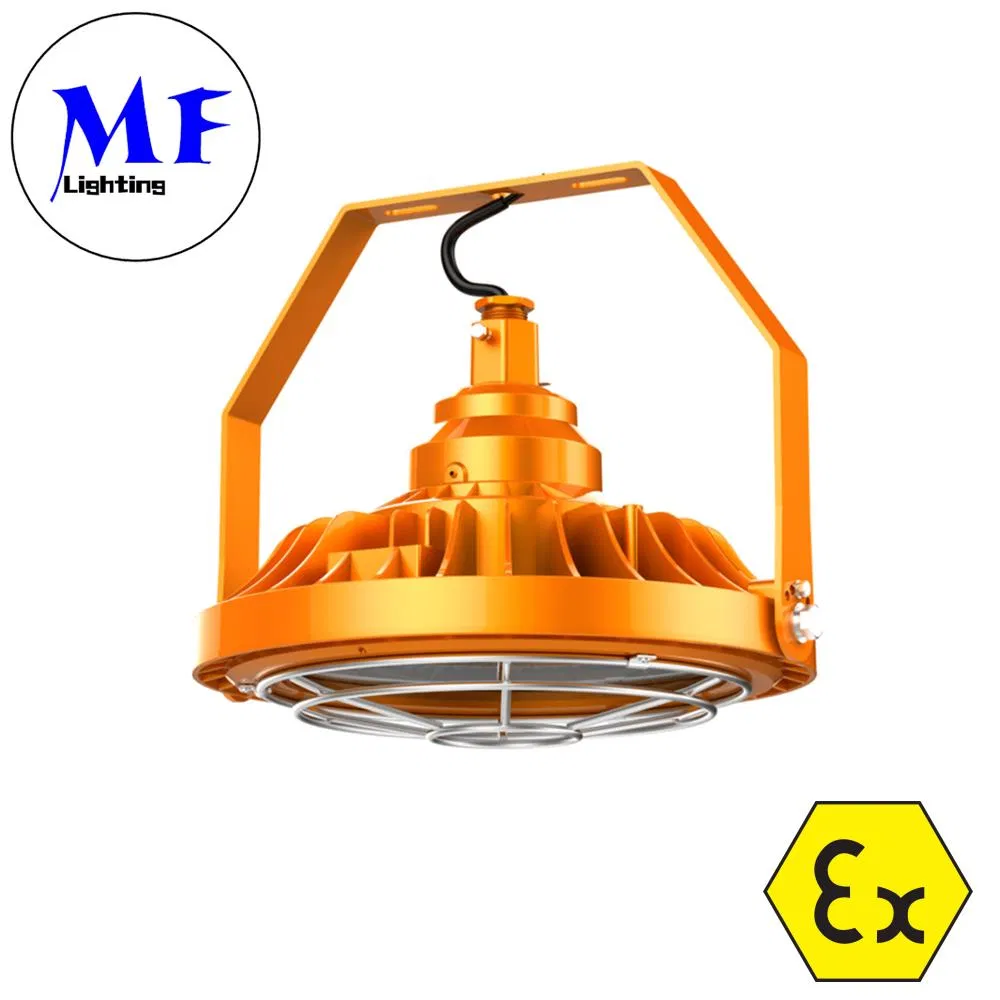

Chain & Impact Cover
PC Reflector
Safety Rope
USA Hook/EU Ring

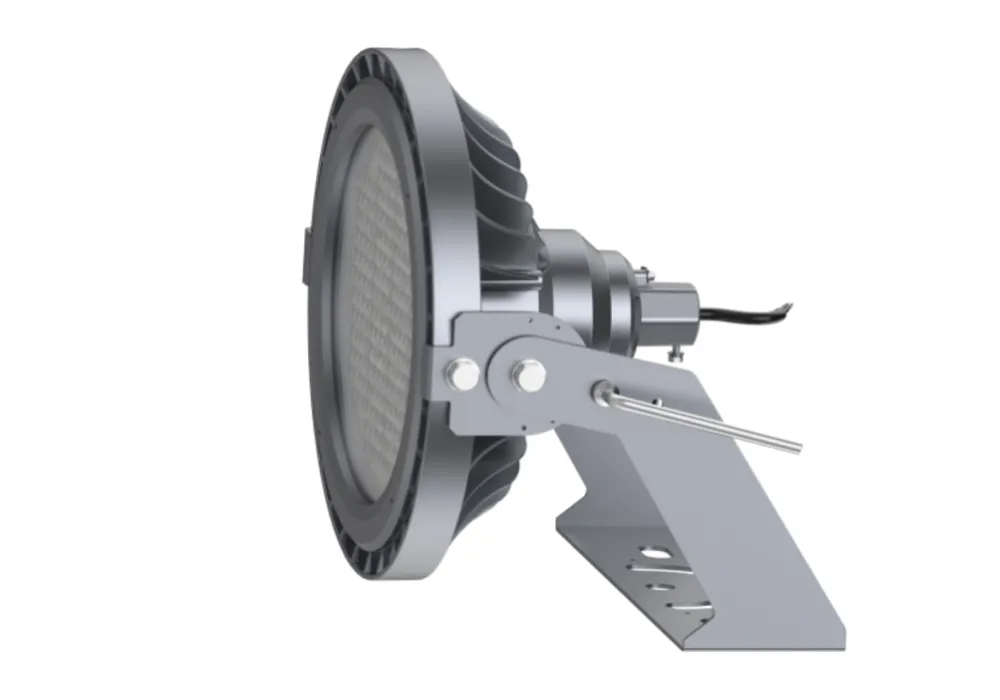

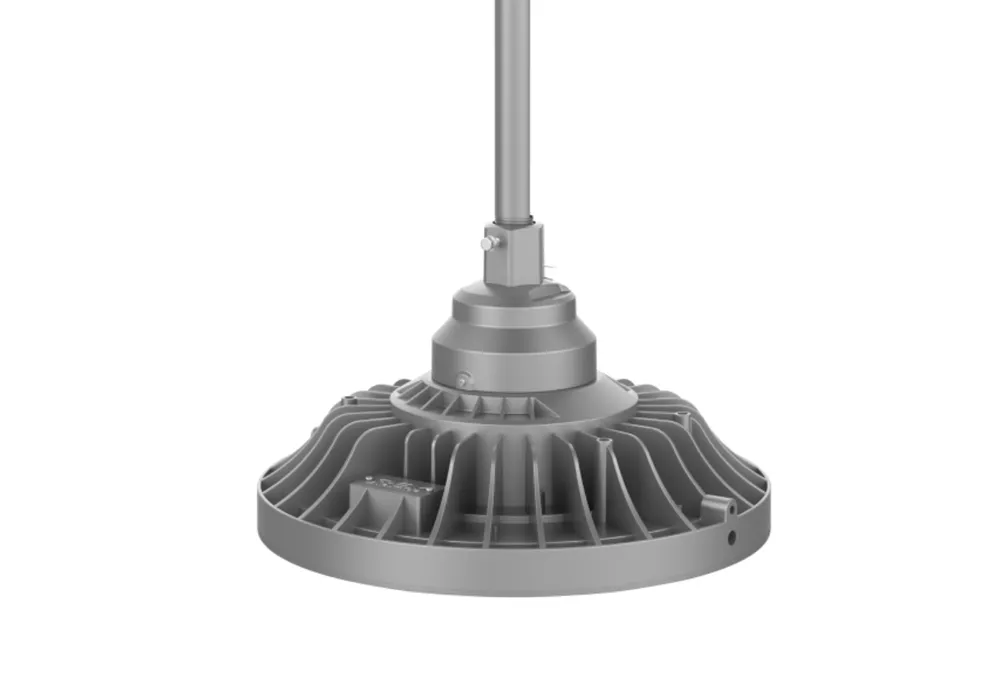

🎨 Model Options

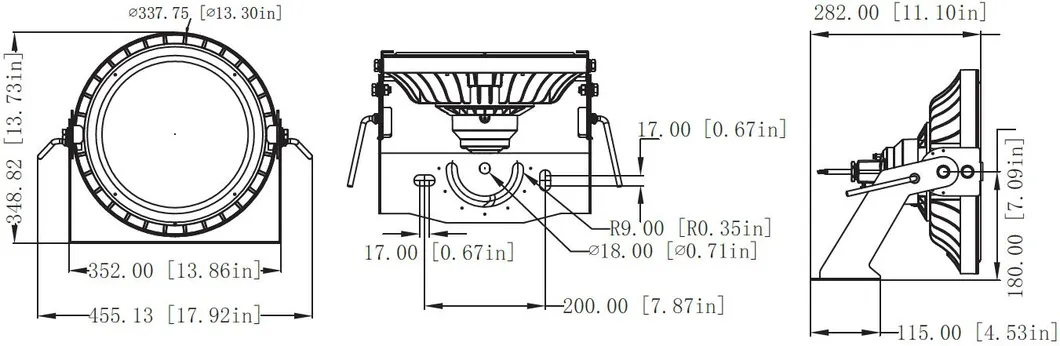

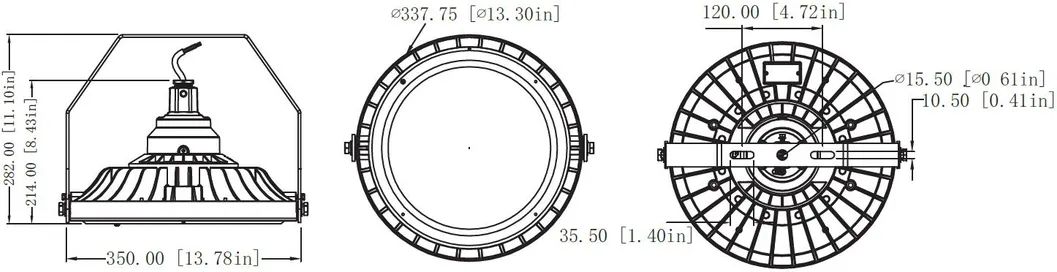

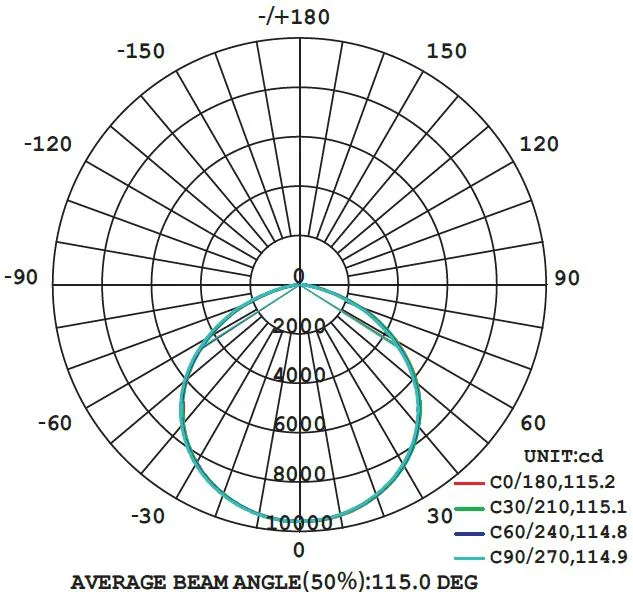

📐 Photometry & Dimensions
📦 Packaging & Shipping
Product Size Box Measurement Gross Weight Pcs/Box
Φ337.5*H200 mm L512*W432*H345 mm 10.0kg 1
Sea transportation / Air transportation / Rail transportation / International express
🏭 Typical Applications

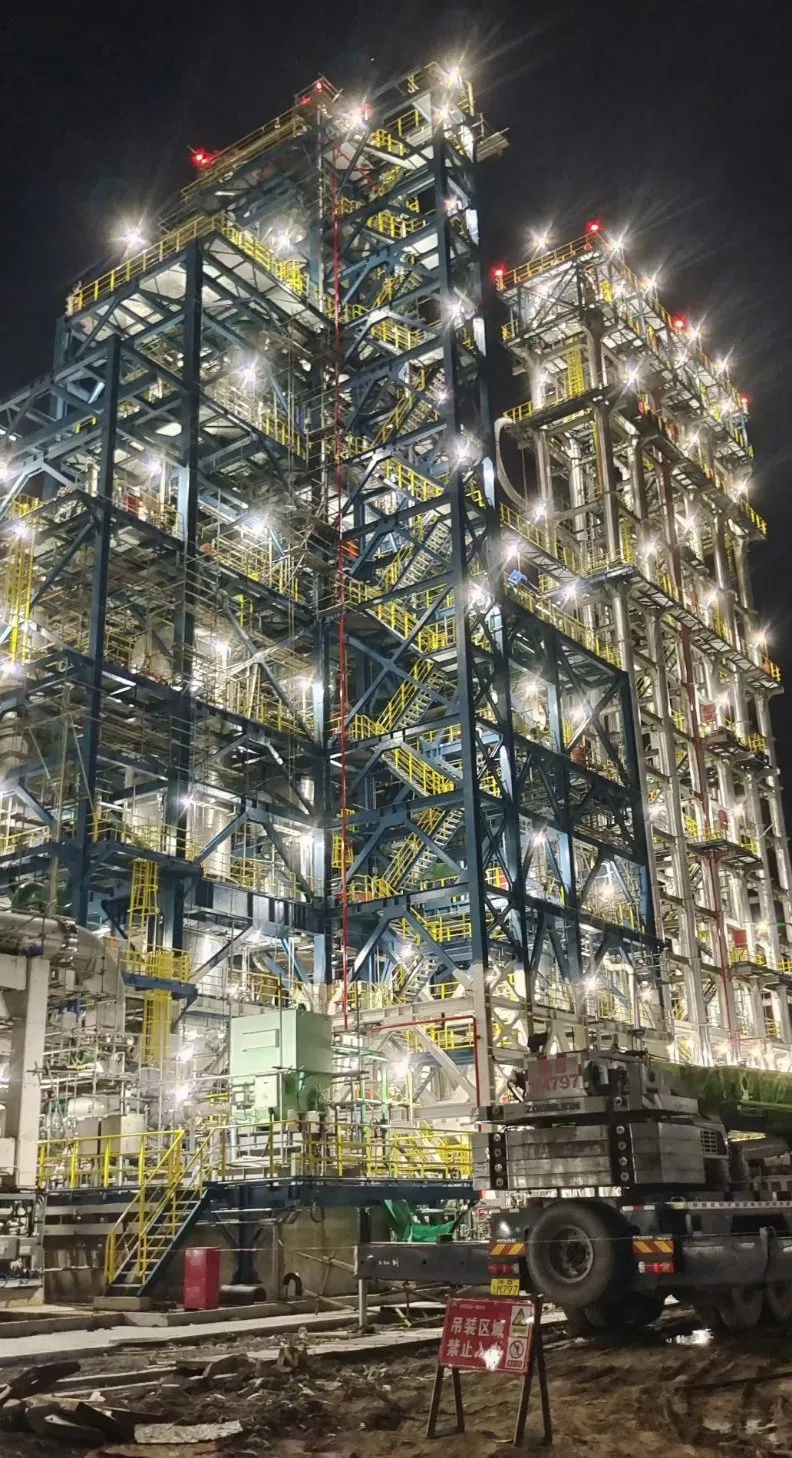

  • Refineries & Fuel Depots: Highly resistant to flammable gases and vapors.
  • Marine Vessels: Durable and long-lasting for harsh maritime environments.
  • Chemical Processing: Withstands corrosive chemicals and extreme conditions.
  • Food Processing: Moisture-resistant and stands up to high-pressure washdowns.

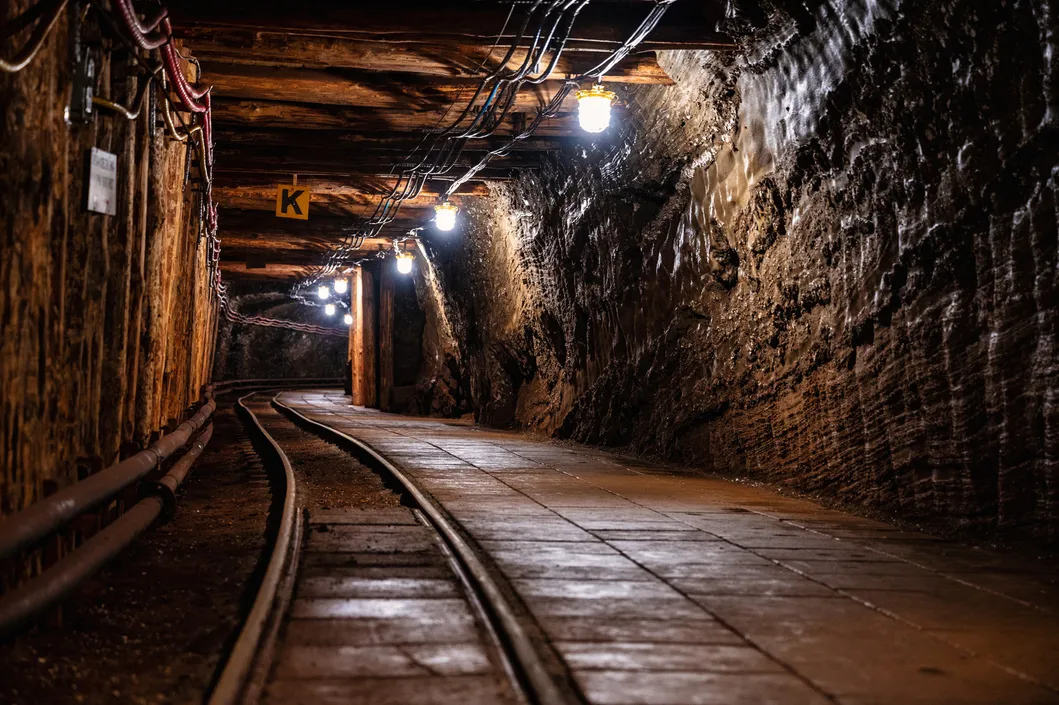

  • Mining: Robust design for underground mining operations.
  • Wineries: Flicker-free light essential for accurate color rendering.

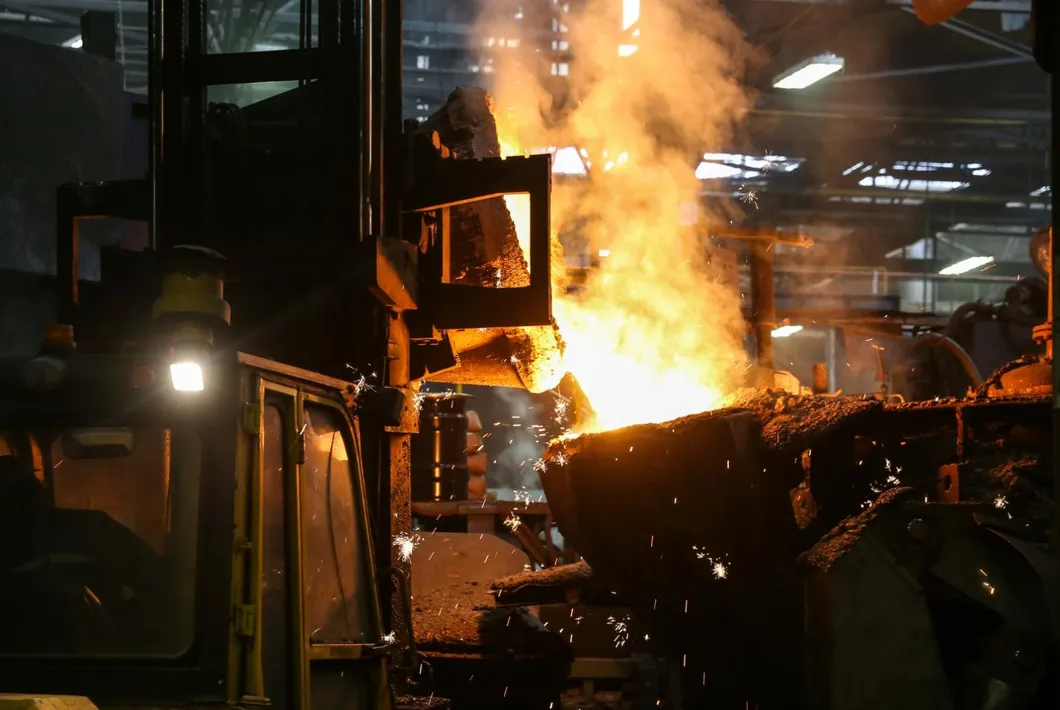

  • Hazardous Areas: Ideal for high humidity, dusty, or high-temperature locations.
❓ Frequently Asked Questions
Q1: What hazardous zones is this LED light suitable for?
A1: This explosion-proof light is certified for Zone 1, Zone 2, Zone 21, and Zone 22, making it ideal for Class I Division 1 & 2 environments.
Q2: What is the luminous efficacy of this UFO high bay light?
A2: The light provides a high efficacy of 140lm/W, ensuring bright and energy-efficient illumination for industrial platforms.
Q3: How durable is the housing material?
A3: It features a durable PC body with an inner aluminum plate and is IK10 rated for high impact resistance in harsh settings.
Q4: What is the warranty period for this industrial lighting?
A4: We provide a 5-year warranty for this product, covering standard operating conditions within -30℃ to 50℃.
Q5: Can this light be used in food processing or marine environments?
A5: Yes, it is moisture-resistant and can withstand high-pressure washdowns, making it perfect for food facilities and marine vessels.
Q6: What power options are available for the MF-EP01 series?
A6: The series offers a wide range of power options including 60W, 80W, 100W, 120W, 150W, 180W, and 200W.
