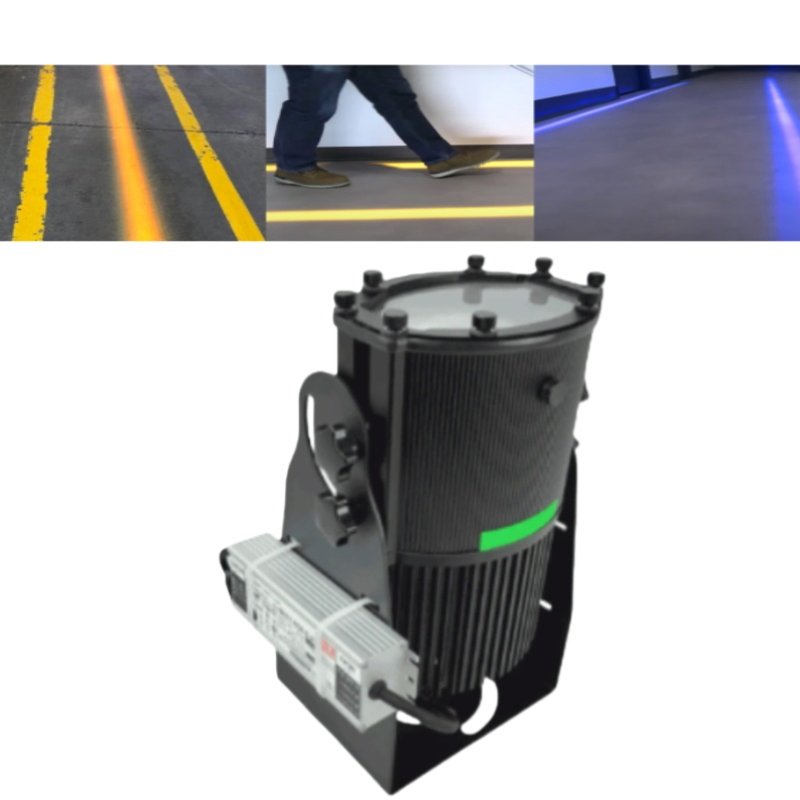

LED Line Projector Lamp for Construction Sites Pedestrian Path Marking

Still deciding? Get samples of $ !
Order Sample

Product Description

LED Line Projector Lamp for Pedestrian Path Marking

High-visibility safety solution for industrial environments and construction sites.

LED Line Projector
Basic Information
ModelMXLS04
VoltageAC 100-240/277V
Power100W/200W
Light SourceLED
Beam Angle53/73/90 Degree
Line LengthUp to 48FT
Line Width3 to 6in
IP GradeIP67

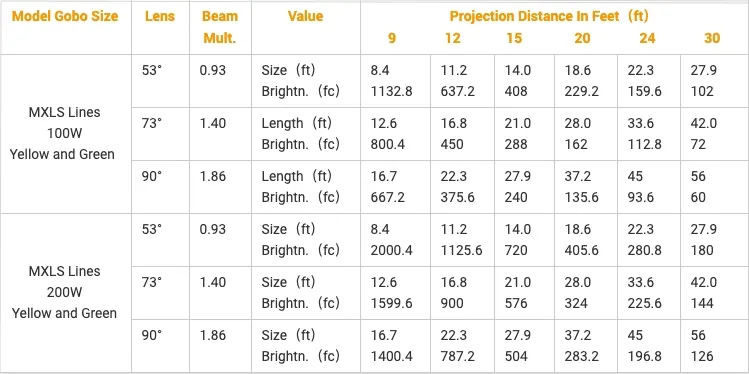

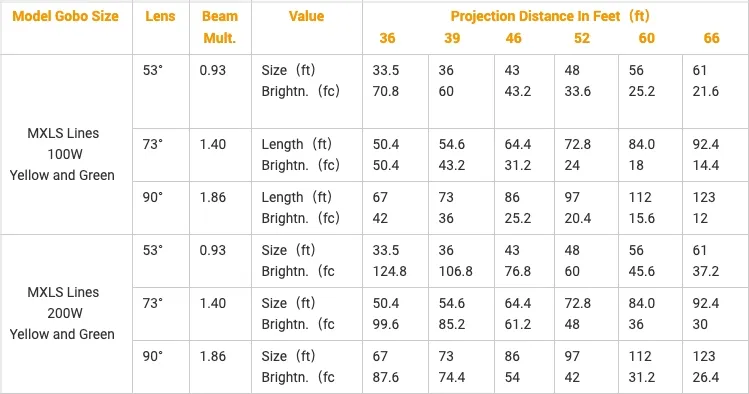

Product Parameters

The line length of the projector is determined by the projection distance and the fan angle. Three fan angles are available to customize your path:

53°
Angle 53°: Line length = 1x distance
73°
Angle 73°: Line length = 1.5x distance
90°
Angle 90°: Line length = 2x distance
Illumination Guidance
Value Range Brightness Application
40-60Sufficient for dim warehouses and facilities.
60-90Ideal for bright and medium bright warehouses.
90-180Common for regular production floors and modern warehouses.
180-700High brightness for very bright production environments.
700+Extreme brightness for environments with no direct sunlight.
Product Description

A Virtual LED Line projector is a creative and cost-effective solution for replacing floor tape and painted lines in your warehouse. These projectors cast durable floor lines that clearly mark walkways and lanes, eliminating the need for routine maintenance. An LED line projector increases awareness, reduces accidents, and creates a safe work environment.

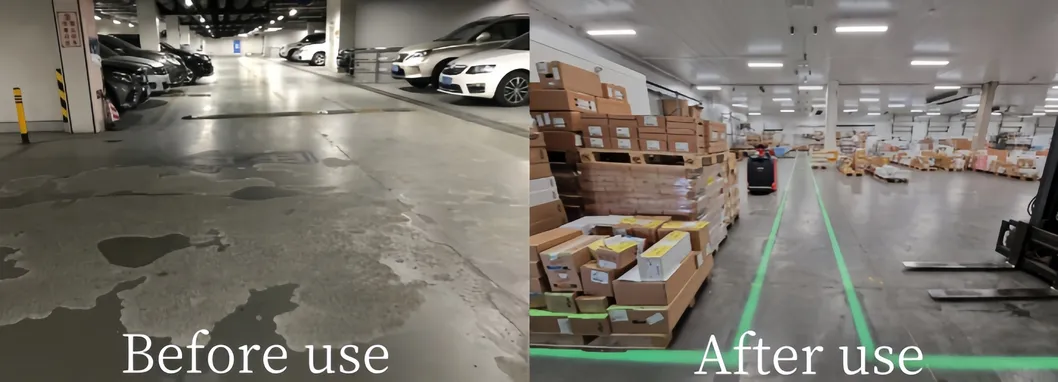

Application View
Key Features
Reliability: Weather-resistant (IP67) for indoor and outdoor use in harsh conditions.
Convenience: Ensures safety for pedestrians and machine operators at all times.

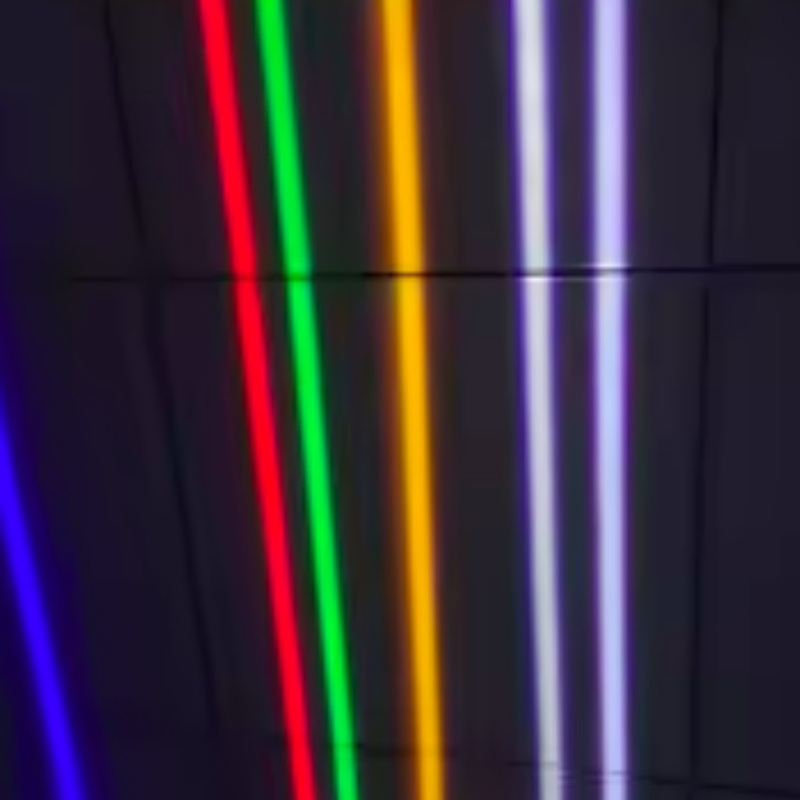

Flexibility: Available in red, green, yellow, and blue to meet specific company needs.
Durability: 30,000+ hours of continuous use with efficient LED technology.
Damage-Proof: Impervious to forklifts, foot traffic, water, and industrial hazards.
Cost Effective: Eliminates the constant need to repaint or replace floor tapes.
Dimensions & Application

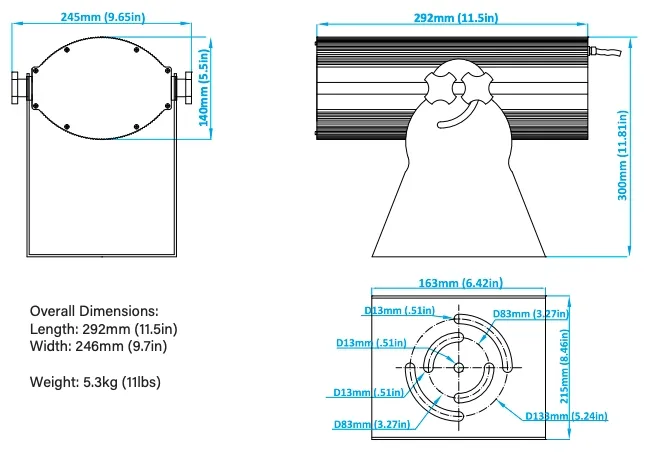

Product Dimensions

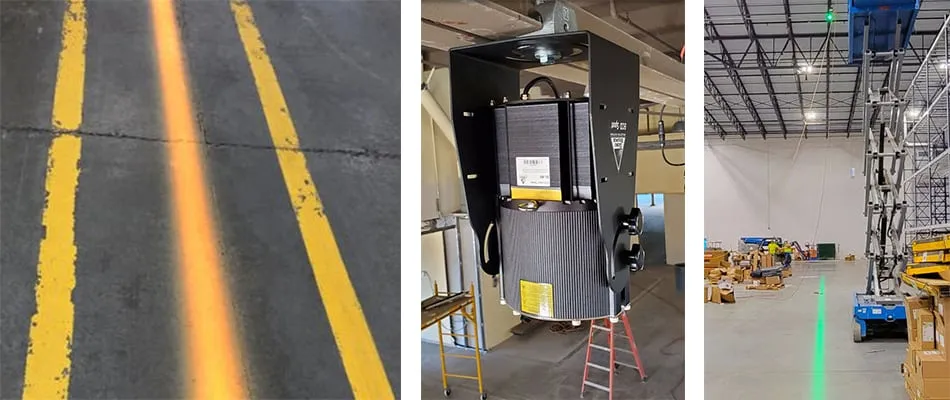

Application 1

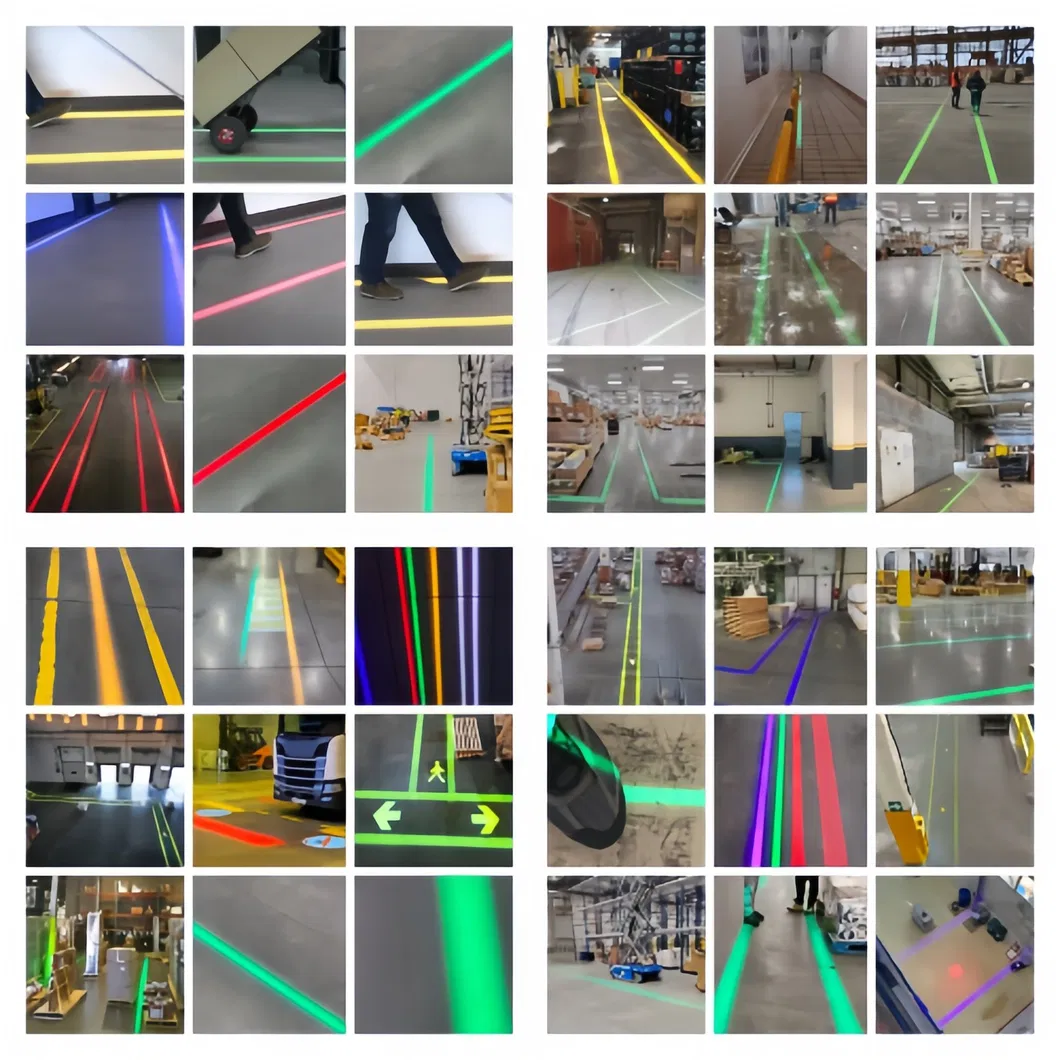

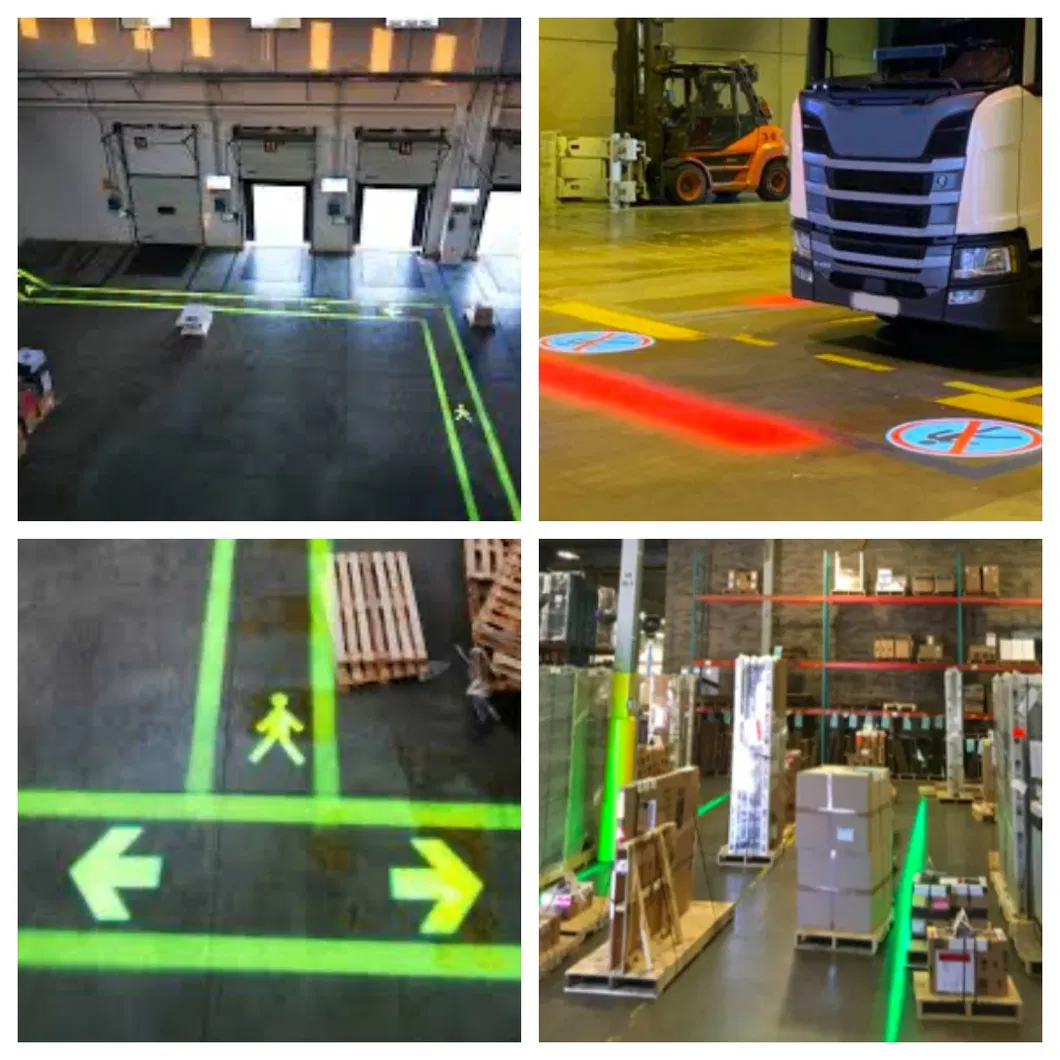

Application 2 Application 3
Frequently Asked Questions
1. How long a line does the Virtual LED Line projector create?
The length of the line is dependent upon the mounting height. The higher the mounting height, the longer the line, but it will be dimmer in intensity.
2. How thick will the projected line be?
Based on standard mounting heights, the line thickness usually ranges between 2 to 3 inches wide.
3. What is the expected lifespan of these products?
The projectors use LED technology with an operating life of 30,000+ hours. In a typical 2-shift environment, this translates to over 5 years of operational life.
4. How do they hold up in industrial environments?
The units are air-cooled and weather-resistant, with an operating temperature range of -45°C to 50°C, making them suitable for most industrial settings.
5. What happens when the projector reaches its end of life?
As the product reaches the end of its life, the intensity of the projection will gradually dim and eventually fade away.
6. Is the projector suitable for outdoor use?
Yes, with an IP67 rating, the device is engineered for extreme conditions and is weather-resistant for both indoor and outdoor applications.
