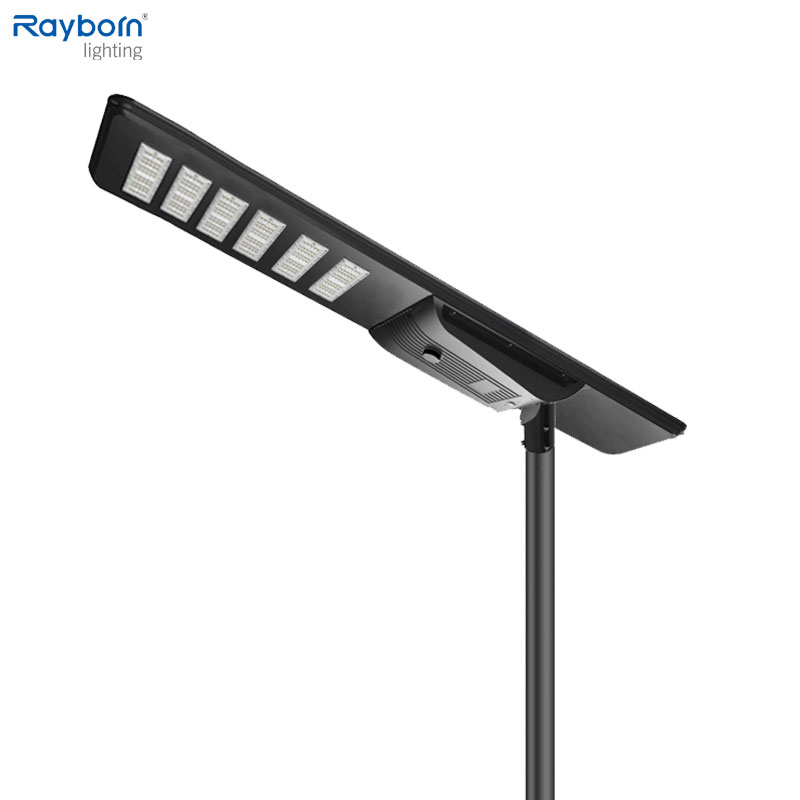

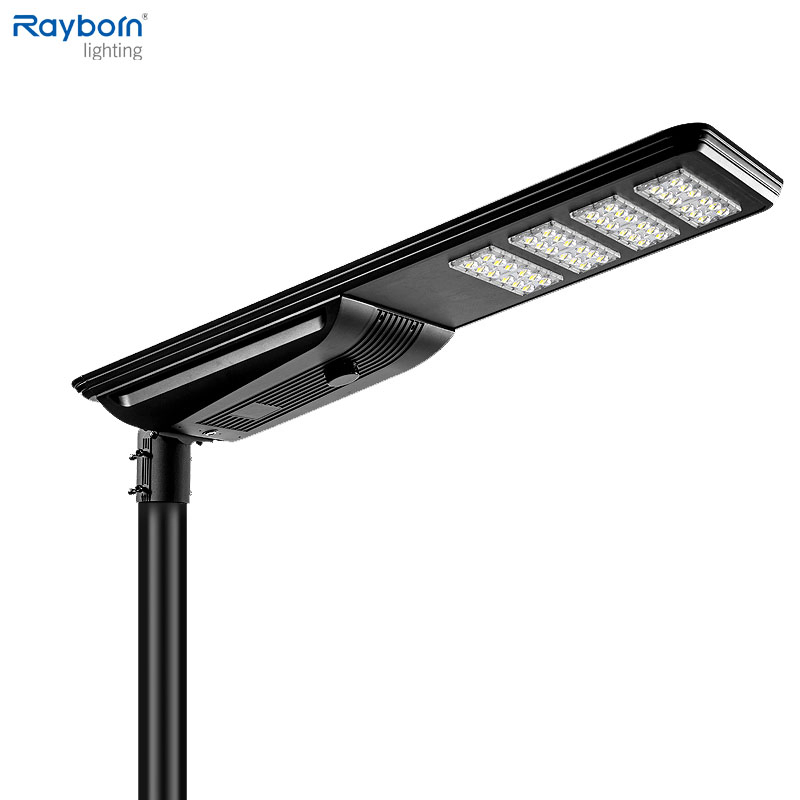

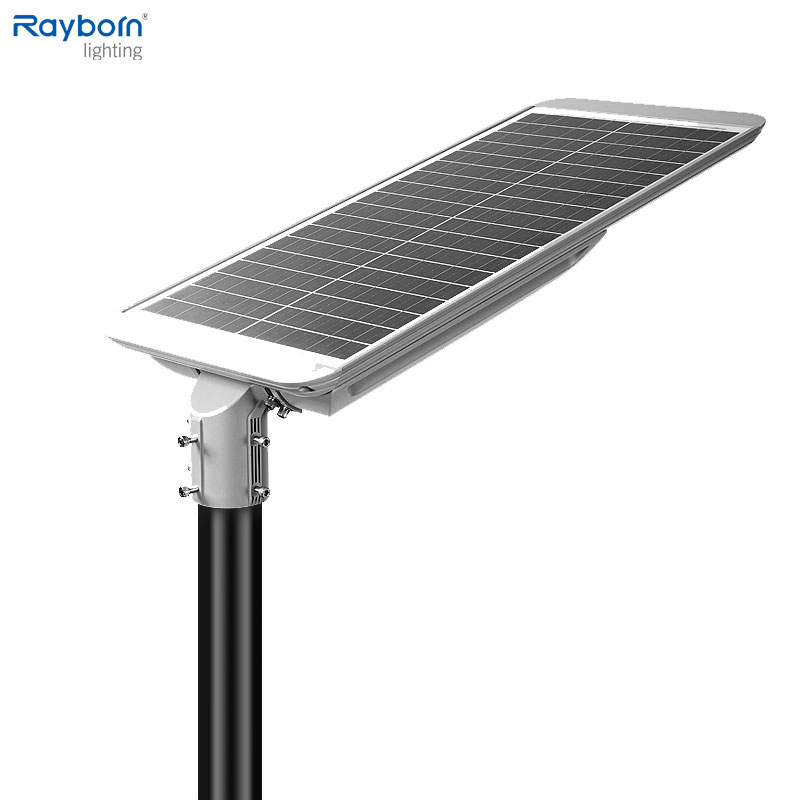

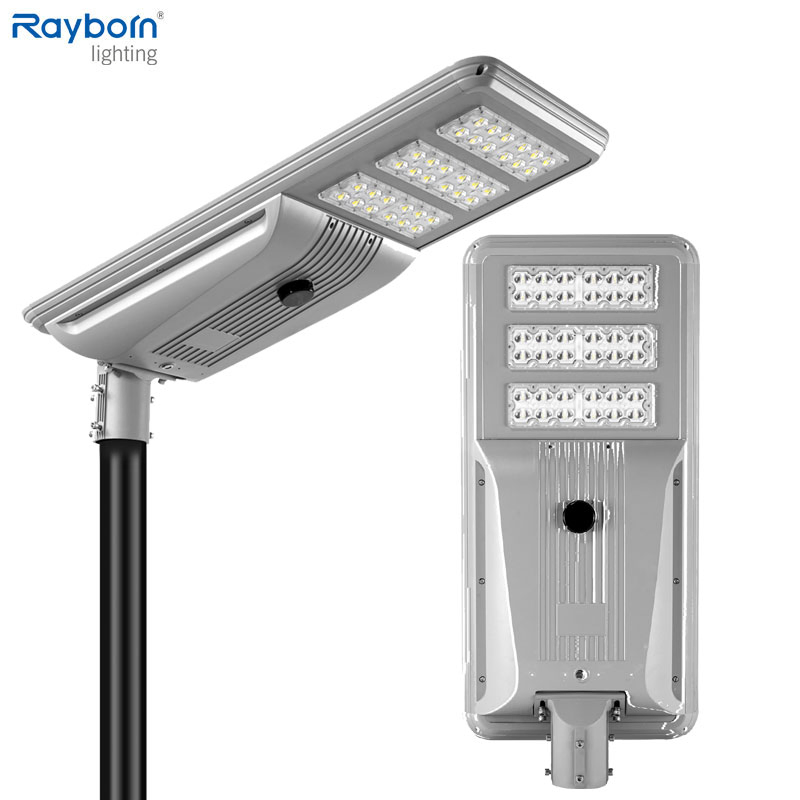

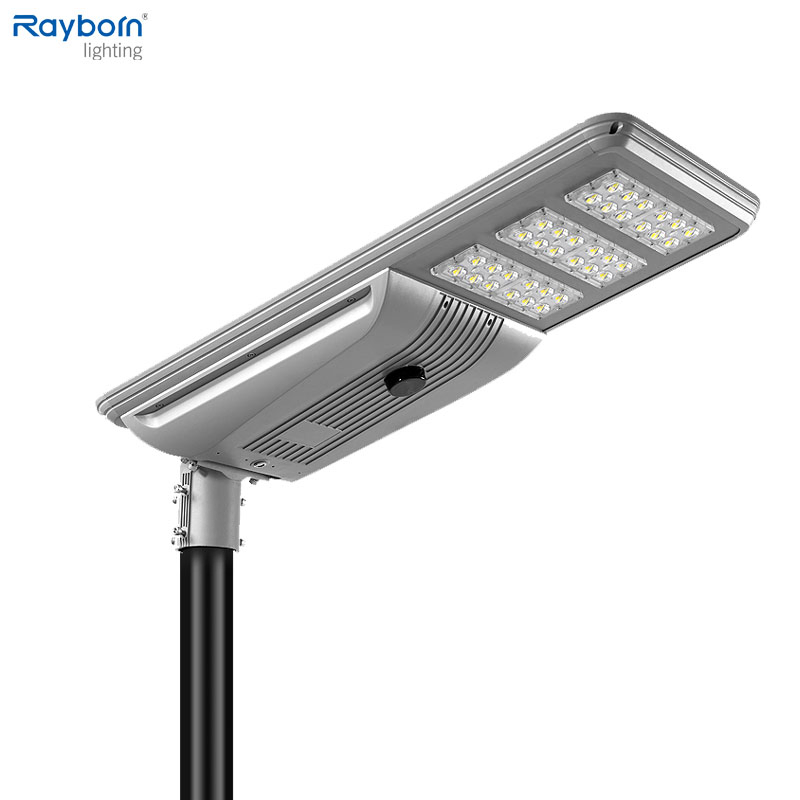

200lm/W 30W/40W/80W/100W/120W/150W Super Power Solar Exterior Integrated All in One Solar LED Street Lighting

Still deciding? Get samples of $ !
Order Sample

Product Description

i

Basic Specifications

Model NO.:RB-SOL-KH40W
Light Source:LED Lamp
Lamp Body:Aluminum Alloy
Light Type:Solar
Color Temp:Cool White
Power Range:30W-150W
Illumination:10h
Charging Time:8 Hours
IP Rating:IP65 / IP66
Certification:CE, RoHS
LED Efficiency:210lm/W
Warranty:3 Years
Battery Type:Lithium LifePO4 12.8V
LED Chip:Bridgelux 210lm/W

Product Description

Energy Saving Motion Sensor Integrate All In One Garden Outdoor Solar LED Street Light

Integrated Solar Street Lighting
Model RB-SOL-KH30W RB-SOL-KH40W RB-SOL-KH60W RB-SOL-KH80W RB-SOL-KH100W RB-SOL-KH120W
Power 30W 40W 60W 80W 100W 120W
Solar Panel 18V/50W Mono 18V/60W Mono 18V/80W Mono 18V/105W Mono 18V/130W Mono 18V/150W Mono
Battery Capacity 3.2V 72AH 3.2V 100AH 12.8V 30AH 12.8V 45AH 12.8V 60AH 12.8V 75AH
Luminous Flux 6050LM 8030LM 12000LM 16000LM 20000LM 24000LM
LED Qty 96PCS 144PCS 192PCS 240PCS 280PCS 336PCS
Rec. Height 5-6M 6-8M 8-10M 10-12M 12-15M 15-18M

Key Features & Advantages

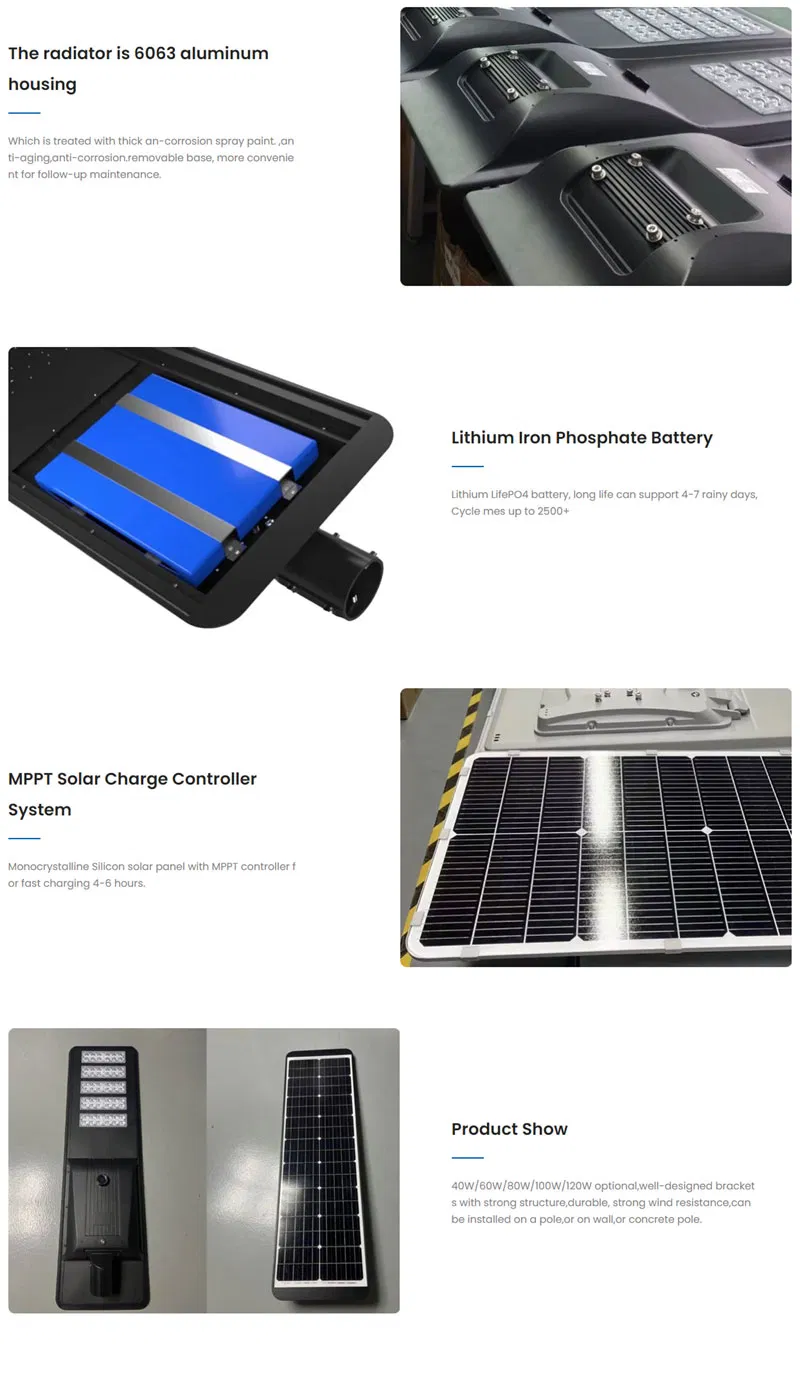

Solar Light Features
  • High efficiency Mono-crystalline solar panel with up to 23.8% conversion.
  • Genuine imported Bridgelux LED chips with low light decay.
  • Intelligent MPPT controller with microwave induction and time control.
  • Die-casting 6063 aluminum radiator with anti-corrosion spray paint.
  • Removable LifePO4 battery design for easier long-term maintenance.
  • High light transmittance PC lens (>90%) for superior illumination.
  • IP65/IP66 waterproof rating for harsh outdoor environments.
  • Easy installation: supports pipe-mounted and arm-mounted options.

Precautions for Installation:

1. Installation should be performed on sunny days to ensure the battery receives an initial full charge.
2. Select the installation direction to maximize road irradiation area.
3. Recommended solar panel angle is 15 degrees for optimal efficiency.
4. Avoid shadows from houses or trees to prevent reduction in power generation.

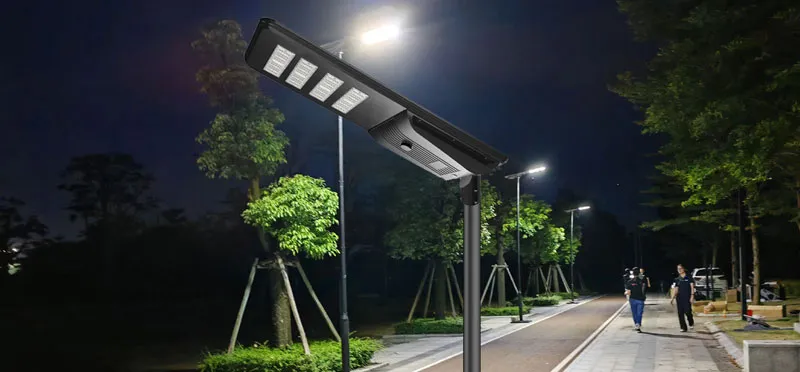

Applications

Perfectly suited for Playground and stadium lighting, Parking lots, Highway and Railway tunnels, Bridges, Squares, Gardens, and Industrial building lighting.

Application 1
QC

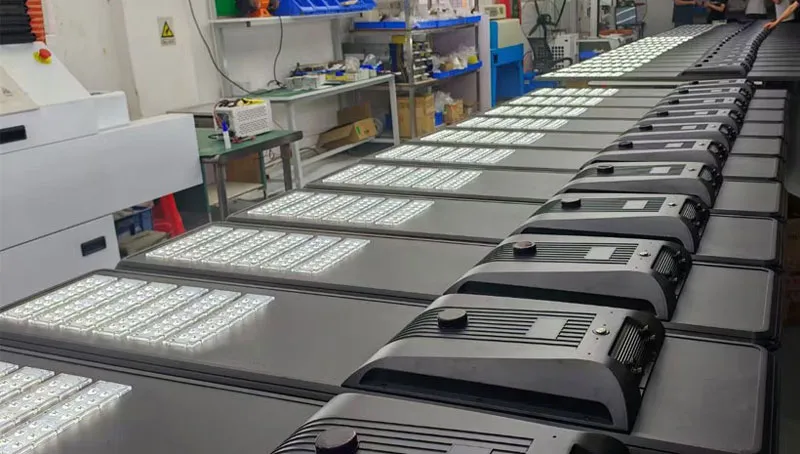

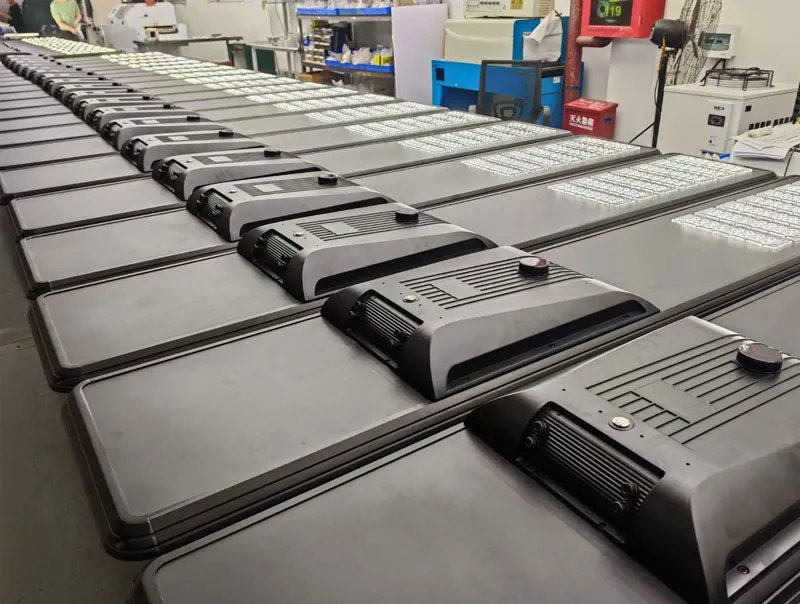

24-Hour Aging Test & Quality Assurance

Before shipping, all products undergo rigorous testing for over 24 hours, including light-up tests, wattage verification, high-voltage tests, and waterproof inspections. The defective rate is controlled to less than 0.1%.

Aging Test 1

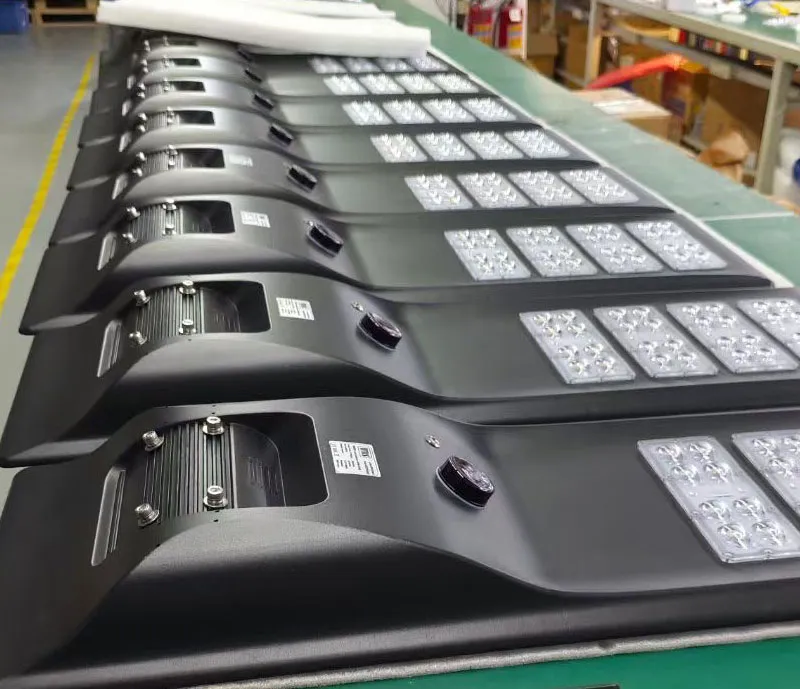

Aging Test 2
Aging Test 3

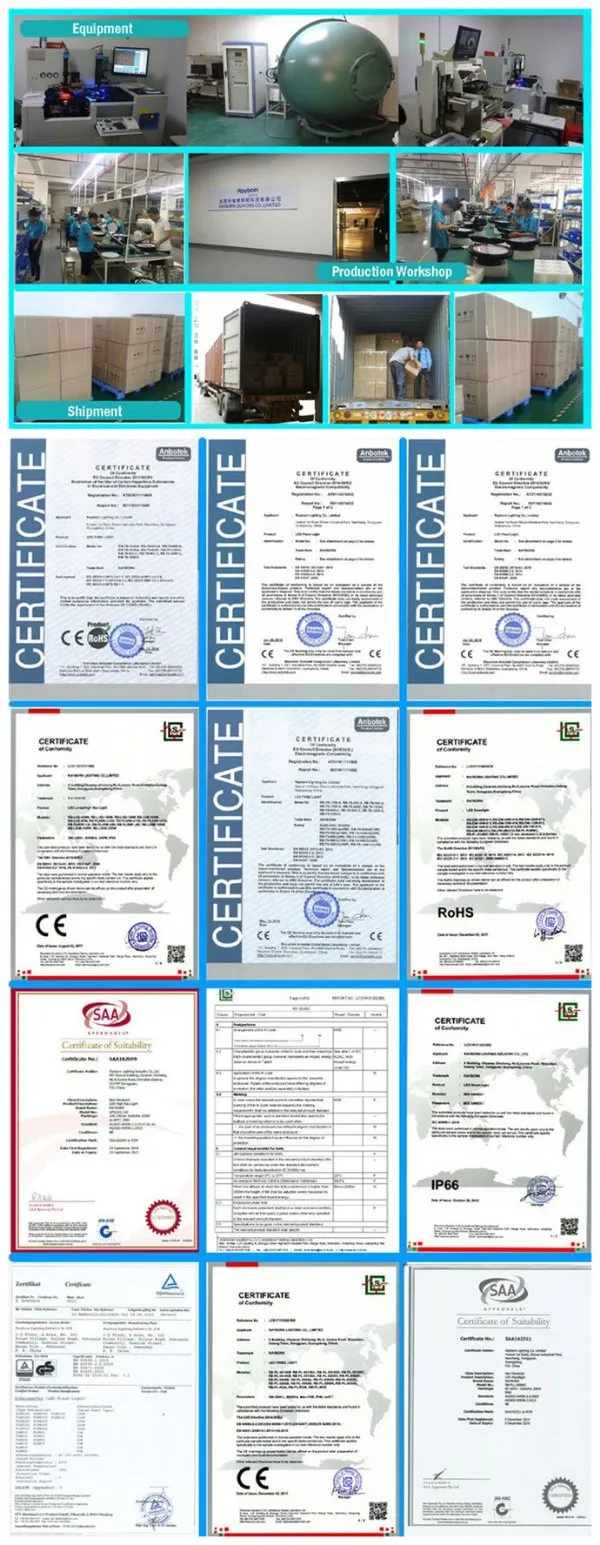

Production Facility

Frequently Asked Questions

What is the warranty period for this solar street light?
We provide a 3 to 5-year warranty depending on the specific model and configuration chosen.
How long does the light work during rainy days?
The system is designed to provide 3 to 5 continuous rainy or cloudy days of discharge time when fully charged.
What is the recommended installation height?
Depending on the power (30W-120W), the recommended height ranges from 5 meters to 18 meters.
Can I replace the battery myself in the future?
Yes, the light features a removable battery design, making follow-up maintenance and replacement very convenient.
Does the light have different working modes?
Yes, it utilizes intelligent control combined with microwave induction and segmented time control to maximize energy efficiency.
How long does it take to fully charge the battery?
Under standard sunlight conditions, it takes approximately 8 hours to reach a full charge.
