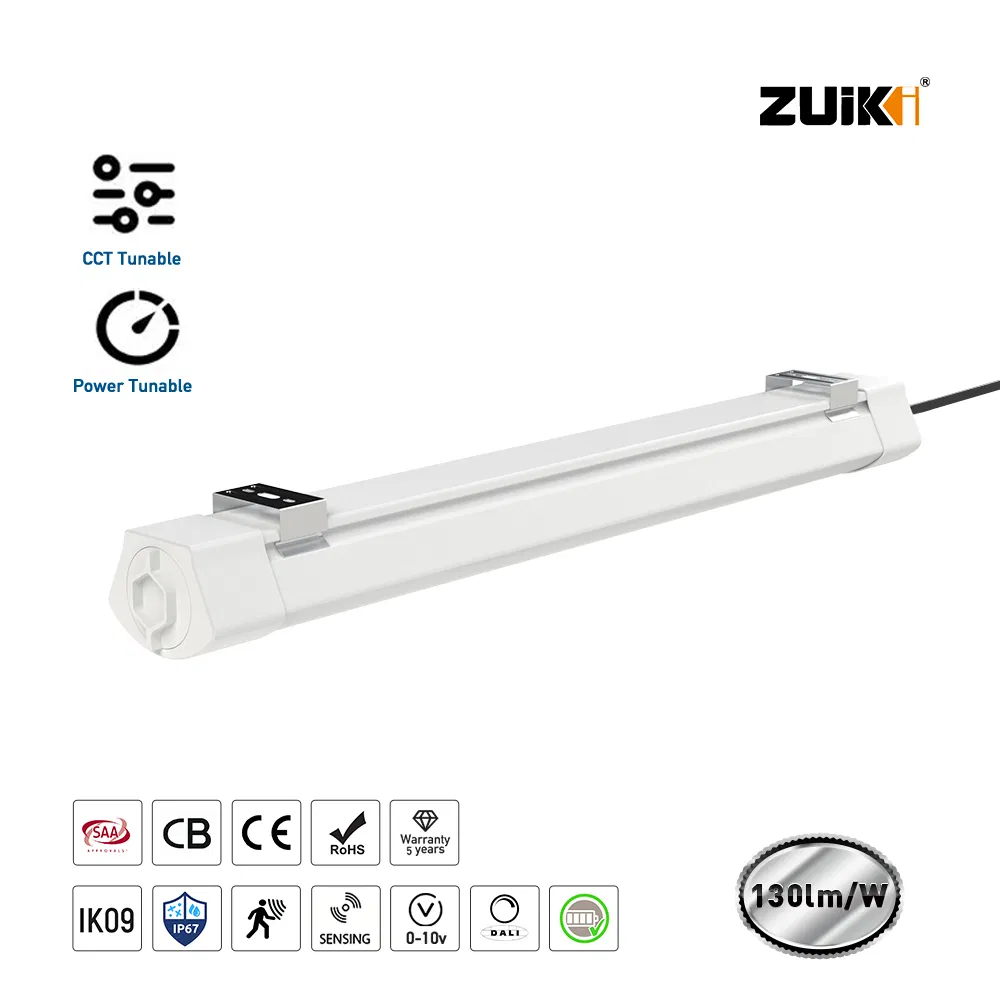

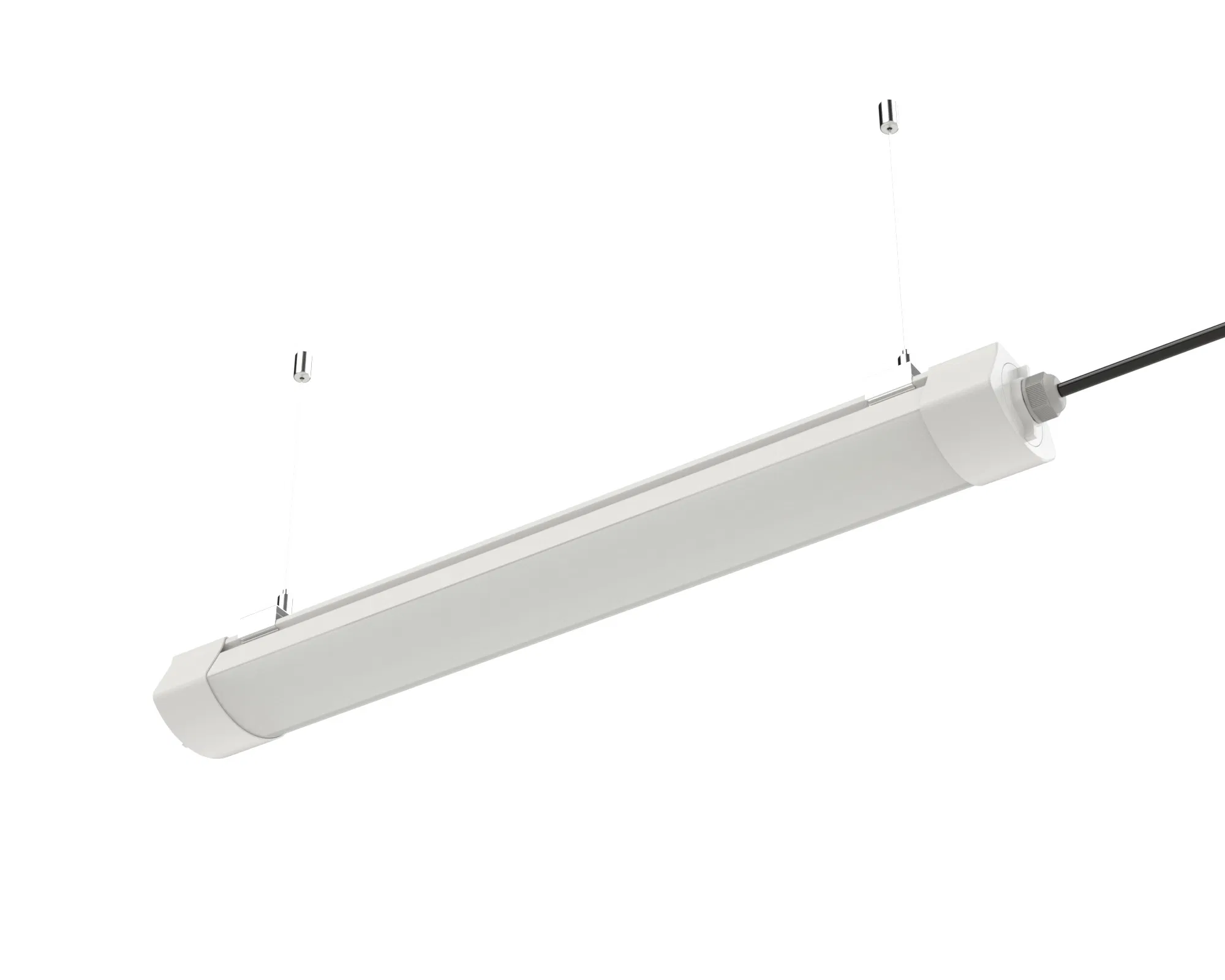

IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
1 / 5
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier
IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier

IP65 Semi Outdoor Place Use LED Tunnel Tri-Proof Lighting for Stadium/Exhibition Hall/Pier

Customization: Available

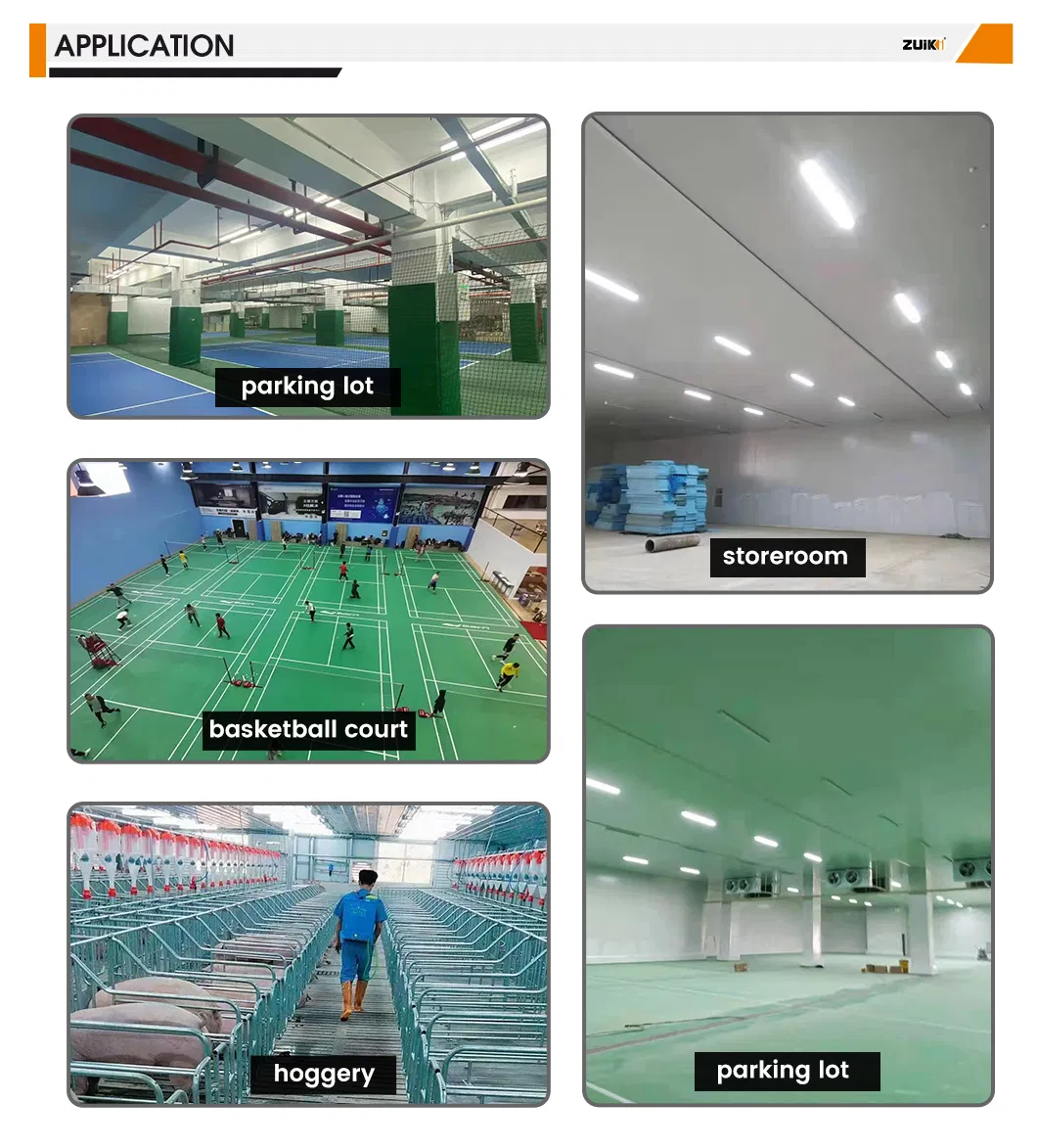

Application: Workshop Warehouse Gymnasium
Type: Efficient-Mirror Tri-proof Light
Send Inquiry

Product Description

i

Basic Information

Model NO.: JR-SF06
Feature: Anti-corrosion, Dust-Proof, Waterproof
Body Material: PC
Package: Carton
Specification: 600*82*59mm
HS Code: 8539510000
Capacity: 30,000 PCS/Month
LED Tunnel Tri-Proof Lighting
L

Technical Specifications

Product Name Three anti-light (Tri-proof Light)
Product Number JR-SF06-60 JR-SF06-120 JR-SF06-150
Size (mm) 600*82*59 1200*82*59 1500*82*59
Voltage 100-277V 100-277V 100-277V
Power 20W 40W 60W
Power Factor 0.9 0.9 0.9
Luminous Flux >1800lm >3600lm >5000lm
Color Rendering (CRI) >83 >83 >83
Protection Degree IP65 IK09 IP65 IK09 IP65 IK09
Temp Range -40°C ~ 50°C
★

Core Features

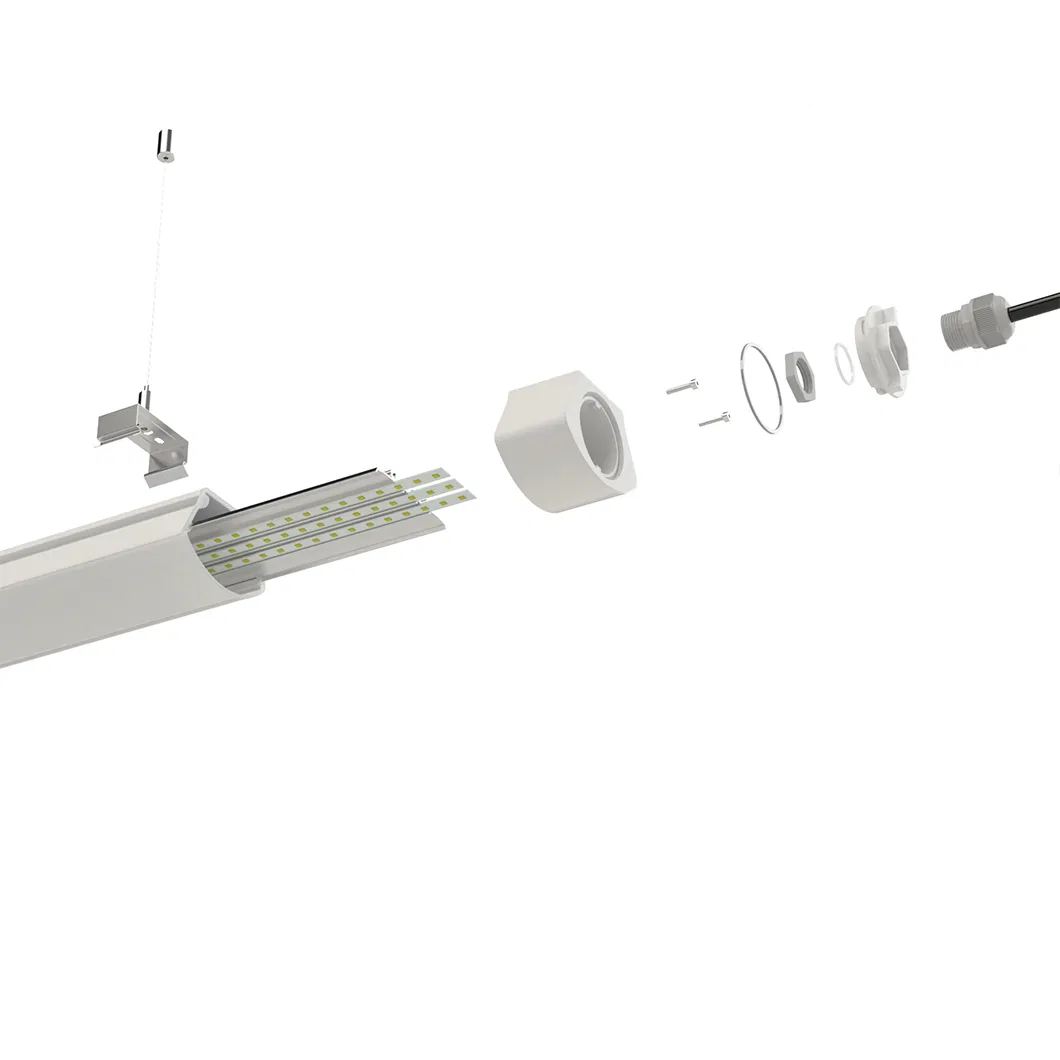

✔ Fire-proof PC Shade: High-quality UV-proof material for durability.

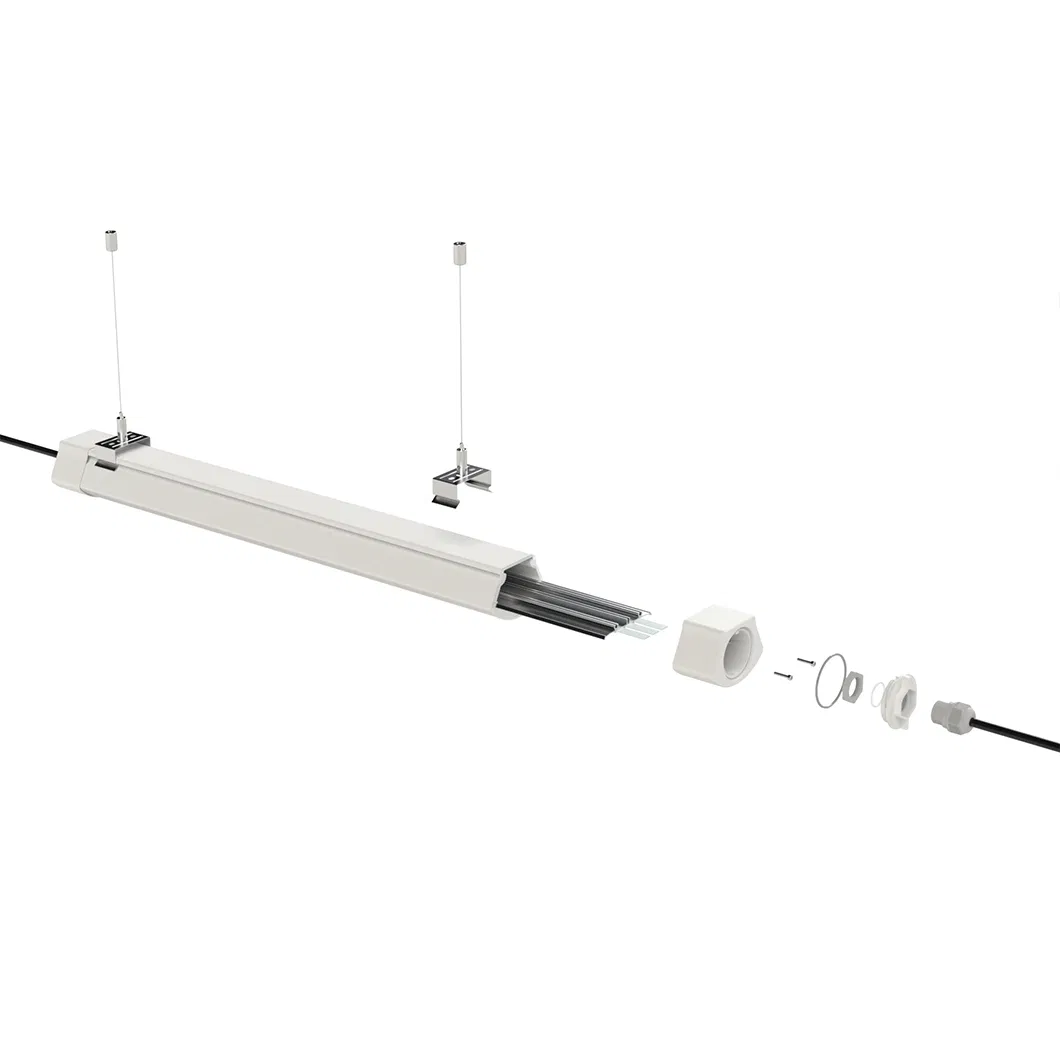

✔ Rotatable End: Waterproof rotatable PC end for easier installation and maintenance.
✔ Quick Connection: Tri-wire quick connector allows tool-free connection between lights.
✔ Advanced Source: SMD2835 light source (0.5w/pc) for efficient illumination.

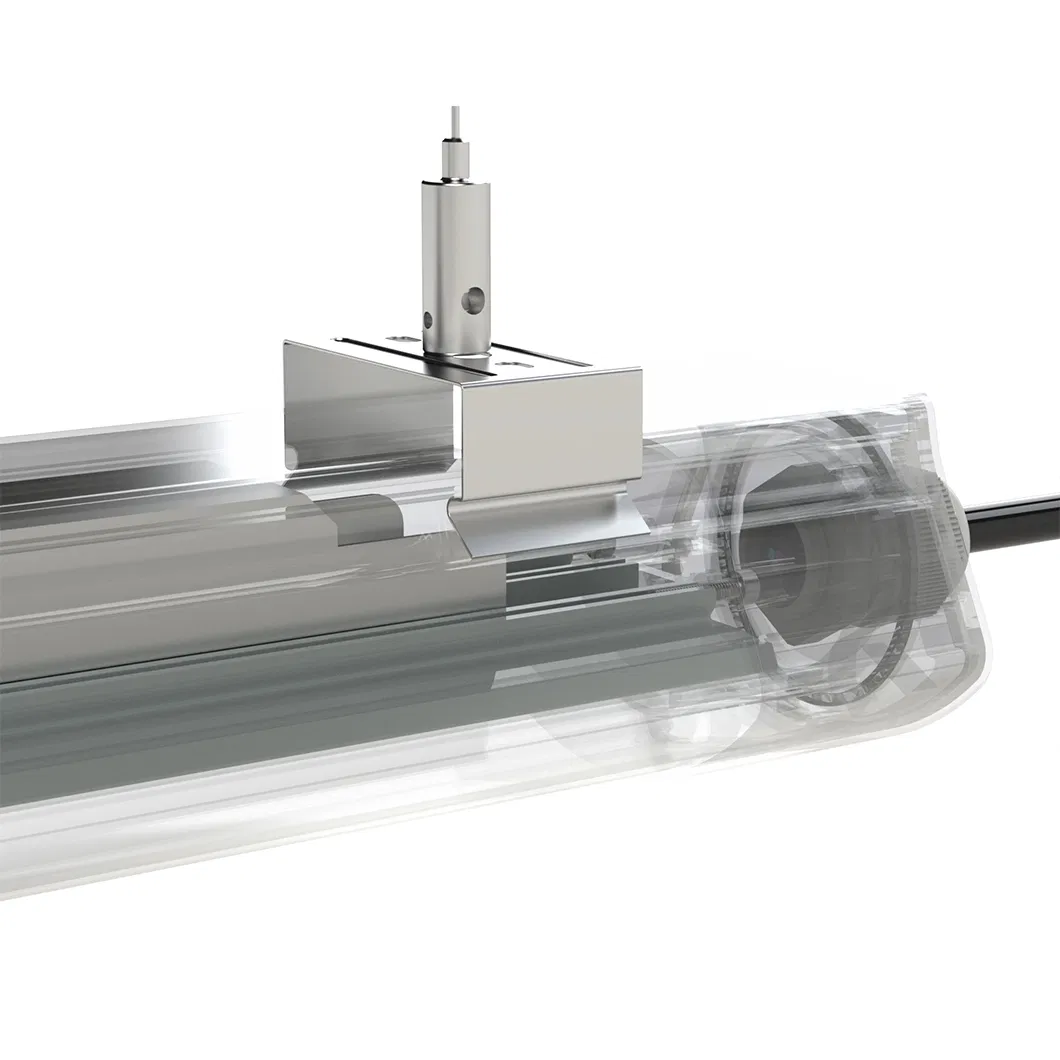

✔ Safety Structure: Plastic coated aluminum body provides safe isolation and structural integrity.
Feature Detail 1
Feature Detail 2
Feature Detail 3
Feature Detail 4
Feature Detail 5
?

Frequently Asked Questions

What does "Tri-Proof" mean for this LED lighting?
The light is designed to be waterproof (IP65), dust-proof, and anti-corrosion, making it suitable for harsh environments.
What is the operating temperature range?
The lighting is engineered to operate efficiently in extreme conditions from -40°C to 50°C.
Is the installation difficult?
No, it features a rotatable PC end and a tri-wire quick connector, allowing for easy, tool-free connections between units.
What are the available sizes for the JR-SF06 series?
It comes in three lengths: 600mm (20W), 1200mm (40W), and 1500mm (60W).
Does the material yellow over time in sunlight?
The shade is made of UV-proof PC material, which helps prevent yellowing and maintains light clarity.
