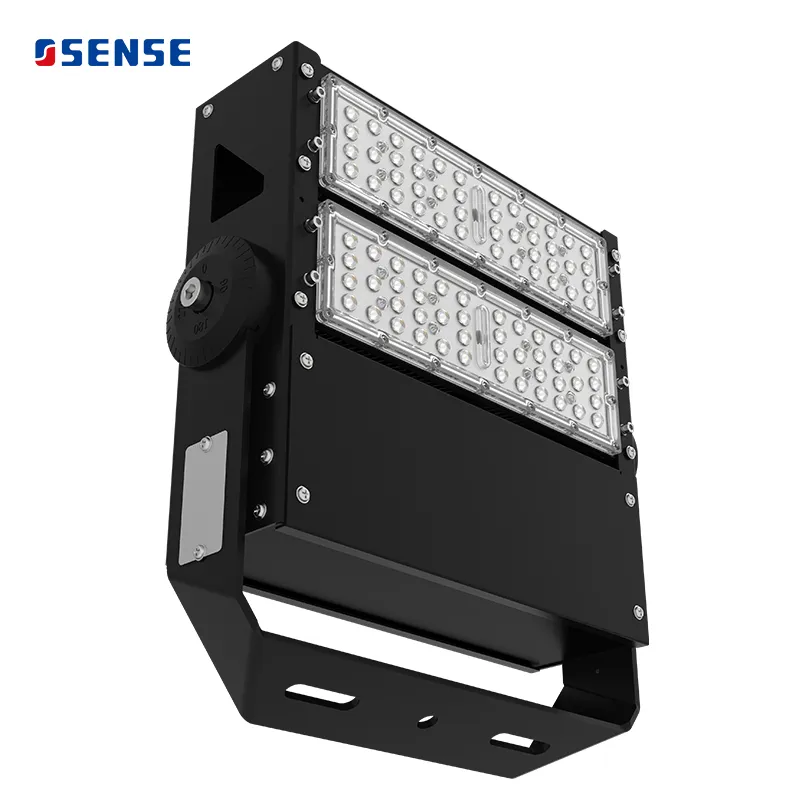

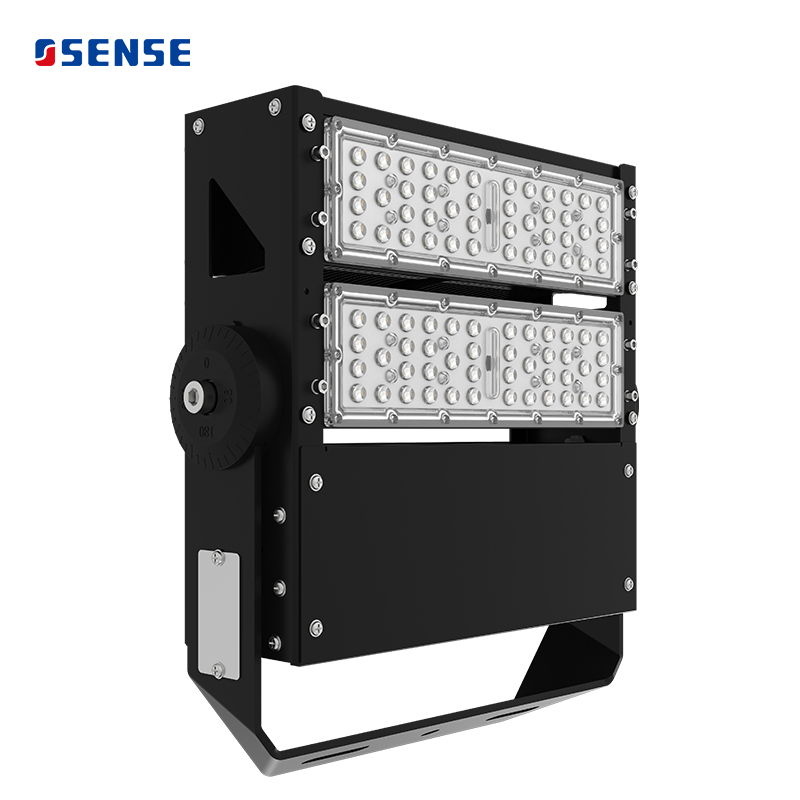

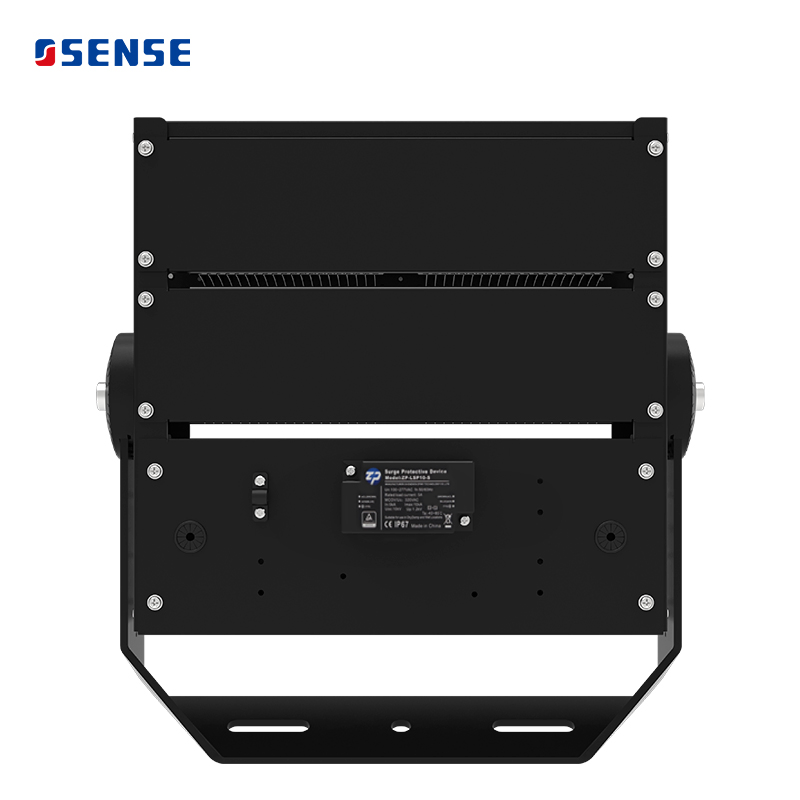

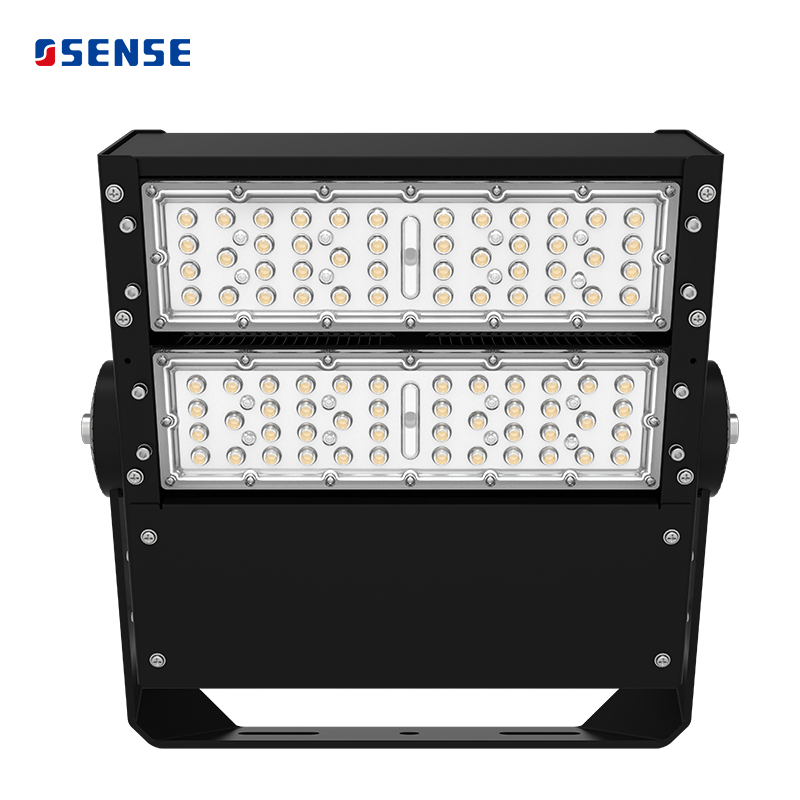

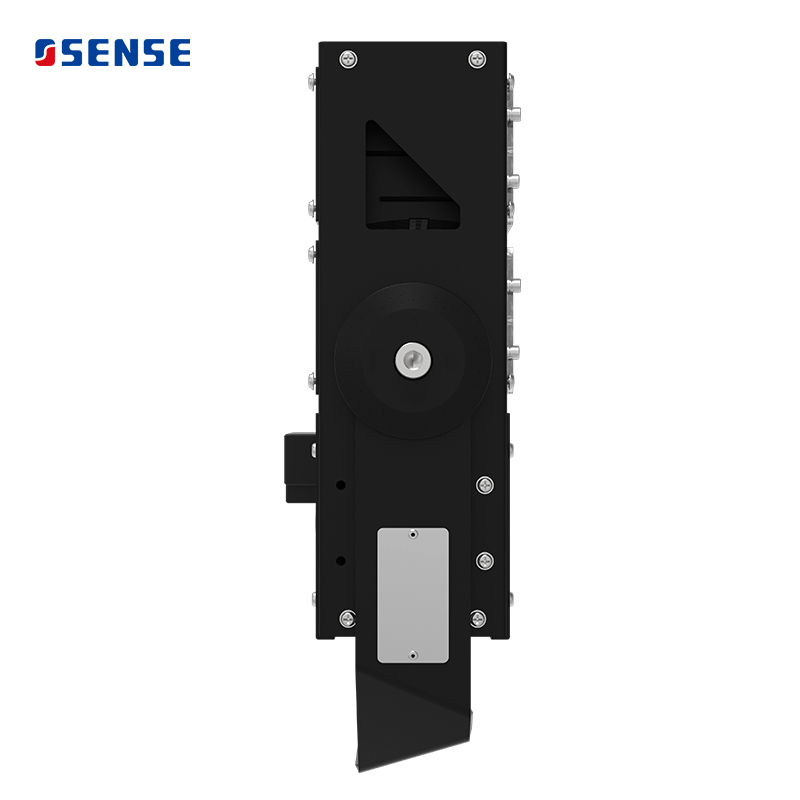

200W to 500W Outdoor Waterproof LED Flood Projector Light Tunnel Industrial Lighting

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Specifications
Model NO.SWT-SF-200W Power Range200W/300W/400W/500W
Projection Distance>35m IP RatingIP65 / IK08
Input Voltage100-277VAC / 200-240VAC LED ChipsCREE SMD5050
Luminous Efficiency140lm/W CCT4000K / 5000K / 5700K
Beam Angle20°/30°/60°/90°/140*60° CertificationCCC, CE, EMC, RoHS
ApplicationPark, Square, Factory, Garden, Football, Badminton, Basketball, Softball
Key Product Features
DALI/1-10v/0-10v dimming, microwave induction function optional
36-in-1/44-in-1-5050 scheme design, efficiency up to 140lm/w
Five light distribution angles for stadiums, ports, and docks

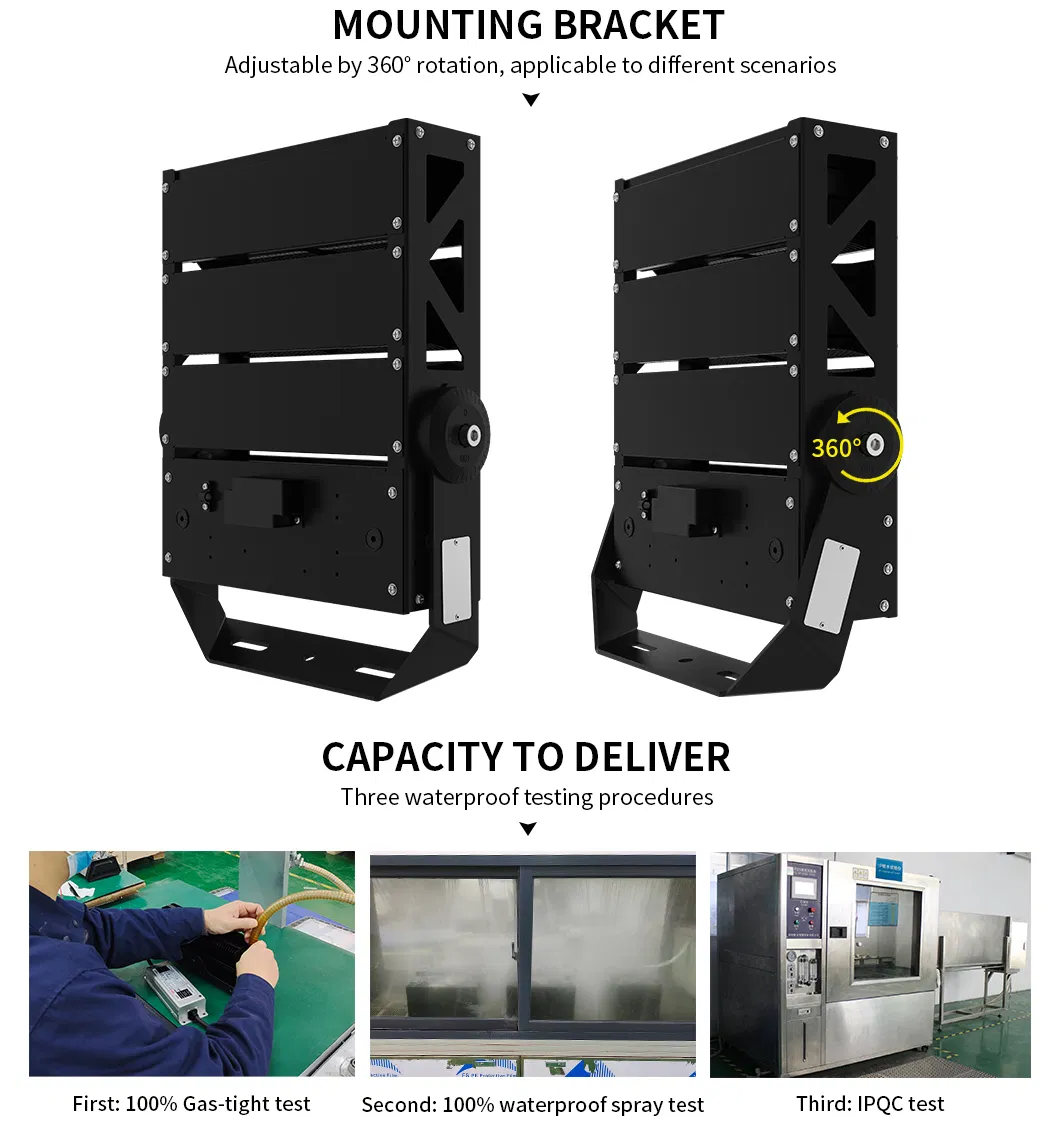

Dial design for precise visual angle adjustment installation
Fin radiator module design, lightweight & high heat dissipation
Outdoor powder technology finish, ideal for seaside/port environments
Electrical Information
Electrical ClassClass I
Power Factor≥0.95
Surge ProtectionL-N 4KV, L/N-PE 6KV (Up to 20kV optional)
Driver BrandMeanwell / Moso / Sosen / Inventronics
Flicker Percentage≤8% (≤3% optional)
Housing & Materials
Housing MaterialAL 1070 Pure Aluminum
FinishPowder spraying, corrosion resistance
Optic/LensPC UV0
Impact ResistanceIK08 (IK10 optional)
Standard ColorRAL9017 Black / RAL9007 Gray
Packaging & Delivery
Package Size46.00cm * 42.00cm * 20.00cm
Gross Weight7.300kg
Production Capacity20000 PCS / Month
Product Gallery

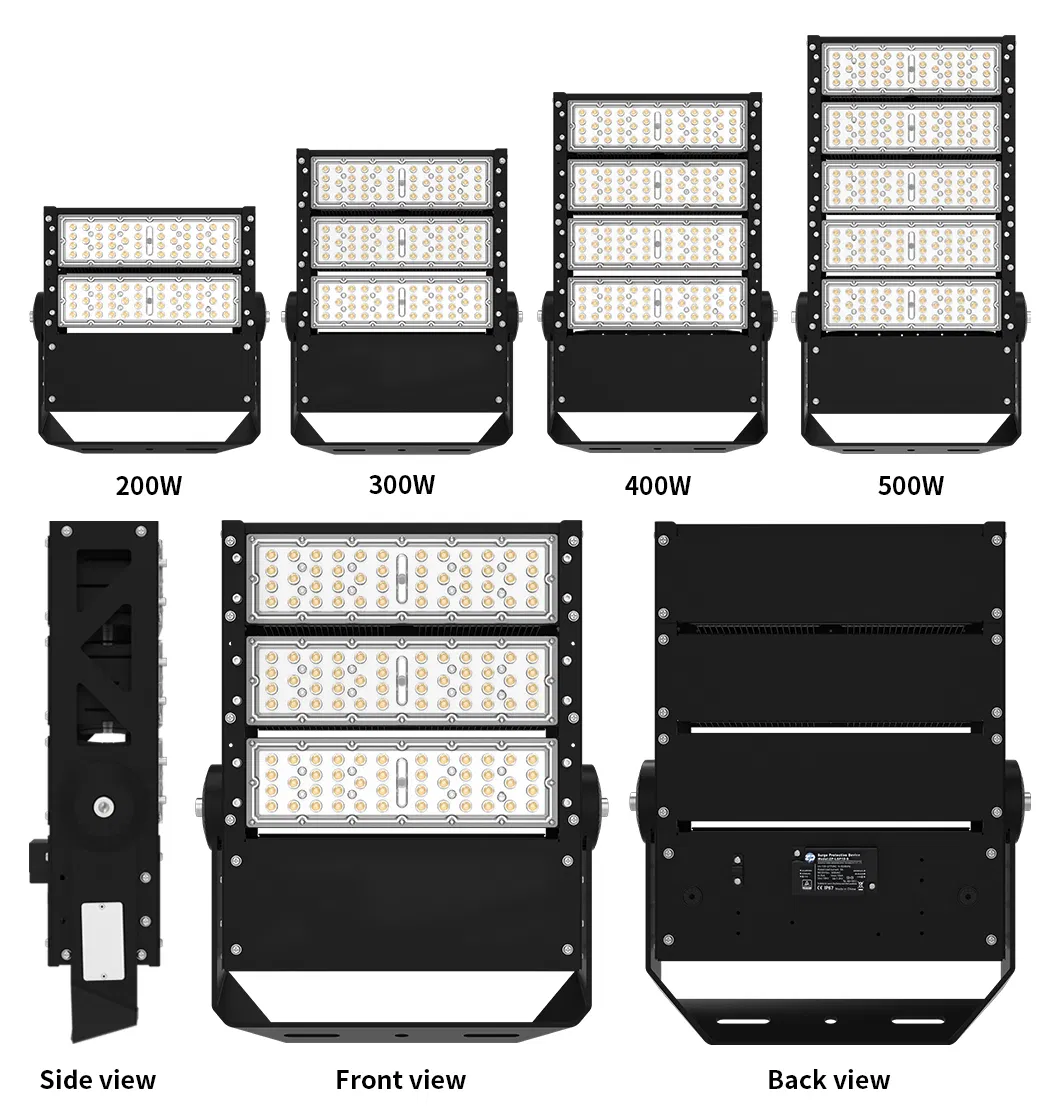

Stadium Light Detail 1

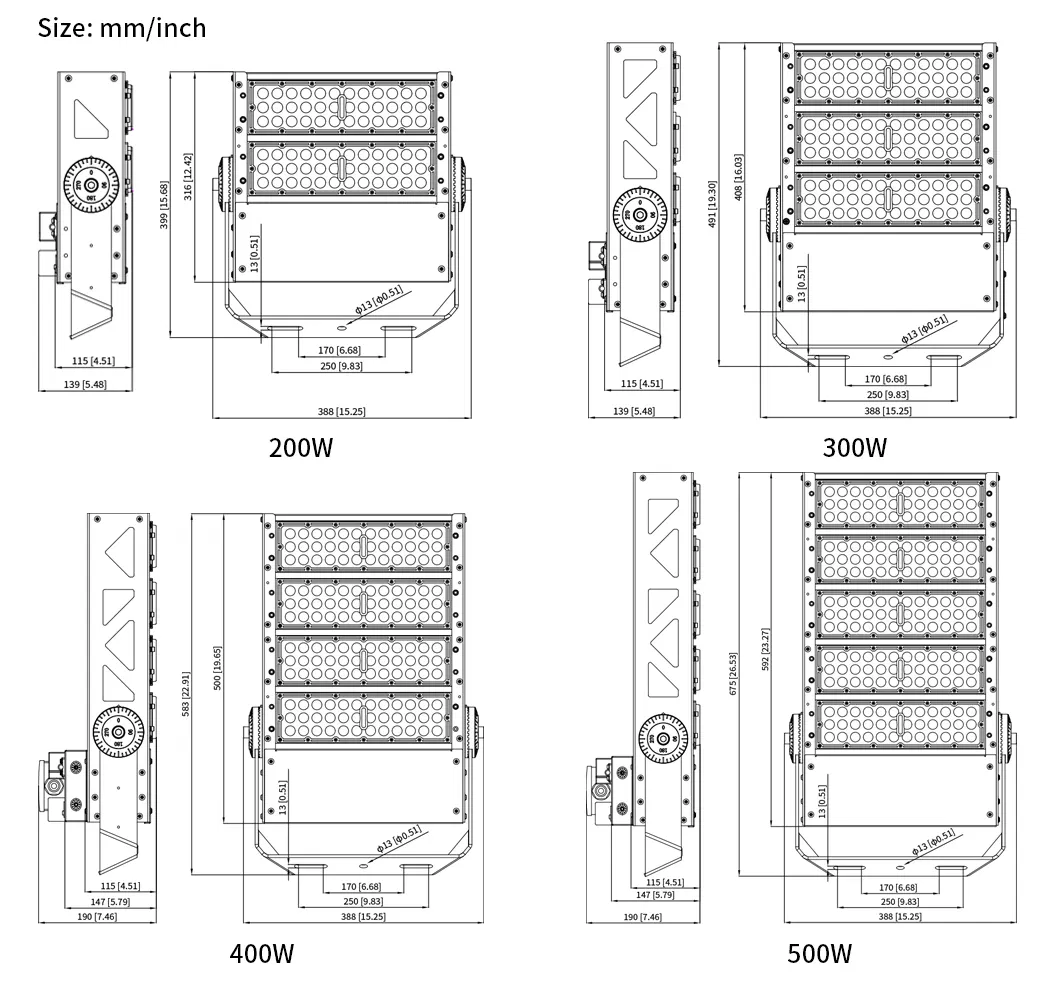

Stadium Light Detail 2
Stadium Light Detail 3
Stadium Light Detail 4

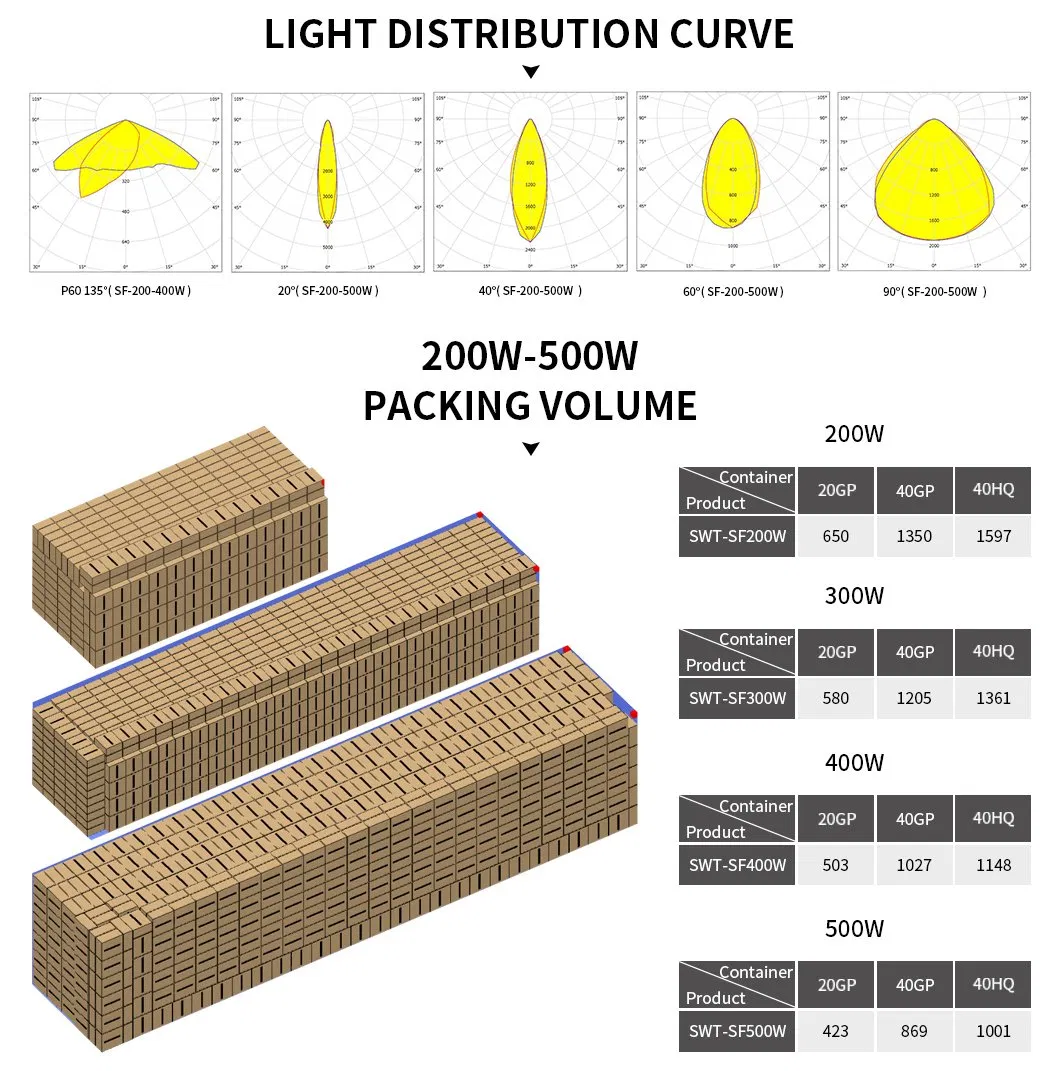

Stadium Light Detail 5

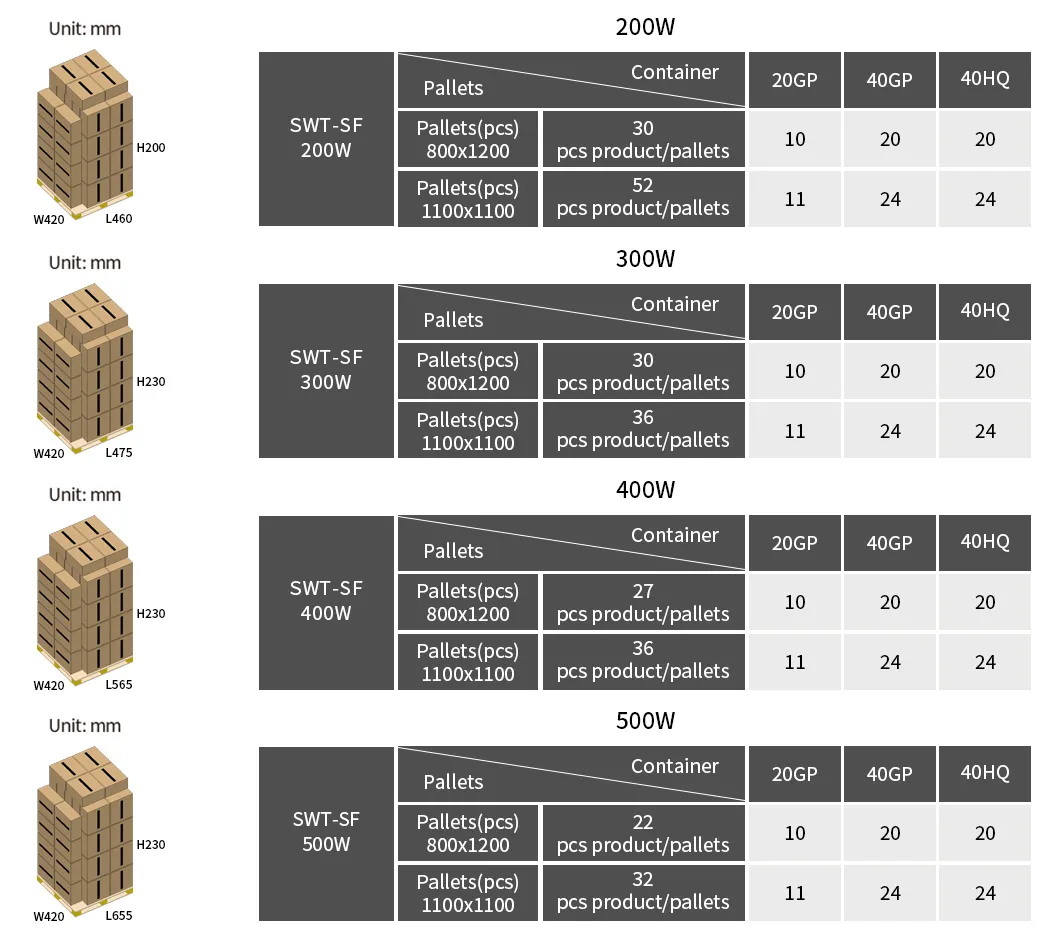

Stadium Light Detail 6

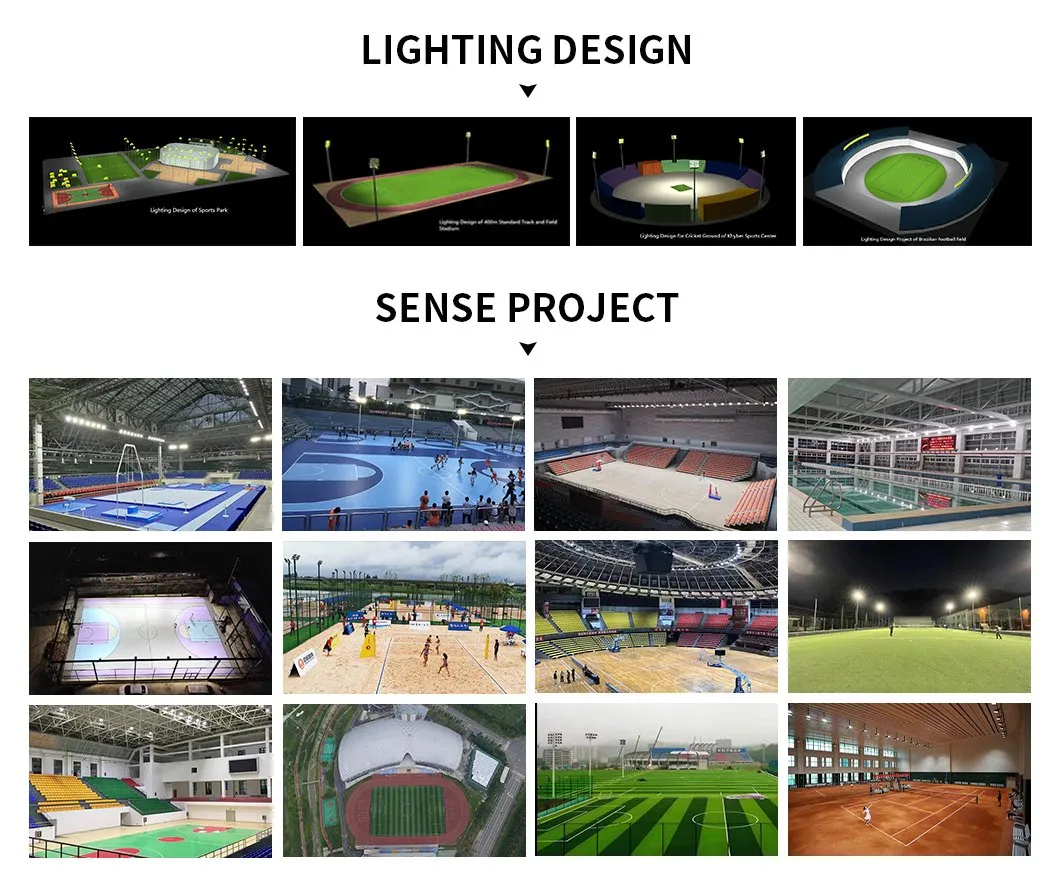

Stadium Light Detail 7
Stadium Light Detail 8
Stadium Light Detail 9
Stadium Light Detail 10
Stadium Light Detail 11
Frequently Asked Questions
Are you a manufacturer?

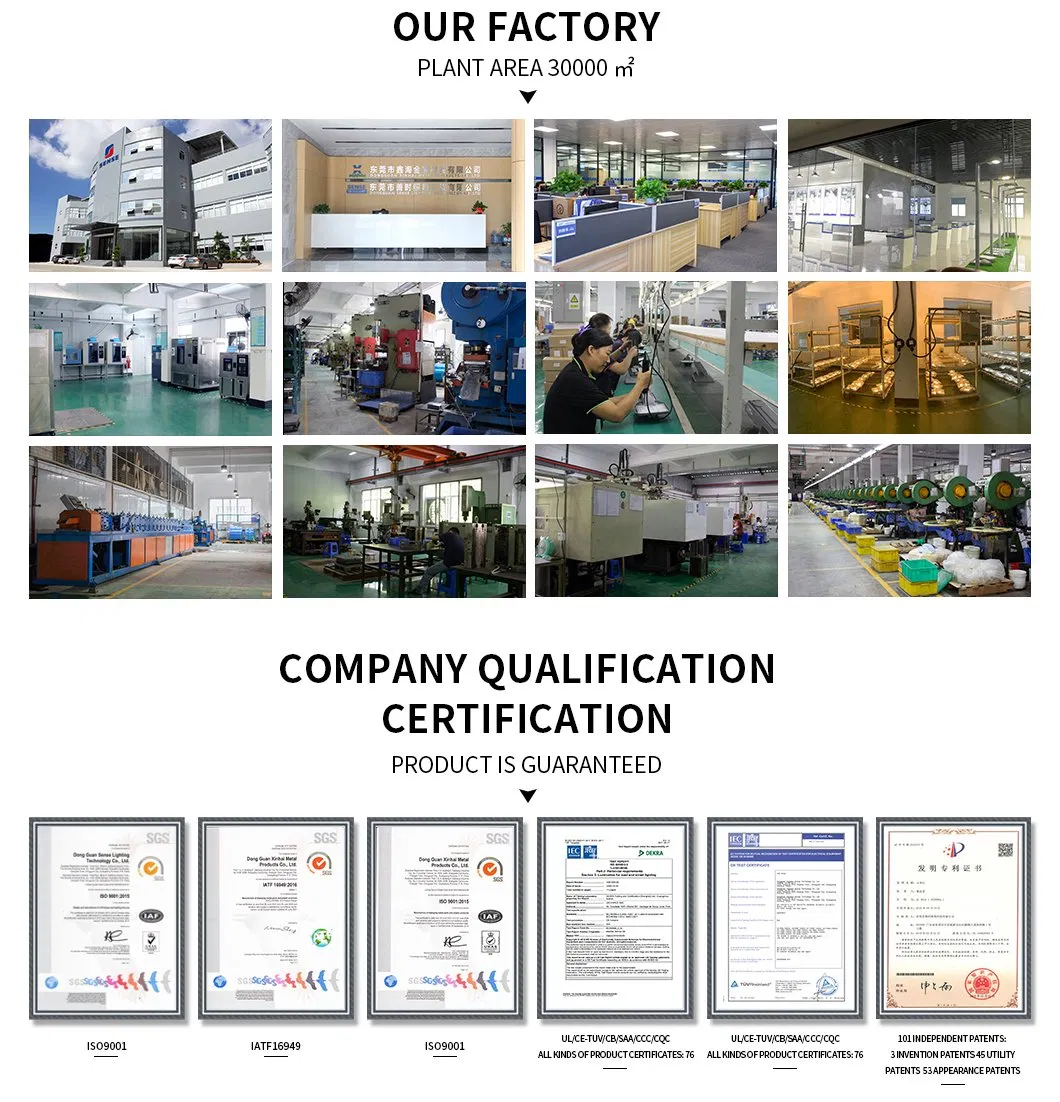

Yes, we have our own factory with over 20 years of R&D and manufacturing experience based on ISO quality management since 2003.
What certifications do your stadium lights have?
Our products are TUV, CB, CE, EMC, SAA, CCC, and RoHS approved. We also provide IP65/IP66/IP67, IK08-IK10, and LM79/LM80/IES reports.
Can I have our LOGO on the products and packages?
Yes, we provide comprehensive OEM services to our customers, including custom branding on products and packaging.
What is the warranty period for these LED lights?
We offer a 5-7 year warranty depending on the specific requirements and application of the project.
What is the typical lead time for an order?
Lead times are 3-7 days for samples and 10-20 days for mass production, depending on the total order quantity.
How do you handle faulty products under warranty?
Our defective rate is less than 0.1%. For any confirmed faulty units within the warranty period, we will send replacements with new orders or repair the batch depending on the situation.
