Sfw7000-Y Railway Construction Lighting Auto-Lifting Mast with 360° Omnidirectional Moon LED Light for Tunnels and Night Work

📋

Basic Specifications

Model NO.:SFW7000-Y

IP Rating:IP65

Power:300W

Application:Railway & Construction

LED Brand:Osram

Voltage:AC 220V

Certification:CCC, CE, RoHS

Lifting Height:4.5m

Weight:75kg

Wind Resistance:Level 8

💡

Product Description

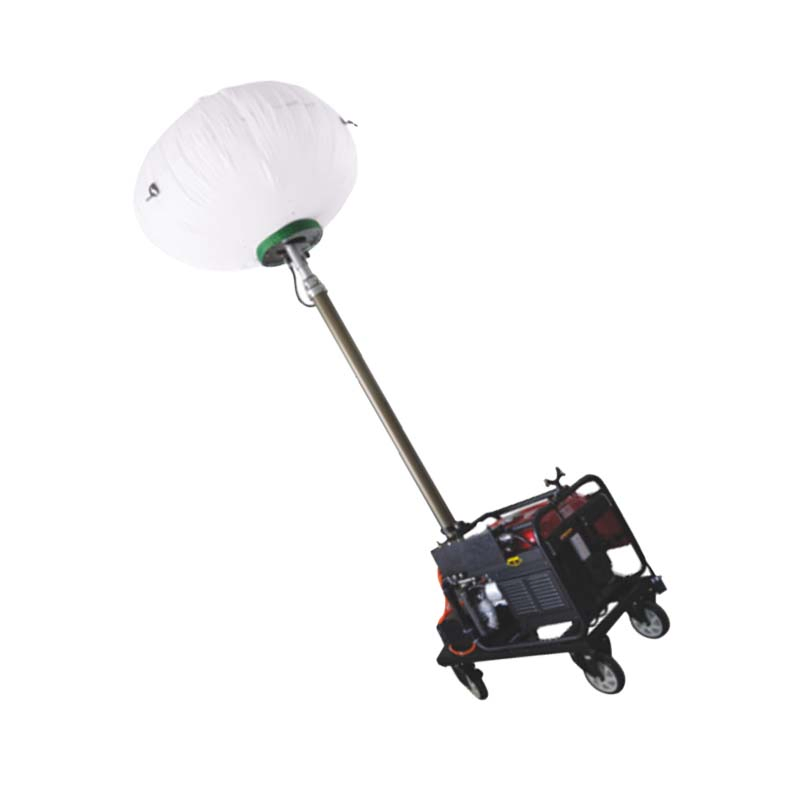

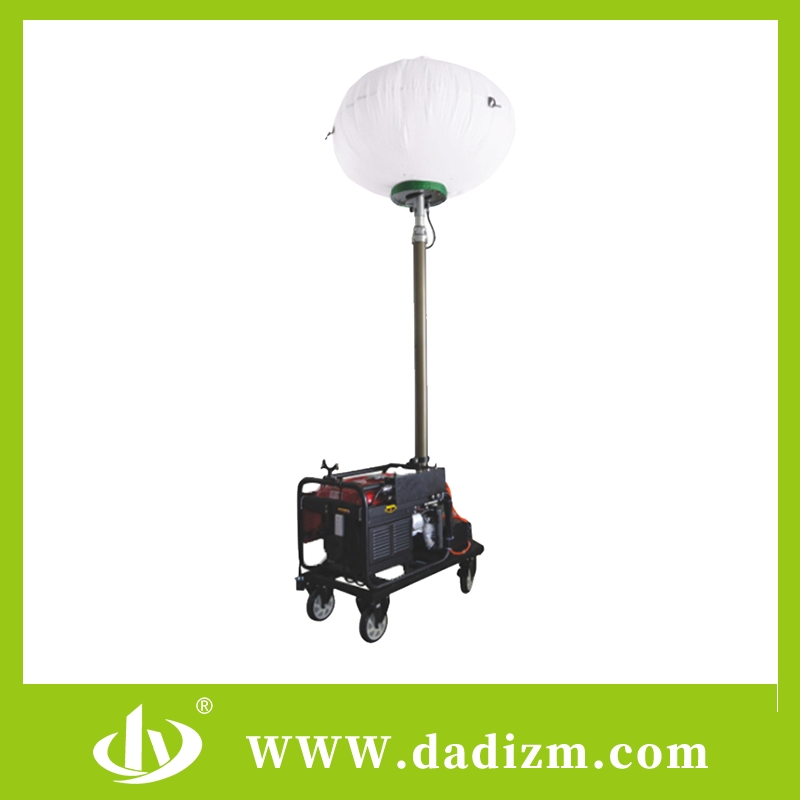

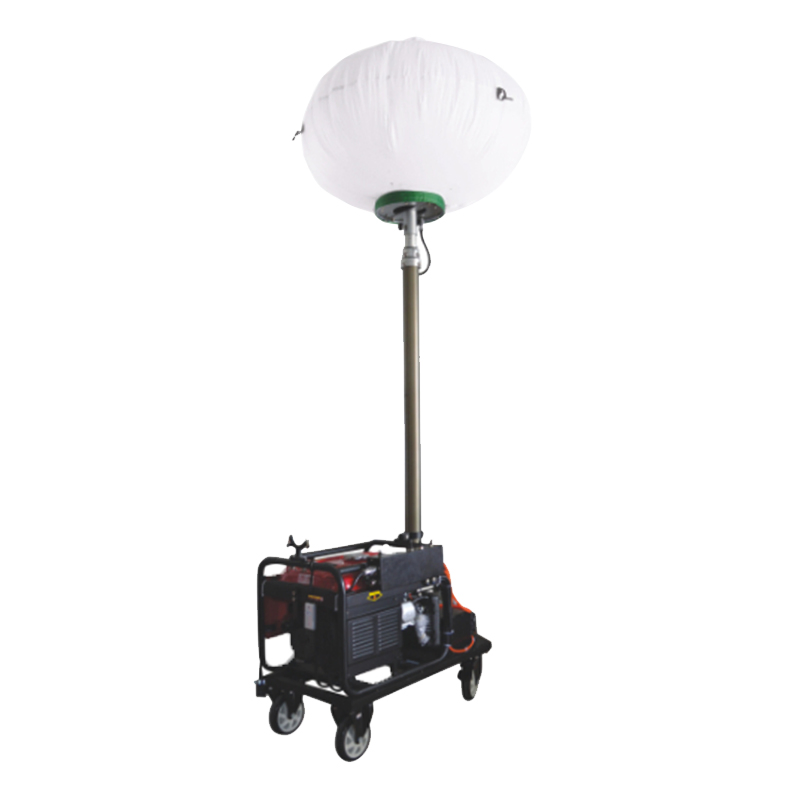

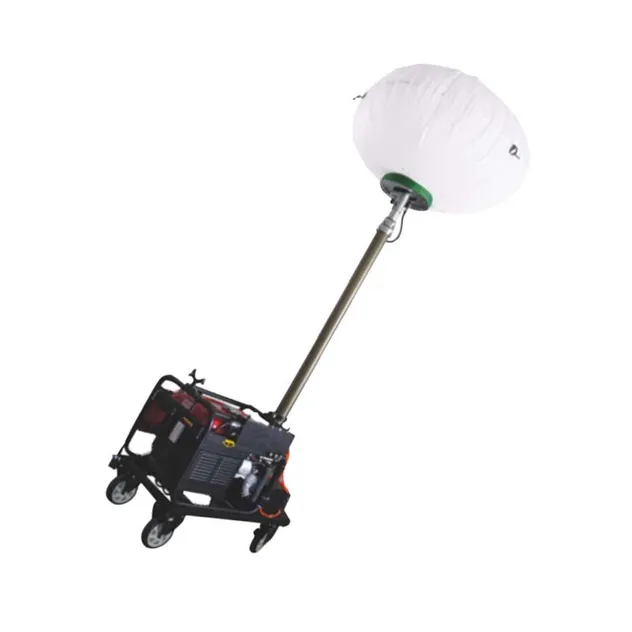

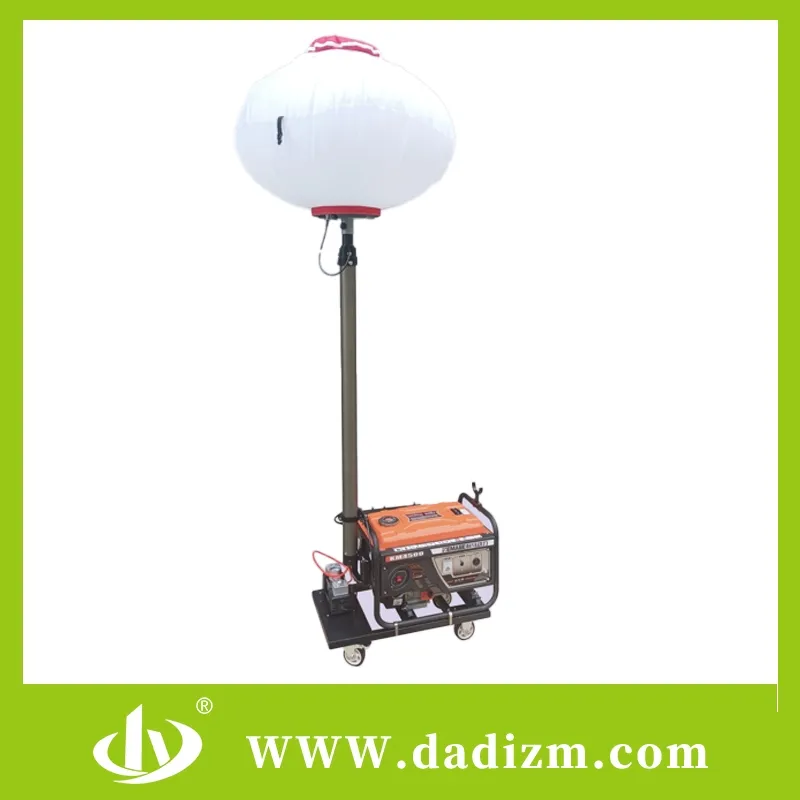

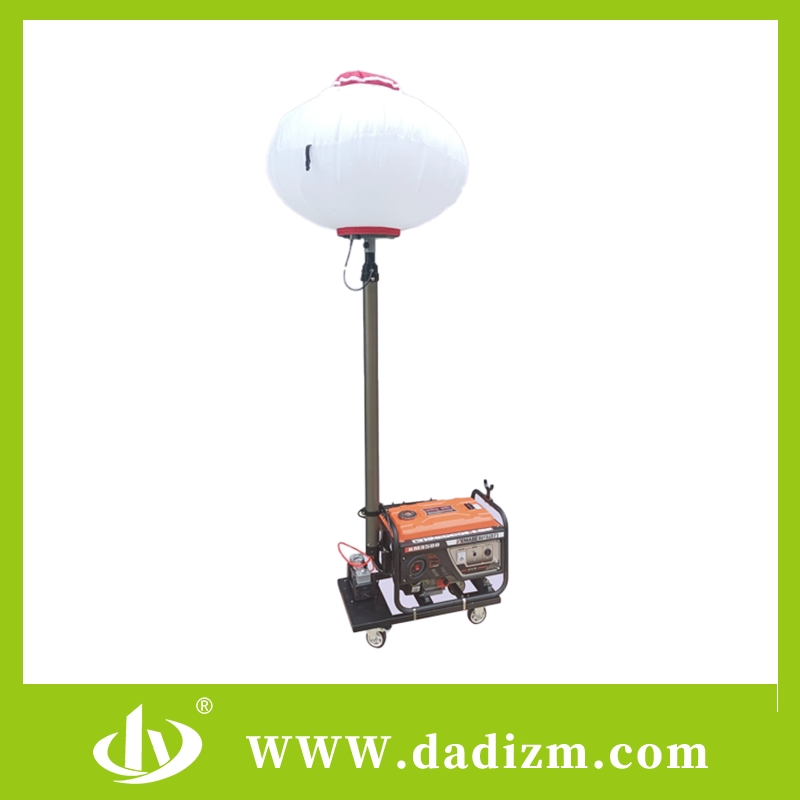

SFW7000-Y Omnidirectional Automatic Lifting Moon Lamp

Specifically designed for large-scale construction operations, accident emergency repairs, rescue missions, and disaster relief. This lighting solution provides high-brightness, large-area coverage for professional fields including railways, electric power systems, and fire rescue services.

Key Structural Features

Green Technology: Environmentally friendly design with zero light pollution.
Premium Performance: Equipped with world-renowned generator sets for superior reliability.
High Luminous Flux: Uses metal halide or LED chips to ensure long service life and high output.
Advanced Lifting: Pneumatic lifting structure allows flexible height adjustment and secure locking.
360° Illumination: Full omnidirectional projection eliminates dead angles with anti-glare properties.

📊

Technical Parameters

Parameter Name	Specifications / Values
Rated Voltage	AC220V / 50Hz
Light Source Type	LED / Metal Halide Option
Rated Power	300W
Luminous Flux	≥ 36,000 lm
Color Temperature	5700K
Maximum Lifting Height	4.5m
Wind Resistance	Level 8
Service Life	50,000 hours (Light Source)
Continuous Work Time	9 Hours (Generator) / Long-term (Mains)
Reflective Cover	Flame-Retardant & Corrosion-Resistant Cloth

🛠️

Operation & After-Sales

Remote Operation

Features an automatic gear state allowing control of lighting and mast lifting via wireless remote control within a 50-meter range.

Service Support

3-Year Standard Warranty
Global 24/7 Technical Assistance
On-site or Remote Maintenance Training

📦

Packaging & Shipping

Package Type:Standard Carton, Plywood, or Custom Wooden Box

Shipping Mode:Sea Freight, Air Freight, or Express

Lead Time:15–30 days for standard units

❓

Frequently Asked Questions

How long can the SFW7000-Y operate continuously?

When powered by its internal generator with a full fuel tank, it can work for up to 9 hours. If connected to 220V municipal electricity, it can provide lighting indefinitely.

Is the unit stable in high wind conditions?

Yes, the system is designed with an adjustable anti-tipping mechanism and has a certified wind resistance rating of Level 8.

Can I control the light from a distance?

Absolutely. The light includes a wireless remote control that allows you to manage the lifting, descending, and power functions from up to 50 meters away.

What are the mobility options for this lighting mast?

The bottom of the unit is equipped with universal wheels for standard terrain. Optional rail wheels are available for specific railway maintenance applications.

What documents do you provide for international shipping?

We provide a full export documentation package, including Commercial Invoice, Packing List, Bill of Lading, and Certificate of Conformity (COC).

What is the coverage area of the Moon Lamp?

The moon lamp provides 360° omnidirectional lighting, designed to provide uniform illuminance over large-scale construction sites without causing harsh shadows or glare.
