Automatic Parking System Smart Parking System Vertical Rotary Car Parking System Carousel Parking for Residential Factory

Customization:	Available
Level:	10-17 Levels
Parking Post:	1000 Posts & Above

Send Inquiry

Product Description

📋 Basic Info & Specifications

Model NO.	PCX-1-11
Compatibility	Sedan and SUV
Control System	PLC Control
Installation	Aboveground
Lifting Mechanism	Mechanical
Load Capacity	3000kg
Operation Mode	Fully Automatic
Safety Features	Anti-Collision Sensors, Emergency Stop, Fire Suppression, Overload Protection
Type	Automated Parking System
Speed	3-10 M/Min
Surface Treatment	Powder Spraying/Coating
Certifications	CE/ISO/SGS
Dimensions	5600 × 1900 × 2050/1550 mm

⚙️ Product Description

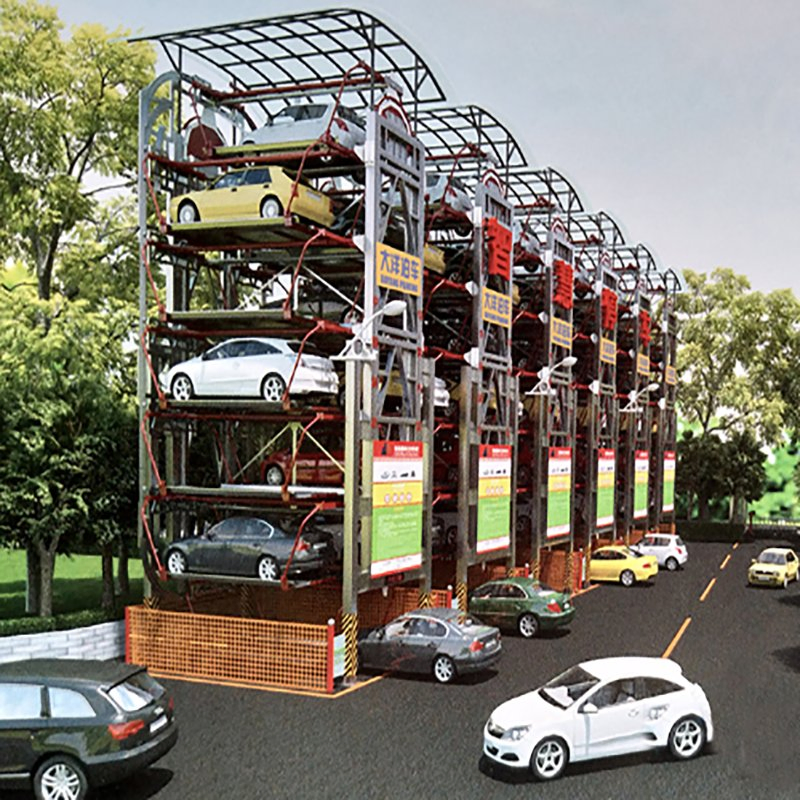

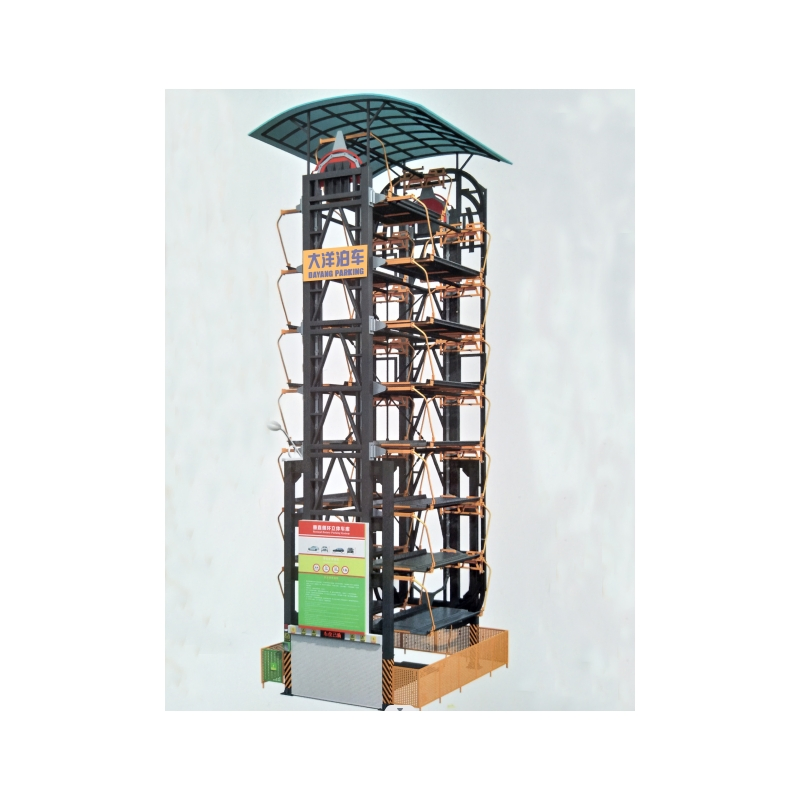

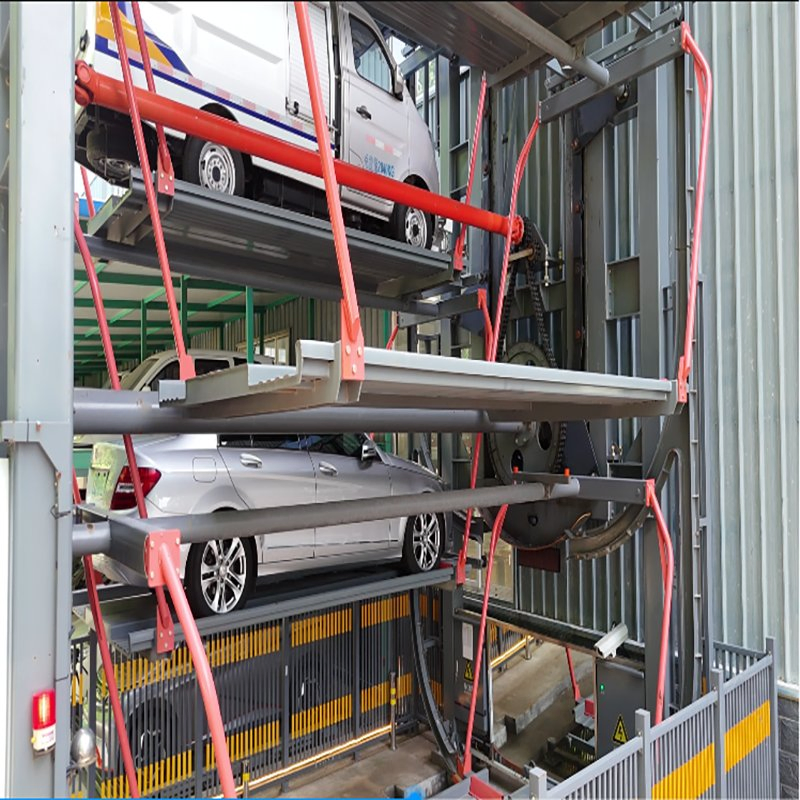

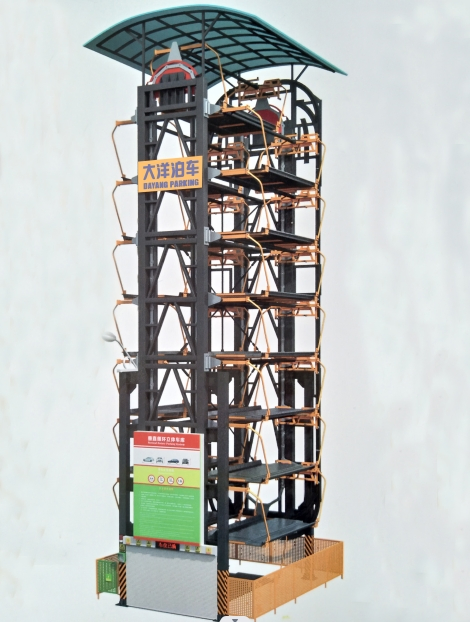

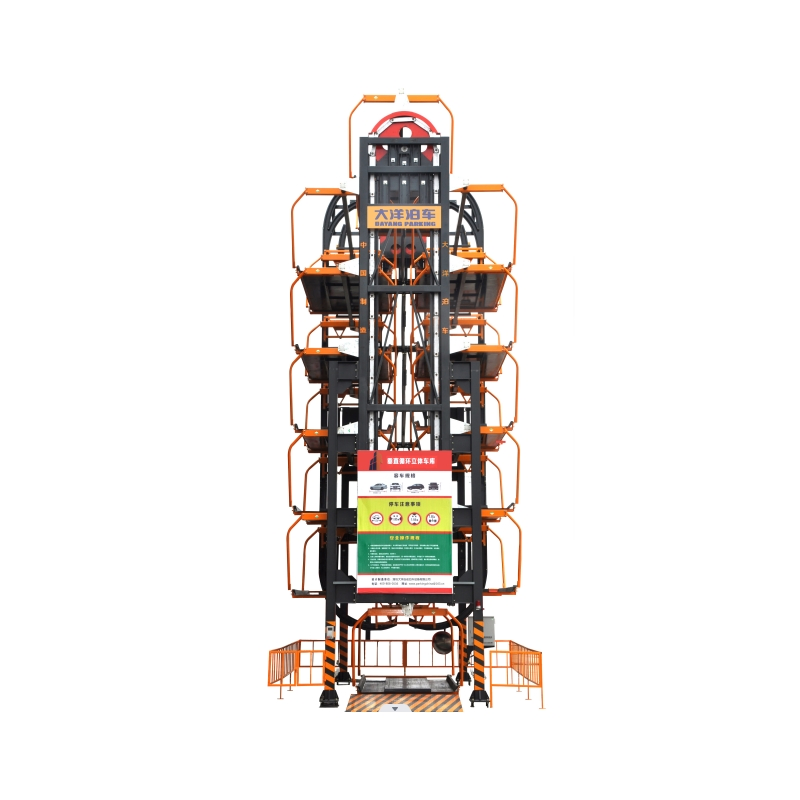

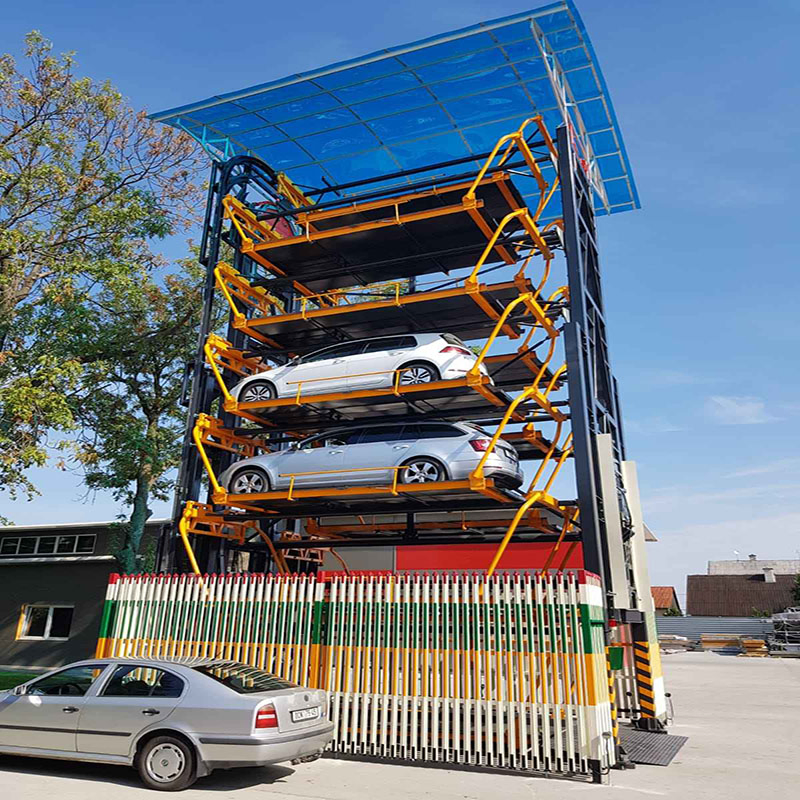

Rotary Vertical Parking System

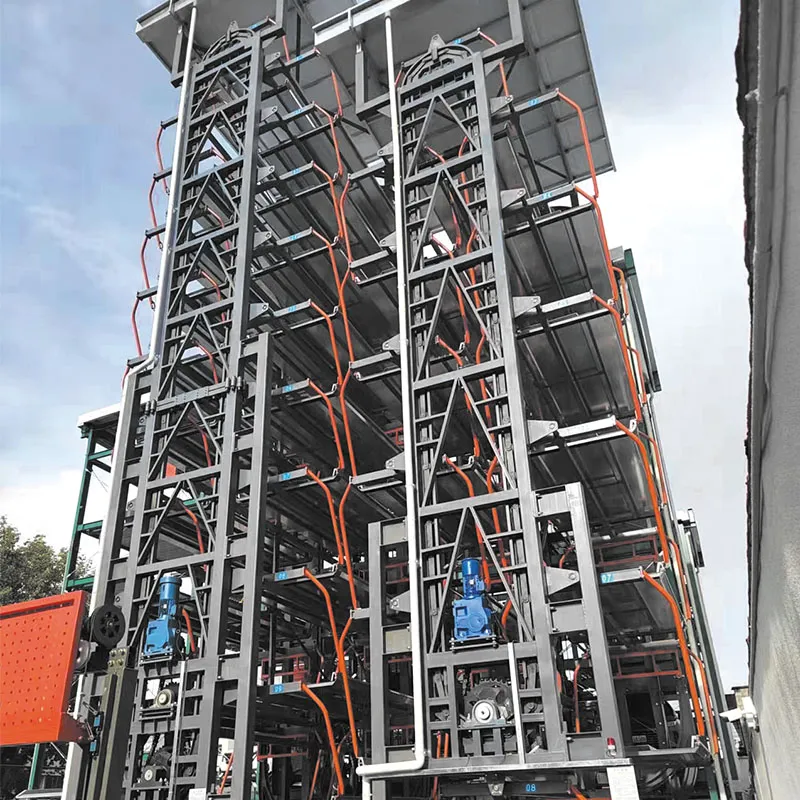

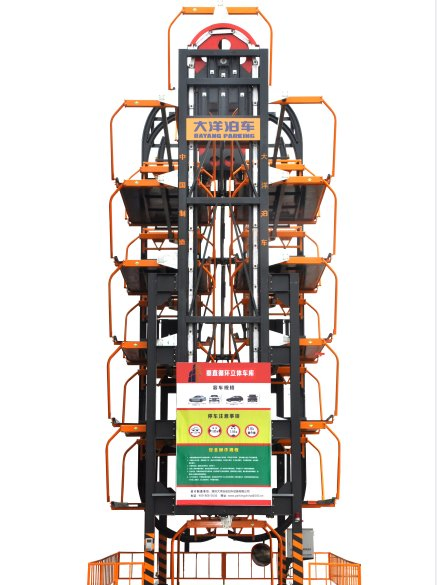

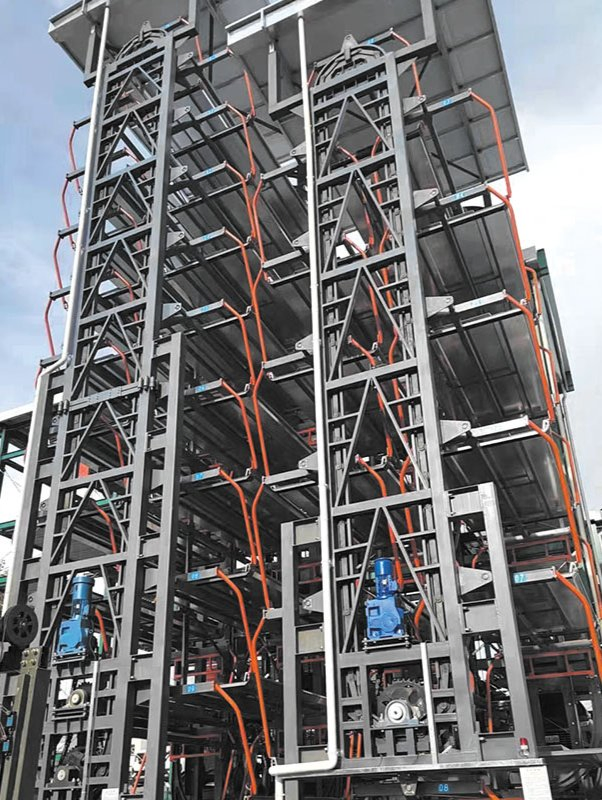

Equipment Principle: Vertical rotary parking equipment refers to parking devices in which the transporter performs circular motion in a vertical plane. It consists of a metal structural frame, transporter, drive system, control system, and safety detection system.

🚀

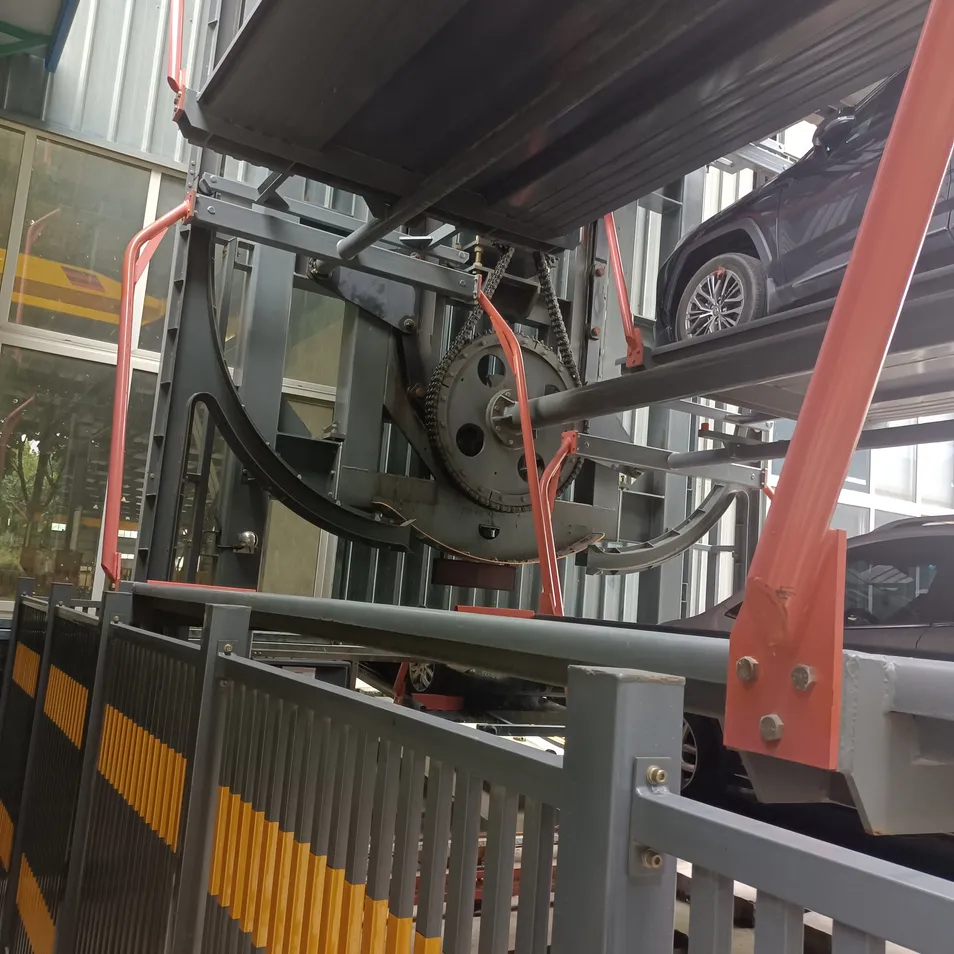

Motor Driven: Arranged on the ground, suitable for small plots of land.

🛡️

Safe & Reliable: Integrated with safety and detection systems.

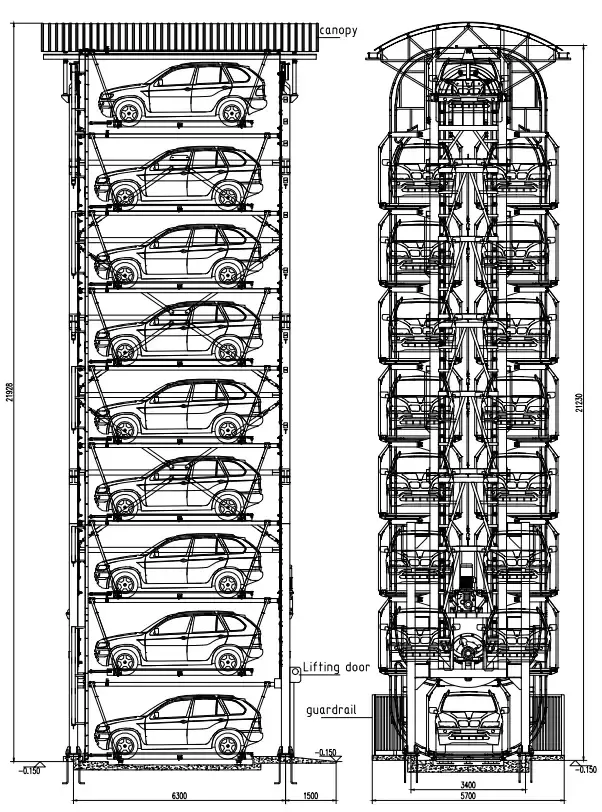

📐 Specification Details

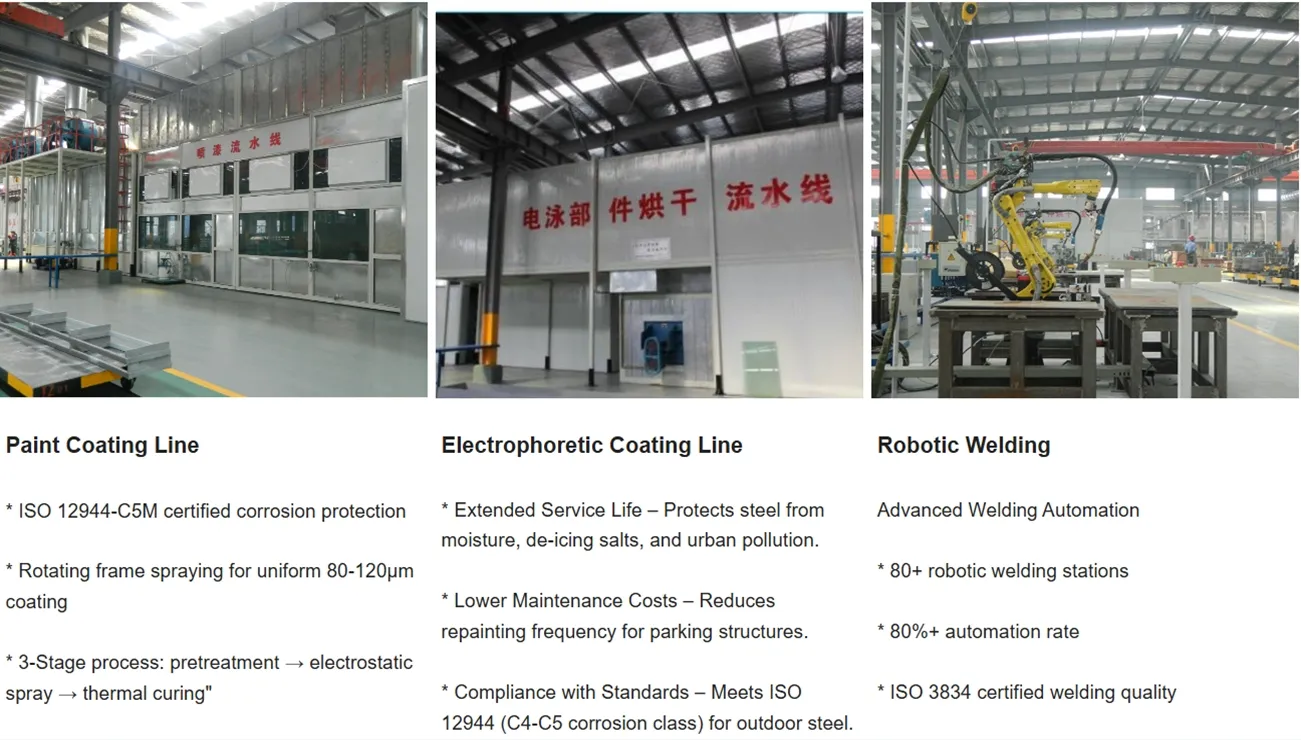

🏢 Professional Manufacturer Profile

🏆Industry Leader: Top manufacturer of mechanical and smart parking systems since 2001.

📦Capacity: Annual output exceeds 200,000 parking spaces.

🌍Global Reach: Exported to North America, Europe, Middle East, and Southeast Asia.

🔋Future Ready: All systems support new energy vehicle charging.

🏙️ Project Showcases

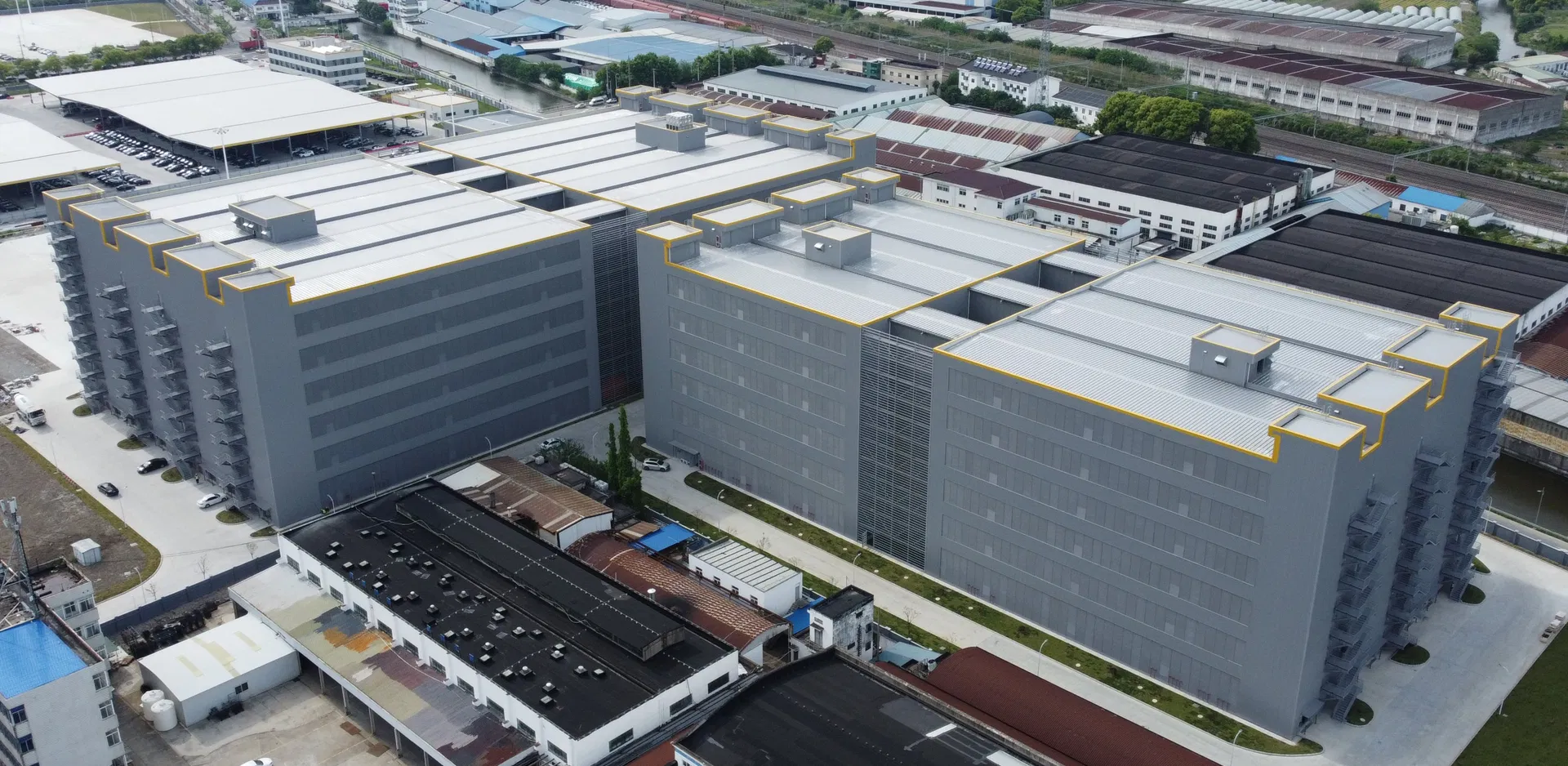

Major Industrial Parking Project: 12 Floors, 7,315 Parking Spaces, RFID Operation, Full Intelligent Horizontal Moving System.

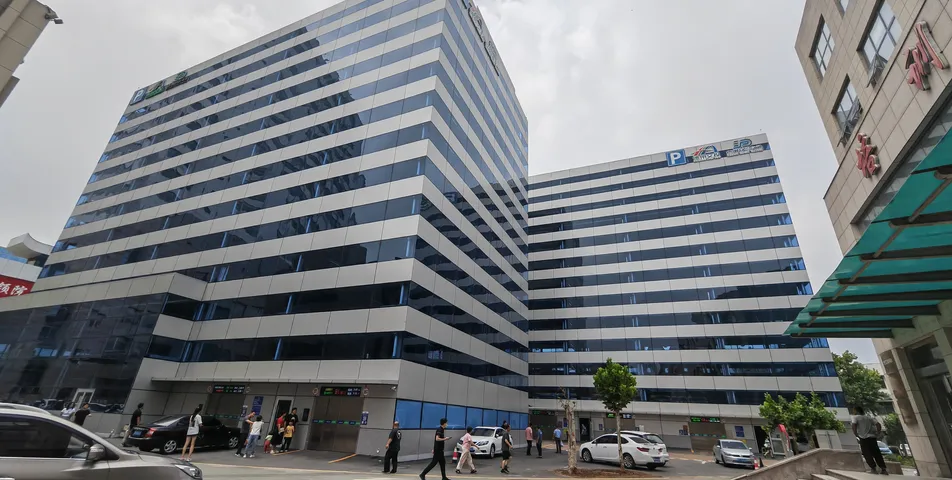

Healthcare Facility Parking

✅ Type: Smart Vertical Lift System
✅ Floors: 13 / 7
✅ Spaces: 633 / 300
✅ Retrieval Time: ≤90s

🛠️ Quality & Service

Service System

1. 2-Year Warranty on all mechanical parts.

2. Free training on operation and safety for users.

3. Comprehensive technical inspection and maintenance plans.

4. Pre-sale and after-sale technical consultation.

🚢 Packaging & Shipping

1. Iron Frame Security: Reinforced frame for steadfast stability.

2. Screw Fastening: All structures thoroughly fixed with screws.

3. Electrical Protection: Motors and wires enclosed in robust iron boxes.

4. Final Wrapping: Resilient stretch film for pristine arrival.

Frequently Asked Questions

❓ What is the main advantage of the Vertical Rotary Parking System?

It maximizes parking capacity in extremely small footprints. For example, a system covering only two traditional parking spaces can accommodate up to 20 vehicles.

❓ How does the system ensure vehicle safety during operation?

Our systems are equipped with PLC control, anti-collision sensors, emergency stop buttons, and overload protection to ensure the safety of both the vehicles and the users.

❓ Is the system suitable for outdoor installation and high humidity?

Yes. We use hot-dip galvanized steel and fluorocarbon spraying technology, passing 1000-hour salt spray tests, making it ideal for high-humidity or coastal environments.

❓ Can the system accommodate both Sedans and SUVs?

Yes, the PCX-1-11 model is designed with compatibility for both Sedans and SUVs with a load capacity of up to 3000kg.

❓ What is the average retrieval time for a vehicle?

The automated systems are designed for high efficiency, with an average vehicle retrieval time of ≤90 seconds.

❓ How do you handle installation in extremely cold regions?

We use low-temperature start-up technology and anti-slip coatings on guide rails, allowing reliable operation in environments as low as -40 °C.
