Customization: Available
Parking Post: 1000 Posts & Above
Level: 5-9 Levels
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
PJS-PIT11
Capacity
7000 lbs
Lifting Height
1.6-2.5m
Material
High-Strength Steel
Operation
Fully Automatic
Safety Features
Locks, Emergency Stop, Overload Protection
Warranty
2 Years
Certification
CE / ISO 9001 / SGS
Speed
0.3-1 M/S
Vehicle Type
Sedans & SUVs
P

Product Description

Parking Lift System

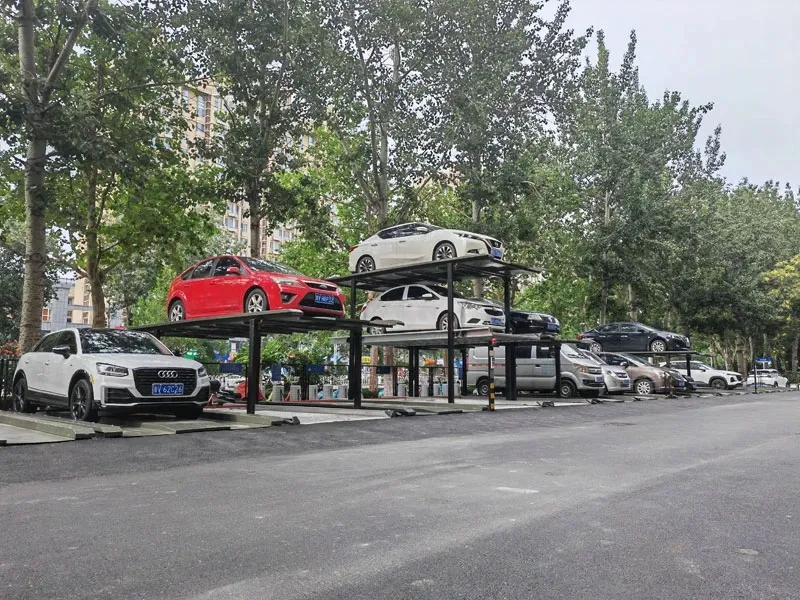

Pit Lift Details

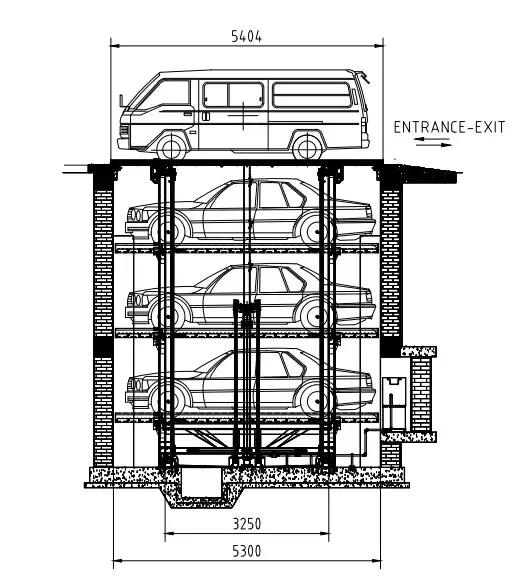

Operating Principle: The equipment is divided into three or four layers, lifting and lowering as a whole. Lower parking spaces are located in a pit, while the upper level remains at ground height. Accessing lower vehicles is achieved by raising the entire system until the target board is level with the ground.
This equipment adopts a hydraulic drive form and is typically arranged in various configurations (negative-one-positive-one, negative-two-positive-one, etc.). It is ideal for residential areas, shopping malls, and office buildings requiring efficient space utilization.
Drive ModeHydraulic
Car Size (Basement)Sedan ≤ 5000*1850*1550mm
Car Size (Ground)SUV ≤ 5000*1850*2050mm
Car Weight≤ 2000kg / 2350kg
Power & Speed11kw, 5.0-6.0m/min
Power ResourceThree phase five wire 380V 50Hz

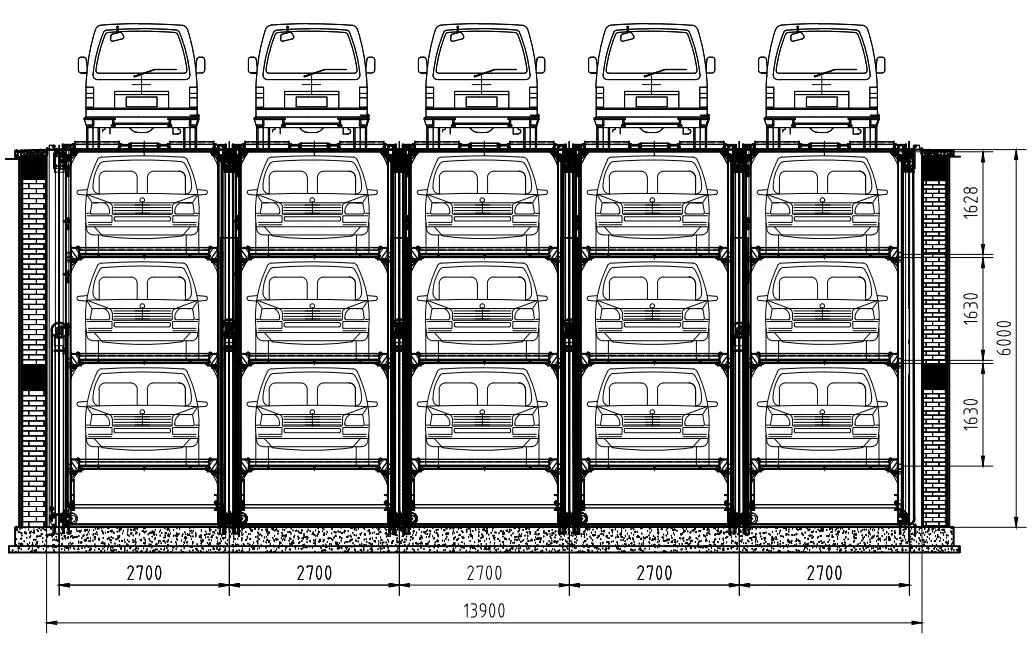

Parking System Mechanism
Space Optimization
A

Professional Manufacturing

Factory Overview

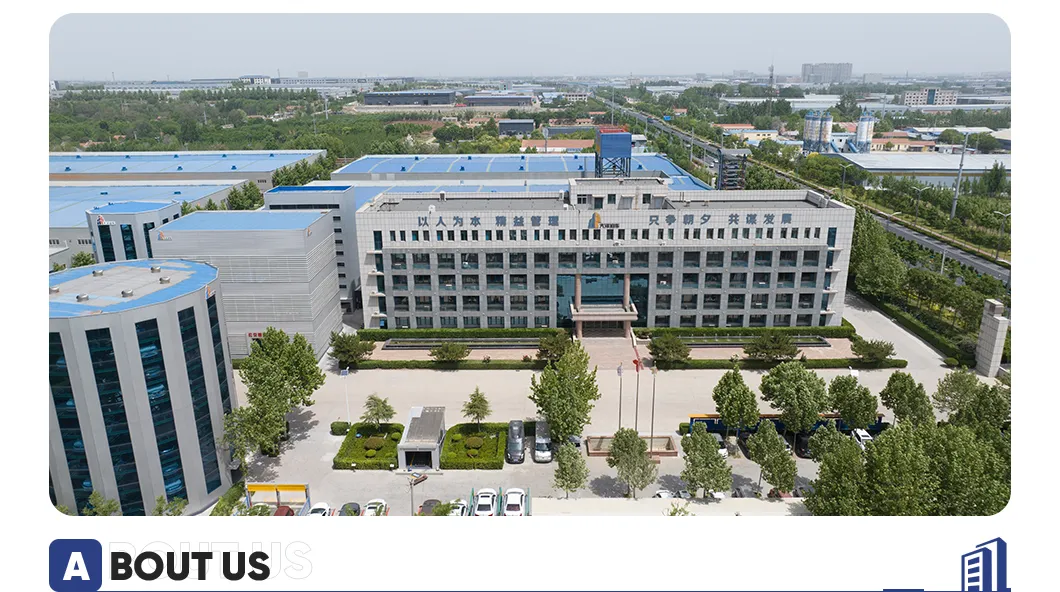

Production Line
Specializing in research, design, and manufacturing of automatic parking systems since 2001. Holding over 240 patents, including PCT patents, the facility features advanced equipment:
  • Fully automated welding robots
  • CNC laser cutting machines
  • 500-ton hydraulic presses
  • Zinc-spraying production lines
  • Electrophoretic coating lines

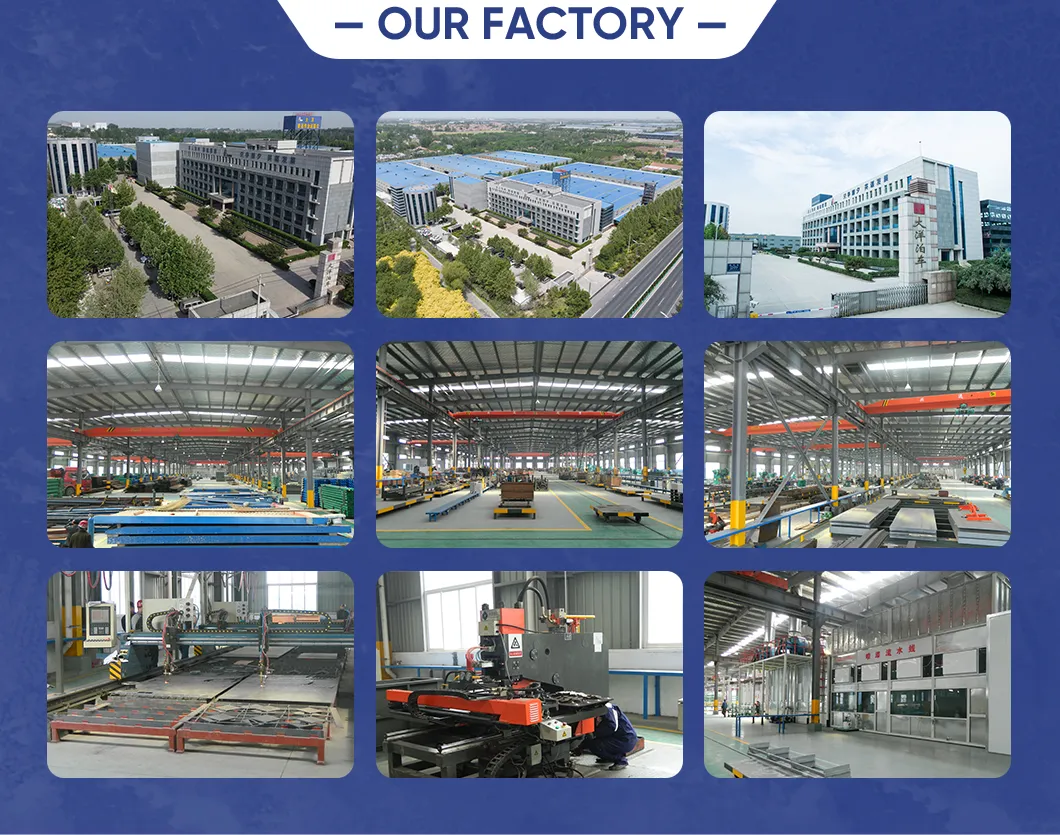

Machining Equipment

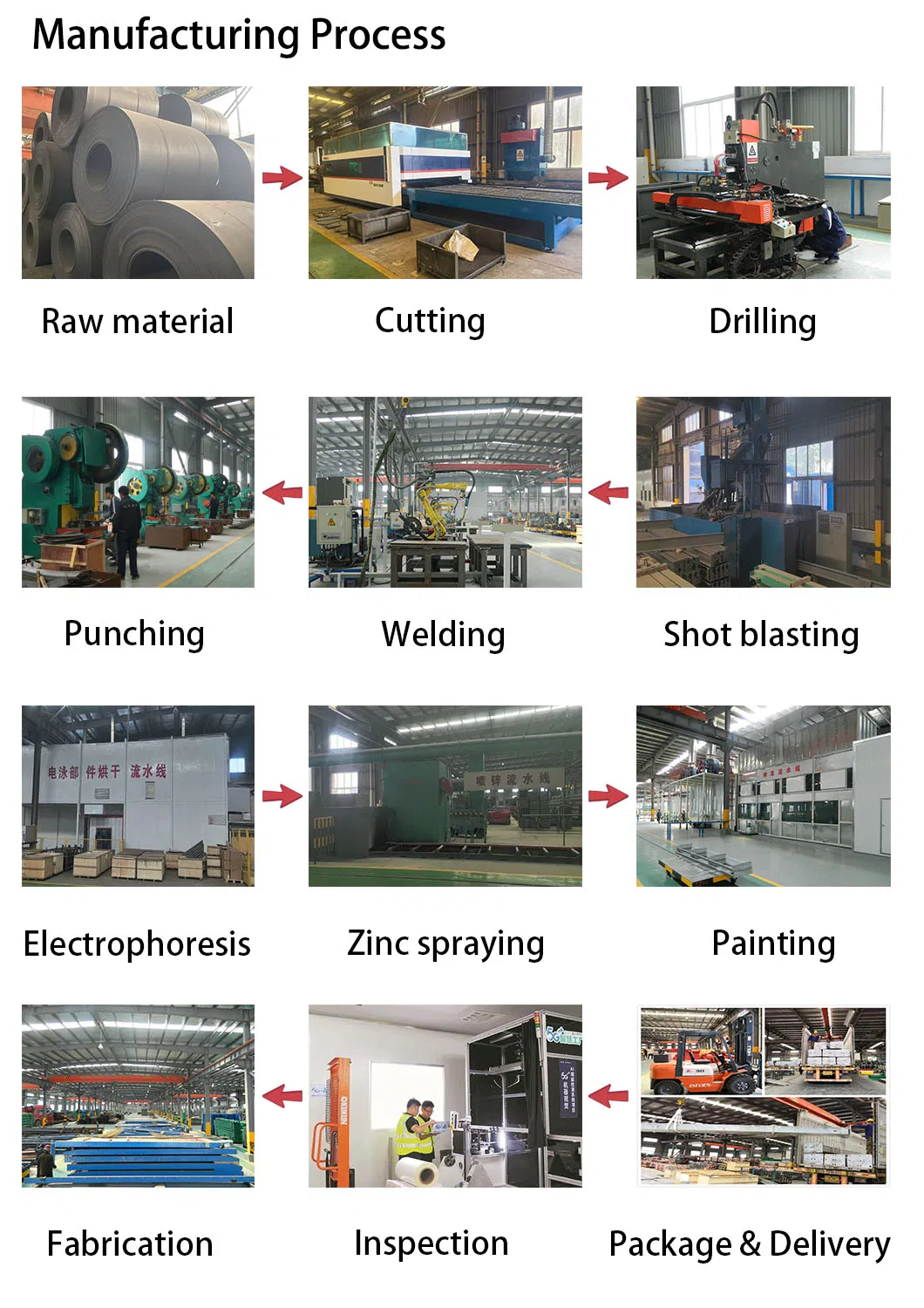

Production Detail
S

Our Services & Support

After-sales service
  • 2-Year Warranty: Comprehensive coverage for equipment reliability.
  • Free Training: Operations and safety training for all users.
  • Technical Consultation: Free pre-sale and after-sale technical support.
  • Full Inspection: Comprehensive status evaluation post-installation.
L

Logistics & Packaging

Certificates
Packaging
Four-step packing process:
1) Iron frame for structural stability.
2) Components fixed via heavy-duty screws.
3) Motors and electronics housed in protective boxes.
4) Complete assembly covered with stretch film for moisture protection.
?

Frequently Asked Questions

What are the primary advantages of this parking system?
It is designed for high safety, reliability, and space efficiency. The pit-style design allows for multilevel parking without obstructing ground-level aesthetics or lighting.
Where can this product be installed?
It is suitable for both indoor and outdoor applications, commonly used in residential complexes, shopping malls, and commercial office buildings.
How long is the warranty period?
The system comes with a standard 2-year warranty covering major components and technical support.
What are the payment terms for orders?
We support multiple payment methods including L/C, T/T, and Western Union for offline orders.
Can the system accommodate SUVs?
Yes, the ground floor positions are specifically designed to accommodate SUVs with a height up to 2050mm.
What safety features are included?
The system includes automatic safety locks, anti-fall frames, emergency stop buttons, and overload protection sensors to ensure operator and vehicle safety.
