Installation Type
Multi-Level, Surface Mount, Underground
Power Source
Battery, Electric, Solar
Safety Features
Anti-slip Surface, Emergency Stop Button, Overload Protection, Safety Railings, Safety Sensors
Suitable for
Commercial Use, Public Parking, Residential Use
Available Car Size
5000X1850X1550mm
Lifting Speed
up to 28m/Min
Gross Weight
1200kg/Parking Space
Container Load
15 Parking Spaces/40FT Container
Working Mode
Quasi Unmanned
The Vehicle Inlet and Outlet
Down
Lift Mode
Hydraulic Cylinder
Transport Package
Standard Exporting Package
Production Capacity
1000 Parking Spaces/Month

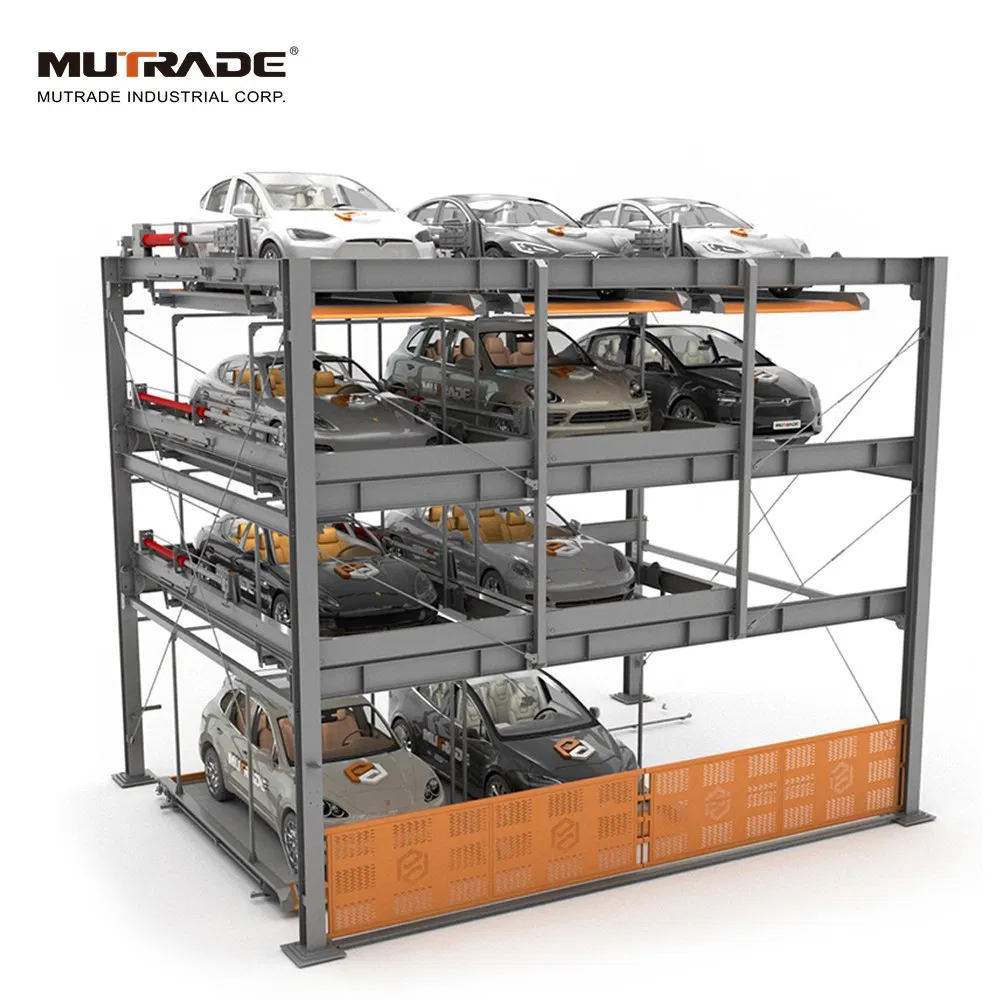

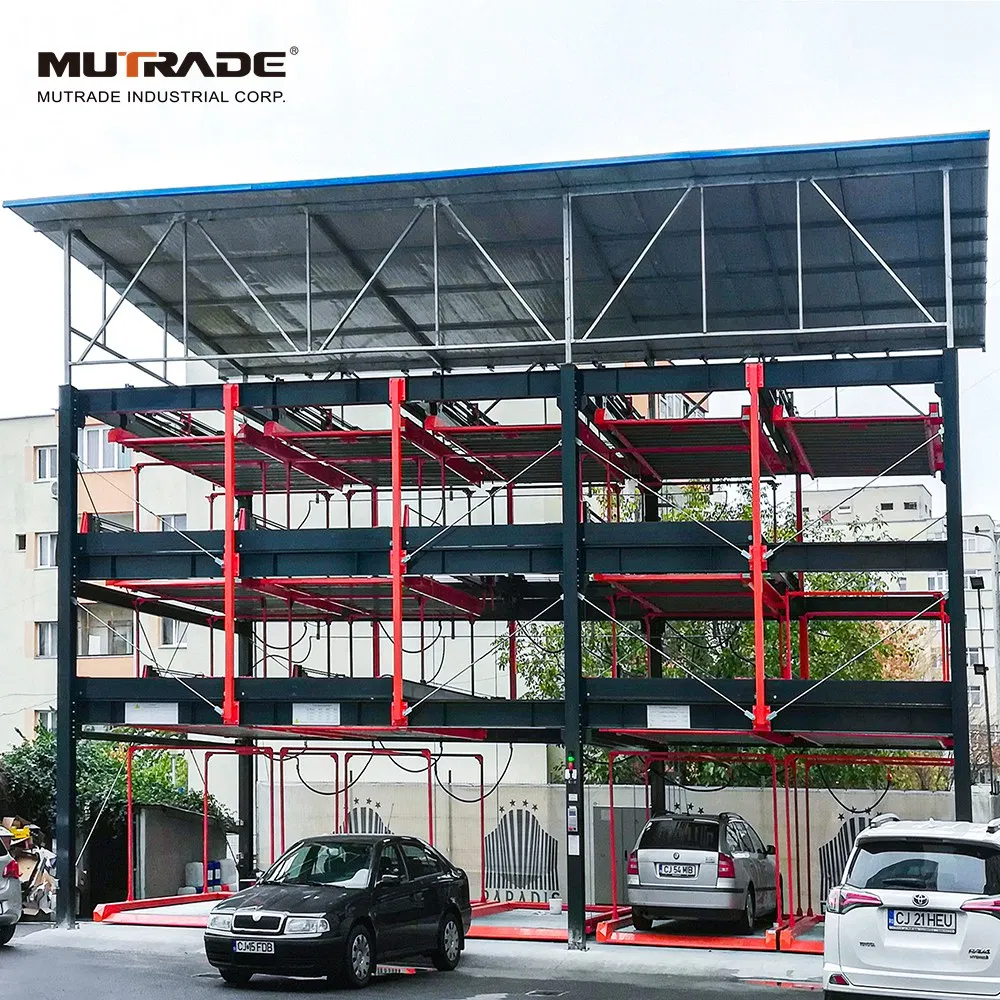

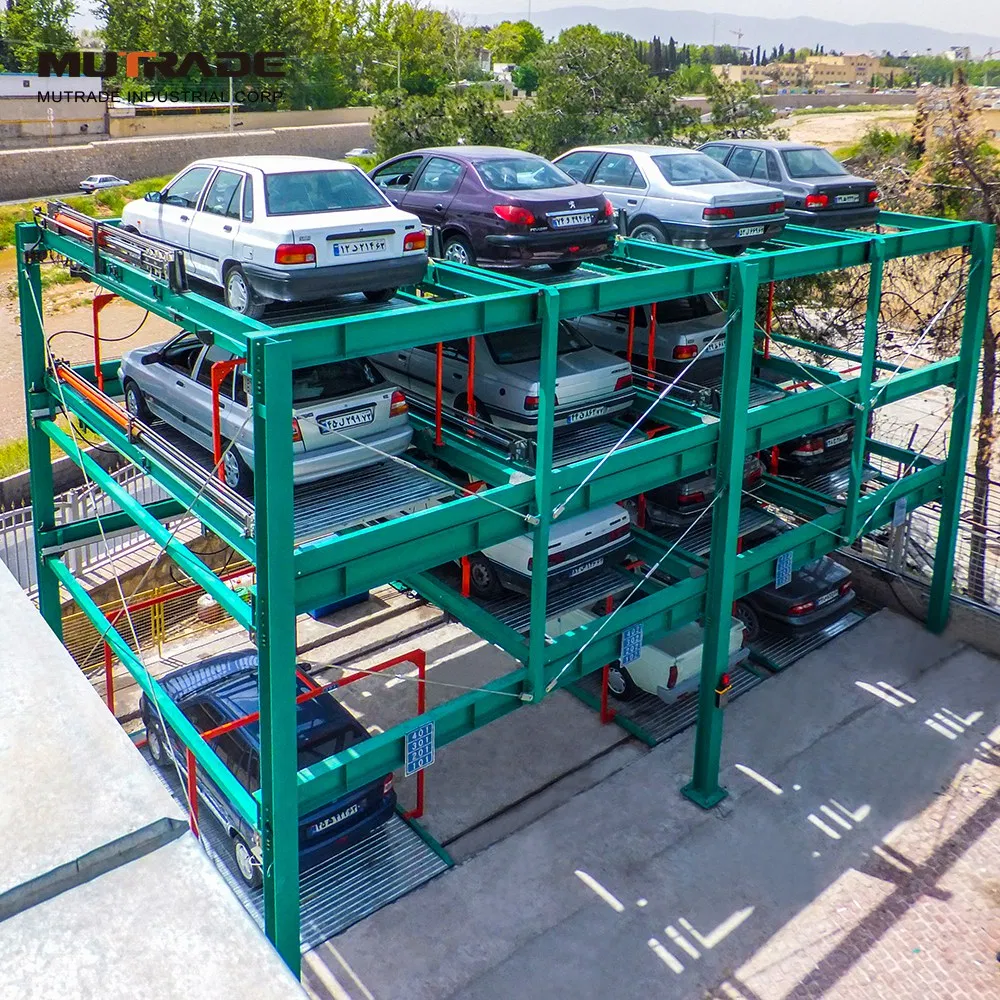

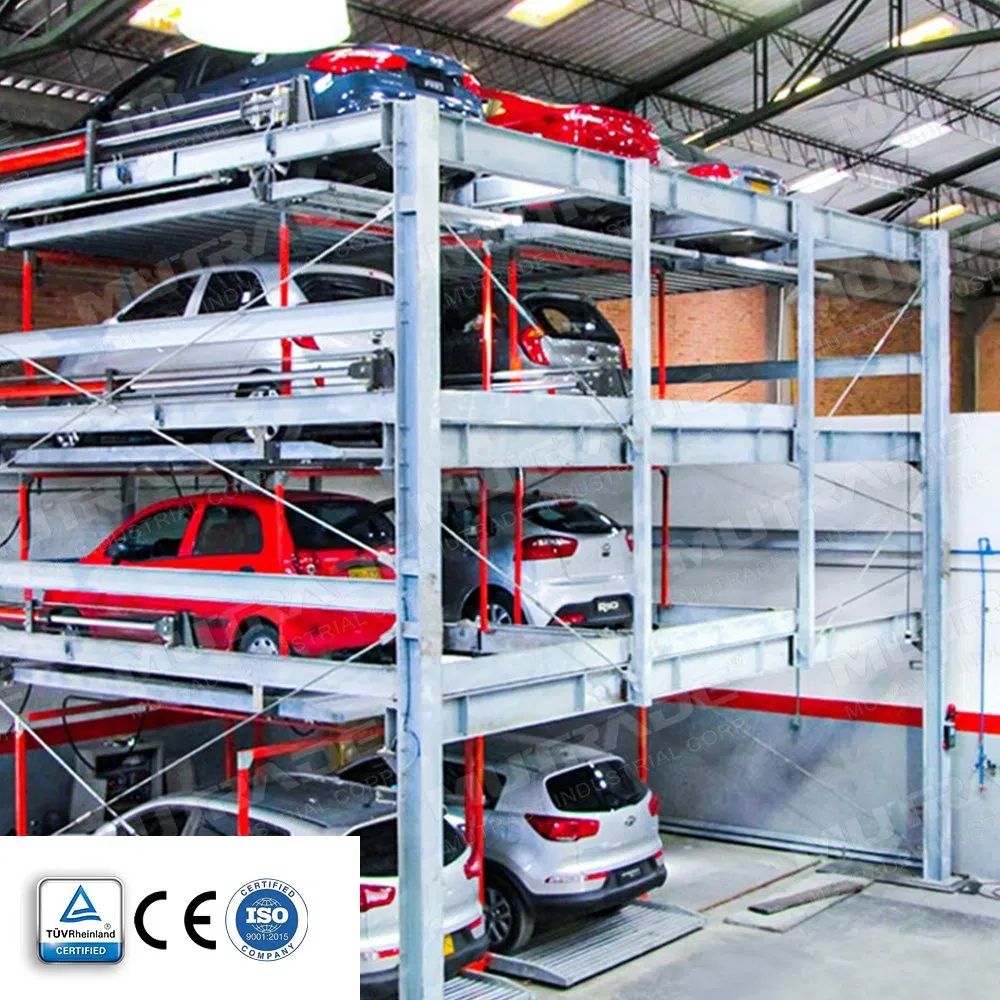

BDP-4 is a compact and space-saving puzzle parking system built in four levels. By having one empty space on the ground and middle floors, all spaces can be accessed directly and independently. The unique design of hydraulic-driven provides super-faster lifting speed comparing to motorized system, thus greatly shorten the waiting time. It can be built in various solutions by adding more grids on the side or back-to-back. Furthermore, options for different platform widths, system lengths, and floor clearances are available to accommodate various vehicle types.
🚀
High Efficiency: Without needing a pit, this semi-automatic parking system can really make your life easier. Having one empty space on the ground floor, platforms on ground floor slide laterally and those on top move vertically, so that all spaces can be accessed directly and independently.
The unique design of hydraulic-driven provides larger capacity, faster lifting speed, quieter operation and superior safety comparing to motorized system. It can be built in various solutions by adding more grids on the side or additional row(s) in front.
❓ Frequently Asked Questions

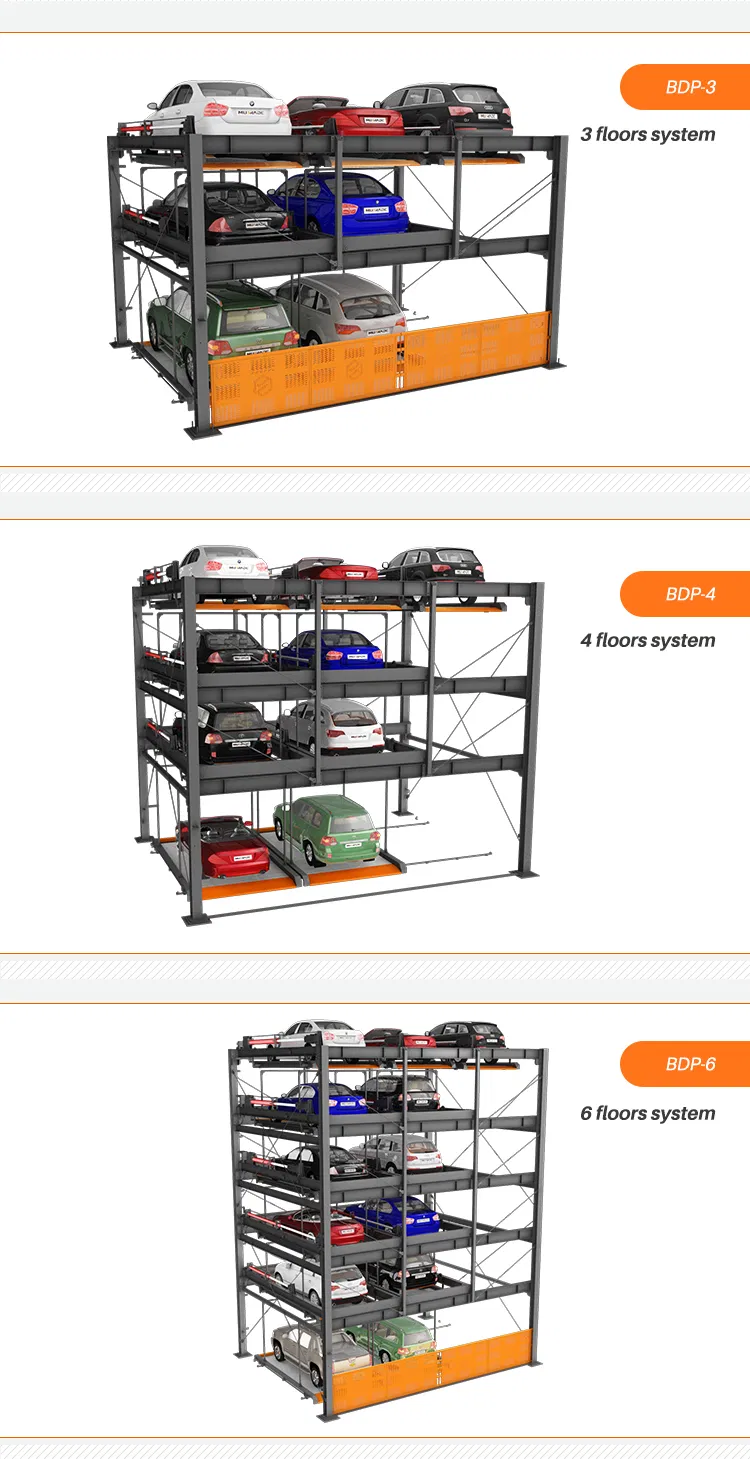

Q1: How many parking levels can the BDP series accommodate?
The BDP puzzle parking system is highly scalable and can be designed to accommodate anywhere from 2 up to 15 levels.
Q2: What are the main advantages of the hydraulic drive system over motorized systems?
Hydraulic systems offer faster lifting speeds (up to 28m/min), higher weight capacity, quieter operation, and enhanced safety features.
Q3: Does the BDP-4 system require a pit for installation?
No, the BDP-4 is designed as a semi-automatic system that can be installed on the surface without the need for a specialized pit.
Q4: What types of safety features are integrated into the system?
The system includes an anti-slip surface, emergency stop buttons, overload protection, safety sensors, and safety railings to ensure user and vehicle safety.
Q5: Can the platform dimensions be customized for larger vehicles?
Yes, options for different platform widths, system lengths, and floor clearances are available to accommodate various vehicle sizes and types.
Q6: What is the typical production capacity for this system?
The production capacity is approximately 1000 parking spaces per month, ensuring timely delivery for large-scale projects.
