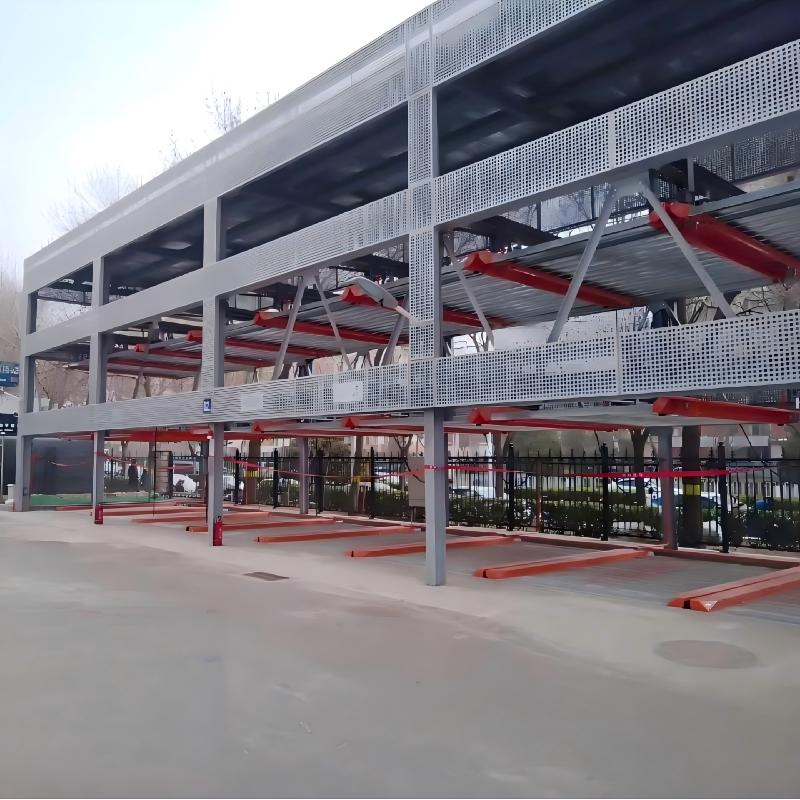

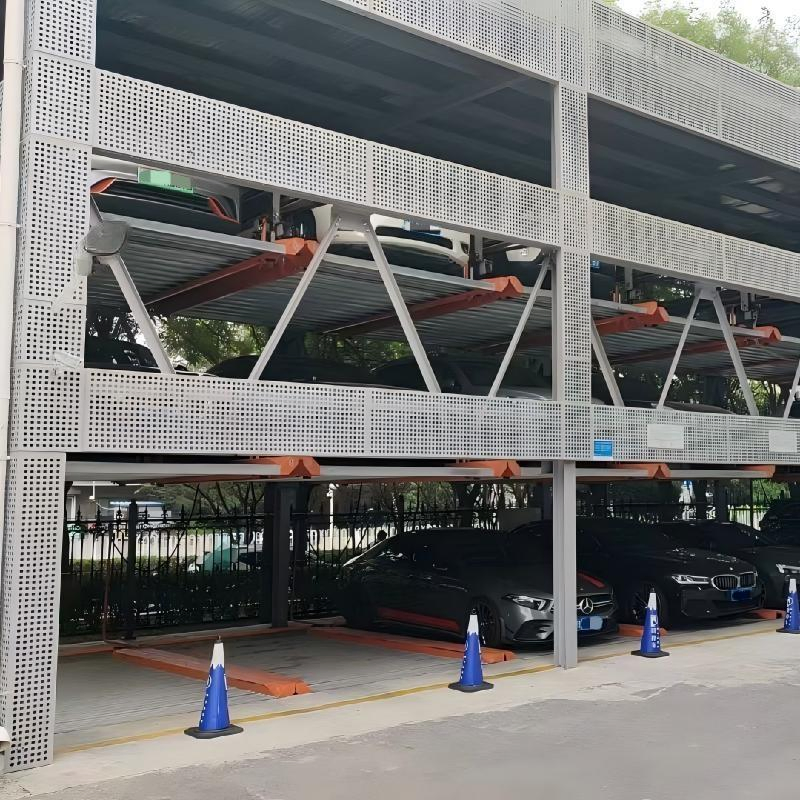

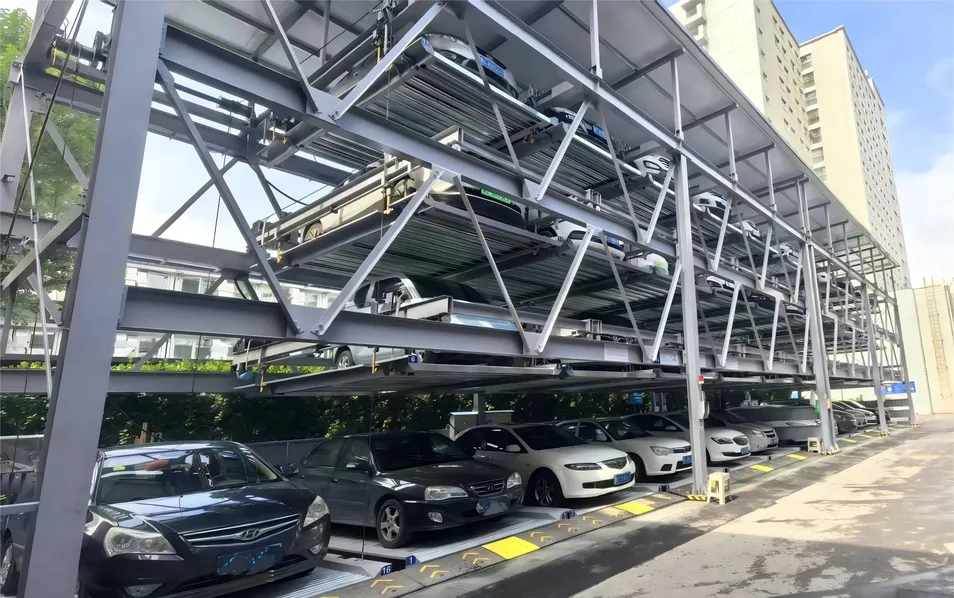

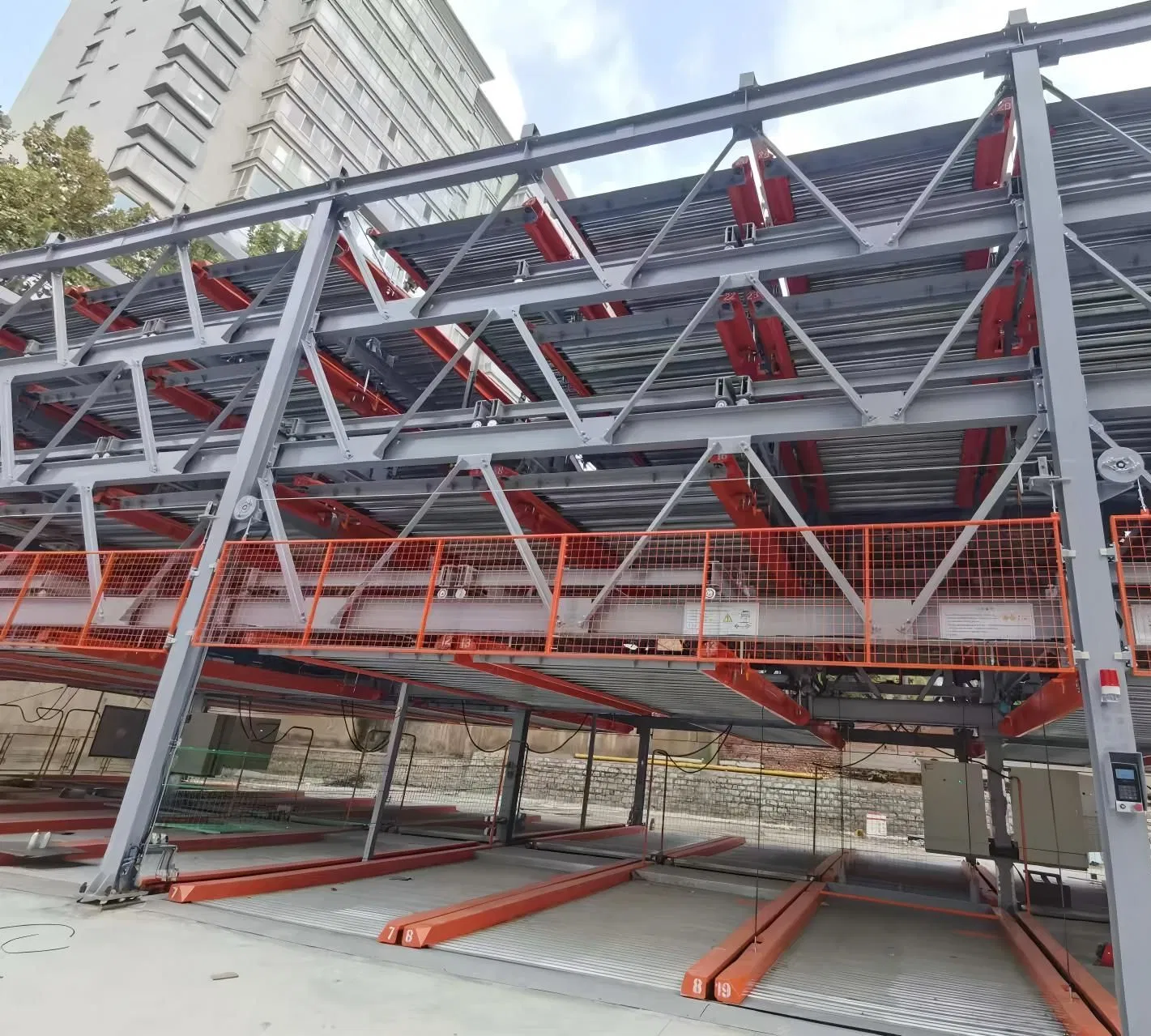

The puzzle parking system comes in various forms from two to seven floors, with sizes ranging from large to small. It has strong adaptability to the site and can be modularly combined, effectively saving land and space. The construction and maintenance costs are low, and the equipment is safe and reliable to use.
The equipment stores and retrieves vehicles by lifting or horizontally moving the carrier board. The upper carrier board only performs lifting operation, while the ground carrier board only performs horizontal movement. There is space left on the ground floor that can be changed left and right with the horizontal movement of the carrier board, so that the corresponding upper carrier board can be lowered to the ground.
(Custom configurations available upon request.)
| Car size (L×W×H) | ≤5300mm×1900mm×1550mm / ≤4700mm×1800mm×1450mm |
| Loading capacity | 2500kg |
| Motor Power (Lift) | 3.7kw / 2.2kw (5m/min) |
| Motor Power (Traverse) | 0.4kw / 0.2kw (9m/min) |
| Rise & Drop Time | 70S |
| Transmission | Motor and Chain or Wire Rope |
| Operation Mode | PLC, Button, IC card |

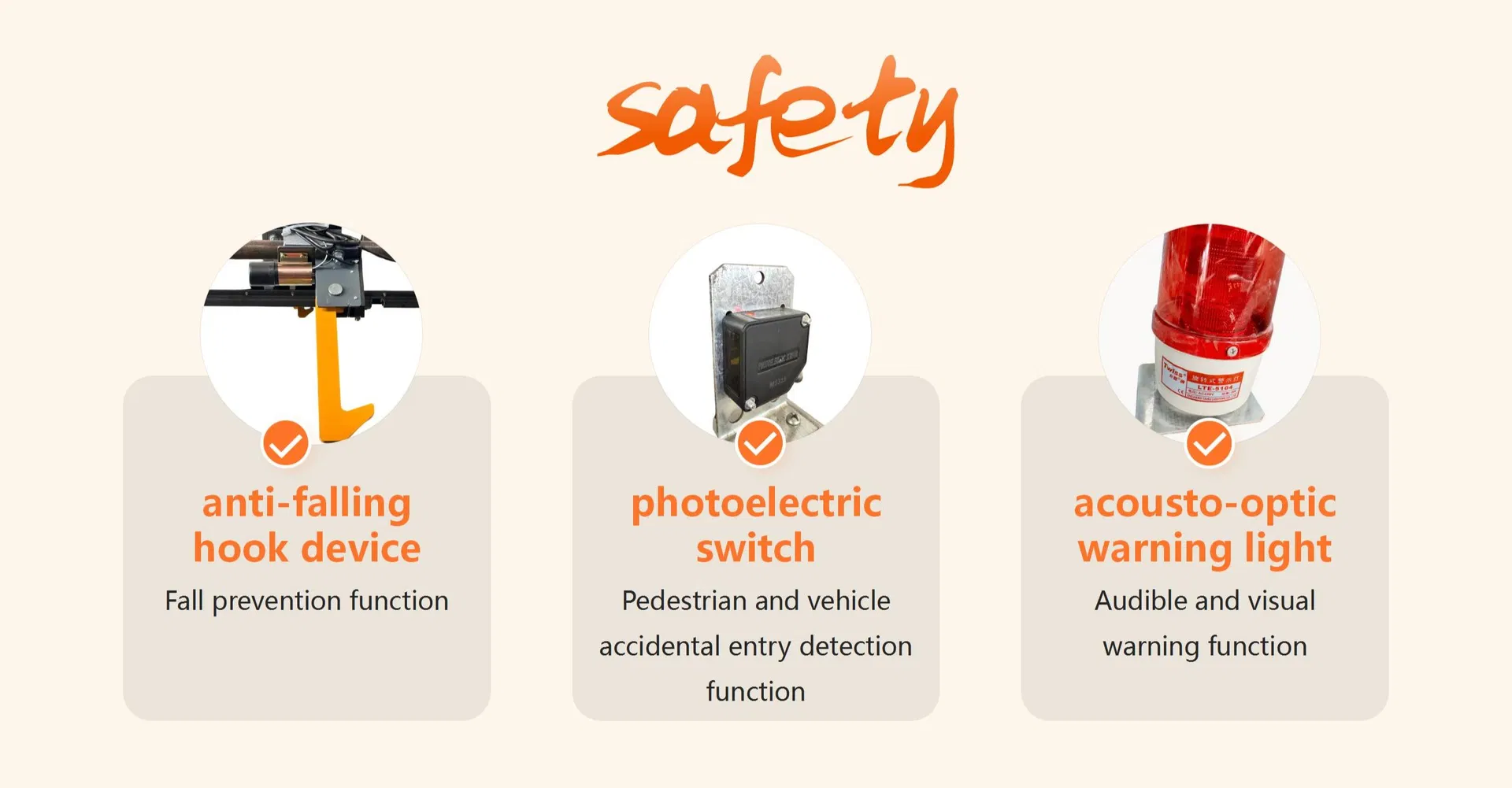

| Safeguard | Falling Protection, Photoelectric Sensor, Travel Limiter |

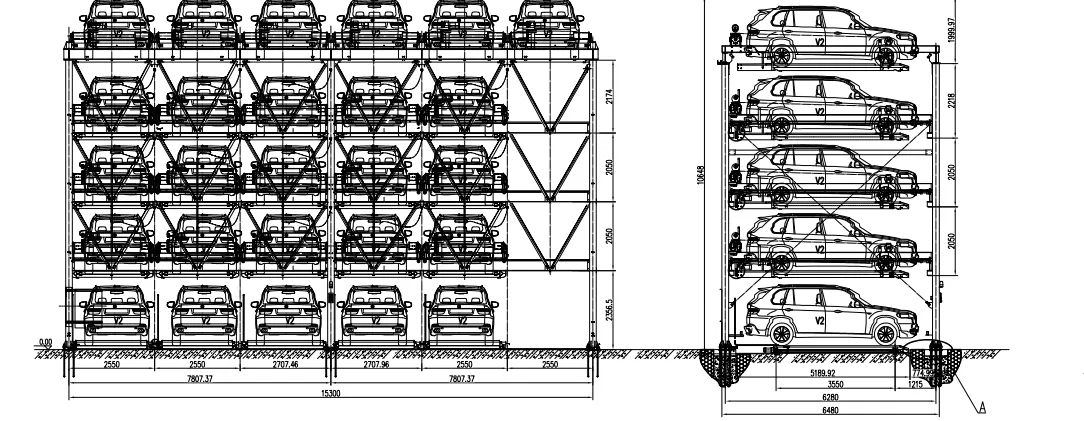

Detailed CAD drawings and dimensional diagrams are available. Our engineering team provides customized designs tailored to specific project needs.

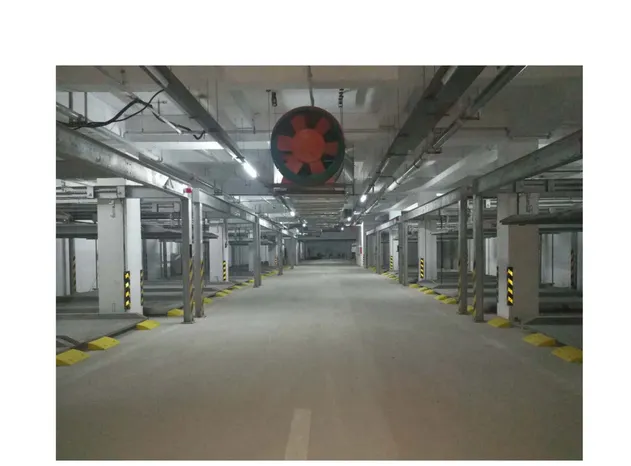

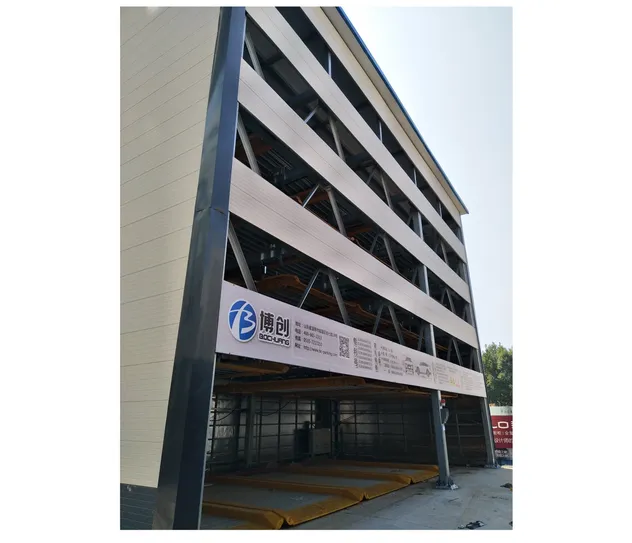

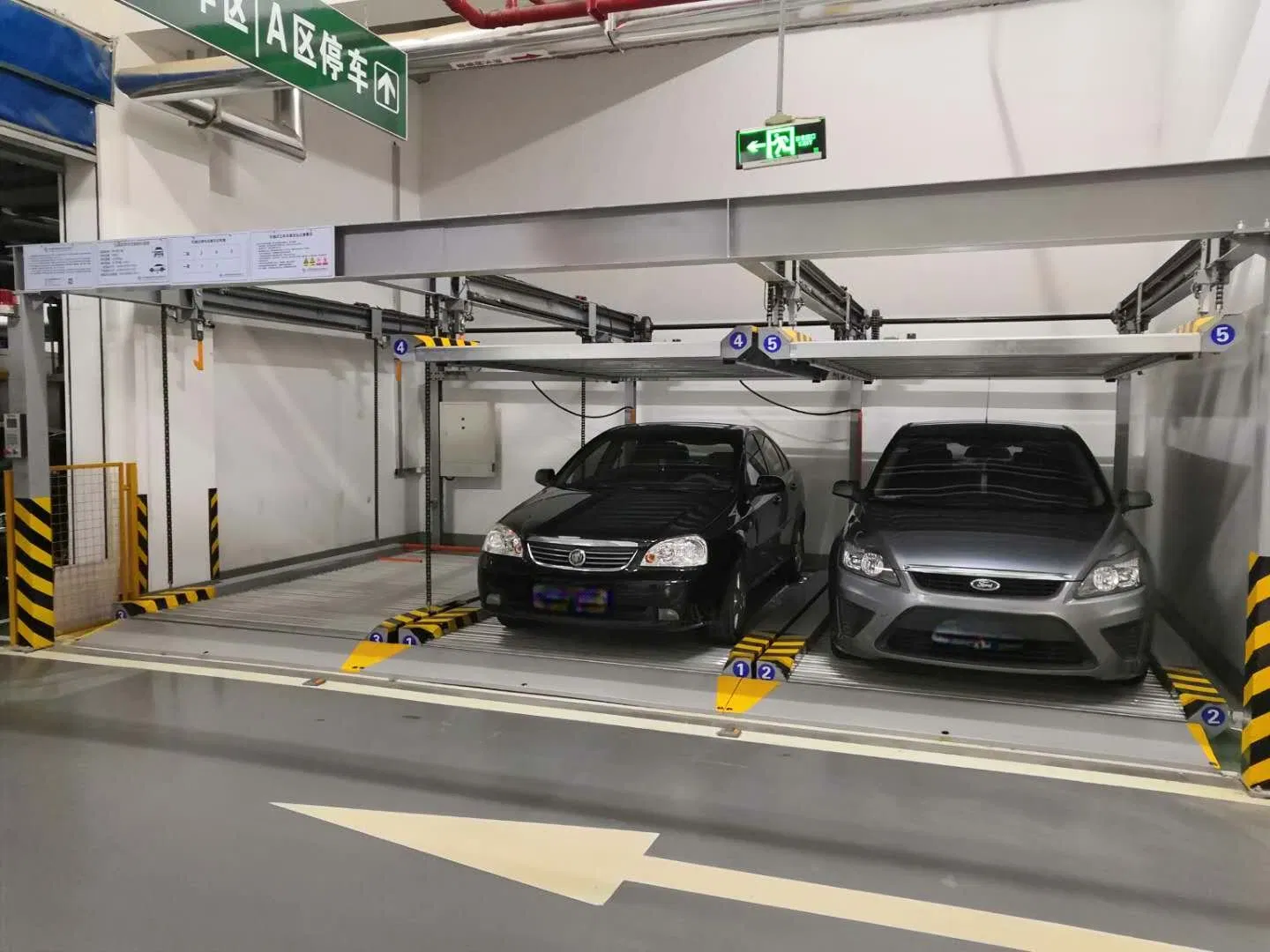

Project Case 1

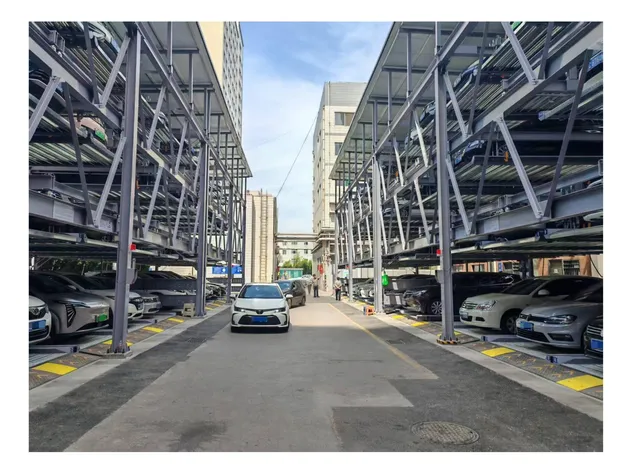

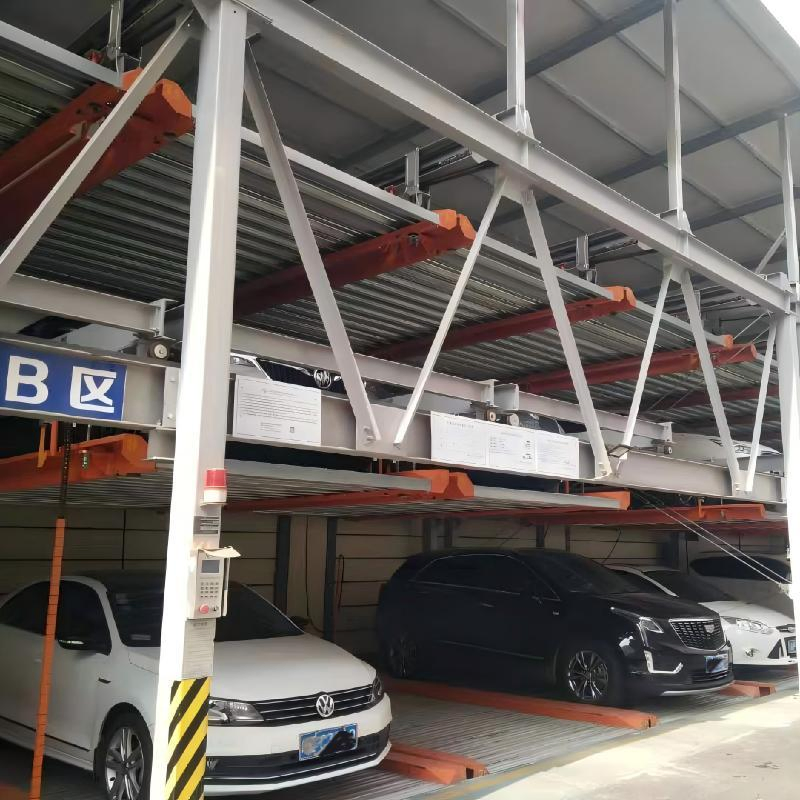

Project Case 2
