Gaoli Two Floor Puzzle Parking System Auto Parking Equipment

Customization: Available
Safety Features: Anti-collision System
Type: Puzzle Parking System

Product Description

Technical Specifications
Model NO.
Two Floor Puzzle Series
Surface Treatment
Galvanized
Capacity
2000/2500 Kg
Parking Type
Self Parking System
Control Mode
PLC
Inlet and Outlet
Lifting and Moving
Working Mode
Unmanned
Falling Prevention
Shaft Device
Design
Four Post
Certification
CE, ISO, CCC
Drive Mode
Motor and Reducer
Voltage
380V/50Hz/3 Phase
Product Overview

Nowadays, the number of vehicles is increasing rapidly with economic development, making parking a prominent social challenge. Traditional parking lots are often insufficient for modern needs, whether for residential villas, hotels, shopping malls, hospitals, or business units. Parking scarcity significantly impacts daily life and operational efficiency.

Effective Solution: Developing and installing mechanical stereo garages is an efficient method to solve urban parking constraints. With supportive government policies and urban planning, mechanical parking systems are entering a period of rapid development.

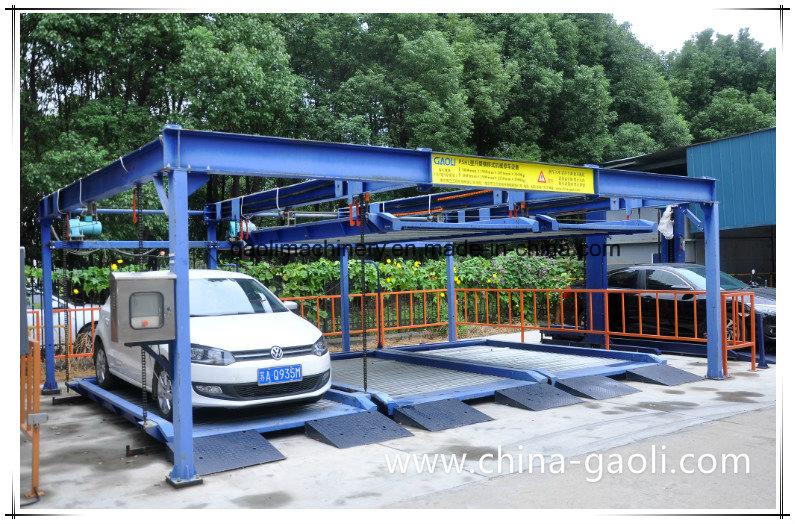

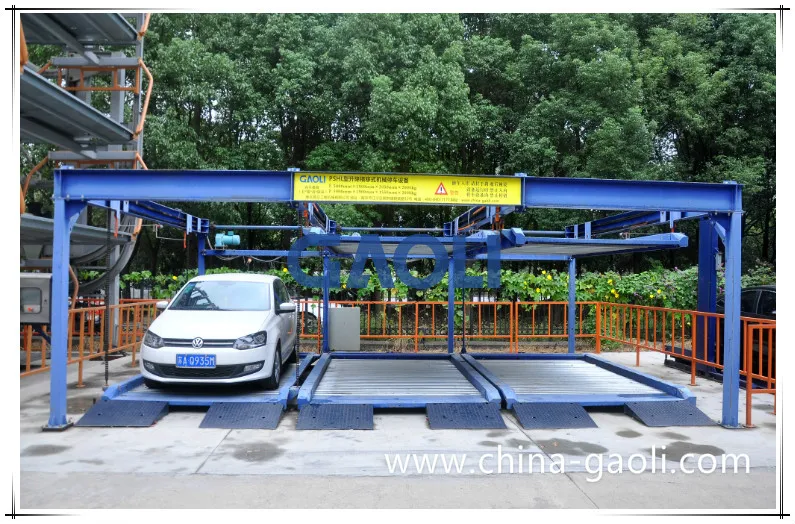

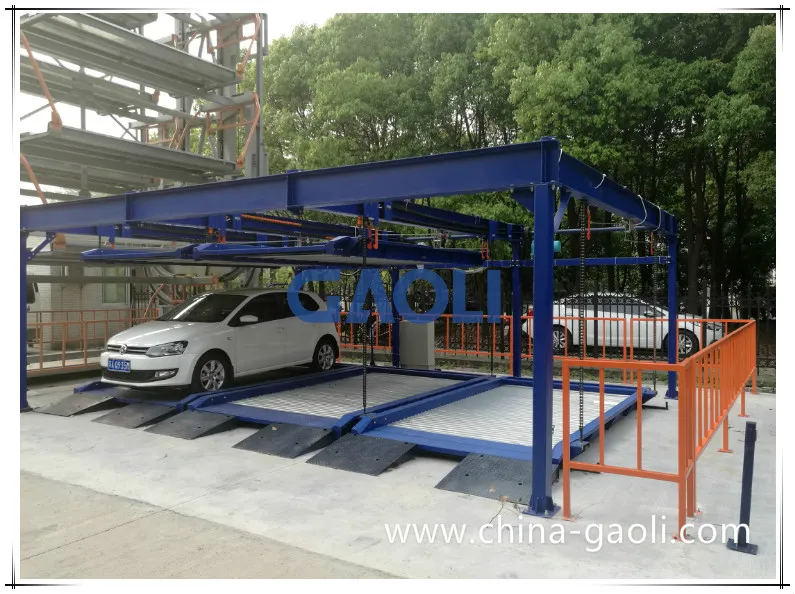

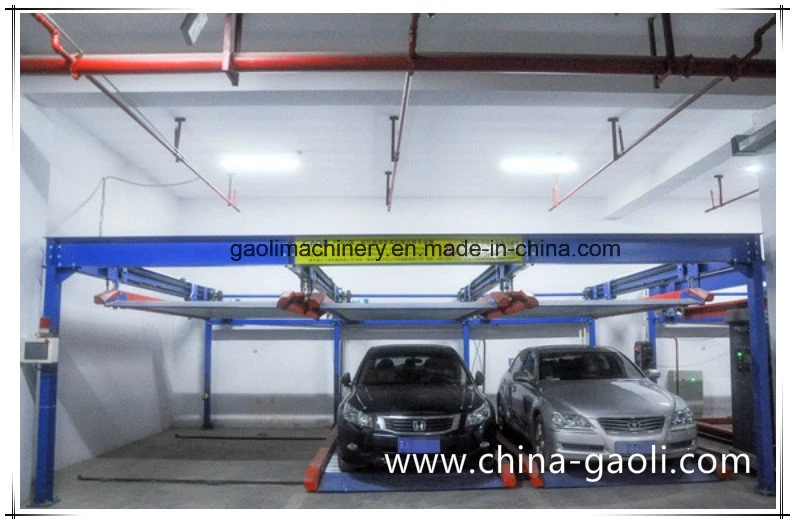

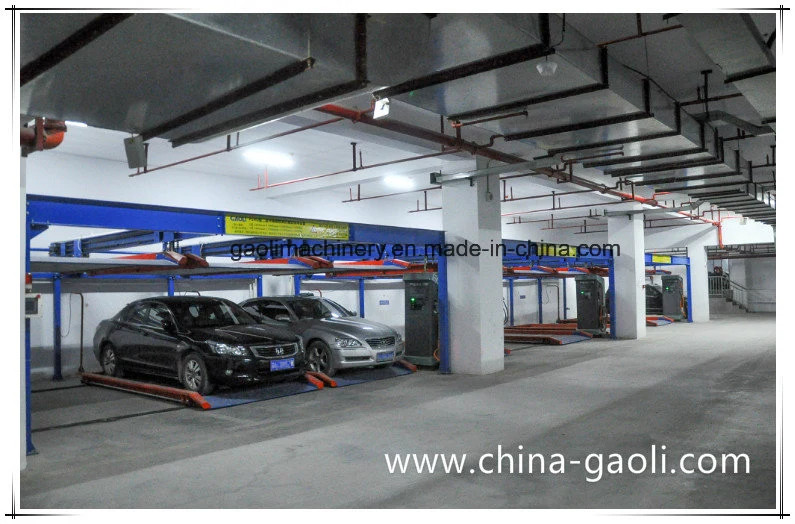

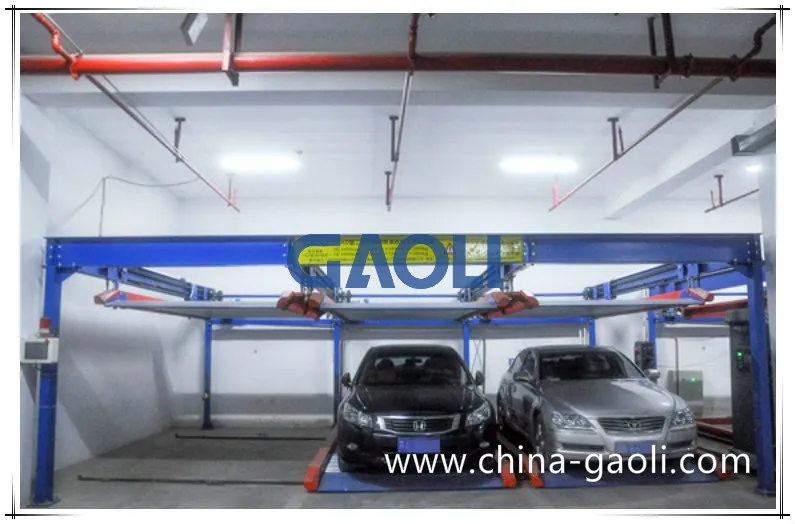

Two Floor Puzzle Series Details

This system adopts a Modular Design and an Independent Lifting System. It is engineered for easy installation and maintenance while significantly multiplying parking capacity. This versatile system allows for both expanded parking space and easy vehicle access. Currently, the puzzle parking system holds a leading position in the international parking equipment market.

Parameter Specification
Description Metric/Unit Ground Floor Upper Floor
Suitable Autos Length (mm) 5000 5000
Width (mm) 1850 1850
Height (mm) 1550 1550
Weight (kg) 2000 2000
Lifting Speed 4.0-5.0 m/min
Sliding Speed 7.0-8.0 m/min
Drive Mode Motor + Steel Wire Rope / Chains
Operation IC Card / Push Button
Power Source 3 Phase 380V / 50HZ
Frequently Asked Questions
?What is the main advantage of the Two Floor Puzzle Parking System?
It utilizes a modular design that multiplies parking capacity by using vertical and horizontal movement, making it ideal for areas with limited ground space.
?How is the safety of the vehicles ensured?
The system is equipped with multiple safety features, including a falling prevention device (shaft), PLC control for precise movement, and a robust galvanized steel structure.
?What type of vehicles can this system accommodate?
It is designed for standard vehicles with a maximum length of 5000mm, width of 1850mm, and a weight capacity of up to 2500kg.
?Is the operation complicated for users?
No, the system is very user-friendly. Users can operate the lifting and sliding platforms easily using an IC card or a simple push-button interface.
?What are the maintenance requirements?
Thanks to its modular design and independent lifting systems, maintenance is straightforward. Regular inspections of the motor, chains/cables, and PLC sensors ensure long-term reliability.
?Can the system be customized for specific sites?
Yes, the specifications and layout can be customized to fit the unique dimensions and requirements of your residential or commercial project.
