New Type Hydraulic Vertical Lifting Two Post Car Parking Equipment

Customization: Available
Lifting Mechanism: Hydraulic
Type: Parking Lift

Product Description

Basic Info.
Working Mode
Car Ride
Driving
Hydraulic
Falling Prevention
Pull-Type
Vehicle Inlet/Outlet
Center
Design
Double Post
Certification
CE, ISO, CCC
Lift Mode
Hydraulic Cylinder
Voltage
220V
Transport Package
Container Loading
Specification
3810*2485*1975 mm
HS Code
8428902000
Production Capacity
5000 Sets/Month

New type Hydraulic Vertical Lifting Two Post Car Parking Equipment

New Type Hydraulic Vertical Lifting Two Post Car Parking Equipment
Product Description

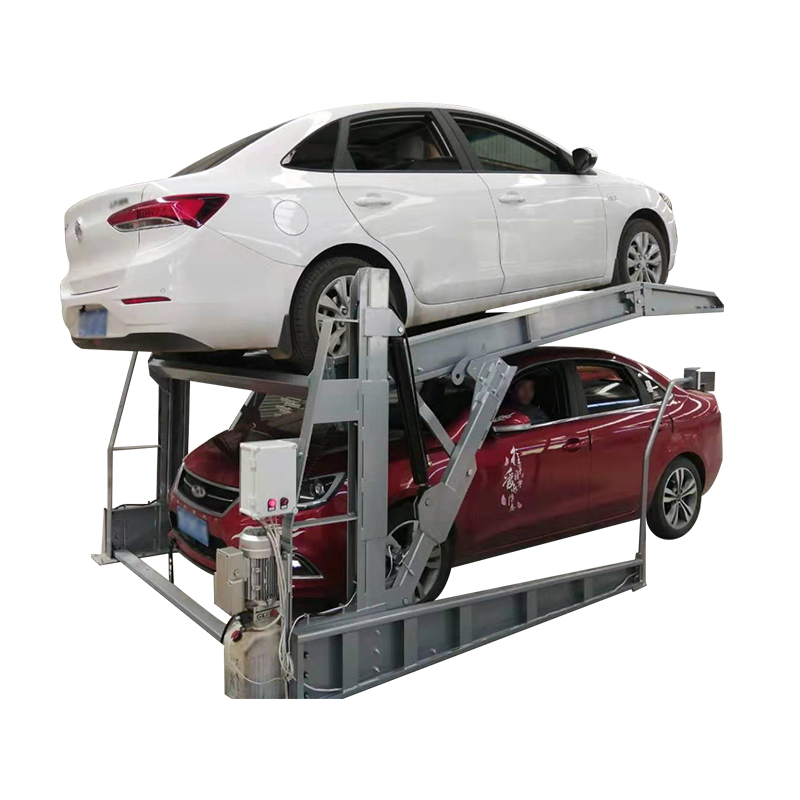

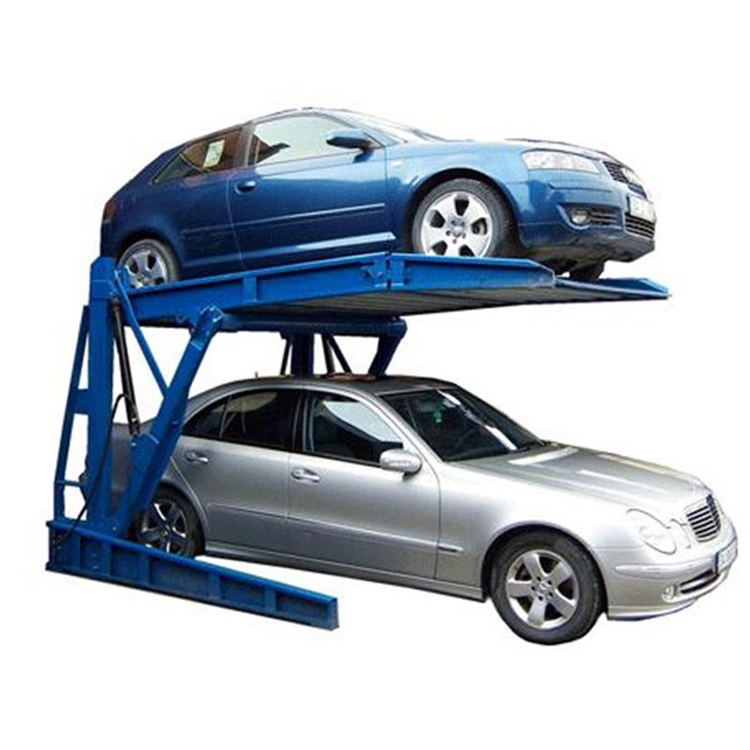

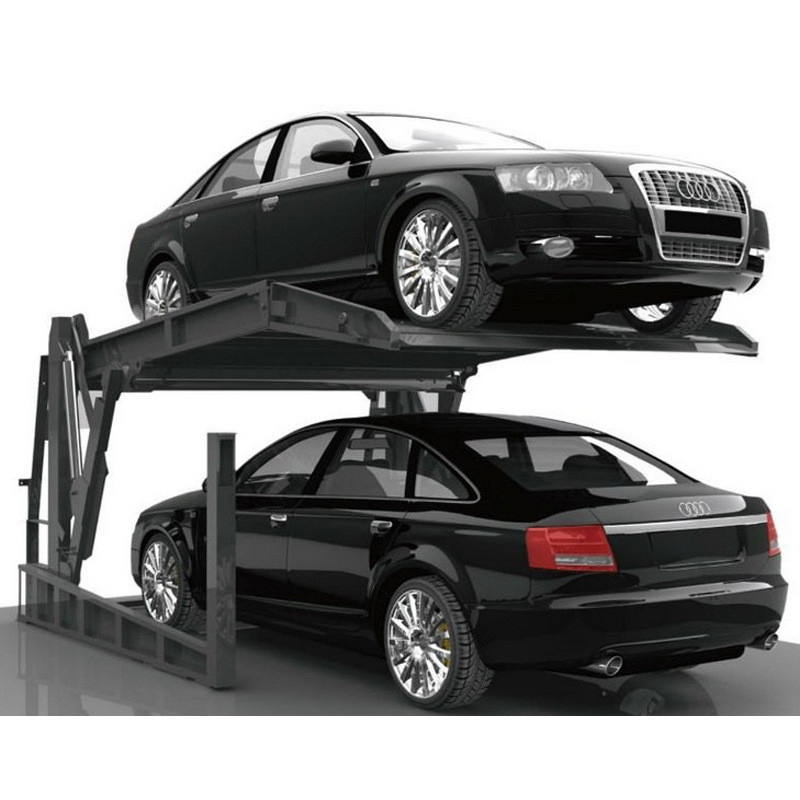

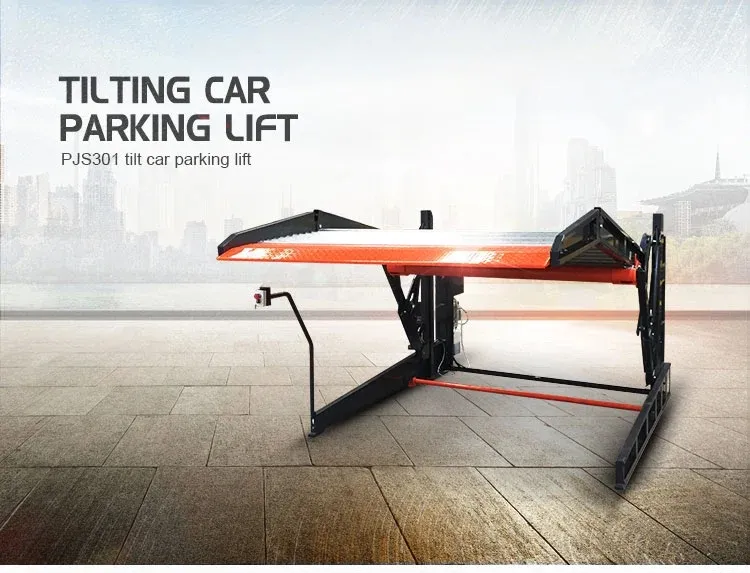

PJS301 tilt car parking lift has two parking lots in total. It can park two cars. The lower level car can come in or come out at liberty. If you want to pick up the upper car, you should drive out the lower car firstly.

Tilt car parking lift's lifting height is 1700mm, lifting weight is 2000kgs. It is suitable to park saloon cars.

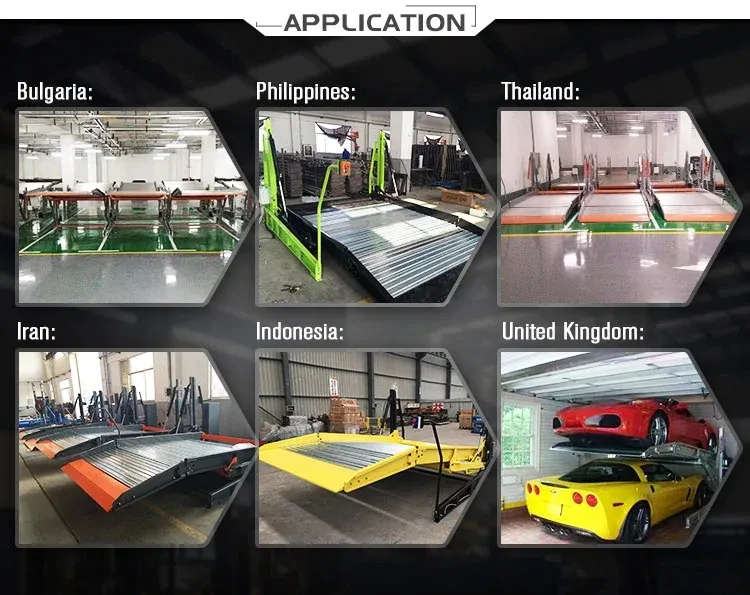

Tilt car parking lift can make the best use of space because its platform is tilted. The net height of the tilt car parking lift should not be lower than 3100mm or 2900mm. We can also customize the lifts according to requirements. It is widely used in banks, hospitals, hotels, supermarkets, entertainment places, office enterprises, public institutions, and residential areas.
Key Advantages

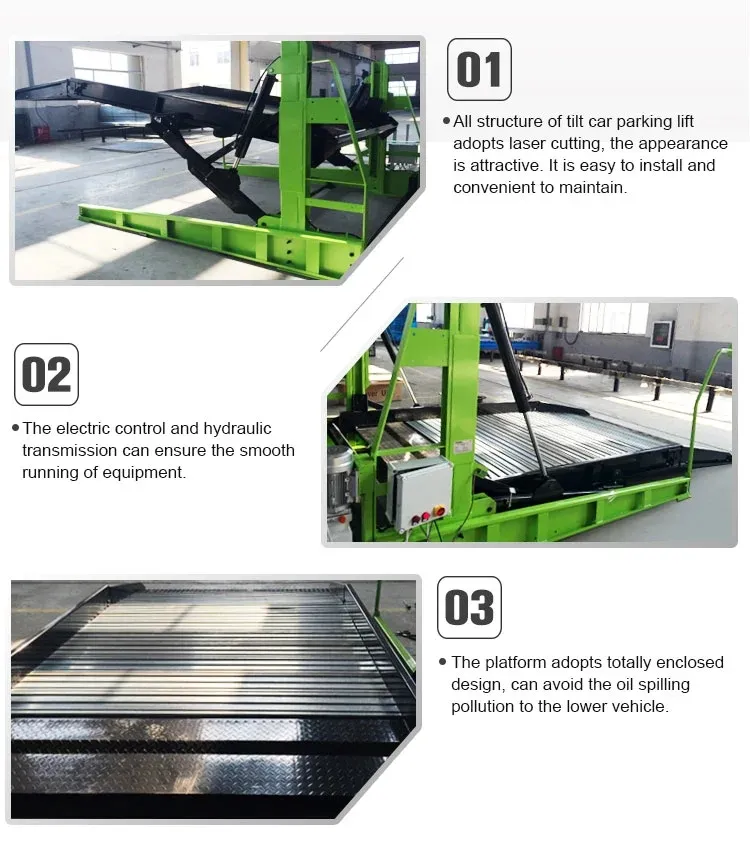

  • Efficient Drive: Hydraulic drive with a chain balancing device ensures the balance of both ends during rise and fall.
  • Eco-Friendly: Low noise, smooth operation, energy-saving, low carbon, and environmental protection.
  • Clean Design: Vehicle loading pallet fully enclosed design to avoid oil leakage, rain, and snow polluting the lower vehicle.
  • Durable Finish: Spraying plastics for high anti-corrosion ability and long life. Waterproof electrical and driving parts.
  • Easy Setup: Simple structure, easy installation, and minimal requirements for civil engineering.

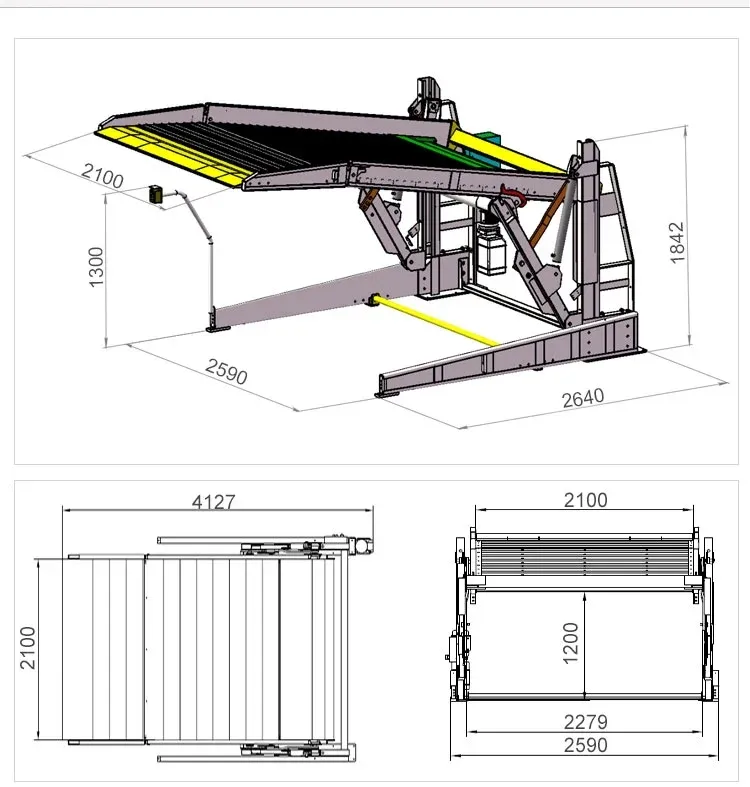

Tilt Parking Lift Advantage
Technical Specifications
NameTilting Parking Lift
ModelPTJ 301-20
Weight of parking car2000kg
Lifting height1750mm
Size of vehicle loading pallet (L*W)3660*2100mm
Power2.2kw
Warming devicesYes
Mode of operateButton / Remote key
Mode of controlElectric control
Mode of driveHydraulic driving
Electrics230V, Single phase / 400V, 3 phase, 50Hz
Device Dimension (L*W*H)3810*2485*1975mm

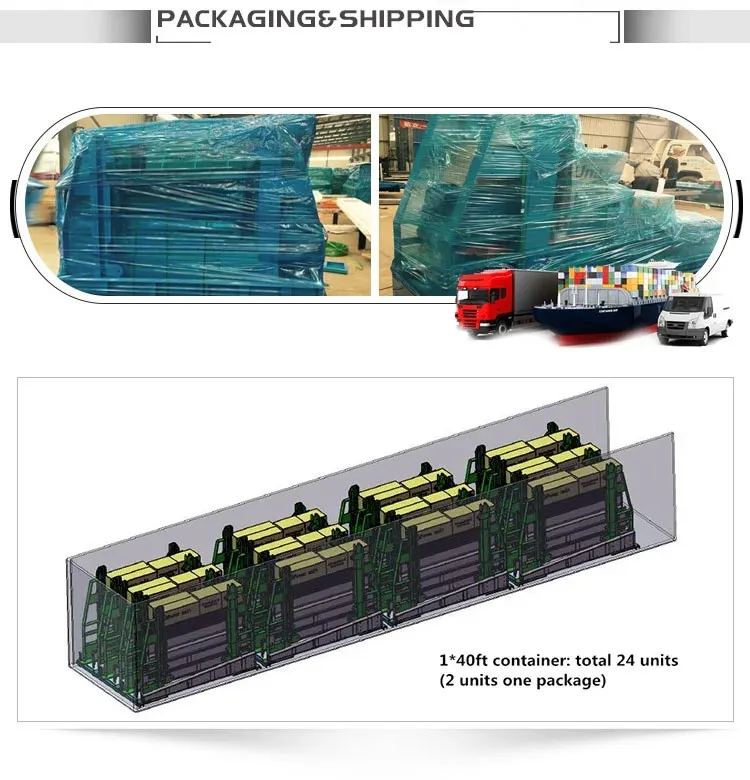

Package size2650*810*1880mm
Package weight830kg
NoiseLess than 70dB
Installation placeIndoors

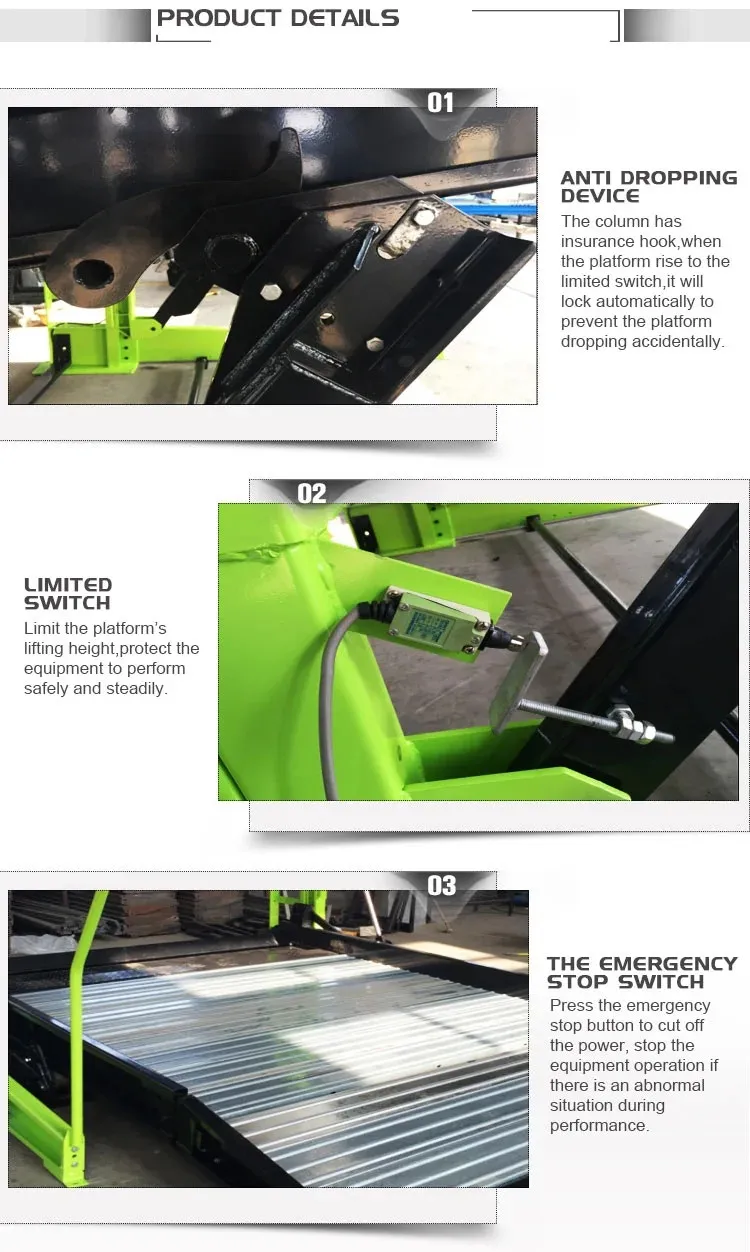

Safety catch typeSolenoid
Product Gallery
Frequently Asked Questions
Q1: What is the maximum lifting capacity of this parking lift?
The PJS301 model has a lifting weight capacity of 2000kg, making it ideal for most standard saloon cars.
Q2: How does the tilt design help in saving space?
The tilted platform allows the unit to be installed in areas with lower ceiling heights (minimum 2900mm-3100mm) while still providing two parking spaces.
Q3: Is the operation of the lift noisy?
No, the system is designed for low-noise operation, with sound levels reaching less than 70dB.
Q4: How do I access the upper car?
To lower the upper platform and retrieve the car, the lower parking space must be cleared first.
Q5: Can the lift protect the lower car from fluid leaks?
Yes, the vehicle loading pallet features a fully enclosed design to prevent oil, rain, or snow from dripping onto the car parked below.
Q6: What kind of power supply is required?
The system supports multiple configurations, including 230V single phase or 400V three phase at 50Hz, depending on your local electrical standards.
