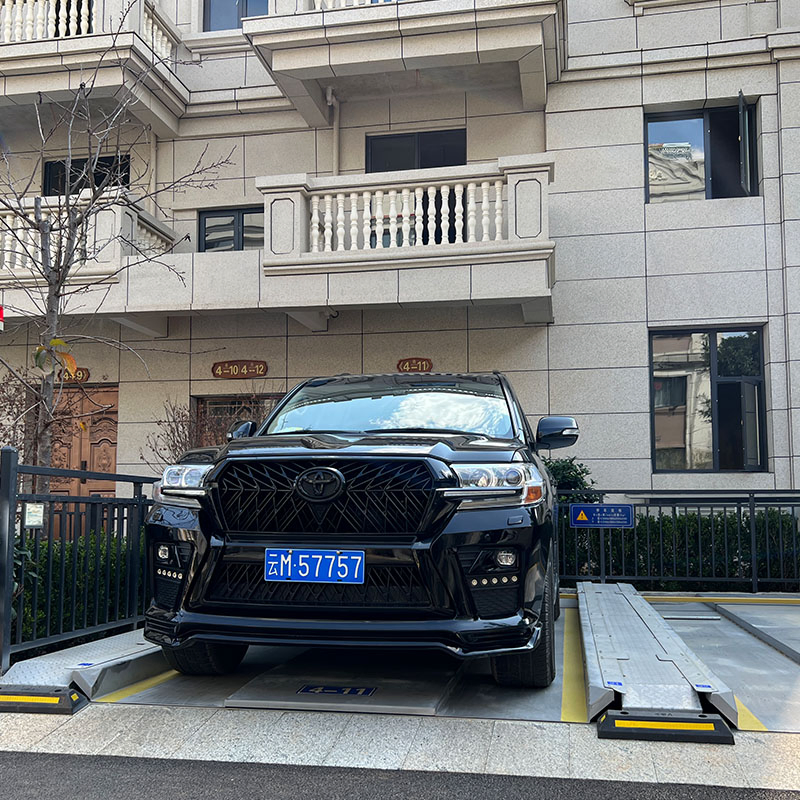

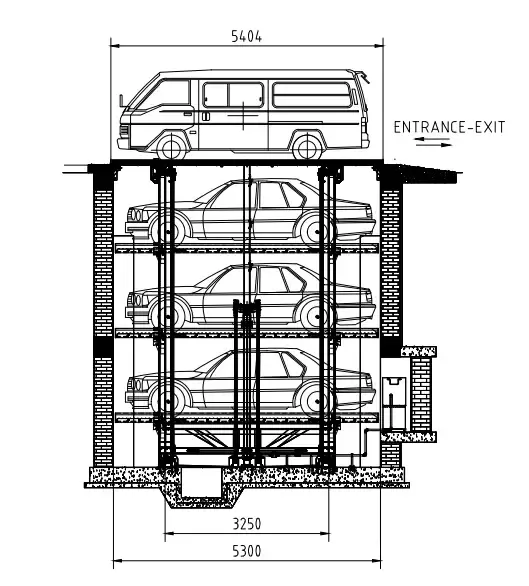

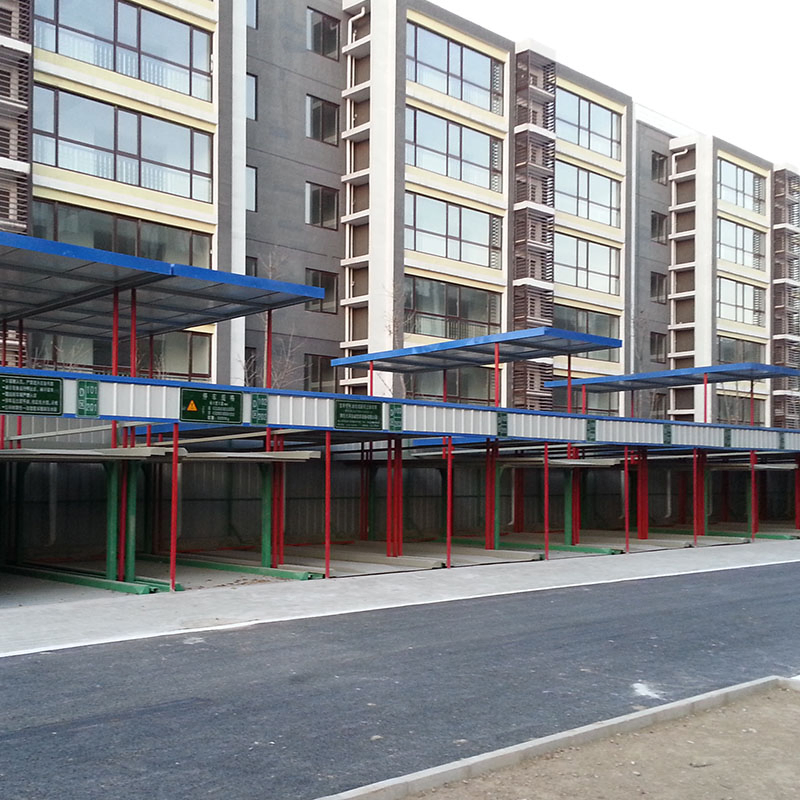

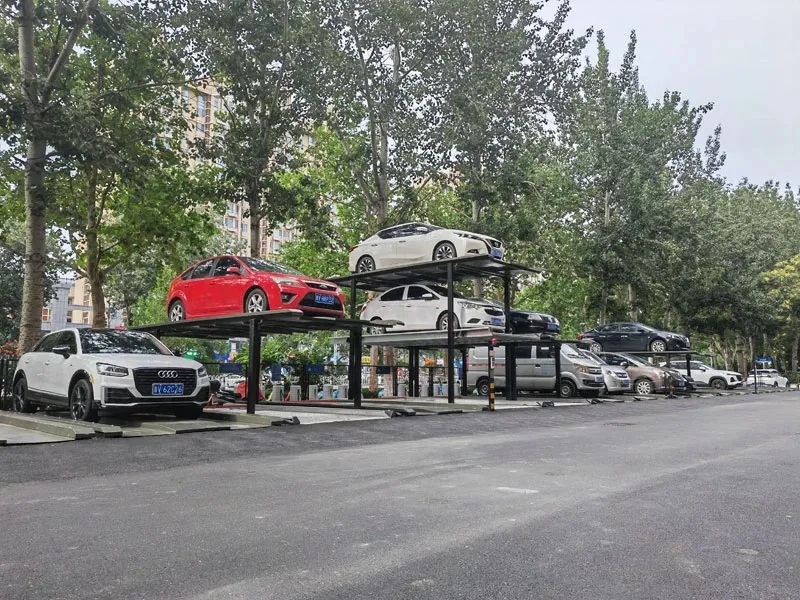

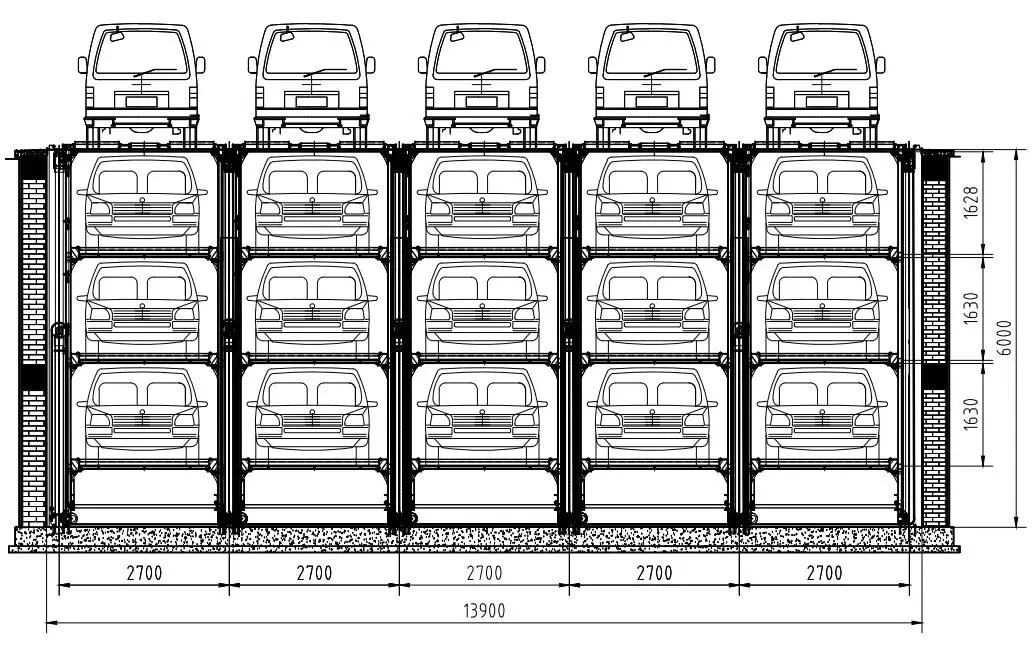

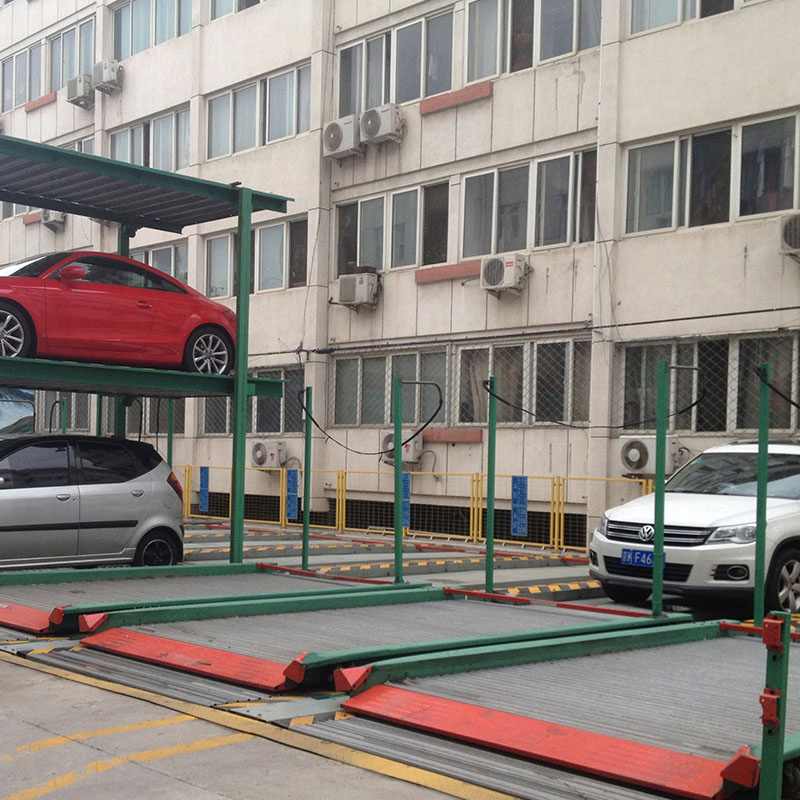

Operating Principle: The equipment is structured in multiple layers, with columns lifting and lowering as a synchronized unit. In standard configuration, lower levels are housed in a pit, while the top level remains flush with the ground for direct vehicle access. When retrieving cars from lower levels, the system rises until the desired platform reaches ground level.
| Feature | Technical Data | |
|---|---|---|
| Drive Mode | Hydraulic | |
| Car Size (Basement) | Sedan ≤5000*1850*1550mm | |
| Car Size (Ground) | SUV ≤5000*1850*2050mm | |
| Weight Capacity | ≤2000kg / 2350kg | |
| Lifting Speed | 11kw Motor | 5.0-6.0m/min |
| Power Resource | Three phase five wire 380V 50Hz | |
The manufacturing process utilizes high-precision equipment to ensure structural integrity and aesthetic finish. Key facilities include:
Warranty: 2 Years full coverage.
Training: Free operation and safety training for all users.
Inspection: Comprehensive technical inspection after installation.
