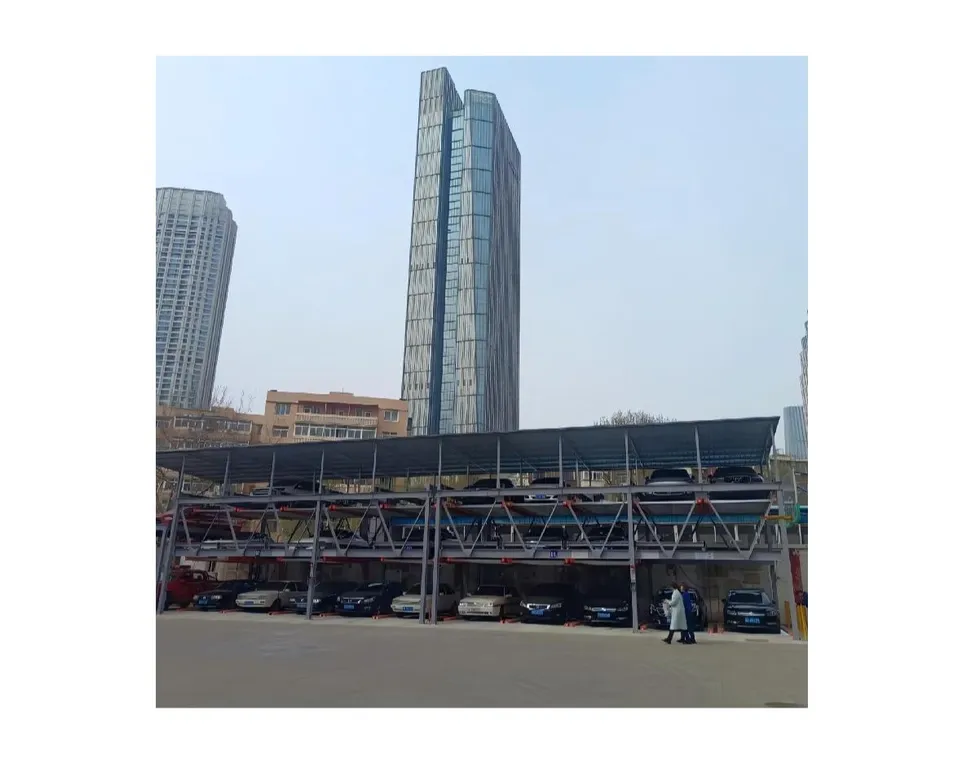

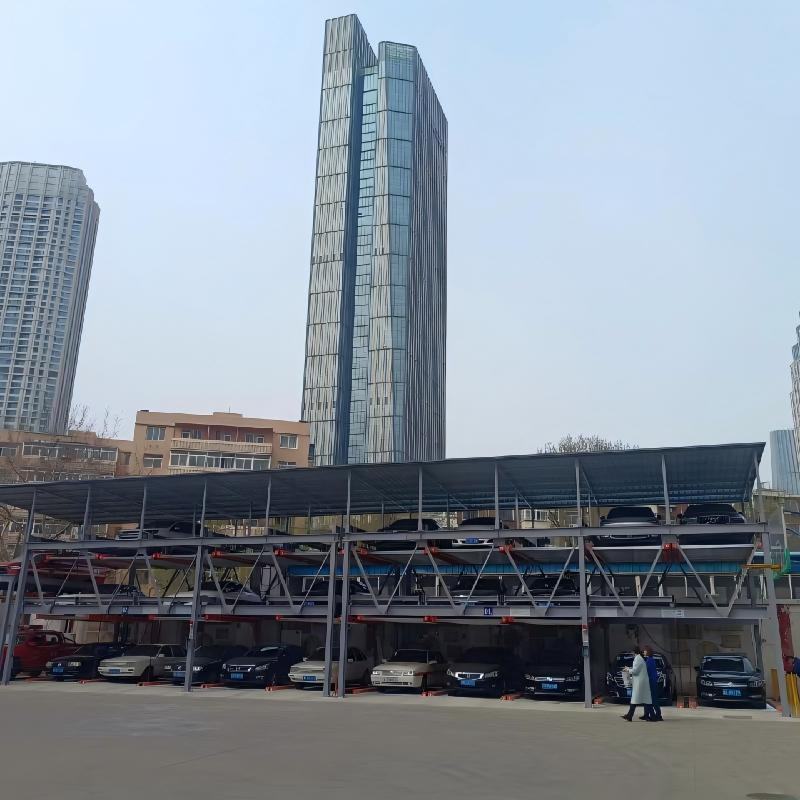

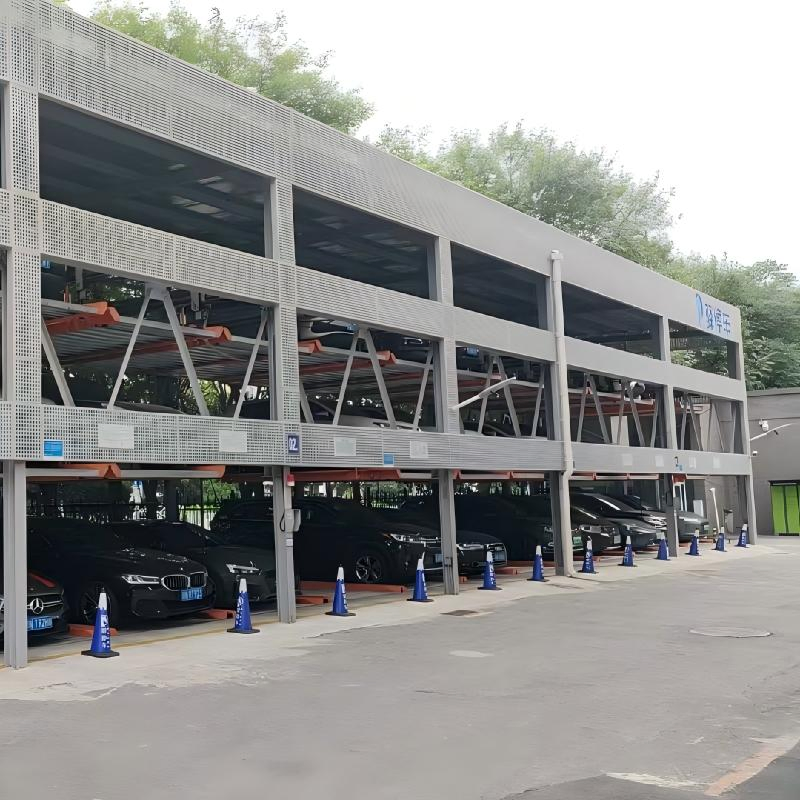

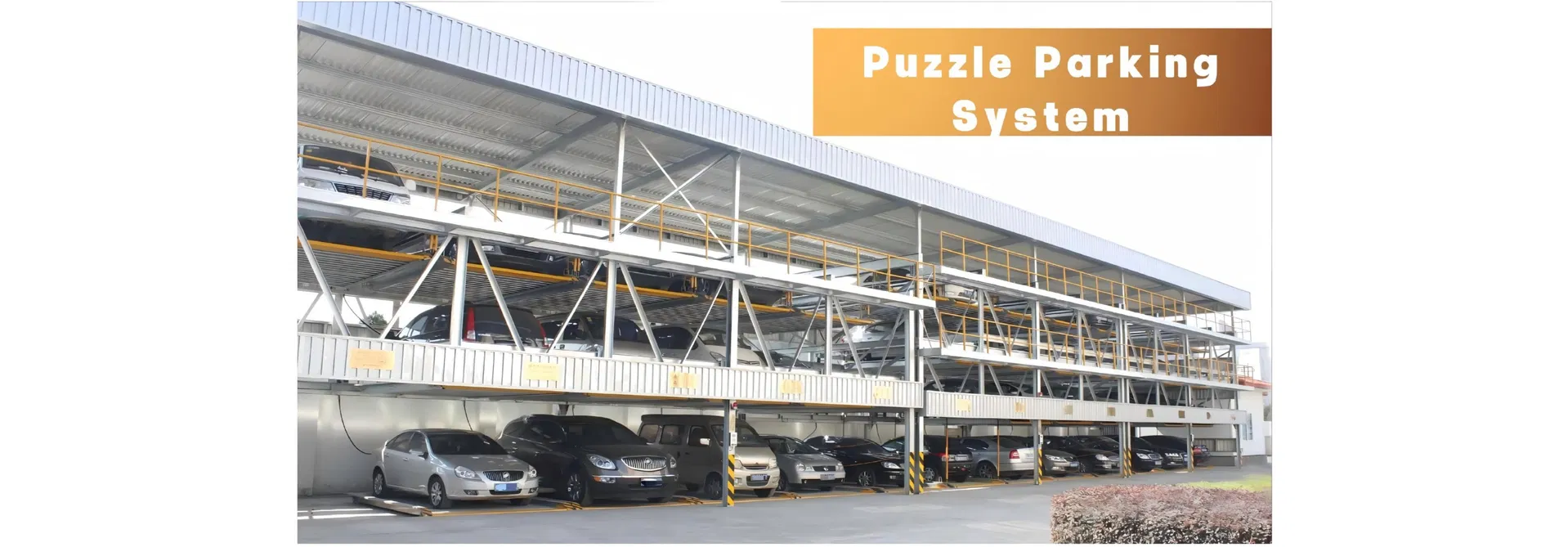

The puzzle parking system comes in various forms from two to seven floors, with sizes ranging from large to small. It has strong adaptability to the site and can be modularly combined, effectively saving land and space. The construction and maintenance costs are low, and the equipment is safe and reliable to use.

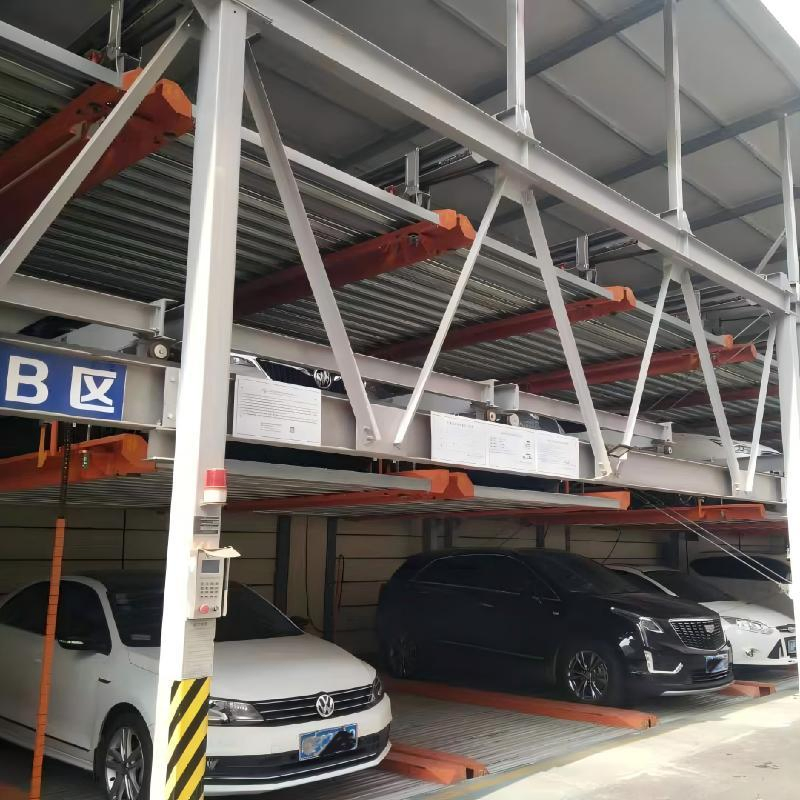

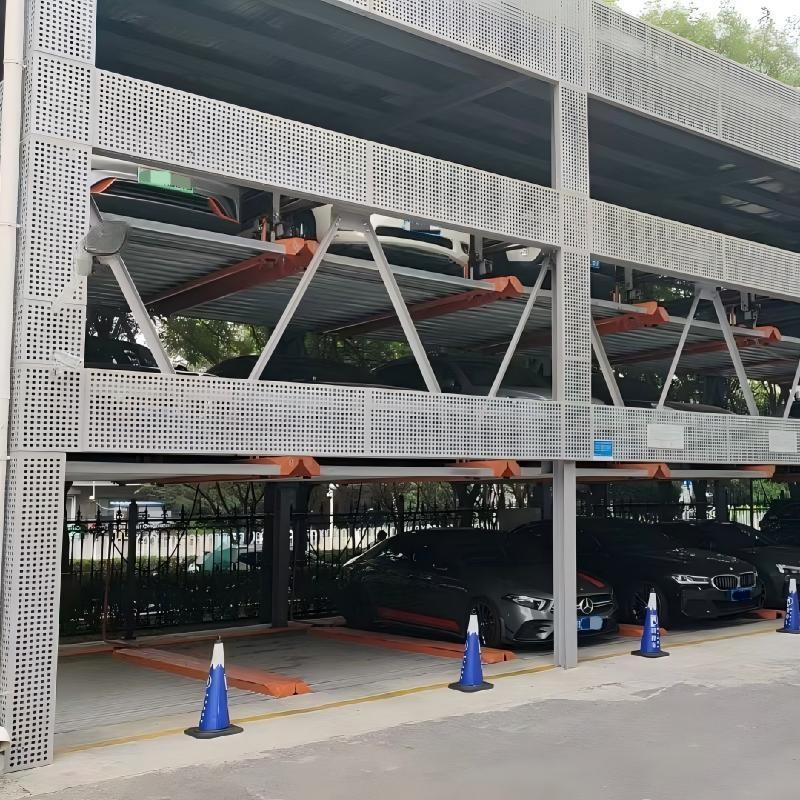

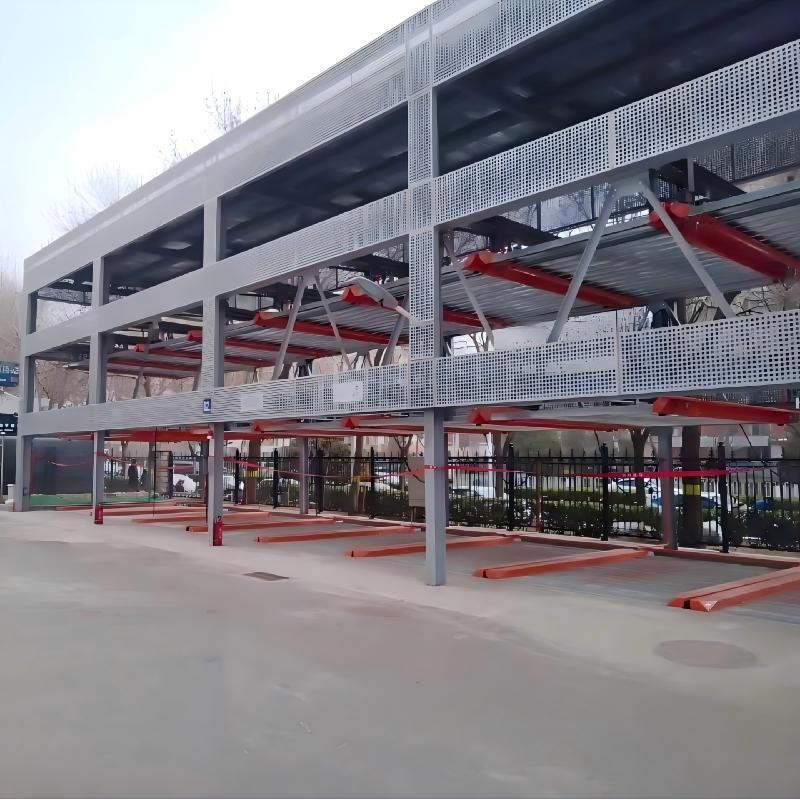

The equipment stores and retrieves vehicles by lifting or horizontally moving the carrier board. The upper carrier board only performs lifting operation, while the ground carrier board only performs horizontal movement. Space is left on the ground floor to facilitate movement, allowing upper boards to lower for vehicle access.

(Custom configurations available upon request.)

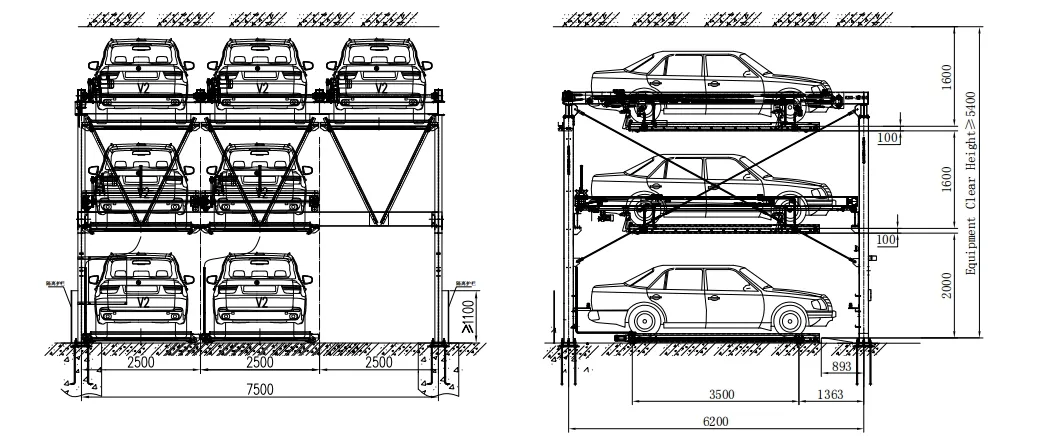

Detailed CAD drawings and dimensional diagrams are available upon request. Our engineering team can provide customized designs tailored to specific project needs.
