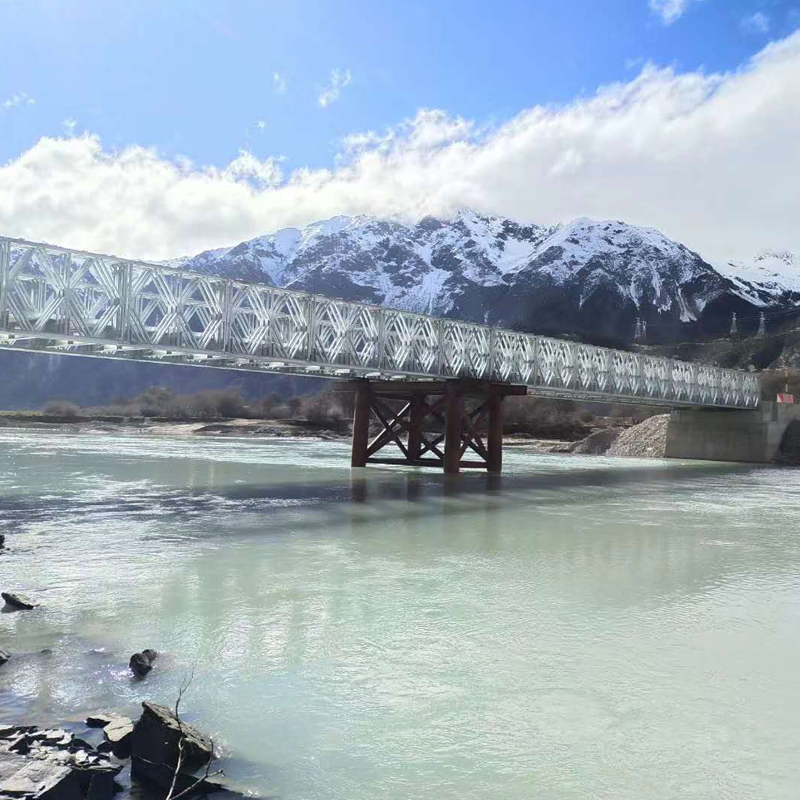

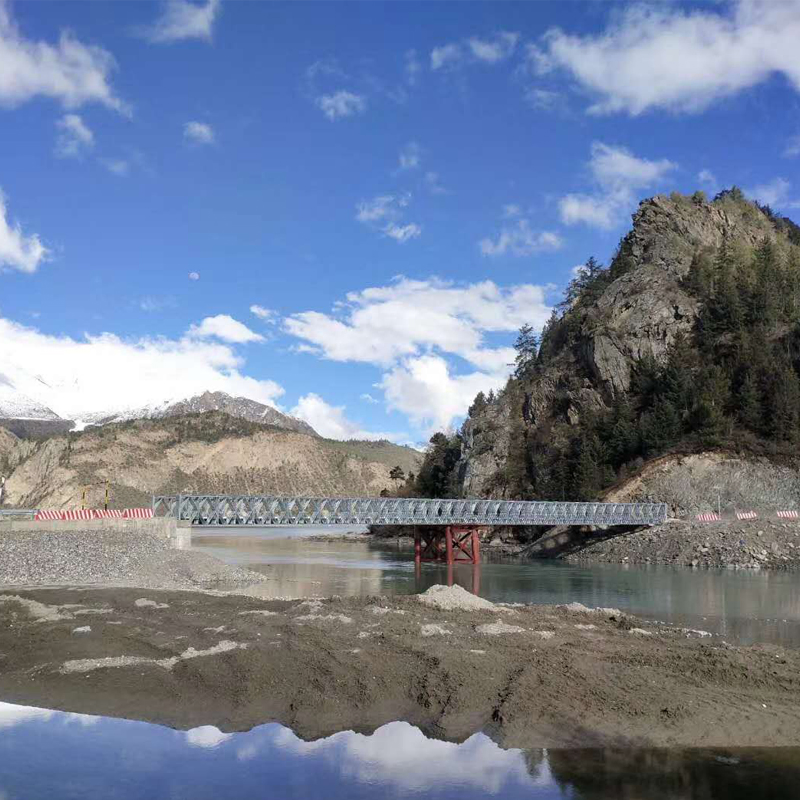

China Q355b/Q235B Universal Standard Bailey Steel Prefabricated Bridge for Military/Emergency

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

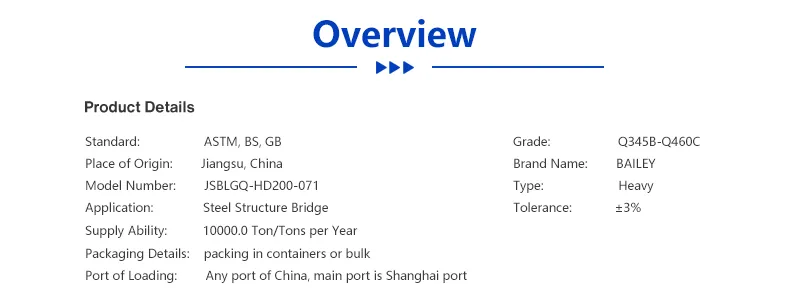

Basic Specifications
Model NO.
ZB200
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Across Way
Diffuse Water Bridge
Lane Position
Half Through Bridge
Material
Steel Bridge
Usage
Over Water, Tractor, Pontoon, Footbridge, Highway
Scale
Middle Bridge
Supply Ability
10000 Ton/Per Year
Package Size
3042cm * 2134cm * 176cm
Product Presentation
ZB200 Truss Press Limits
Internal Force Not Reinforced Model Reinforced Model
SSDSTSQS SSRDSRTSRQSR
Standard Moment (kN.m) 1034.32027.22978.83930.3 2165.44244.26236.48228.6
Standard Shear (kN) 222.1435.3639.6843.9 222.1435.3639.6843.9
High Bending Moment (kN.m) 1593.23122.84585.56054.3 3335.86538.29607.112676.1
Geometric Characteristics (Half Bridge)
Structure Model Chord Area (cm²) Section Properties (cm³) Moment of Inertia (cm⁴)
SSSS25.485437580174
SSR50.96108751160348
DSDS50.96108751160348
DSR176.44163121740522
DSR2101.92217502320696
Our Service Flow
  • 1
    Professional consultation and explicit explanation of structural requirements.
  • 2
    Close coordination with excellent engineers to meet exact project specifications.
  • 3
    Detailed guidance on product usage and necessary maintenance services.
  • 4
    Thorough inspection of bridge products to solve any issues during the process.
  • 5
    Continuous follow-up through online service platforms to ensure maximum satisfaction.
Frequently Asked Questions
What specialized experience do you have in bridge manufacturing?
We have been specialized in steel bailey bridge manufacturing for over 20 years, holding ISO9001:2015 certification and partnering with major research institutions. Our products are used globally in countries like Nigeria, Vietnam, Nepal, and Columbia.
Are you a direct factory or a trading company?
We are a direct factory equipped with six production lines and various specialized machinery for fabricating steel bridge parts and structures, holding a full export license for global markets.
What quality standards do your steel bridges meet?
Our products meet CMA, CNAS, and ISO9001 standards. They are designed for Grade I roads, Grade A urban roads, and comply with American loading standard HS25 and British loading standard HA.
Which ports do you typically use for shipping?
While we can ship from any port in China, our main export hub is the Shanghai port due to its international logistics efficiency.
What are the primary applications of the ZB200 Style Bridge?
The ZB200 is versatile and used for over-water crossings, military/emergency use, tractor bridges, pontoons, footbridges, and permanent highway bridges.
Do you provide technical engineering support?
Yes, our engineers provide thorough inspections, detailed usage explanations, and professional advice throughout the project lifecycle to ensure structural integrity and safety.
