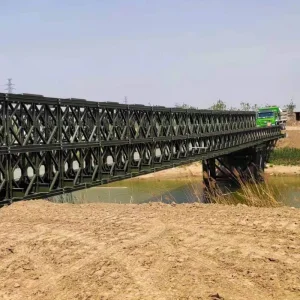

📊 Basic Information
UsageFootbridge, Highway, Railway, Viaduct
Surface TreatmentGalvanizing
Tolerance3%
GuidanceRemote or On-Site
ServiceDesign, Production, Construction
MaterialQ355B / Q235B High Strength Steel
Production Capacity90,000 Tons/Year
OriginChina
📦 Packaging & Delivery
Package Size3163.00cm * 176.00cm * 2234.00cm
Package Gross Weight306.000kg
🏗️ Product Description & Parameters

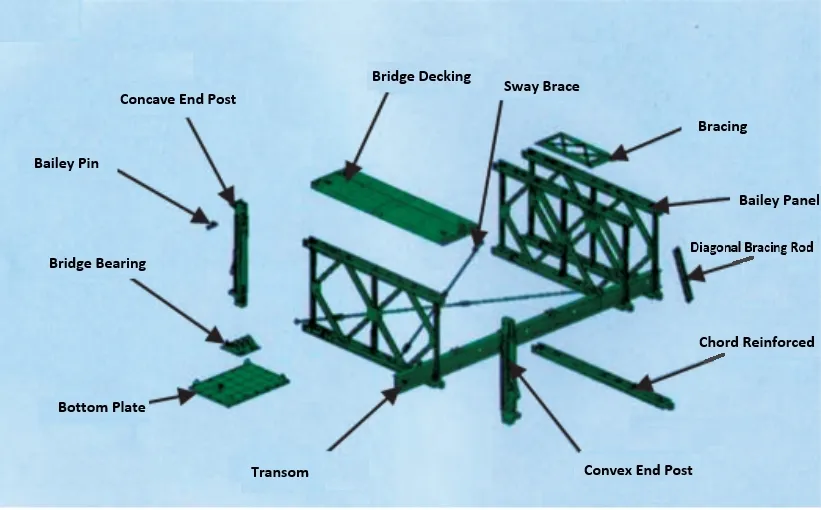

| HD-200 Bailey Bridge Specification |
| Product |
Dimension (mm) |
Weight (kg) |
Material |
| Bailey Panel | 176*2234*3163 | 306 | Q355B |
| High Anti-Shearing Panel | 176*2234*3163 | 354 | Q355B |

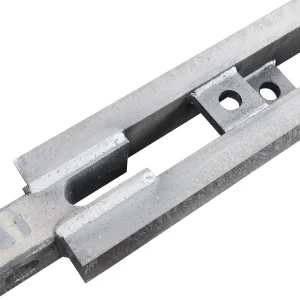

| Reinforced Chord | 100*176*3163 | 86.2 | Q355B |
| Bailey Pin | Φ55*195 | 3 | 30CrMnTi |
| Transom (5.8m) | 400*200*5800 | 343 | Q355B |
| Bridge Decking | 146*1040*3044 | 363 | Q355B |
| Concave End Post | 100*173*2425 | 69 | Q355B |
| Convex End Post | 176*225*2425 | 64 | Q355B |
| Bridge Seat | 118*200*450 | 15 | Q355B |

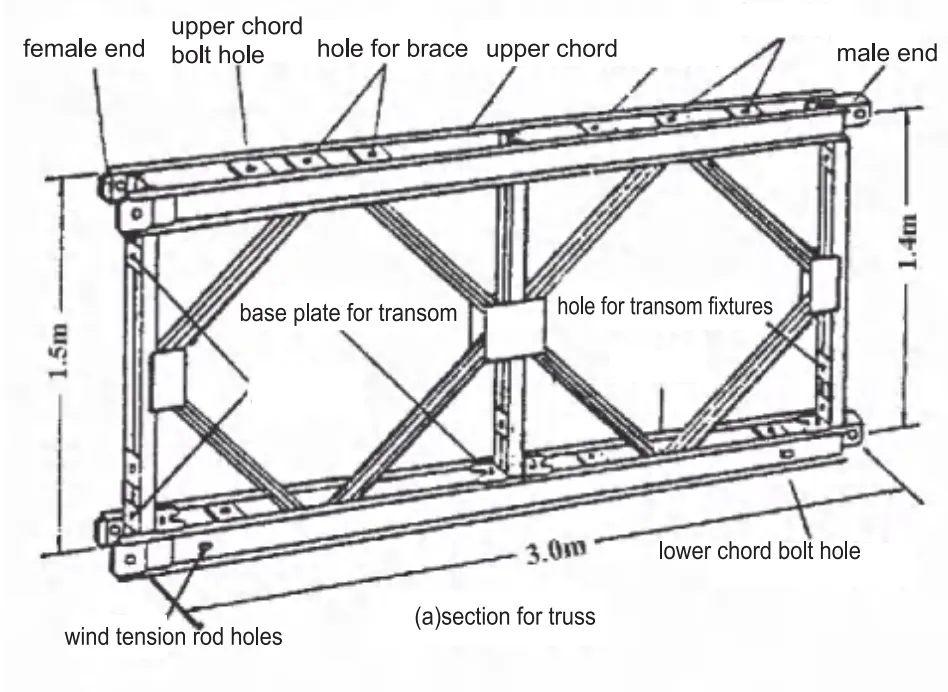

⚙️ Inerstress Of Truss Structure
| Structural Style |
Bending Moment (kN-m) |
Shearing Force (kN) |
| 1 Row 1 Level (SS) | 788 | 245 |
| 2 Rows 1 Level (DS) | 1576 | 490 |
| 3 Rows 1 Level (TS) | 2246 | 698 |
| Reinforced 1 Row (SSR) | 1687 | 245 |
| Reinforced 2 Rows (DSR) | 3375 | 490 |
| Reinforced 3 Rows (TSR) | 4809 | 698 |

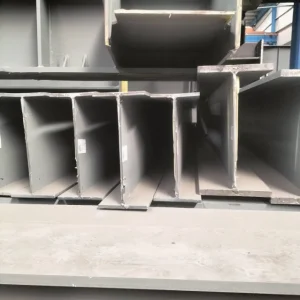

🏭 Manufacture Capability

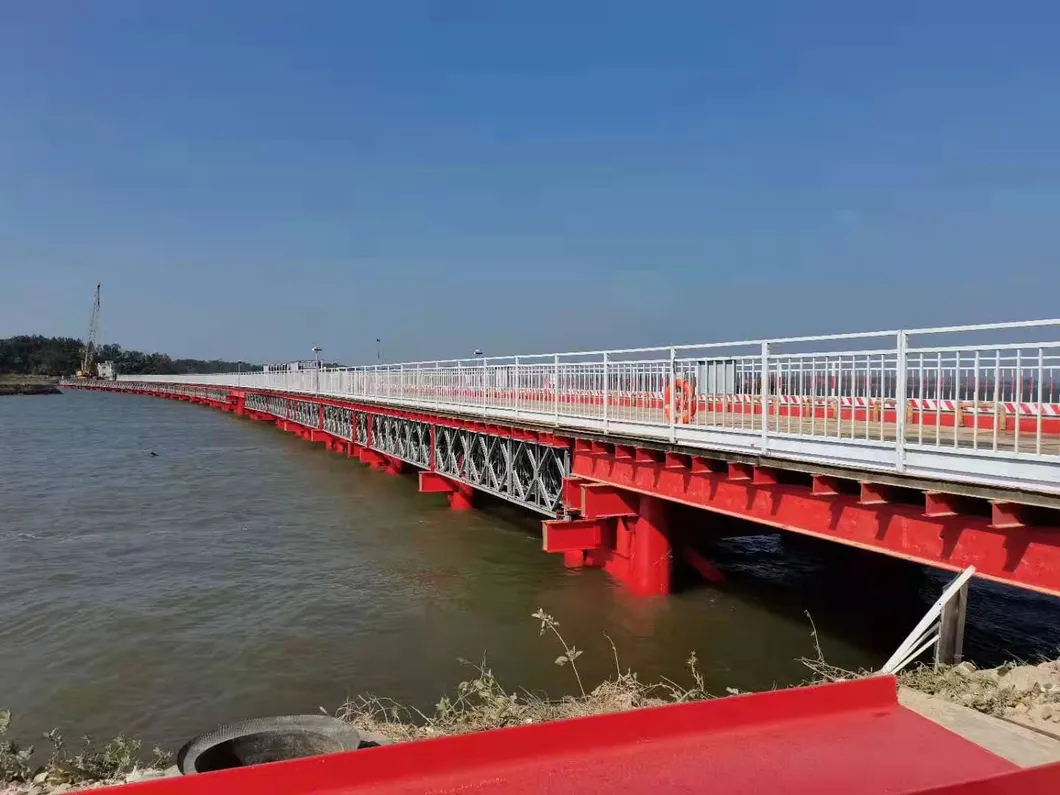

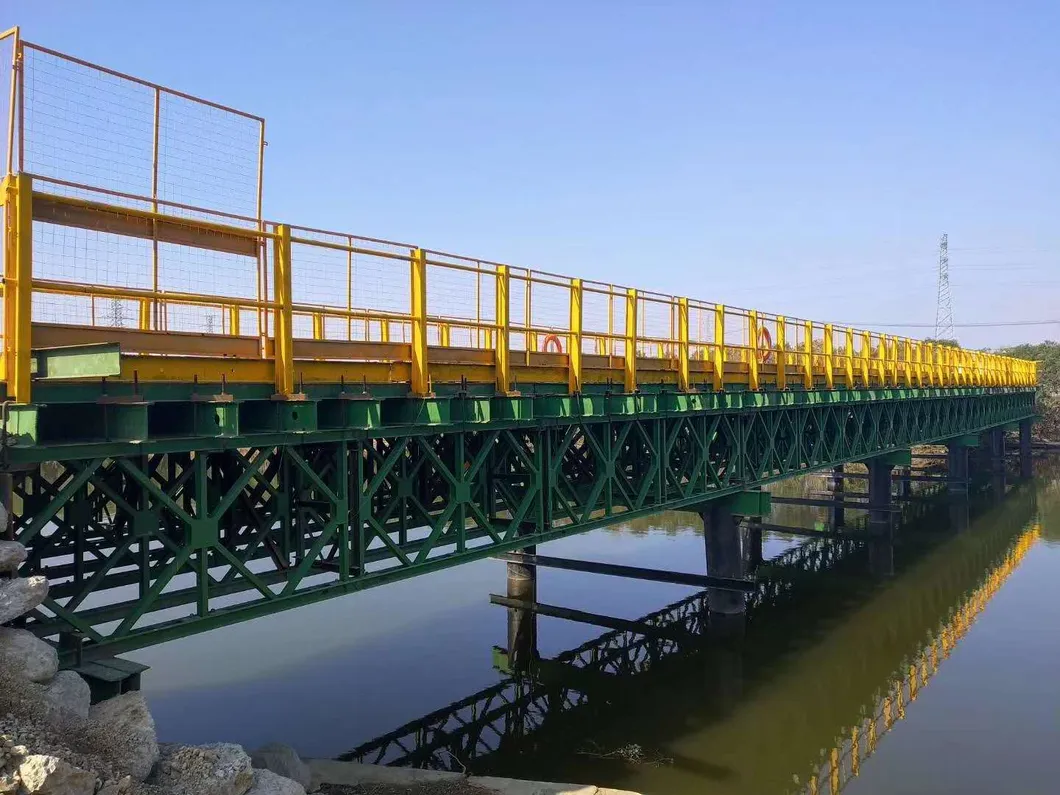

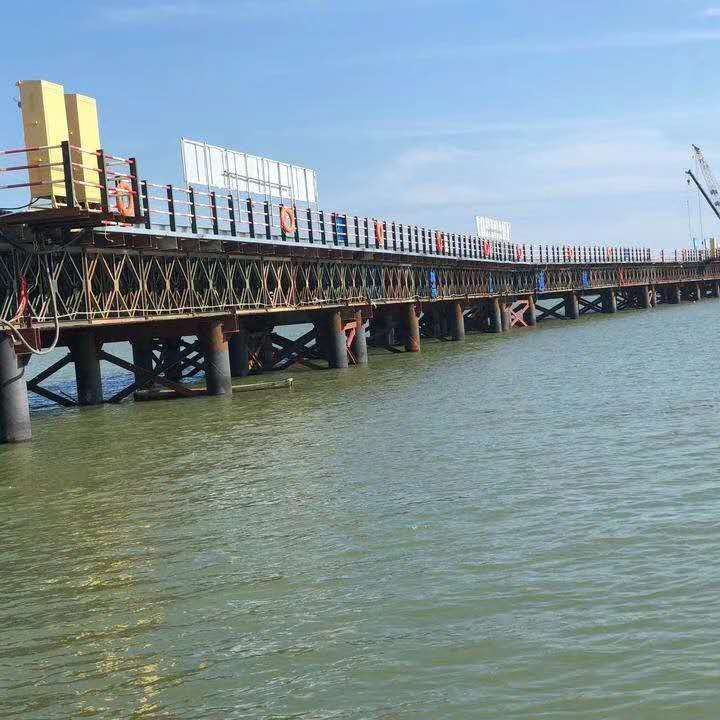

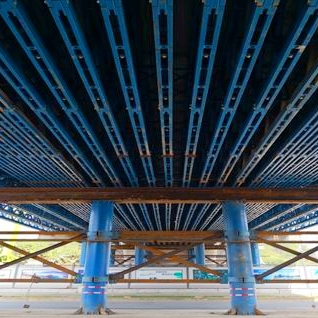

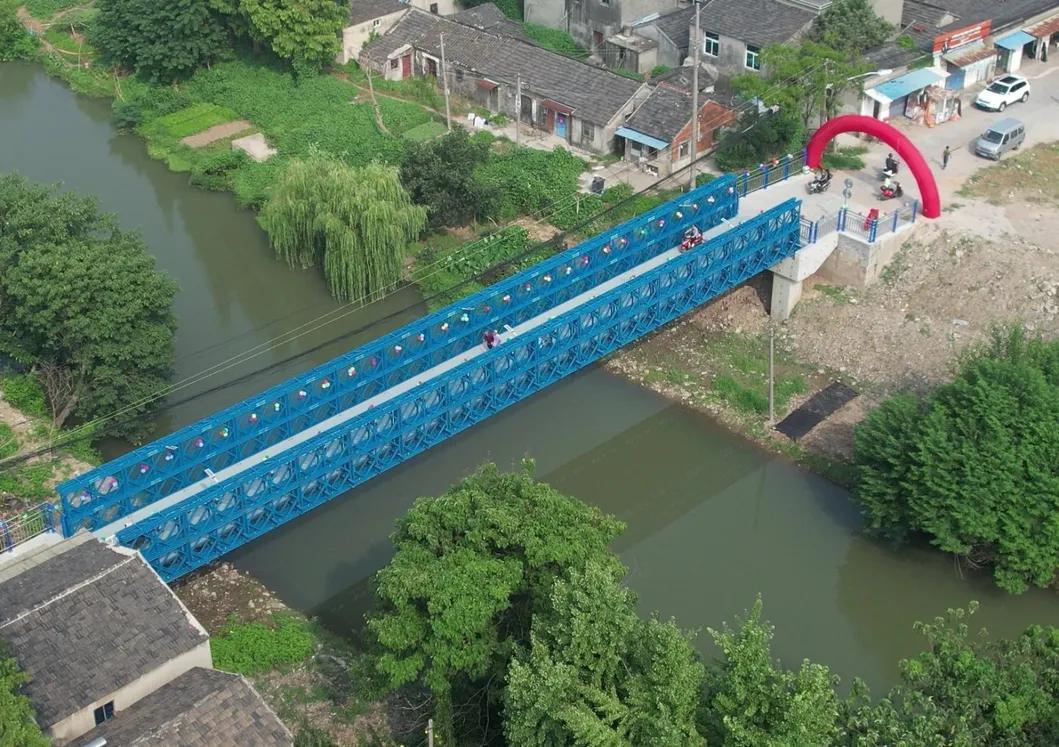

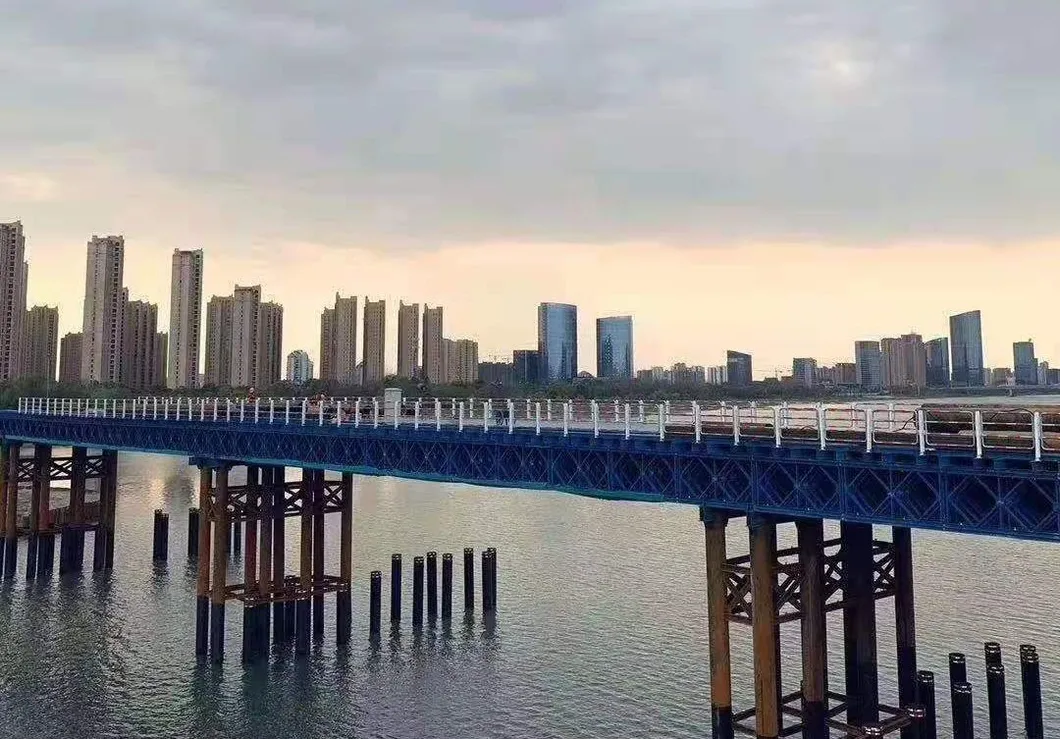

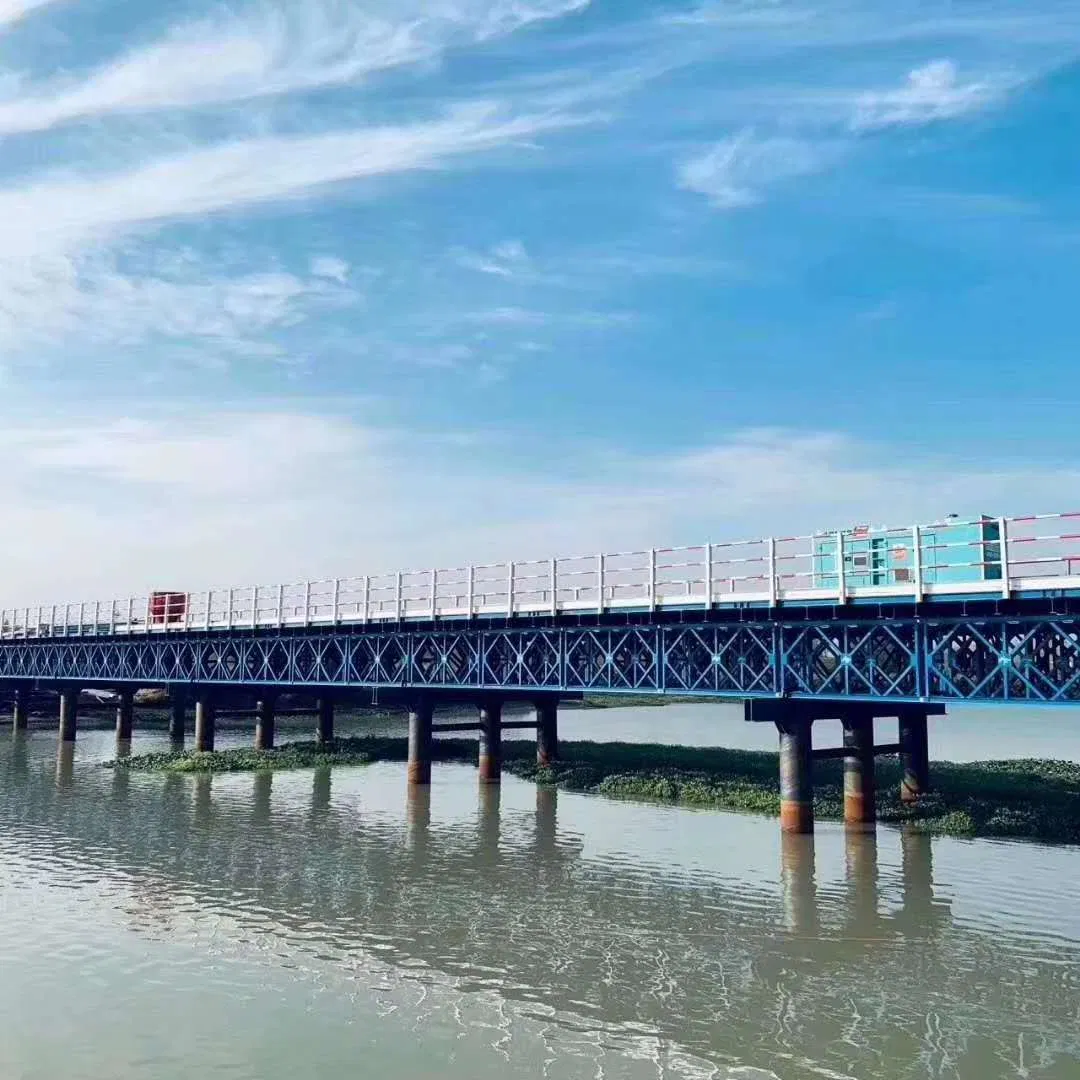

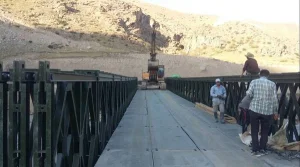

🌉 Project Display

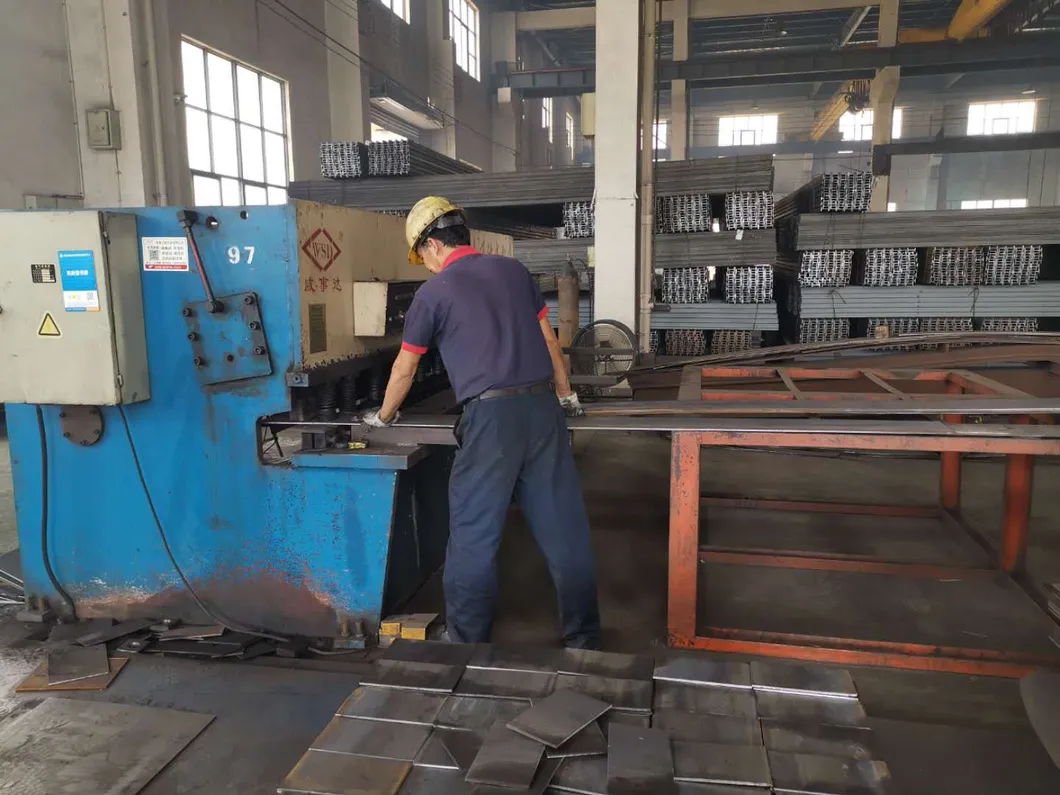

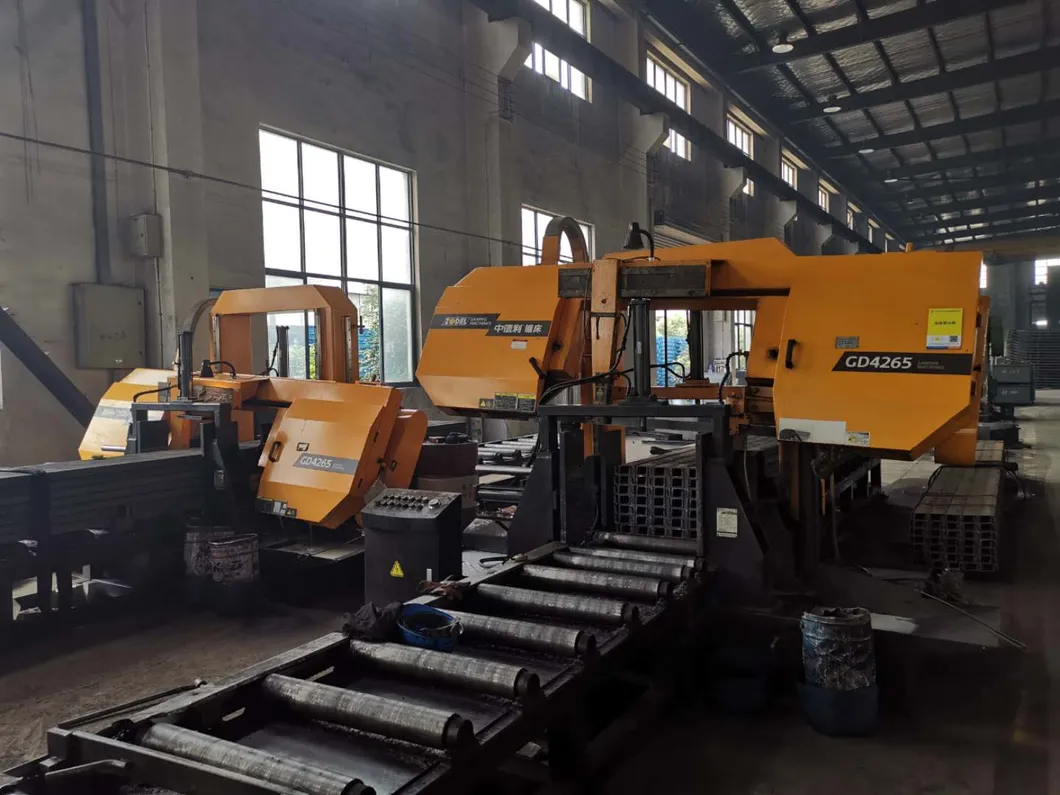

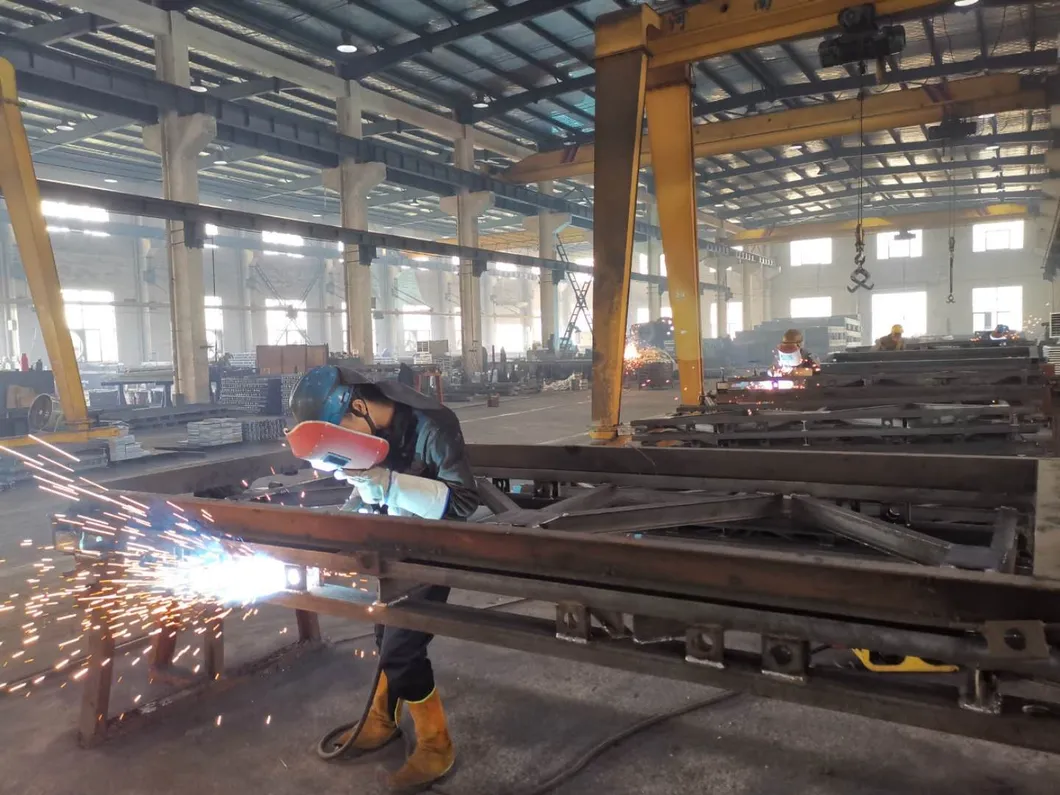

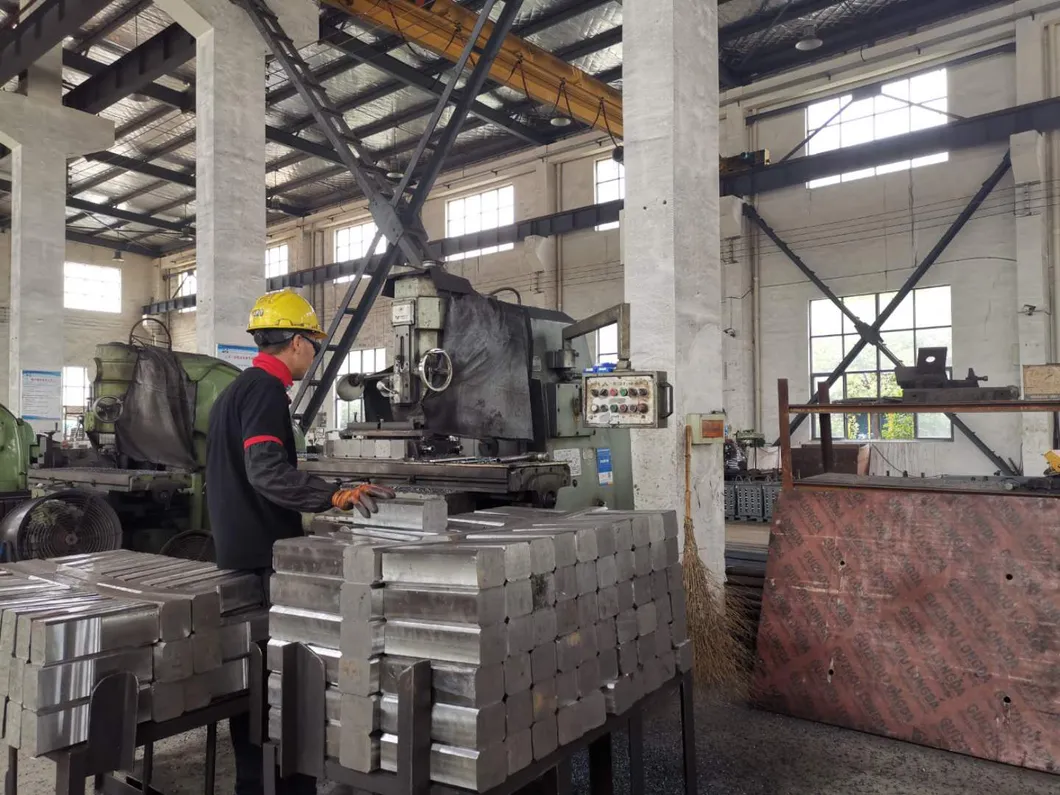

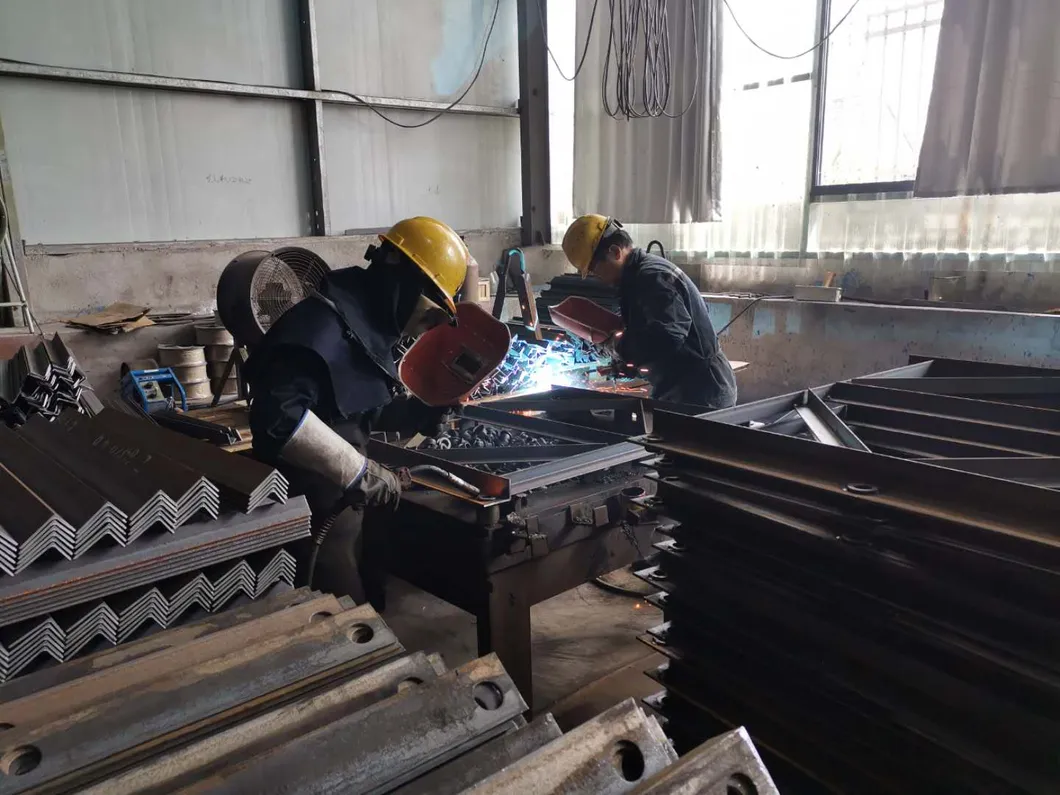

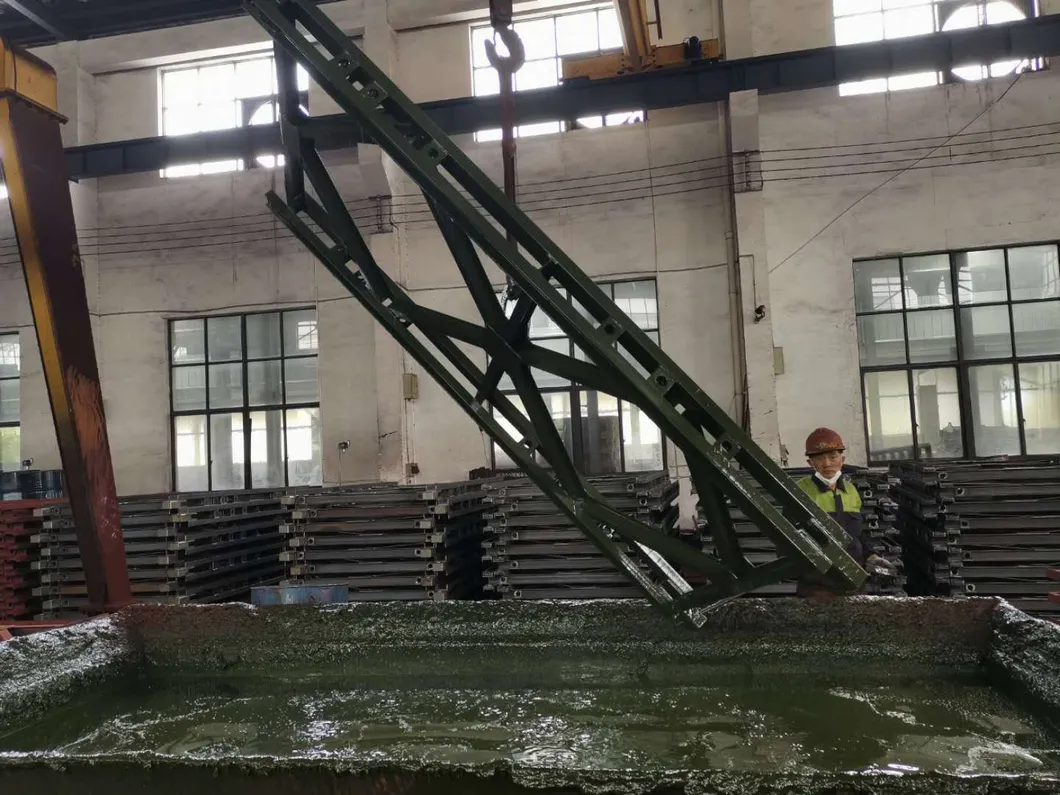

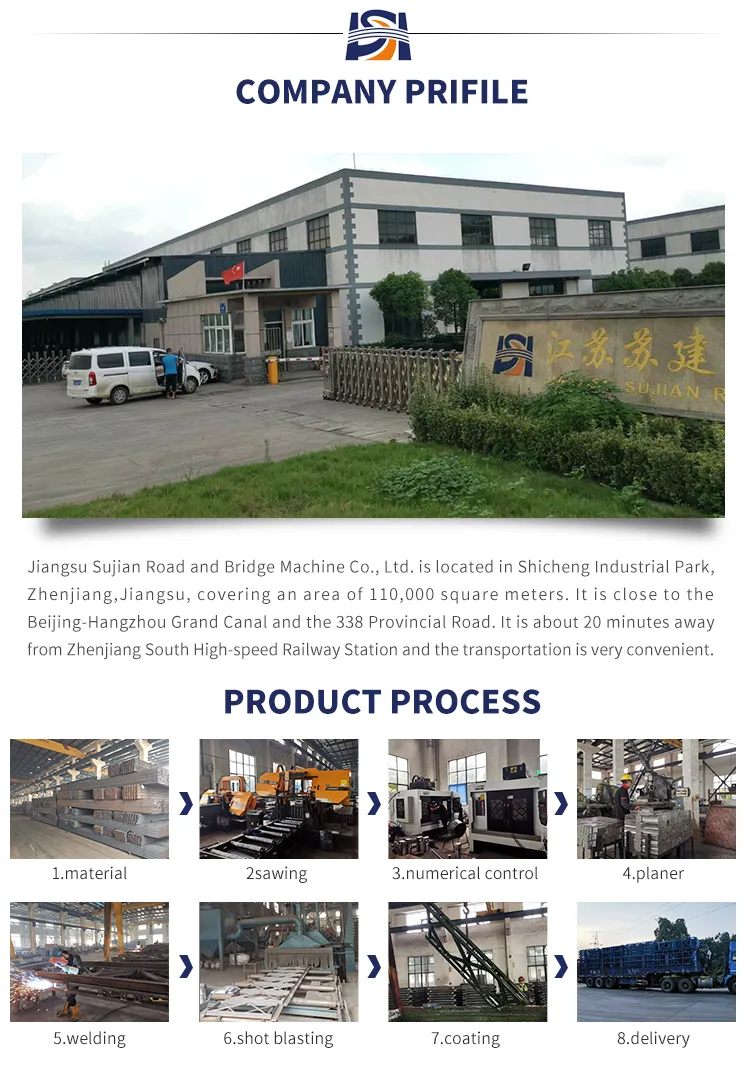

🔧 Manufacture Process
📜 Quality Certifications
❓ Frequently Asked Questions
What are the primary applications of the HD-200 Bailey Bridge?
The HD-200 is versatile and commonly used for highway bridges, railway bridges, footbridges, over-water structures, and temporary viaducts.
What type of surface treatment is applied to the steel components?
All main steel components undergo a high-quality galvanizing process to ensure maximum corrosion resistance and longevity in outdoor environments.
Is on-site guidance available for installation?
Yes, we provide both remote technical support and on-site expert guidance to ensure the bridge is constructed safely and correctly.
What is the production capacity for these steel bridges?
Our manufacturing facilities have a robust production capacity of approximately 90,000 tons per year, ensuring timely delivery for large-scale projects.
Can the bridge structure be customized?
Absolutely. We offer customized specifications for dimensions, loading requirements, and structural styles (Standard vs. Reinforced) based on specific project needs.
What grade of steel is used in the manufacture of the panels?
We primarily use high-strength Q355B steel for panels and chords, and Q235B for secondary structures like decking and connecting plates.
