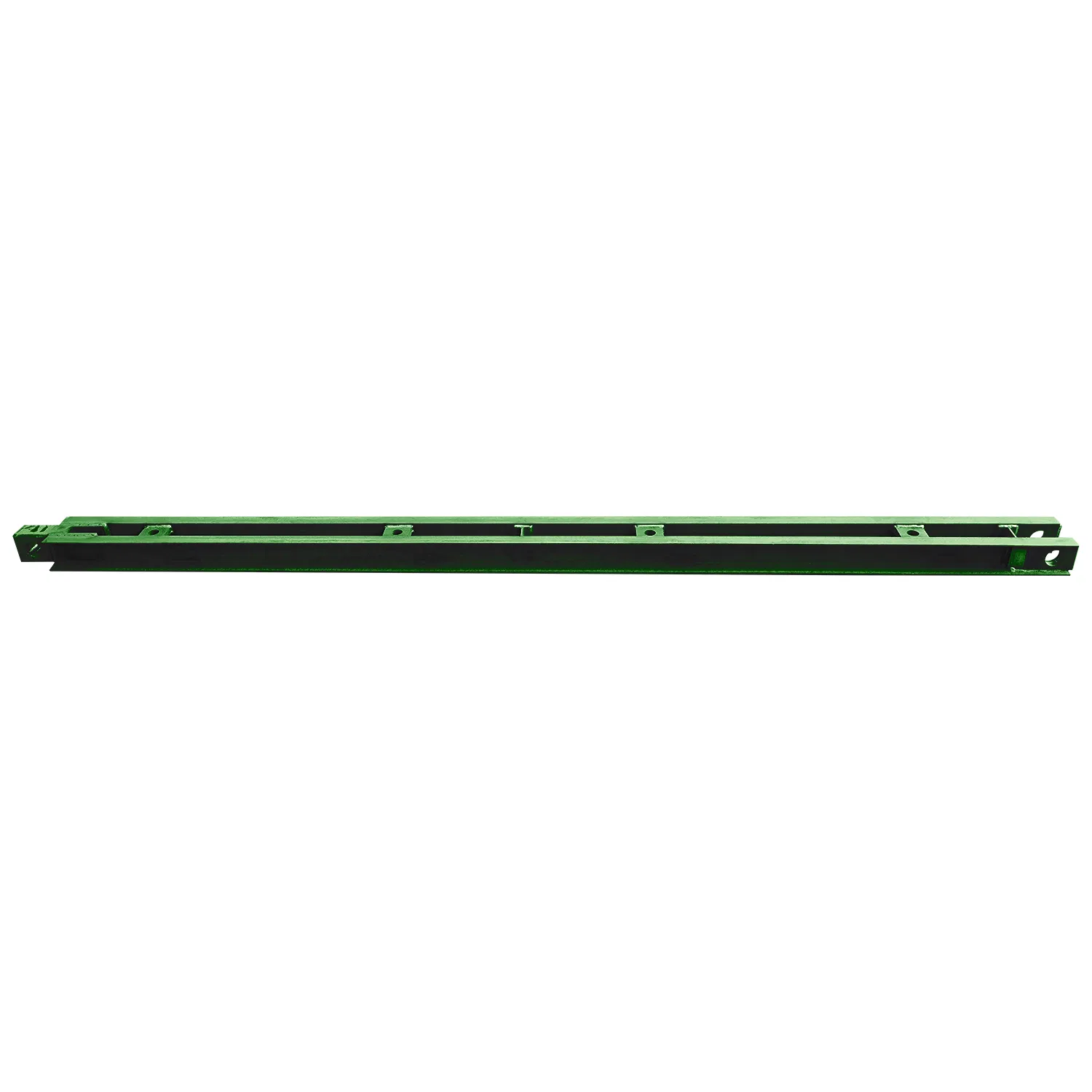

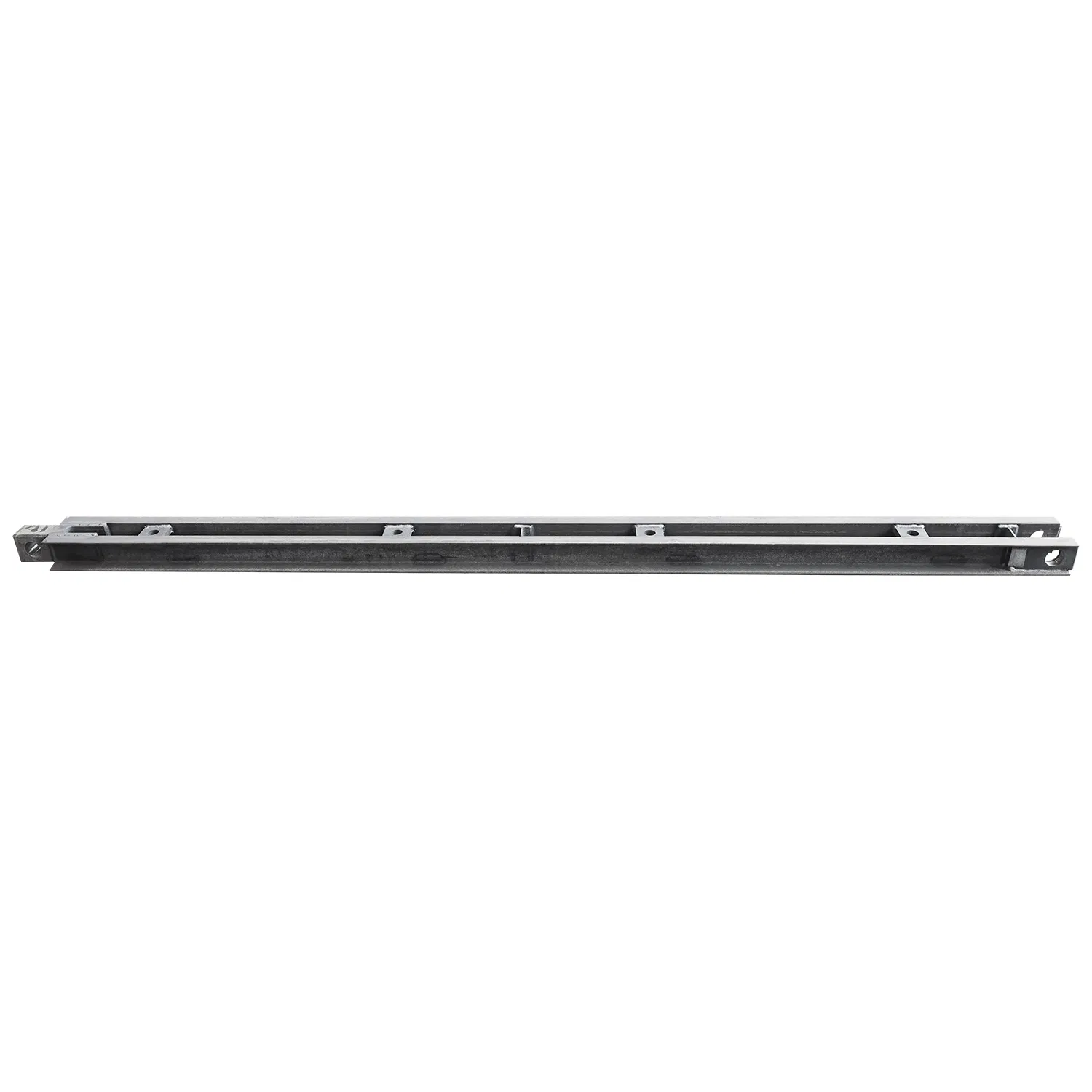

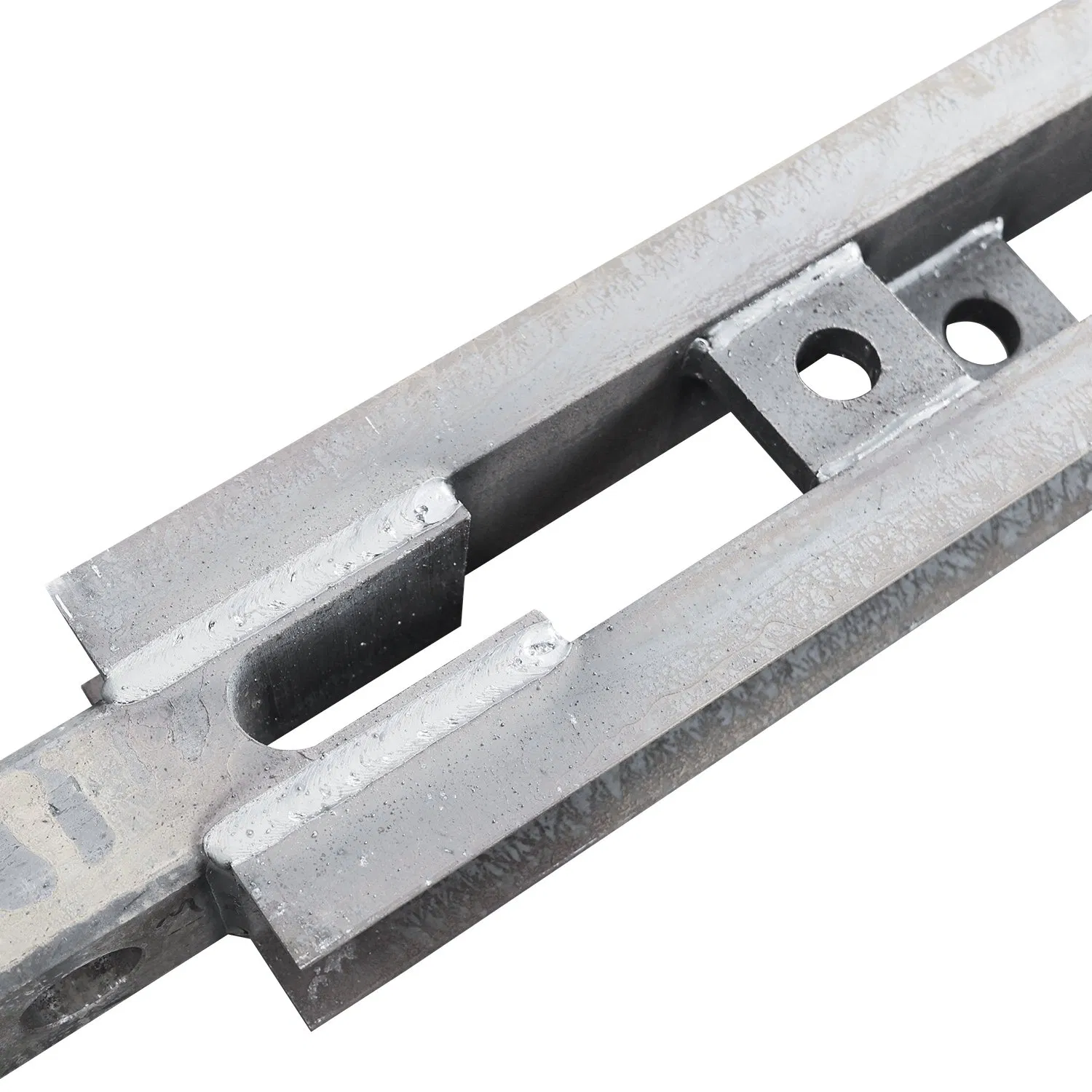

Chord Reinforcement Can Be Used for Bailey Bridge

1 / 5

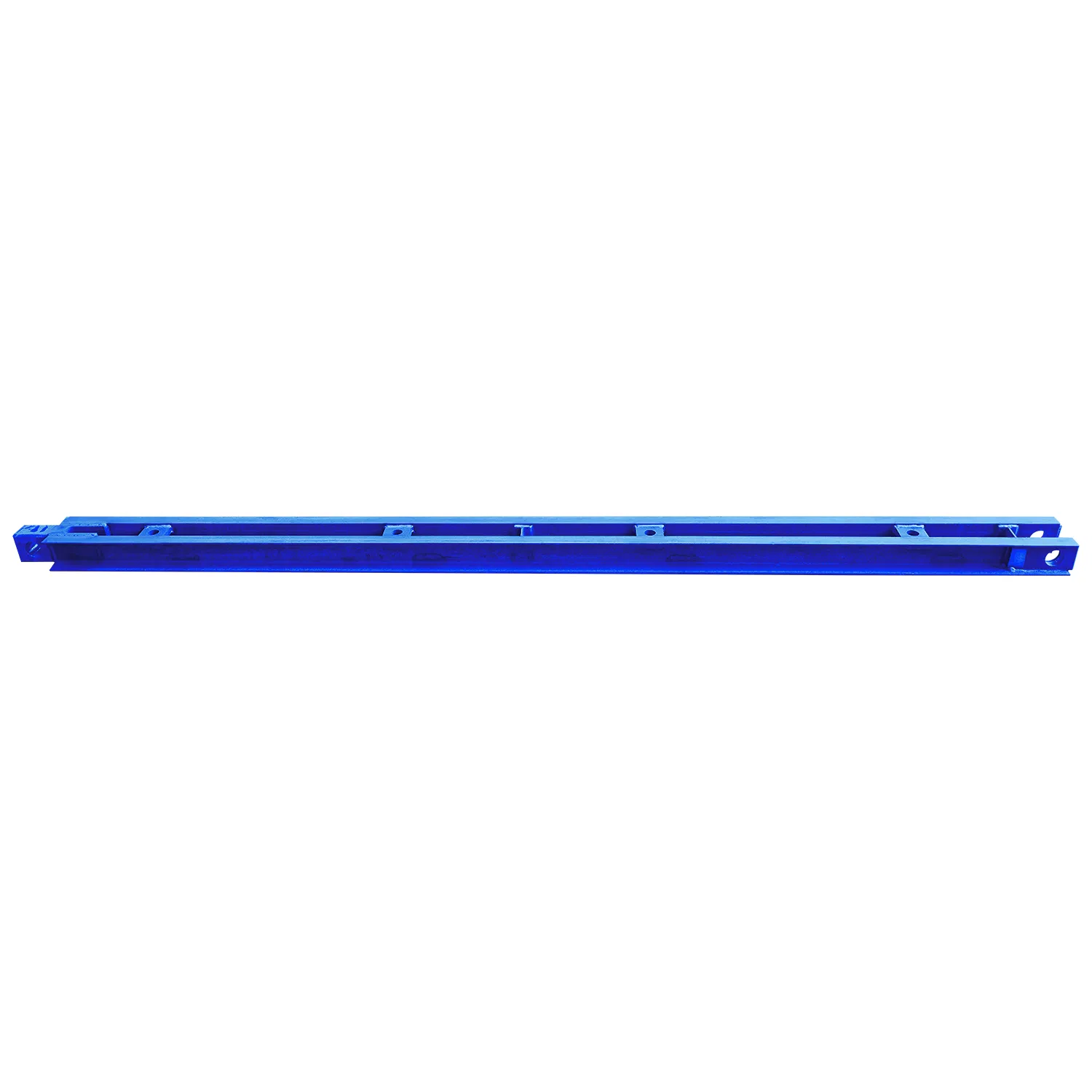

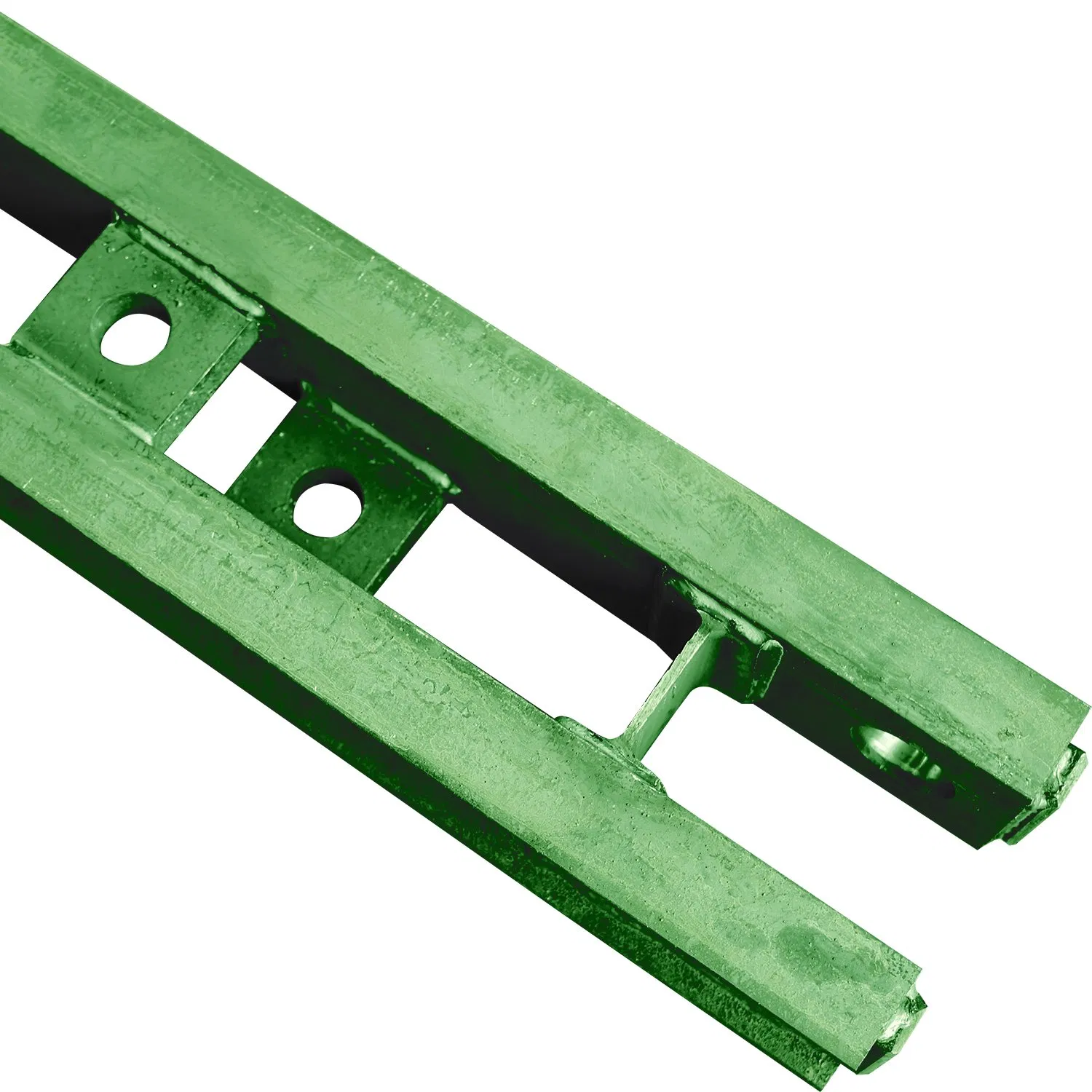

Chord Reinforcement Can Be Used for Bailey Bridge

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	Life Time

Send Inquiry

Product Description

Basic Specifications

Model NO.

CB200

Certification

GB, ASTM

Service Life

Semi-Permanent Bridge

Structure Form

Half Through Beam Bridge

Usage

Highway, Tractor, Footbridge, Pontoon

Material

Steel Bridge (Q355B/Q460C)

Standard

ASTM, GB, BS, BV

Capability

60,000 Tons Per Year

HS Code

730810000

Max Span

45m - 60.96m

Packaging & Delivery

Package Size

310.00cm * 200.00cm * 180.00cm

Gross Weight

3100.000kg

Packing Method

Containers or Bulk

CB200 Truss Technical Data

Chord Reinforcement for Bailey Bridge - Truss Press Limited Table

Internal Force	Not Reinforced Model				Reinforced Model
Internal Force	SS	DS	TS	QS	SSR	DSR	TSR	QSR
Truss Moment (kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9

Product Highlights

Advantage: Proven Robotic Welding, superior welding quality, and precise dimensional control for seamless assembly.

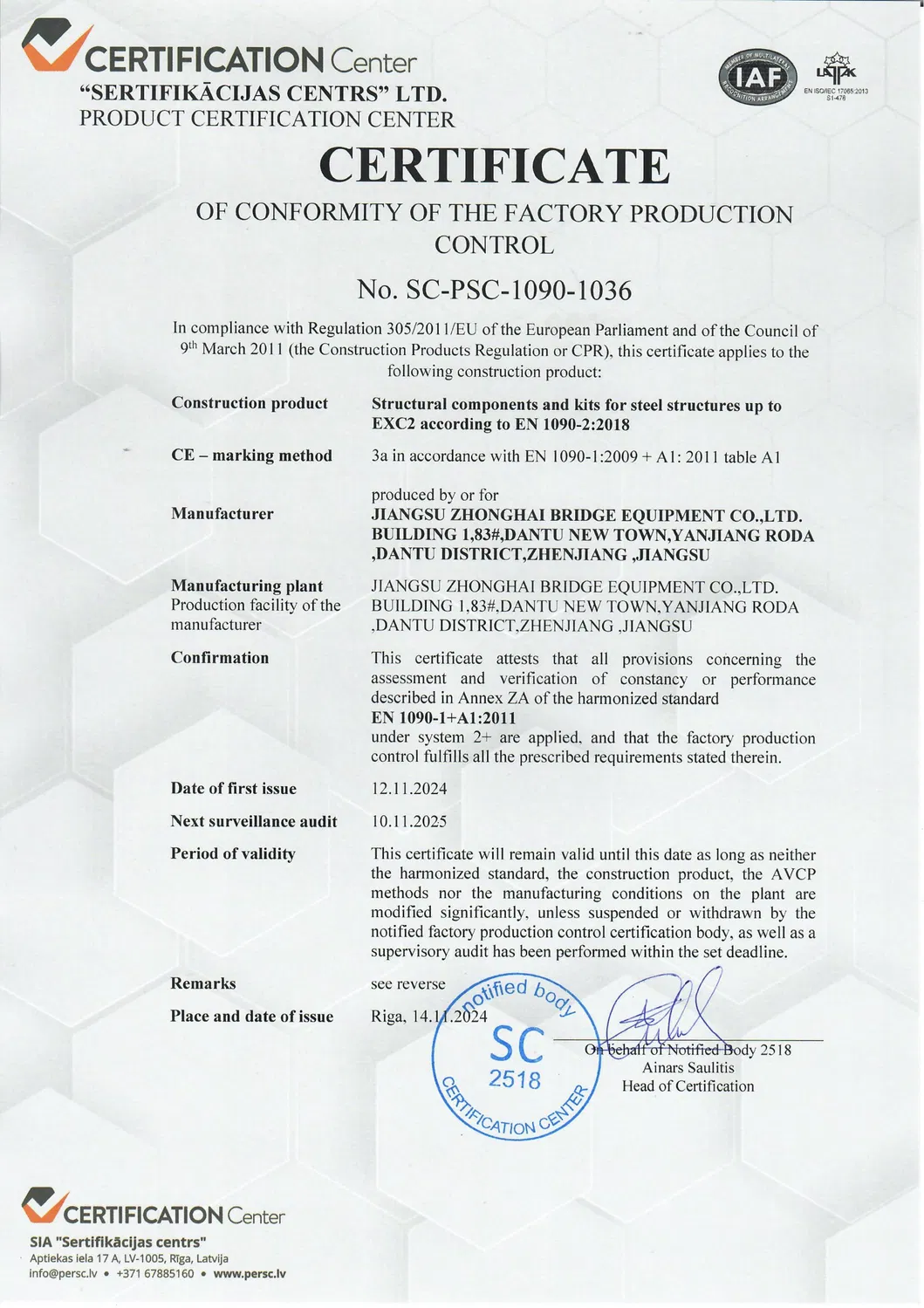

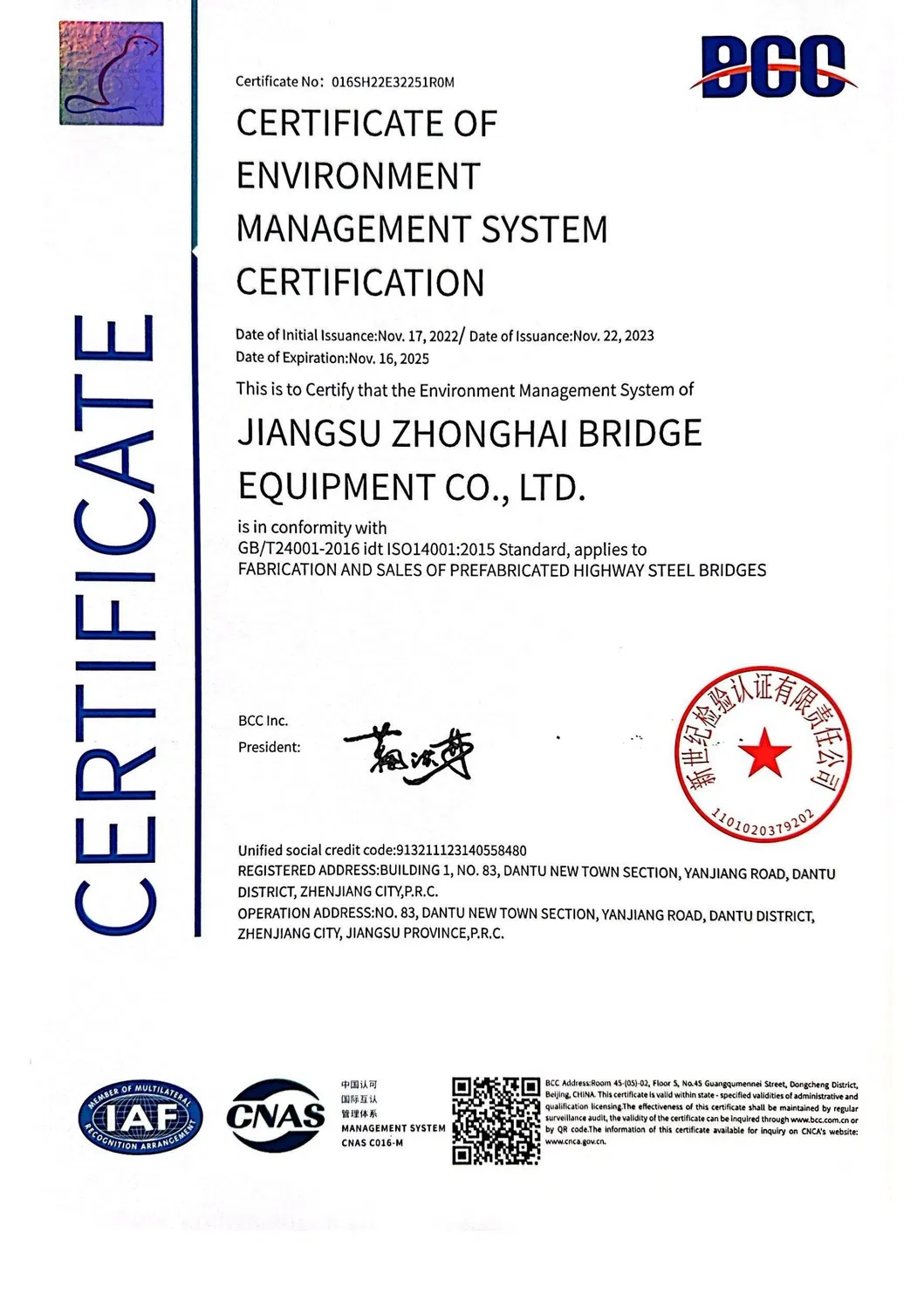

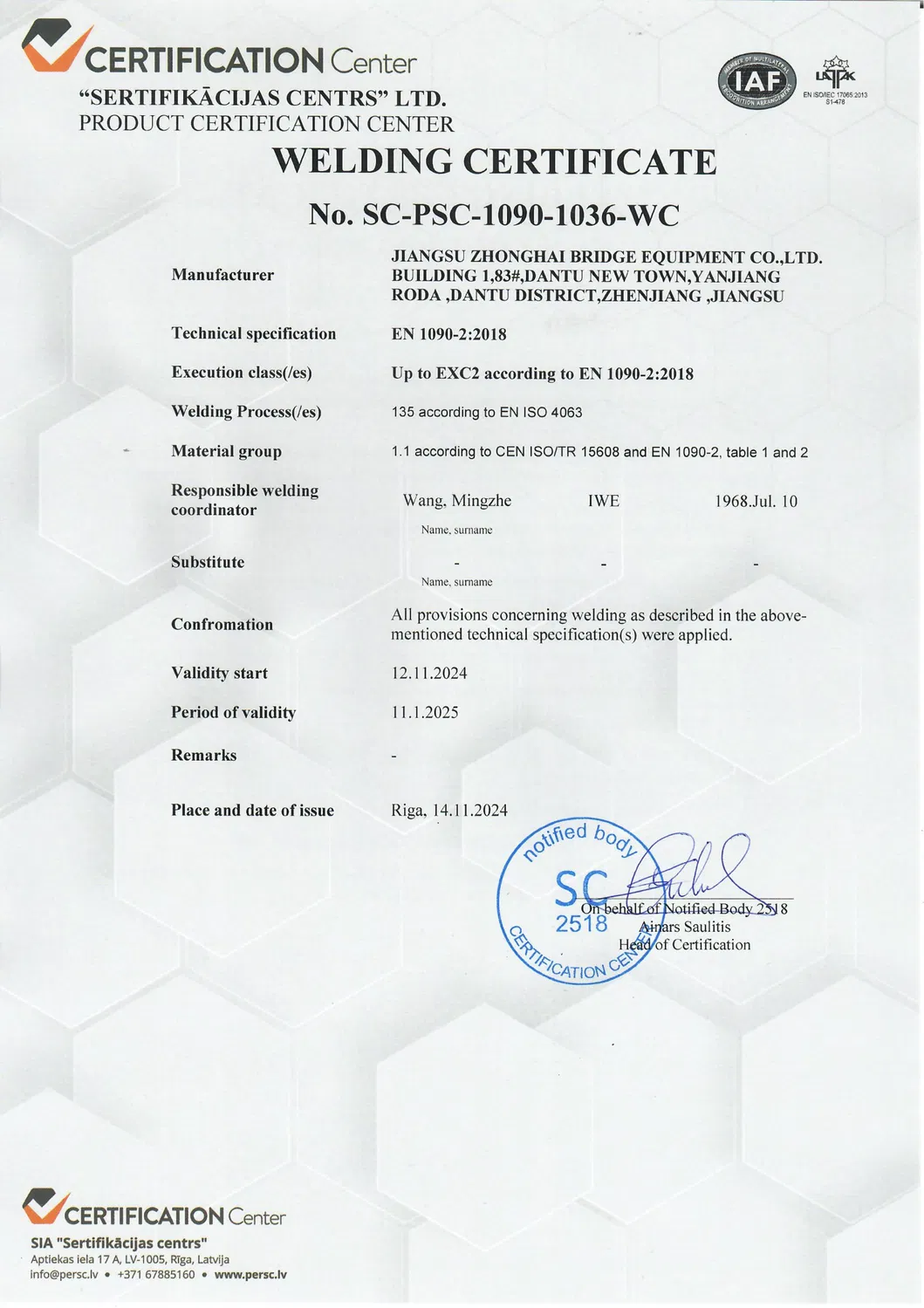

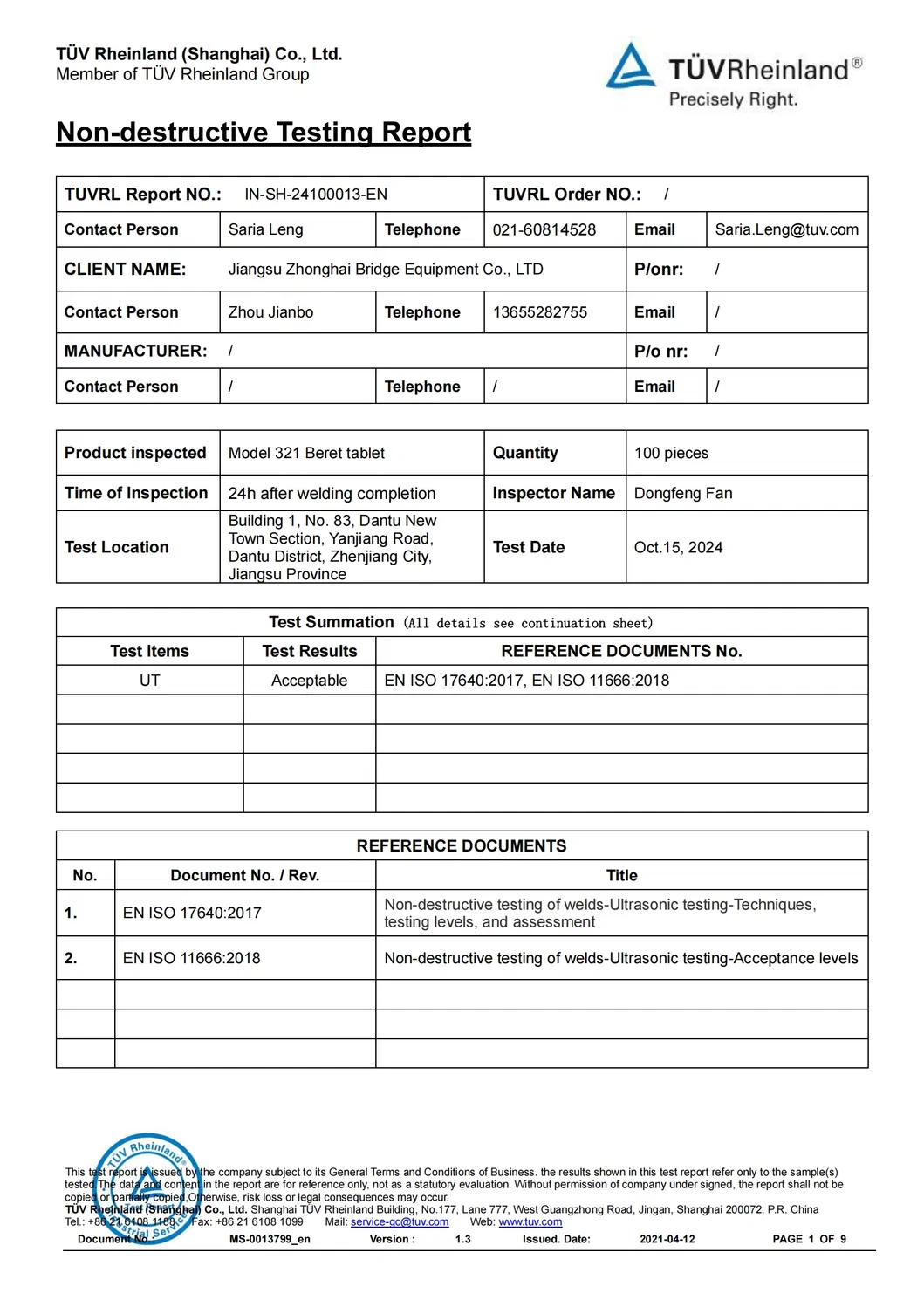

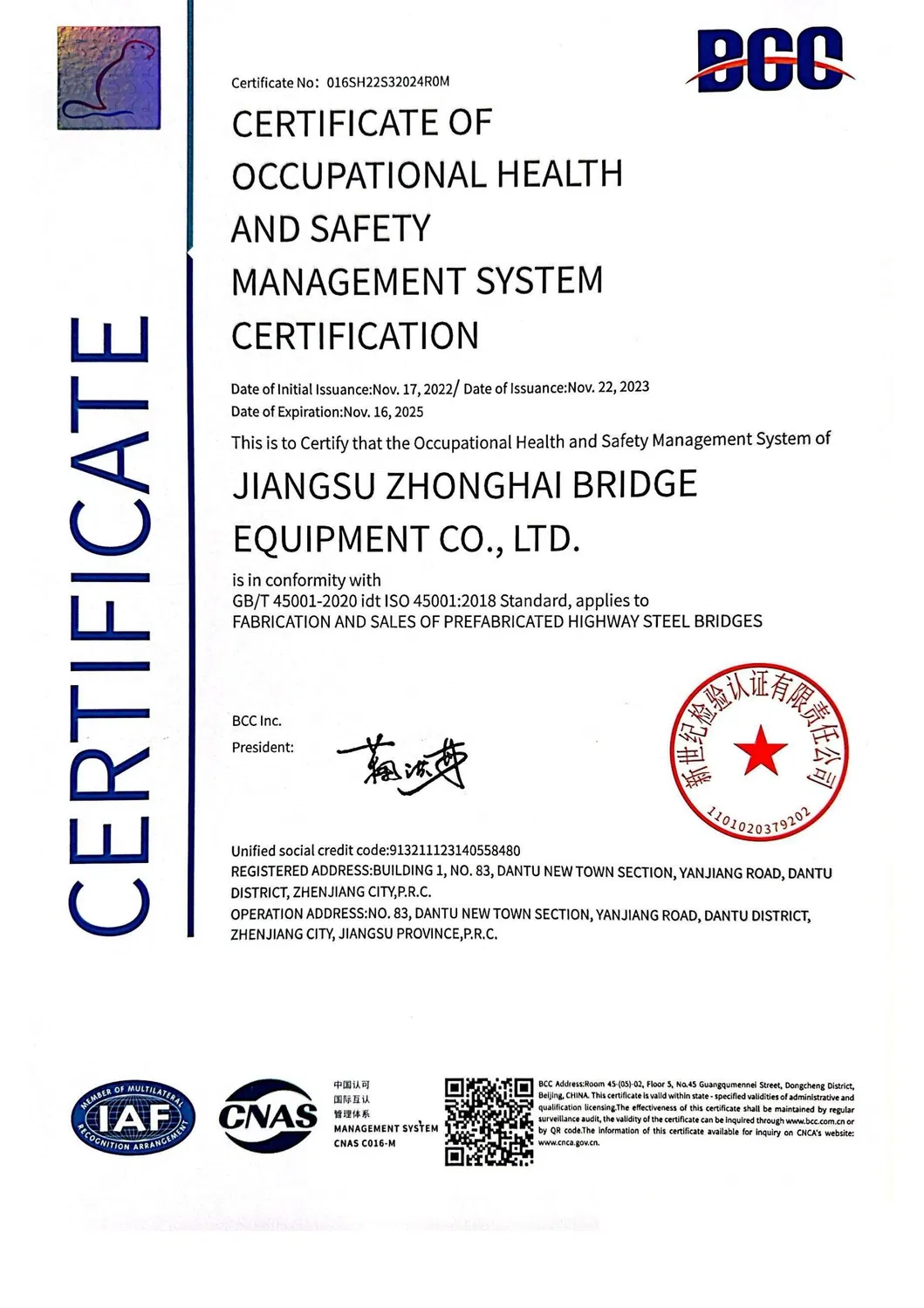

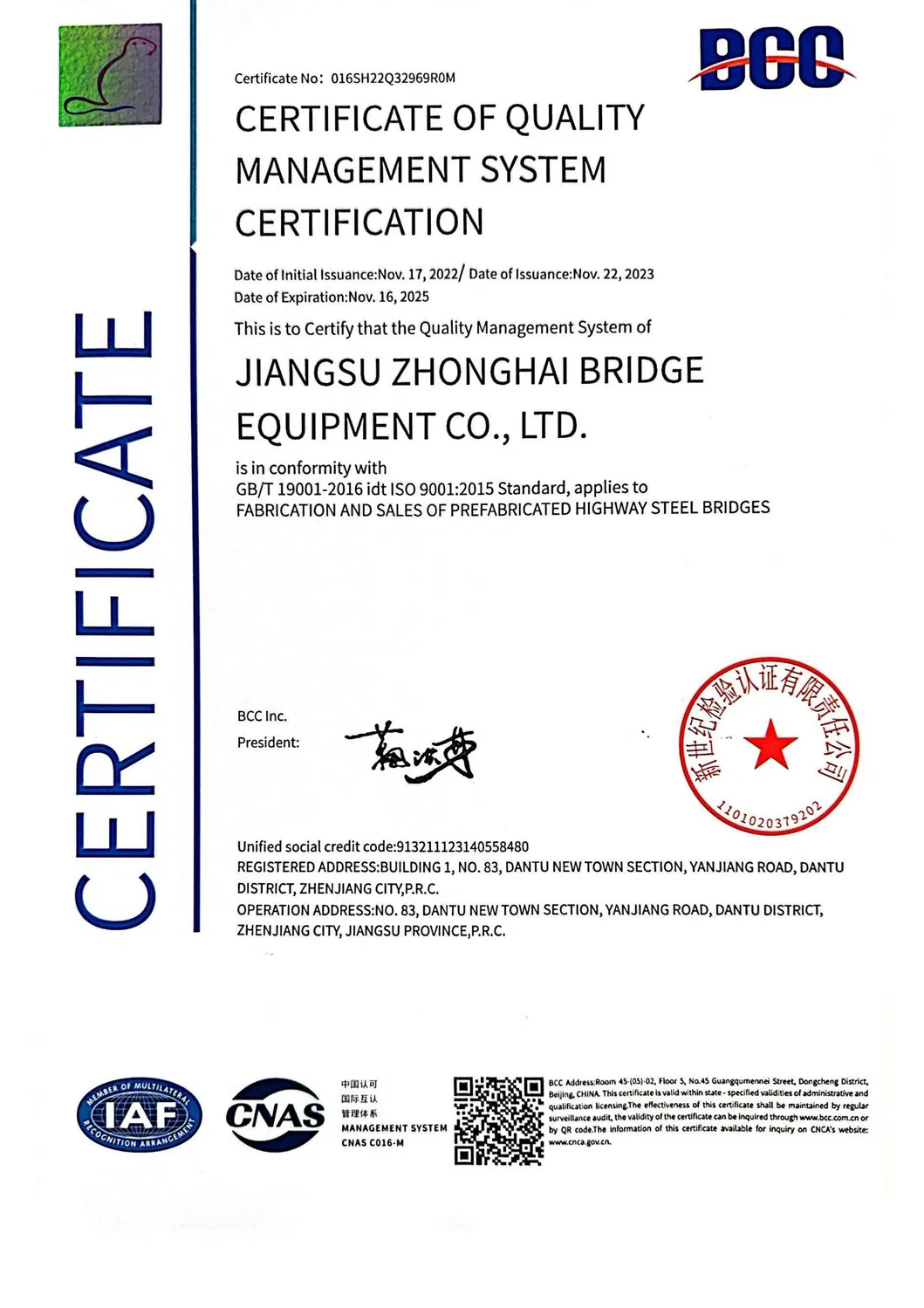

Quality Certificates

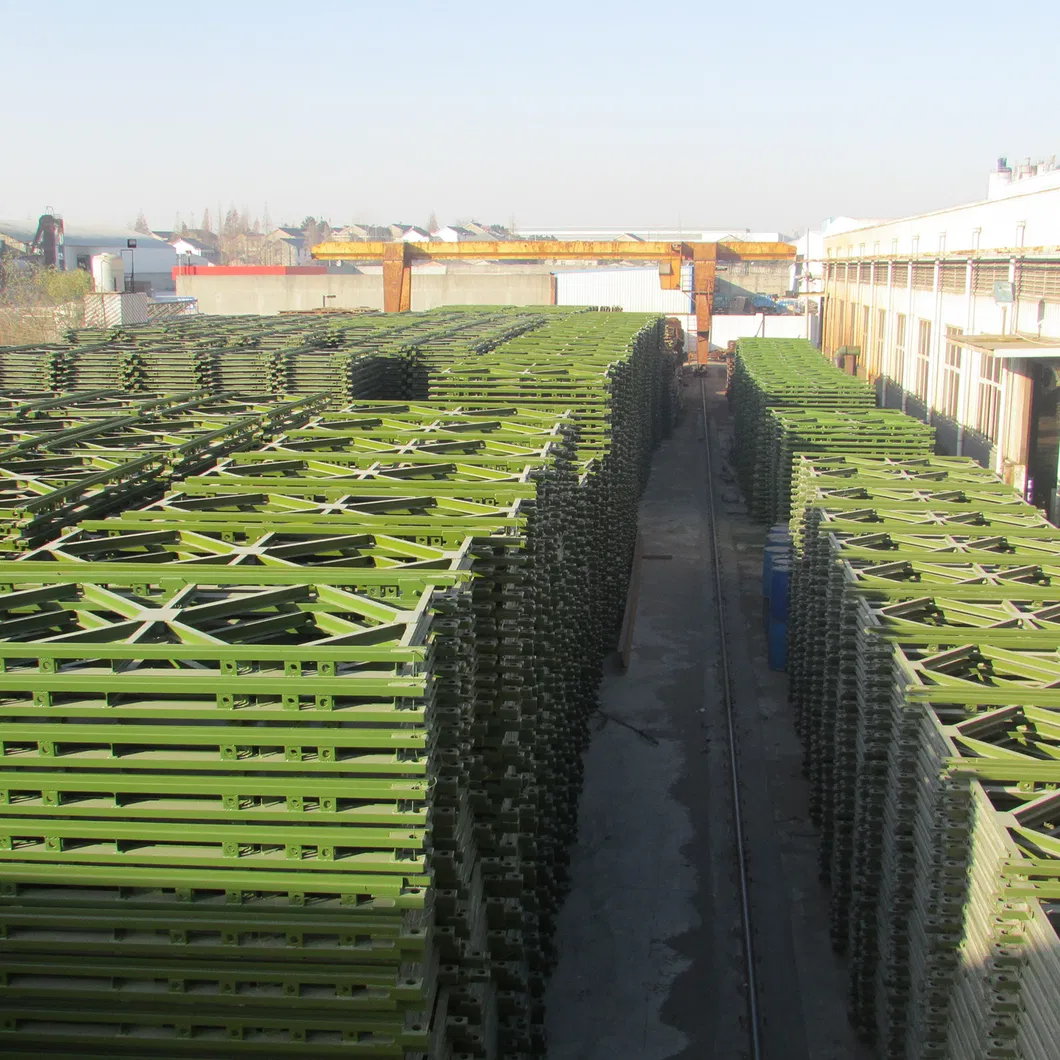

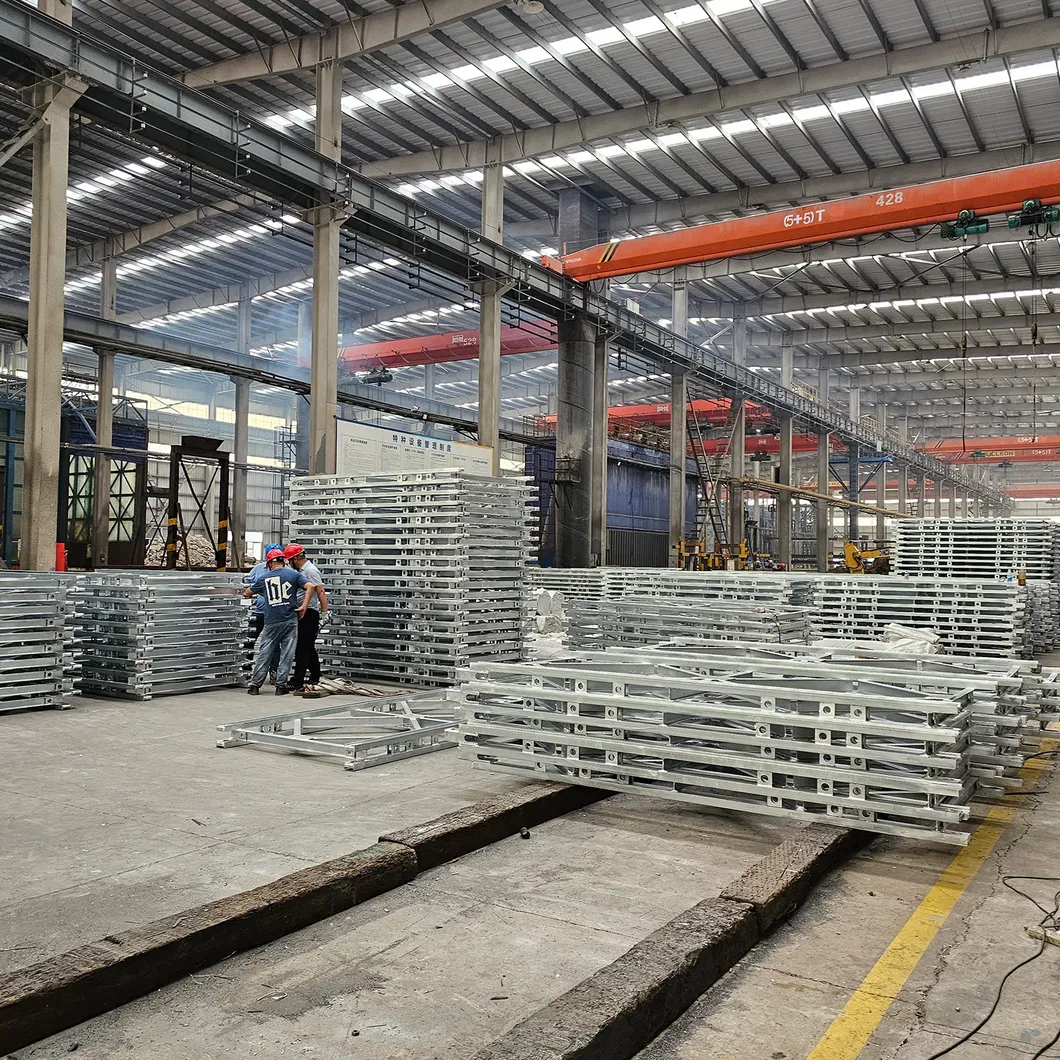

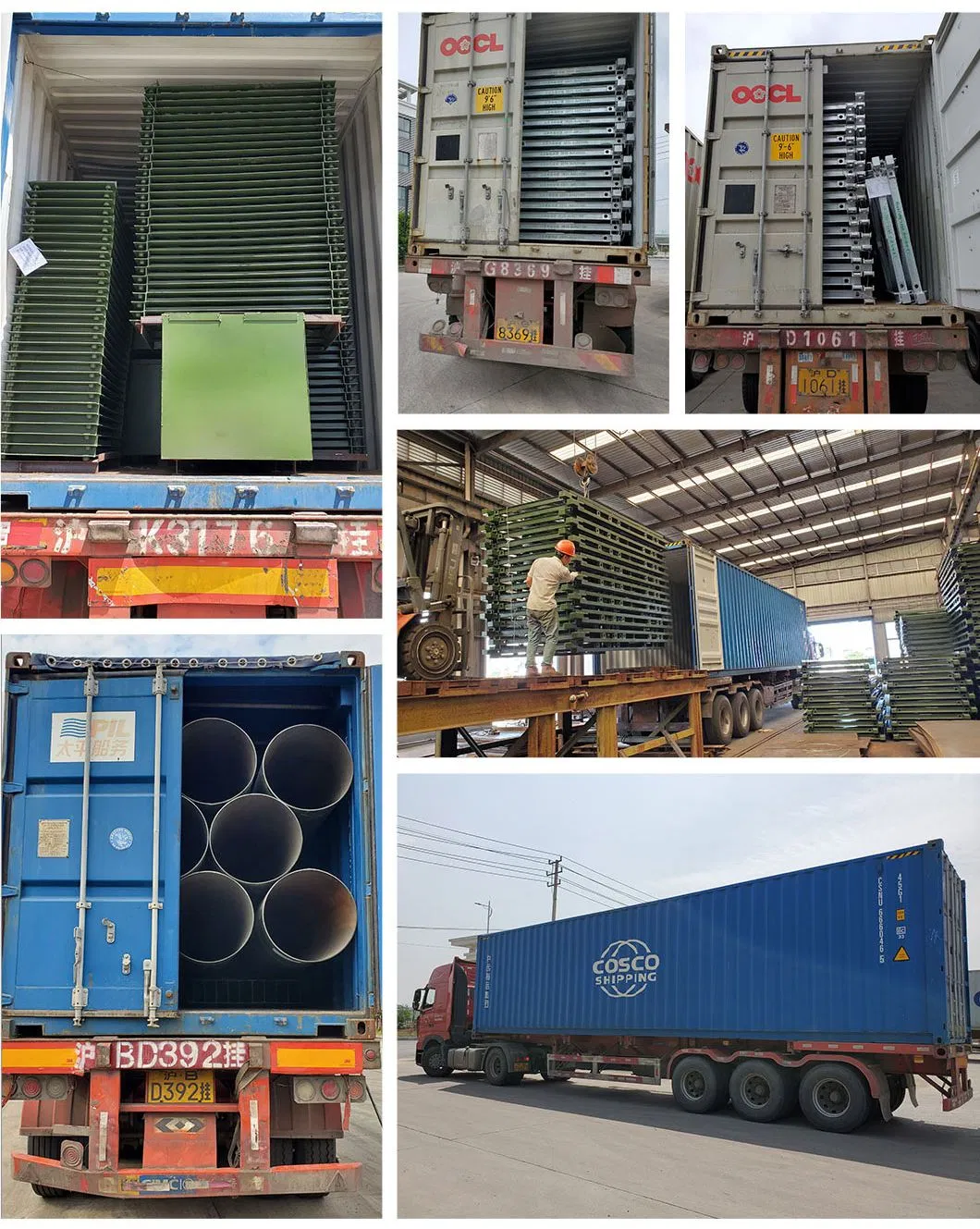

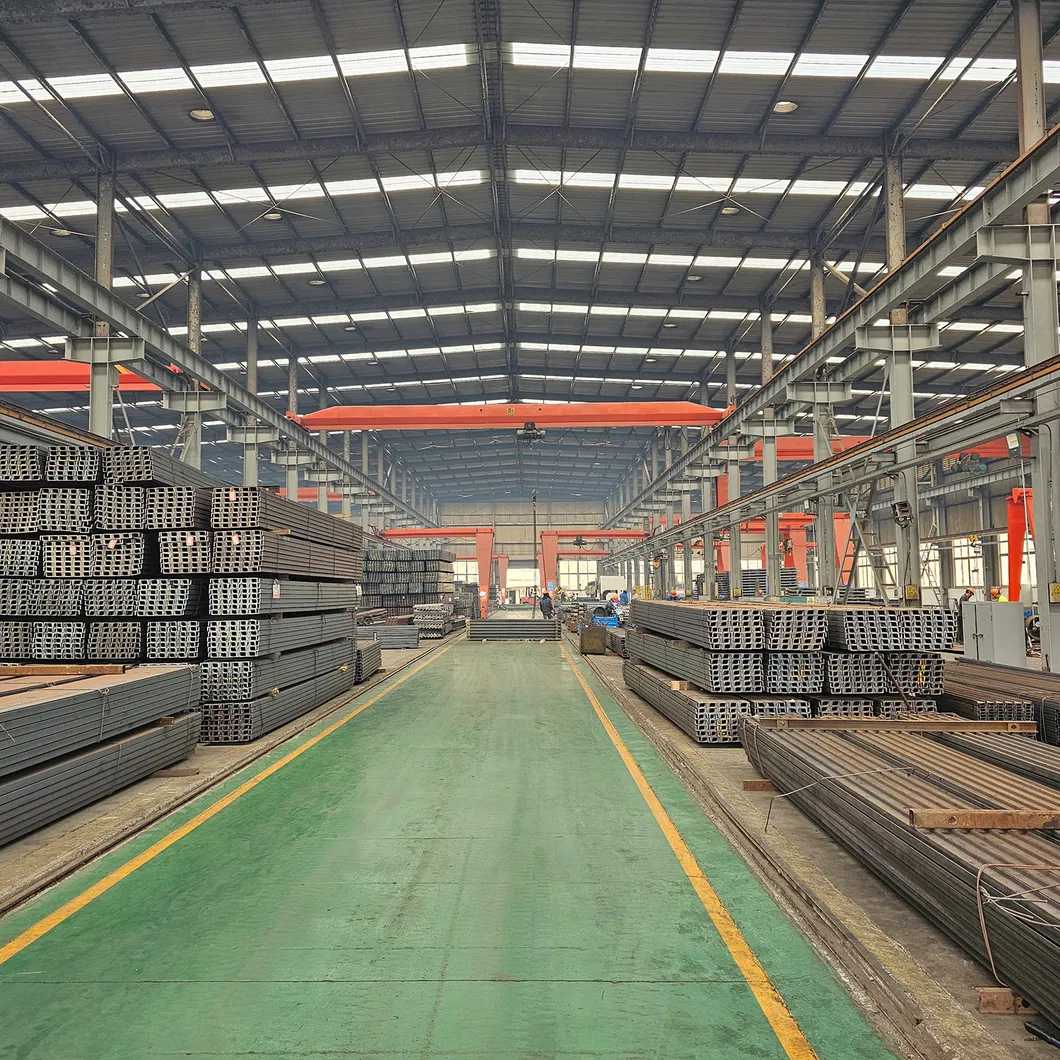

Factory Show & Logistics

Frequently Asked Questions

01. Which countries do you export to?

Our products have been exported to dozens of countries including Malaysia, Philippines, Canada, Russia, Mozambique, Vietnam, Myanmar, Kenya, Tanzania, and many others across Asia, Africa, and America.

02. Are you a factory or a trade company?

We are an industry and trade integrated company with a production capacity of over 60,000 tons per year. We are a professional manufacturing giant for large Bailey pieces and prefabricated highway steel bridges with 20 years of export experience.

03. Do you accept custom processing?

Yes, we have an efficient technical team capable of processing custom-made non-standard Bailey bridges, steel structures, and specialized steel bridge components.

04. Can your products meet international standards?

Yes, our products meet the AASHTO American standard, British BS5400, Australia AS5100, and other major international engineering standards.

05. How soon can I receive a reply after sending an inquiry?

We provide professional technical feedback within 6 hours. Preliminary designs and quotations are typically delivered within 24 hours after technical parameters are confirmed.

06. What materials and steel grades are used?

We primarily use high-strength steel grades such as Q355B and Q460C or equivalent, ensuring the durability and safety of the bridge structures.
