Prefabricated Temporary Modular Bridge/Modular Steel Bridges for Sale

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	6 Months

Basic Specifications

Model NO.

CB321

Certification

GB, ASTM

Life

Semi-Permanent Bridge

Across Way

Open Bridge

Lane Position

Half Through Bridge

Usage

Over Water, Highway, Footbridge, etc.

Stress Characteristics

Beam Bridge

Material

Steel Bridge

Structure Type

Steel Bridge

Type

Truss Bridge

Net Width

3.15m to 10.5m

Capacity

50000 Pieces/Year

Product Description

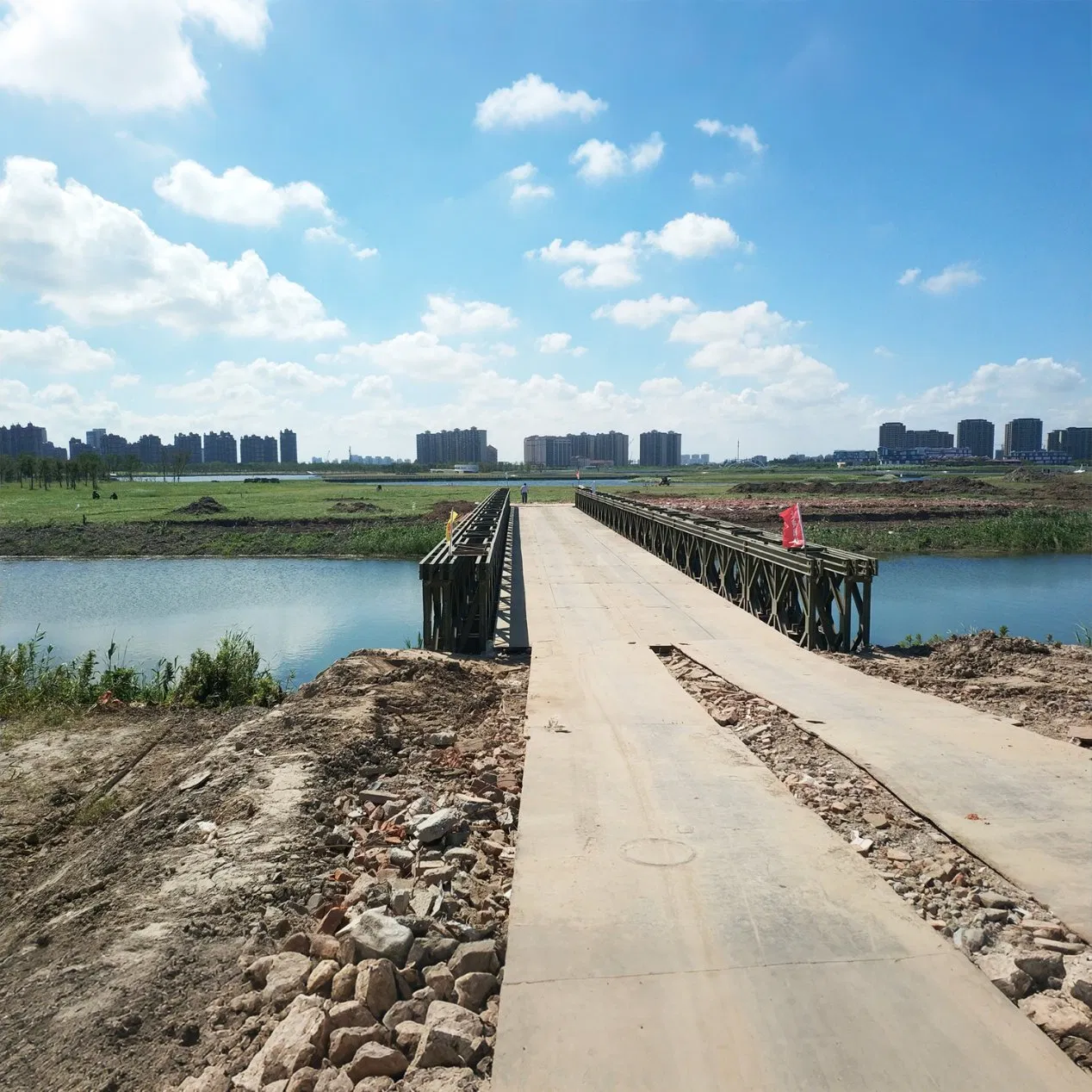

Temporary Modular Bridge / Modular Steel Bridges

CB321(100) Truss Press Limited Table
No.	Internal Force	Not Reinforced Model				Reinforced Model
Structure	-	SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Truss Moment (kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5

CB321 (100) Geometric Characteristics (Half Bridge)
Type	Characteristics	Not Reinforced				Reinforced
321(100)	Section (cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Inertia (cm4)	250497	500994	751491	2148588	577434	1154868	1732303	4596255

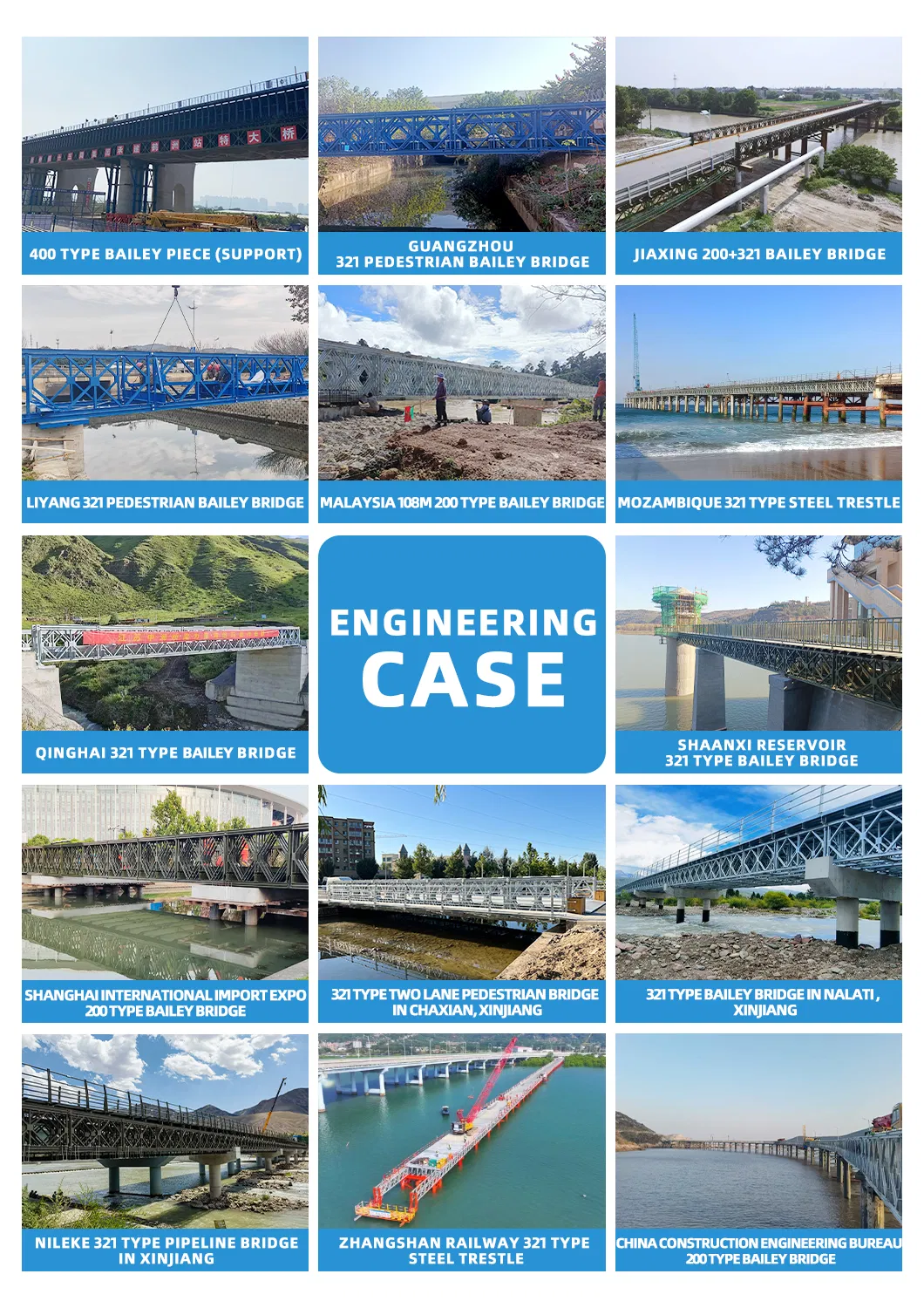

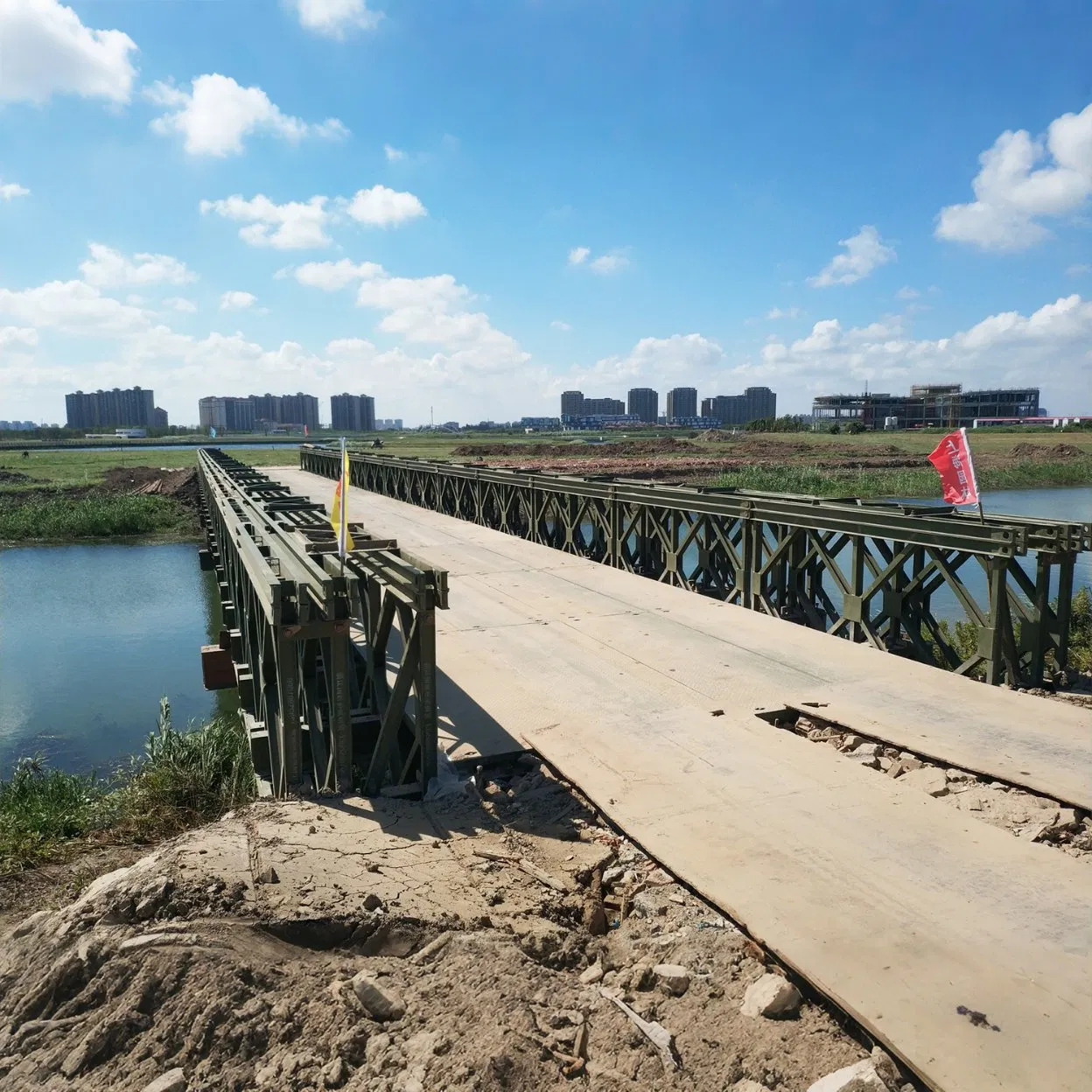

Project Cases

Technical Instruction

Standards: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV

Length: 9.144m to 60.96m (Customizable)

Steel Grade: Q355B/Q460C or Equivalent

Applications: Temporary bridge, platform, gantry frame, float bridge, construction towers.

Advantage: Proven Robotic Welding, high precision, and durability.

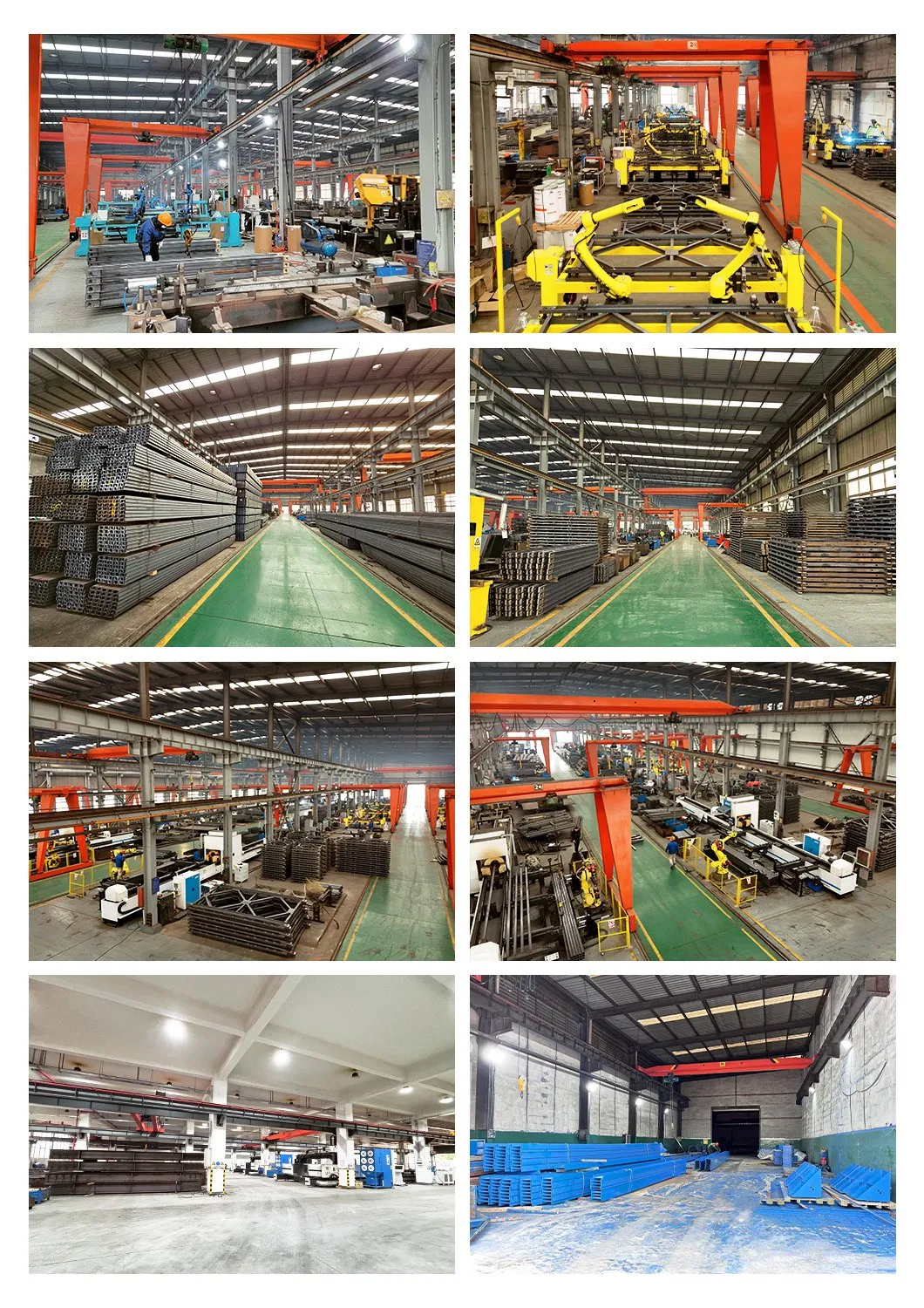

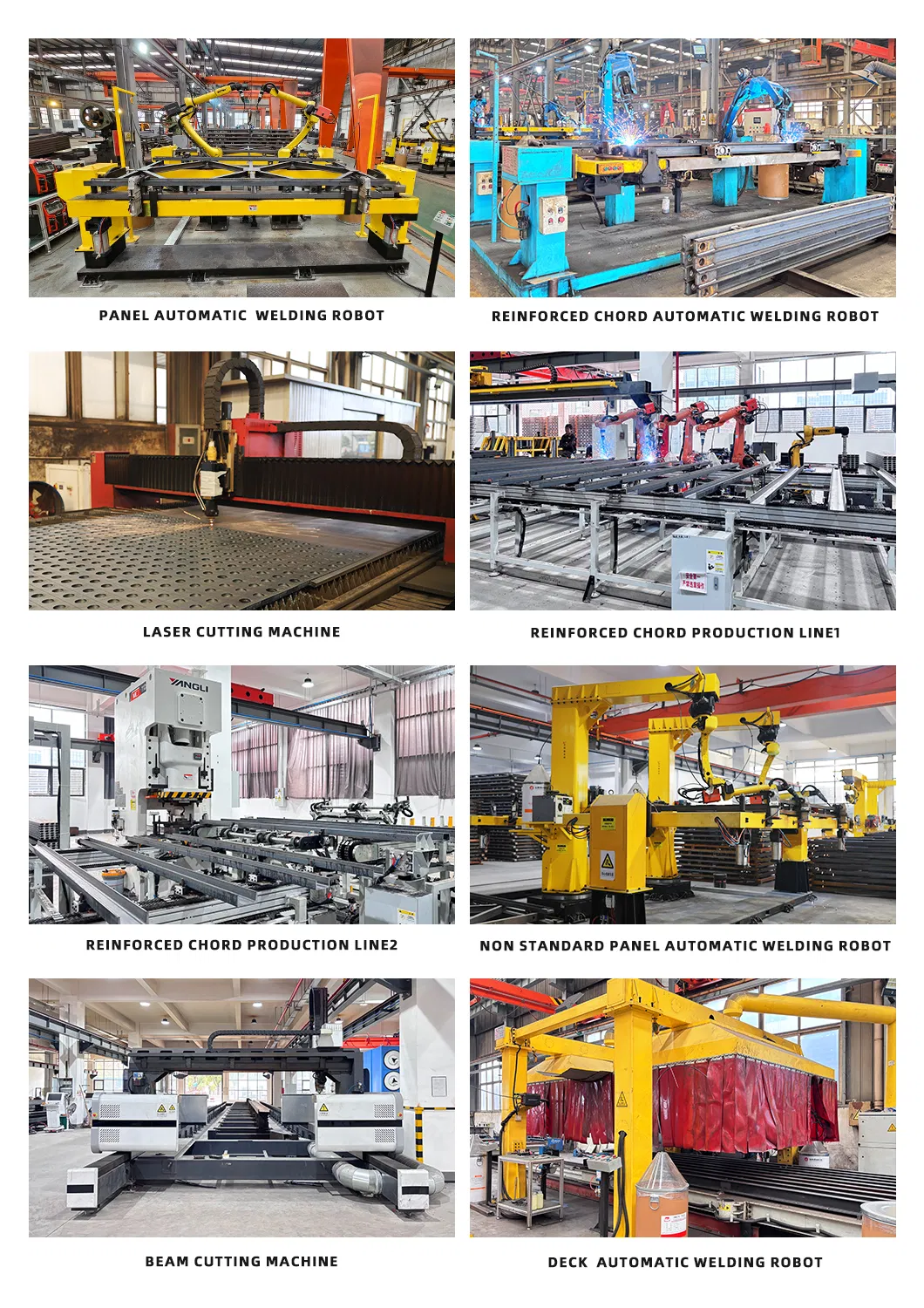

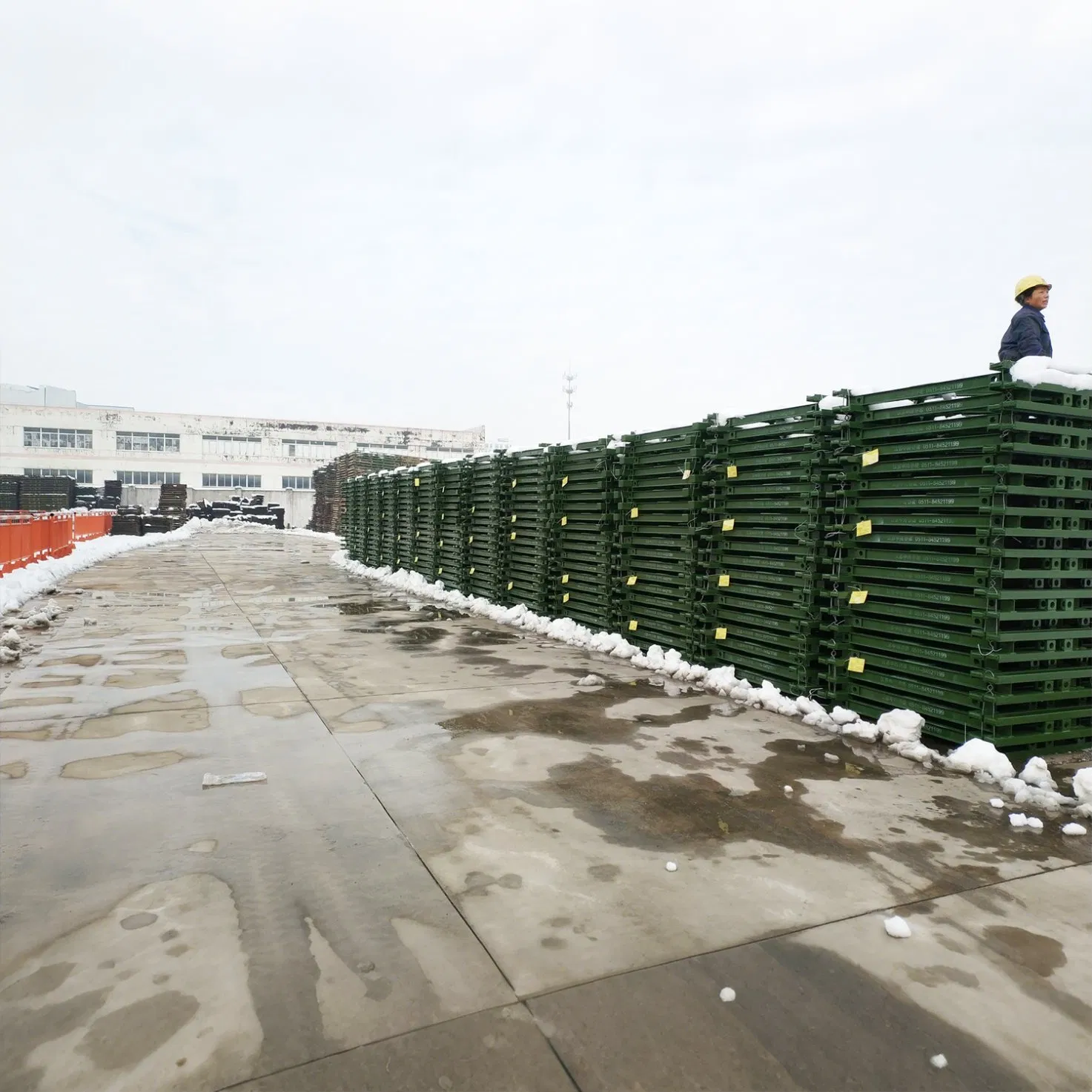

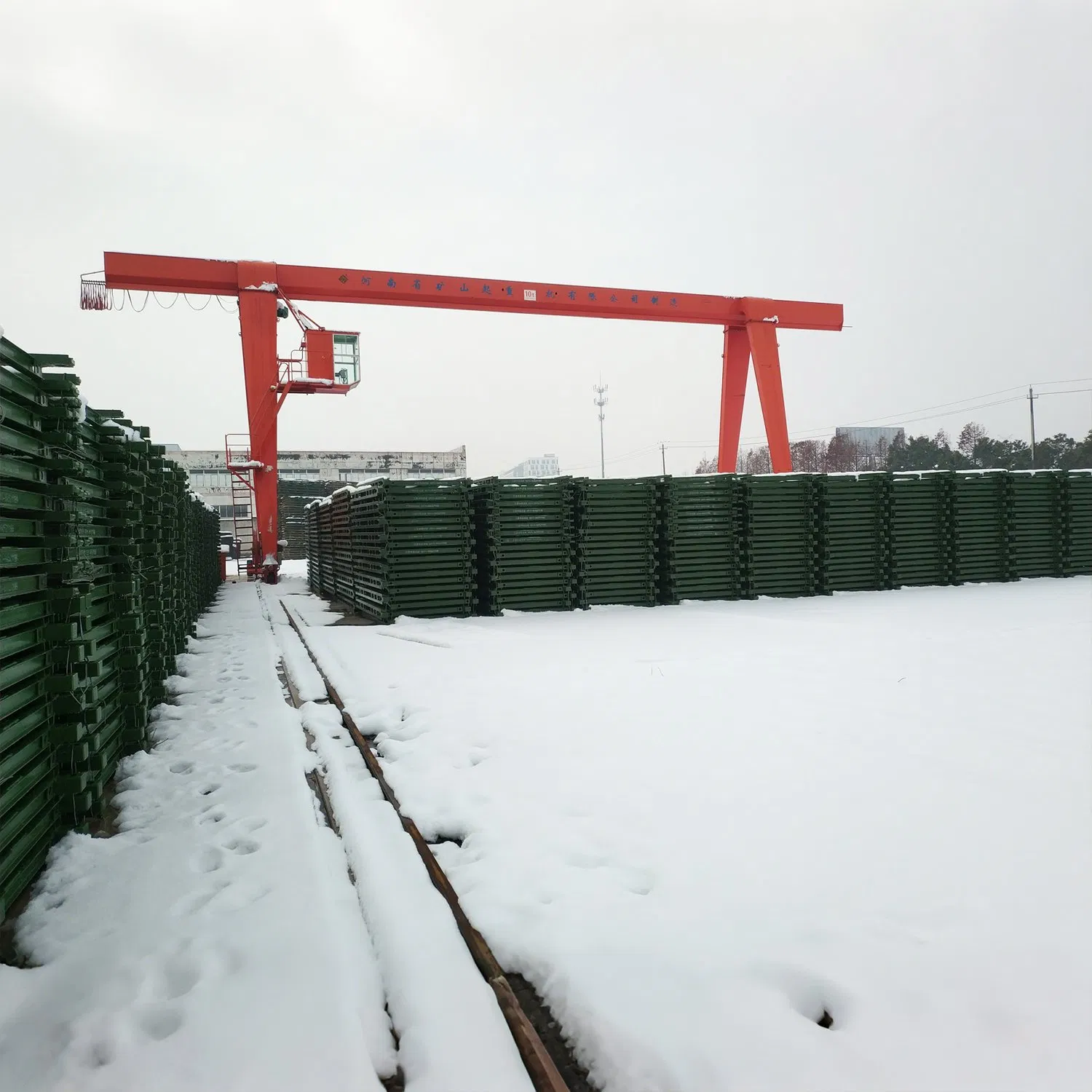

Production Workshop & Welding

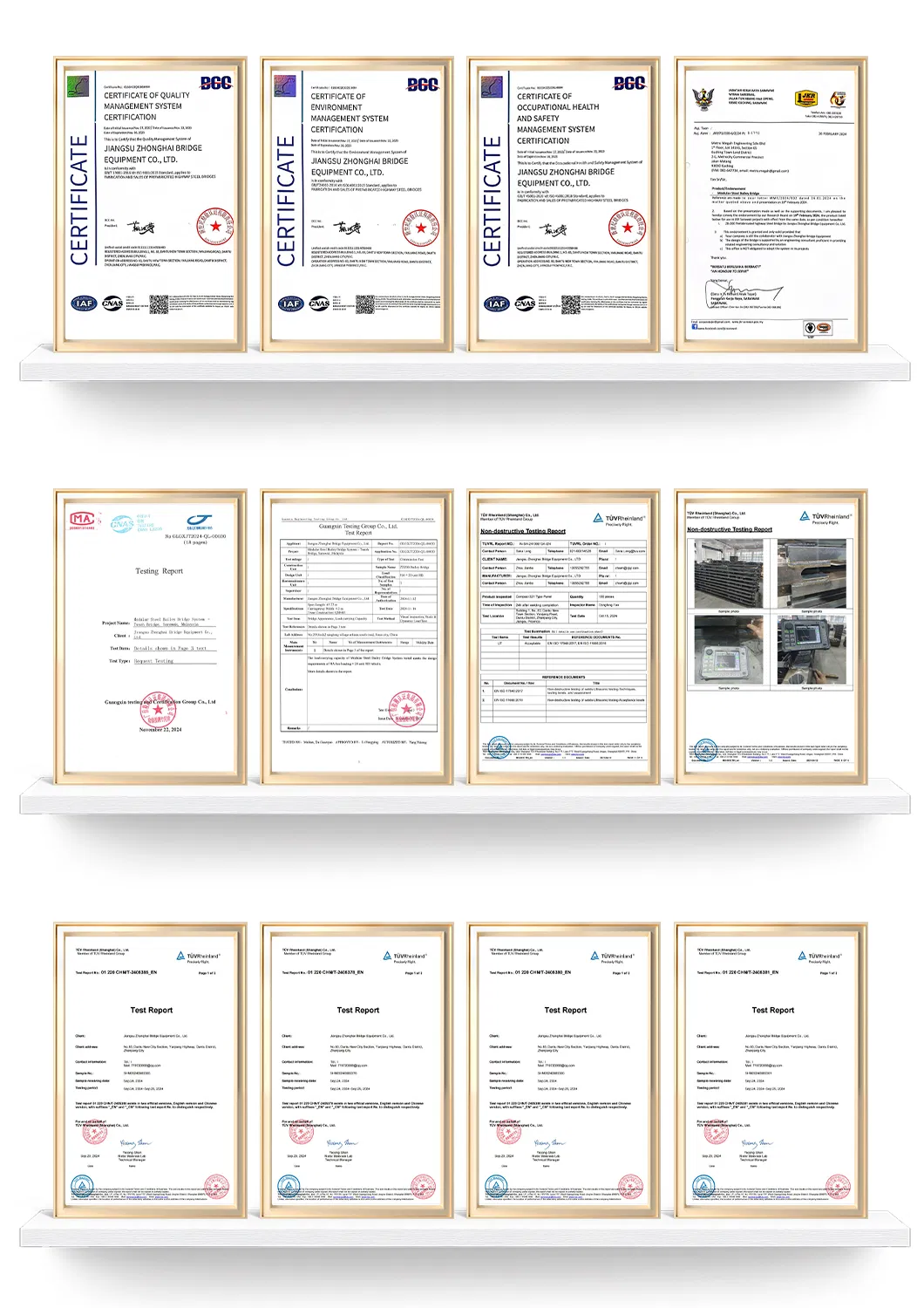

Certificates & Quality Assurance

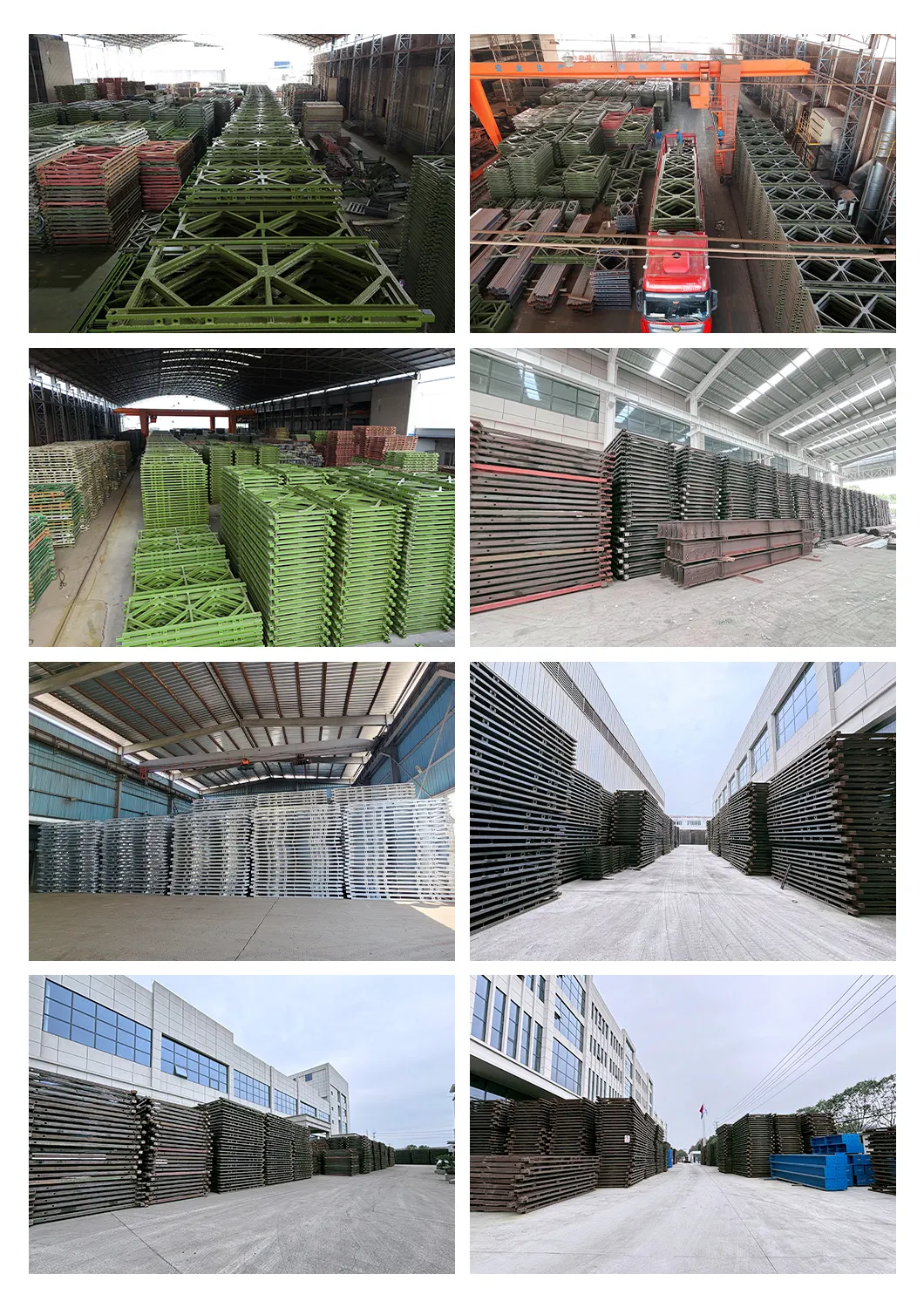

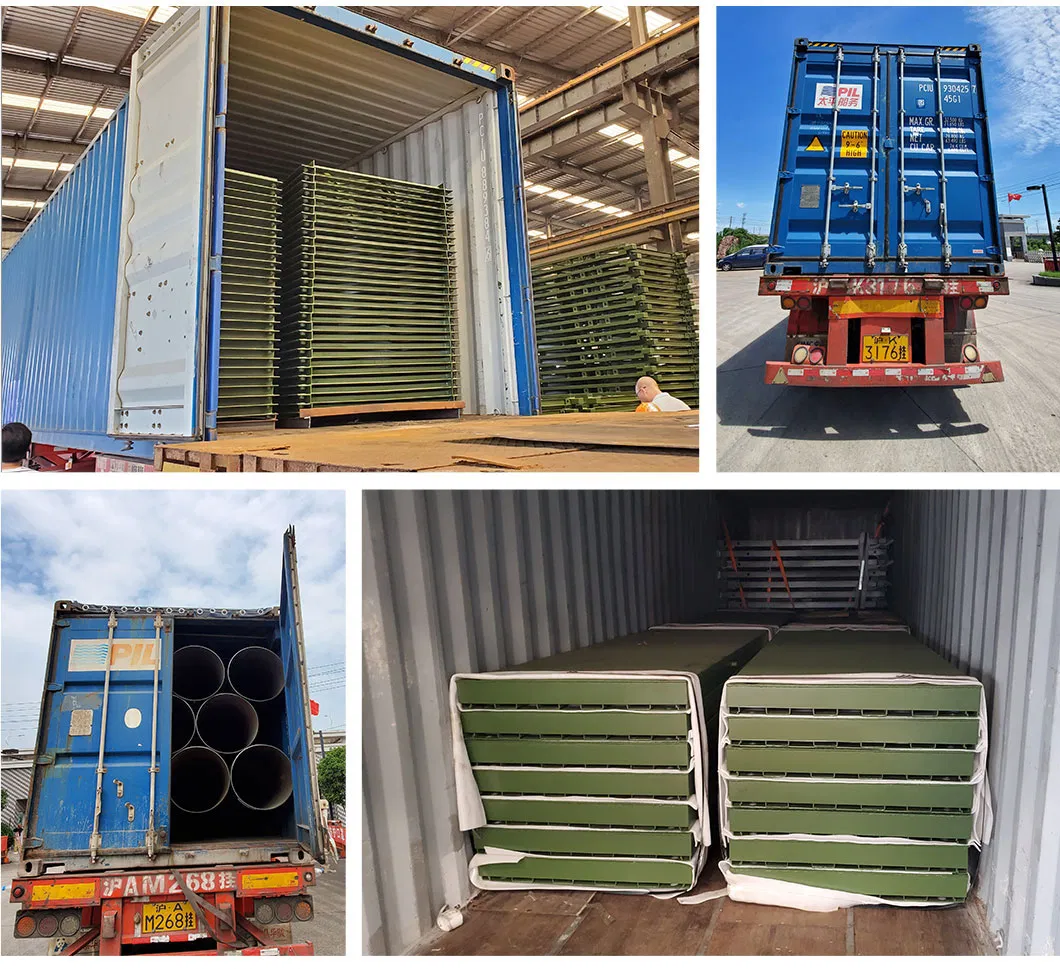

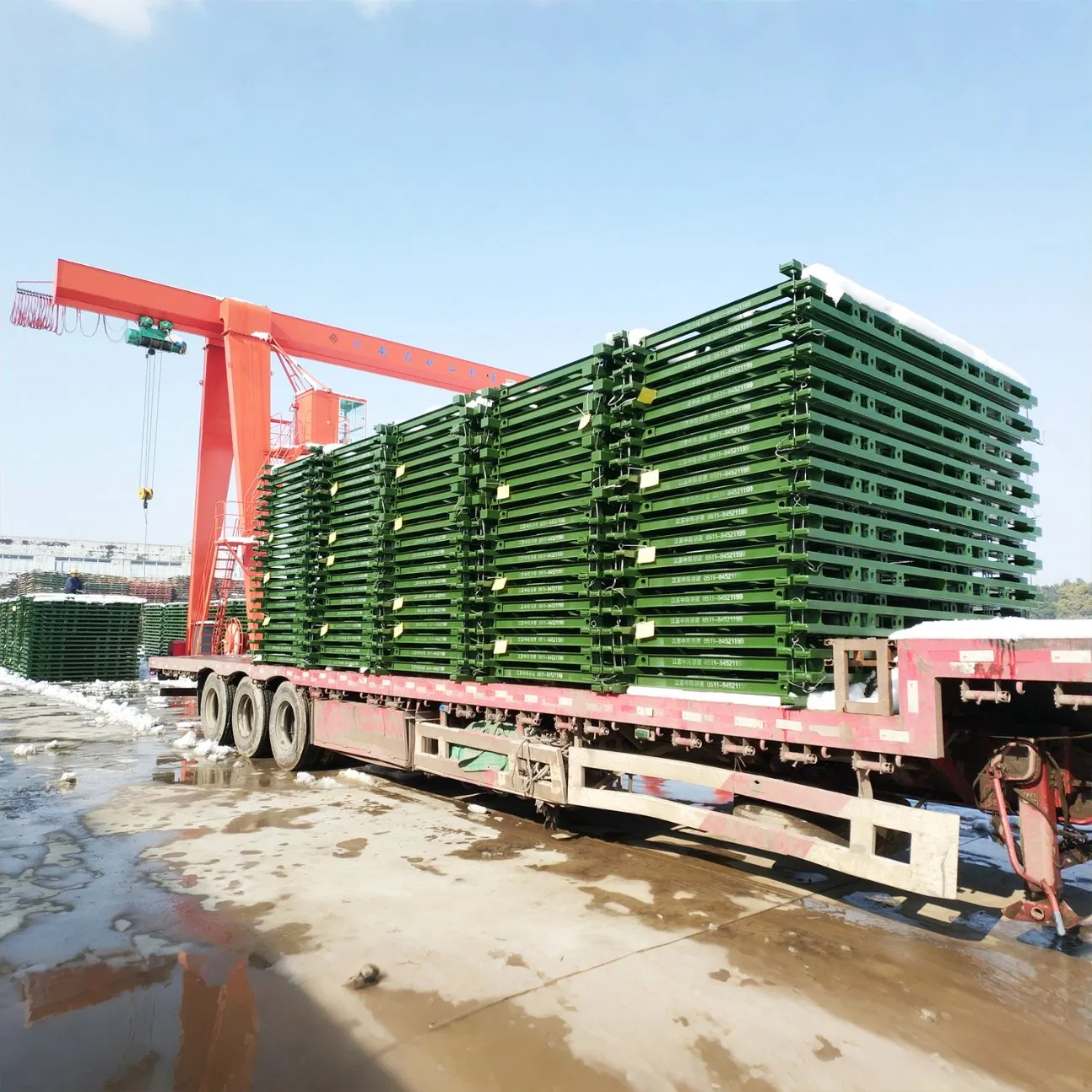

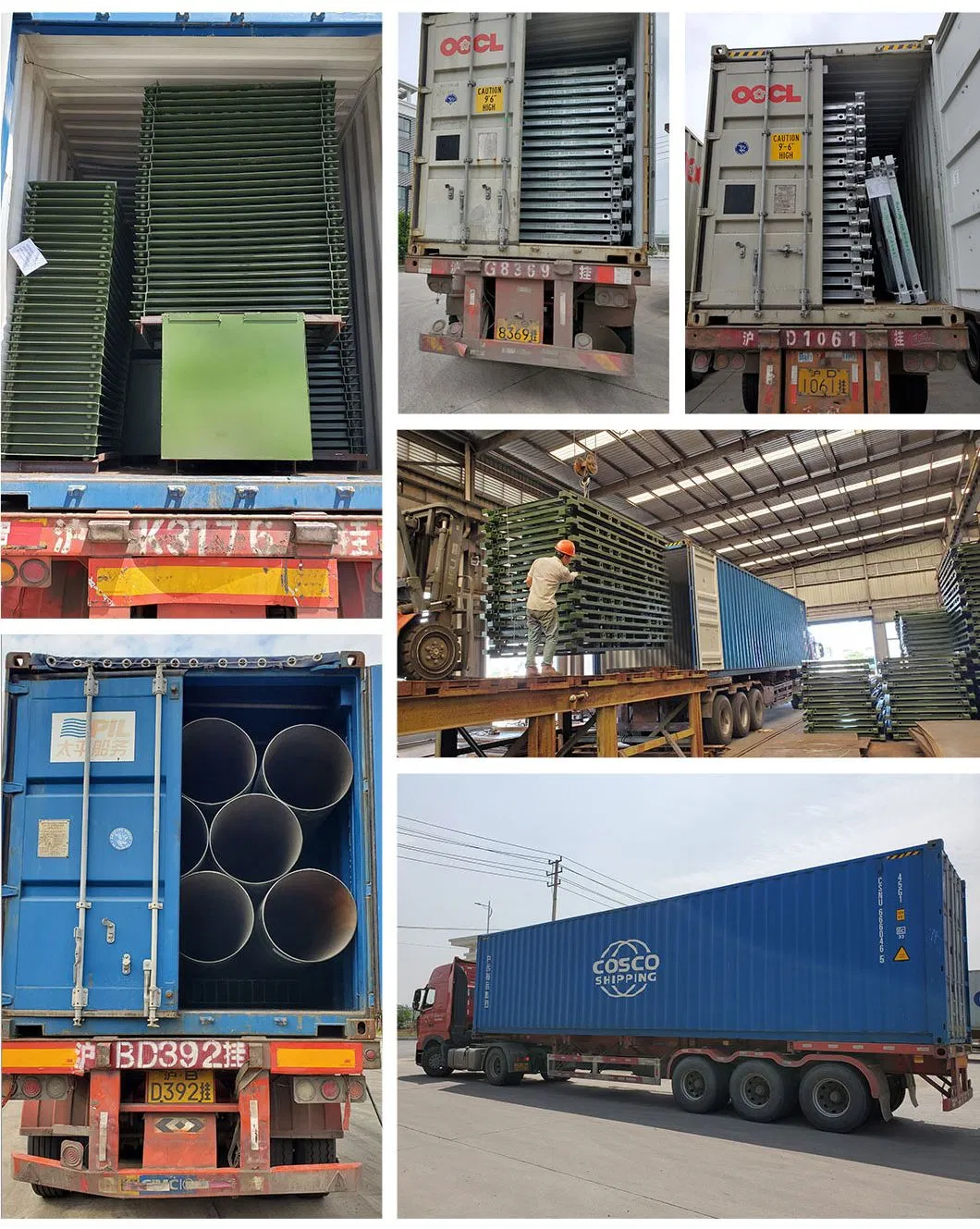

Packing and Transporting

Frequently Asked Questions

Are you a factory or a trade company?

We are an industry and trade company with a production capacity of over 60,000 tons per year. We are a professional manufacturing giant for large Bailey pieces and prefabricated highway steel bridges with 20 years of export experience.

Do you accept custom processing?

Yes, we have an efficient and flexible technical team. We can process and custom-make a variety of non-standard Bailey bridges, steel bridges, and steel structures based on your requirements.

Can your products meet international standards?

Yes, our products not only meet the AASHTO American standard but also comply with British BS5400, Australia AS5100, and other major international standards.

Which countries do you export to?

Our products have been exported to dozens of countries including Malaysia, Philippines, Canada, Russia, Kenya, Tanzania, Zambia, and many others across Asia, Africa, and Europe.

How soon can I receive a reply after sending an inquiry?

We provide professional and technical feedback within 6 hours of receiving an inquiry. Quotations and preliminary designs are typically provided within 24 hours after technical parameters are confirmed.

Can we become an agent or distributor?

Yes, we are recruiting powerful partners worldwide for common development and win-win cooperation. We look forward to long-term partnerships.
