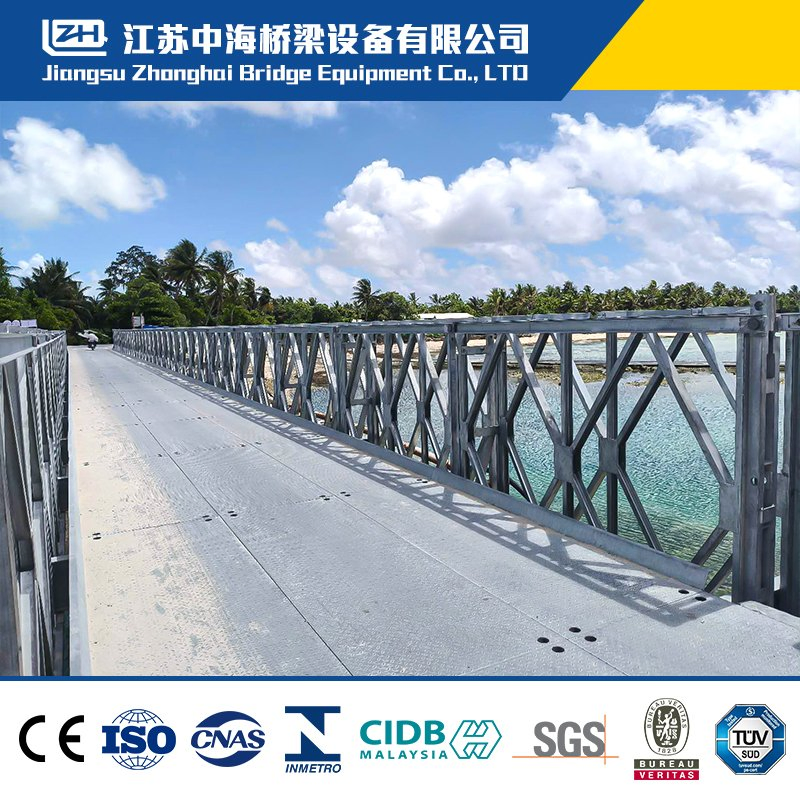

Prefabricated Scenic Bailey Bridge Camping Experience in Bella Coola, Canada

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	6 Months

Send Inquiry

Product Description

Basic Information

Model NO.

CB200

Certification

GB, ASTM

Life

Semi-Permanent Bridge

Material

Steel Bridge

Grade

Q355b

Standard

ASTM, GB, BS, BV

Usage

Highway, Footbridge, Pontoon

Capacity

60,000 Pcs/Year

Packaging & Delivery

Package Size

310.00cm * 200.00cm * 180.00cm

Gross Weight

3100.000kg

Product Description - Bailey Bridge CB200

CB200 Truss Press Limited Table
NO.	Internal Force	Not Reinforced Model				Reinforced Model
NO.	Internal Force	SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1

CB200 Geometric Characteristics of Truss Bridge
Structure	Geometric Model	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
SS	SS	25.48	5437	580174
SS	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
DS	DSR2	101.92	21750	2320696

Steel Grade: Q355B/Q460C or Equivalent

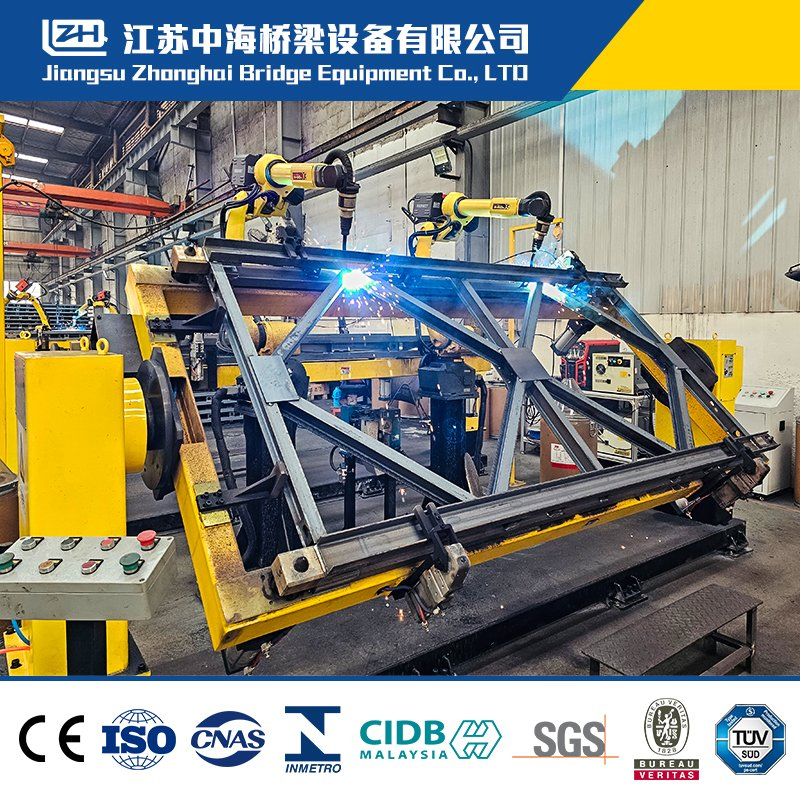

Welding: Proven Robotic Welding for precise size
Application: Temporary bridges, gantry frames, float bridges
Standard Compliance: GB, ASTM, DIN, JIS, AISI, BS

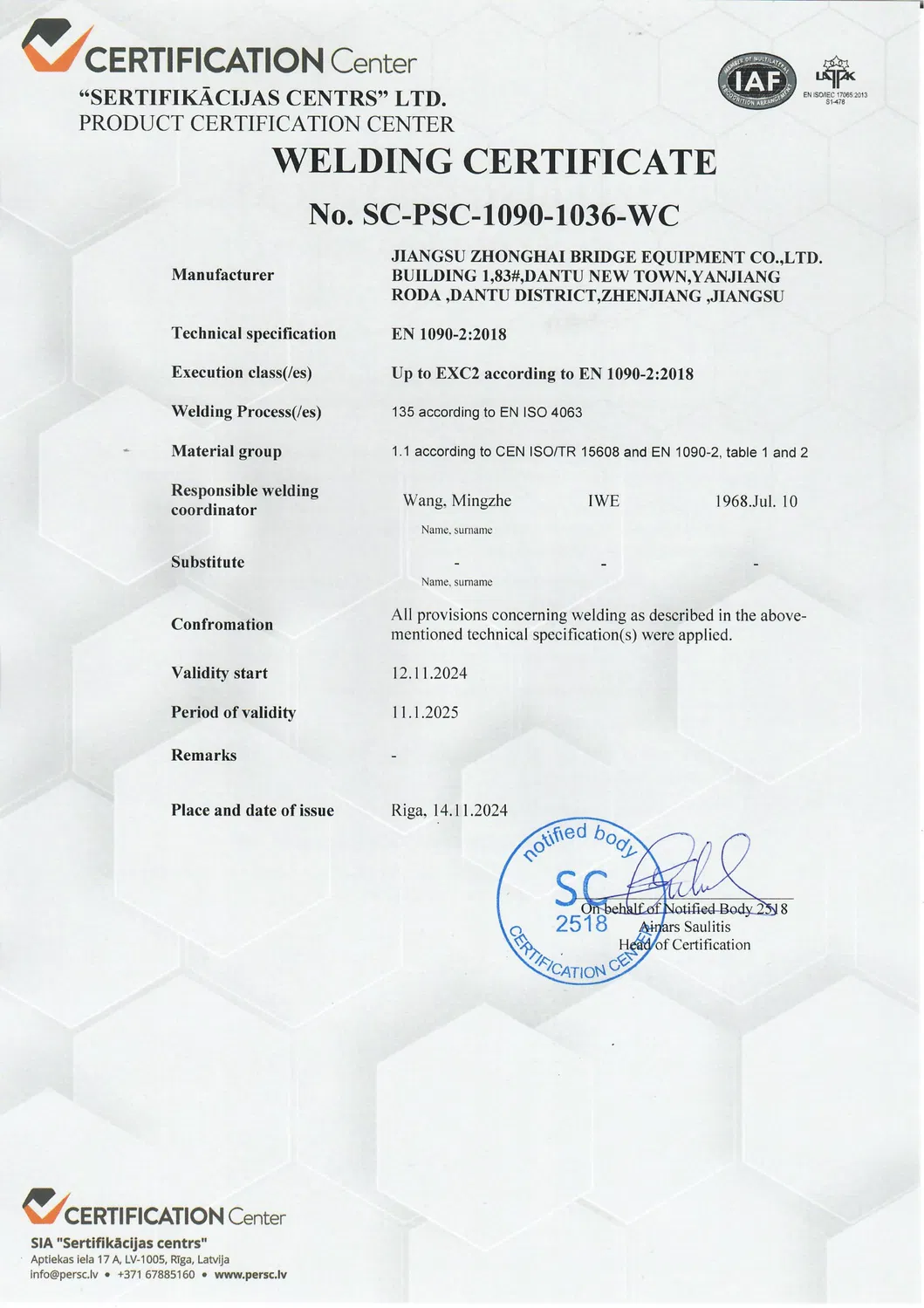

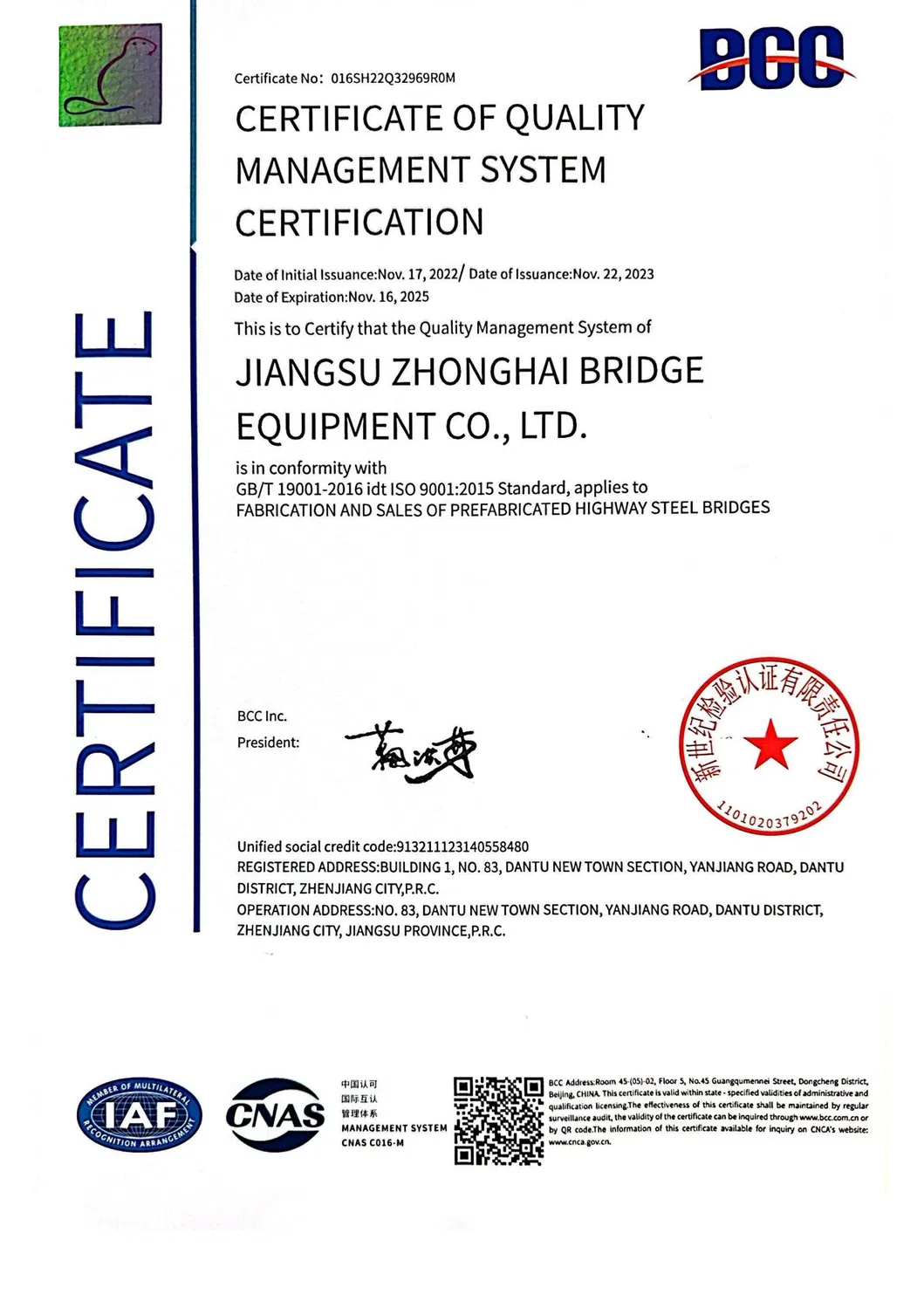

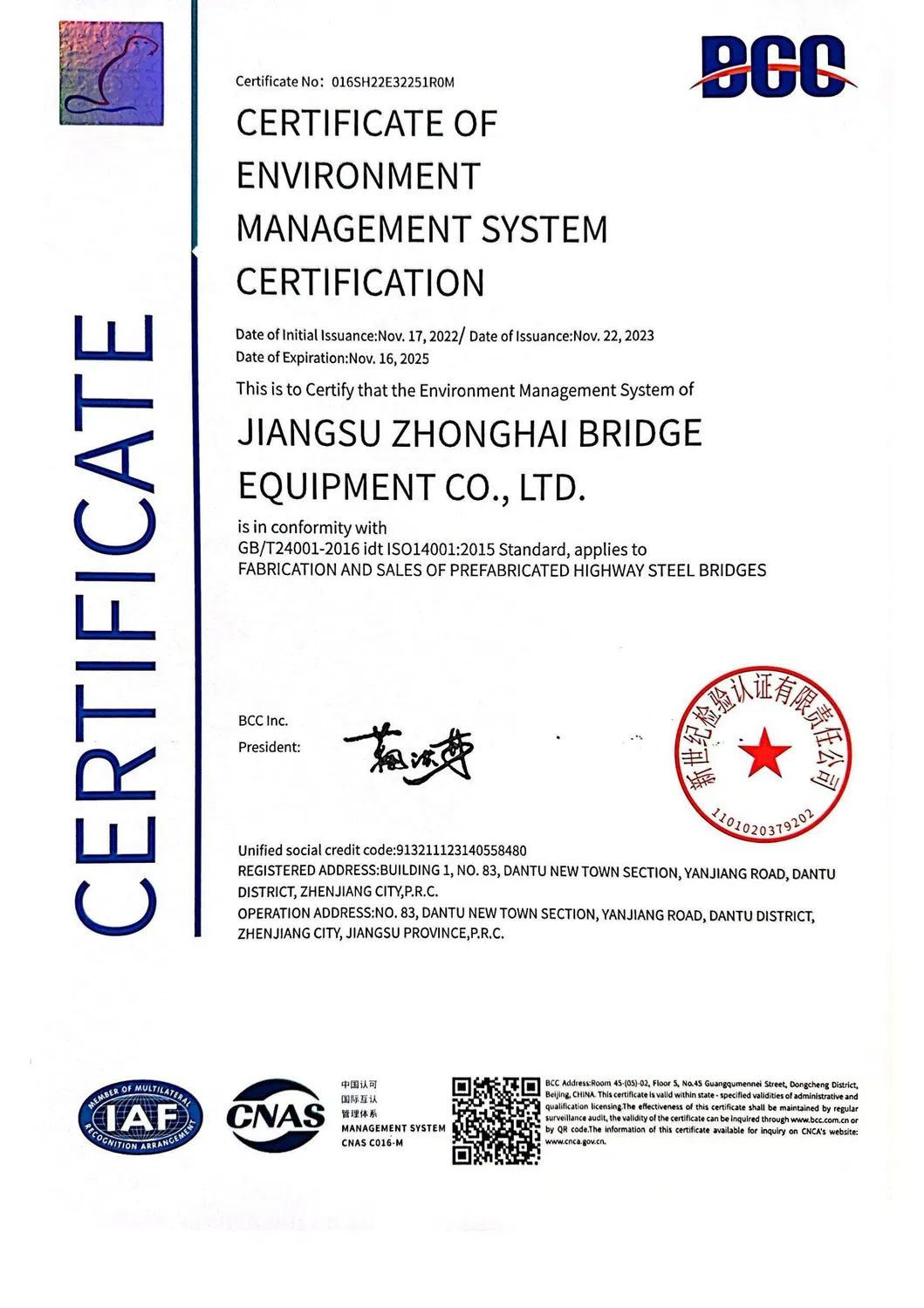

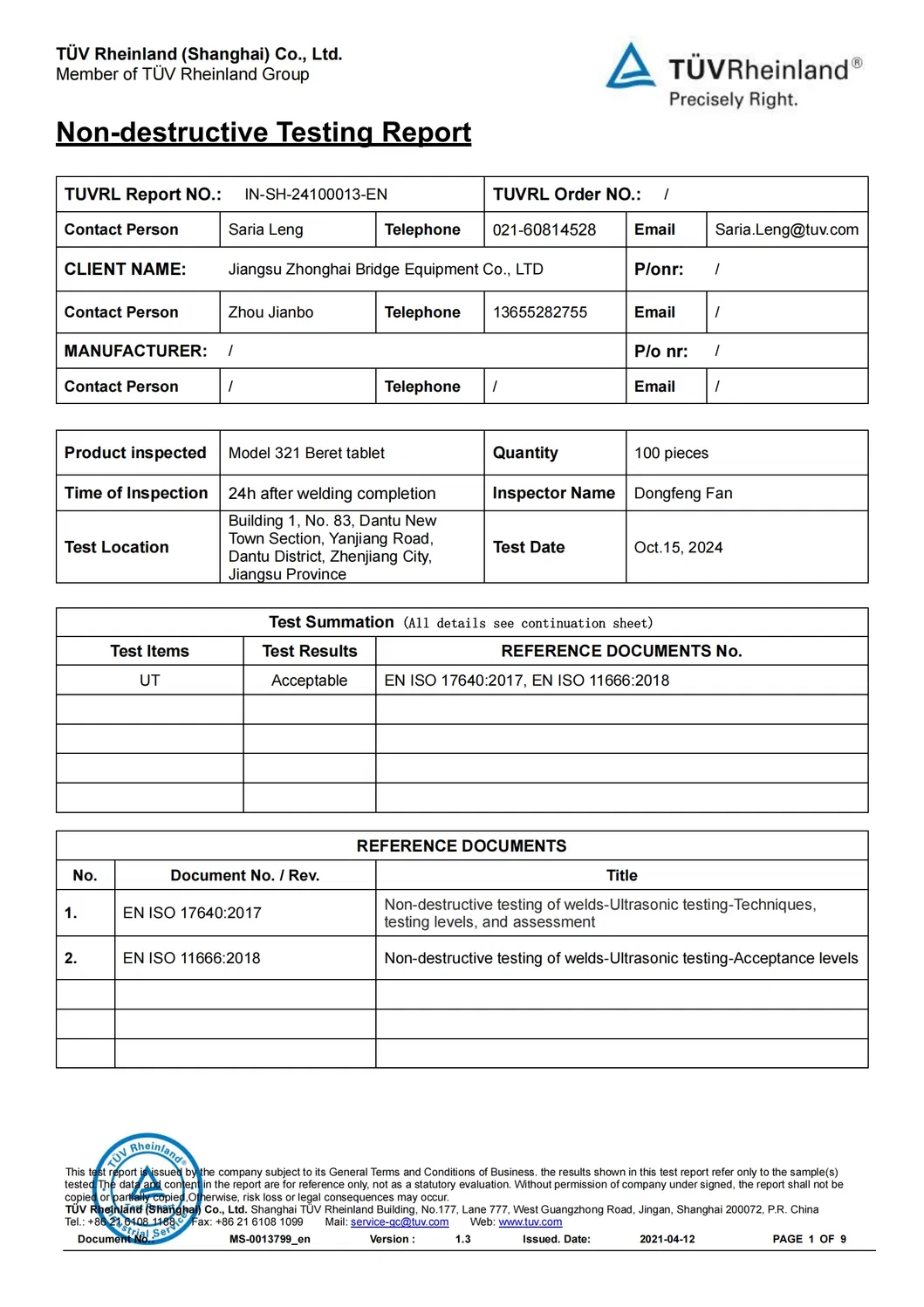

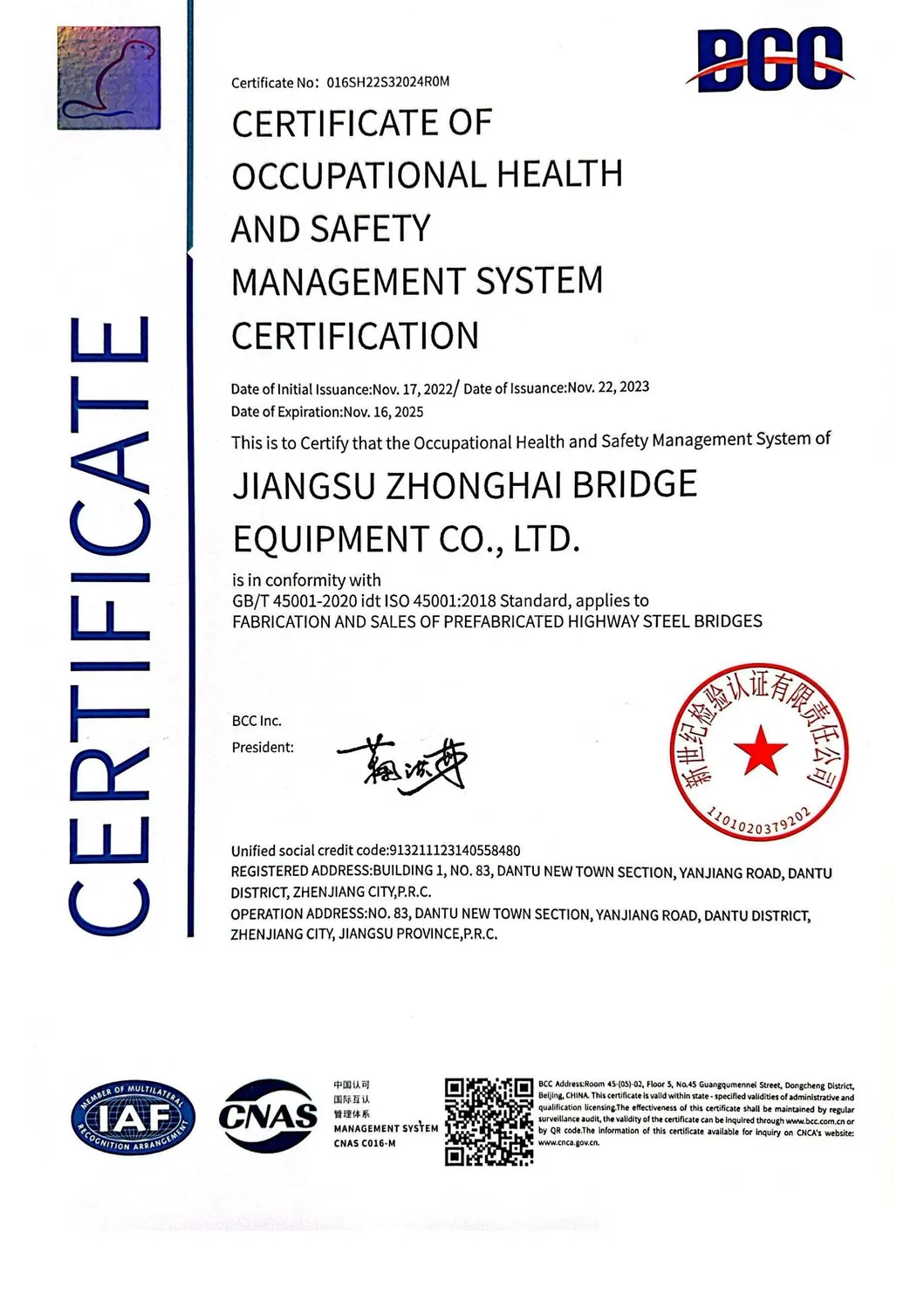

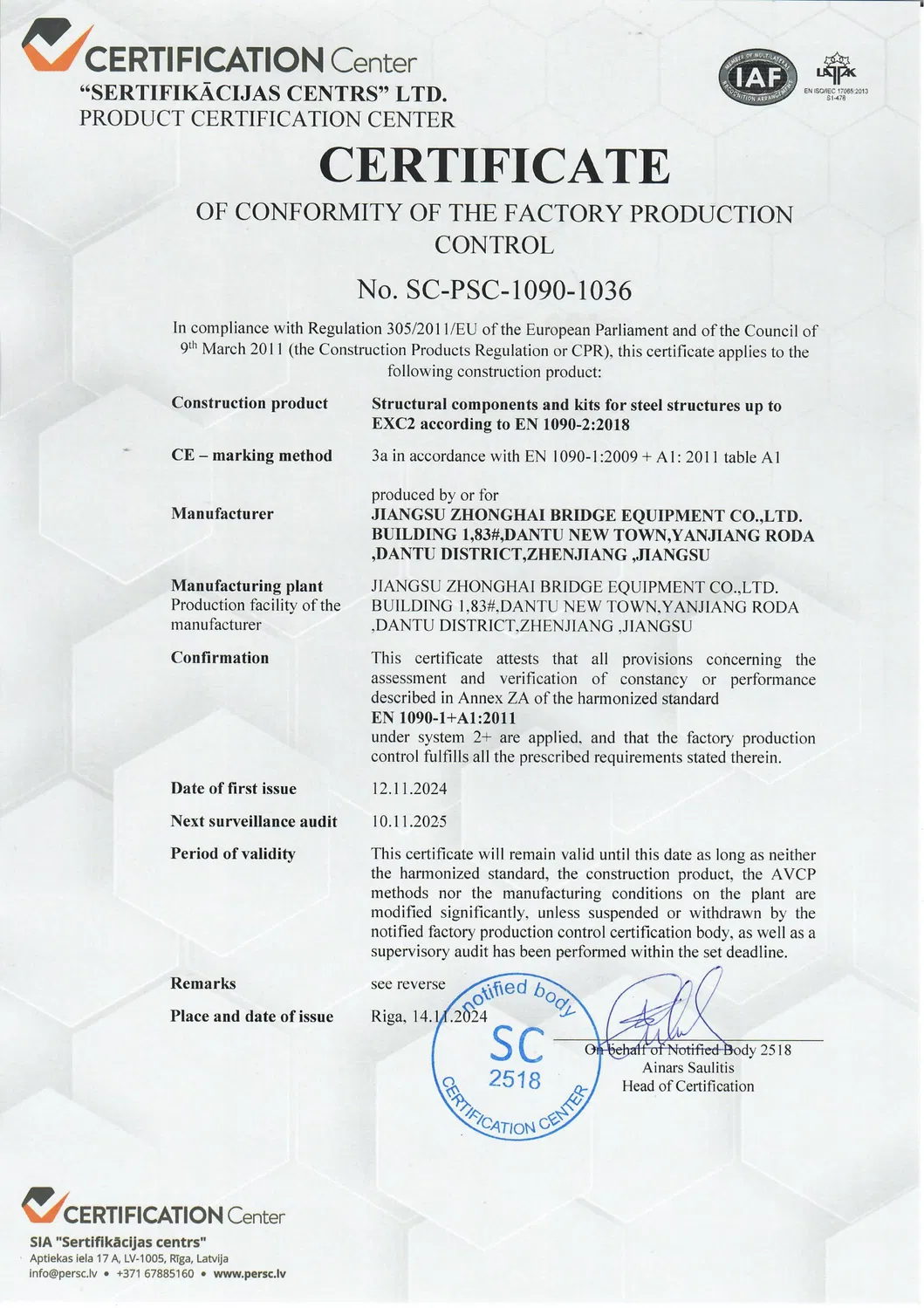

Certificates

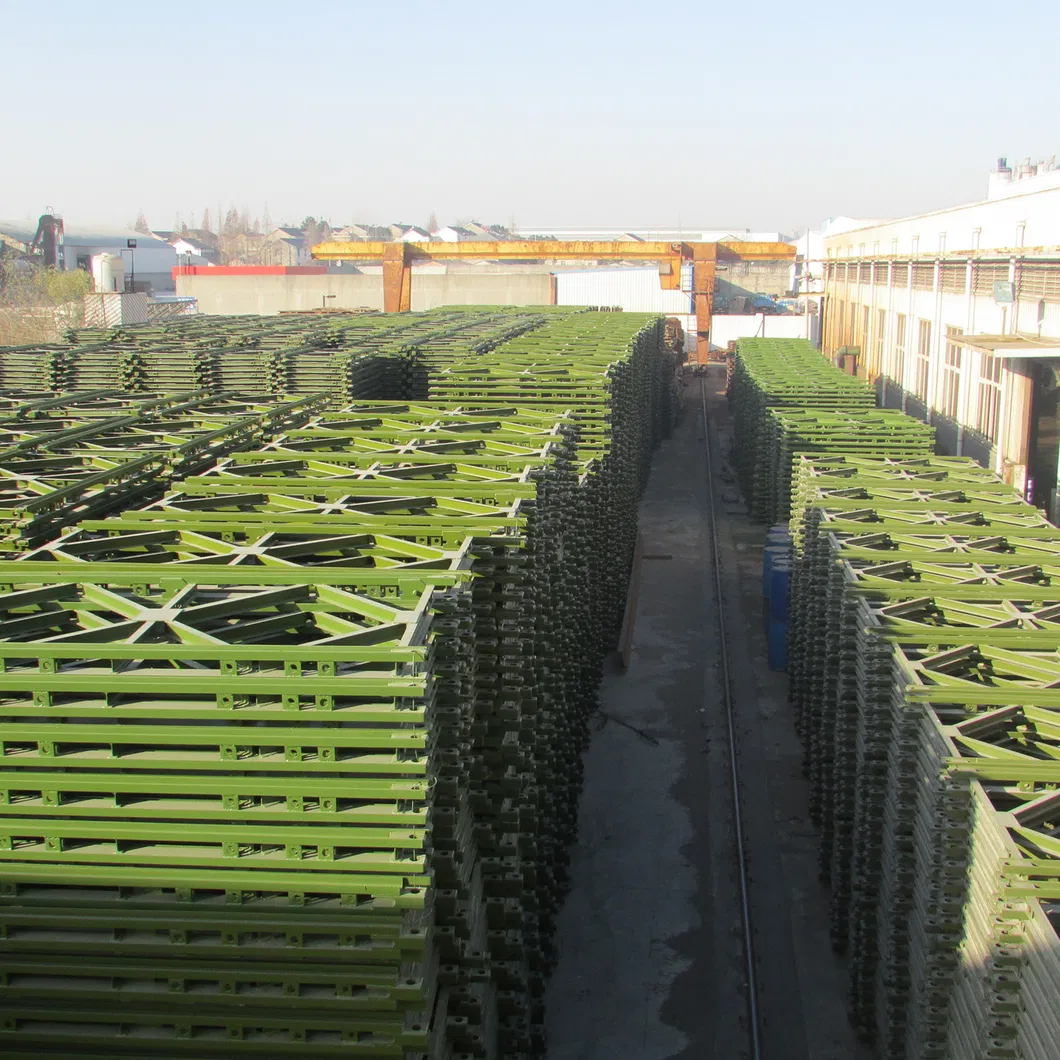

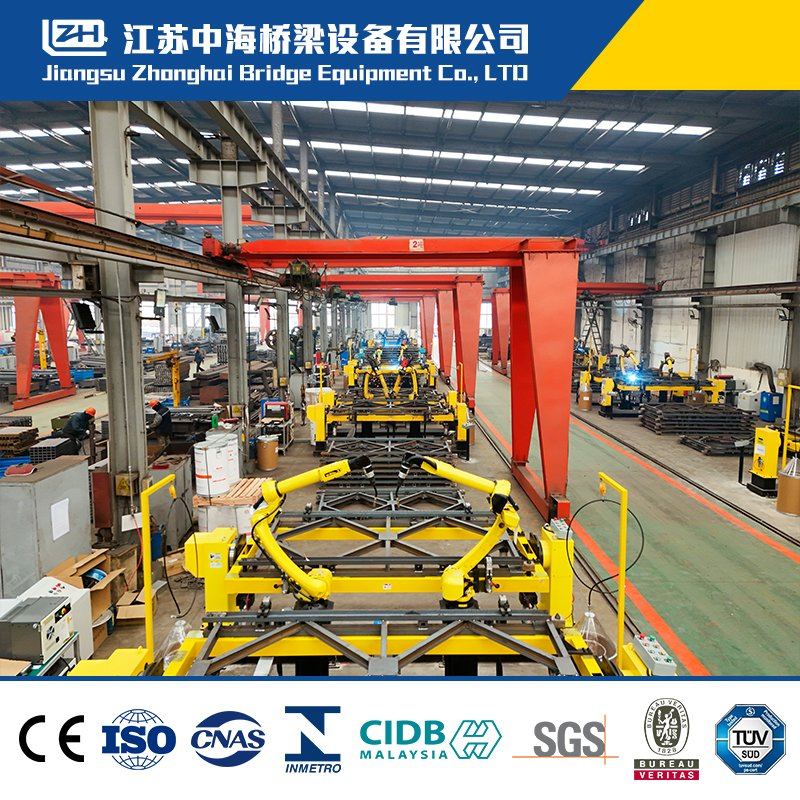

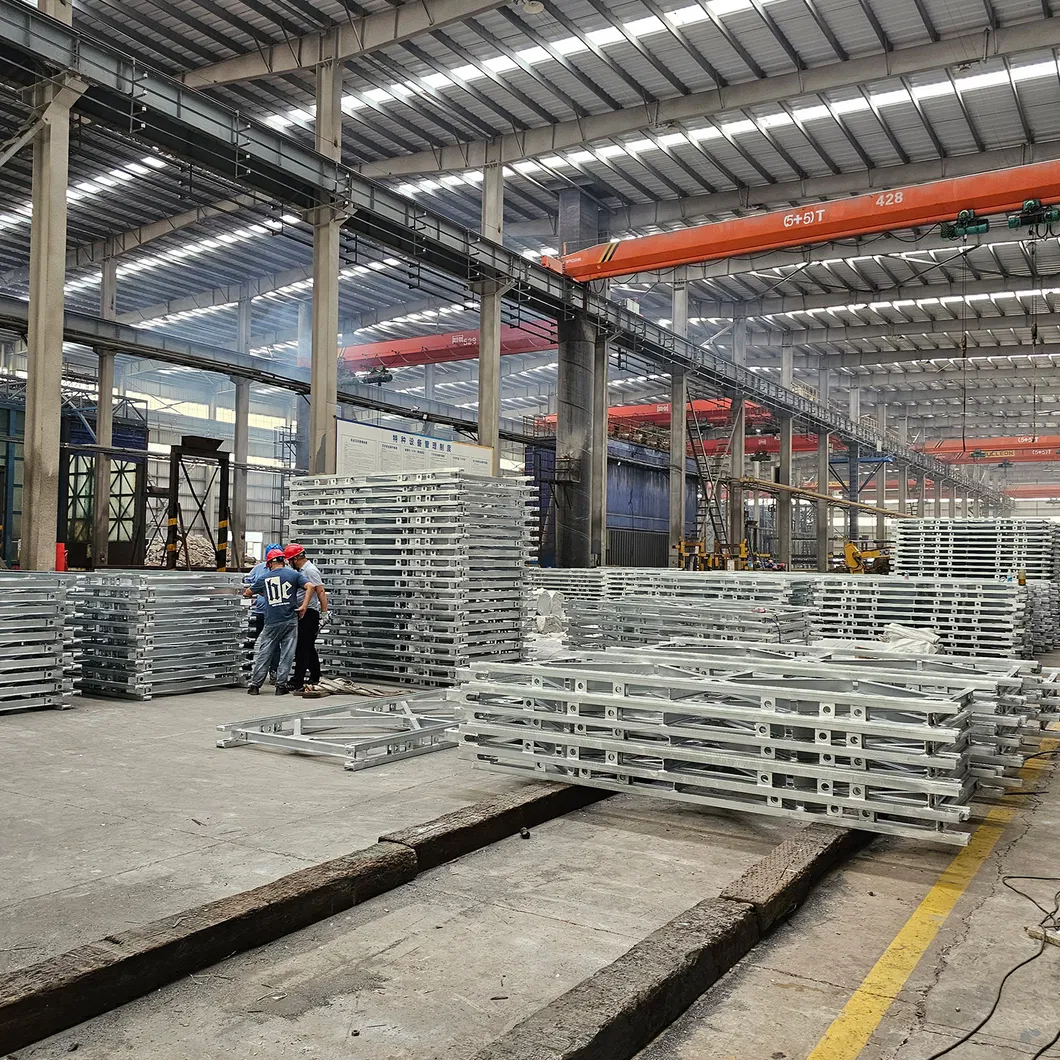

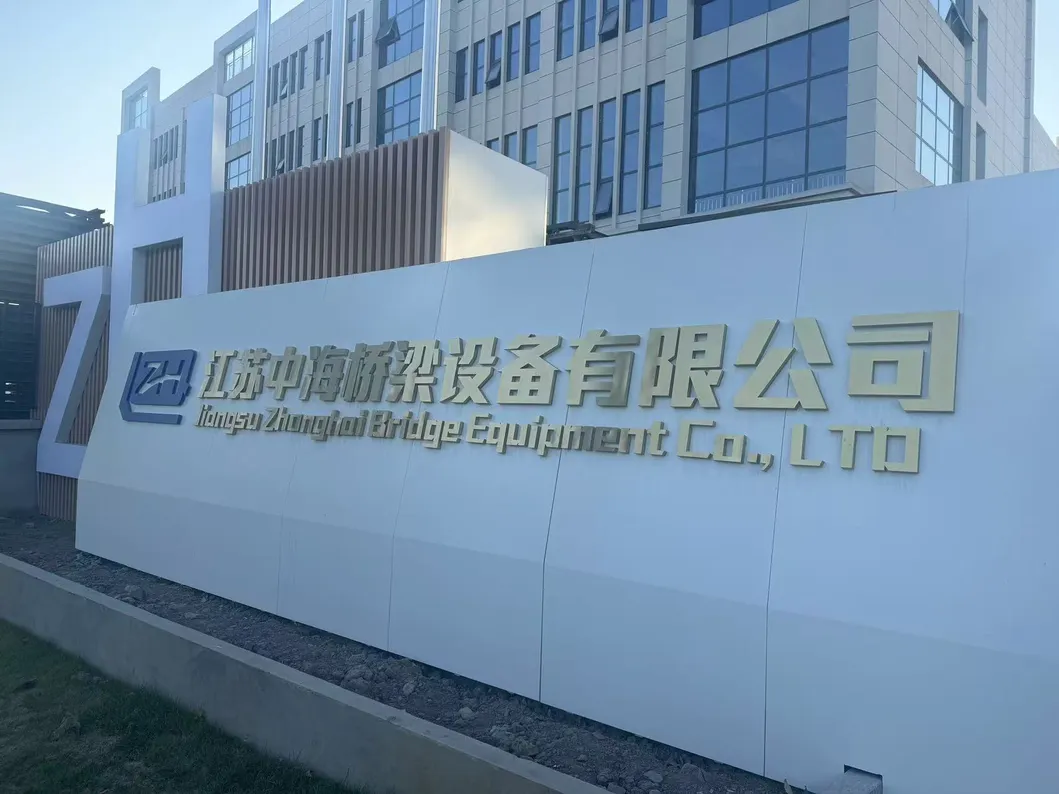

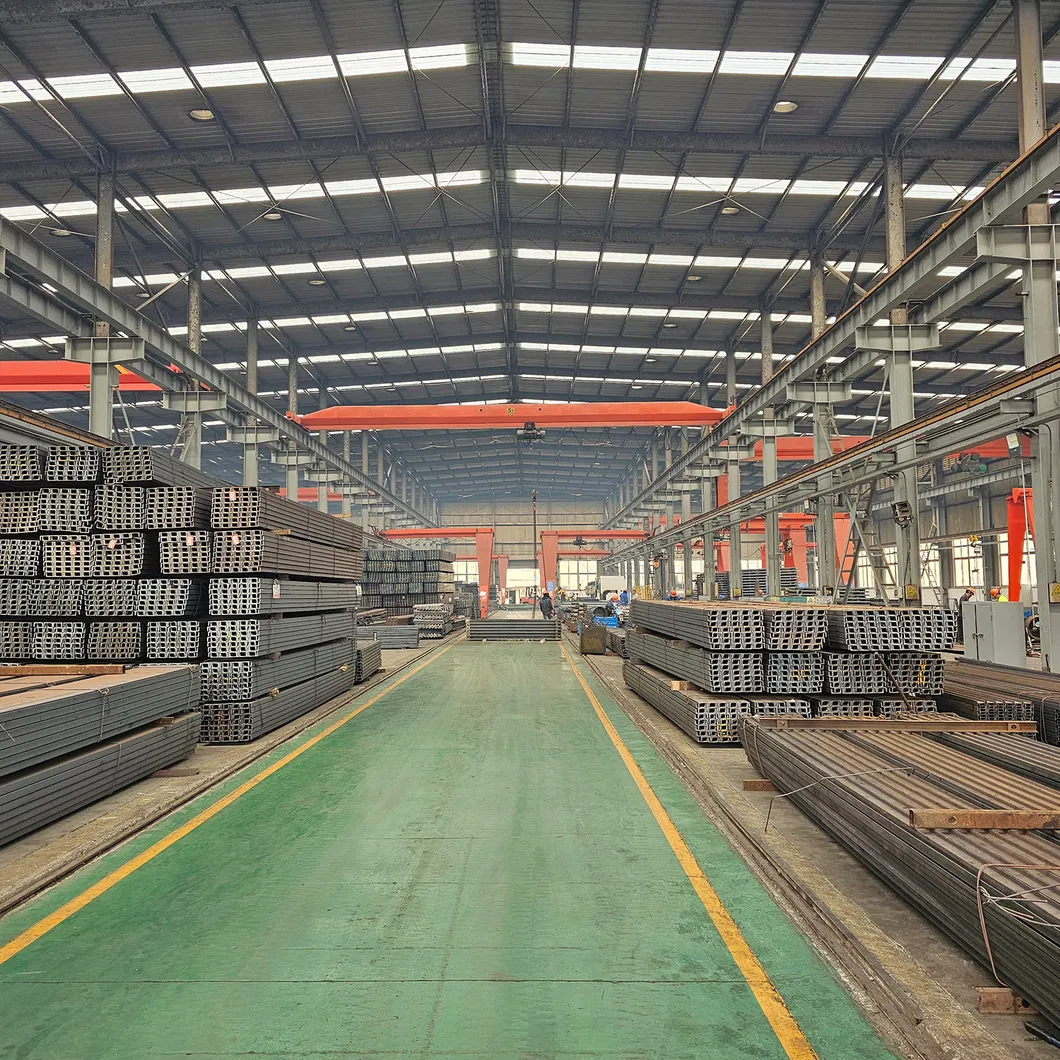

Factory Show

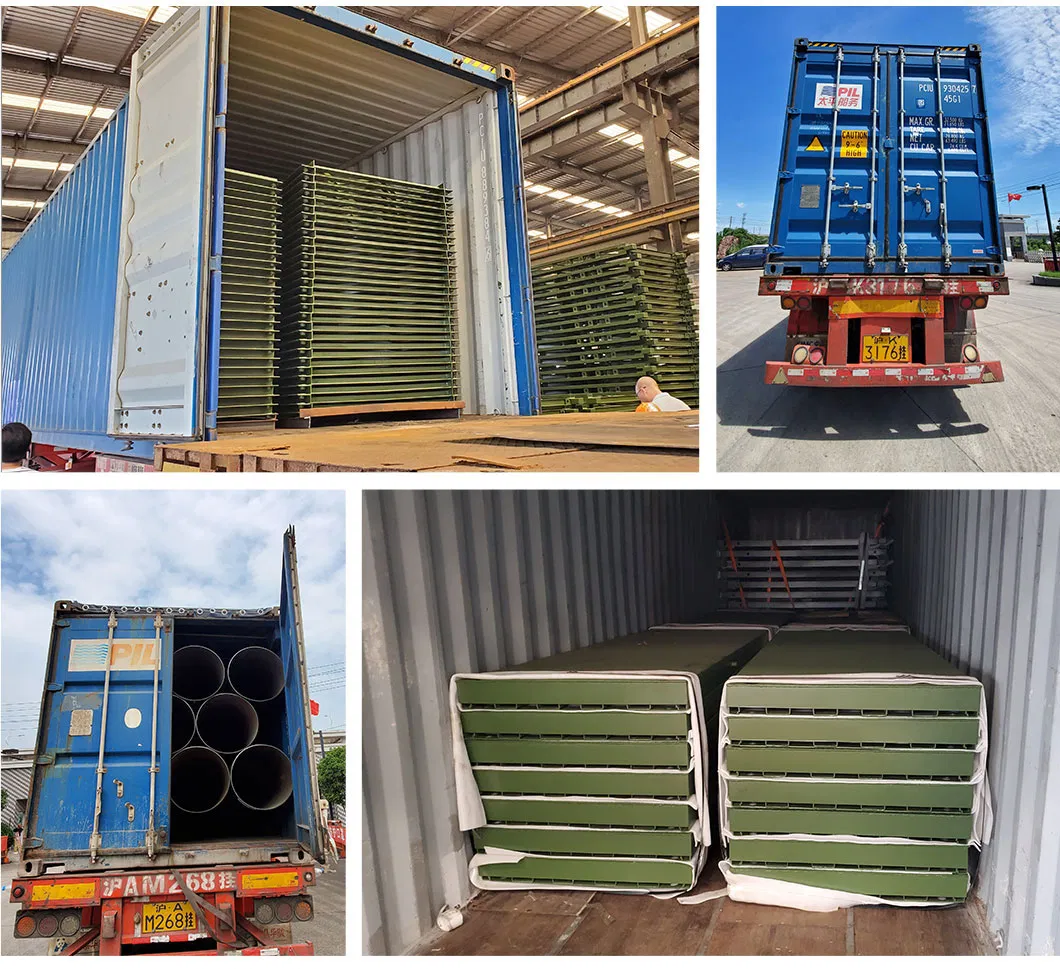

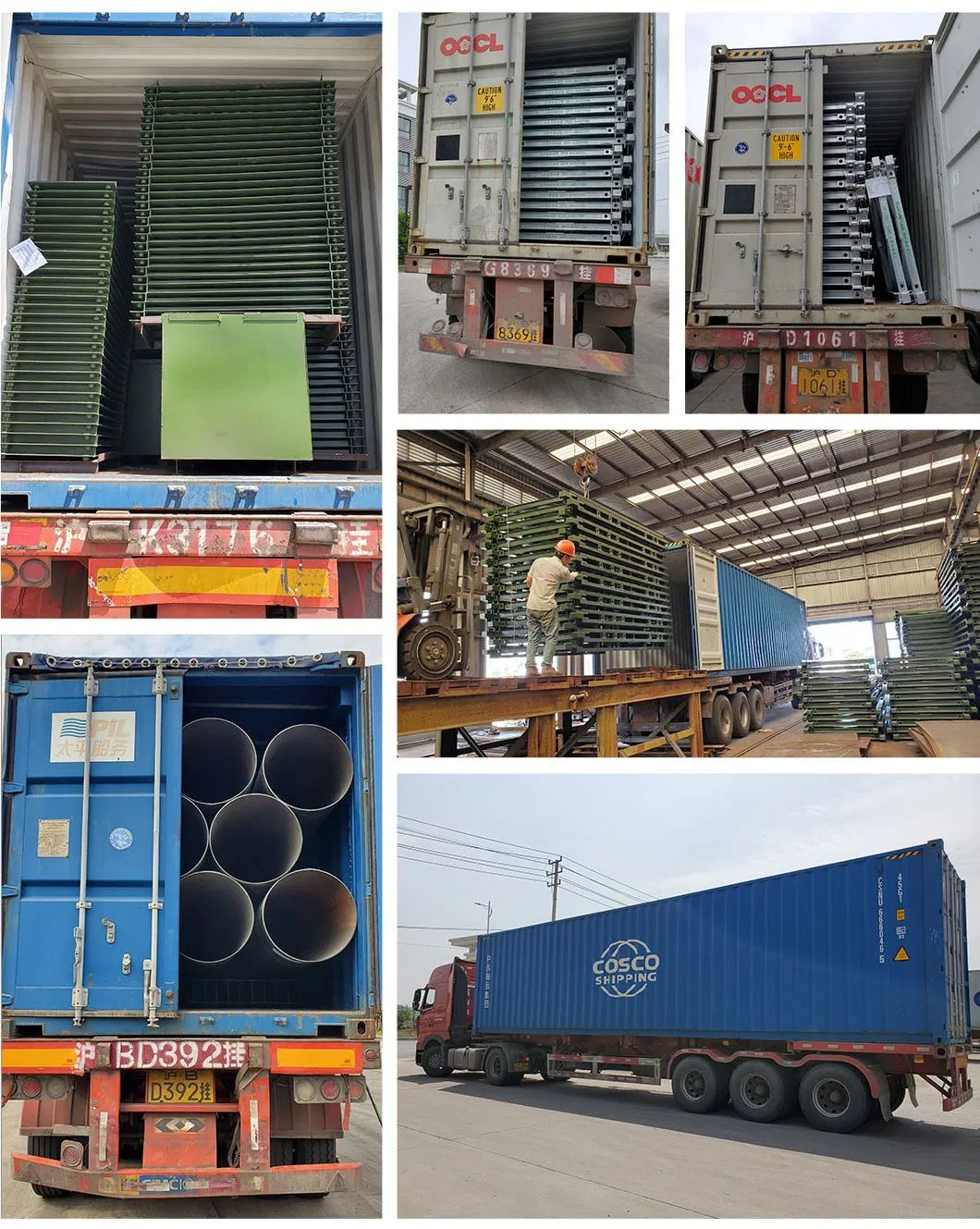

Packing and Transporting

Frequently Asked Questions

01. Which countries do you export to?

Our products have been exported to dozens of countries and regions including Malaysia, Philippines, Nepal, Canada, Russia, Mozambique, Kenya, Tanzania, and many more across Asia, Africa, and North America.

02. Are you a factory or a trade company?

We are an industry and trade company with a production capacity of over 60,000 tons per year. We are a professional manufacturing giant for large Bailey pieces and prefabricated highway steel bridges with 20 years of export experience.

03. Do you accept custom processing?

Yes, we have an efficient technical team that can process custom-made non-standard Bailey bridges, steel structures, and various bridge components according to specific requirements.

04. Can your products meet international standards?

Yes, our products meet several international standards including the American AASHTO, British BS5400, Australian AS5100, and other relevant global requirements.

05. How soon can I receive a reply after sending an inquiry?

We provide professional technical feedback within 6 hours. Quotations and preliminary designs are typically provided within 24 hours after technical parameters are communicated.

06. Can I visit your facility?

You are welcome to visit at any time. We can assist with invitation letters and arrange transportation from the nearest international airport for your convenience.
