Professional Emergency Temporary Bailey Steel Construction Bridge Design

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	Life Time

📋

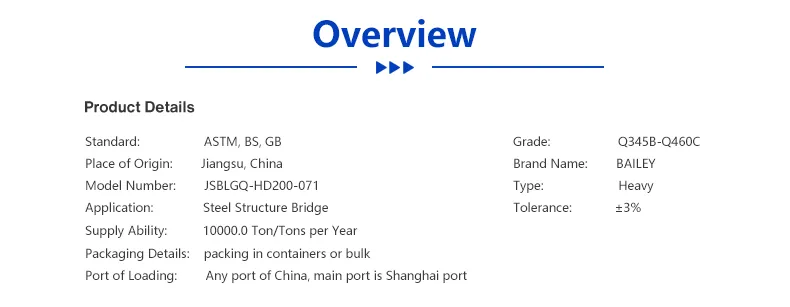

Basic Information

Model NO.: ZB200

Certification: GB, ASTM

Life: Semi-Permanent Bridge

Usage: Over Water, Tractor Bridge, Pontoon, Footbridge, Highway Bridge

Material: Steel Bridge

Scale: Middle Bridge

📦

Packaging & Delivery

Package Size: 3042.00cm * 2134.00cm * 176.00cm

Gross Weight: 308.000kg

MOQ: 1 PC

🏗️

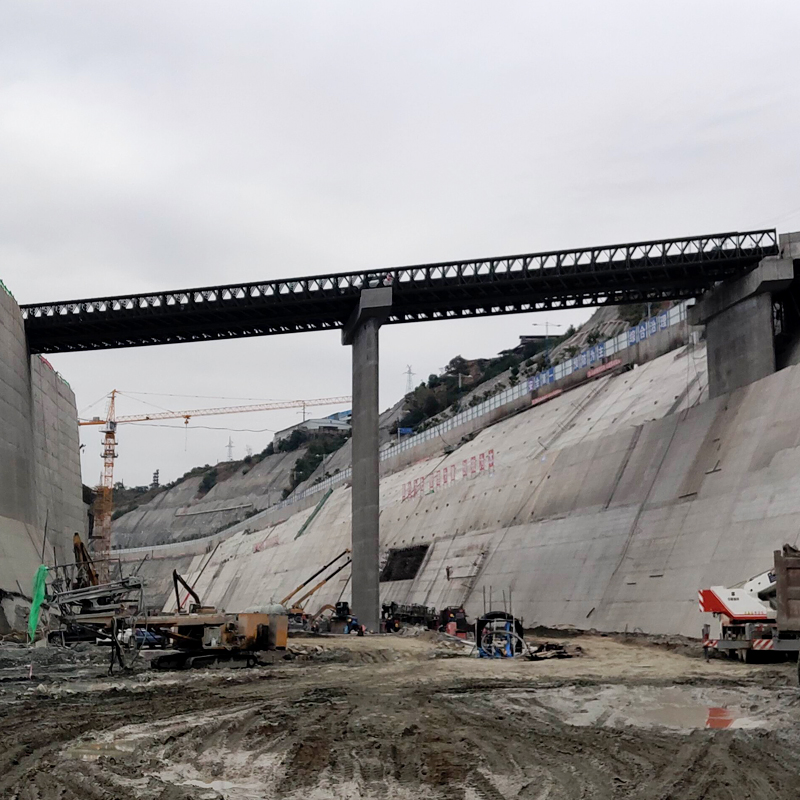

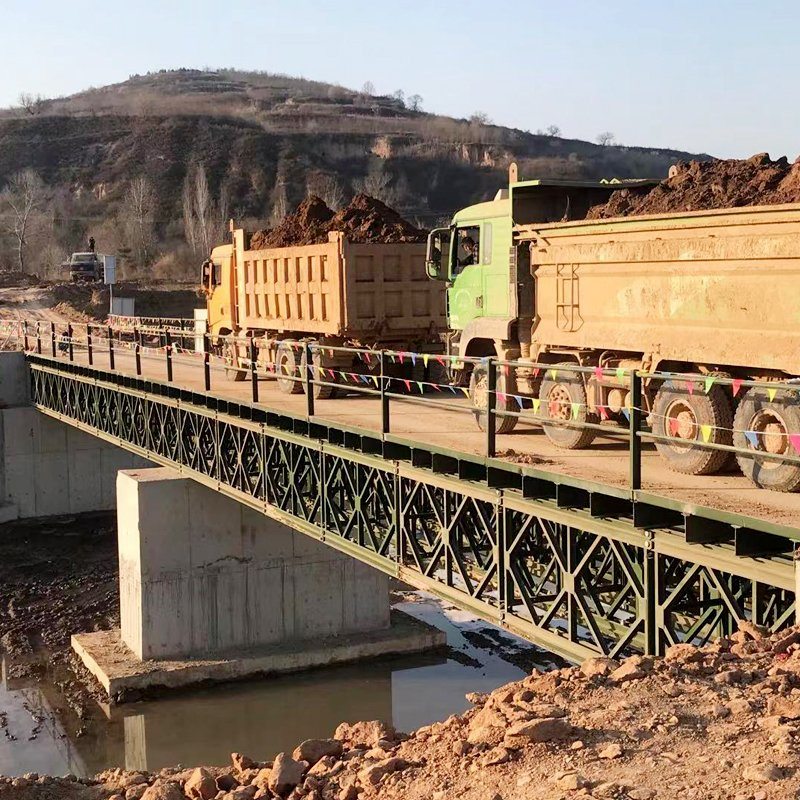

Product Gallery

ZB200 Truss Press Limited Table
NO.	Internal Force	Not Reinforced Model				Reinforced Model
NO.	Internal Force	SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Moment (kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9

ZB200 Geometric Characteristics of Truss Bridge (Half Bridge)
Structure	Type	Chord Area (cm²)	Section Properties (cm³)	Moment of Inertia (cm⁴)
SS	SS	25.48	5437	580174
SS	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
DS	DSR2	101.92	21750	2320696

🛠️

Professional Service Flow

1

Professional advice and explicit explanation from service representatives.

2

Close touch with excellent engineers to meet exact requirements at all times.

3

Detailed product usage guidance provided by technical experts.

4

Thorough inspection of bridge products to solve any process issues.

5

Continuous follow-up on online service platforms to ensure total satisfaction.

❓

Frequently Asked Questions

What is the specialization of your company?

We are a specialized steel bailey bridge manufacturer with leading manufacturing processes in China, backed by over 20 years of experience and ISO9001:2015 certification.

Are you a direct factory or a trading company?

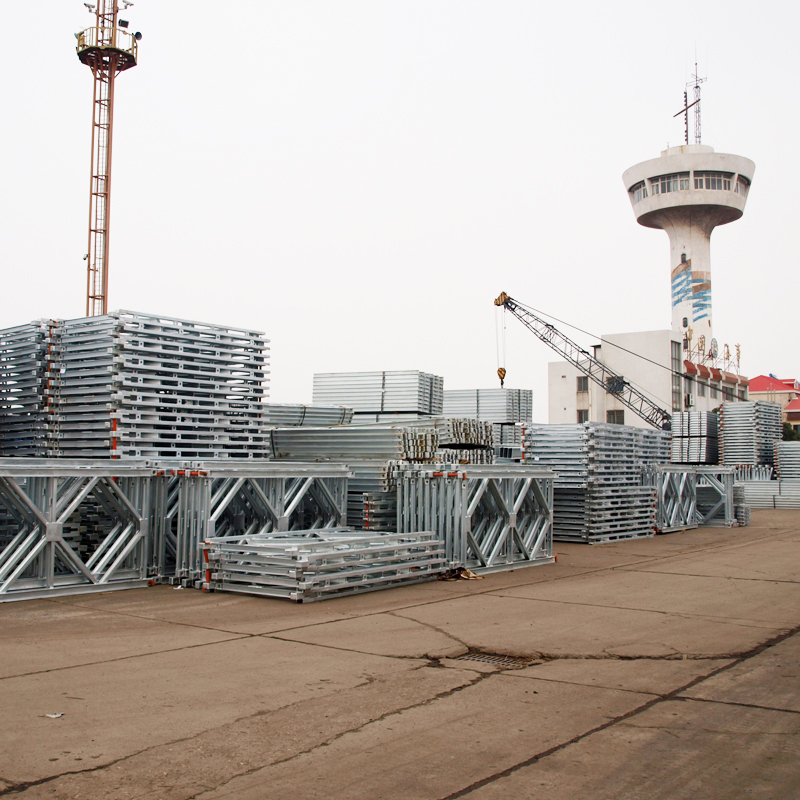

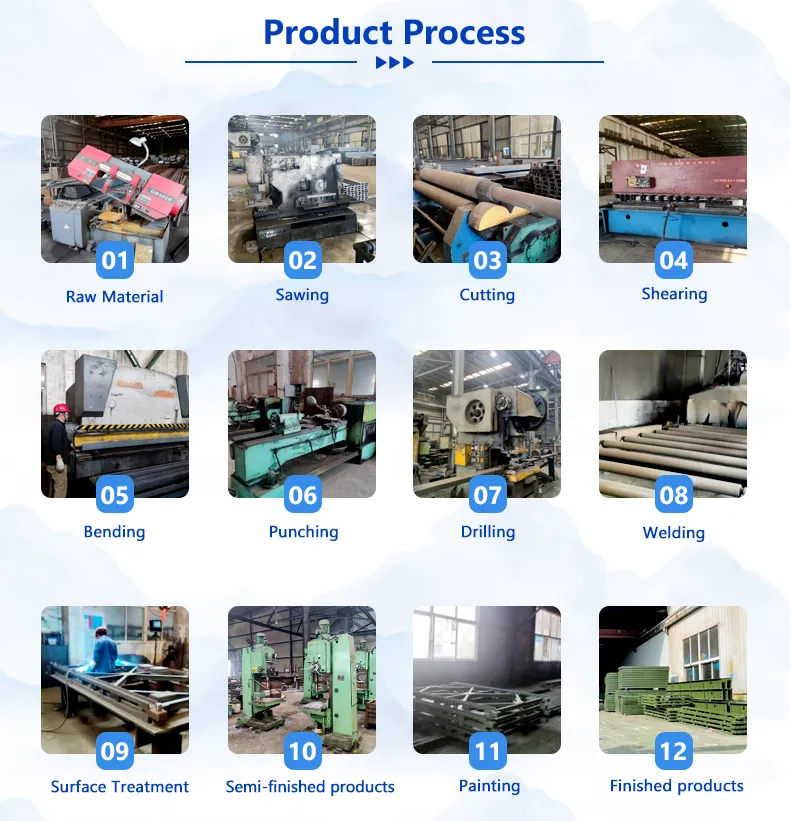

We are a direct factory equipped with six production lines and various specialized machinery for fabricating steel bridge parts and structures.

Which quality standards do your steel bridges meet?

Our products meet CMA, CNAS, ISO9001, and international loading standards including America HS25 and British HA standards.

Where is the primary loading port for international orders?

While we can ship from any port in China, our primary loading hub is the Port of Shanghai.

What technical support do you provide during construction?

Our engineers provide detailed explanations on product usage, conduct thorough inspections, and remain available to solve any issues during the bridge construction process.

Do you have experience with international markets?

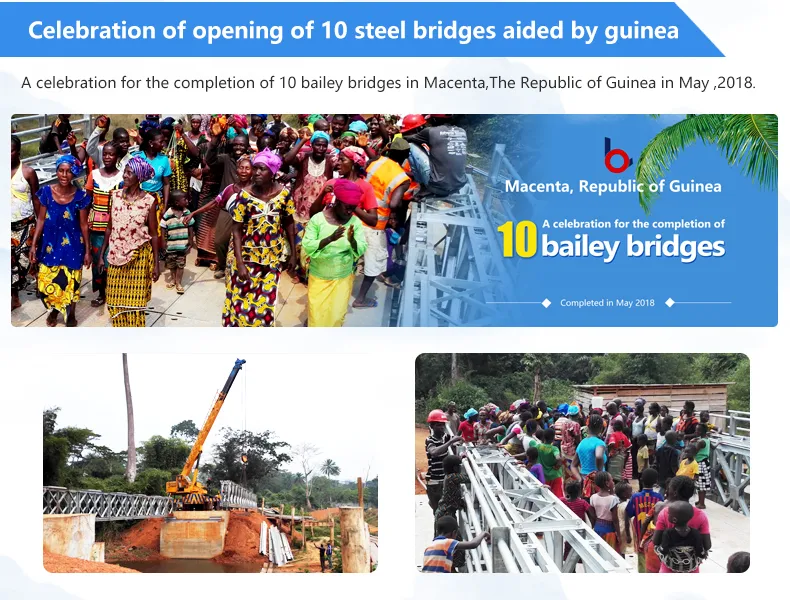

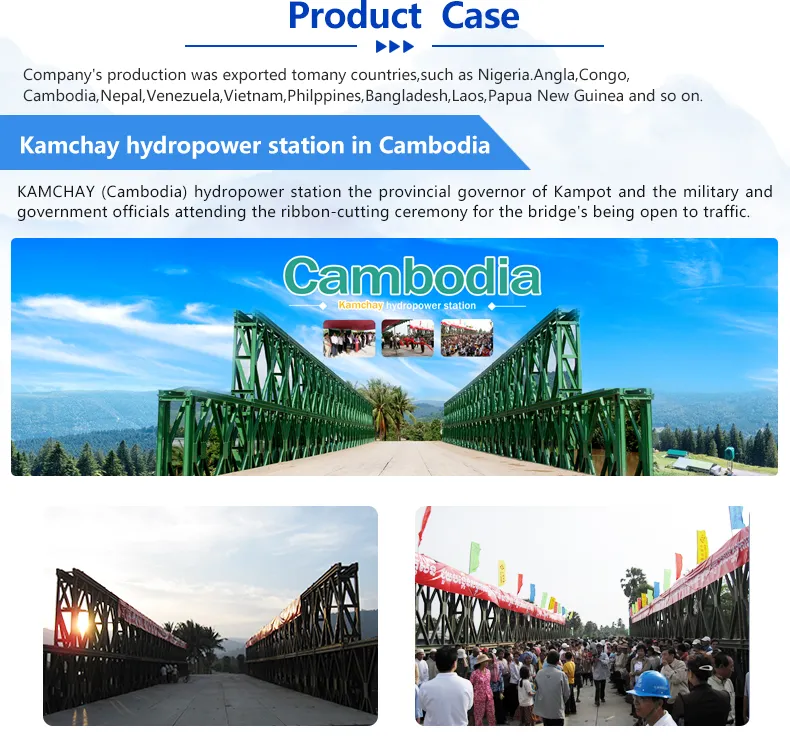

Yes, we have a strong international presence in countries such as Nigeria, Angola, Cambodia, Nepal, Vietnam, and many others across Southeast Asia and Africa.
