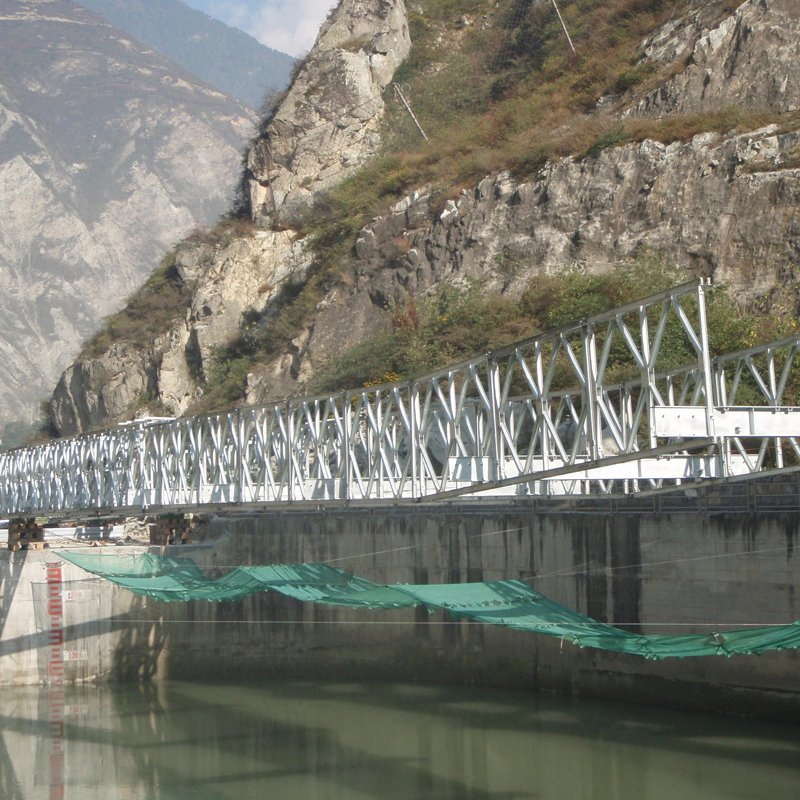

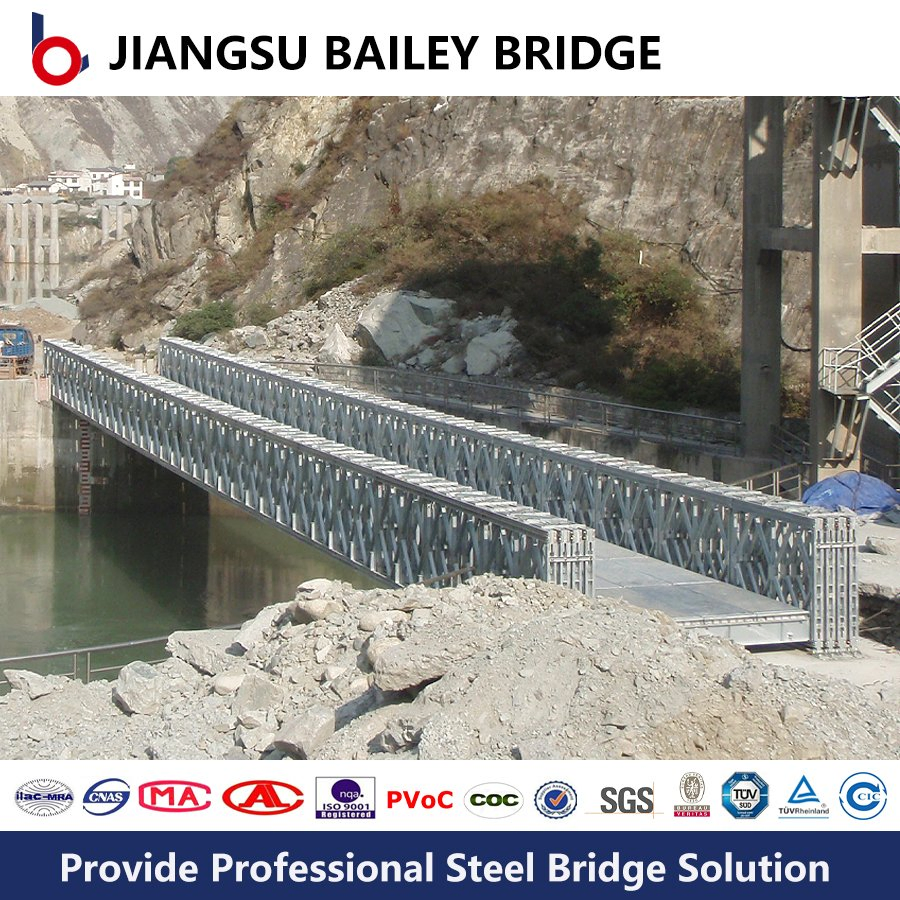

Made in China Price Steel Bailey Suspension Bridge Prefabricated Modern Design

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

📋 Product Overview
Model NO.
ZB200
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Across Way
Open Bridge
Lane Position
Half Through Bridge
Scale
Middle Bridge
Material
Steel Bridge
Origin
China
Usage: Over Water Bridge, Tractor Bridge, Pontoon, Footbridge, Public Iron Dual Purpose Bridge, Highway Bridge.
🚧 Product Description
Steel Bailey Suspension Bridge
Modern Design Bridge
Prefabricated Bridge Design
ZB200 Truss Press Limited Table
NO. Internal Force Not Reinforced Model Reinforced Model
SSDSTSQS SSRDSRTSRQSR
200Standard truss moment(kN.m) 1034.32027.22978.83930.3 2165.44244.26236.48228.6
200Standard truss shear (kN) 222.1435.3639.6843.9 222.1435.3639.6843.9
ZB200 Table of Geometric Characteristics (Half Bridge)
Structure Type Chord Area(cm2) Section Properties(cm3) Moment of Inertia(cm4)
SSSS25.485437580174
SSSSR50.96108751160348
DSDS50.96108751160348
DSDSR2101.92217502320696
Technical Drawing 1
Technical Drawing 2

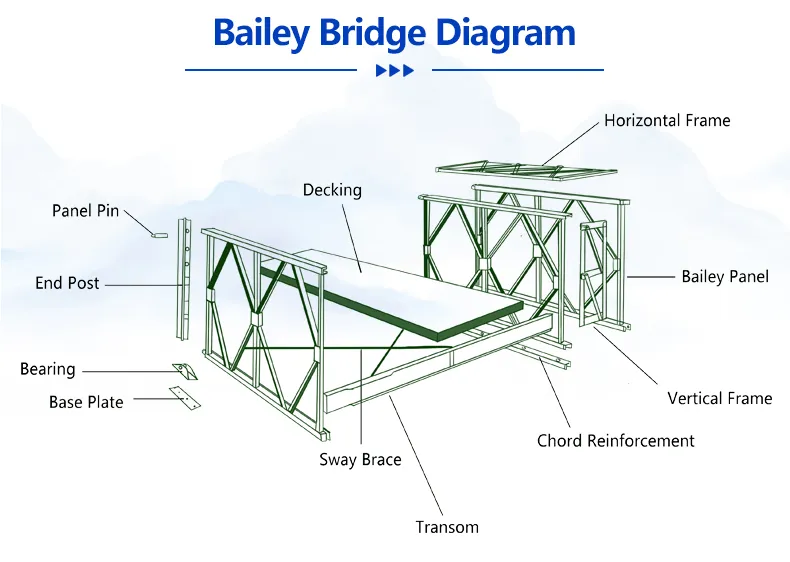

Bridge Component
Structural Details
Assembly View
Installation Process
⚙ Service Flow
01
Professional advice and explicit explanation provided by customer service.
02
Excellent engineers arranged to meet your exact requirements at all times.
03
Detailed guidance on product usage and necessary technical services.
04
Thorough inspection of bridge products to solve any arising problems.
05
Comprehensive feedback loop through the company's service center.
06
Continuous follow-up on online platforms to ensure complete satisfaction.
❓ Frequently Asked Questions
What kind of company are you?
We are a specialized steel bailey bridge manufacturer with over 20 years of experience and ISO9001:2015 certification. We have an established global reputation in markets including Africa, Southeast Asia, and South America.
Are you a factory or a trade company?
We are a direct factory equipped with six production lines and various specialized machinery to fabricate steel bridge parts and structures, holding a full export license.
How is quality control managed?
We maintain strict quality control standards, meeting CMA, CNAS, ISO9001, and various international loading standards including American HS25 and British HA.
Where is your primary loading port?
While we can ship from any port in China, our main loading port is Shanghai Port.
What is the expected lifespan of the ZB200 bridge?
The ZB200 style bridge is designed as a semi-permanent bridge solution, offering high durability for long-term usage in various terrain conditions.
What are the main applications for these bridges?
These bridges are highly versatile and used for highway bridges, tractor crossings, pontoons, footbridges, and dual-purpose public iron bridges.
