Convenient Transport Metal Bridge and Fast Erection Hl-93 Steel Bridge

Basic Specifications

Model NO.

HD200-Type

Usage

Footbridge, Highway, Railway, Viaduct, Supporting System

Steel Grade

S355/ S460/Gr 55c/Gr350/Gr50/Gr65

Loading Capacity

HL93/HA+20HB/T44/Class A/B/MLC110

Carriage Width

3.15m Std. / 4.2m EW / 7.35m Double Lanes

Model Alias

CB200/ZB200/Compact-200

Maximum Span

60.96m (Single Lane) / 45.72m (Two Lanes)

Galvanization

ISO1461/AS/NZS 4680/ASTM-A123

HS Code

7308100000

Capacity

100,000 Tons

Product Description

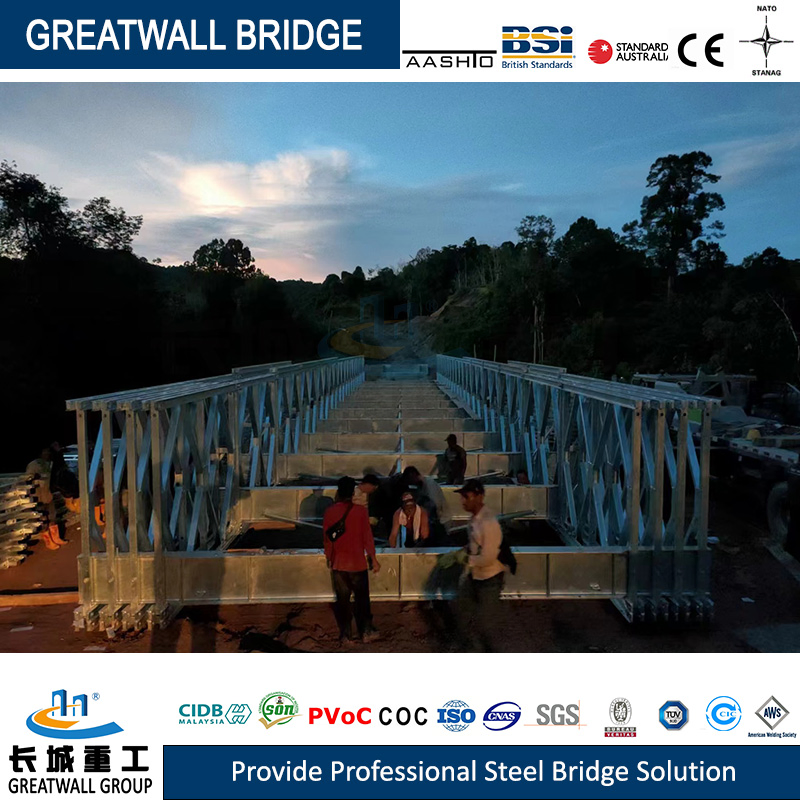

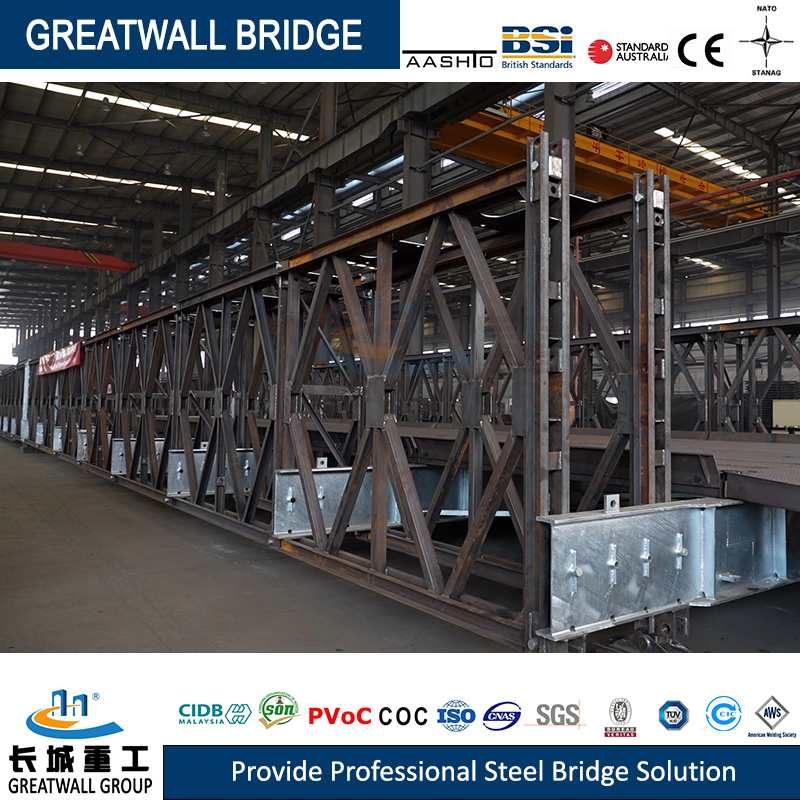

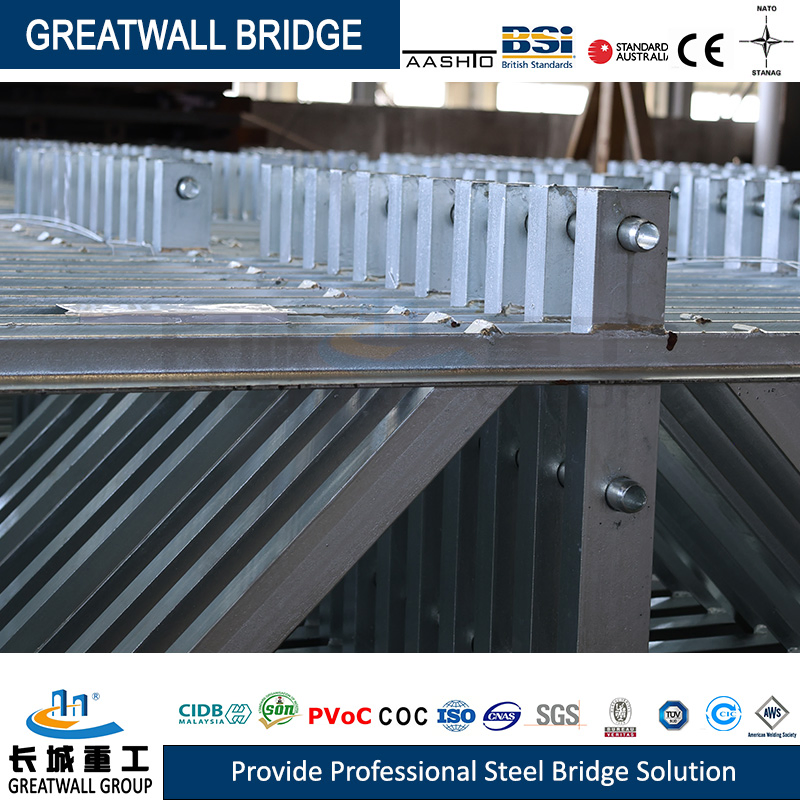

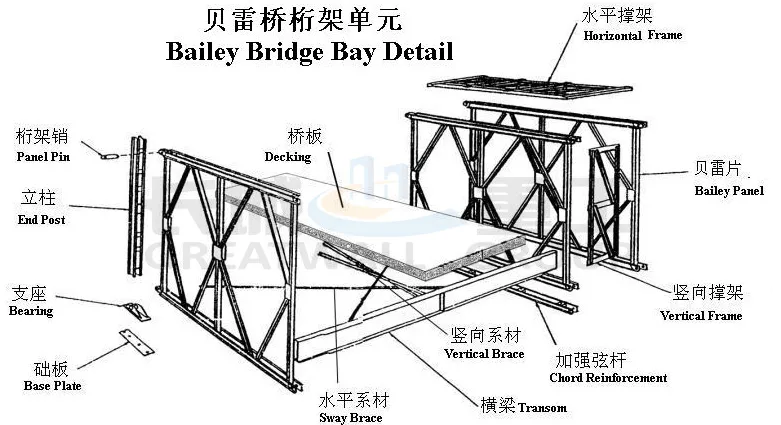

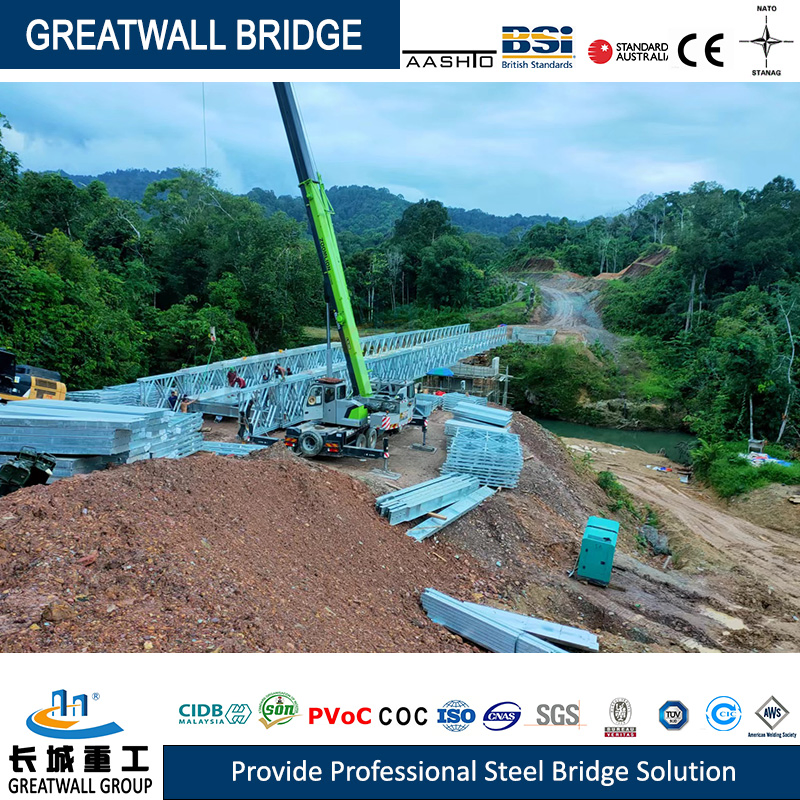

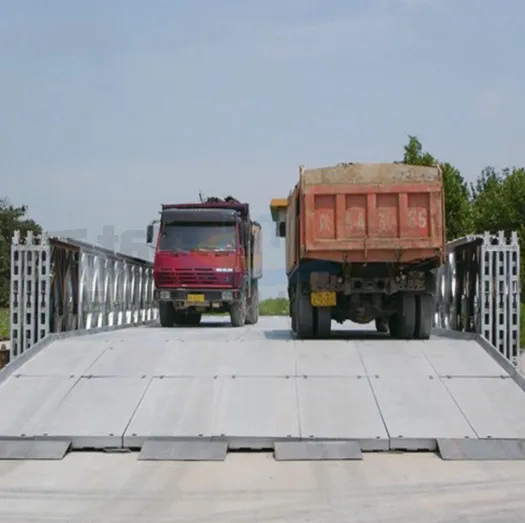

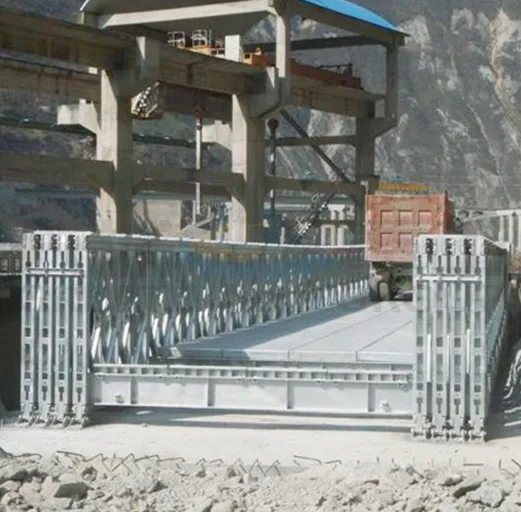

The Bailey bridge is a portable, pre-fabricated truss bridge system. Originally developed for emergency use, it has become standard bridge equipment adopted extensively worldwide. It is highly valued for its simple structure, convenient transport, and speedy erection.

Heavy Loading Capacity: Great stability and long fatigue life.
Versatile Configuration: Capable of alternative spans and mixture forms for temporary or fixed use.
Cost-Efficient: Features few components, lightweight materials, and low total cost.
Advanced Disposal: Surface options include painting, galvanizing, or anti-skid polyurethane bonded bauxite systems.
Standard Compliance: Suitable for load designs HL-93, HS-20, HS-25, and pedrail-50.

Technical Parameters

Compact-100 Bailey Bridge Truss Allowable Internal Force

Bridge Type	Unreinforced Bridge					Reinforced Bridge
Type Code	SS	DS	TS	DD	TD	SS	DS	TS	DD	TD
Bending Moment (kN·m)	788.2	1576.4	2246.4	3265.4	4653.2	1687.5	3375	4809.4	6750	9618.8

Compact-200 Bailey Bridge Specification Summary

Category	Specifications
Available Models	Compact-200, Compact-100, LSB, PB100, China-321, BSB, GWD, HBD60, Delta
Design Spans	10m to 300m Single Span
Loading Standards	AASHTO HL93, HS20-44, BS5400 HA+HB, AS5100 T44, MLC80/110
Welding Standards	AWS D1.1 / AWS D1.5 / AS/NZS 1554
Certificates	ISO9001, ISO14001, ISO45001, EN1090, CIDB, PVOC
