Guoshun Bundle Based on Actual Project Products Foot Pedestrian Steel Bridge for Footbridge Highway

Customization:	Available
After-sales Service:	on-Site Installation or Installation Guidance
Scale:	Large Bridge

Basic Specifications

Model NO.:Q355B Q235B S235JR S275JR S355JR

Usage:Footbridge, Highway, Over Water, Railway

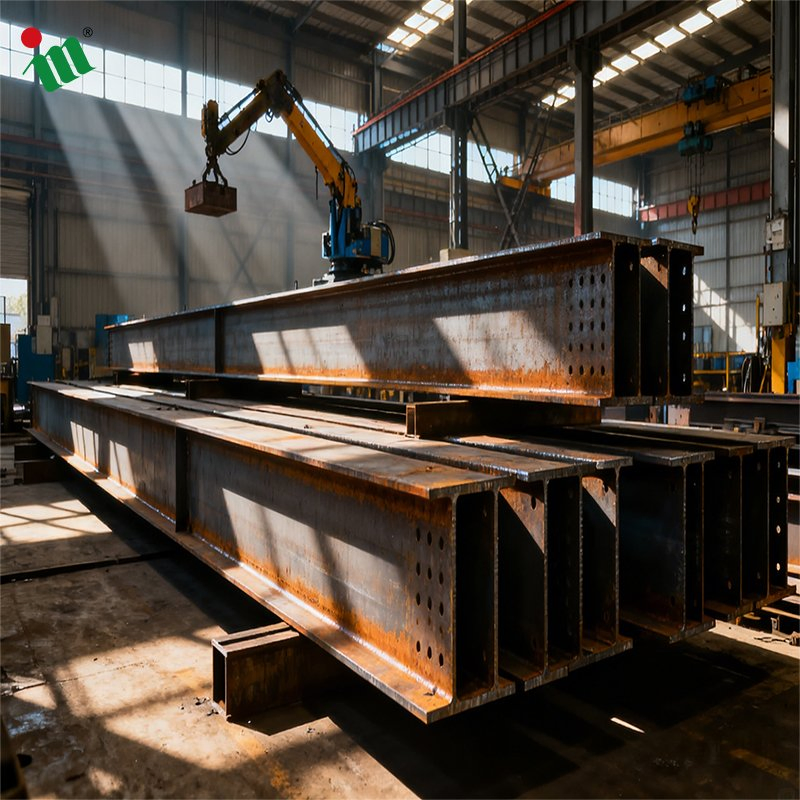

Product Name:Prefabricated Steel Structure Building

Warranty:1 Year

Standards:European, American, National Standards

Surface:Spray Painting or Galvanizing

Span:10-80 M (Customizable)

Bridge Width:1.5-6 M

Steel Grade:Q355/Q460, S355/S460, ASTM A36/A572

Capacity:50,000 Tons/Year

Product Description

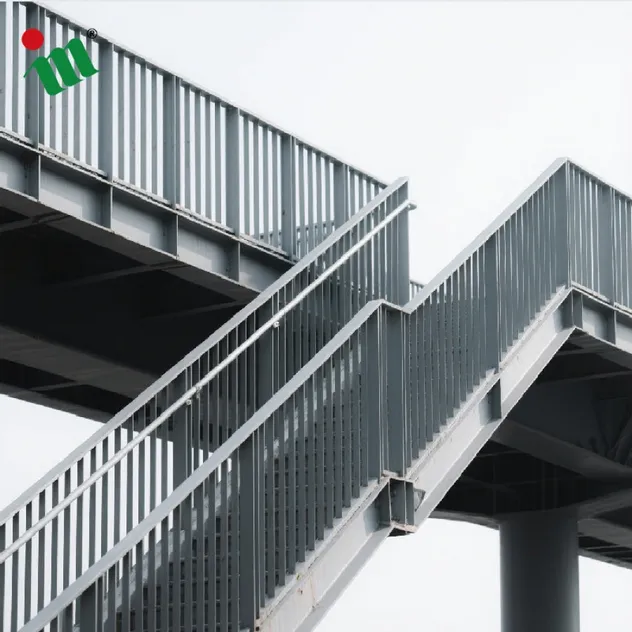

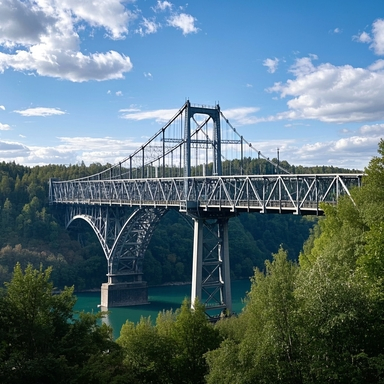

PEDESTRIAN STEEL BRIDGE: A modular, high-strength structure designed for safe, efficient, and long-term pedestrian traffic across roads, rivers, railways, industrial zones, and urban public spaces. Manufactured with high-grade structural steel, it provides exceptional durability, stability, and weather resistance. Its modular design enables rapid installation and flexible customization for different span lengths and architectural styles.

Key Advantages

High Strength & Stability: Uses S355/S460 or ASTM A36/A572 steel to withstand high foot traffic and seismic conditions.

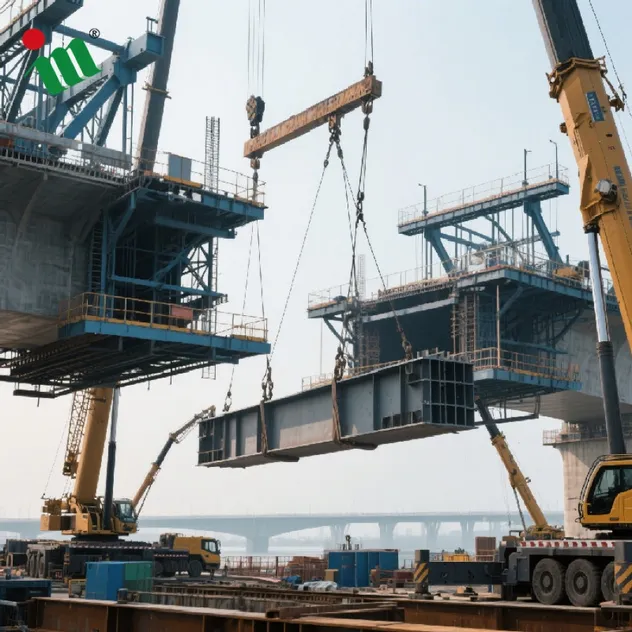

Modular Prefabricated Design: Factory-prefabricated components ensure fast and cost-effective on-site assembly.
Anti-Corrosion Treatment: Hot-dip galvanizing or epoxy coating systems provide a service life of 30–50 years.

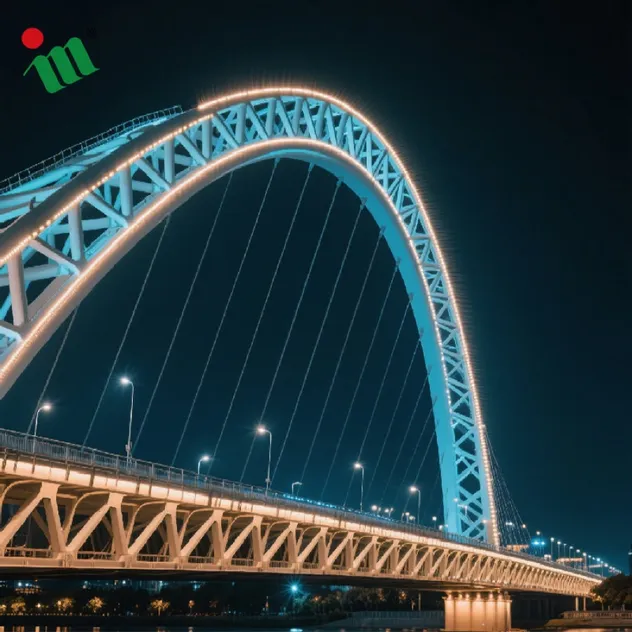

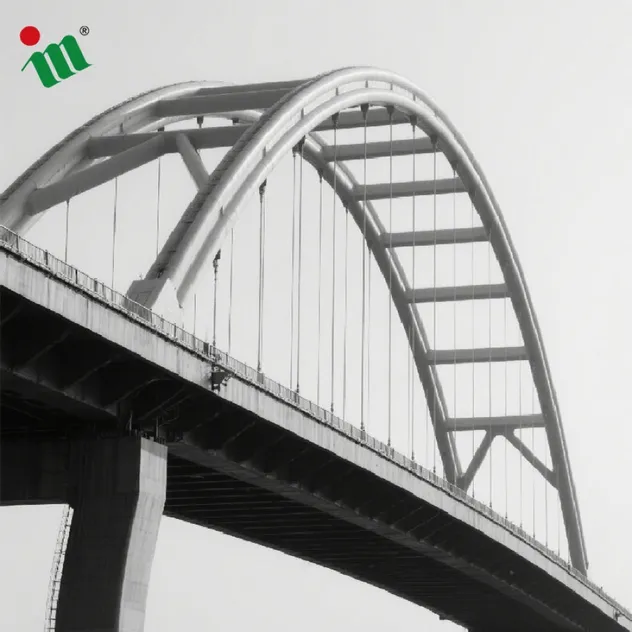

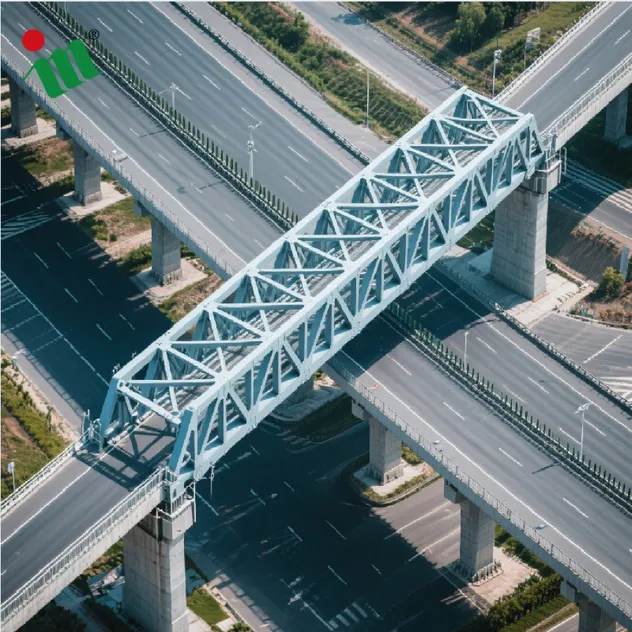

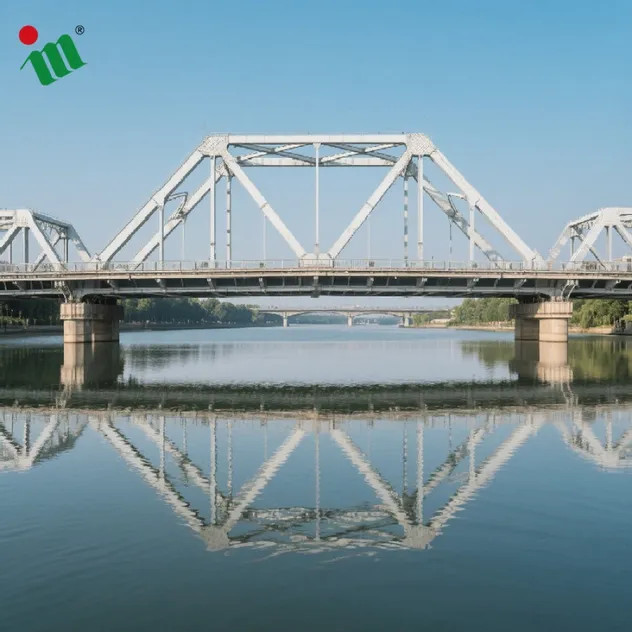

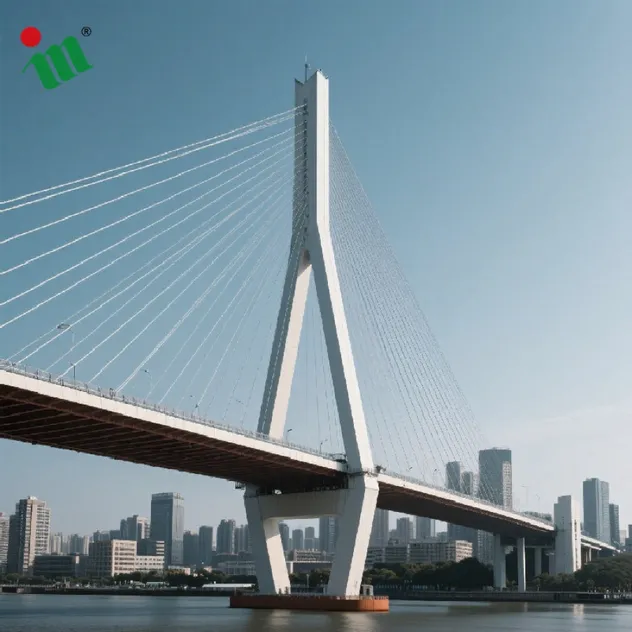

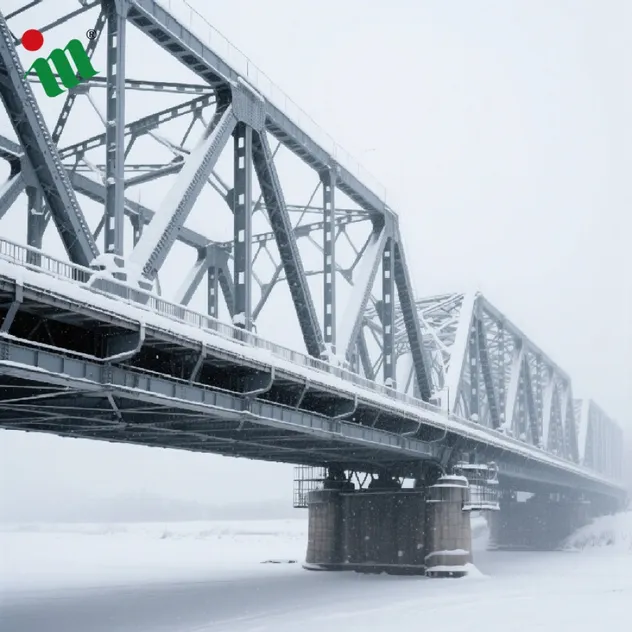

Customizable Aesthetics: Available in Truss, Box-Girder, Arch, or Cable-Stayed forms with optional glass rails and lighting.
Maximum Safety: Integrated anti-slip surfaces and safety handrails compliant with international codes.

Technical Specification

ITEM	SPECIFICATION
Span	10-80 m (Customizable)
Bridge Width	1.5-6 m
Steel Grade	Q355/Q460, S355/S460, ASTM A36/A572
Structure Type	Truss / Box Girder / Arch / Cable-Stayed
Surface Treatment	HDG / Epoxy Coating / Polyurethane
Walkway Material	Steel Grating / Anti-slip Panel / Composite Deck
Design Standards	EN 1993, AISC, ASTM, BS, AS/NZS

Manufacturing Excellence

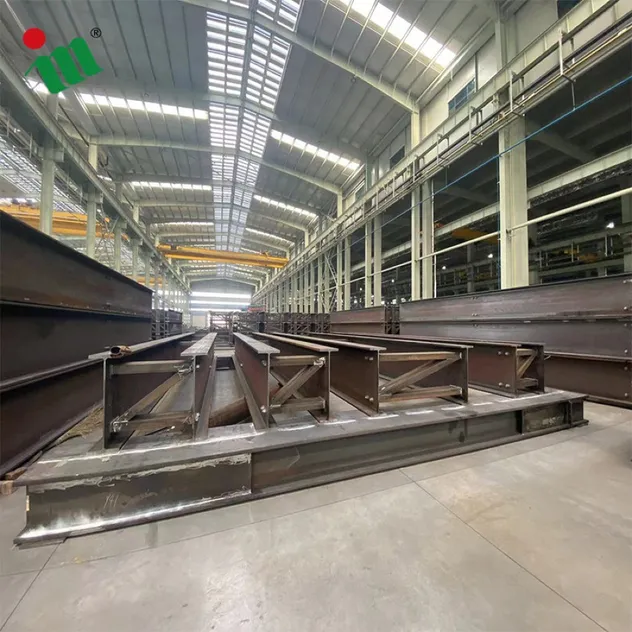

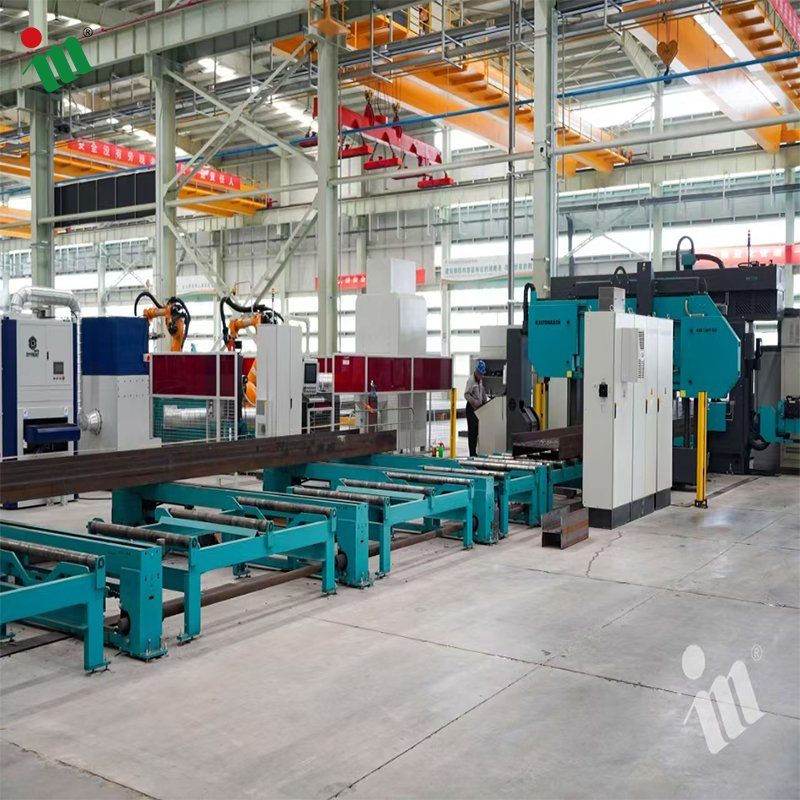

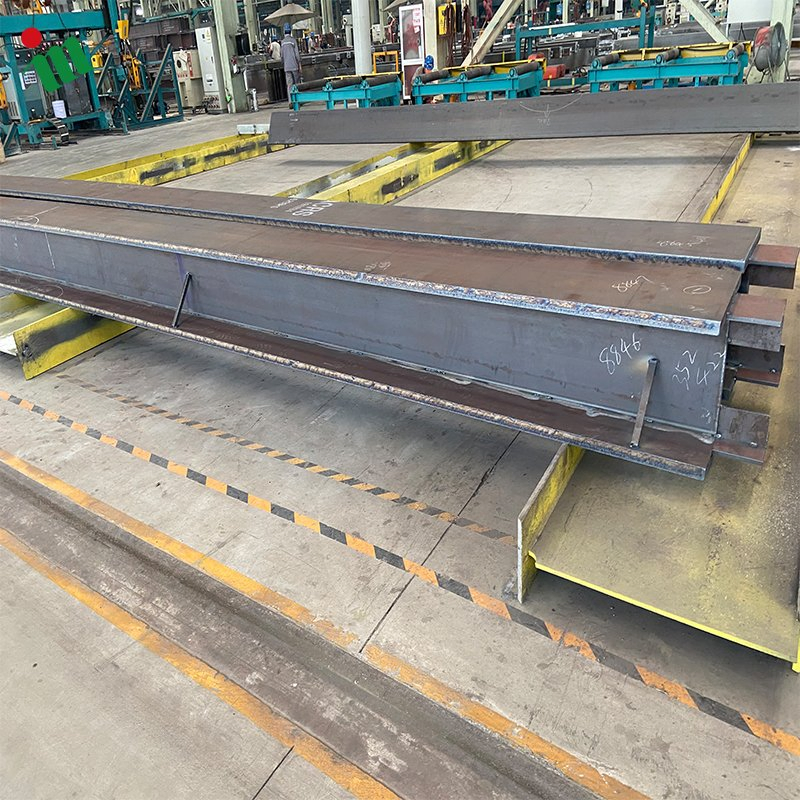

Our process involves precision CNC cutting, robotic welding, and submerged arc welding (SAW) following ISO 3834 standards. Every component undergoes rigorous Ultrasonic (UT) and Magnetic Particle (MT) testing. Surface treatments include automatic sandblasting to Sa 2.5 and high-performance painting systems.

Why Choose Our Solutions

20+ years of steel structure manufacturing expertise.
Certified by CE, EN1090, ISO 3834, and ASME.
Advanced fabrication facilities including robotic welding.
Comprehensive support for design, fabrication, and global delivery.
Export experience spanning over 20 countries.

Frequently Asked Questions

Q1: Can you provide customized design services?

A: Yes, we have over 50 design engineers capable of providing full solution drawings using software like Auto CAD, PKPM, Tekla Structures, and 3D3S to meet your specific project requirements.

Q2: Do you offer on-site installation guidance overseas?

A: Yes. We provide detailed installation drawings and videos for free. If required, we can dispatch guide engineers or a specialized team to your construction site to oversee the process.

Q3: What is the typical delivery time for a project?

A: Usually, the delivery time is around 30 days. We maintain a comprehensive management plan for every project to ensure strict adherence to deadlines.

Q4: How do you ensure the quality of the steel structure?

A: We use high-quality raw materials with full traceability. Our production process includes CNC precision cutting and strict QC inspections (UT, MT). We also perform factory assembly simulations before shipping.

Q5: What anti-corrosion treatments are available?

A: We offer hot-dip galvanizing (85–120 µm thickness), epoxy zinc-rich primers, and customized painting systems from international brands like Jotun or Hempel to suit different environments.

Q6: Can I arrange for a third-party inspection?

A: Absolutely. We welcome container loading inspections at any time and can assist with SGS or other third-party inspection requirements.
