Manufacture CB200 Bailey Bridge Panel for Bridge Construction

Customization:	Available
After-sales Service:	Installation Instructions
Warranty:	6 Months

i

Basic Specifications

Model NO.

CB200

Certification

GB, ASTM

Life Span

Semi-Permanent Bridge

Structure

Open Bridge / Beam Bridge

Usage

Over Water, Tractor, Footbridge, Highway

Material

Steel Bridge (Q355B/Q460C)

Capacity

60,000 Pieces Per Year

Standard

ASTM, GB, BS, BV

Dimensions

Standard or Customized

HS Code

730810000

⚙

Product Description

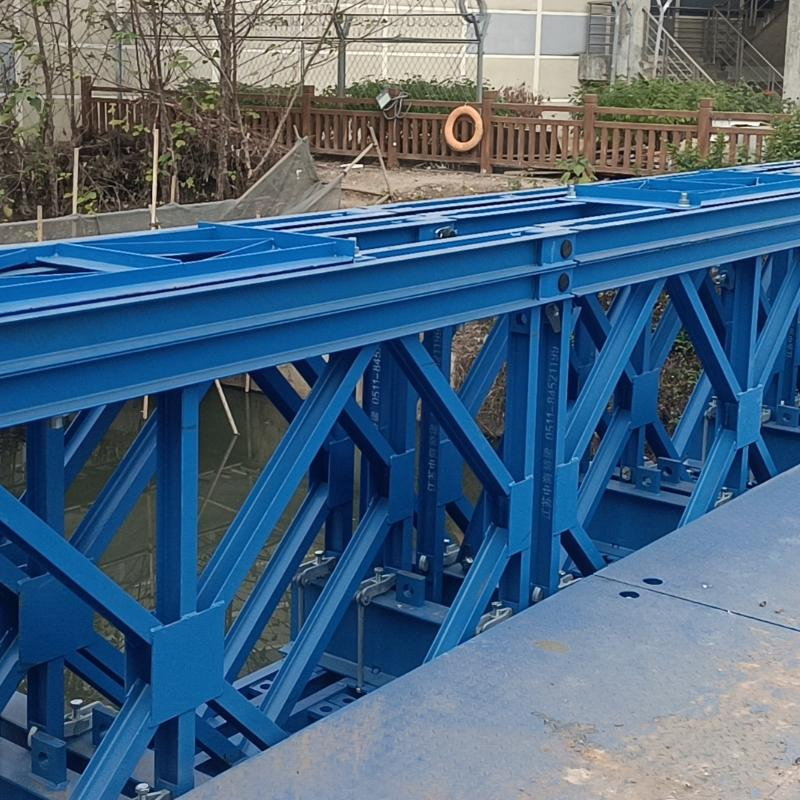

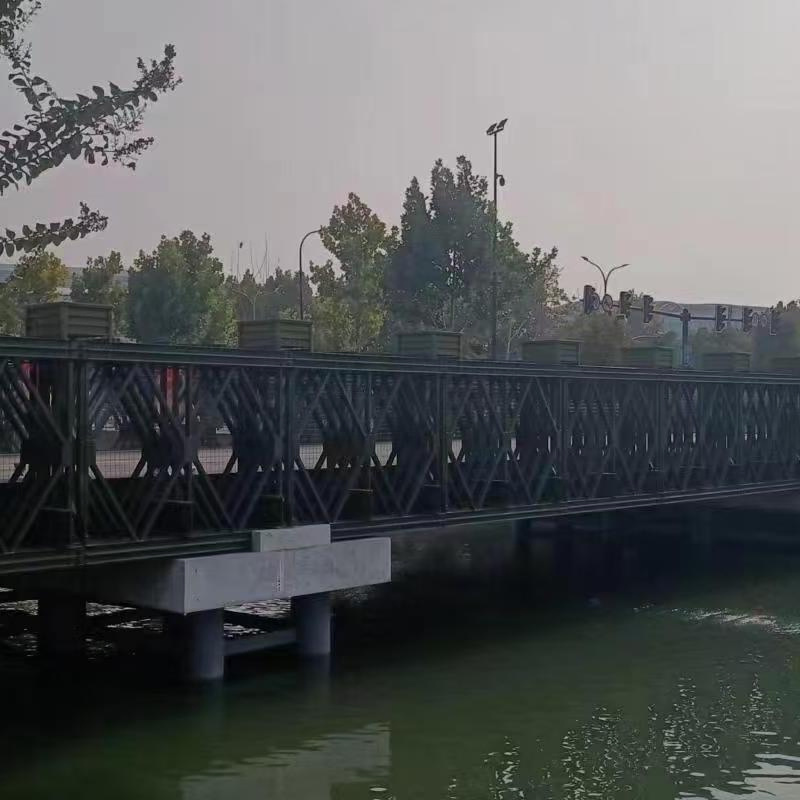

Manufacture CB200 Bailey Bridge Panel for Bridge Construction

CB200 Truss Press Limited Table
NO.	Internal Force	Not Reinforced Model				Reinforced Model
NO.	Internal Force	SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment (kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9

CB200 Table of Geometric Characteristics (Half Bridge)
Structure	Model	Chord Area (cm2)	Section Properties (cm3)	Inertia (cm4)
SS	SS	25.48	5437	580174
SS	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696

📋

Technical Brief

Standard: GB, ASTM, DIN, JIS, AISI, BS, SGS, BV
Length: 9.144m to 60.96m (Customized available)
Steel Grade: Q355B/Q460C or Equivalent

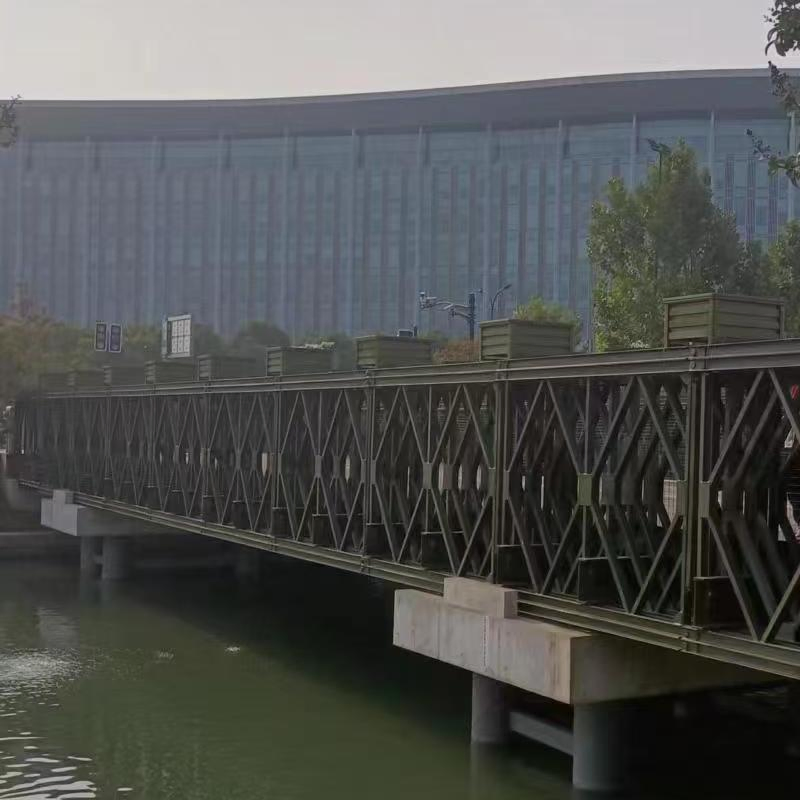

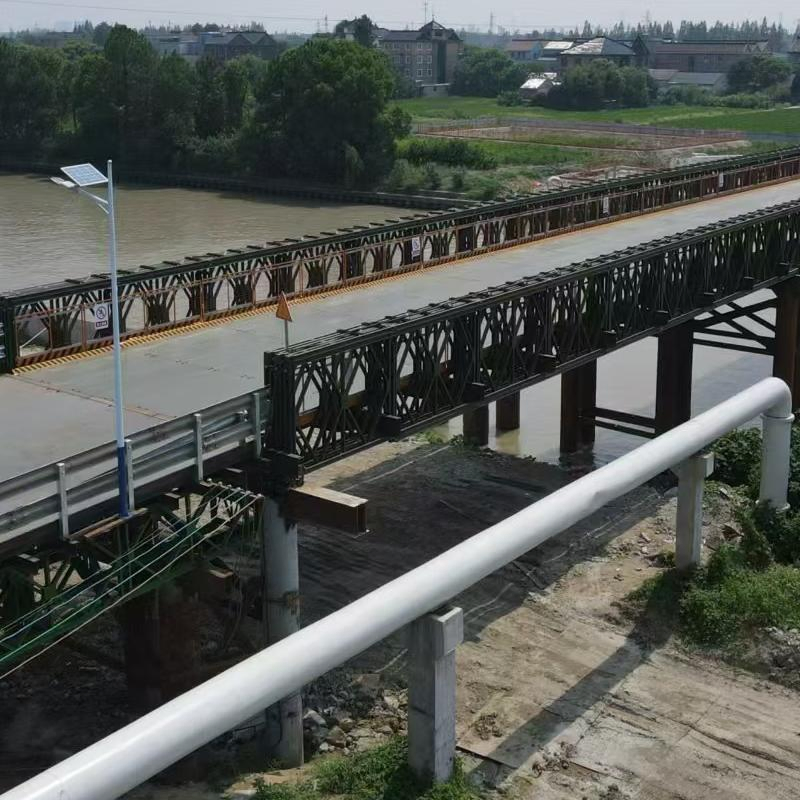

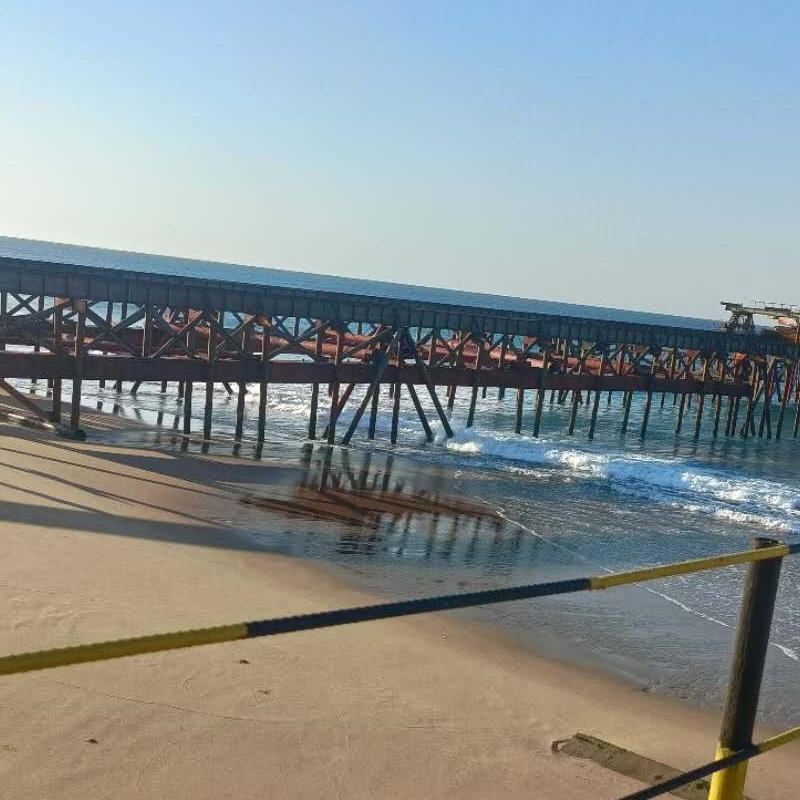

Application: Temporary bridge, platform, gantry frame, headframe, tower construction, float bridge.
Advantage: Proven Robotic Welding, high welding quality, and precise sizing.

✔

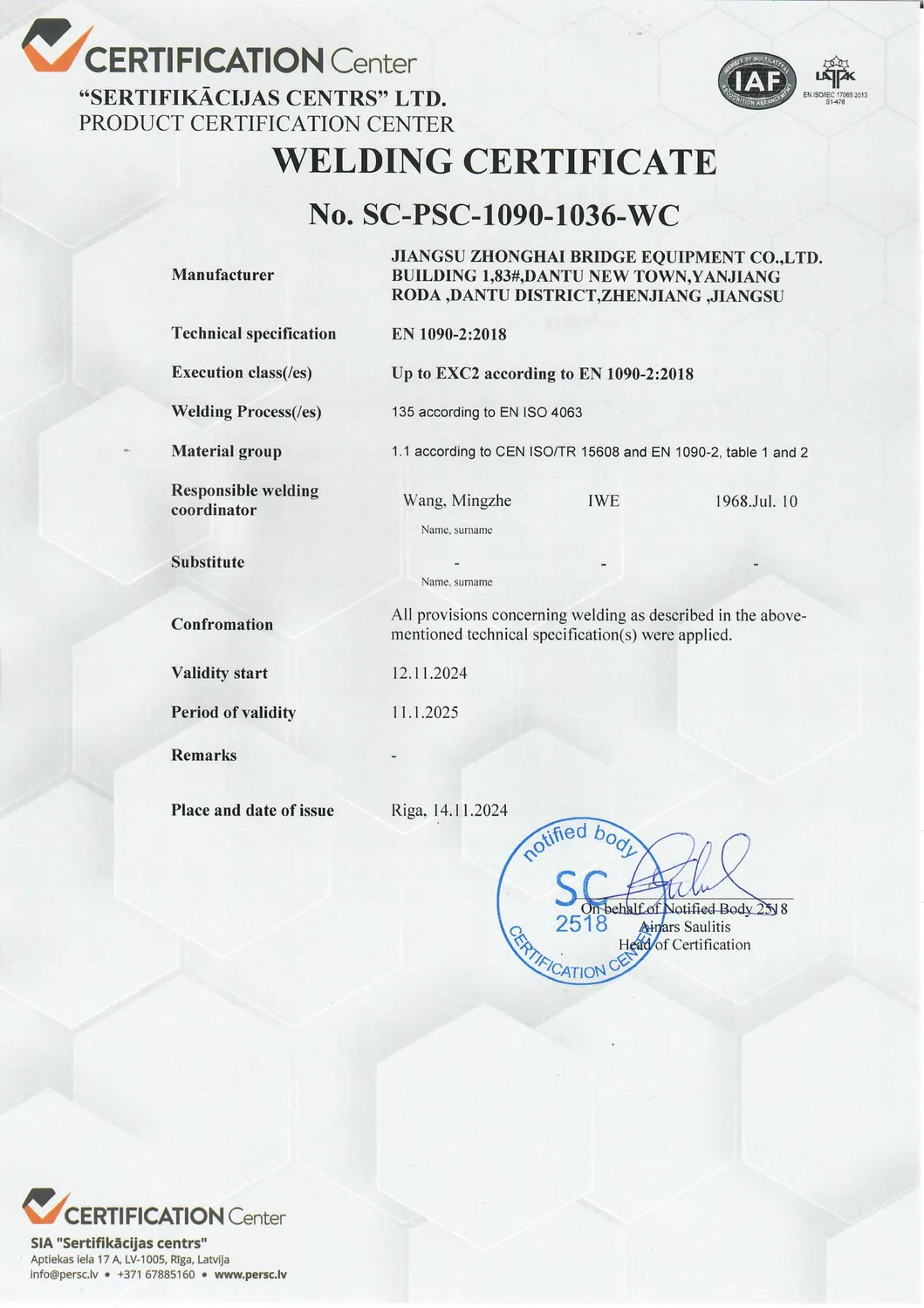

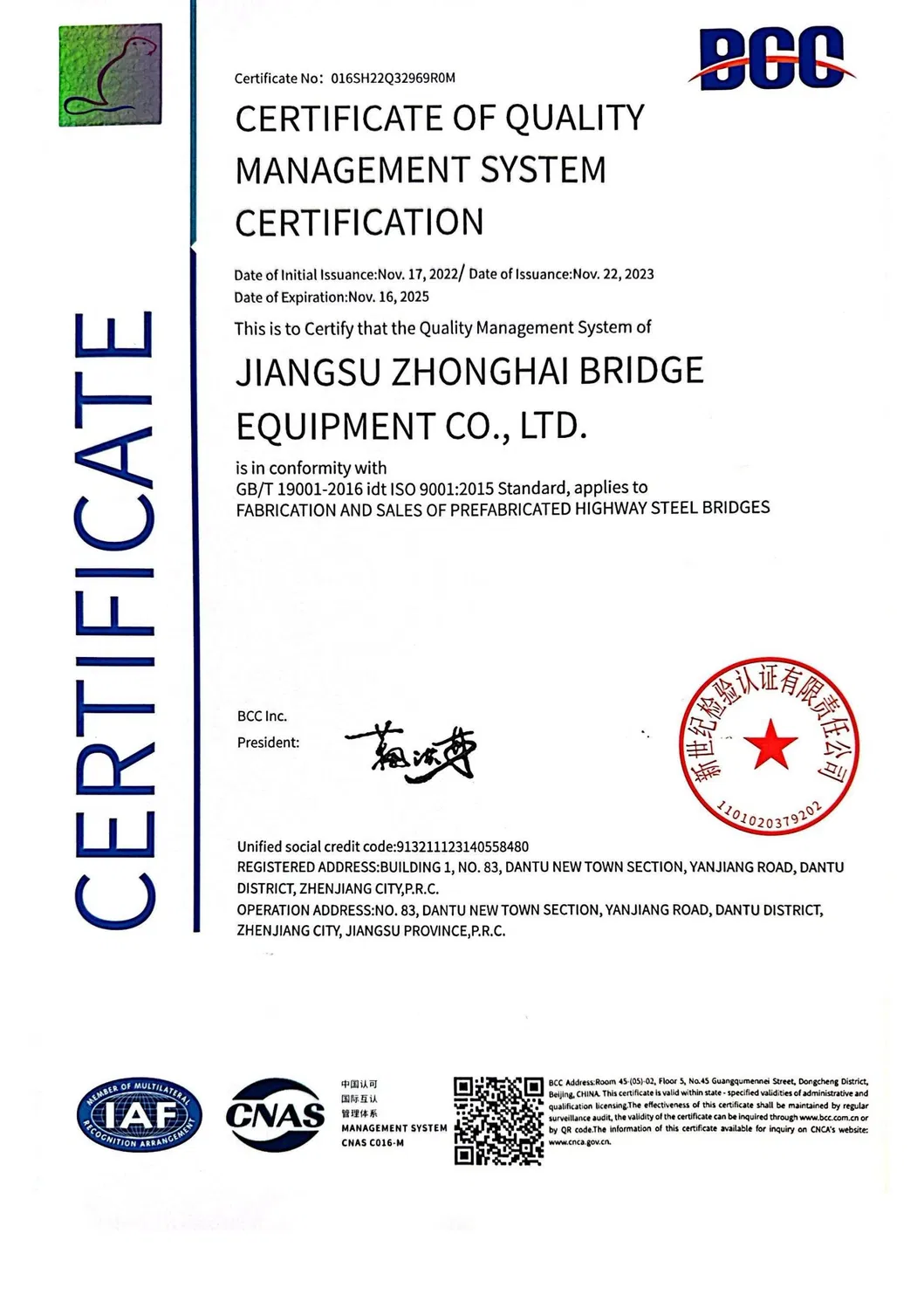

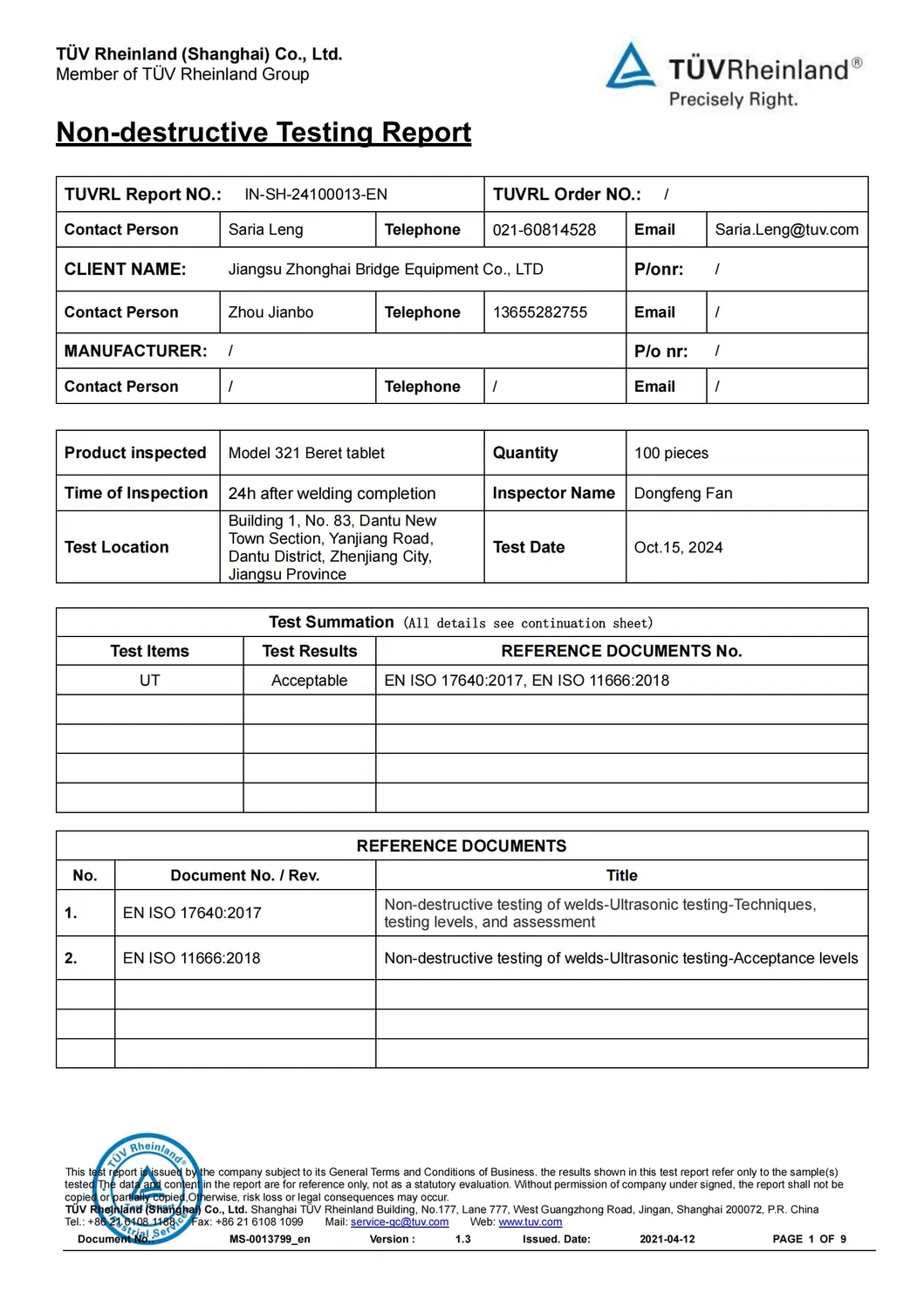

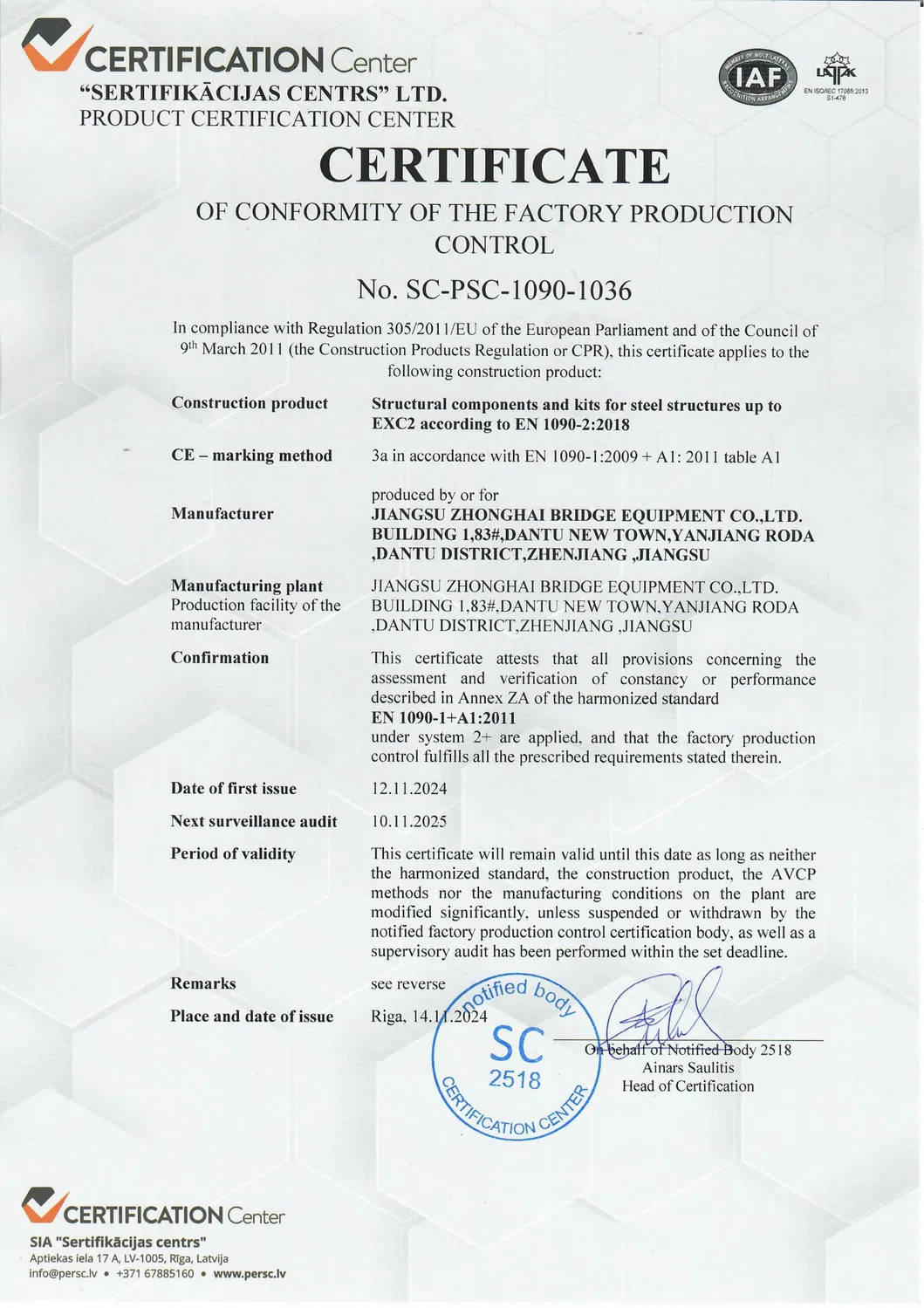

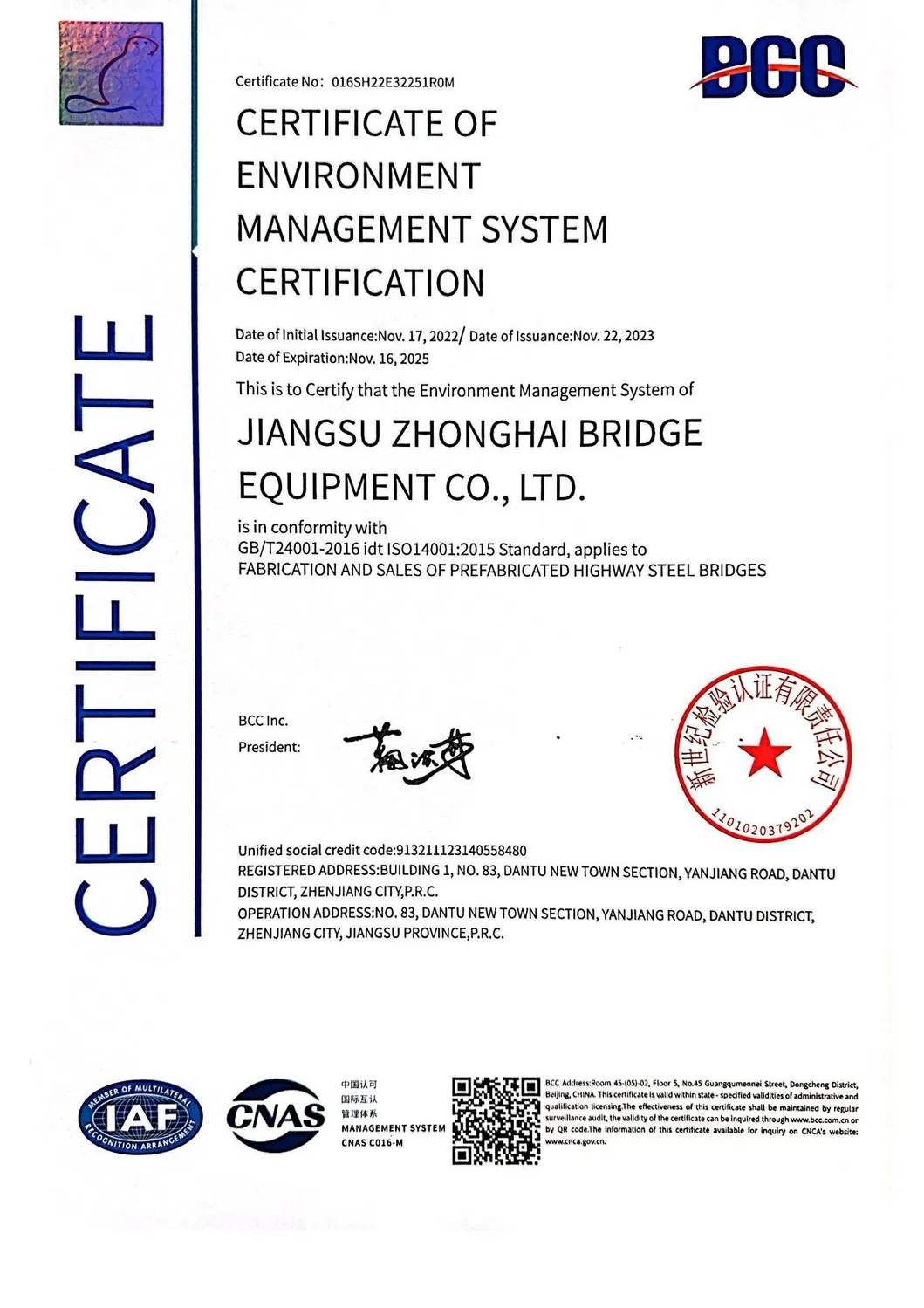

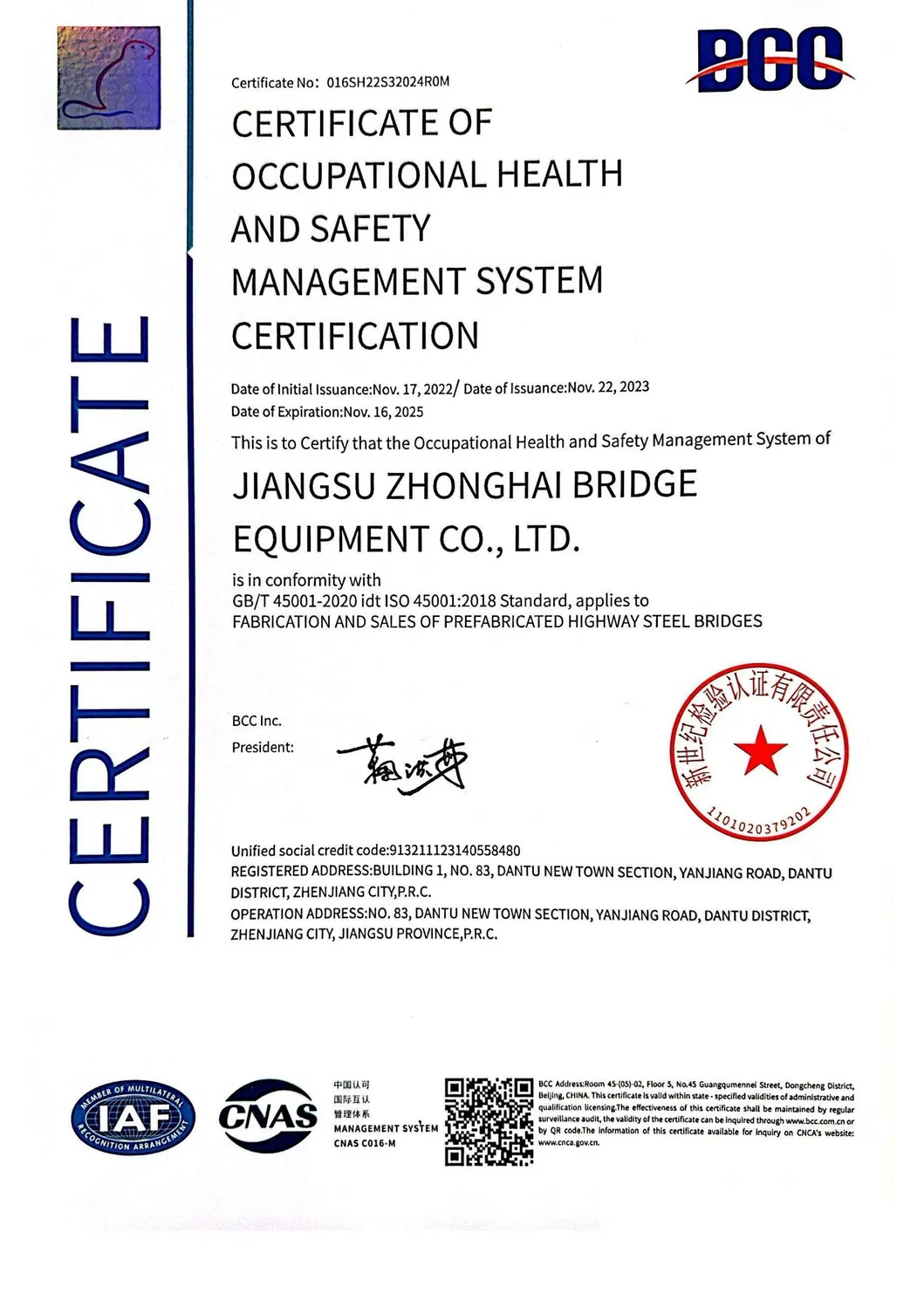

Certificates

🏭

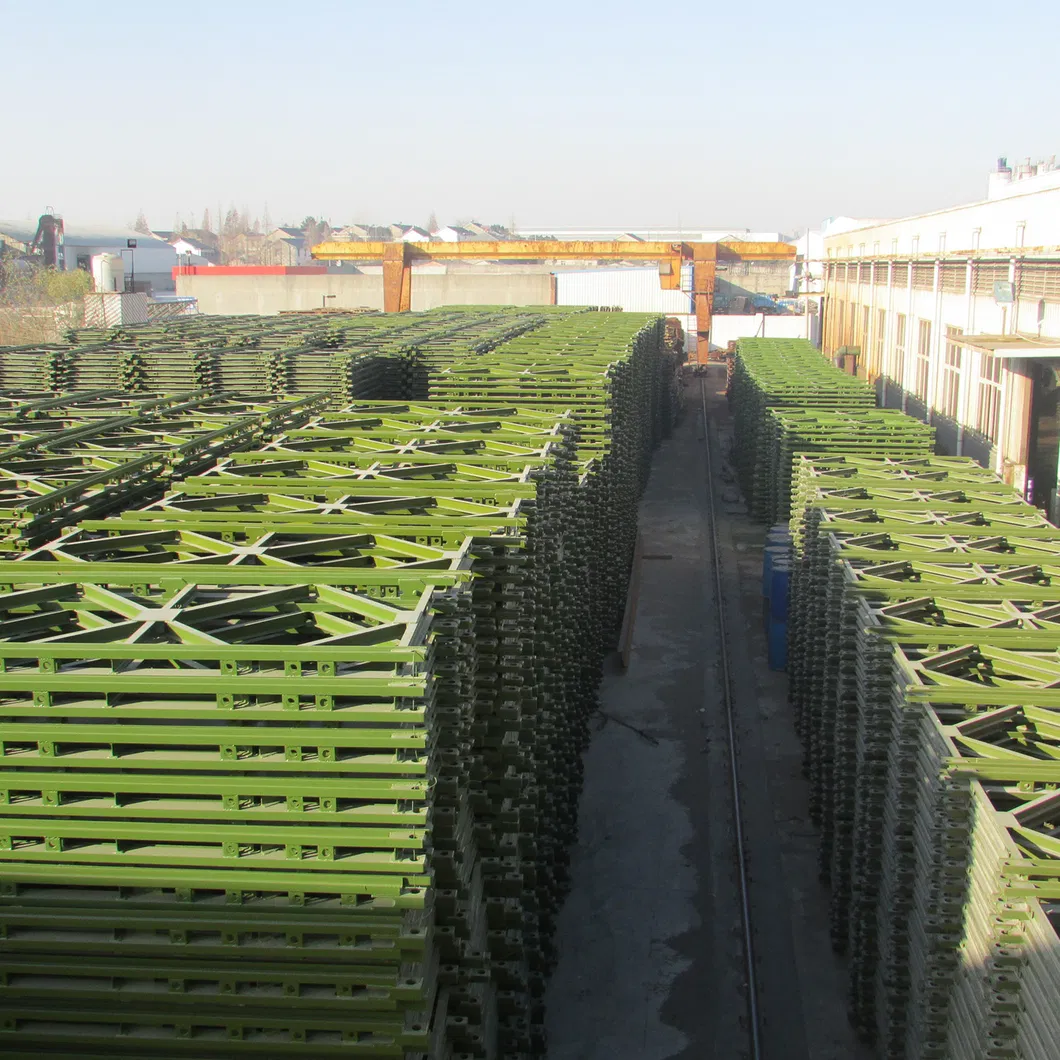

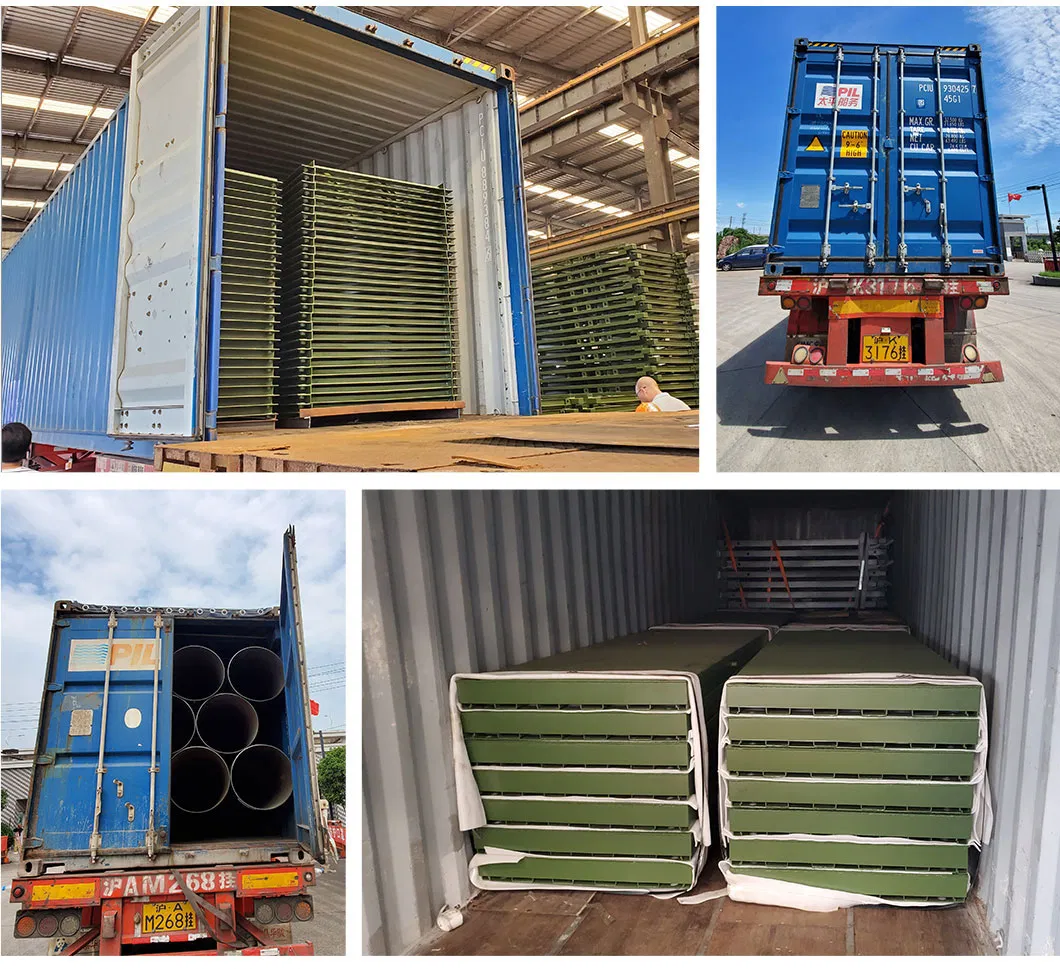

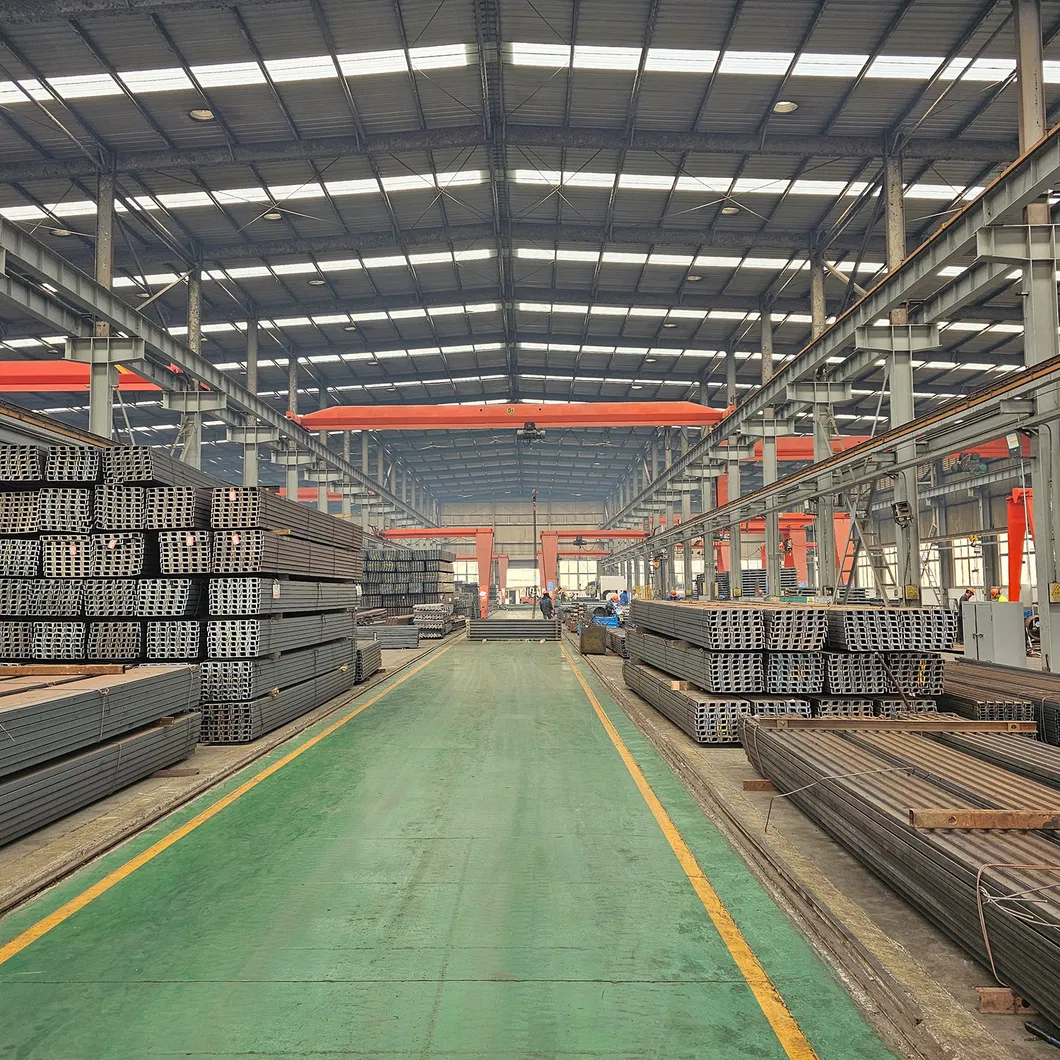

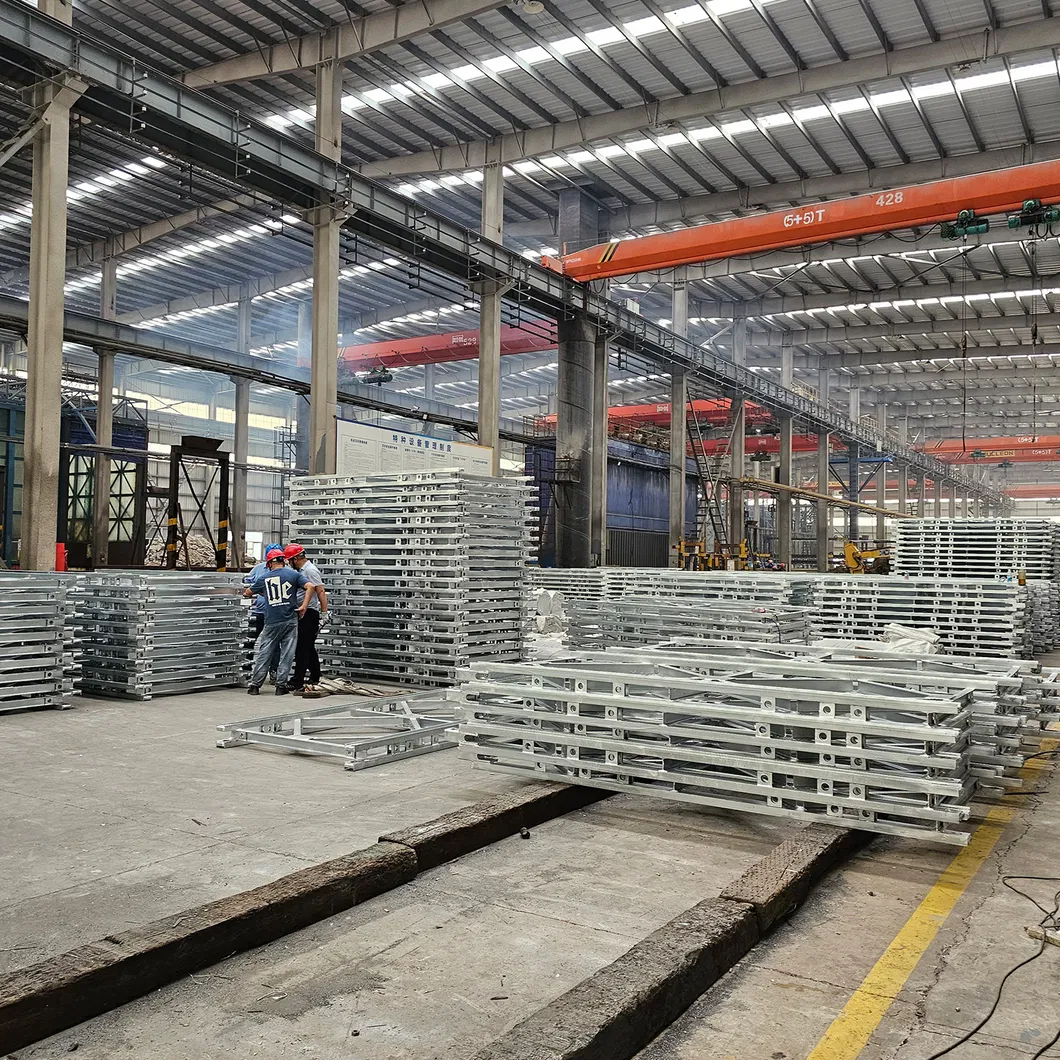

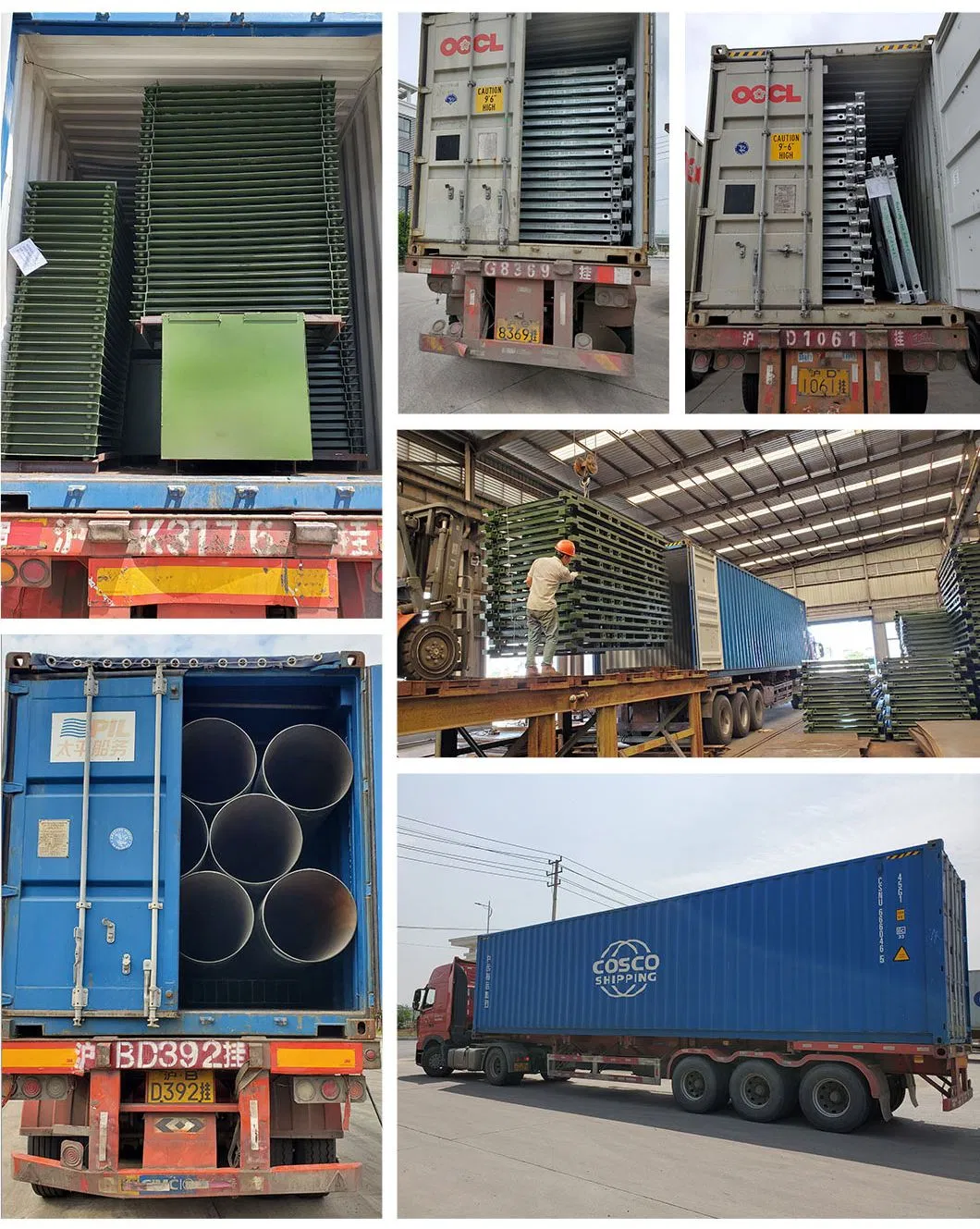

Factory & Logistics

?

Frequently Asked Questions

Which countries do you export to?

Products have been exported to dozens of regions including Malaysia, Philippines, Nepal, Canada, Russia, Mozambique, Kenya, Tanzania, and many others across Asia, Africa, and Europe.

Are you a factory or a trade company?

We are an industry and trade company with a production capacity of over 60,000 tons per year, specializing in professional manufacturing for large Bailey pieces and prefabricated highway steel bridges.

Do you accept custom processing?

Yes, our technical team can process a variety of non-standard Bailey bridges, steel structures, and custom bridge components.

Can your products meet international standards?

Yes, our products meet AASHTO (American), BS5400 (British), AS5100 (Australia), and other major international standards.

How soon can I receive a reply after an inquiry?

We provide professional technical feedback within 6 hours and can provide a preliminary design and quotation within 24 hours.

Can we apply to be an agent or distributor?

We are actively recruiting powerful partners worldwide for common development and long-term win-win cooperation.
