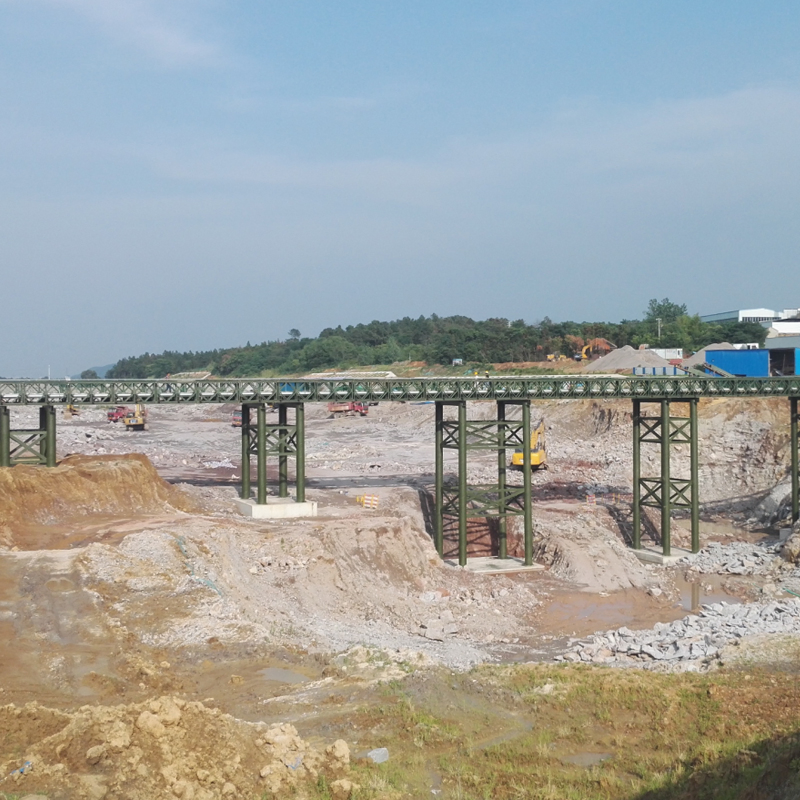

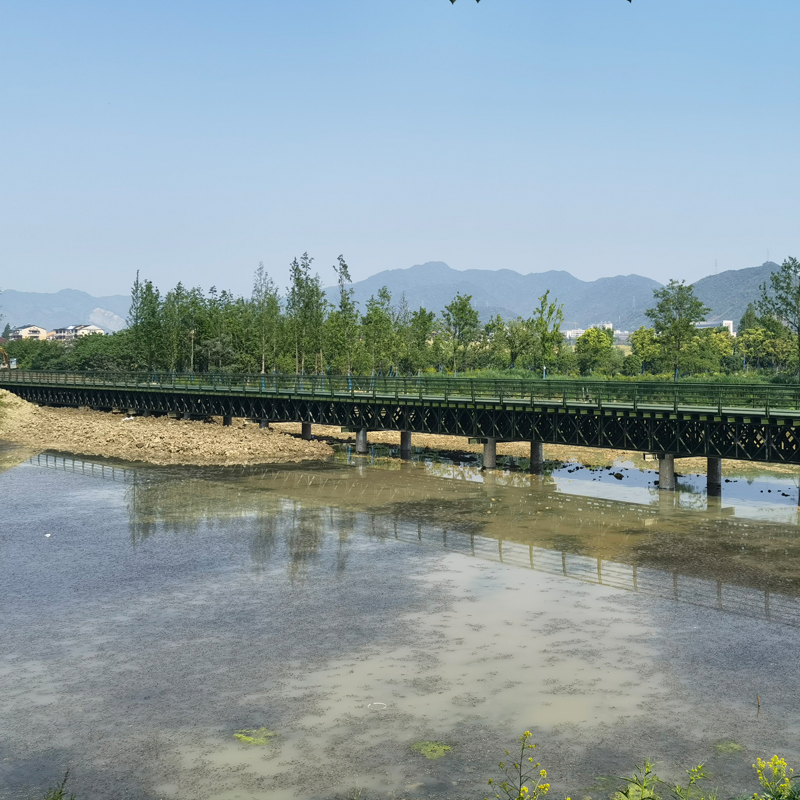

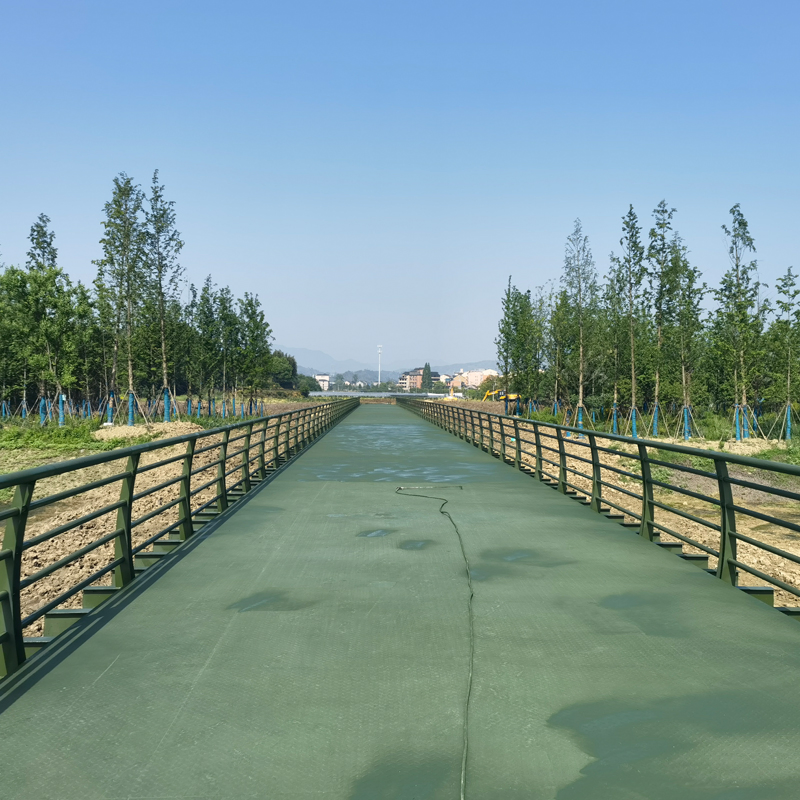

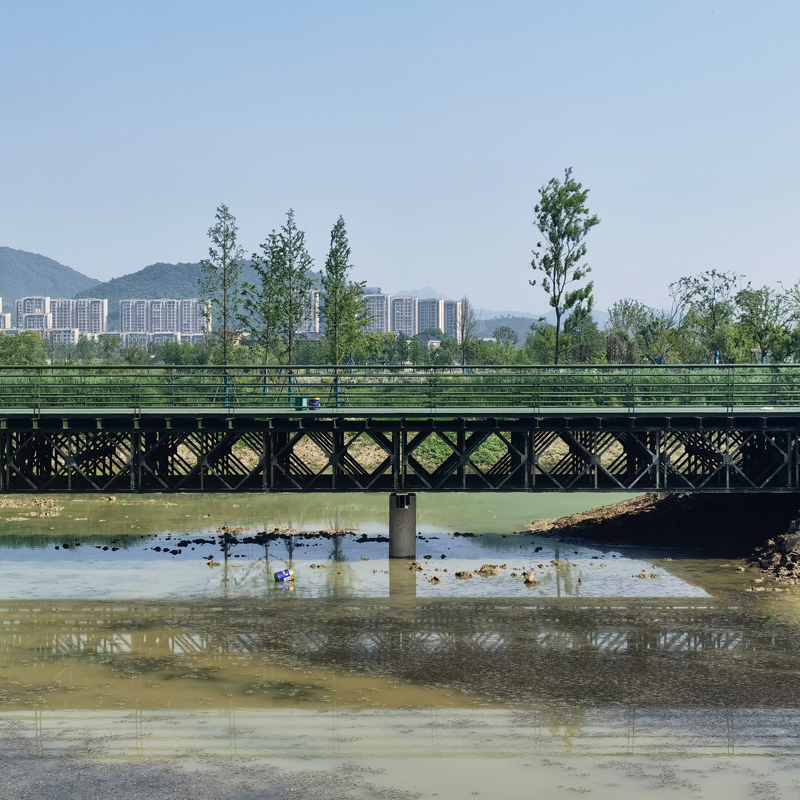

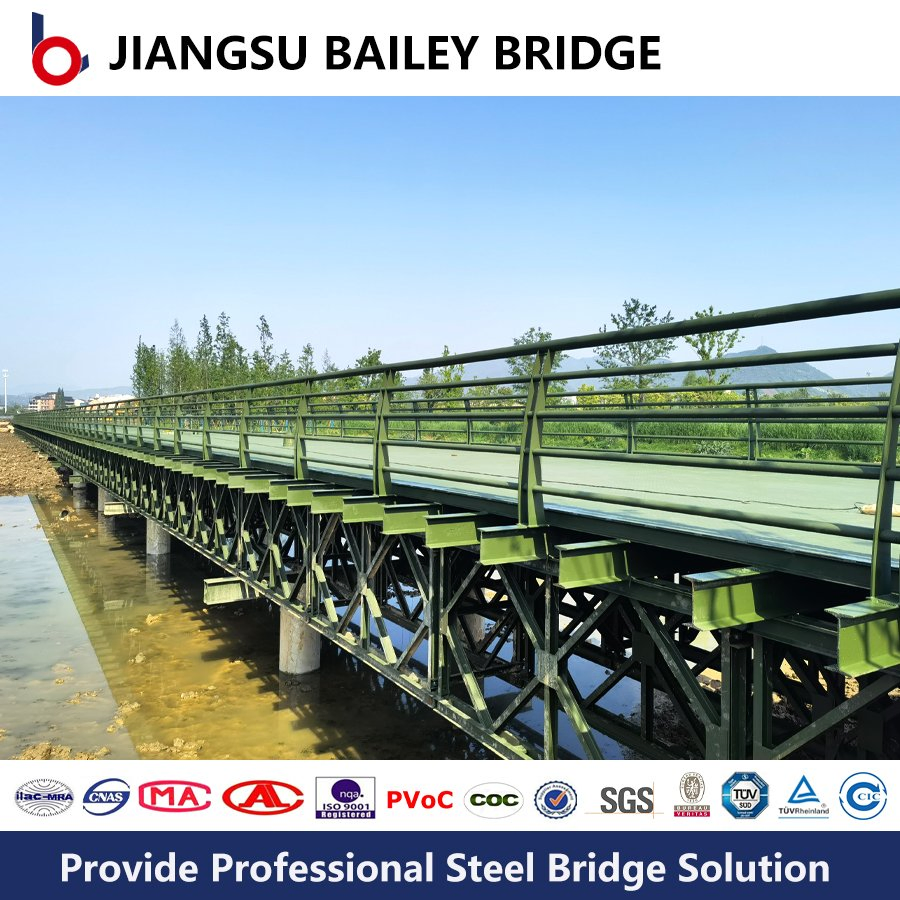

Pedestrian Bailey Steel Structure Bridge for Emergency Purpose Prefabricated Modern Design

Customization: Available
After-sales Service: Installation Instructions
Warranty: Life Time

Product Description

📋 Basic Information
Model NO.
ZB200
Certification
GB, ASTM
Life
Semi-Permanent Bridge
Material
Steel Bridge
Across Way
Diffuse Water Bridge
Usage
Over Water, Tractor, Pontoon, Footbridge, Highway
Scale
Middle Bridge
Stress Characteristics
Beam Bridge
Supply Ability
10000 Ton/Tons Per Year
HS Code
7308100000
📦 Packaging & Delivery
Package Size
3042.00cm * 2134.00cm * 176.00cm
Gross Weight
308.000kg
Packing
40' Standard HQ Containers
🚧 Product Description
Bailey Steel Structure Bridge
Prefabricated Bridge Design

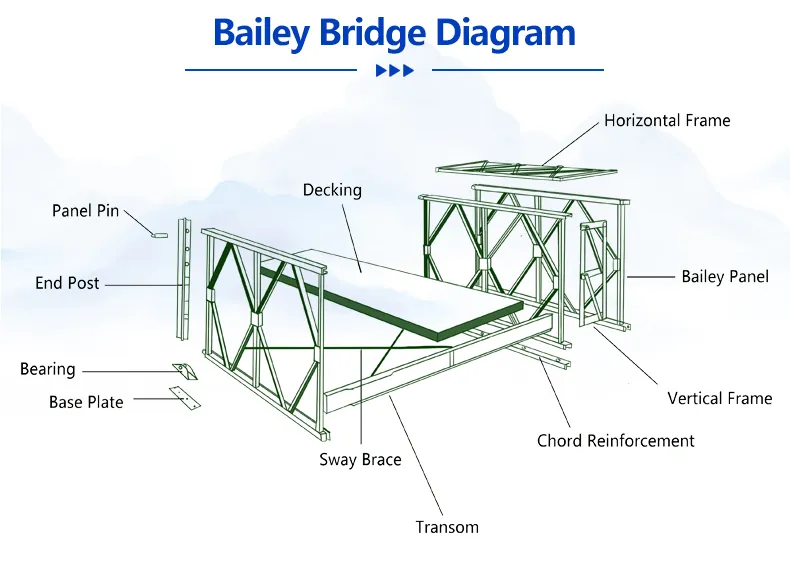

Modern Bailey Bridge
ZB200 Truss Press Limited Table
NO. Internal Force Structure Form
Not Reinforced Model Reinforced Model
SSDSTSQSSSRDSRTSRQSR
200Standard Moment (kN.m)1034.32027.22978.83930.32165.44244.26236.48228.6
200Standard Shear (kN)222.1435.3639.6843.9222.1435.3639.6843.9
ZB200 Geometric Characteristics (Half Bridge)
Structure Model Chord Area (cm²) Section Properties (cm³) Moment of Inertia (cm⁴)
SSSS25.485437580174
SSR50.96108751160348
DSDS50.96108751160348
DSR176.44163121740522
DSR2101.92217502320696
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3

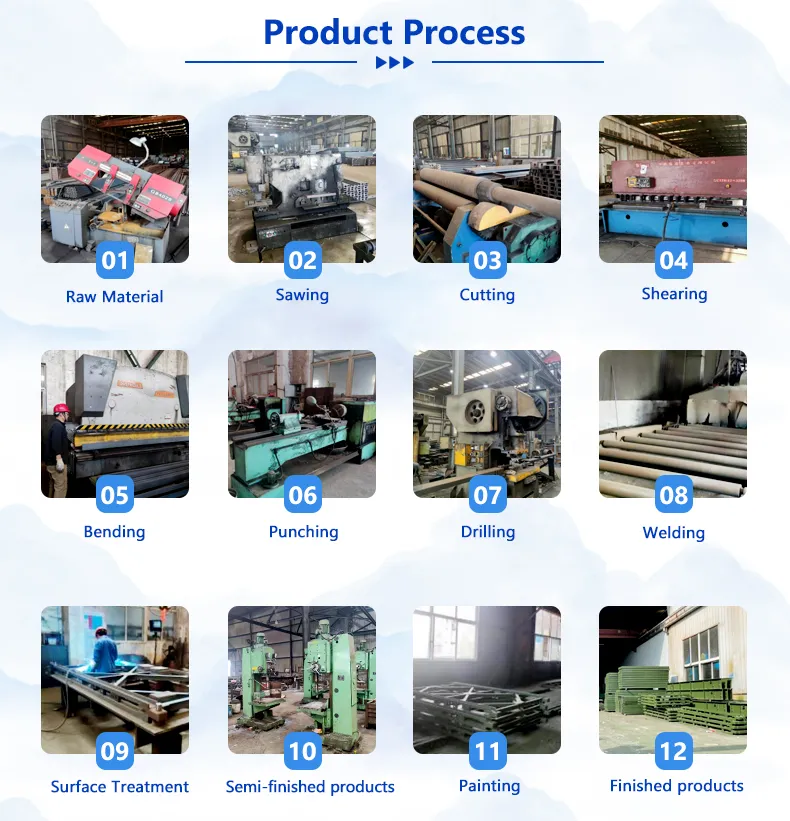

Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
🚚 Service Flow
1
Professional advice and explicit explanations provided by our customer service representatives.
2
Expert engineers arranged to keep in close touch with your exact requirements at all times.
3
Detailed guidance on product usage and necessary technical services provided.
4
Thorough inspection of bridge products to solve any issues during the process.
5
Continuous follow-up via our online service platform to ensure total satisfaction.
❓ Frequently Asked Questions
What kind of company are you?
We are a specialized steel bailey bridge manufacturer with leading manufacturing processes in China. We have over 20 years of experience and hold international Quality System Certification of ISO9001:2015.
Are you a factory or a trade company?
We are a factory with six production lines and various specialized machines for fabricating steel bridge parts and other steel structures. We hold a full exporting license for global markets.
How do you ensure quality control?
Quality control is prioritized from start to finish. Our goods meet standards for CMA, CNAS, ISO9001, Grade I road, Grade A urban road, American loading standard HS25, and British loading standard HA.
Where is your loading port located?
We can ship from any port in China, with Shanghai port being our primary loading facility for international orders.
What materials are used in the ZB200 bridge?
The ZB200 is constructed using high-strength structural steel, specifically designed for durability in permanent and semi-permanent bridge applications.
What is your typical production capacity?
We have a production capacity of approximately 10,000 pieces or tons per year, allowing us to handle both small-scale projects and large infrastructure needs.
