| CB200 Truss Press Limited Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Internal Force | Not Reinforced Model | Reinforced Model | |||||||
| SS | DS | TS | QS | SSR | DSR | TSR | QSR | ||
| Truss Moment (kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 | |
| Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 | |
| Geometric Characteristics Table (Half Bridge) | |||
|---|---|---|---|
| Structure | Chord Area (cm2) | Section Properties (cm3) | Moment of Inertia (cm4) |
| SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | 50.96 | 10875 | 1160348 |
| TSR3 | 152.88 | 32625 | 3481044 |

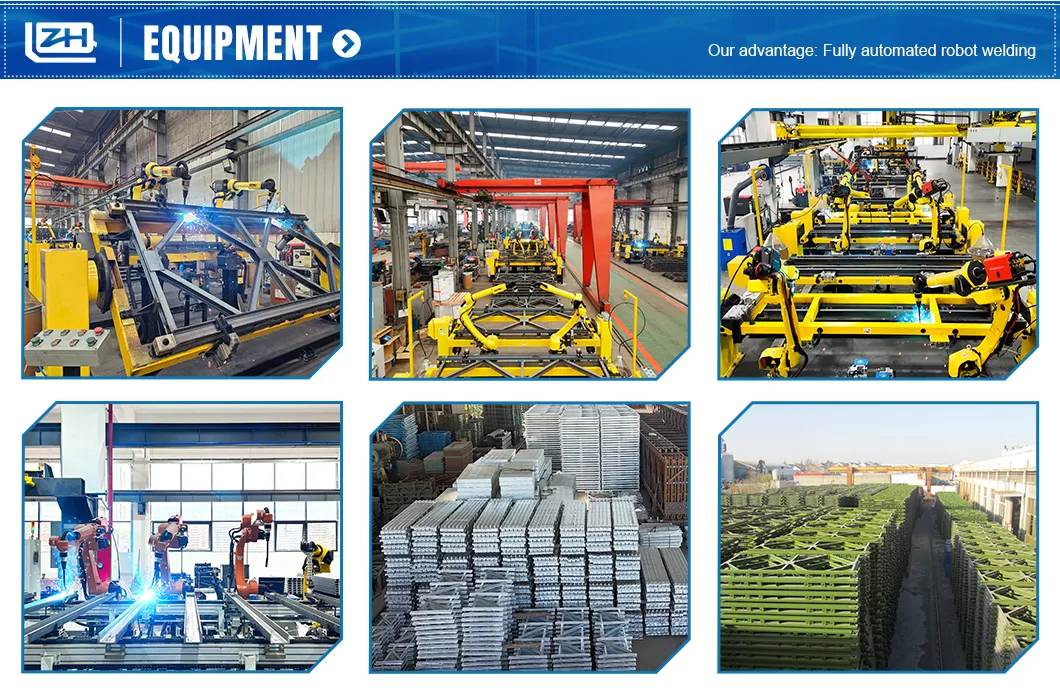

Our manufacturing facility is a leading professional giant for large Bailey pieces and prefabricated highway steel bridges. With a registered capital of up to 55 million yuan and a production capacity exceeding 60,000 tons per year, we provide high-quality structural solutions for global infrastructure. Our expertise spans two decades in the export of steel bridges, ensuring international quality standards are met for every project.

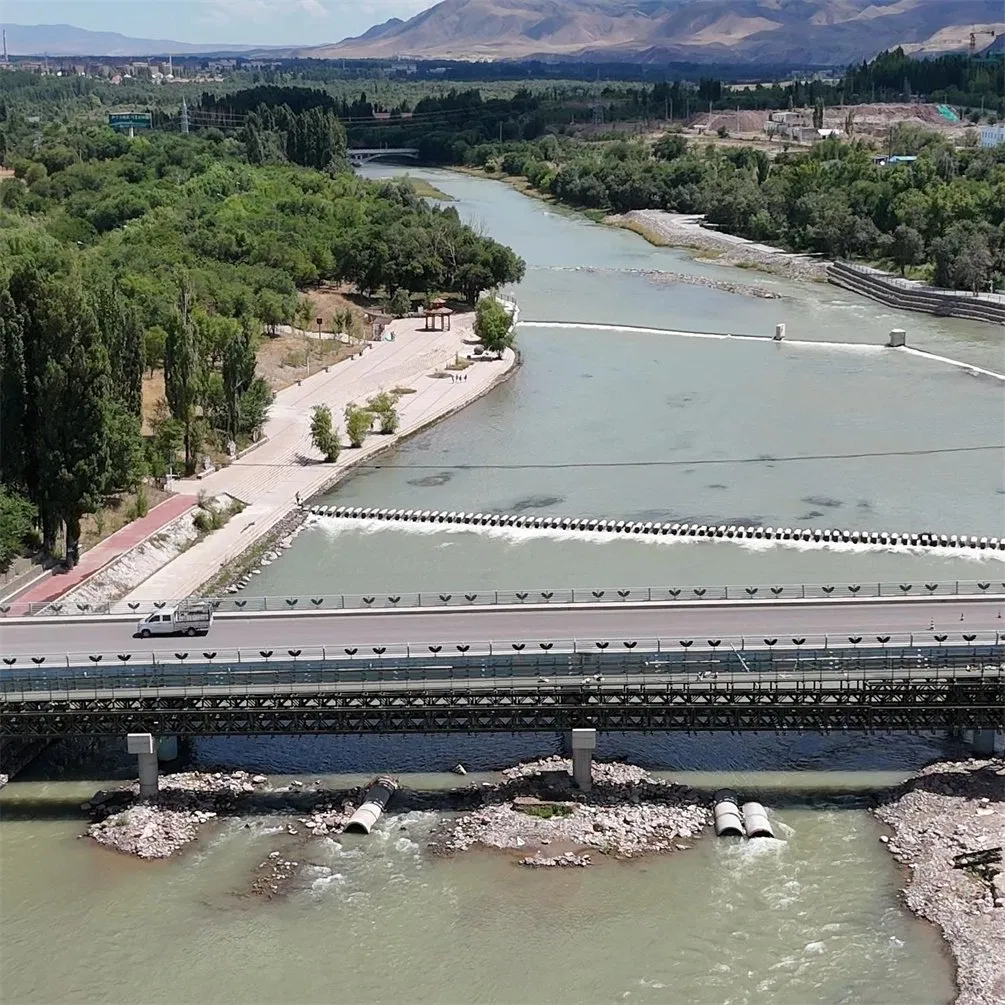

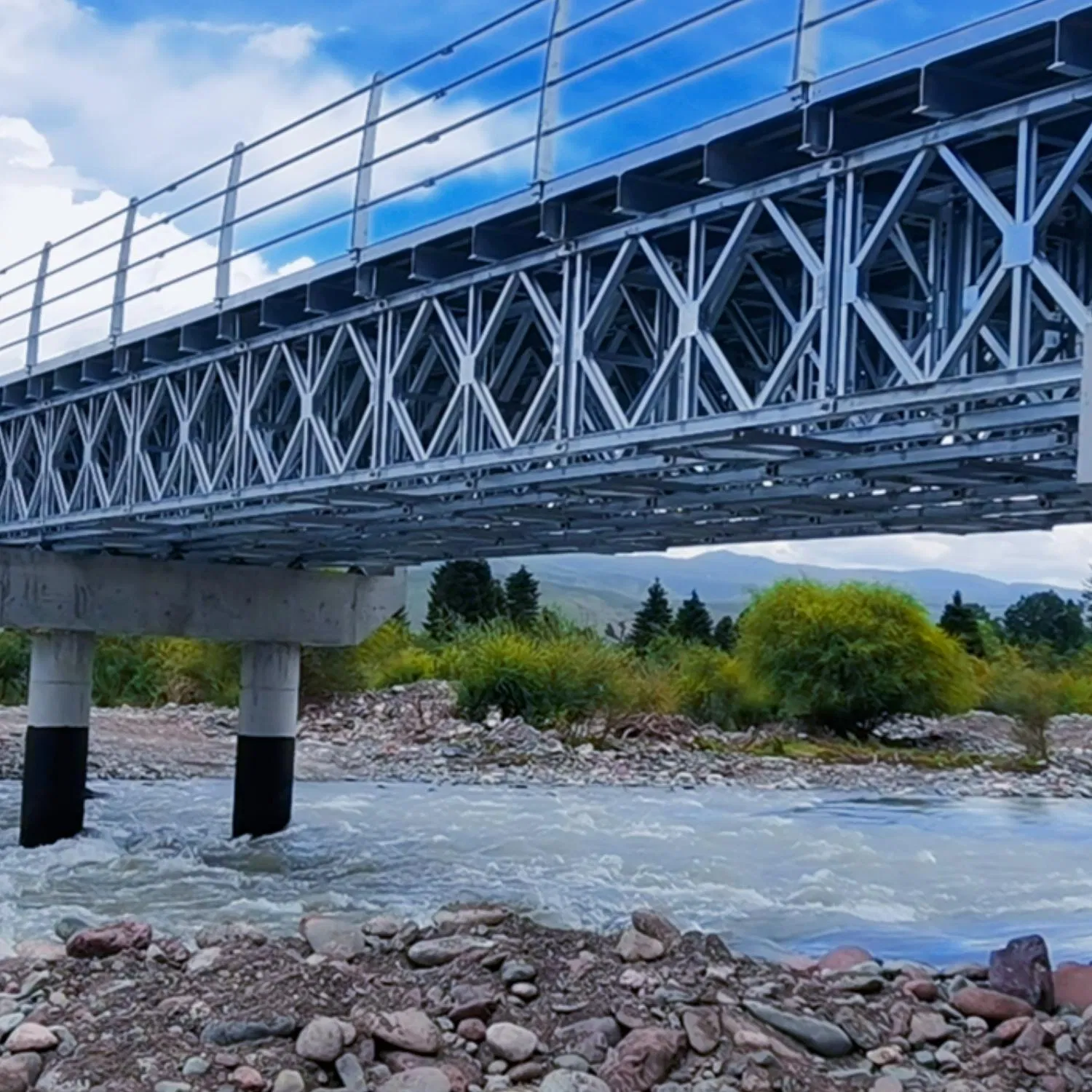

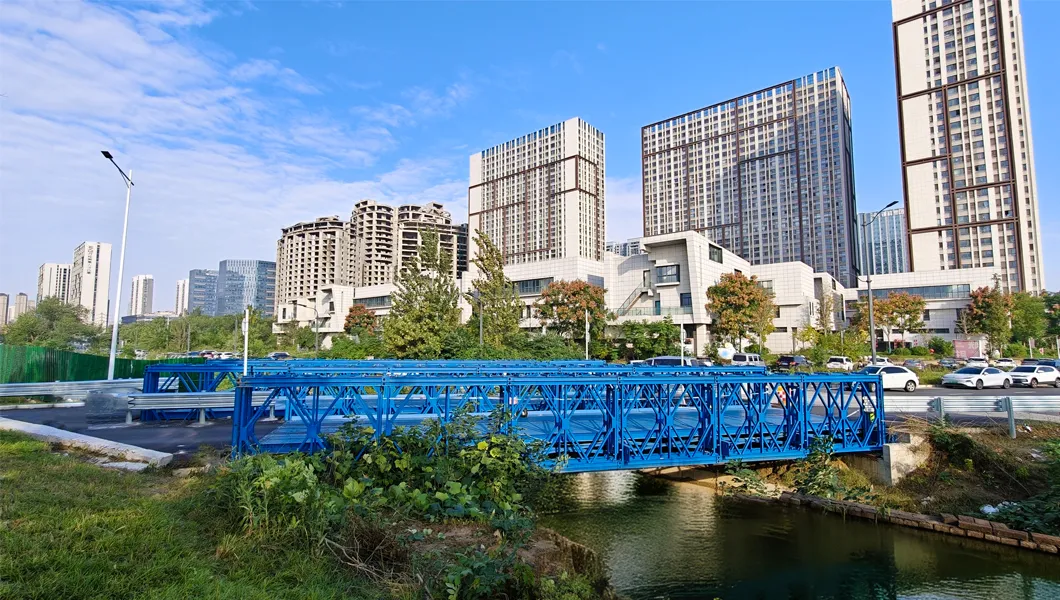

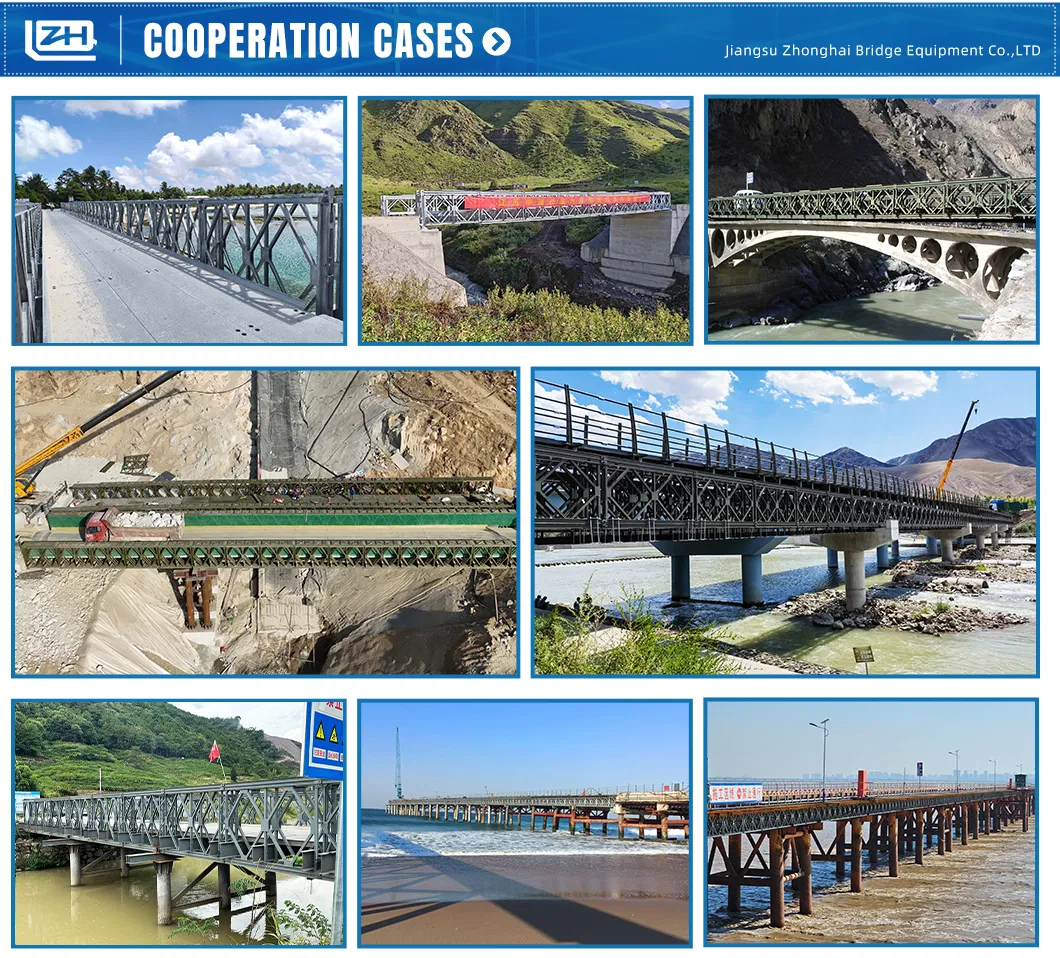

Our project footprint covers dozens of countries, including successful steel bridge installations in the Maldives, Malaysia (106m span), Philippines, Cambodia (Sky Villa Project), Pakistan, Russia (fully galvanized), Canada, and South Africa. We pride ourselves on delivering robust engineering for diverse geographical environments.
