10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
1 / 5
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System
10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System

10.1inch Touch Screen 4K 5MP IP68 Underwater Marine Diving Inspection Camera System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.:RD100S+M2C2305-100
Type:Video Camera
Sensor:CMOS
HDMI Format:MP4
Resolution:5MP HD
Certification:CE, FCC, RoHS
Effective Distance:≧30m
Sensor Size:1/3 inch
Camera Cable:100m (4.2mm Diameter)
View Angle:140 Degree
Monitor:10.1" Touch Screen
Storage:64GB Default (Up to 256GB)
Housing:316L Stainless Steel
Battery:6200mAh x 2

Product Description

💎 10.1" Touch Screen 4K 5MP IP68 Underwater System

The M2C2305+RD100S is a professional-grade underwater inspection system featuring a high-definition 4K touch screen monitor and a 316L stainless steel camera. Designed for contractors and technicians, it excels in pipe, sewer, and deep-well inspections.

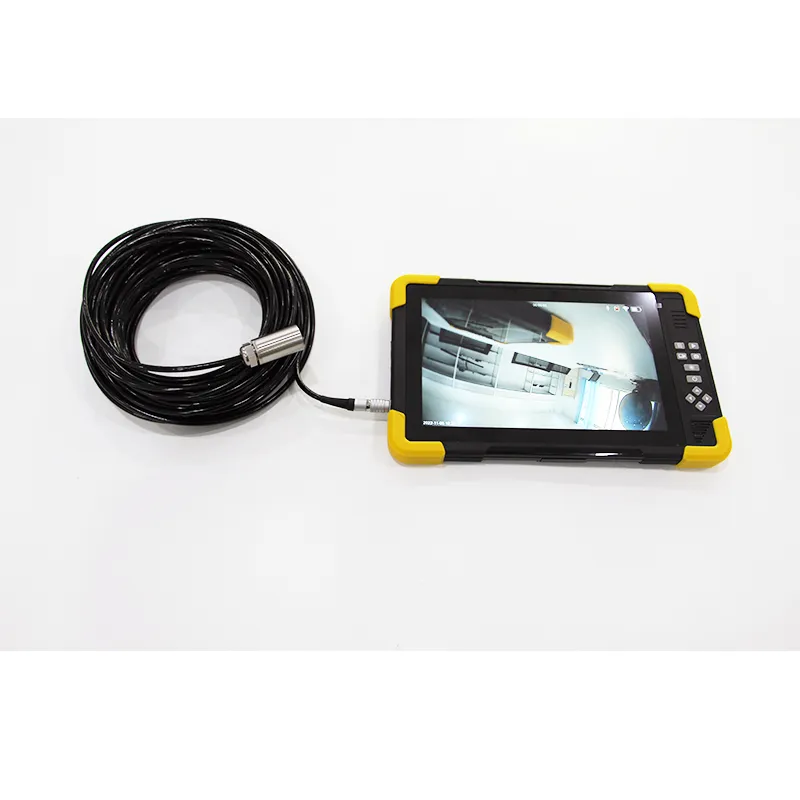

Inspection Camera System Overview

Key System Advantages

  • ✔ High Resolution: 5MP Sony Sensor with 4K recording capabilities.
  • ✔ Superior Lighting: 12 LEDs with 8-grade brightness control.
  • ✔ Extreme Durability: IP68 waterproof rating, withstanding up to 200m water pressure (2MPa).
  • ✔ Advanced Functionality: 10x Digital Zoom, image flip, photo notes, and WiFi transmission.

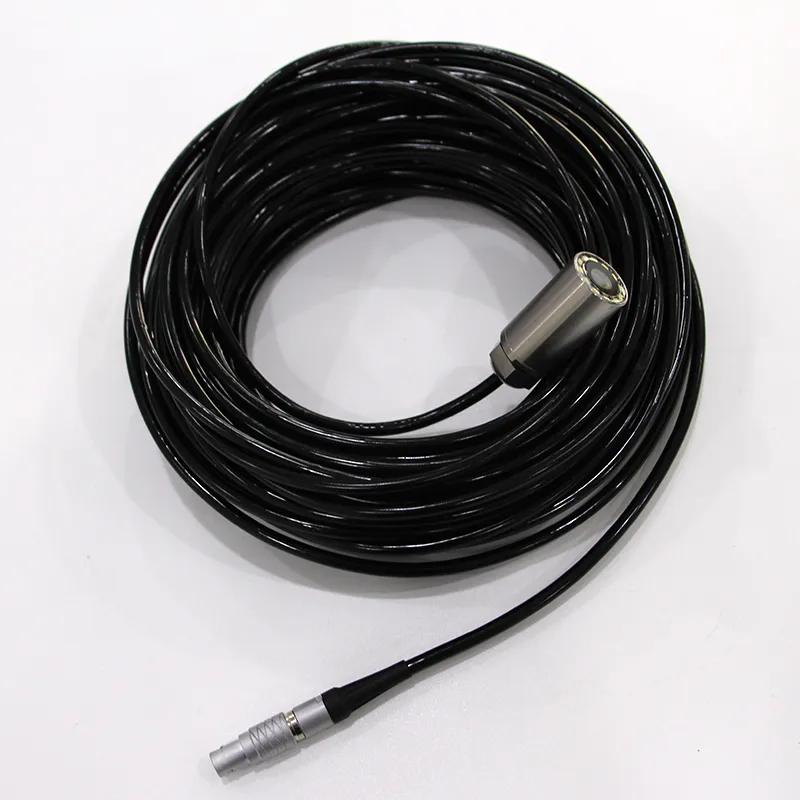

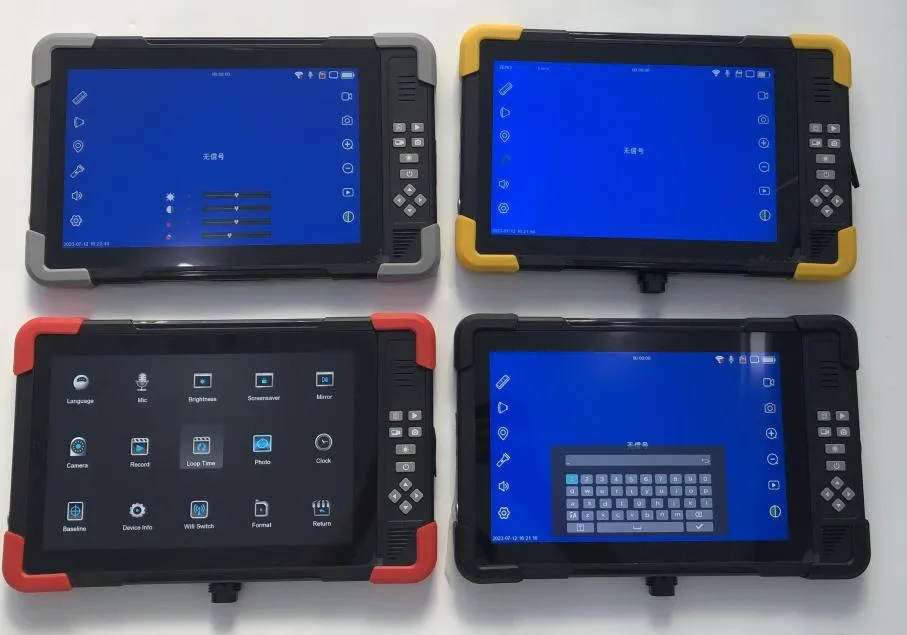

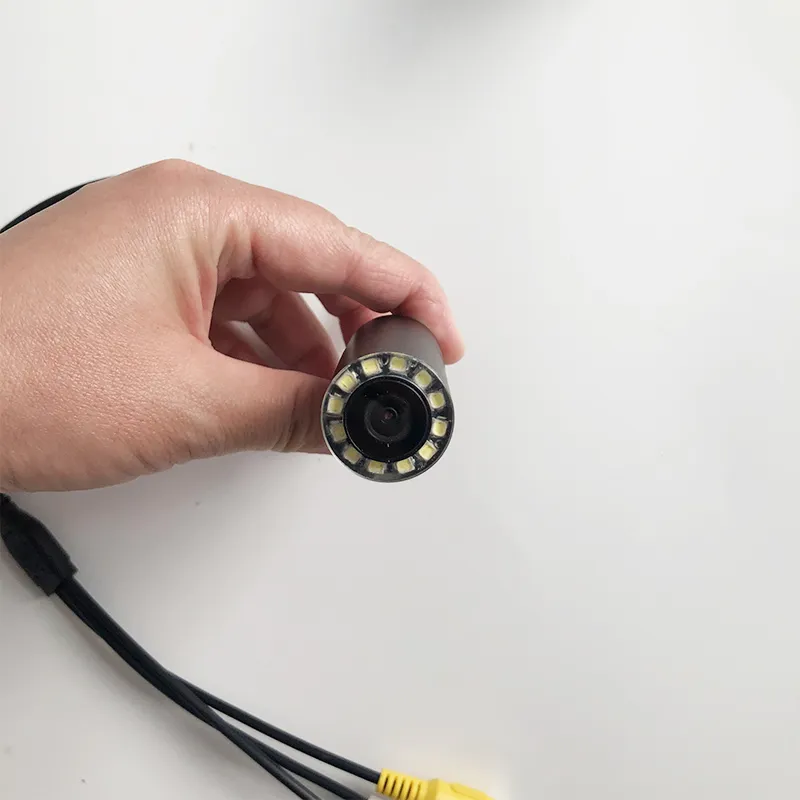

Underwater Camera Detail Cable Reel and Stability Monitor Interface

Technical Specifications

Underwater Camera
Image Sensor5MP SONY Image Sensor
View Angle140°
Light Source12 pcs Adjustable LEDs
Min. Illumination0.0001Lux/F1.2
Waterproof RateIP68
Dimension23mm * 53mm
DVR Monitor
Screen Size10.1 inch LCD Touch Screen
Resolution1280 * 800 pixel
Video CompressionH.264+
ConnectivityWiFi 802.11 a/b (2.4GHz)
Battery Life6500mAh (Working time ≥ 5 hours)
Weight865g

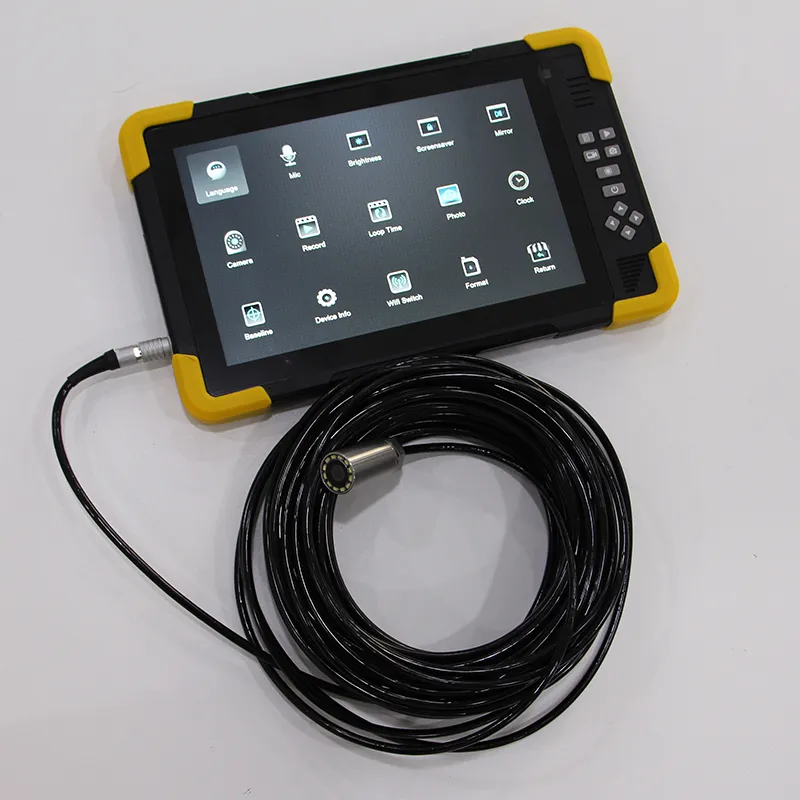

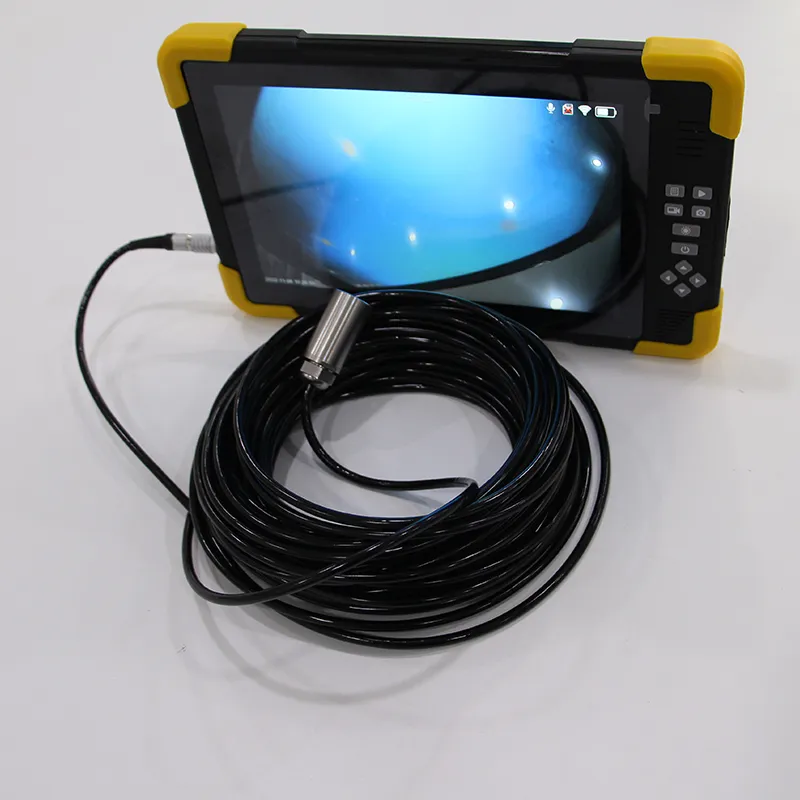

System Components Field Application Dimensions

Frequently Asked Questions

❓ What is the maximum depth this camera can operate in?
The camera is rated IP68 and can withstand water pressure up to 2MPa, allowing it to work reliably at depths of up to 200 meters.
❓ Does the system support wireless viewing on mobile devices?
Yes, the monitor supports WiFi wireless transmission. You can view the live feed on your mobile device via a dedicated APP.
❓ Can I record videos and take photos simultaneously?
Absolutely. The system supports 4K/2K video recording and 12MP high-resolution photography with the ability to add notes to photos.
❓ How long does the battery last on a full charge?
The system is equipped with dual 6200mAh (or 6500mAh) exchangeable Li-batteries, providing more than 5 hours of continuous operation.
❓ Is the camera housing resistant to corrosion?
Yes, the camera housing is made of 316L Stainless Steel, which provides excellent anti-corrosion properties for marine and saltwater environments.
❓ What is the maximum storage capacity supported?
The monitor supports TF cards from 2GB up to 256GB. A 64GB card is typically included as the default storage.
