| Model NO. | MCIL |
| Gender | Male |
| Certification | RoHS, CE, ISO9001 |
| Application | Power |
| Working Depth | 7000 Meters |
| Insulation Resistance | > 200 Mohm |
| Wet Matings | > 500 (Open Face Rated) |
| Temperature Rating (Water) | -40 to 60˚C |
| Qualified Pressure Tested | 800 Bar, 11.600 Psi |
| Connector Body | Chloroprene Rubber |
| Bulkhead Body | Brass, Stainless Steel, Titanium, Anodised Alumi |
| O-Rings | Nitrile |

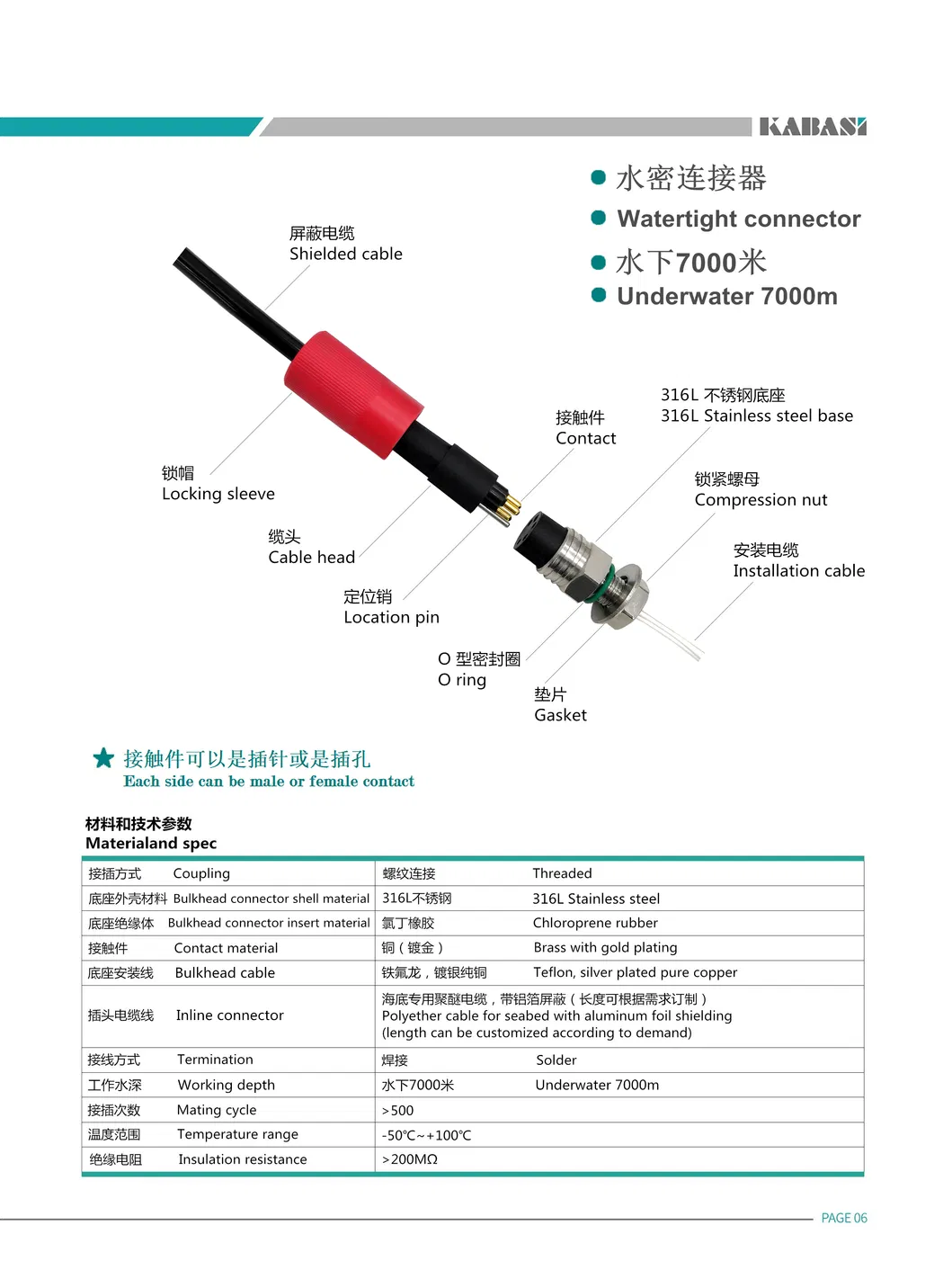

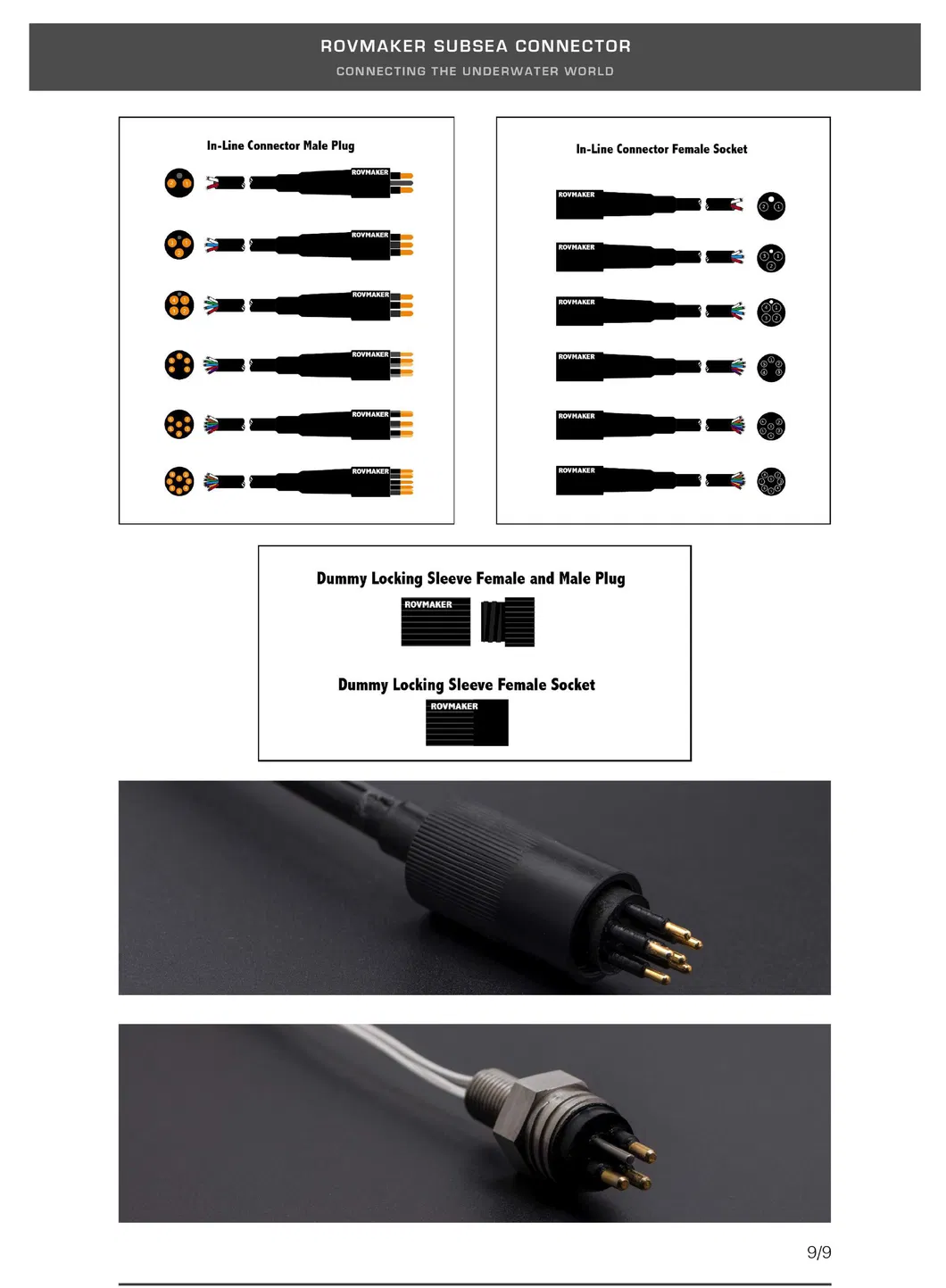

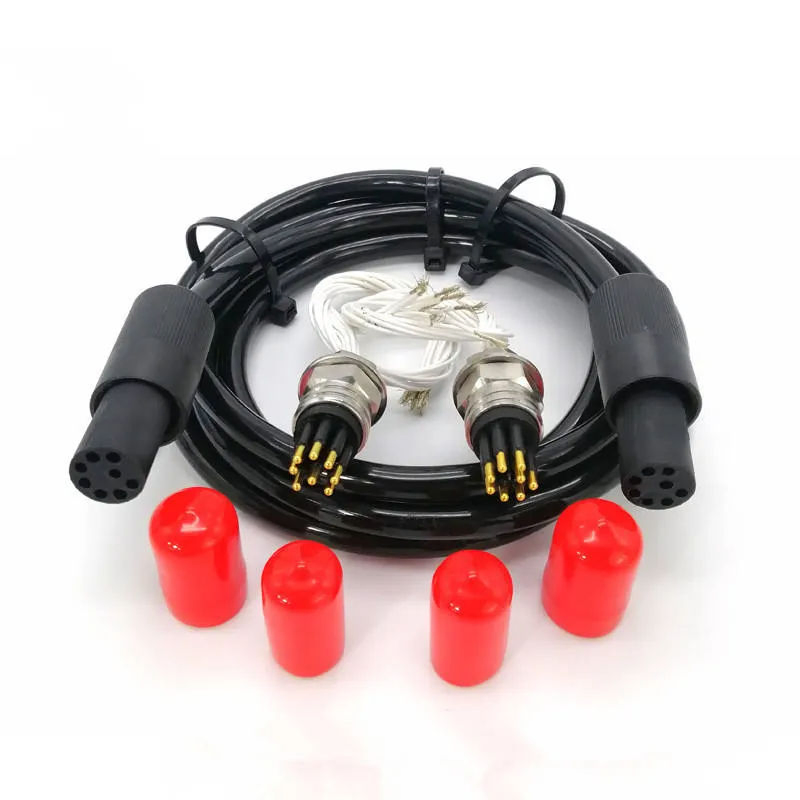

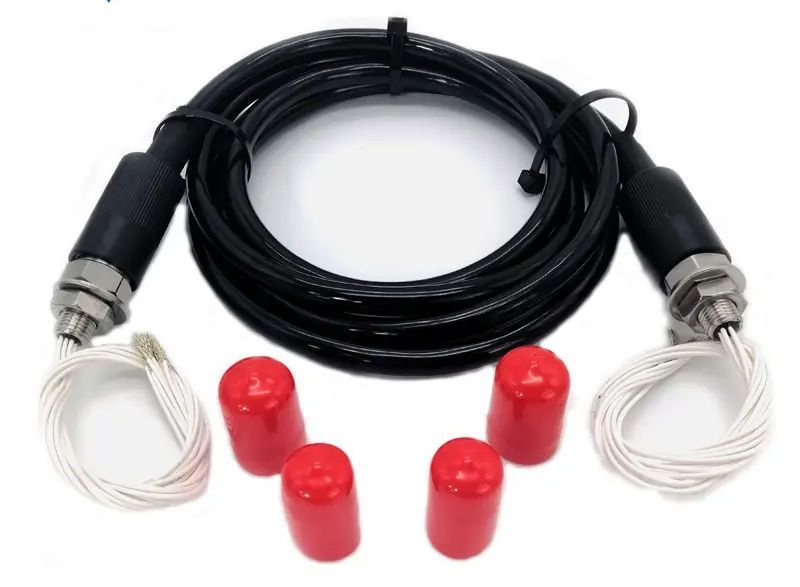

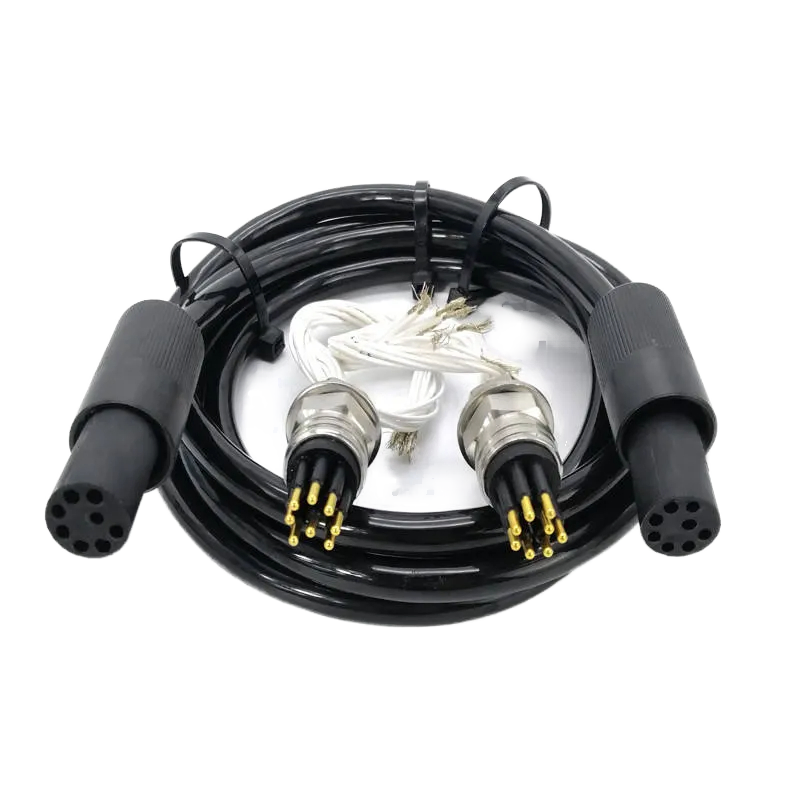

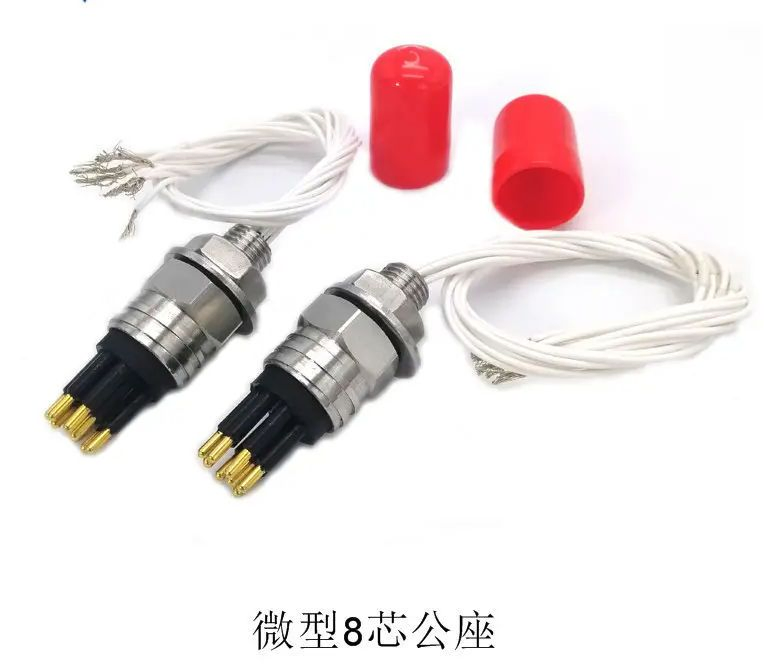

| Product Name | Subconn circular 2 3 4 5 6 8 pin micro straight cable plug MCDC2M male electric plug connector |
| Depth | 7000 m |
| Resistance | 200 m Ω - 199.9 |

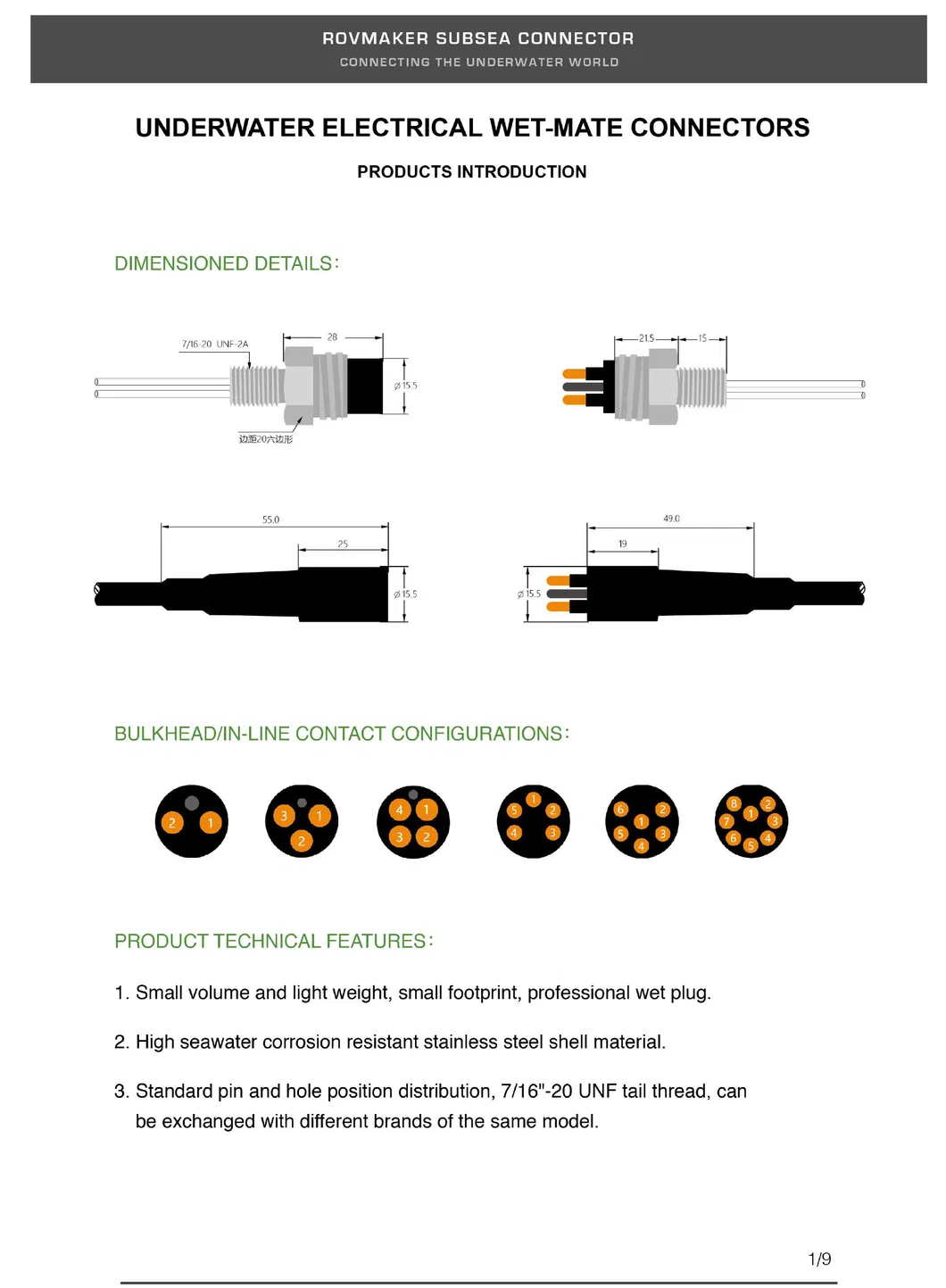

| Mounting thread | 7/16-20unf |
| AC withstand voltage | 800 AC |
| Operating temperature | (-50-100°) |

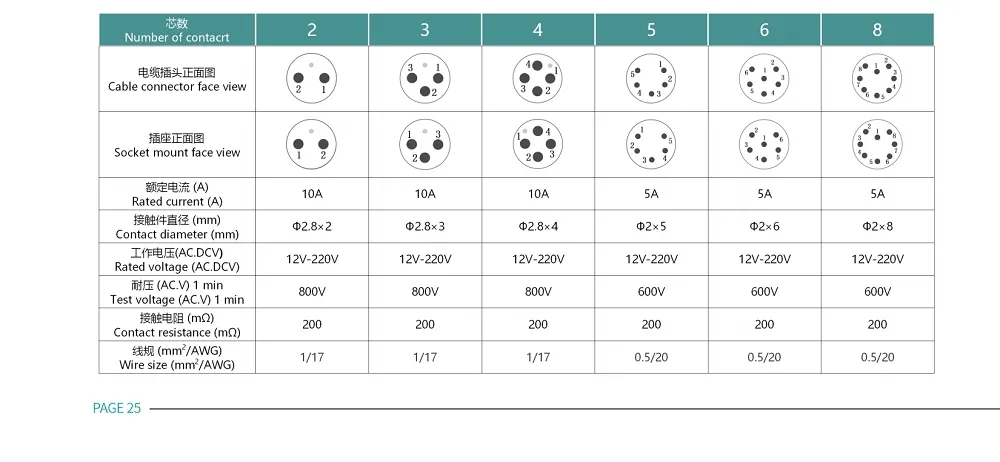

| 2-4 core current | single core 10A |
| 5-8 core current | single core 5A |

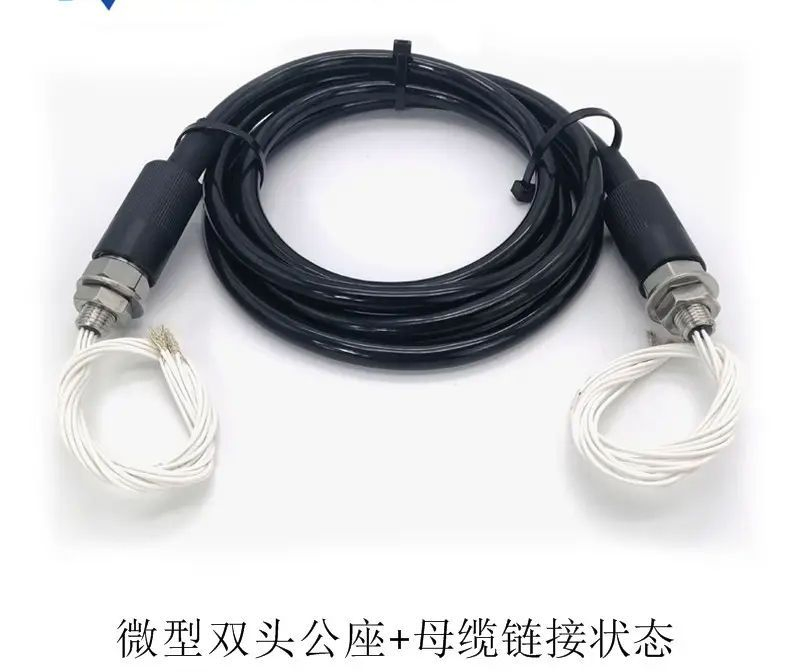

Watertight 400m depth underwater IP68 IP69K plug
Installation requirements: within the range of 25mm diameter around the mounting screw hole, the end face roughness is above Ra1.6
Note: Be sure to wipe the conductive silicone oil before plugging and unplugging. When pulling out, pull out straight, do not twist left and right, do not pull the cable directly, the cable should avoid acute corner bending.

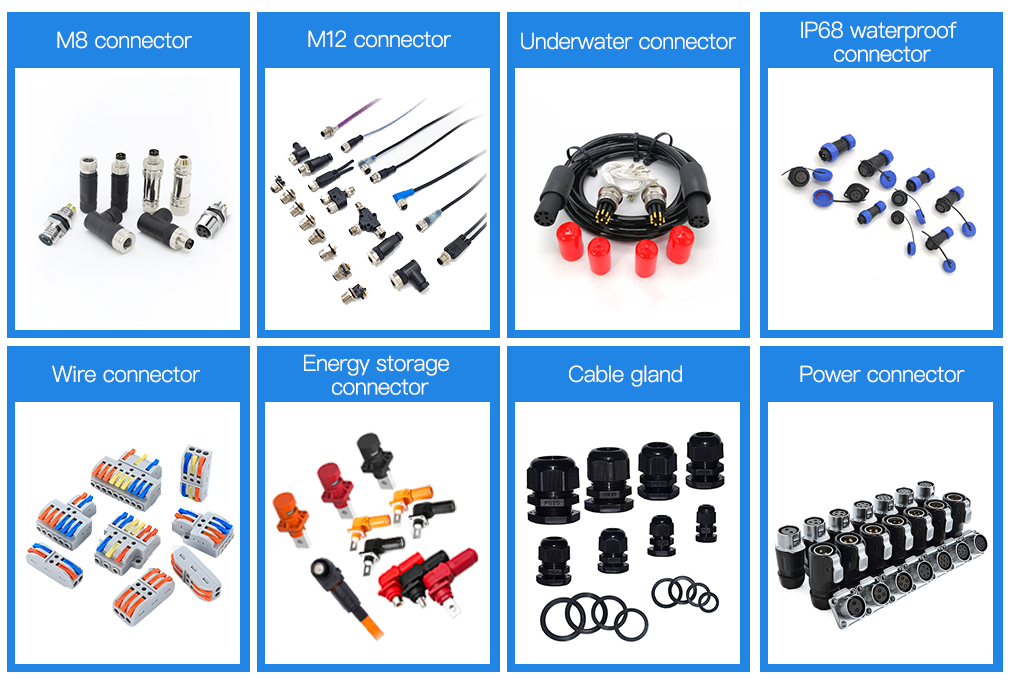

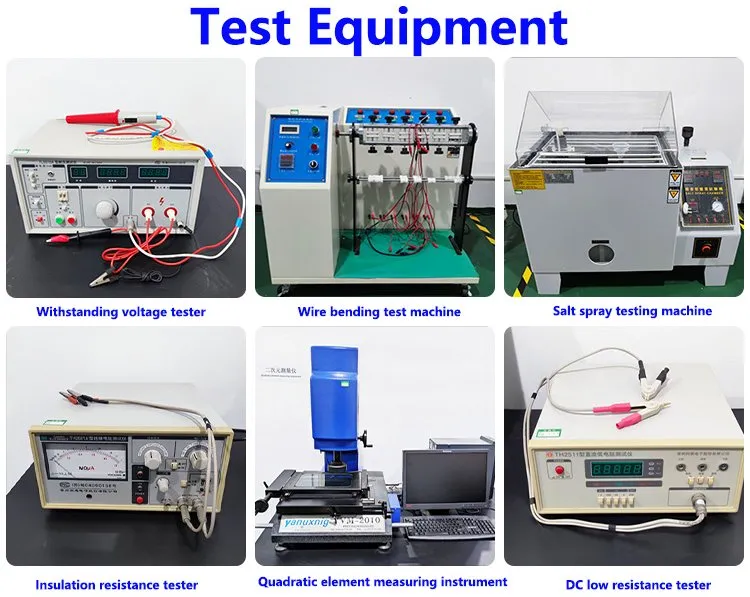

Equipped with advanced and complete production equipment and testing tools, our team focuses on delivering high-tech connection solutions. We produce a wide range of circular connectors, waterproof connectors, underwater connectors, and heavy-duty connectors, ensuring all designs meet international technical standards.
| Package Size | 11.00cm * 8.00cm * 3.00cm |
| Package Gross Weight | 0.200kg |
| Transport Package | Standard Export Carton |
