The machines are designed by using the "toy bricks" principle. The screw configuration, barrel setup, L/D or mode of feeding and venting, screen changing, way of granulating, and the control mode can be optimally adjusted according to different material properties and requirements.

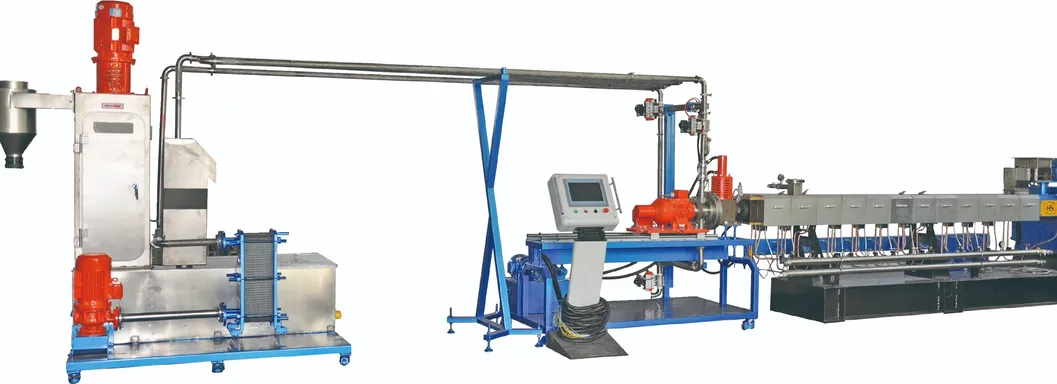

Co-rotating parallel twin-screw extruder is widely used in general plastic, engineering plastic and thermal plastic rubber polymer materials for filling, reinforcing, toughening, blending modification, and special fiber or adhesive processing.
| Mode | Diameter (mm) | L/D | Speed (r/min) | Power (kw) | Capacity (kg/h) |
|---|---|---|---|---|---|
| TSE-20 | 22 | 32-44 | 600 | 5.5 | 0.5-10 |
| TSE-30A/B | 31 | 32-48 | 500-600 | 11-15 | 5-40 |
| TSE-35A/B | 35.6 | 32-52 | 600-800 | 15-22 | 30-70 |
| TSE-40A/B | 41 | 32-64 | 400-600 | 22-30 | 100-160 |
| TSH-40B | 41 | 32-52 | 600 | 45-55 | 150-220 |
| TSE-50A/B | 50.5 | 32-52 | 500 | 45-55 | 180-270 |
| TSE-65B/C | 62.4 | 32-64 | 600 | 90-110 | 250-400 |
| TSH-65B | 62.4 | 32-64 | 600-800 | 110-160 | 350-500 |
| TSE-75B/C | 71 | 32-64 | 600 | 132-160 | 350-600 |
| TSE-95A/B | 93 | 32-64 | 500-600 | 250-315 | 600-1200 |
| TSE-135A | 133 | 32-64 | 500 | 550 | 1500-2250 |

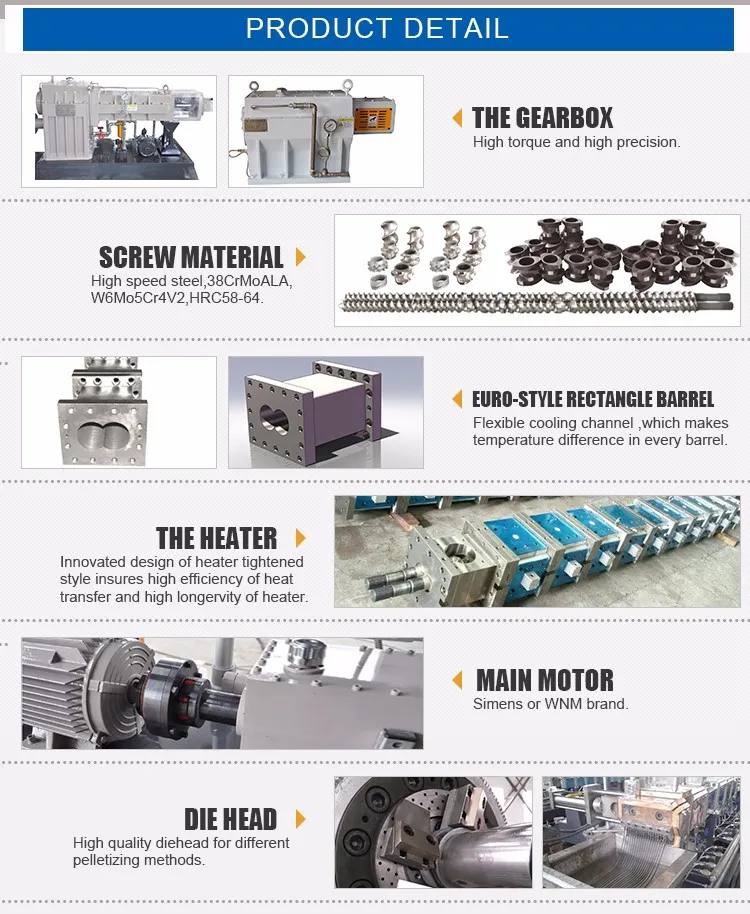

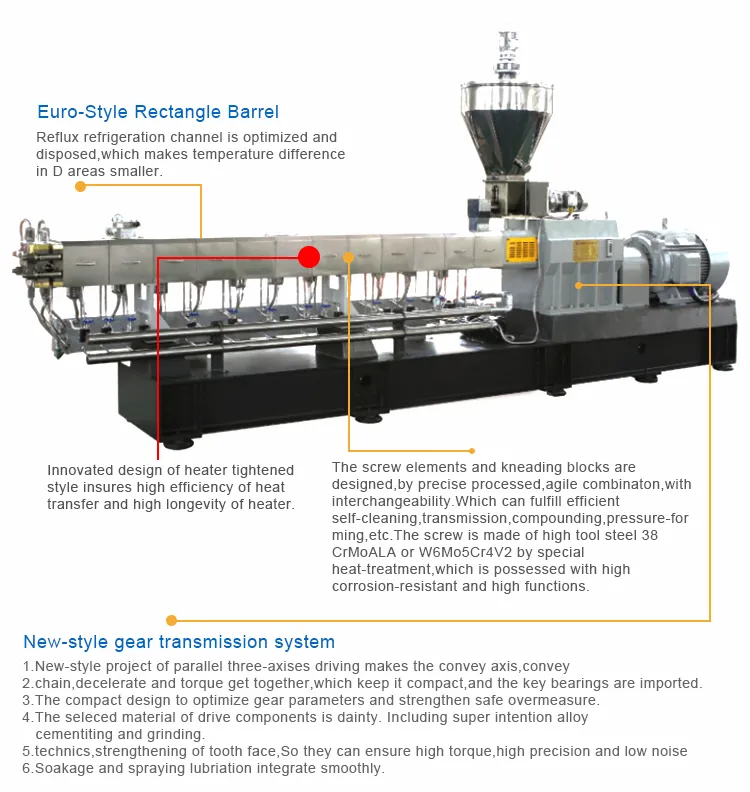

New-style project of parallel three-axis driving makes the convey axis, chain, and torque assignment get together, keeping it compact. High torque, high precision, and low noise are ensured by gear grinding technics and strengthening of tooth face. Hydraulic circuit alarms when over-pressed.
Equipped with single screw, twin screw, hollow screw, forced-feeding, side feeding, and liquid-adding systems to meet various material needs.
Screw elements and kneading blocks are designed for agile combination and interchangeability. Made of high tool steel 38CrMoALA or W6Mo5Cr4V2 with special heat treatment for efficient self-cleaning and compounding.
Eurostyle rectangle barrel with optimized reflux refrigeration. Innovated heater style ensures high efficiency of heat transfer and long longevity.

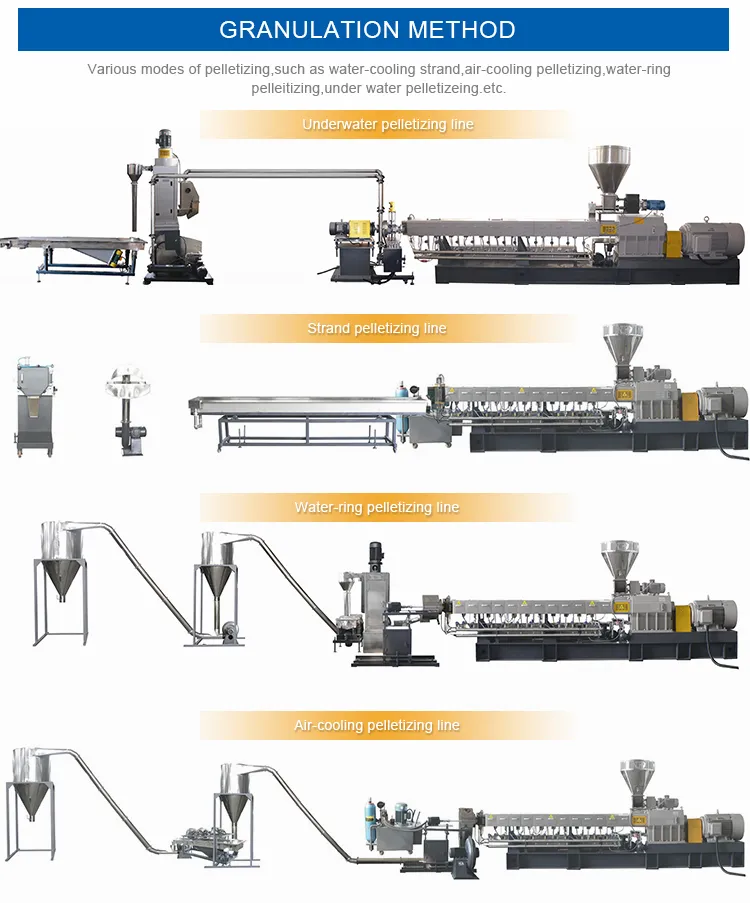

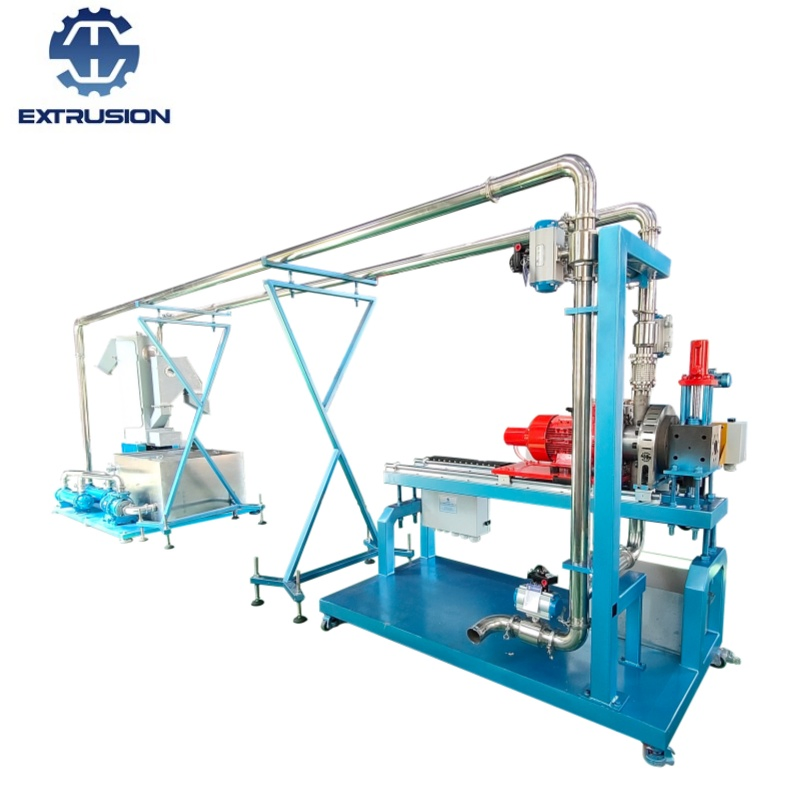

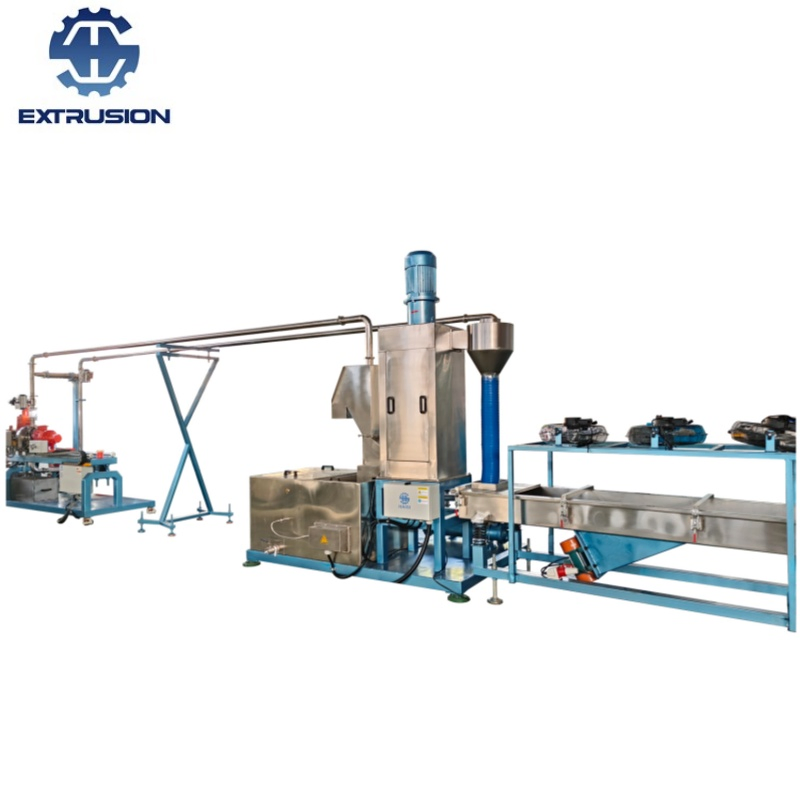

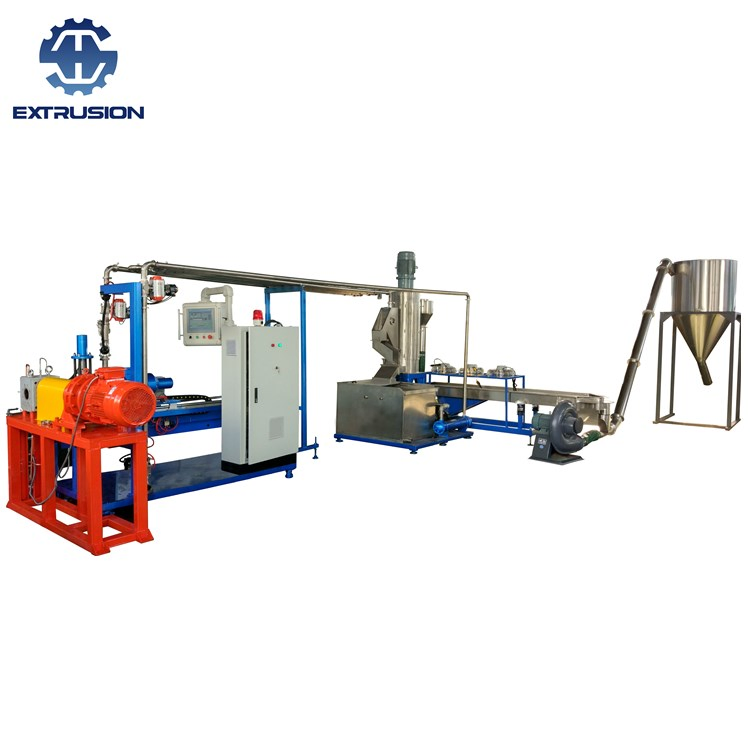

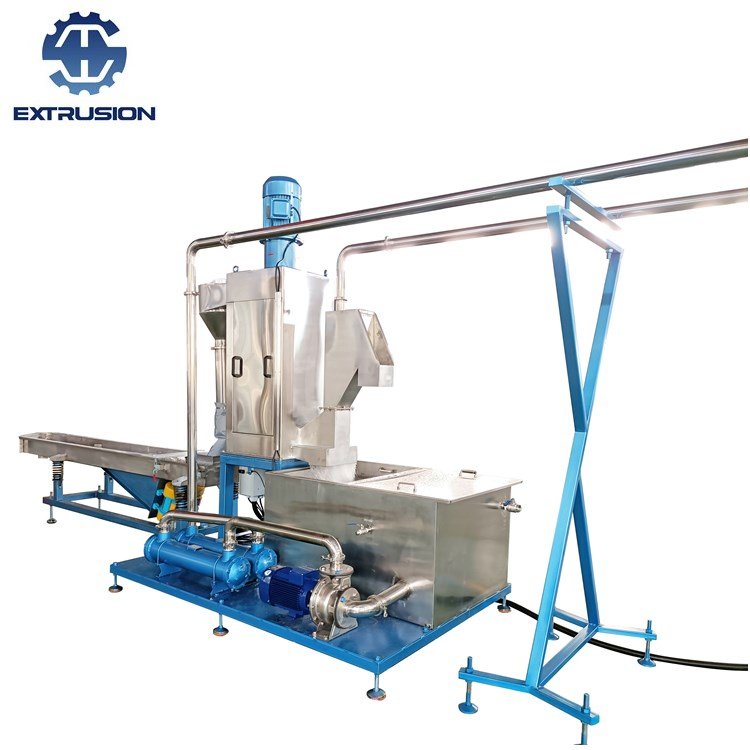

Various modes available: water-cooling strand, air-cooling pelletizing, water-ring pelletizing, and under-water pelletizing.
