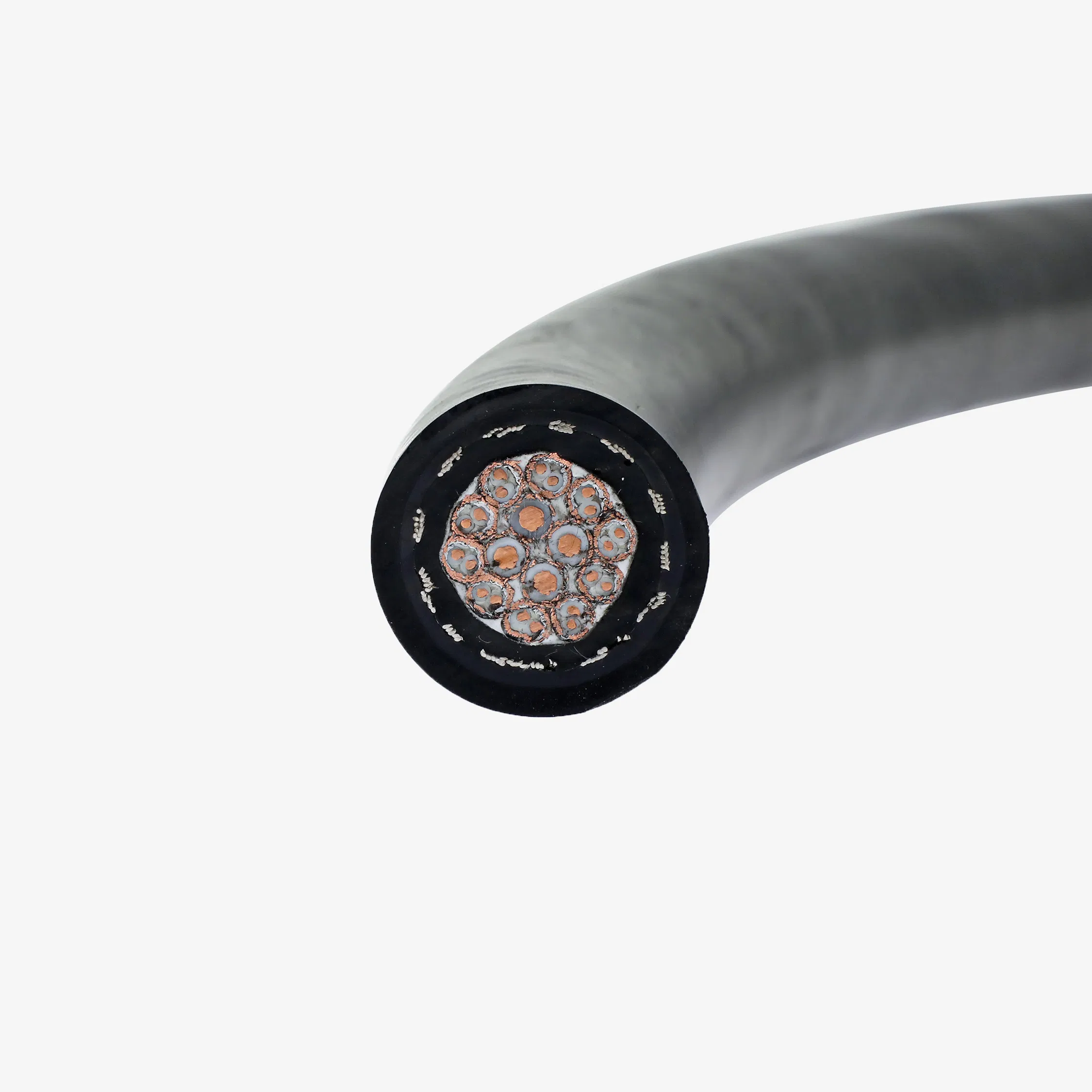

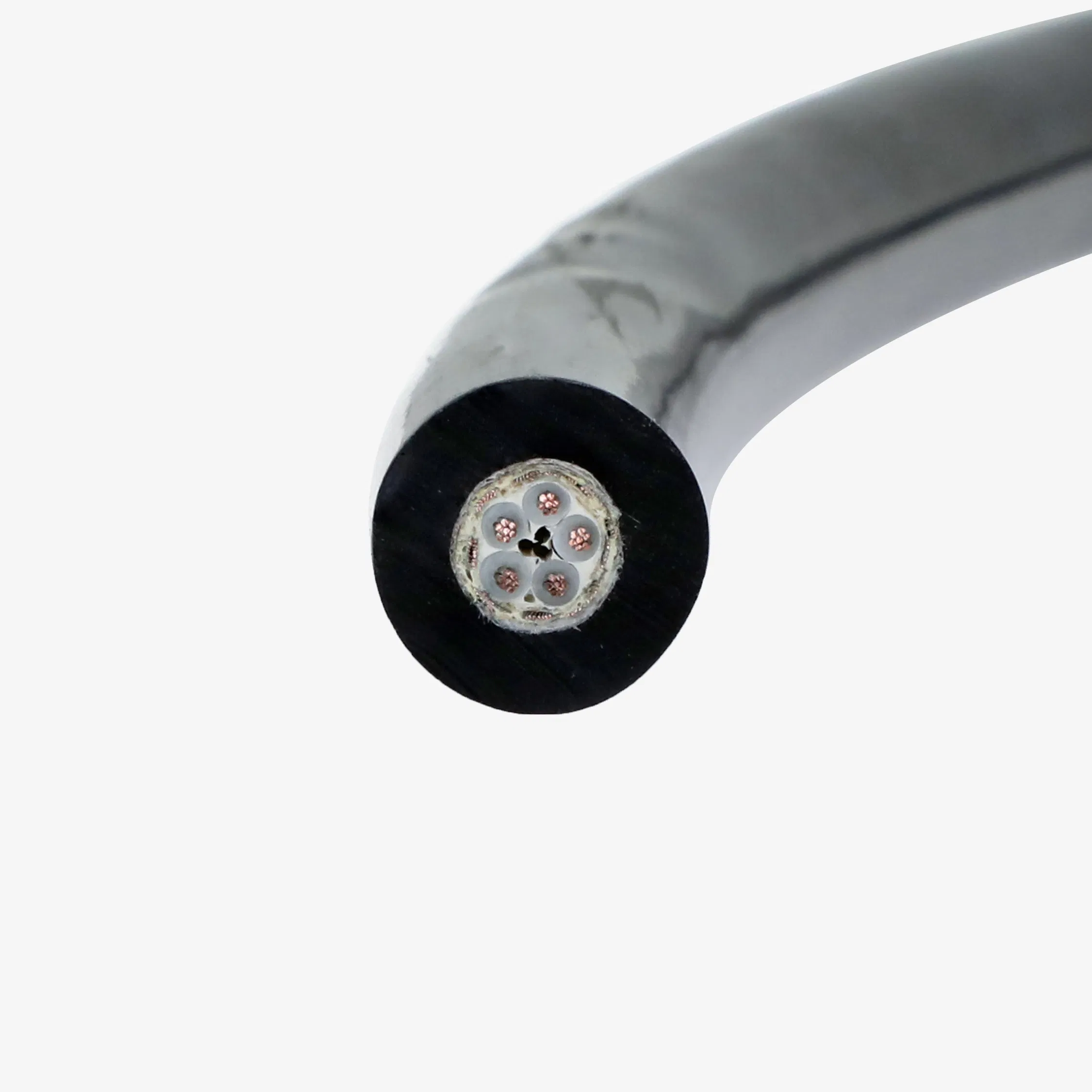

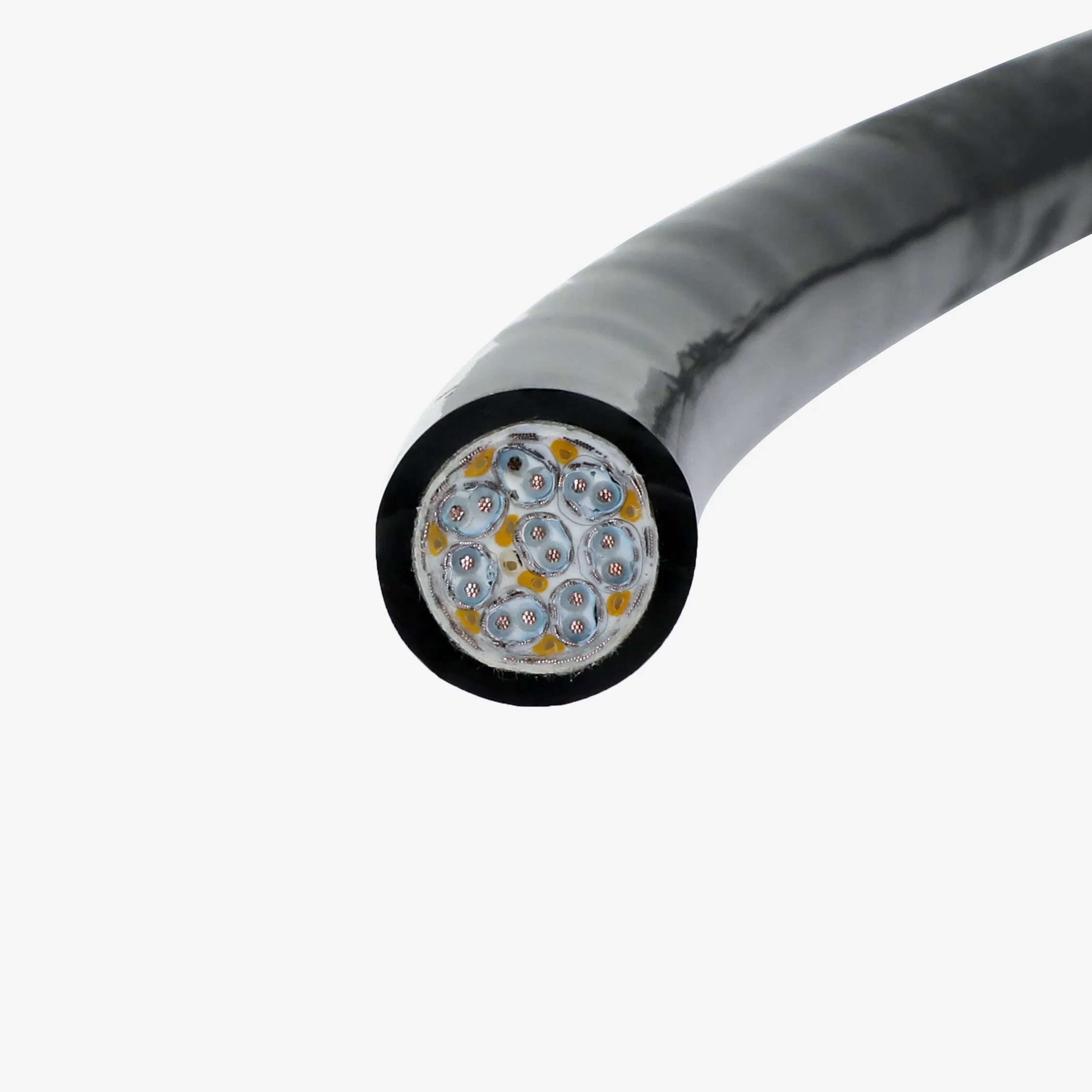

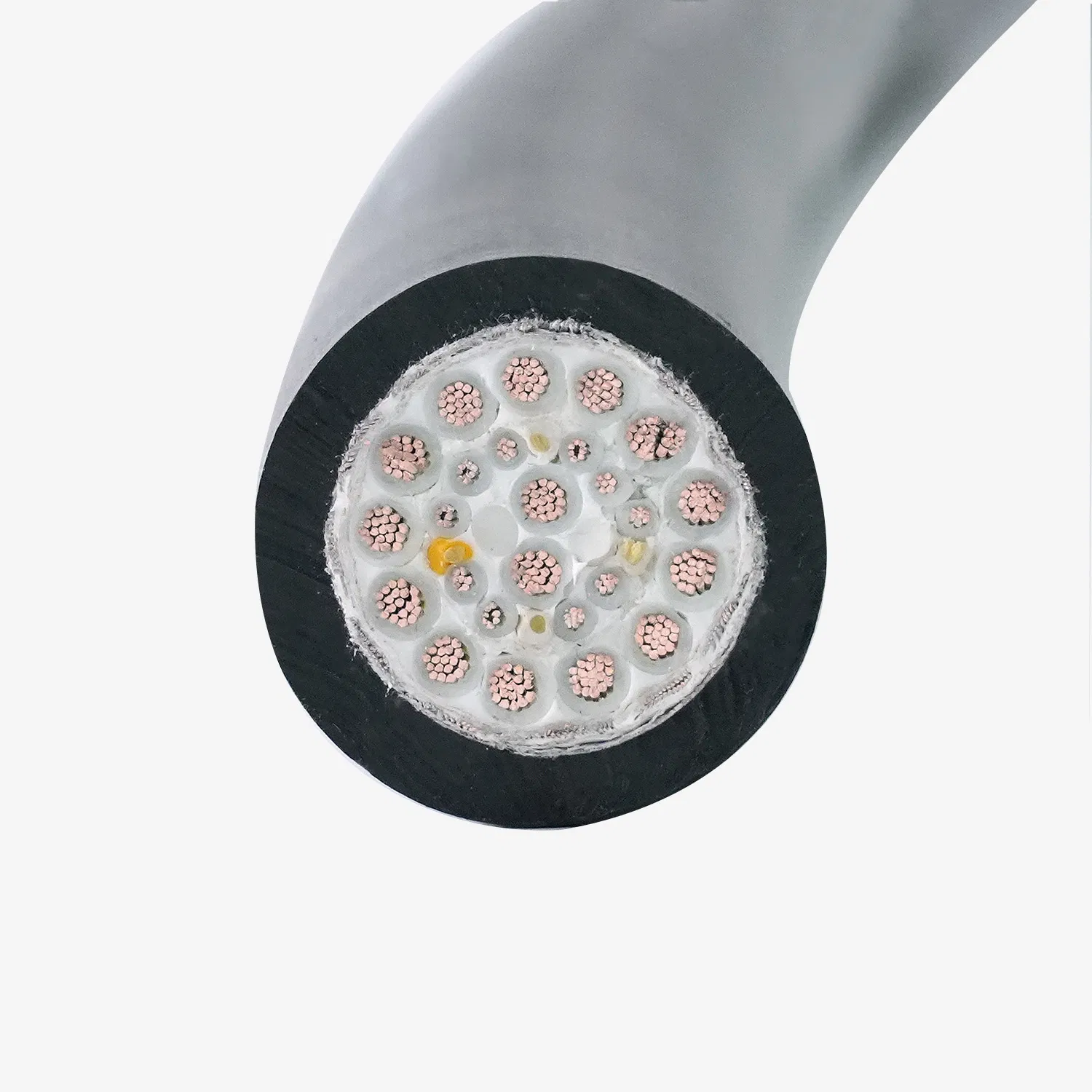

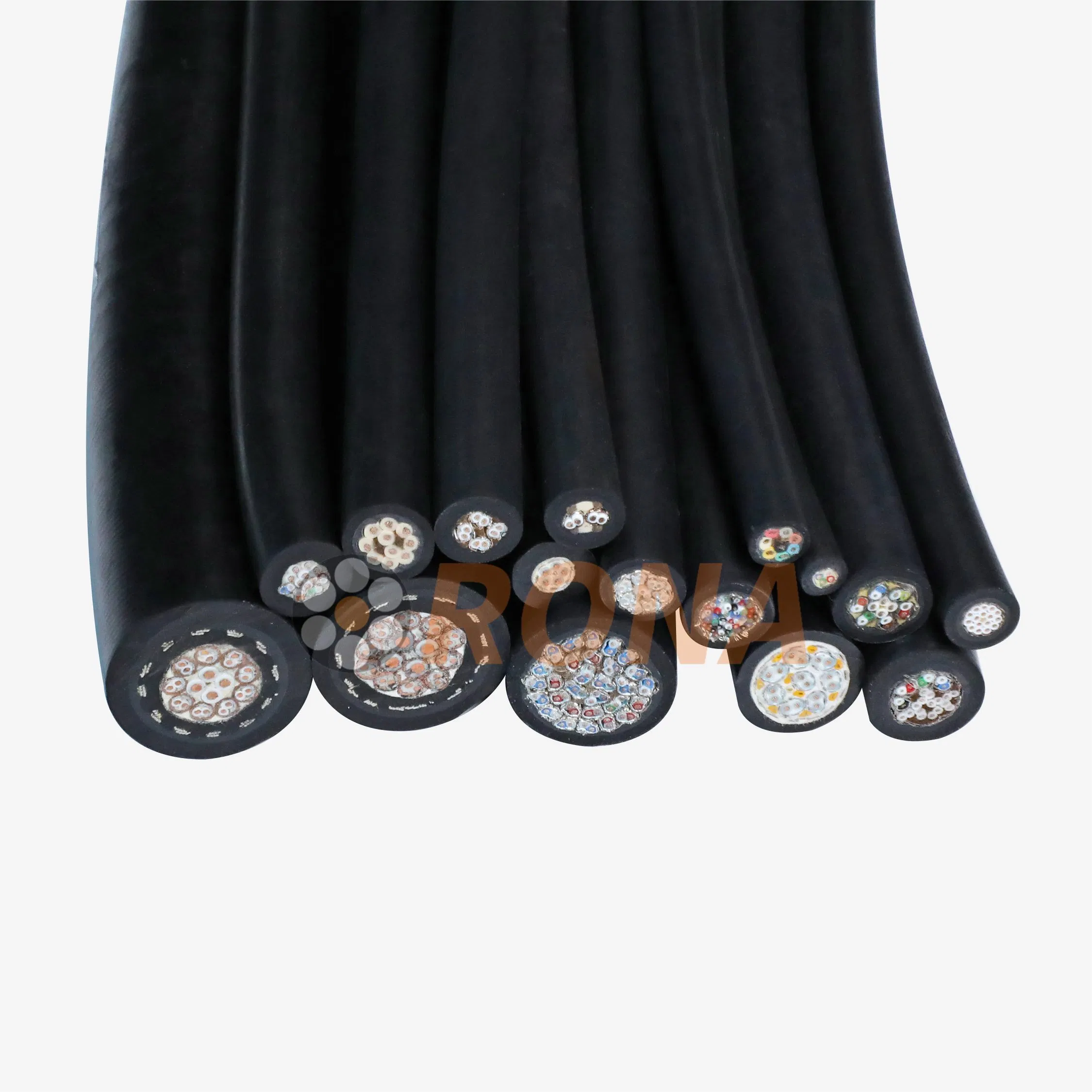

Our high-performance Transverse and Longitudinal Watertight Cables are engineered to provide unfailing power and data transmission in the world's most unforgiving environments. Designed to withstand extreme hydrostatic pressure and corrosive seawater, these cables are the lifeline for critical subsea and offshore operations.
With a dual-seal design—longitudinal water-blocking to prevent moisture migration along the cable core and transverse water-tightness to resist radial pressure—these cables guarantee operational integrity even in the event of jacket damage.
| Parameter | Standard Value |
|---|---|
| Voltage Rating | Control cable: 300/500V | Power cable: 0.6/1KV |
| Temperature Range | Fixed: -40ºC to 90ºC | Moving: -35ºC to 90ºC |
| Minimum Bend Radius | Fixed: 5x Outer Diameter | Movable: 10x Outer Diameter |
| Flame Retardant | Compliant with IEC 60332-1 |
| Resistant Properties | Water resistance, UV resistance, Temperature change resistance |
| Core Configuration | Nominal Cross Section (mm²) |
|---|---|
| 1 to 64 Cores | 0.25, 0.35, 0.5, 0.75, 1.0, 1.5, 2.5 |
| Power Cores (1 to 10) | 4, 6, 10, 25, 35, 50, 70, 95 |
| Twisted Pairs (1 to 37) | 2x0.14, 2x0.25, 2x0.34, 2x0.5, 2x0.75, 2x1, 2x1.5 |
