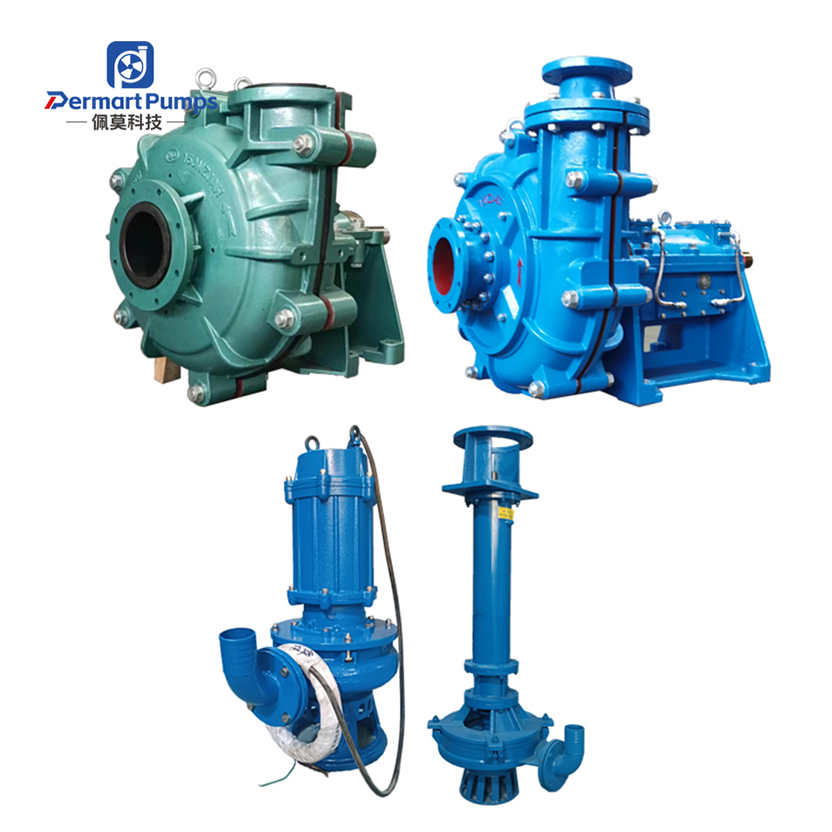

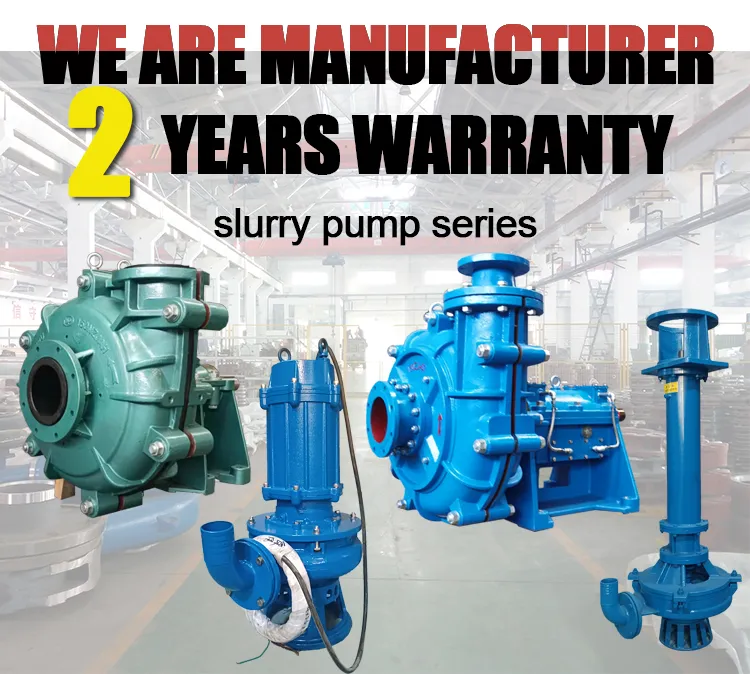

Centrifugal mining slurry pumps are widely used in industry of mining, electrical power, metallurgy, coal, building materials etc for transporting abrasive or corrosive slurry containing solid particles. Mud pump, sand pump, dredge pump, sludge pump, impurity pump and desilting pump all belong to the category of slurry pump.

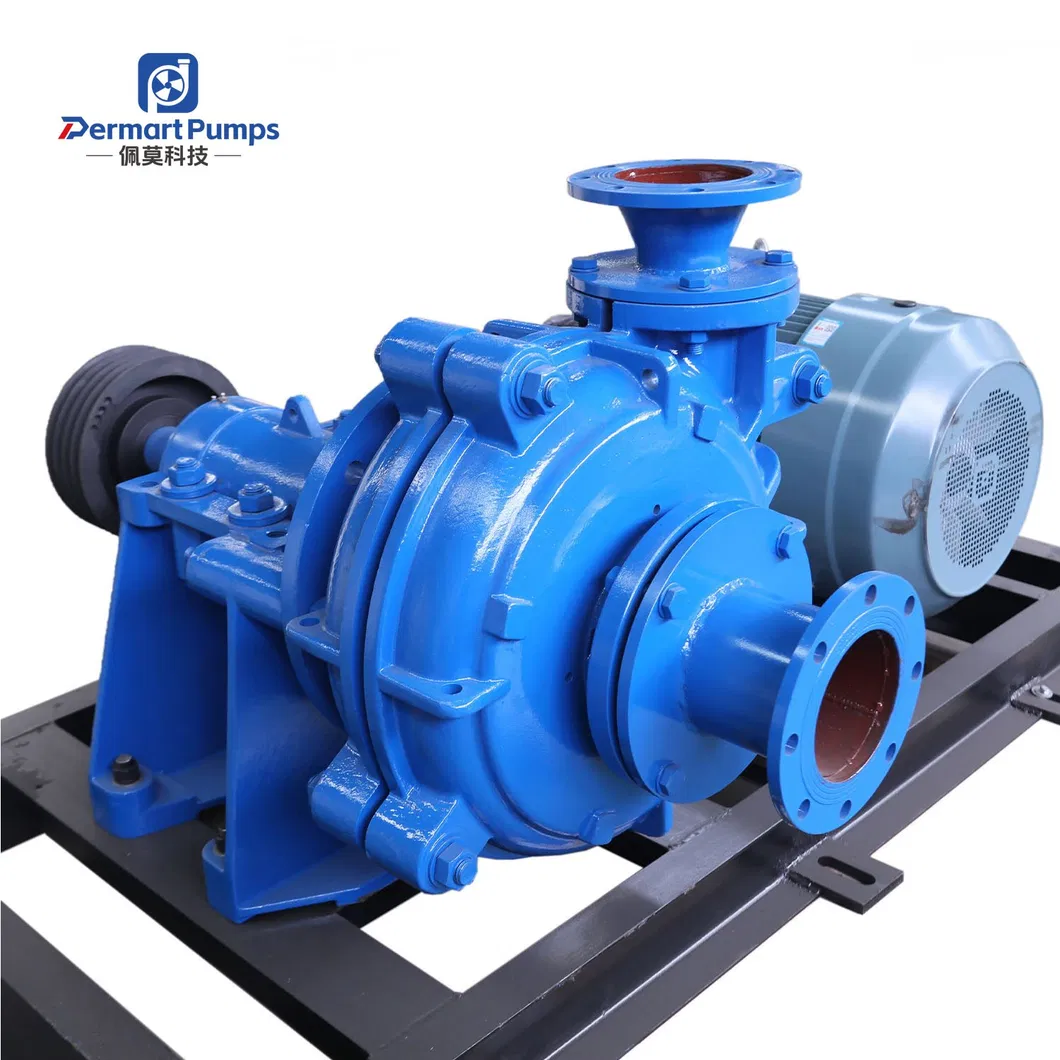

| Model | Power (kw) | Capacity (m³/h) | Head (m) | Speed (r/min) | Efficiency (%) | NPSH (m) |
|---|---|---|---|---|---|---|
| 1.5/1-AHH | 1.5-15 | 3.6-28.8 | 5-69 | 1200-3800 | 20-40 | 2-4 |
| 4/3-AHH | 5.5-60 | 28.8-198 | 5-53 | 800-2200 | 50-74 | 2-6 |
| 8/6-AHH | 11-560 | 126-1274.4 | 5-118 | 400-1140 | 50-72 | 2-10 |
| 20/18-AHH | 1200 | 2520-5400 | 13-57 | 200-400 | 85 | 5-10 |

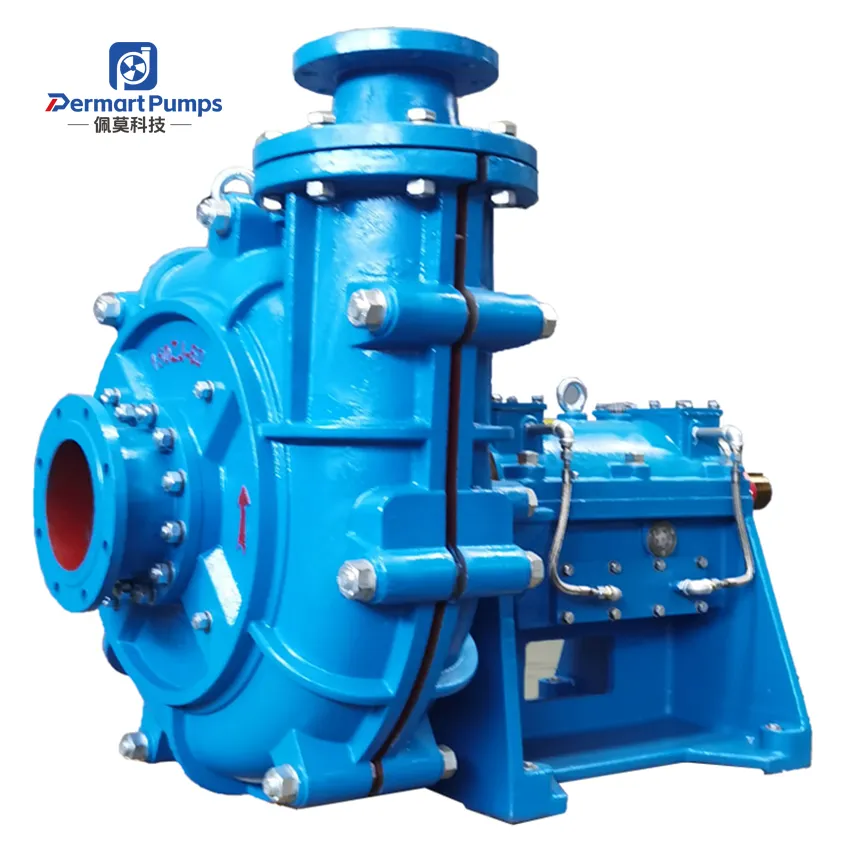

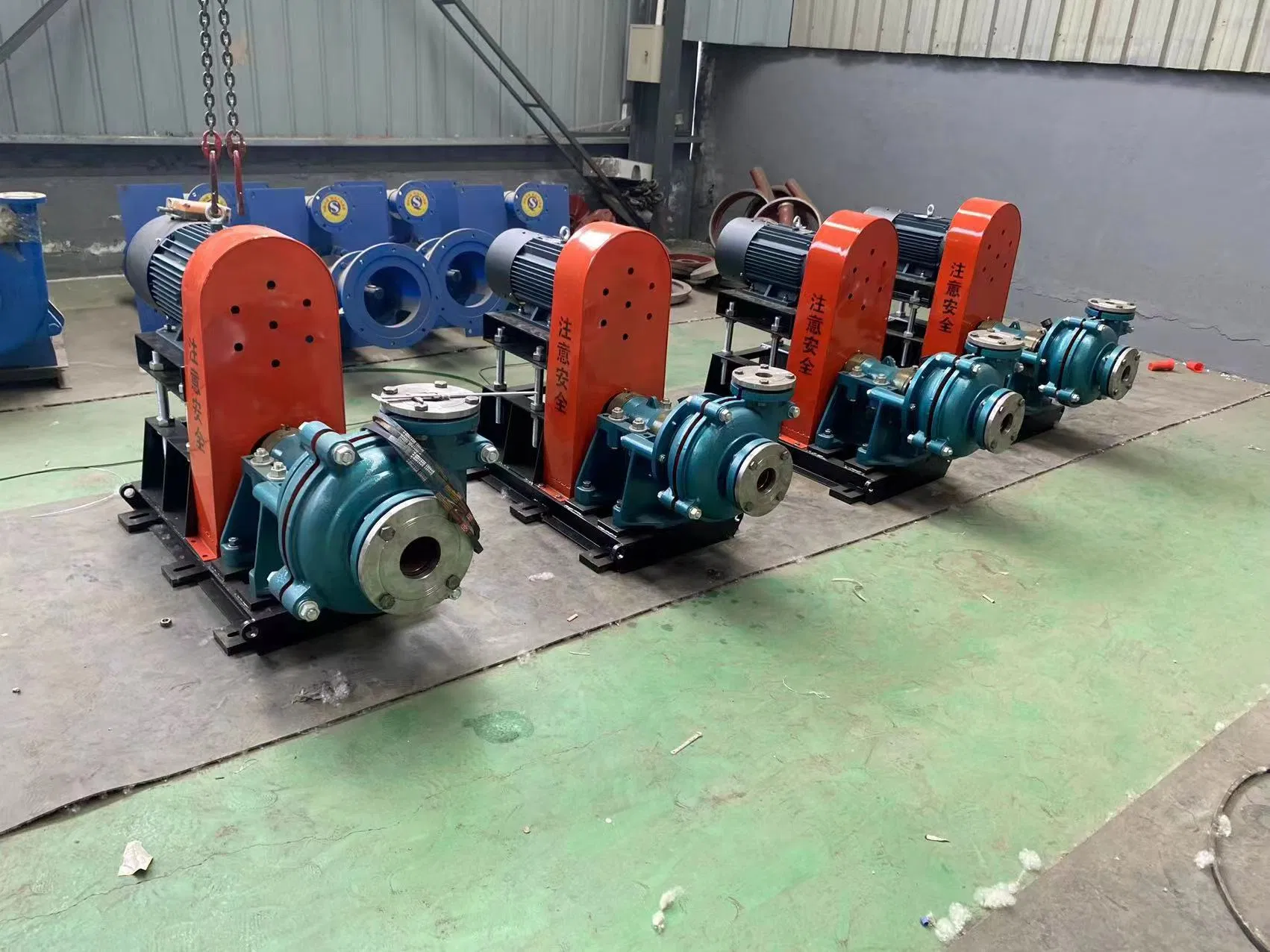

ZJ slurry pumps are designed for abrasive or corrosive slurry. The solid-liquid mixture concentration is 45% for mortar and 60% for mineral slurry. It features high efficiency and a double-layer metal structure.

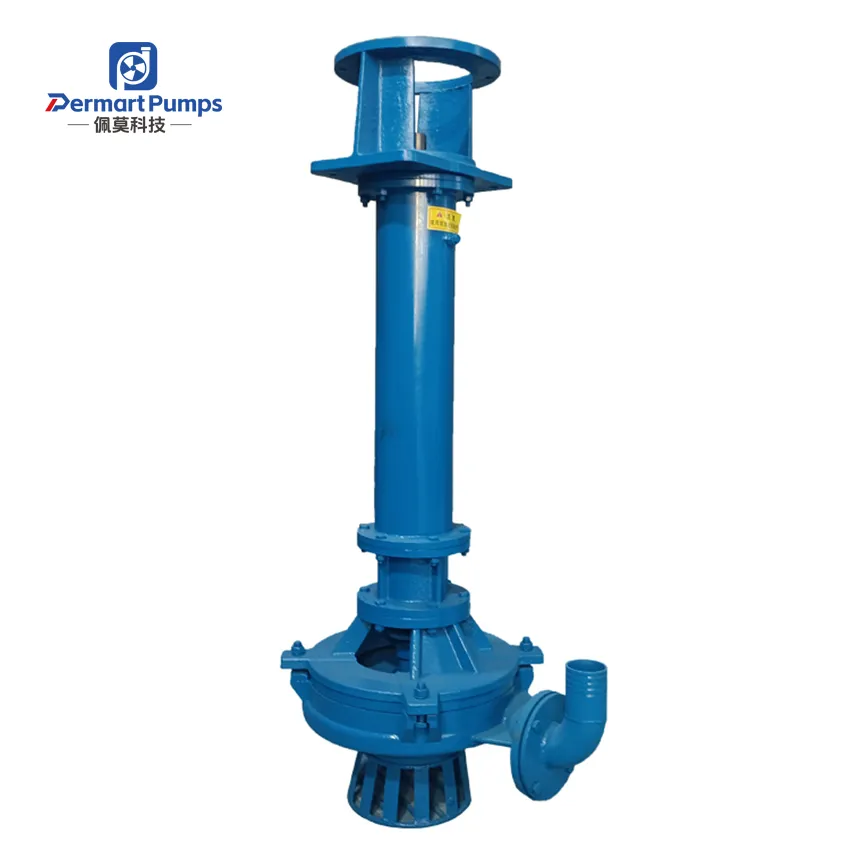

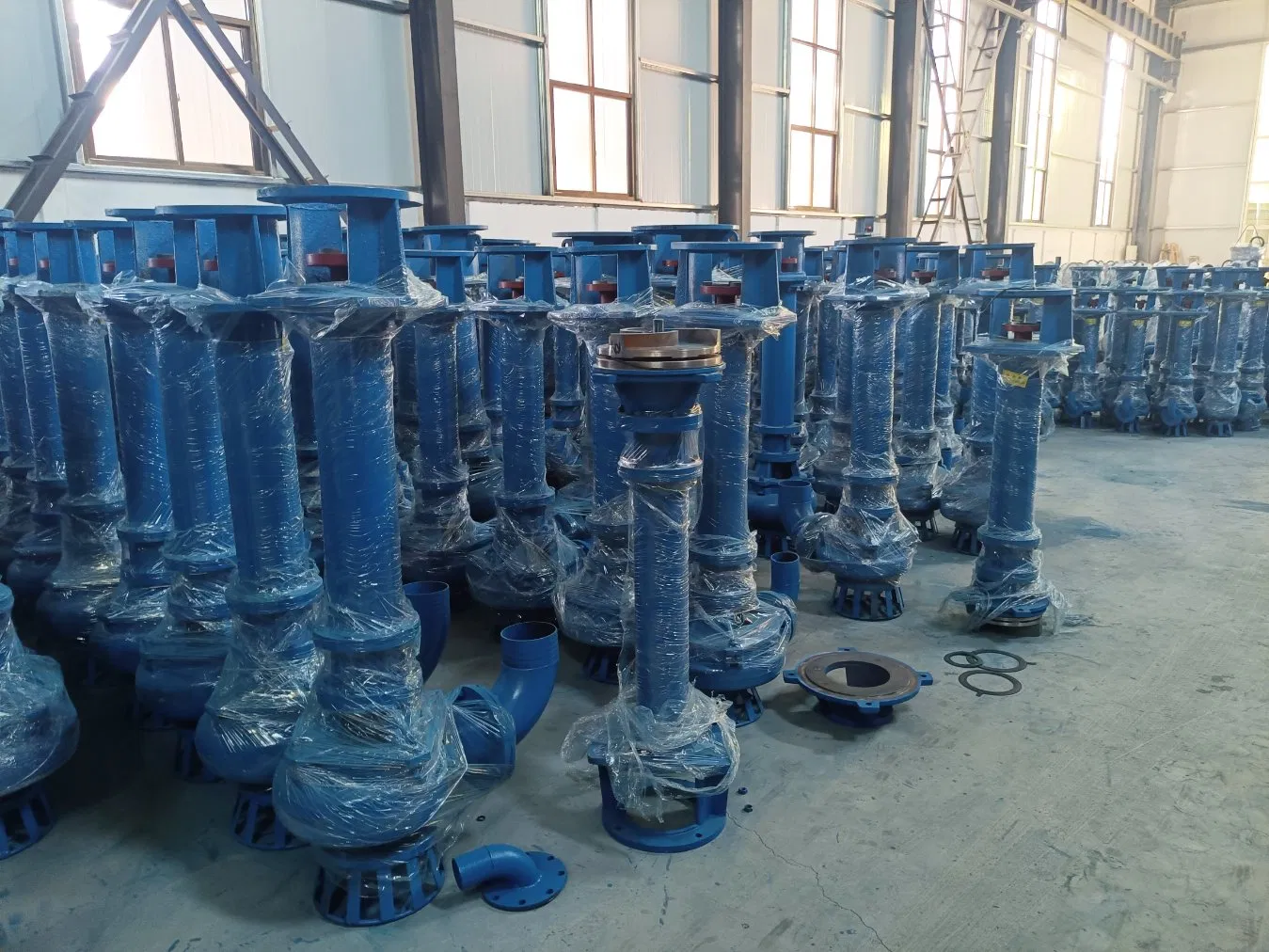

Designed for media with high concentrations of solid particles. Features professional bearing sealing and a semi-open impeller with a stirring component. Maintenance-free design with no seals or support between the fixed plate and impeller.
Professional packaging: boxing, nailing, and secure loading. Support for freight, air, sea, and express transportation methods to provide the best global service.

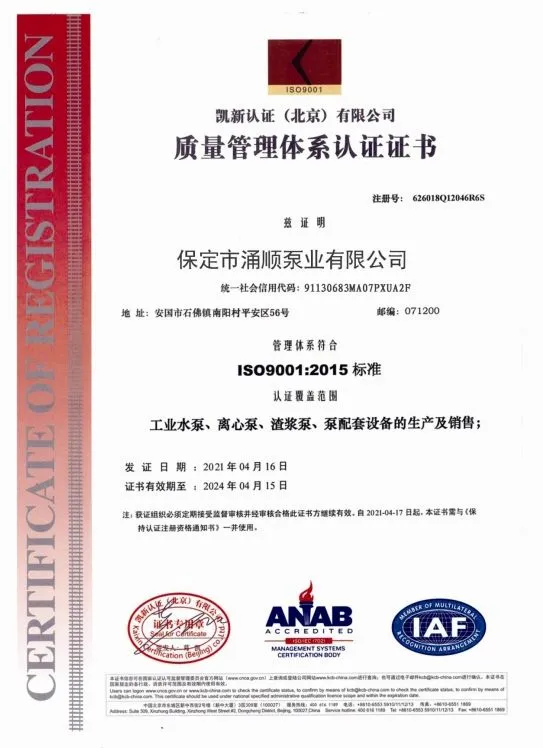

| 2006/42/EC | ISO9001 | Credit Level Certificate |
|---|---|---|
| No: M.2023.206.C82652 | No: 626018Q12046R6S | No: ZXXY-ZXDJ20158 |
