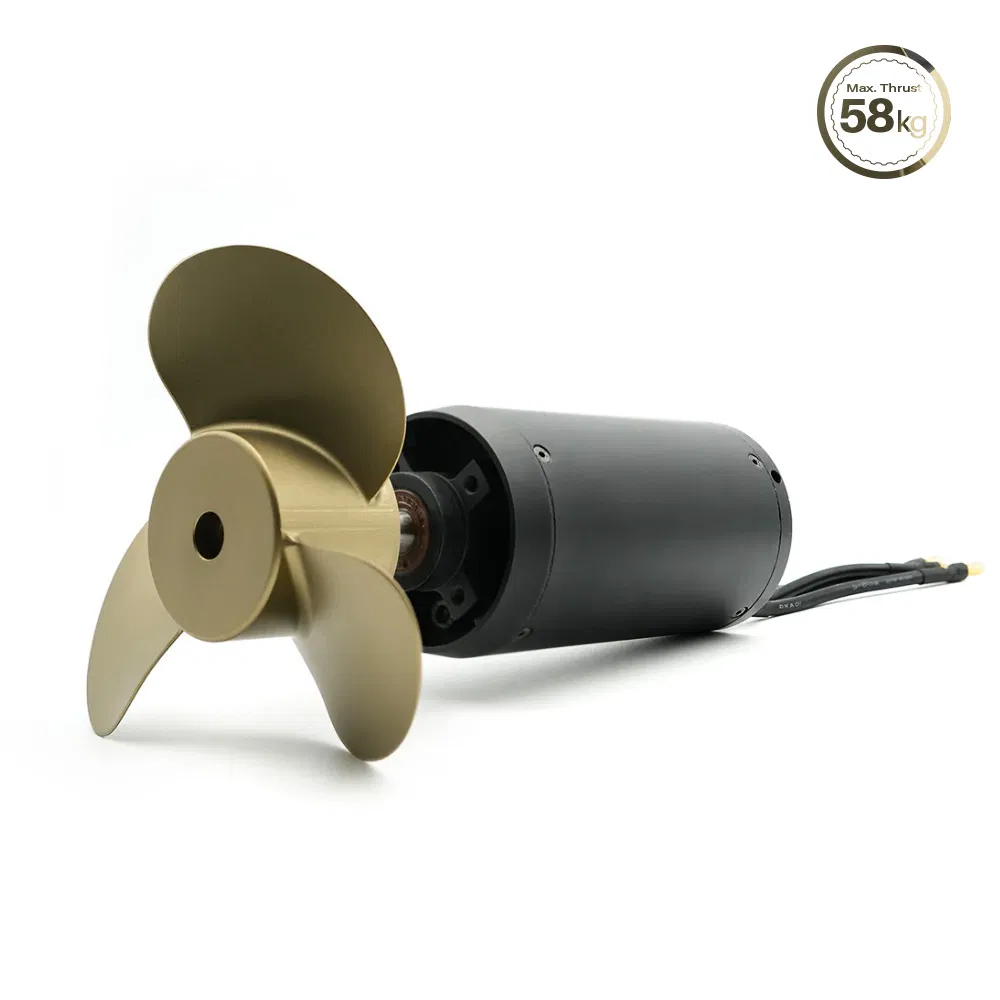

55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
1 / 5
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil
55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil

55kg Thrust 75141 DC Brushless Motor IP68 Underwater Thruster Propulsion System for Fliteboard/Efoil/Ehydrofoil

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
75141
Excitation Mode
Shunt
Function
Driving
Casing Protection
Explosion-Proof / IP68
Number of Poles
40
Working Principle
Brushless
Type
Z4 / Brushless Motor
Certification
CE/RoHS
ESC
75V 200A
Voltage
58V
Efficiency
89%
Propeller
X-78
Peak Current
160A
Max Thrust
55kg
Motor Weight
2kg
Max Torque
10N.m
Li-Po Support
6s-22s
Max Power
10kw
Protect Feature
Waterproof
Usage
Boat, Electric Surfboard, Efoil
Packaging & Delivery
Package Size
9.00cm * 9.00cm * 15.00cm
Gross Weight
2.200kg
Internal Packaging
Foam Box with Carton Box
HS Code
8503009090
Product Description

This 75141 DC Brushless Motor is a high-performance IP68 underwater thruster propulsion system designed specifically for Fliteboard, Efoil, and Ehydrofoil applications. With a peak power of 10KW and a maximum thrust of 55kg, it provides exceptional power-to-weight ratio for marine electric surfboard enthusiasts.

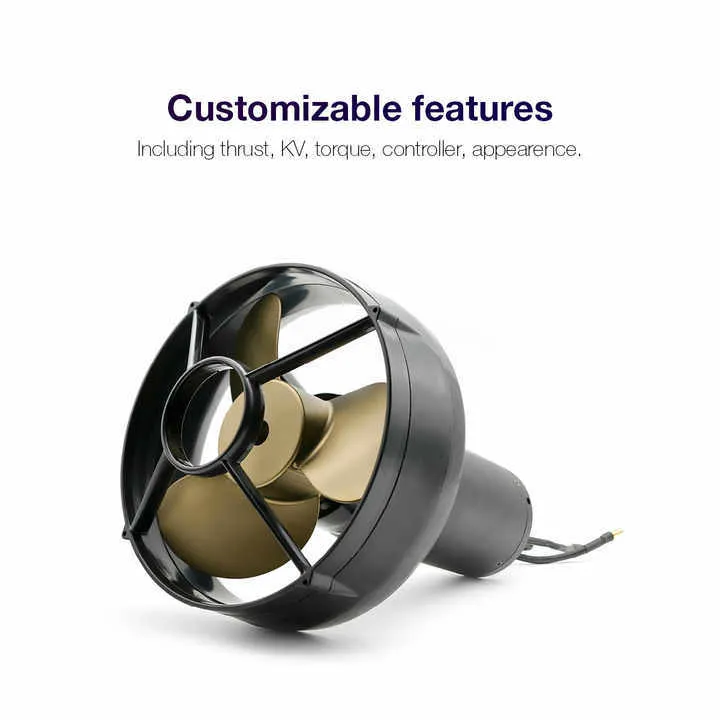

Motor Main View

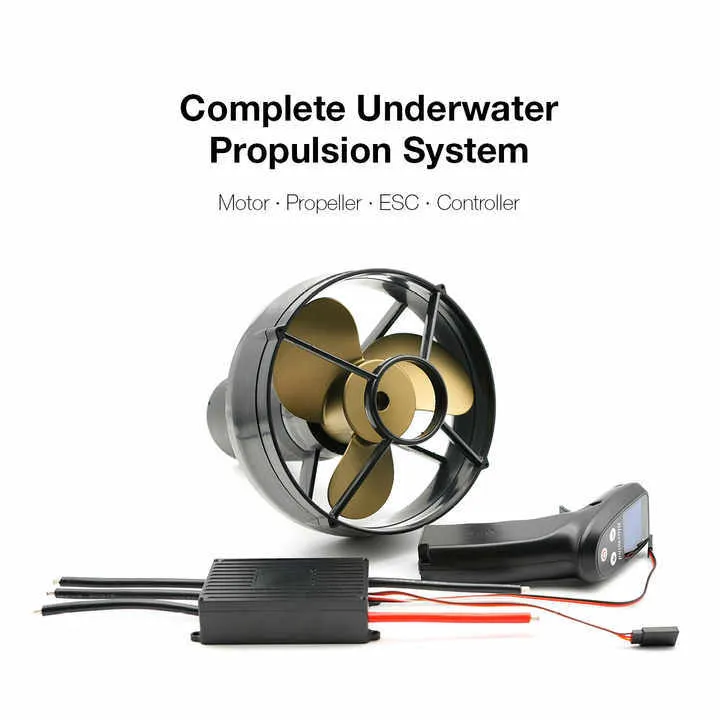

Motor Perspective

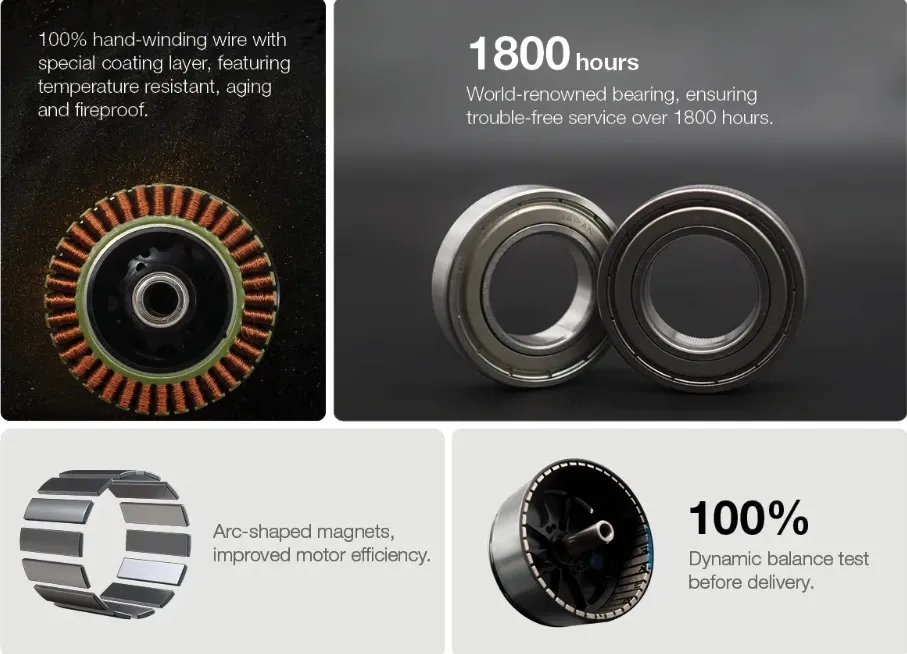

Technical Drawing

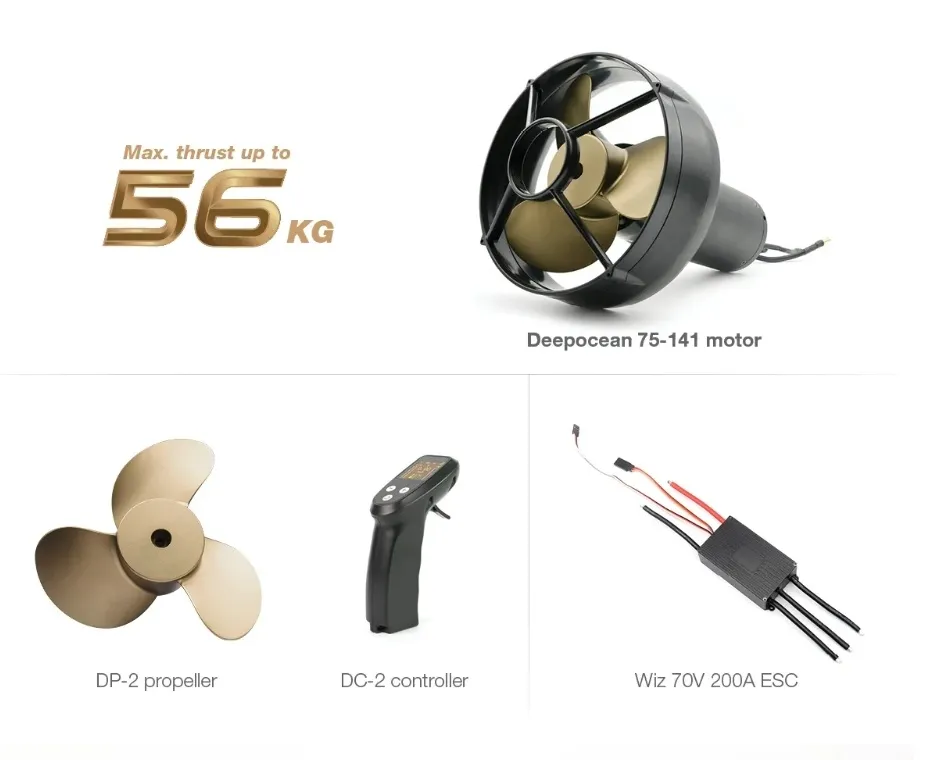

Assembly View

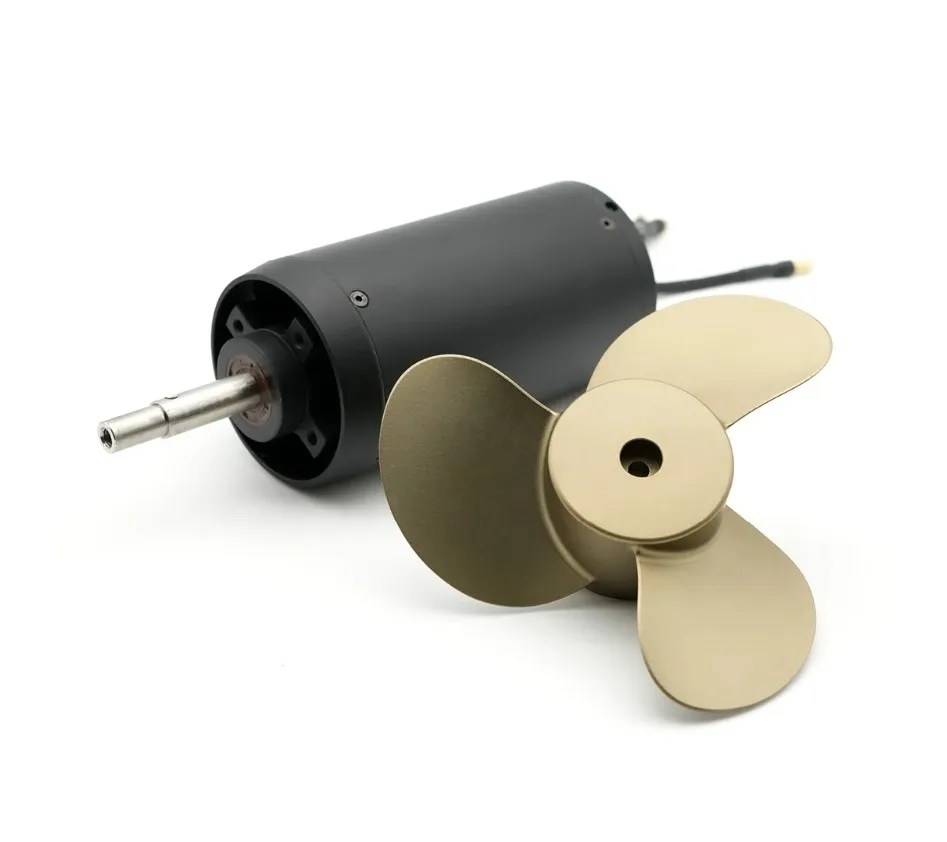

Application Showcase
Component Detail
Full System
Performance Chart
Dimensions
Frequently Asked Questions
1. What is the maximum thrust capability of this motor?
The 75141 DC Brushless Motor provides a maximum thrust of 55kg, making it ideal for high-performance Efoils and electric surfboards.
2. Is the motor fully waterproof for underwater use?

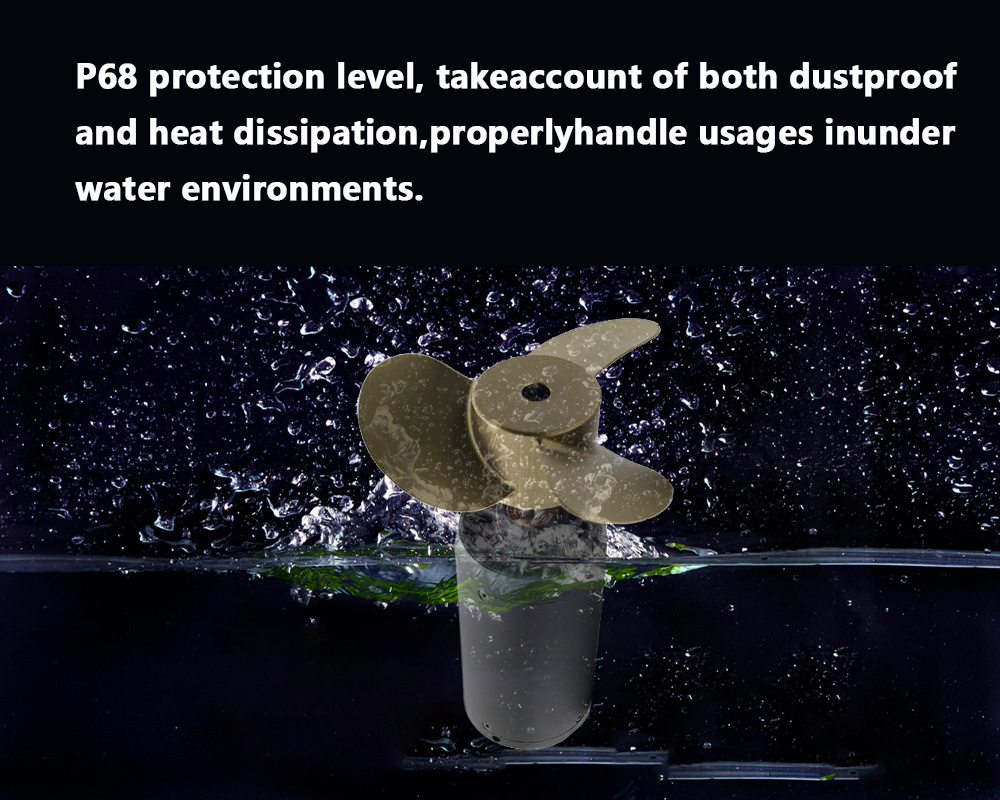

Yes, the motor features IP68 casing protection and is designed specifically as an underwater thruster propulsion system.
3. What type of batteries and ESC should I use?
The system is compatible with 6S-22S Li-Po batteries. It is recommended to use a 75V 200A ESC to match the motor's power requirements.
4. What are the dimensions and weight of the motor?
The motor dimensions are 75mm x 141mm, and it weighs approximately 2kg, offering a compact and lightweight solution for marine craft.
5. What is the maximum power output and RPM?
The motor can reach a peak power of 10KW and a maximum speed of 8000 RPM, ensuring high-speed propulsion for various water sports.
6. Does the motor come with a warranty?
This propulsion system includes a 3-month warranty covering manufacturing defects.
