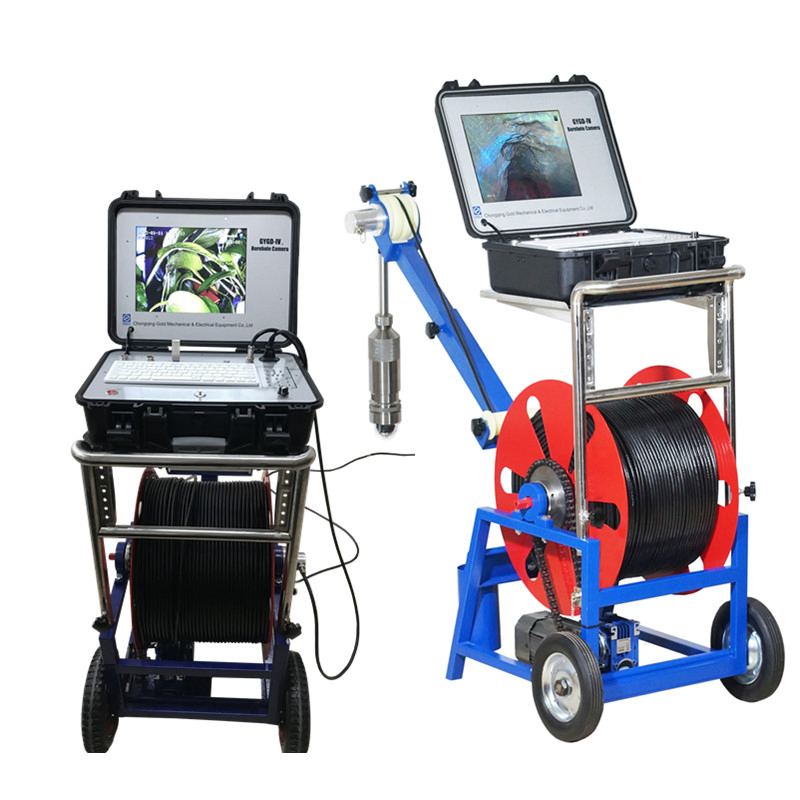

Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
1 / 5
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells
Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells

Borehole Camera 500m Camera for Underwater Wells Deep Well Camera for Underwater Wells

Customization: Available
Camera Probe Diameter: 40/75mm
Camera Probe Length: 470mm
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:GYGD borehole inspection camera
Max Pressure:20MPa
Camera Inducer:Sony 1/3'' CCD
Cable Length:0-2000m (Optional)
HD DVR:SD Card Support
Depth Capacity:500m Standard
Capacity:50 Units/Month
Package:Wooden Case
Borehole Camera
★

Main Applications

Expertly designed for underwater and deep well inspections, this system serves multiple geological and engineering purposes:

  • Stratum structure division and analysis
  • Well wall stratum crack detection
  • Karst development discrimination and distribution positioning
  • Distinguishing fractured development zones
  • Long-term underground borehole monitoring
  • Borehole Dual Inspection for water wells and deep bore wells

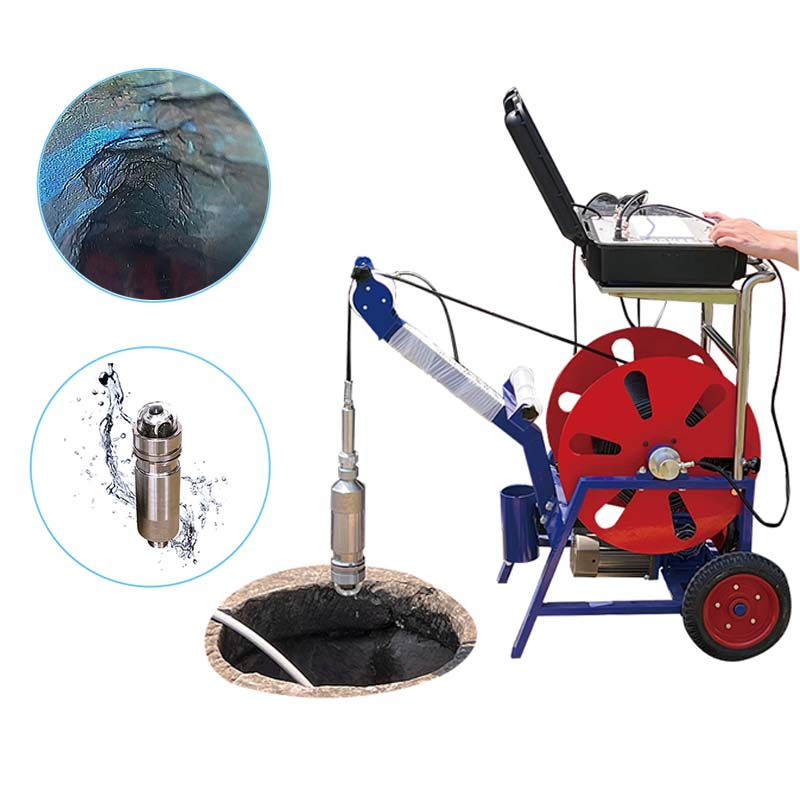

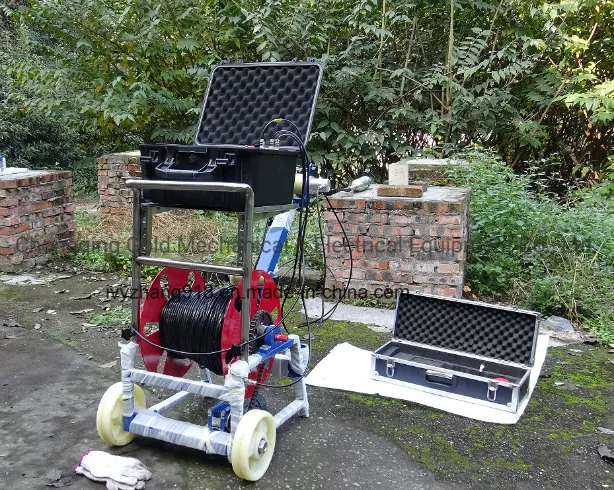

Deep Well Camera Application
✔

Main Features

  • Real-time video collection and recording capabilities
  • Clear image display on high-precision ground instruments
  • Support for vertical, horizontal, and arbitrary drilling holes
  • Wide versatility: Water wells, oil fields, coal fields, engineering geology, dams, and reservoirs

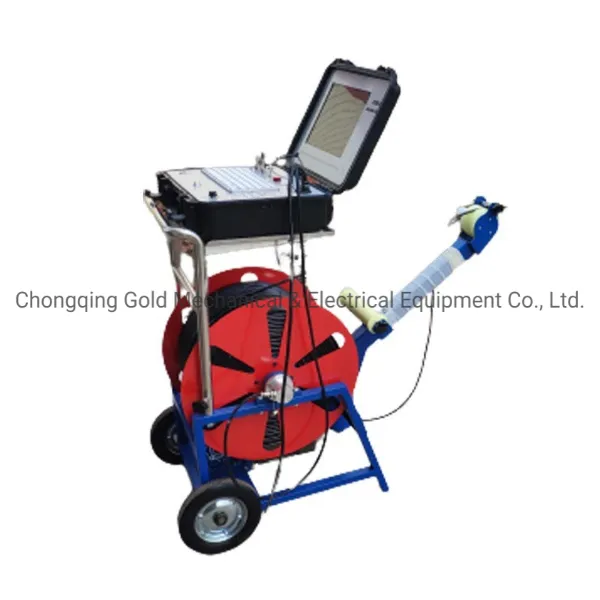

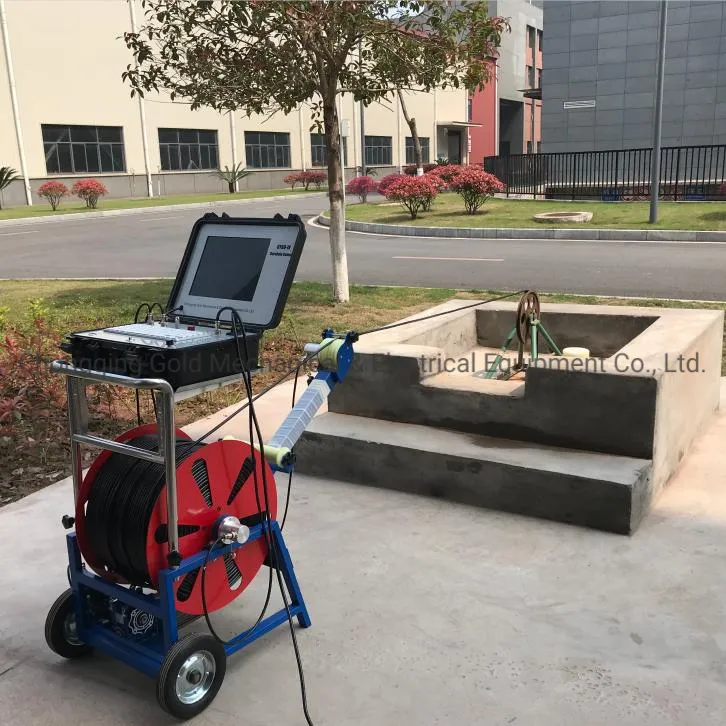

Feature View 1 Feature View 2
📋

Technical Specification

No. Configuration Dimension Details

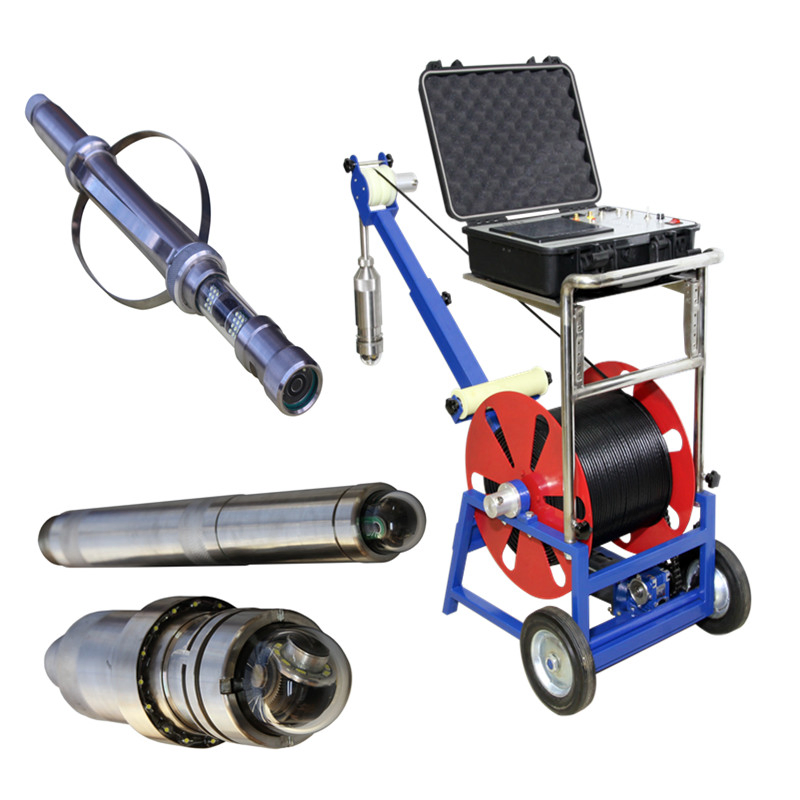

1 Camera probe Dia: 50/80mm
Len: 470mm		 Resin lens, Steel body, Max 20Mpa pressure (up to 2000m), 6-12 LED lamps.
2 Camera - Sony 1/3'' CCD, HD 850 TVL, Waterproof, Panoramic/Electric rotating options.
3 Specialized cable Up to 2000m Steel wire reinforced, Max tension: 260kg.
4 Control unit - 220V/380V/12V optional, Aeronautic aluminium case.
5 Downhold pulley - Equipped with logging depth counter.
6 Logging winch - Manual & electric winch options available.
7 HD DVR - SD card recording.

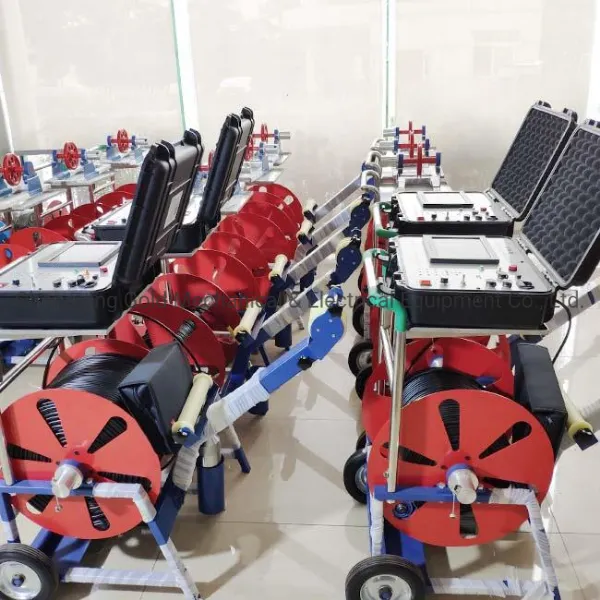

Winch System Control Case
?

Frequently Asked Questions

1. What is the maximum depth the GYGD camera can reach? The system comes with a standard 500m depth capability, but specialized cables can be customized up to 2000m.
2. Can the camera handle high-pressure environments? Yes, the camera probe is built with a solid steel body and high-quality resins, capable of bearing up to 20MPa of pressure.
3. Does it support both vertical and horizontal drilling? Yes, the system is versatile and can be used for vertical, horizontal, and arbitrary angle drilling holes.
4. How is the video data recorded? The system includes an HD DVR that records real-time video directly onto an SD card for easy data management.
5. Is there a way to track the current depth of the probe? Yes, the downhold pulley is equipped with a logging depth counter to provide accurate real-time depth data.
6. What power source is required for the control unit? The control unit supports multiple voltage modes, including 220V, 380V, and 12V optional inputs.
