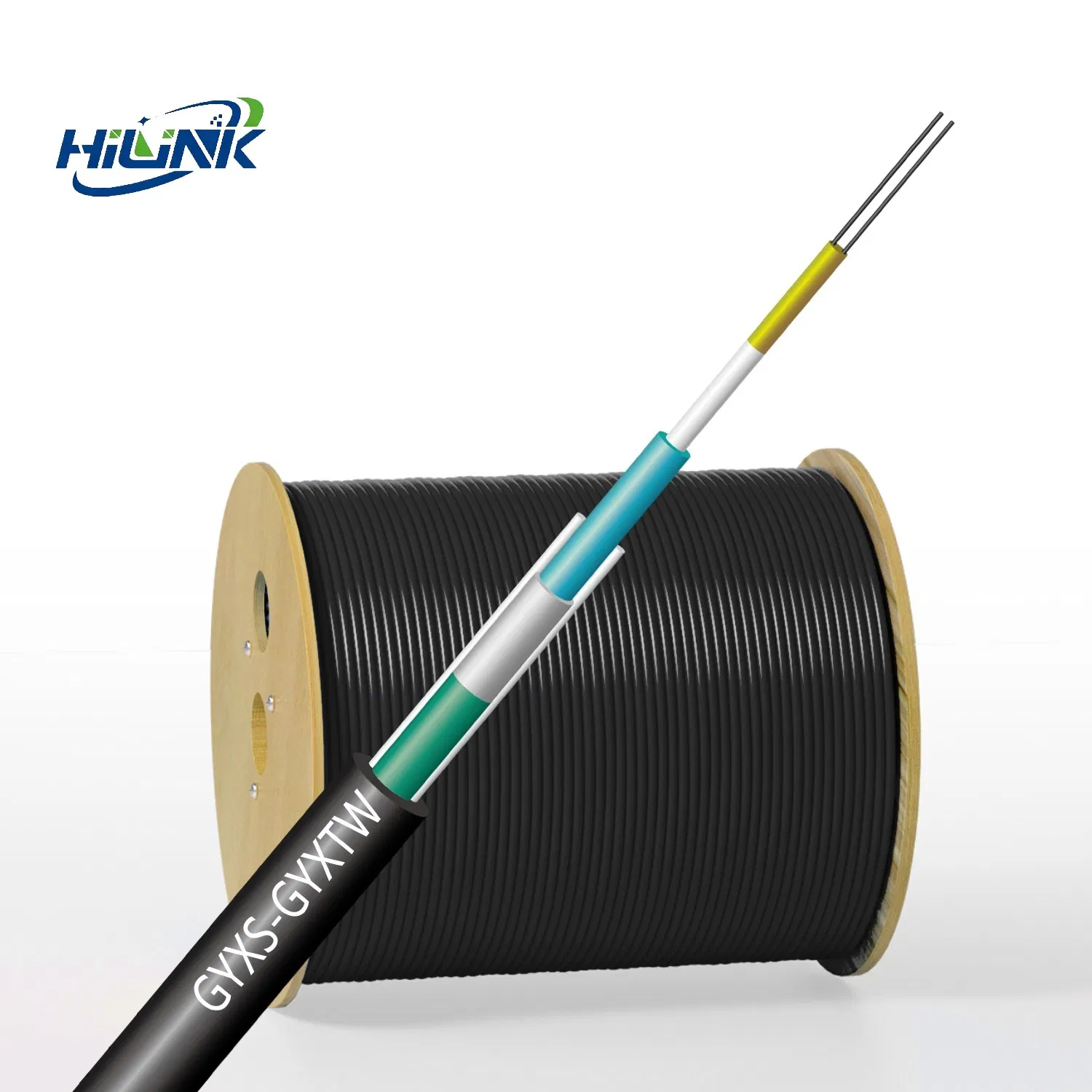

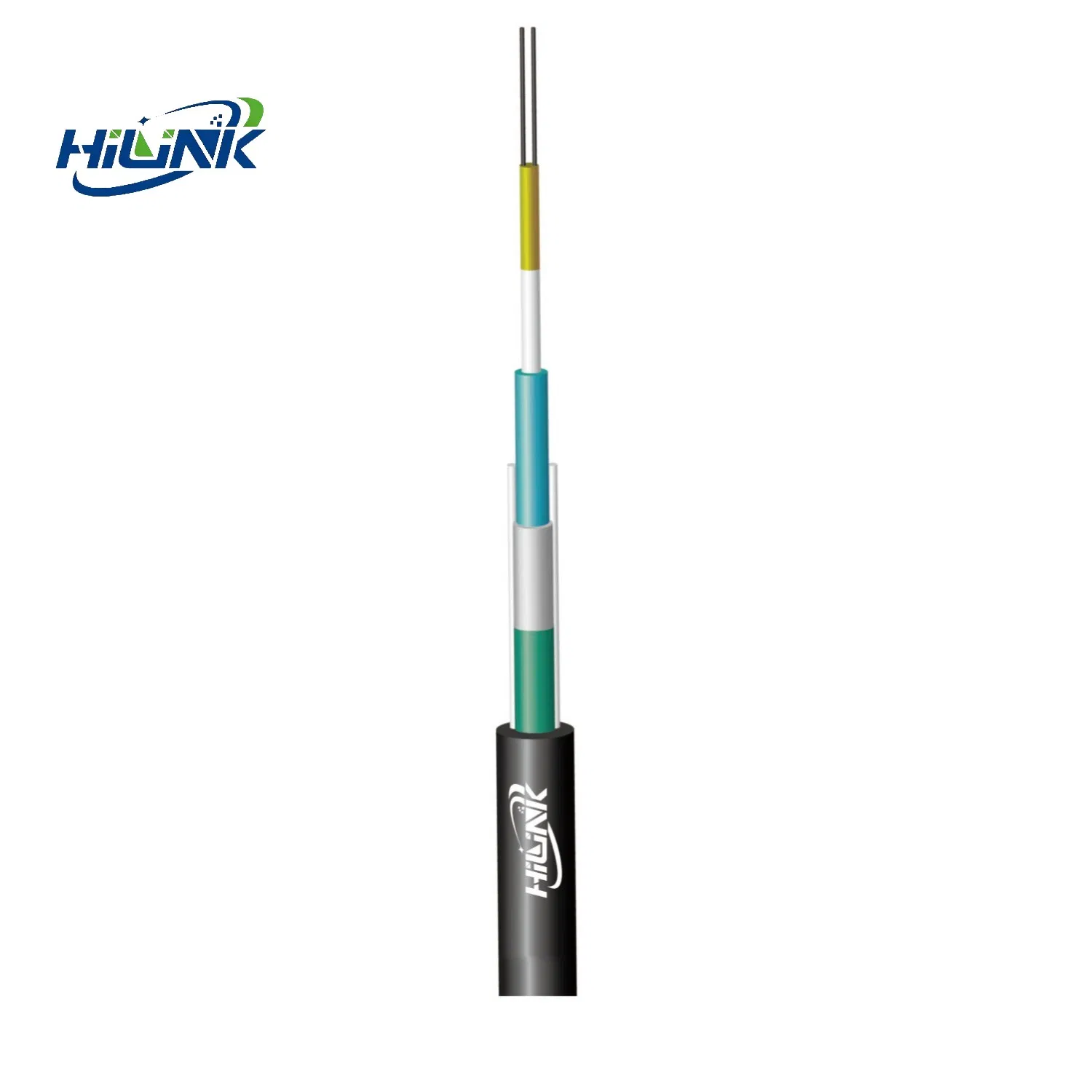

Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
1 / 5
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable
Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable

Gyxs/GYXTW 4 8 12 24 48 96 144 288 Core Outdoor Armored Wire HDPE Jacket Aerial Burial Duct Underwater Single Mode Communication Fiber Optical Cable

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📋

Basic Specifications

Model NO.
GYXS/GYXTW
Connection Structure
All Type
Material Shape
Round Wire
Allowed Tensile Strength
1000N - 10000N
Core
Multicore (1-288)
Certification
RoHS, CE, ISO9001
Sheath Material
PE (HDPE Jacket)
Installation
Overhead / Aerial / Duct
Warranty
5-Year
Fiber Type
G.652D Singlemode
Color
Black or Customized
HS Code
8544700000
📦

Product Description

Outdoor Armored Fiber Optical Cable

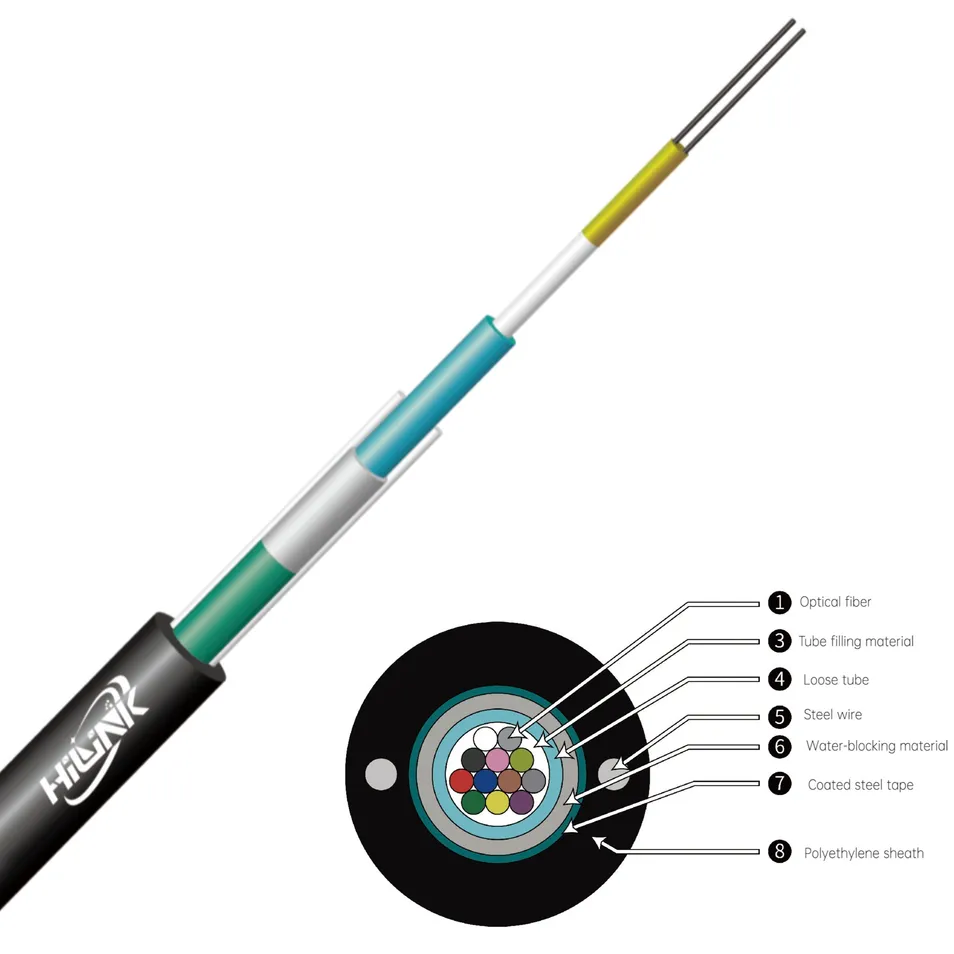

Fiber Detail 1

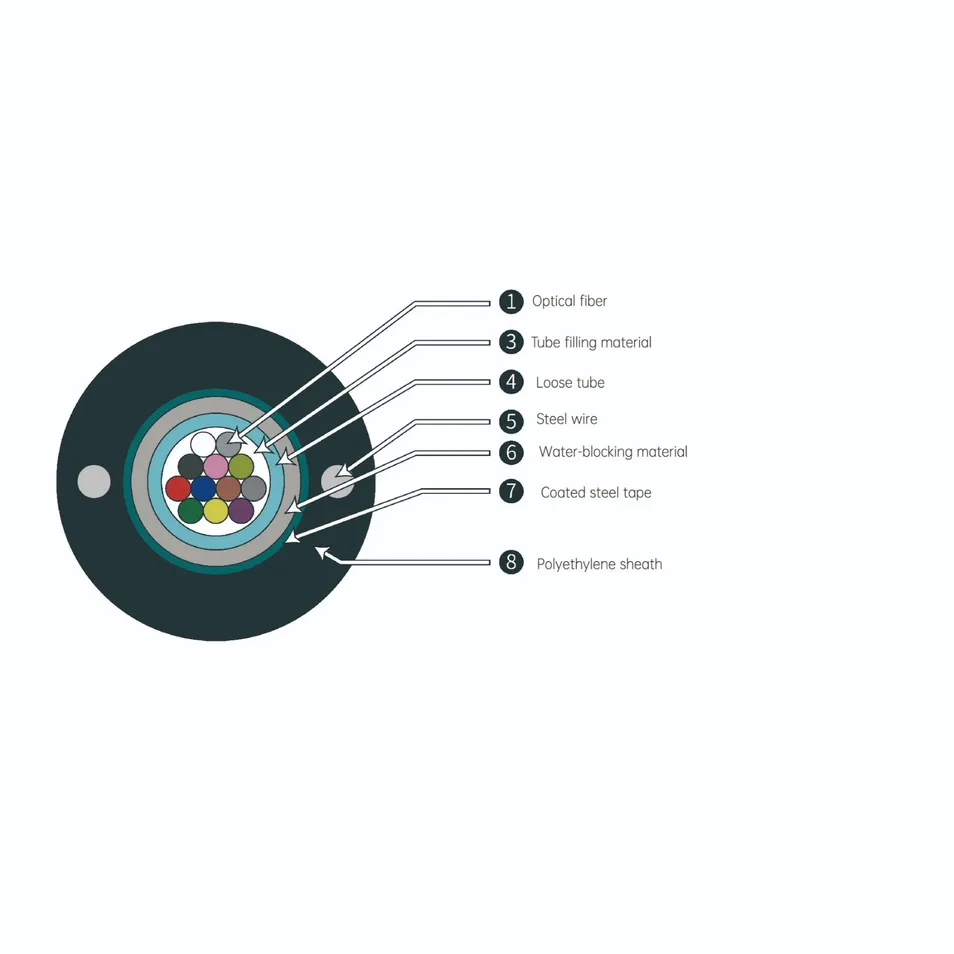

Fiber Detail 2

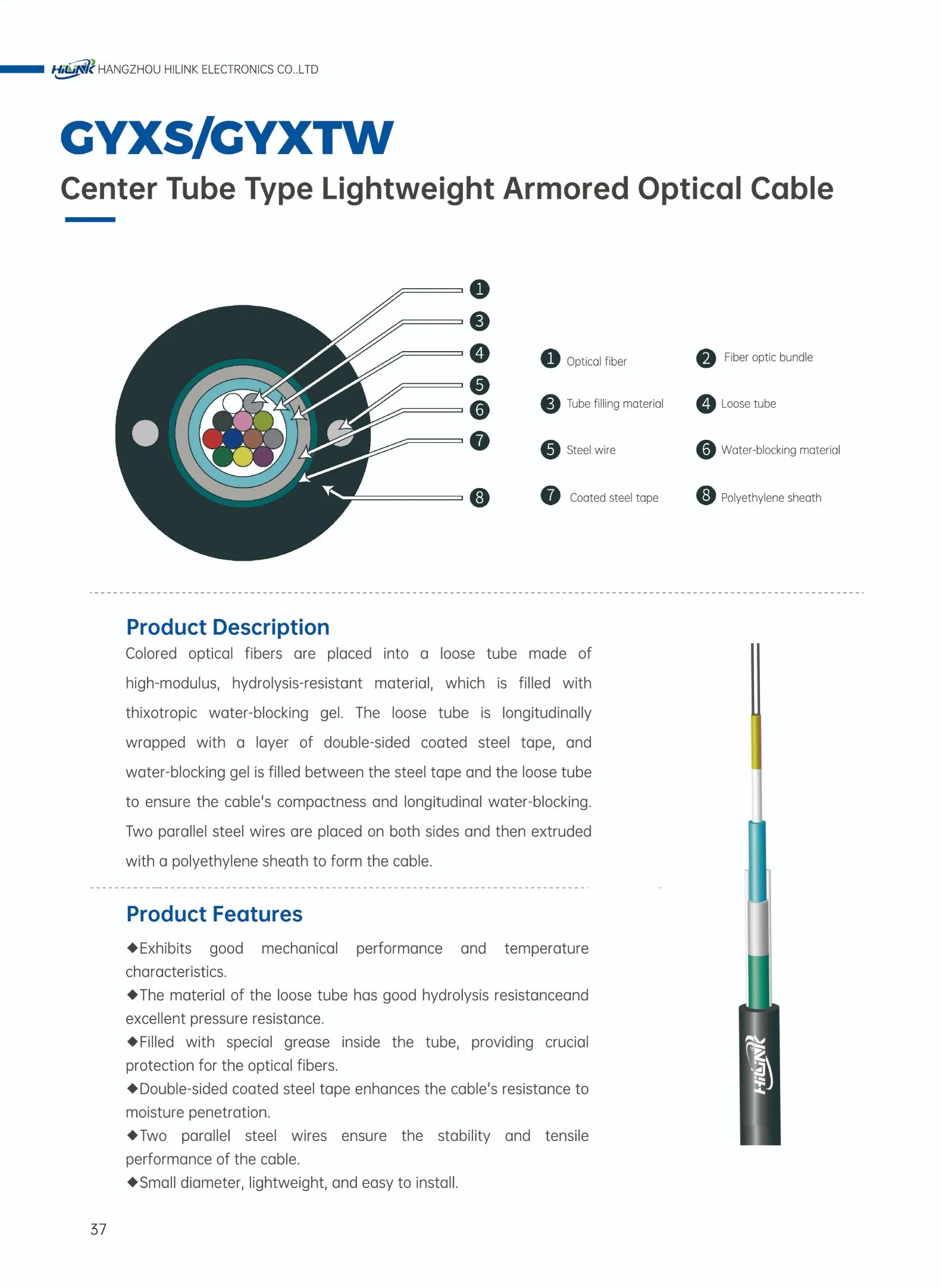

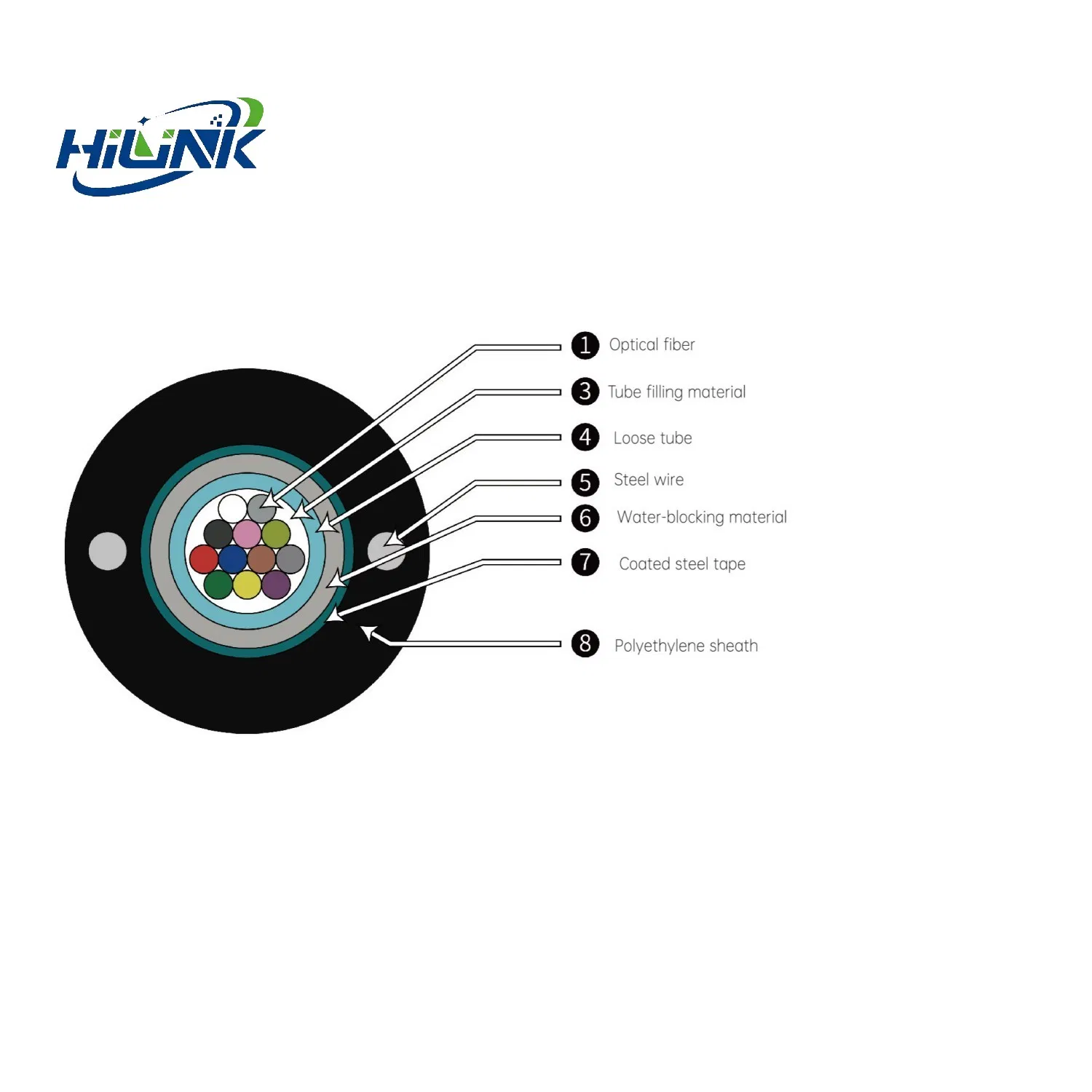

Cable Structure Specification

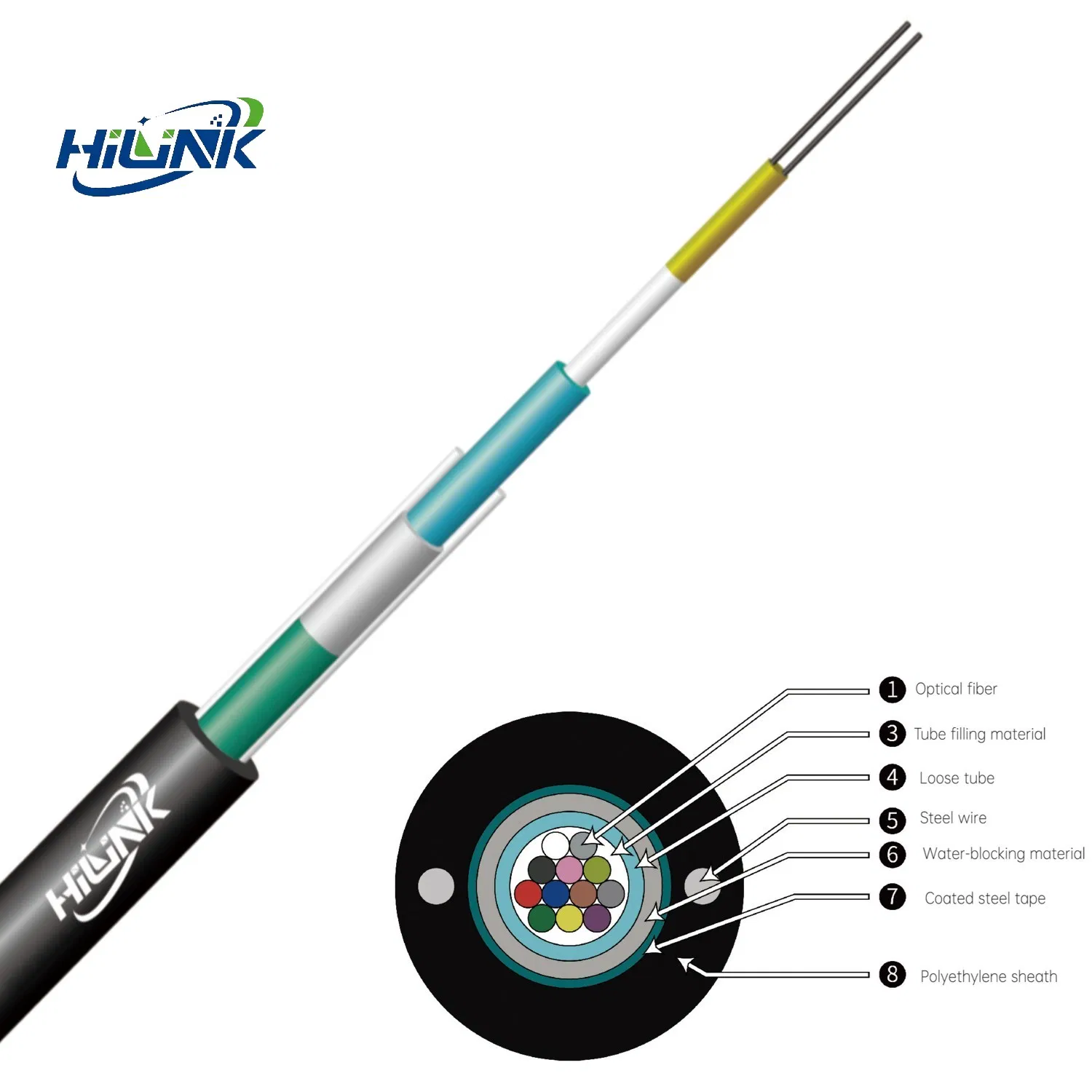

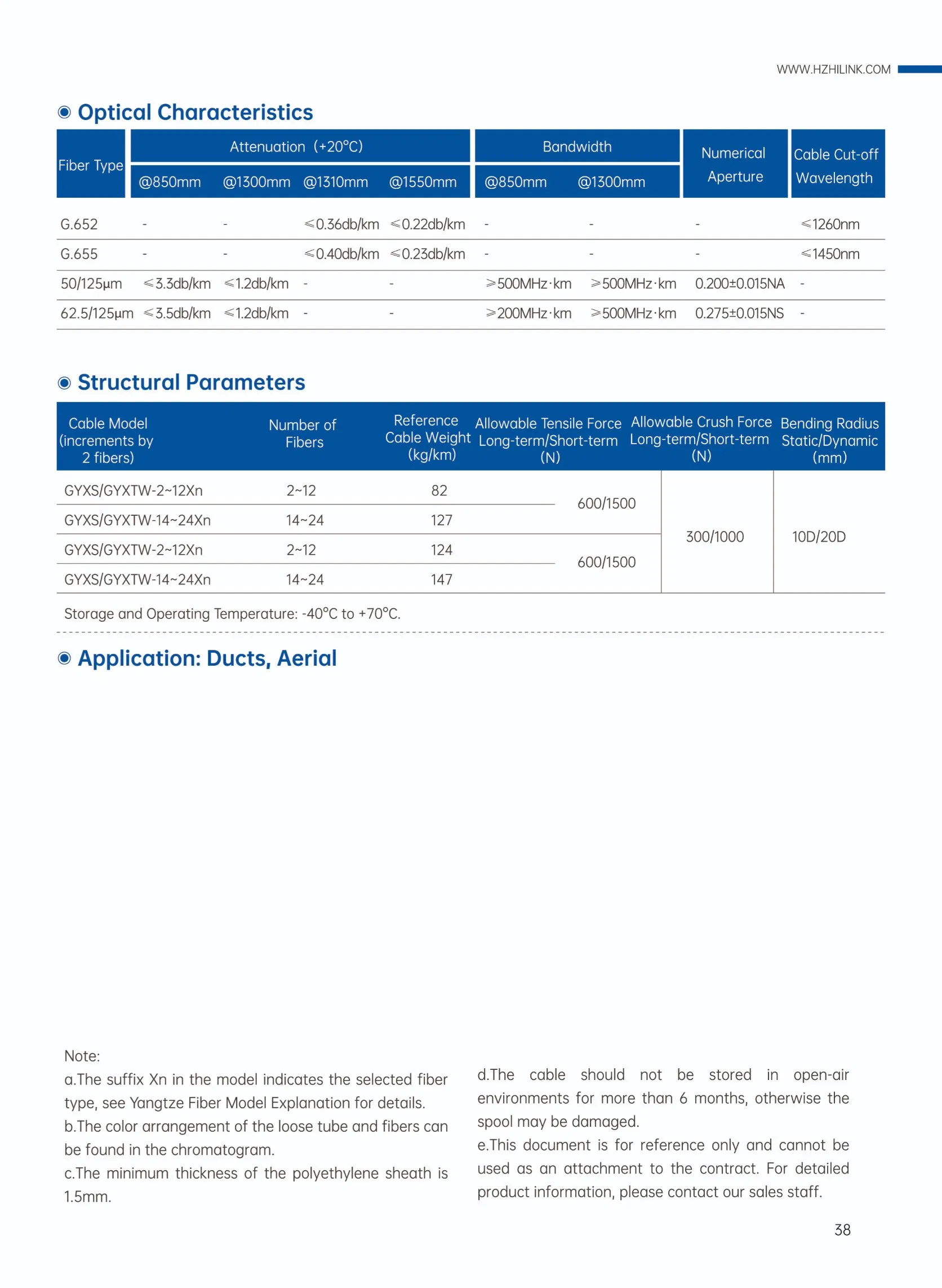

Cable Technical Drawing
📊

Optical Characteristics

Fiber Type Attenuation @1310nm Attenuation @1550nm Bandwidth @850nm Numerical Aperture Cut-off Wavelength
G.652 (Singlemode) ≤0.36 dB/km ≤0.22 dB/km - - ≤1260nm
G.655 ≤0.40 dB/km ≤0.23 dB/km - - ≤1450nm
50/125μm (Multimode) - - ≥500 MHz·km 0.200±0.015NA -
62.5/125μm (Multimode) - - ≥200 MHz·km 0.275±0.015NS -
🚢

Packaging & Shipping

Standard Packing: 2km/4km per Wooden Drum

Package Size: 100.00cm * 100.00cm * 74.00cm

Gross Weight: 40.000kg per Unit

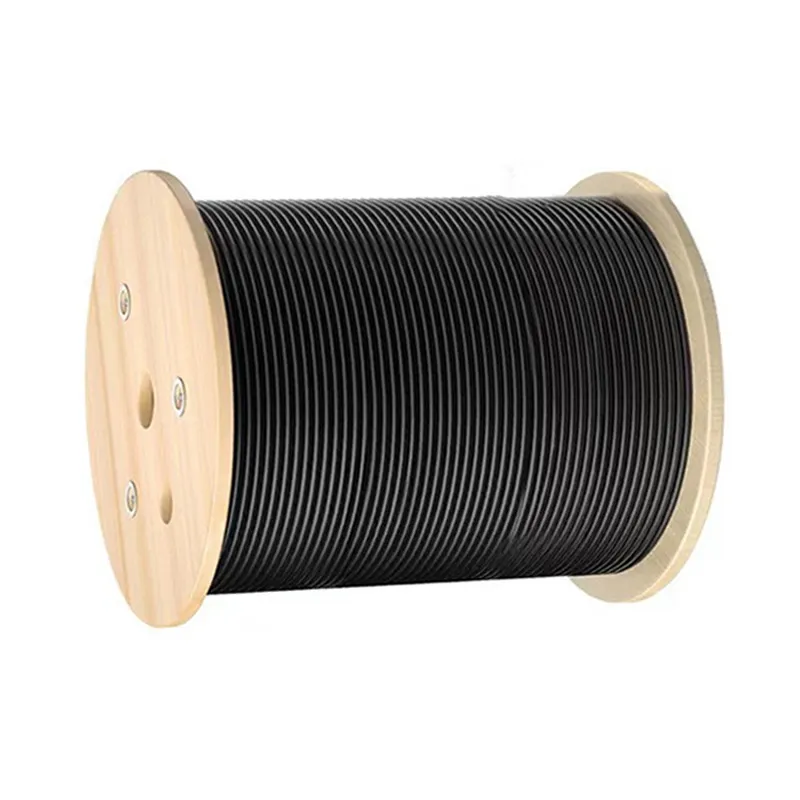

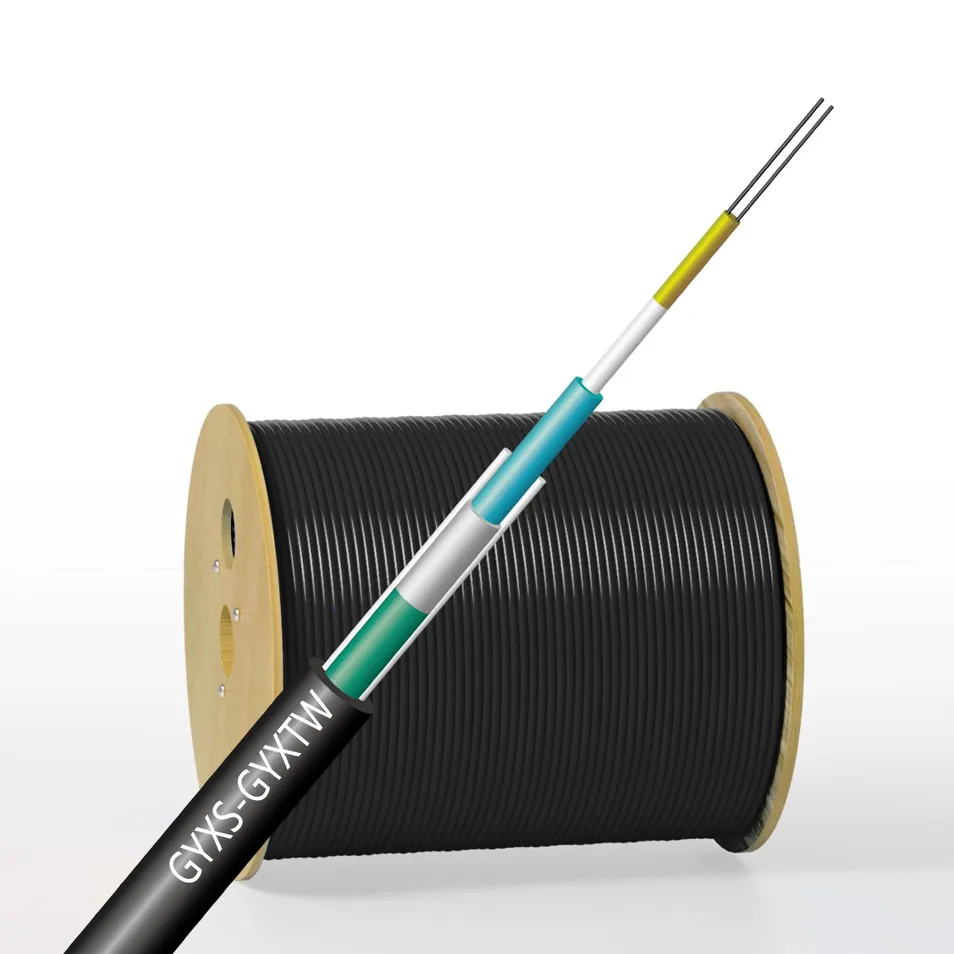

Wooden Drum Packing
Factory Loading
Logistics Overview
🌐

Application Scenarios

This optical fiber cable is designed for long-distance and local area network (LAN) communication. Suitable for various environments:

Application Environments
🏭

Production Excellence

Equipped with advanced production lines and a technical team to ensure quality meets international standards, with an annual capacity of 200,000 kilometers of cables.

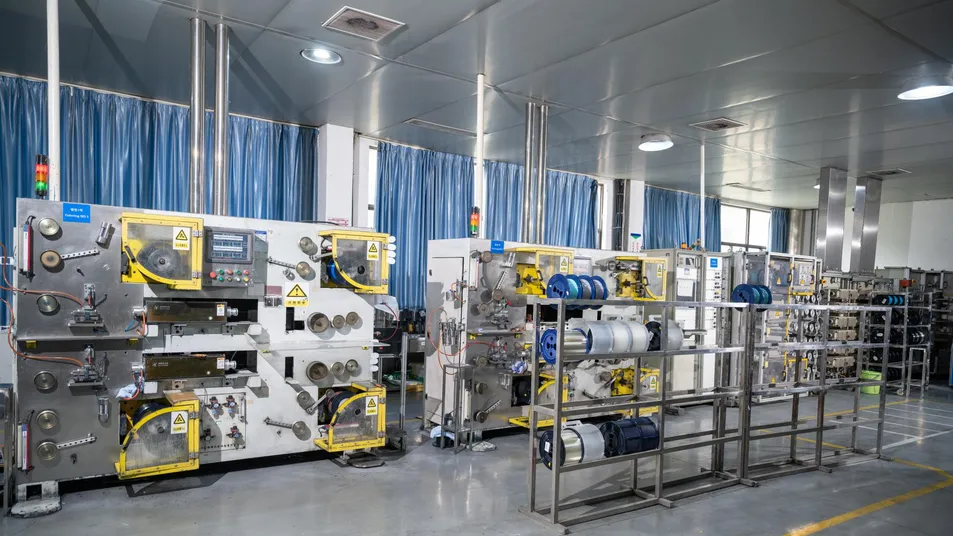

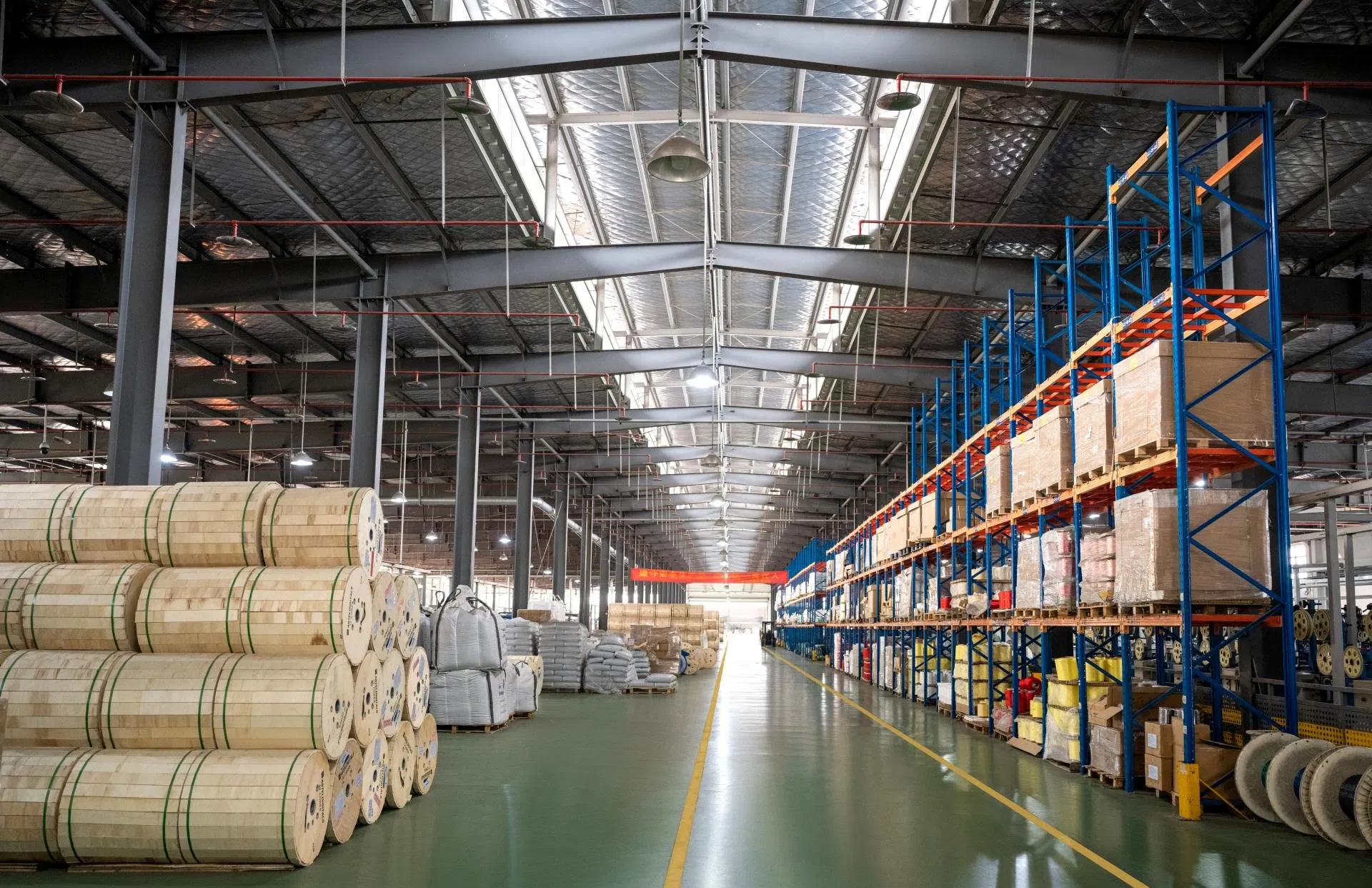

Production Line
Quality Control 1

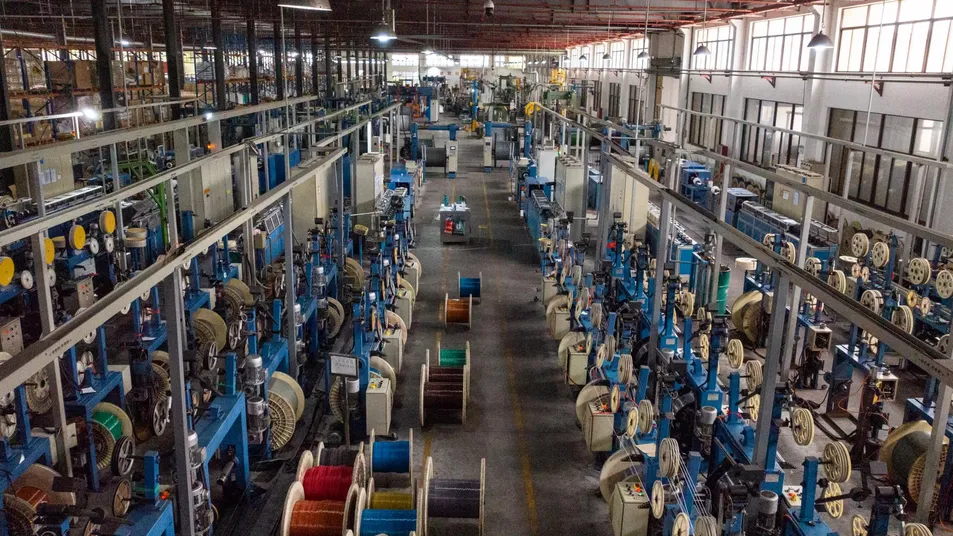

Quality Control 2
📜

Certifications

Certificate 1
Certificate 2
❓

Frequently Asked Questions

What are the primary applications for GYXTW fiber cables?
GYXTW cables are ideal for outdoor use, specifically for aerial, duct, or underground burial installations. They are commonly used in long-haul communication and LAN systems.
How does the armored structure benefit the cable?
The corrugated steel tape armor provides excellent crush resistance and acts as a barrier against rodent damage, ensuring long-term reliability in harsh outdoor environments.
What fiber counts are available for this model?
We provide a wide range of fiber counts, ranging from 1 core up to 288 cores, depending on your project requirements.
Is the cable jacket resistant to UV radiation?
Yes, the HDPE (High-Density Polyethylene) jacket is specifically designed to resist UV rays, moisture, and extreme temperature fluctuations for outdoor exposure.
What type of optical fiber is used?
The standard fiber used is G.652D Single Mode fiber, but we can also provide G.655, 50/125μm, or 62.5/125μm multimode fibers upon request.
Can I get a customized length per drum?
Yes, while our standard wooden drums come in 2km or 4km lengths, we can customize the drum size and cable length to meet your specific installation needs.
