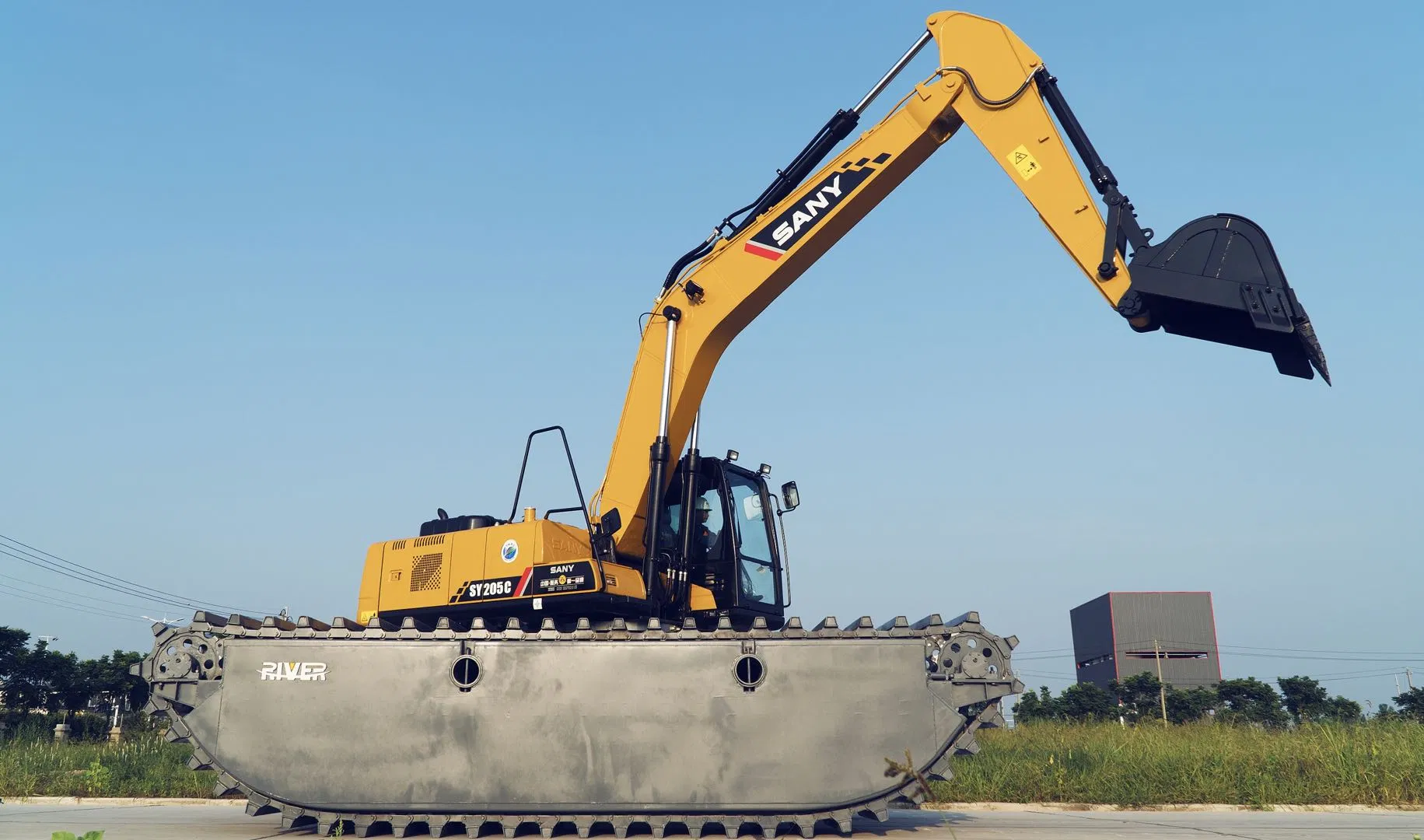

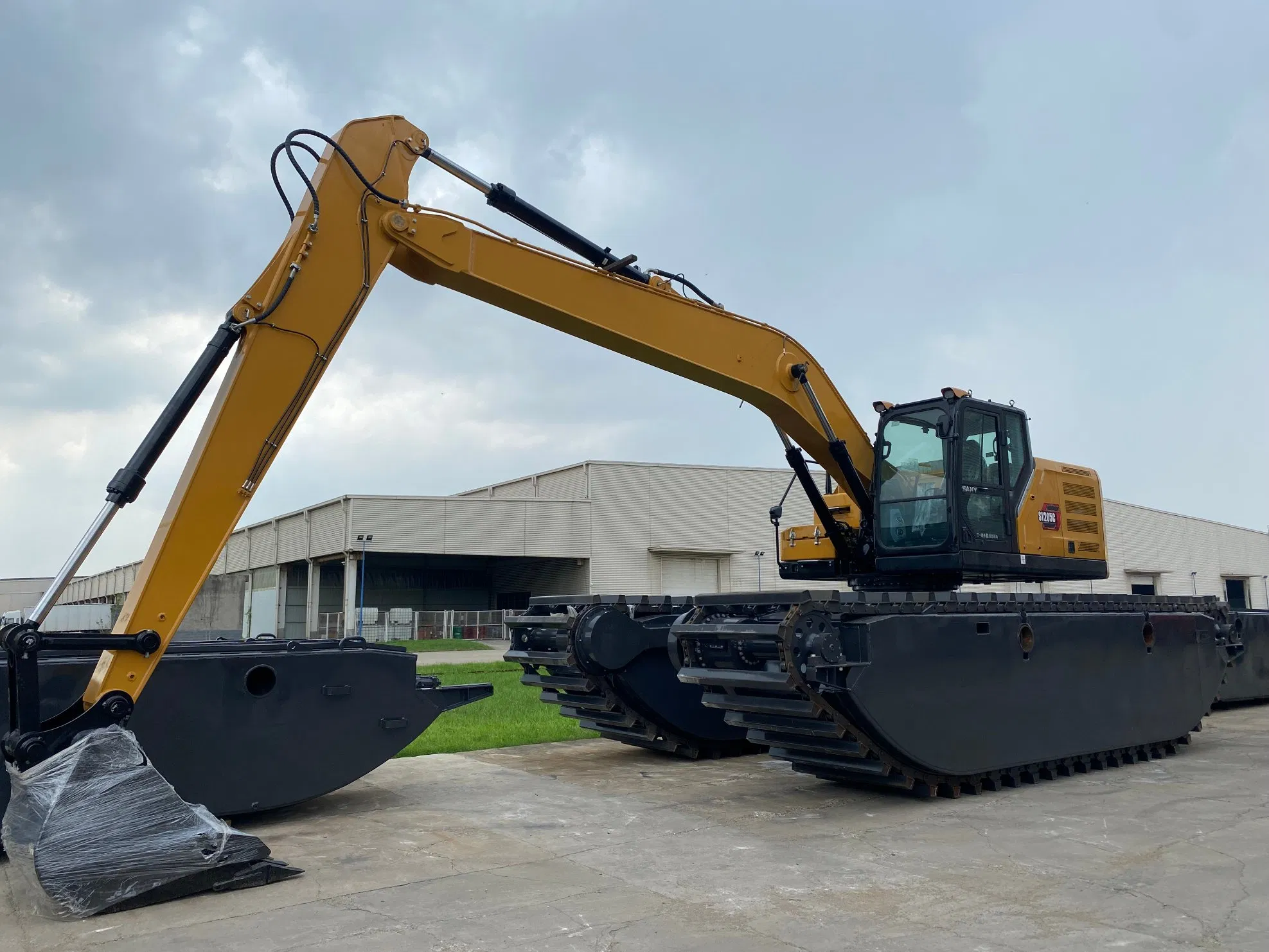

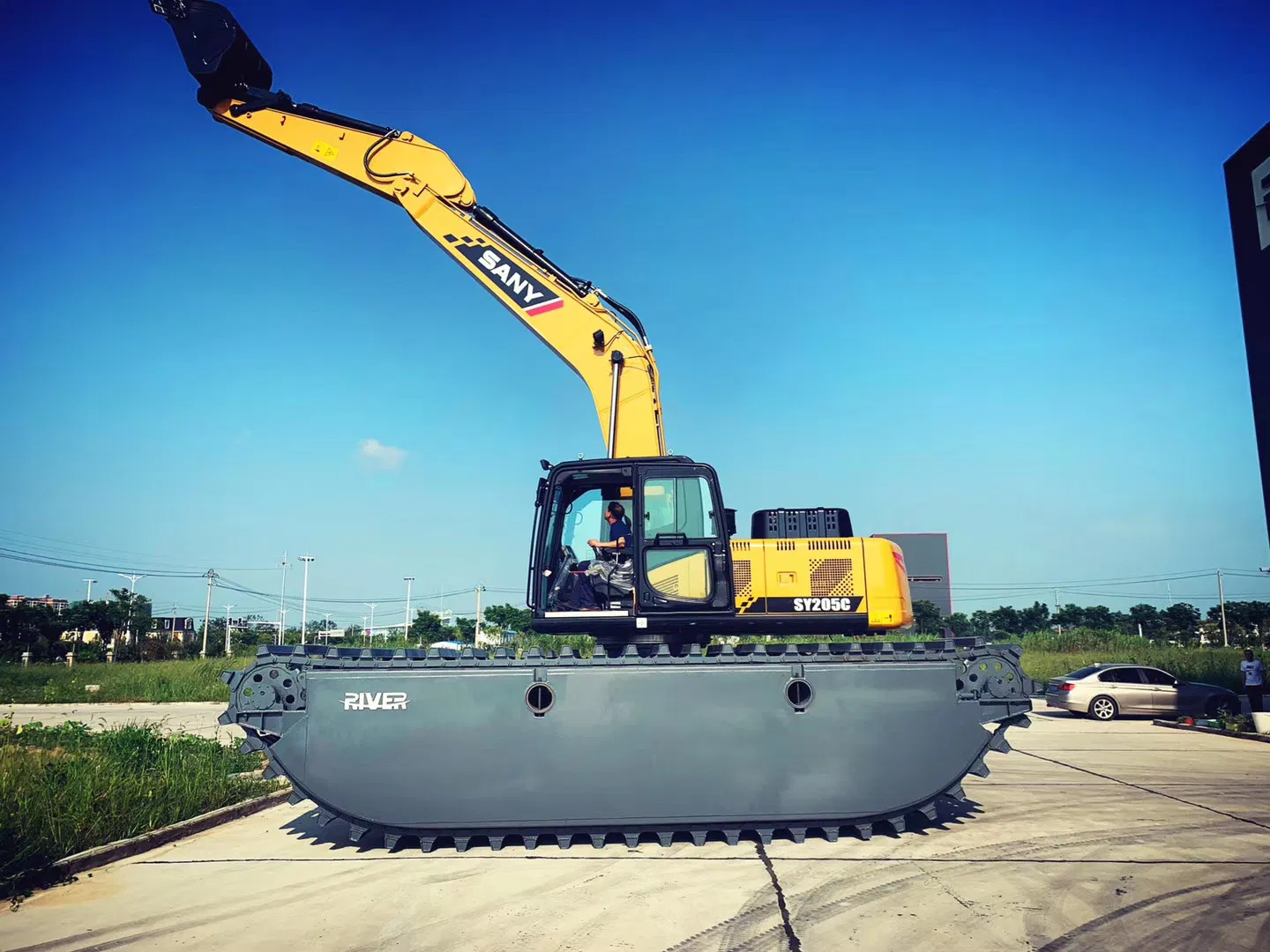

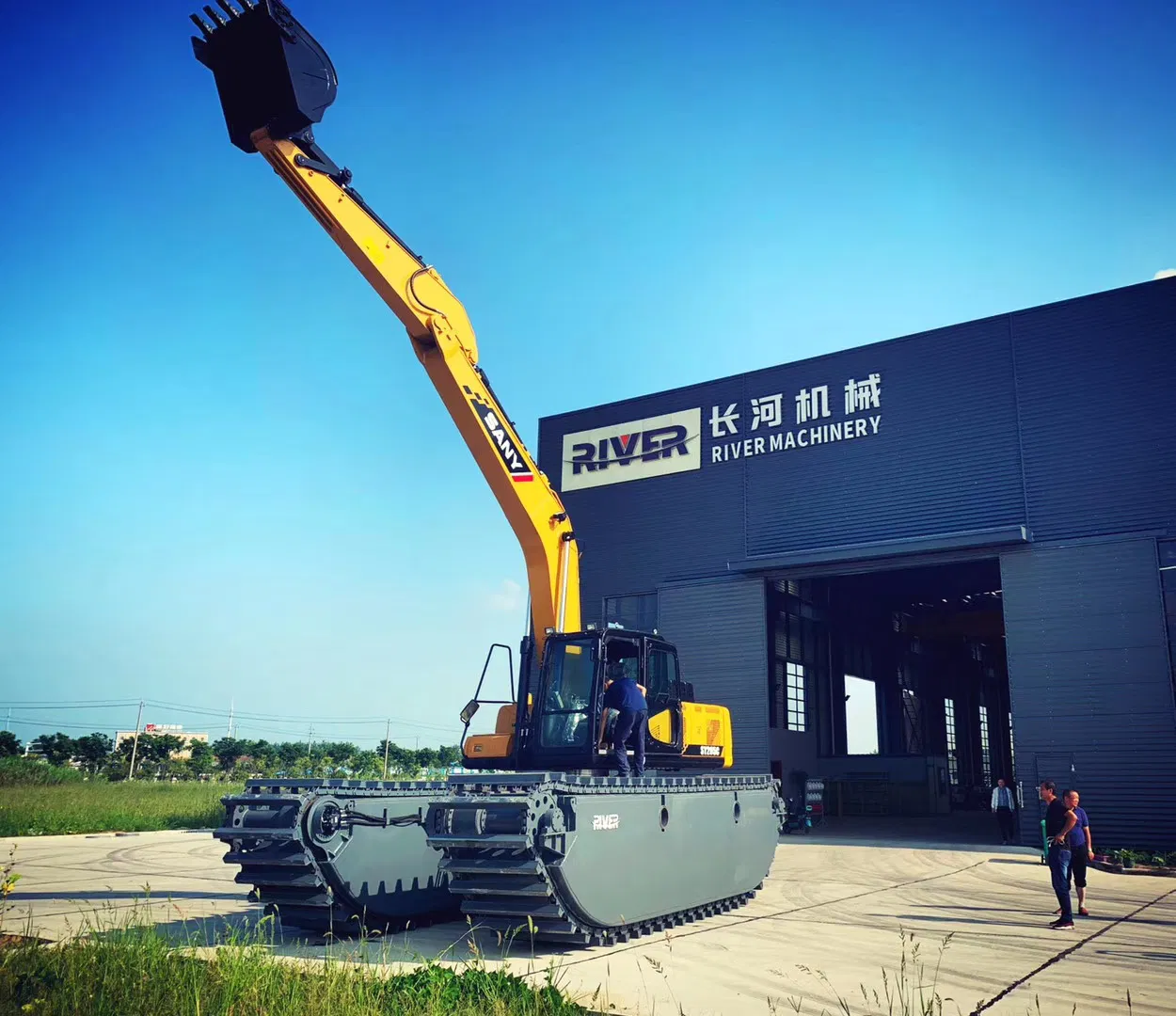

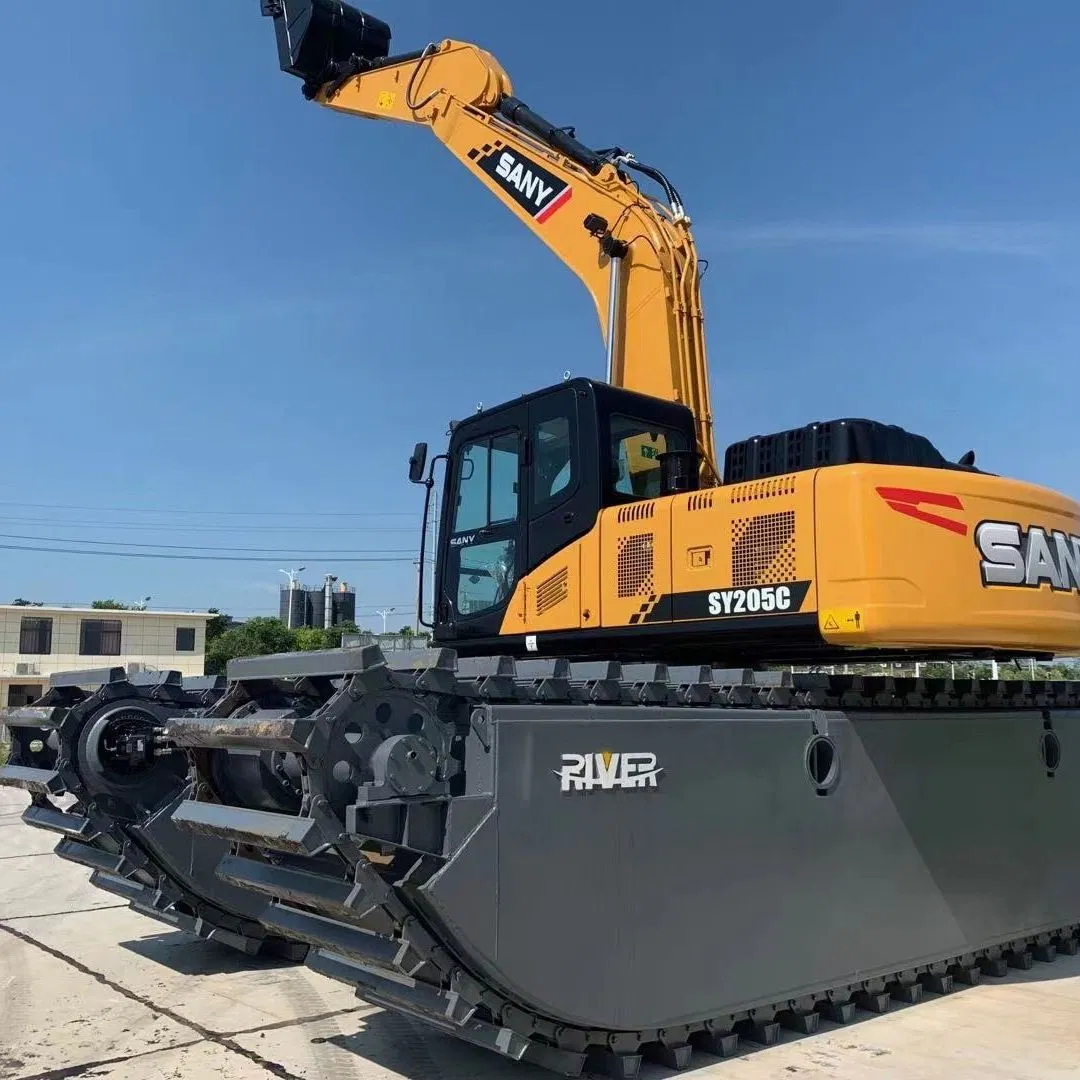

Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
1 / 5
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon
Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon

Sy205c Amphibious Excavator Swamp Buggy Underwater Excavator with Floating Pontoon

Customization: Available
After-sales Service: Available
Warranty: 18 Months
Send Inquiry

Product Description

Basic Specifications

Model NO.
SY205C
Type
Crawler Excavator
Usage
Special, Marine, Mining
Transmission
Hydraulic
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Operation Weight
30 Ton
Moving Type
Crawler

Product Overview

SY205C Amphibious Excavator - Genuine Quality for Dredging Projects

SY205C Amphibious Excavator

Technical Specifications

Technical Data of SY205C
Model Parameters Unit Value
Operating weightKg30500
Boom and stick lengthmm13000
Bucket capacitym³0.5
Working Scope
Max digging radiusmm14360
Max digging heightmm14690
Max digging depthmm9750
Engine & Performance
Engine Model/ISUZU JAPAN 4M50
Rated power/speedKw/rpm118/2000
Driving speedkm/h4~2.3
Ground specific pressurekPa22.8

Main Applications

The SY205C amphibious excavator is a Tier IV emission standard machine designed for challenging environments.

1
Wetland Restoration: Reshaping terrain and removing invasive species in marshy areas.
2
Dredging Operations: Clearing sediment from rivers, lakes, and ponds efficiently.
3
Aquaculture Construction: Building ponds and access channels for aquaculture infrastructure.
4
Flood Control: Managing water levels and reinforcing embankments during flood events.
5
Environmental Remediation: Removing contaminated soil from water bodies safely.

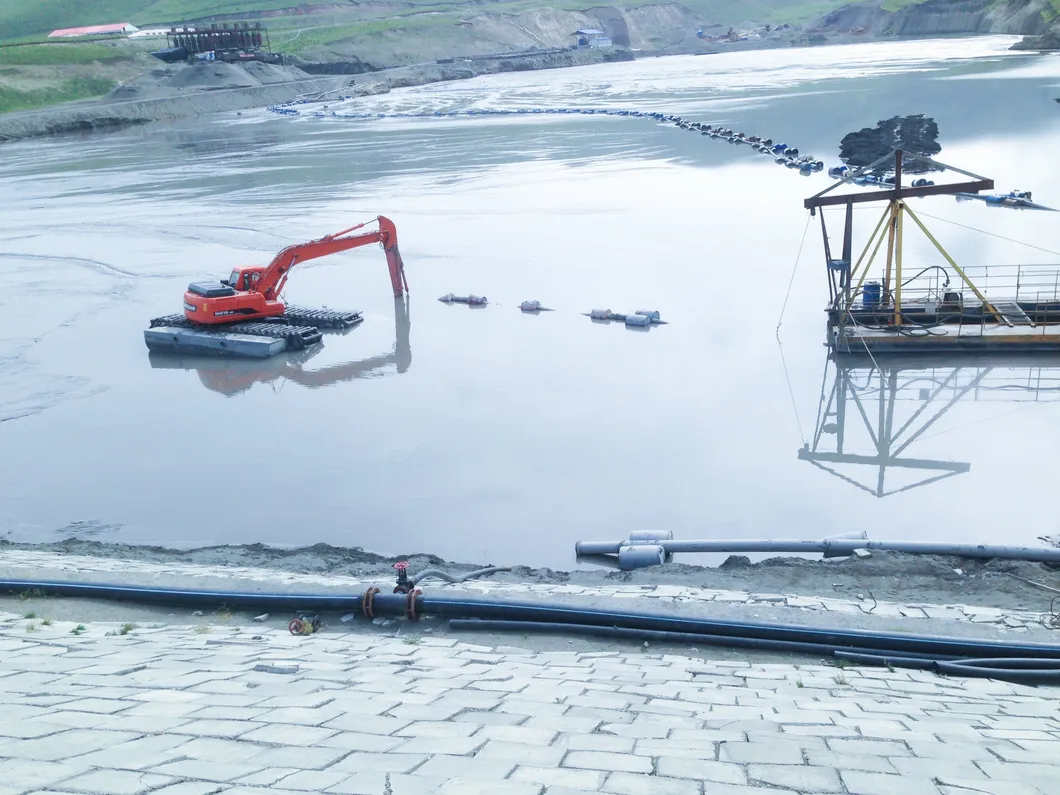

SY205C Operation

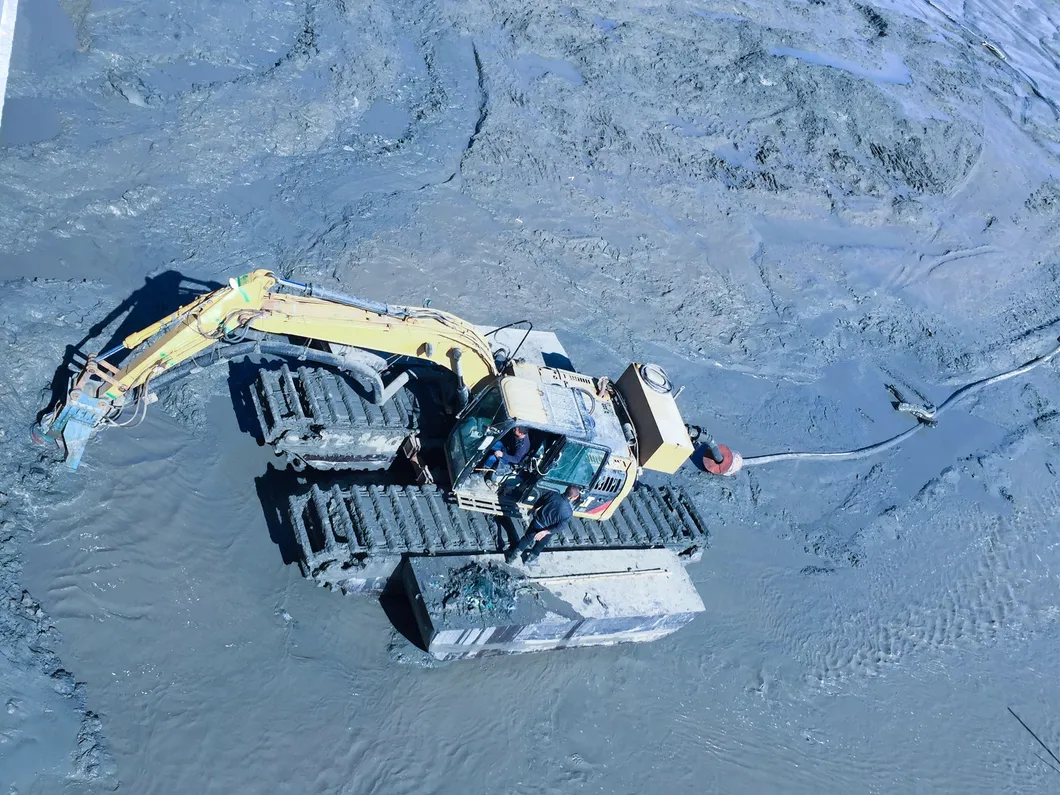

Amphibious Excavator Front View

Advantages & Customization

We offer specialized amphibious undercarriages compatible with 5 to 50-ton excavators. The long reach front can be customized to 11m, 13m, 15m, or even longer depending on project needs.

Swamp Buggy Design

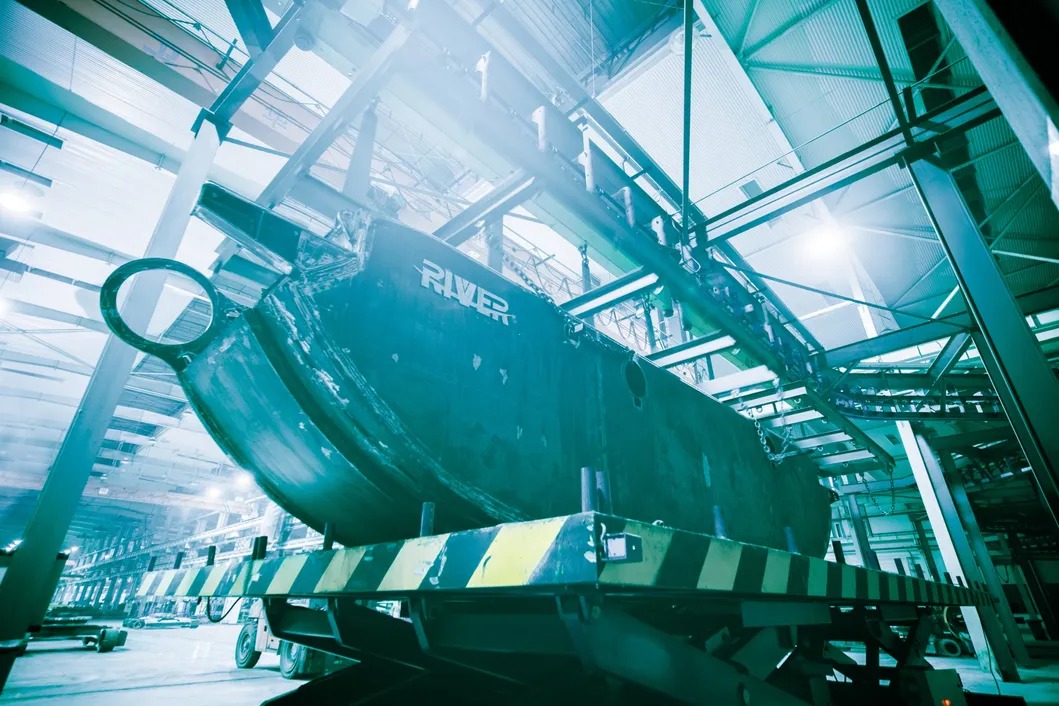

Pontoon Undercarriage

Lightweight Pontoon Undercarriage

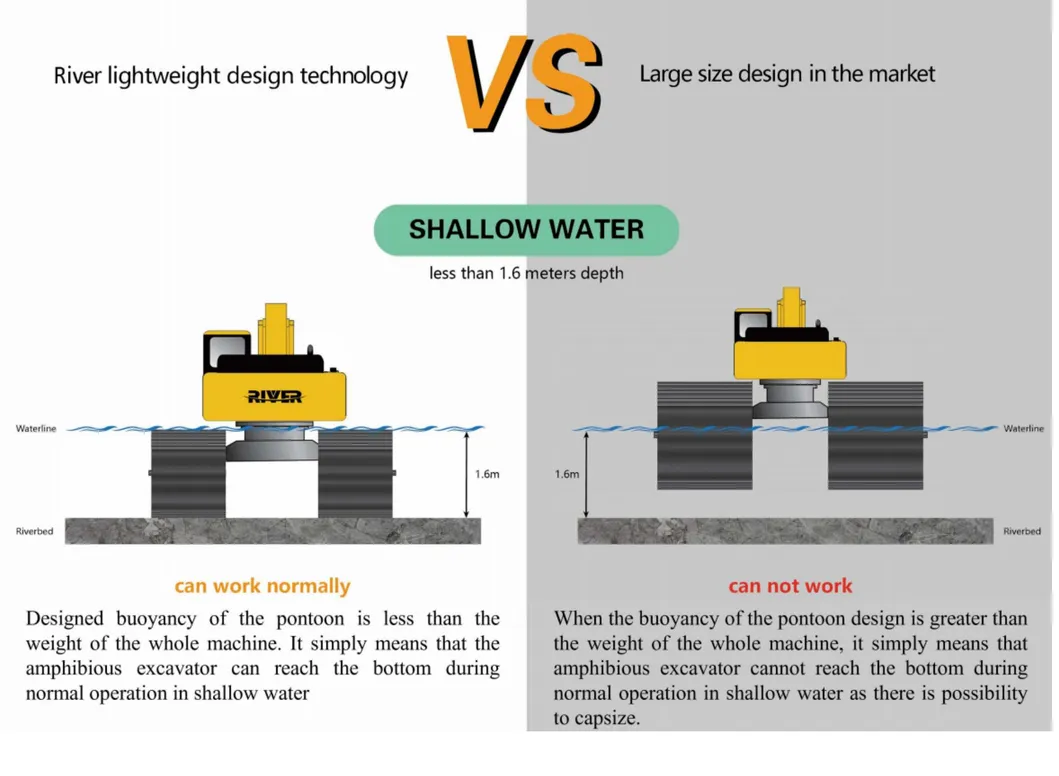

Design Advantage

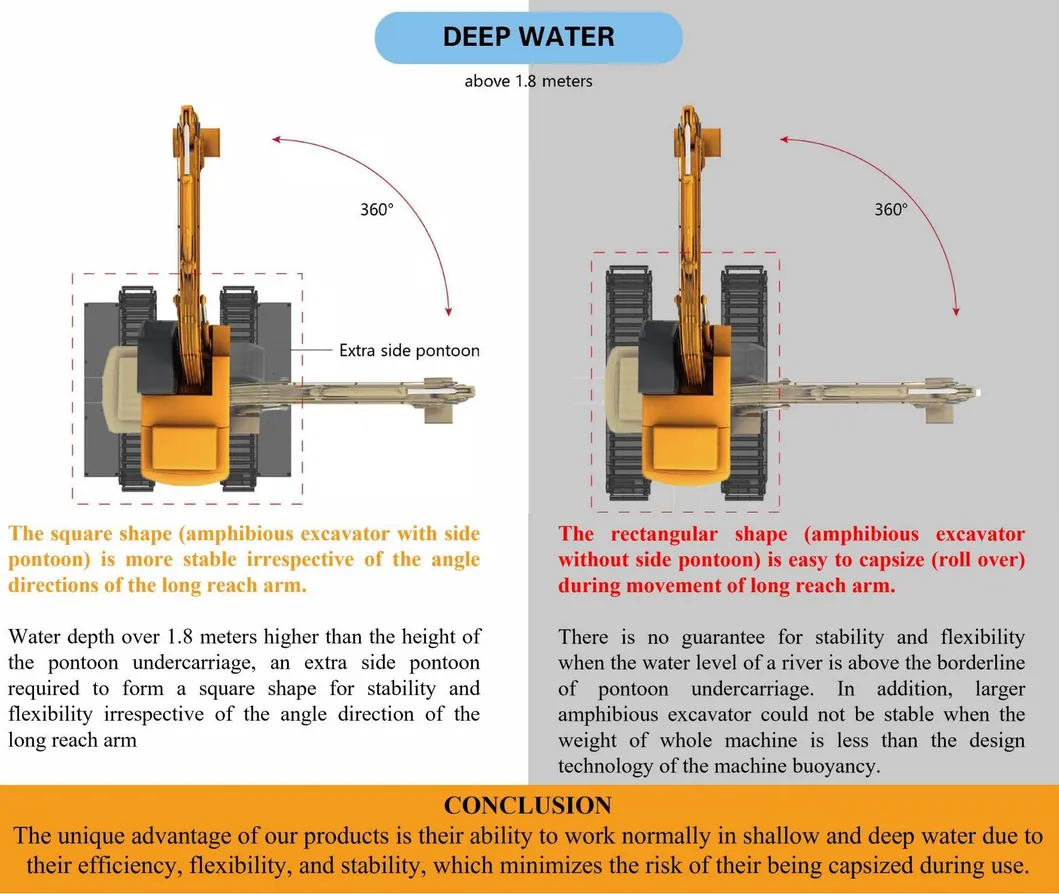

Undercarriage Detail

Manufacturing & Global Cooperation

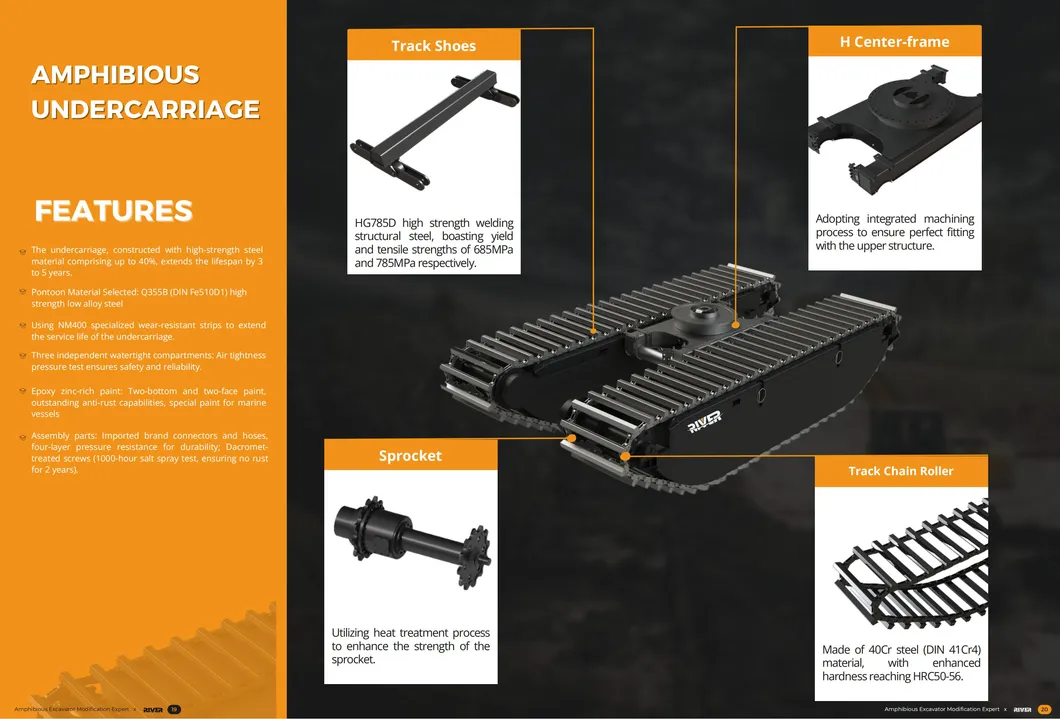

Key Components
Supported Brands
Production Process
Global Clients

Frequently Asked Questions

What are the primary uses for the SY205C amphibious excavator?
It is primarily used for dredging, land reclamation, swamp and wetland construction, waterway clearing, and environmental restoration projects.
Can the arm length be customized?
Yes, while the standard extended arm is 11 meters, we can customize the length to 13m, 15m, or longer to meet specific digging requirements.
What engine is equipped in this model?
The SY205C is equipped with a high-performance ISUZU JAPAN 4M50 engine, meeting Tier IV emission standards.
What optional attachments are available for stability?
We offer optional side pontoons and positioning piles (spuds) to enhance stability and safety during deep-water operations.
What is the ground pressure of this machine?
The SY205C features a low ground specific pressure of approximately 22.8 kPa, allowing it to operate on soft terrain and swamps without sinking.
Do you provide undercarriages for other brands?
Yes, we provide specialized amphibious undercarriages that are compatible with various major excavator brands within the same weight range.
