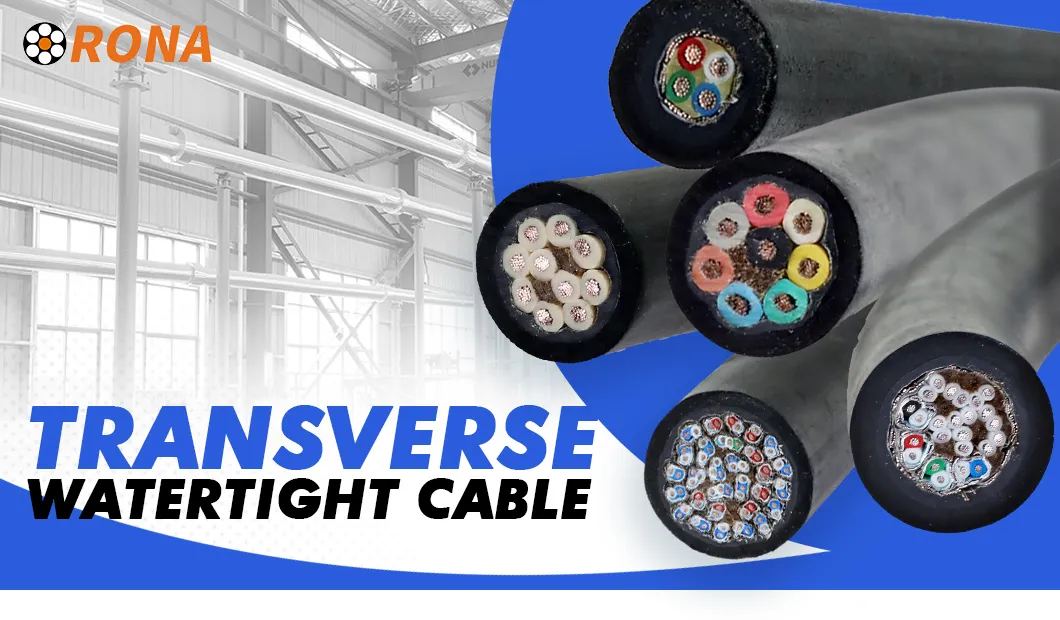

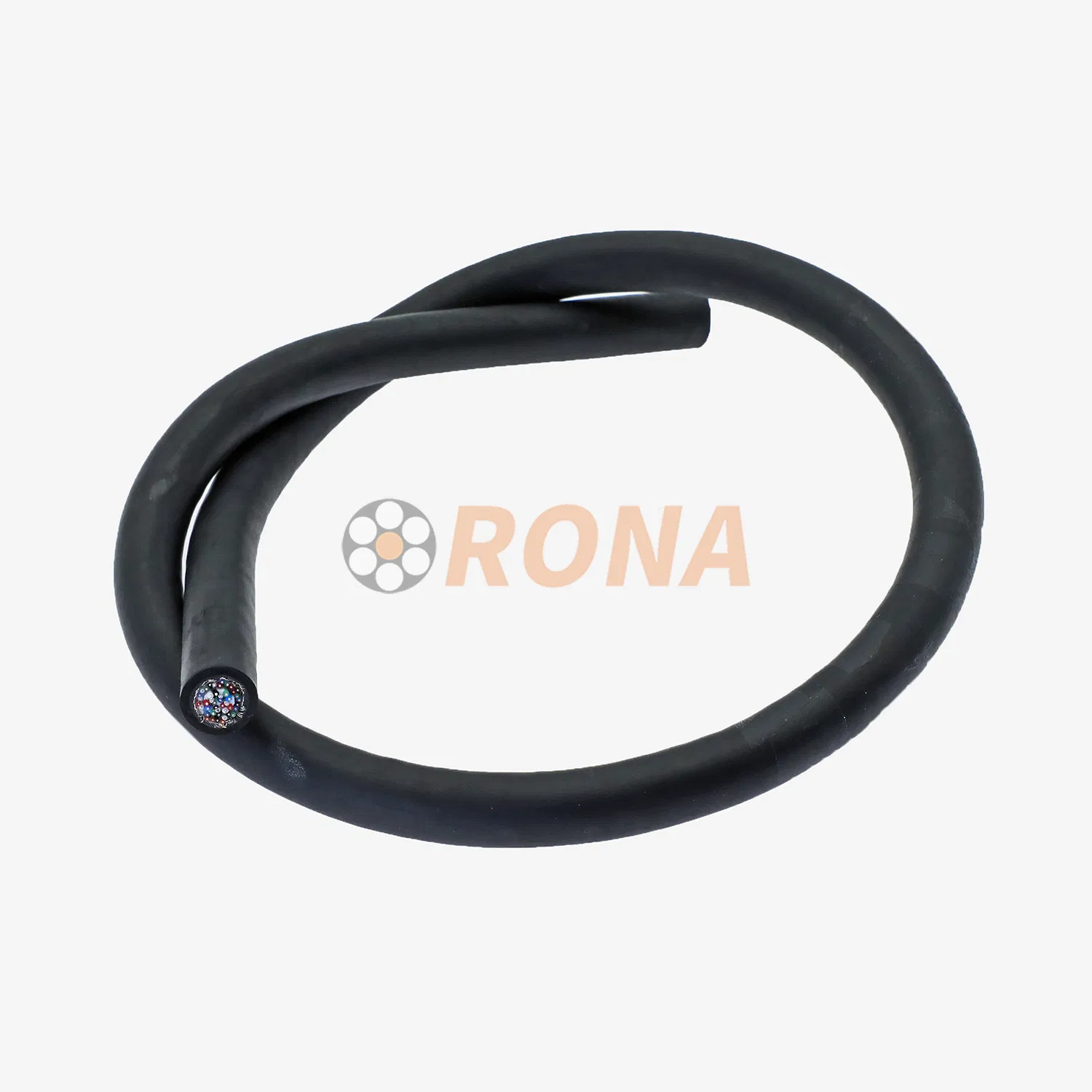

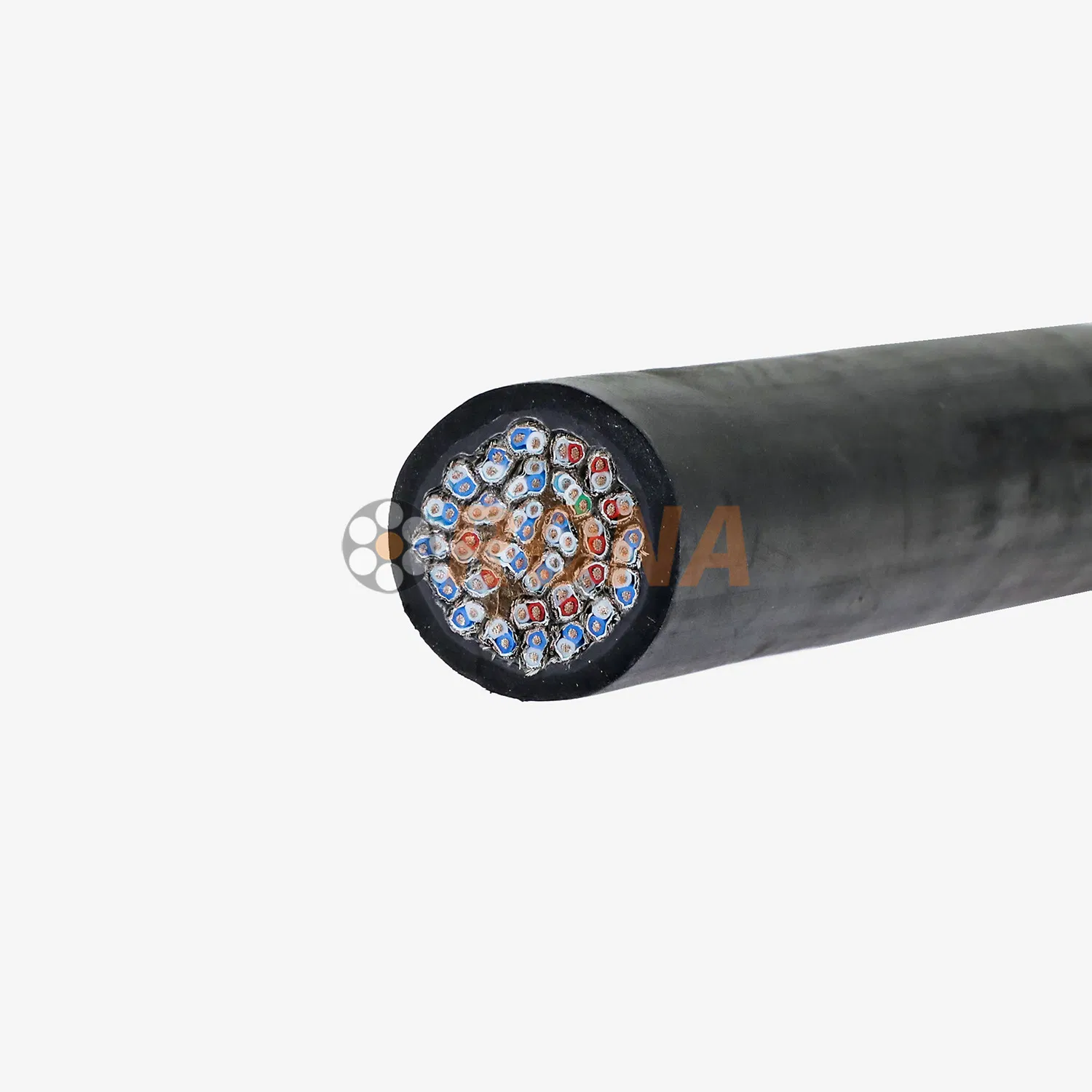

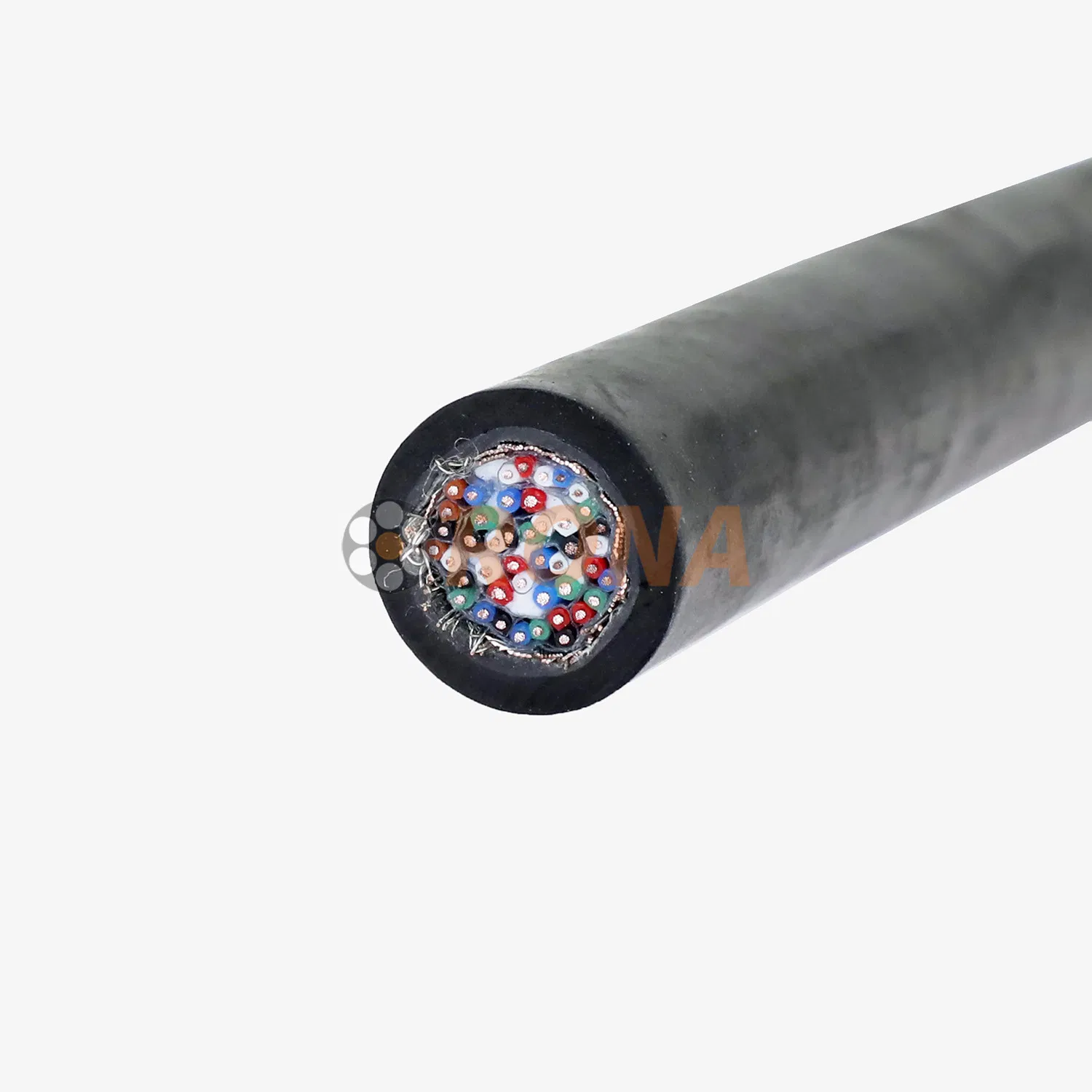

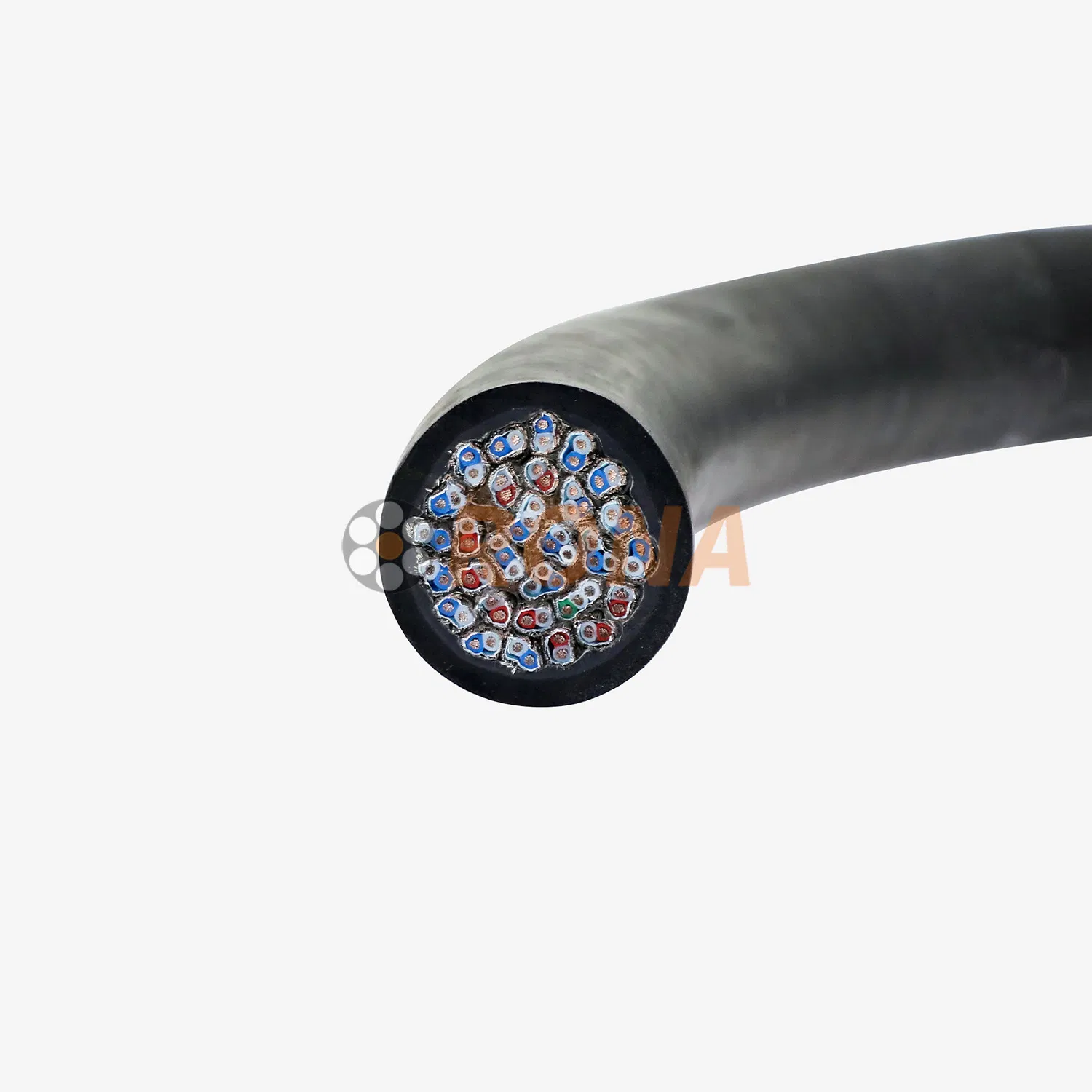

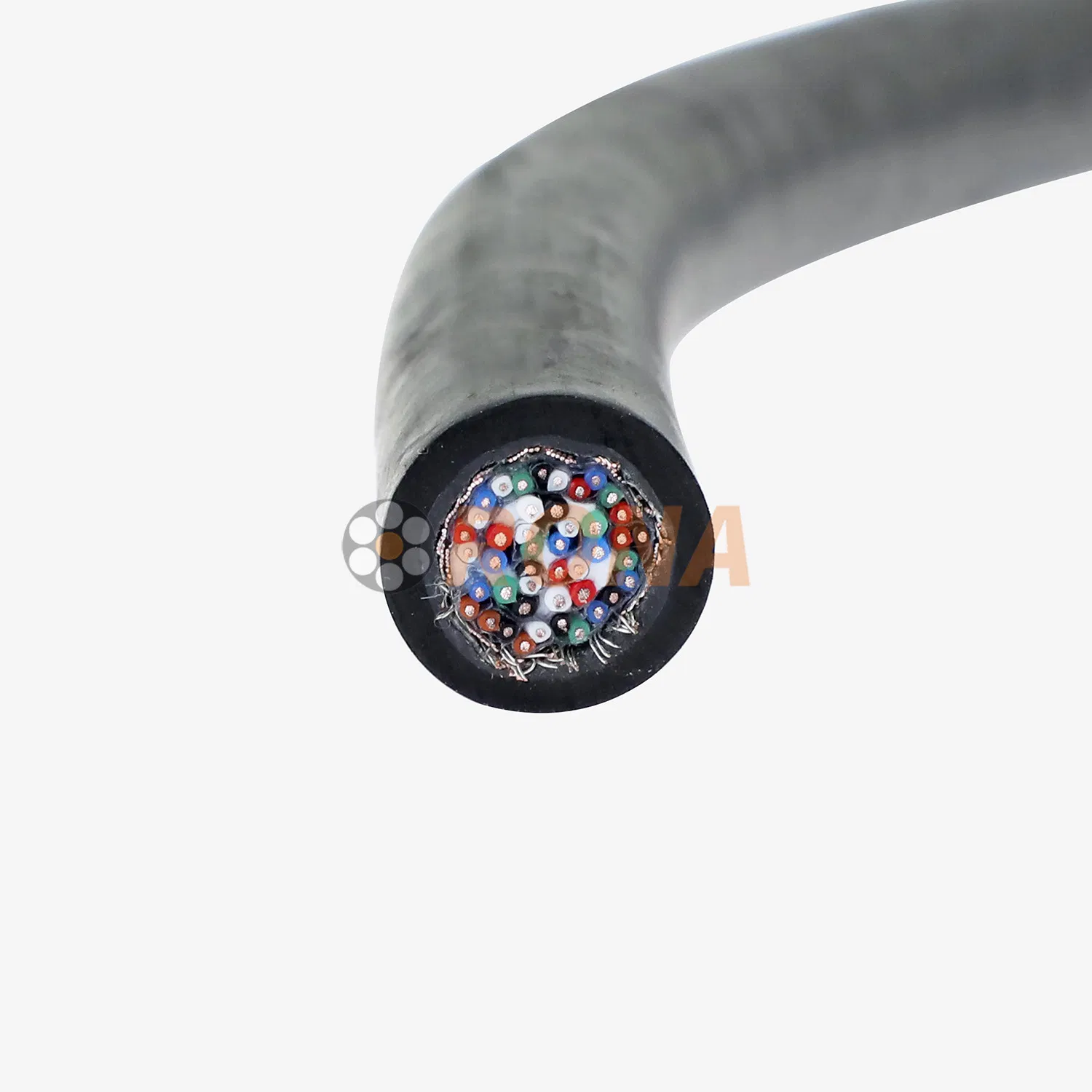

Watertight Cables are essential components for underwater environments, categorized into longitudinal and transverse watertight designs. These include power, coaxial, signal, control, and optical composite cables.
Primary Applications: Designed for underwater robotics, cameras, thrusters, sonar systems, and other marine equipment requiring reliable electrical connections and signal transmission at depth.
| Parameter | Standard Value |
|---|---|
| Rated Voltage | Control: 300/500V | Power: 0.6/1KV |
| Temperature Range | Fixed: -40ºC to 90ºC | Moving: -35ºC to 90ºC |
| Min. Bend Radius | Fixed: 5x Outer Diameter | Movable: 10x Outer Diameter |
| Flame Retardant | Compliant with IEC 60332-1 |
| Resistance Properties | Water, UV, and temperature change resistance |
| Cable Nominal Cross Section (mm²) |
(1~64)*0.25, (1~64)*0.35, (1~64)*0.5, (1~64)*0.75, (1~64)*1 (1~64)*1.5, (1~64)*2.5, (1~10)*4, (1~10)*6, (1~5)*10 (1~5)*25, (1~5)*35, (1~5)*50, (1~5)*70, (1~5)*95 (1~37)*2*0.14 to (1~37)*2*1.5 |
Our high-performance flexible industrial cables are engineered for the most demanding environments:
